Euromaid ICF9BLS Manuale utente

MODEL

ICF9BLS

900mm

Island Canopy

Manual

Installation and Operation

CANOPY

INSTALLATION

AND OPERATION

MANUAL

Dear Customer,

We thank you for choosing this quality appliance and hope you enjoy many

years of reliable service.

Please ensure this manual is read carefully before installation and use. Keep

this manual in a safe and accessible location should future reference be

required.

Regards

Home Appliances

CONTENT

2……………………………………….Notice

3……………………………………….Feature

4………………………………………..Installation

6………………………………………..Notice of installation

6………………………………………..Safety Warning

7…………………………………………Use

8…………………………………………Maintenance

9…………………………………………Abnormity and Solution

NOTICE

1. Thank you for choosing our cooker hood. Please read the

instruction manual carefully before use.

2. The installation work must be undertaken by a qualified and

competent fitter.

3. The manufacturer disclaims all liability for any damage or

injury caused as a result of not following instructions for

installation contained in the following text.

The cooker hood is used on 220/240v, 50Hz.

(2)FEATURE

1. The cooker hood uses high quality materials, and is made with a

streamlined design.

2. Equipped with a large power low noise electric motor and

centrifugal leaf, it produces strong suction, low noise, non stick

grease filter and easy to clean.

3. Special wind tunnel construction and oil collector design, free

dirt will be absorbed in a second.

(3) INSTALLATION

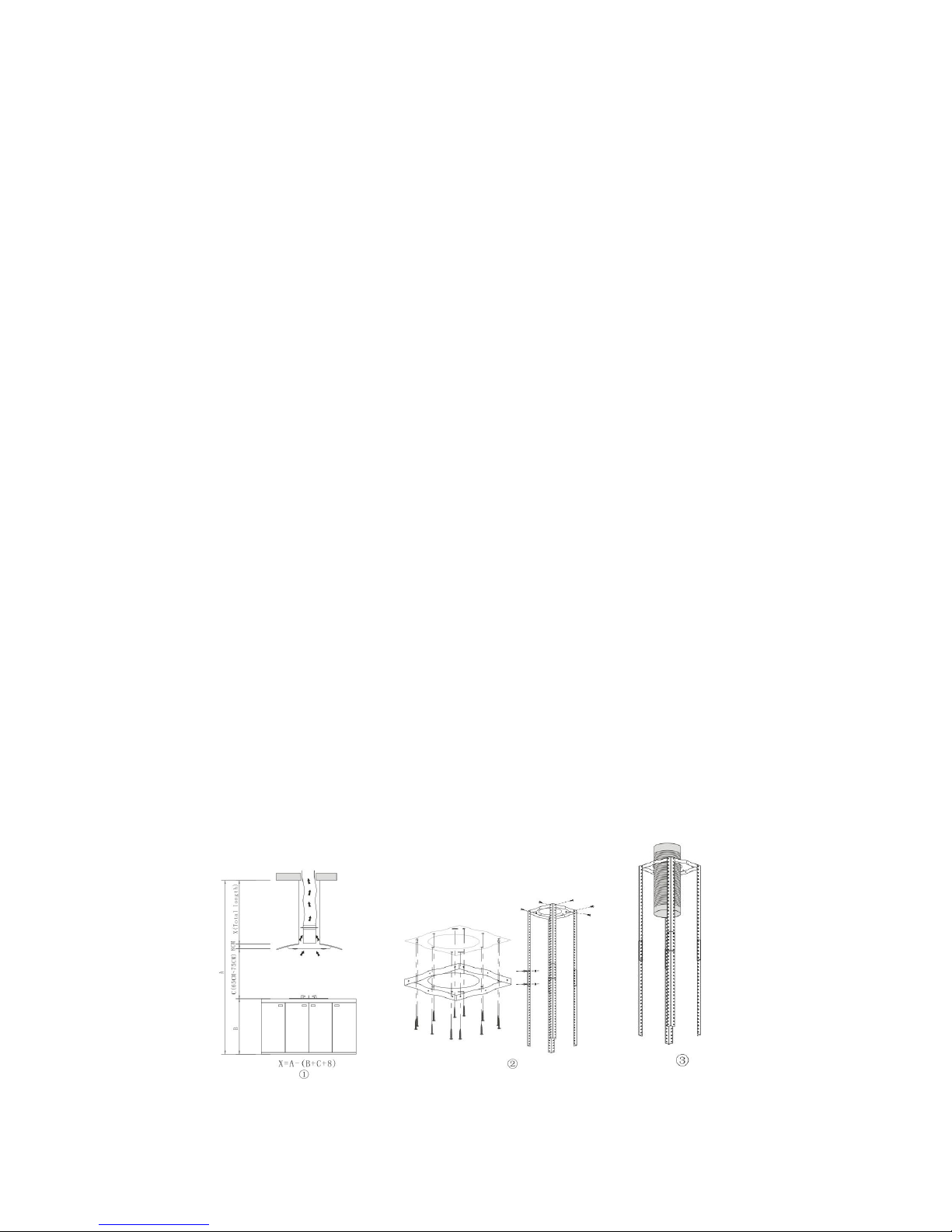

1. The ceiling must can bear at least 40kgs weight, and the

thickness of the ceiling must be 30MM, see pic 2, drill

1*170mm round hole in the ceiling.

2. According to the hanging board, drill 12 holes in the ceiling, see

pic 2, 12pcs of ST6*40mm big flat screws will be used to fix the

hanging board on the ceiling, and then 8pcs of M4*10 screws

and M4 nut with gasket will be used to connect the angle iron

into the hanging board, see pic 1, calculated the length of the

angle iron, and 16pcs M4*10 big flat screws and M4 nut with

gasket will be used to connect the angle iron and another angle

iron ( the overlap length of angle iron can not less 100MM)

3. Let the one side of the extensible pipe go outside through the

hole of 170MM, see pic 3.

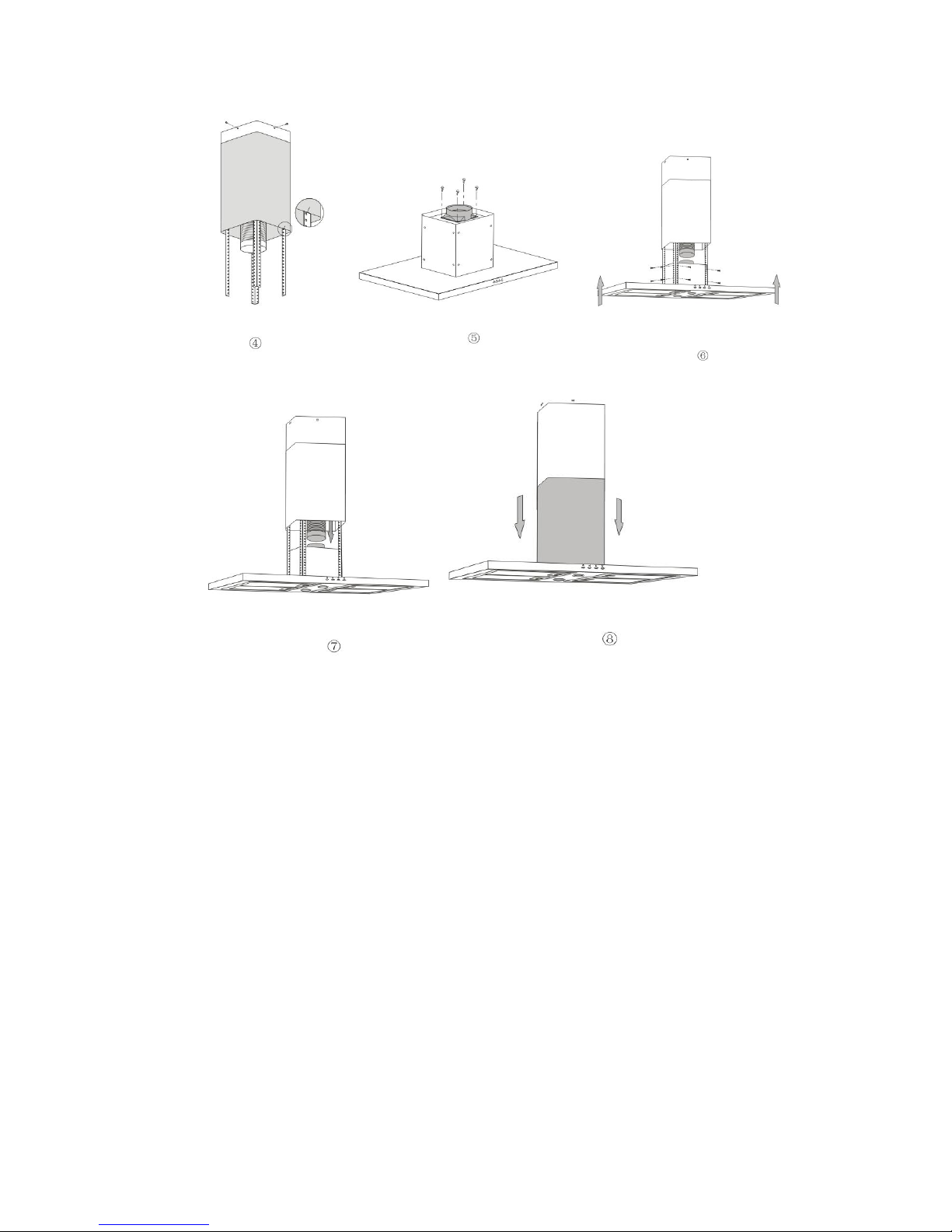

4. 4pcs ST4*8 big flat screws will be used to connect the internal

chimney into the hanging board, then put one the external

chimney, two hooks will be used to put up the external chimney

in order to the next installation, see pic 4.

5. 4pcs ST4*8 big flat screws will be used to install the outlet, see

pic 5.

6. Hold up the hood, 16pcs M4*10 big flat screws will be used to

connect the hood body into angle iron, see pic 6.

7. Put the extensible pipe on the outlet; after ensure all the things

ok, put down the hook, take from the external chimney, all the

installation is finished, see pic7& 8.

Warning: Failure to install the screws or fixing device in accordance with these

instructions may result in electrical hazards

(4) NOTICE OF INSTALLATION

1. Before installation, please ensure the area is clean to avoid

suction of the remaining bits of broken wood and dust.

2. It cannot share the same air ventilation tube with other

appliance such as gas tube, warmer tube, and hot wind tube.

3. The bending of ventilation tube should be≥120°, parallel or

above the start point and should be connected to the external

wall.

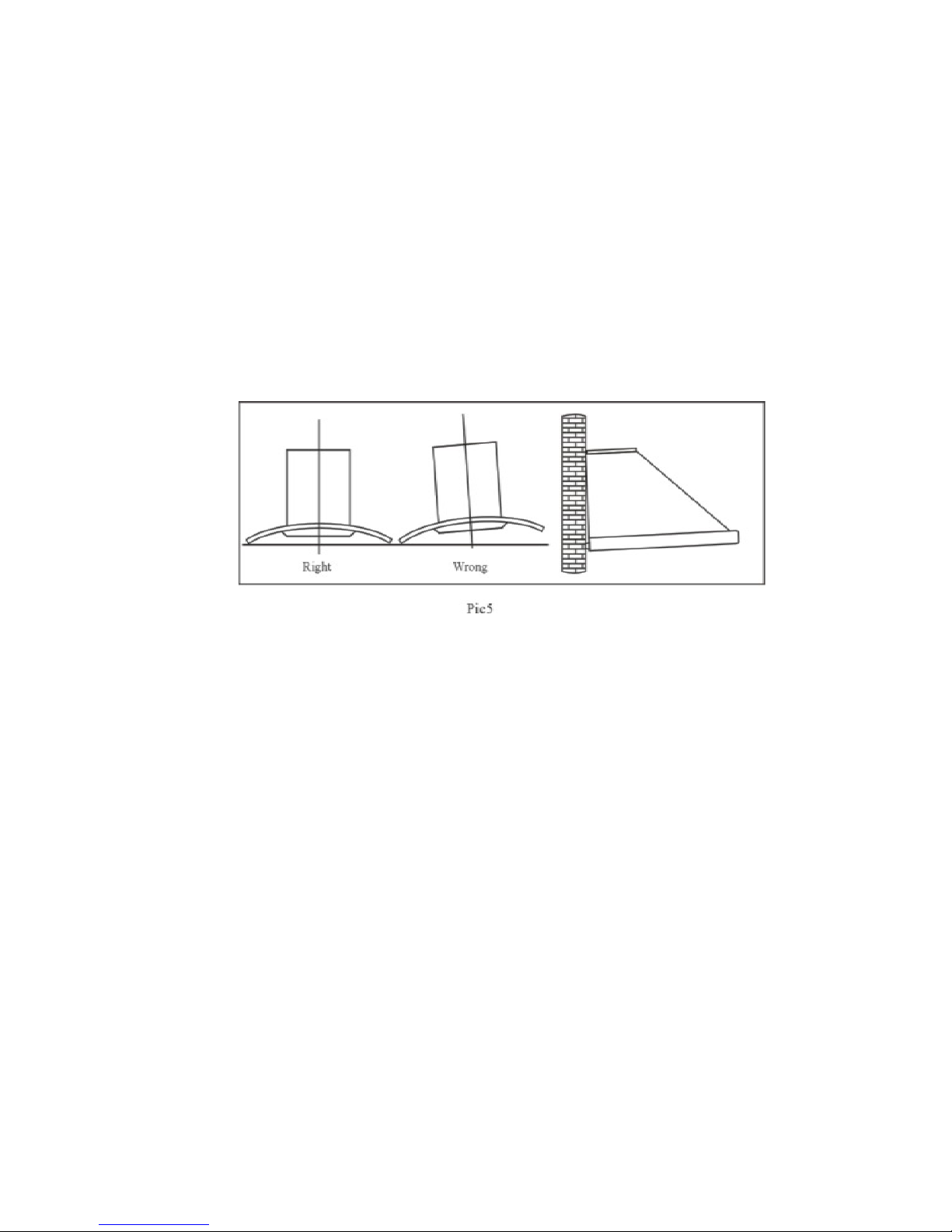

4. After installation, make sure that the extractor is level to avoid

grease collection at one end.

(5) SAFETY WARNING

•Never let the children operate the machine

•The cooker hood is for home use only, not suitable for

barbecue, Roast shop and other commercial purpose.

•Please ask the technical person to do the assembling.

•The cooker hood and its filter mesh should be clean regularly

in order to keep in good working order.

•Before cleaning, please switch the power off at the main

supply.

•Clean the cooker hood according to the instruction manual and

keep the cooker hood from the danger of burning.

•If there is any fault with the appliance, please call the service

department to arrange a service engineer.

CAUTION: Accessible parts may become hot when used with

cooking appliances.

（6）USE

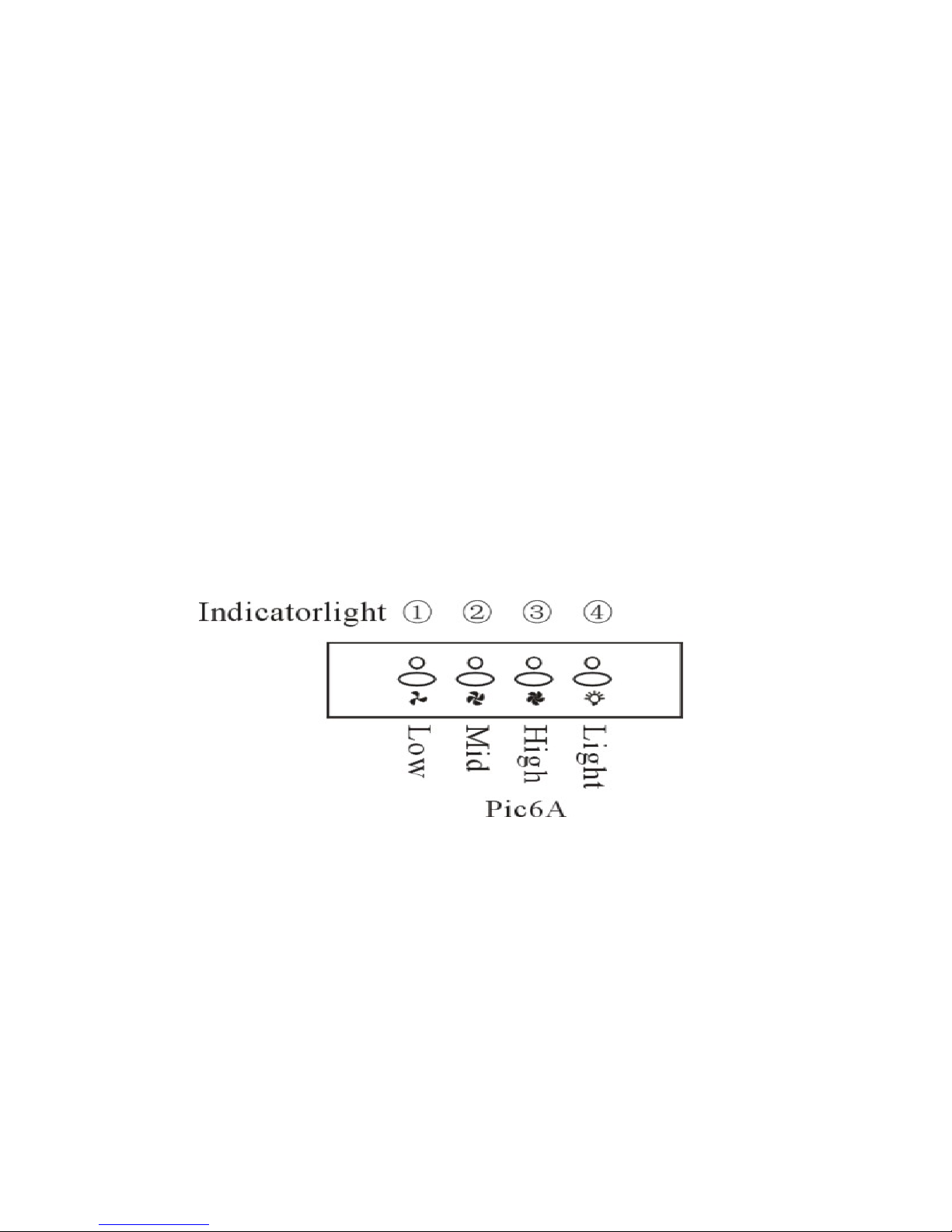

Electronic Button

1. Turn on the power; the buzzer will buzz five times. The sound shows that

the appliance is powered.

2. Push the low button, the indicating light 1 on, the buzzer will buzz once,

and the motor runs at low speed. Push it again and the motor will stop.

3. Push the middle button, the indicating light 2 on, the buzzer will buzz

once, and the motor runs at mid speed. Push it again and the motor

will stop

4. Push the high button, the indicating light 3 on, the buzzer will buzz

once, and motor runs on high speed. Push it again and the motor will

stop

5. Push the light button; the indicating light 4 on, and the two lighting

lamps will come on. Push it again and the lamps will turn off, with every

push the buzzer will buzz one time.

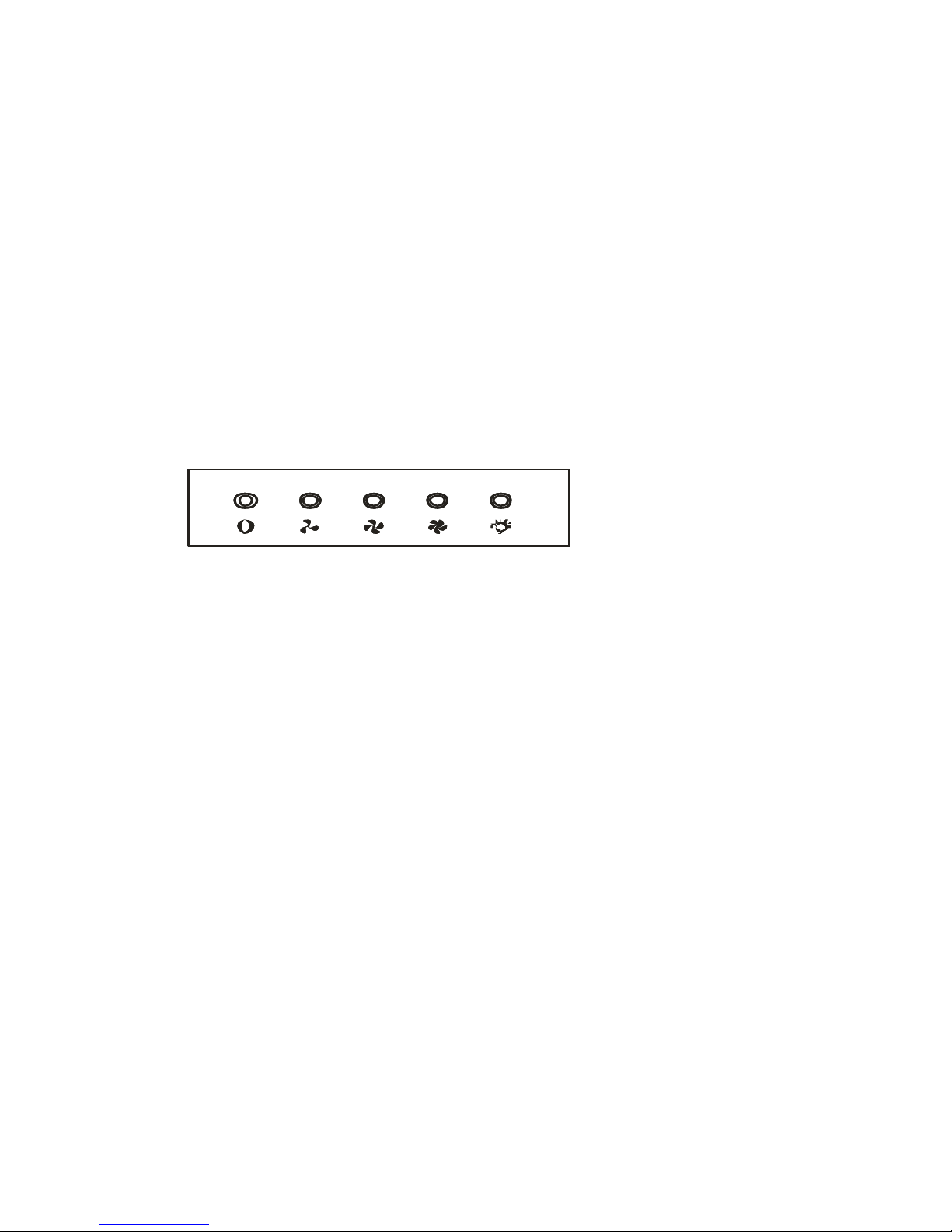

Push button

1. Push stop button, and the motor will stop.

2. Push the Low button, the buzzer will buzz once, and the motor runs at low

speed.

3. Push the Mid button, the buzzer will buzz once, and the motor runs at mid

speed.

4. Push the High button, the buzzer will buzz once, and the motor runs at high

speed.

5. Push the light button and the two lights will come on. Push it again and the

light will turn off.

pic6C

Low

Mid

High

Light

Stop

pic6C

Low

Mid

High

Light

Stop

pic6C

Low

Mid

High

Light

Stop
