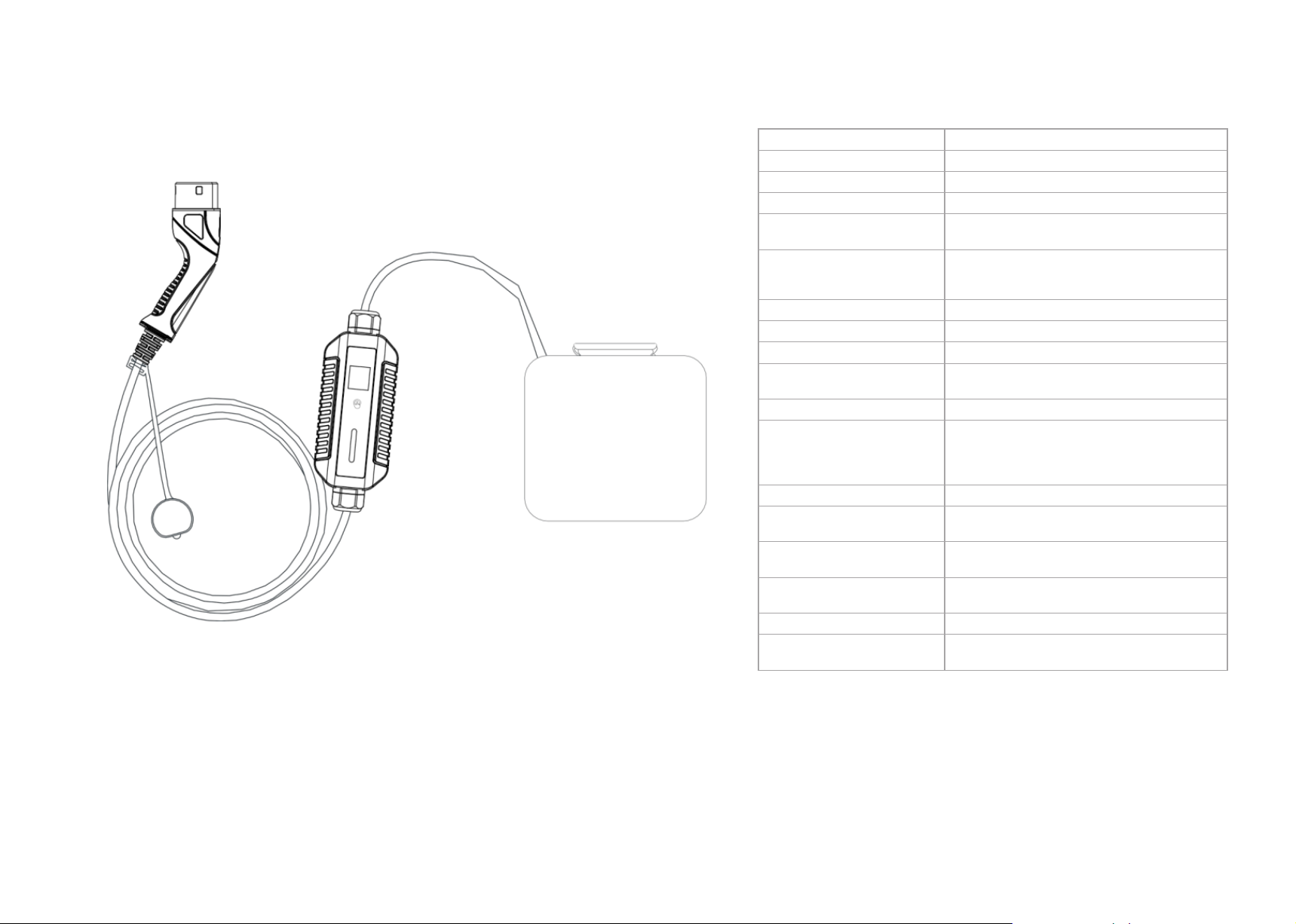

EVB EVB-LP22B Manuale utente

EVB

EV 22kW AC

portable

charger

IMPORTANT

PLEASE READ THESE OPERATING INSTRUCTIONS BEFORE USING THE DEVICE! FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN

PERSONAL INJURY, DAMAGE TO THE DEVICE, ENVIRONMENTAL DAMAGE OR OTHER SERIOUS PROBLEMS. KEEP THESE OPERATING INSTRUCTIONS IN

A SAFE PLACE WITH THE CHARGING DEVICE.

SAFETY INFORMATION

►Use the EV portable charger only within the specified operating parameters.

►The EV portable charger must be used in the socket specified in the design, and the socket is fixed. Do not use an extension cord.

►Do not plug the portable EV charger into a power outlet that is not properly grounded.

►Do not use EV portable charger adapters in outlets for which they are not intended.

►Do not open, disassemble, repair, tamper with or modify the mobile connector.

►The connector is not intended to be serviced by the user.

►Do not use (or stop using) a portable EV charger if it is defective, cracked, frayed, broken, damaged, or inoperable.

►Do not unplug the portable EV charger from the wall outlet while charging the vehicle.

►Do not plug the portable EV charger into a damaged, loose or worn electrical outlet. Make sure that the pins of the portable EV charger fit

snugly into the outlet.

►Do not use the portable EV charger when you, the vehicle or the portable EV charger are exposed to heavy rain, snow, electrical storm or

other adverse weather conditions.

►Do not immerse the charging device in water and do not expose it directly to a stream of water (such as from high-pressure washers or

garden hoses).

►Do not touch the end terminals of the portable EV charger with sharp metal objects such as wire, tools or needles. Do not forcibly fold any

part of the portable EV charger or damage it with sharp objects. Do not insert foreign objects into any part of the portable EV charger.

►Always protect the EV portable charger from moisture, water and foreign objects. If you find or suspect corrosion or damage to the

portable charger, do not use it.

►Clean the EV portable charger only when it is completely disconnected from the mains and the vehicle. Use the supplied cloth to clean it,

then dry all parts thoroughly.

►Do not let children play with the packaging or charging device.

Working power 400V +/- 10%,50Hz +/- 2%

Scenes Indoor/Outdoor

Height (m) ≤2000

IP IP66

Button Switching current, cycle display, notorious new

charging delay

Switching current It can meet three-phase AC charging of 32A, and

the current can be switched between 8A, 10A,

13A, 16A, 20A, 24A, 32A.

Operating temperature -25~50°C

Storage temperature -40~80°C

Environmental humidity <93<>%RH +/- 3%RH

External magnetic field Earth's magnetic field, not exceeding five times

the Earth's magnetic field in any direction

Distortion of the sine wave Not more than 5%

Security Excessive current 1.125In, excessive and insuf-

ficient voltage ~15%, excessive temperature ≥

70°C, reduce to 6A to charge and stop charging

when >75°C

Protection against leakage Type B, AC 30mA + DC6mA

Temperature control "1. Input plug cable temperature detection

2. Relay or internal tem- perature detection"

Ungrounded security Evaluation of the push-button switch allows

charging without ground or PE is not connected.

Welding alarm Yes, the relay fails after welding and blocks- it

charging

Control Opening and closing relay by relay

LED Tri-color LED indicator for power, charging and

failure

SCHEME SPECIFICATIONS

ADJUST CURRENT: tap for 2 seconds until all green LEDs start flashing,

then click to select current, choose from 6A to 32A.

CHARGING DELAY TIME: Click to set the charging delay time from

0 to 5 hours (each click adds 0.5 hours).

METERING RESET: Press and hold the button for more than 5 seconds

to reset the accumulated charging power.

1. EV and power connection

2. Charged power supply

3. Charging time or delay

4. Current (selected)

5. Error alert

6. Power unit

7. Charging delay icon

8. Charging cycle

CONFIGURATION MANUAL

INFORMATION ON THE LCD SCREEN

ADJUST CURRENT: tap for 2 seconds until all green LEDs start flashing,

then click to select current, choose from 6A to 32A.

CHARGING DELAY TIME: Click to set the charging delay time from

0 to 5 hours (each click adds 0.5 hours).

METERING RESET: Press and hold the button for more than 5 seconds

to reset the accumulated charging power.

1. EV and power connection

2. Charged power supply

3. Charging time or delay

4. Current (selected)

5. Error alert

6. Power unit

7. Charging delay icon

8. Charging cycle

STATUS OF LED DISPLAY

Status

LED display status

Red Green 1 Green 2 Green 3

Available power

supplies

Current indication

10A

13A

16A

20A

24A

32A

Linked Blink Blink Blink

Reserved Blink

Charging Bicycle lighting

Finishing

Fault Blink x time

HOW TO USE?

Step 1:

Plug the plug of the portable EV charger

into a suitable electrical outlet.

Step 4:

Check the display to make sure the charger

turns on normally.

Step 2:

Select the current and charging delay time

as required.

Step 5:

Remove the plug from the outlet after char-

ging is complete.

Step 3:

Connect the cable of the portable charger

to the electric po- ride to start charging.

Step 6:

Disconnect the power plug from the wall

outlet, store it in a storage bag for conve-

nient use.

ERROR CODE AND TROUBLESHOOTING

►If there is a fault, the charger will stop generating current and will not charge.

►Charging should be resumed after the fault is checked and corrected.

LED status Reason LCD error code Solution

Flash 1 time RCD leakage protection 1 Switch off and check the electric car and charger

Flash 2 times Excess current 2 Turn off and check your electric car

Flash 3 times Grounding (PE) Disconnection 3 Turn off the power and check the distribution network

Flash 4 times Over-voltage / under-voltage 4 Turn off the power and check the distribution network

Flash 5 times Welding fault 5 Please contact the manufacturer

Flash 6 times CP voltage error 6 Check that the connector is tight

Flash 7 times Excessive temperature 7 Check the heat dissipation of the case

Flash 8 times Loss of diode 8 Check EV CP diodes

Current control "Touch

for 2 seconds until all green LEDs start flashing, and n then click the button to select the current from 6A to 32A."

Delayed charging

time

"Click

to set the delay time ła ania from 0 to 5 hours"

Standard IEC62196-2IEC62752

Real-time monitoring includes welding detection, temperature detection, PE connection detection, overvoltage detection, overcurrent detection

and CP voltage detection, any failure will be displayed according to the above table.

MAINTENANCE AND CLEANING

CLEANING

►Disconnect the portable EV charger from the power outlet and the vehicle.

►Clean the device from the outside only. Use a soft, slightly damp or anti-static cloth.

►Do not use detergents or chemicals to clean the device.

CONSERVATION

►Connectors are sensitive, high-performance parts, and their contacts must always be clean and dry. Corrosion of the contacts can lead to

malfunctions, overheating or device failures.

►If the plugs get wet, let them dry before use. Always put protective caps on the device when it is not plugged in.

REPAIR/MODIFICATION

►Any repairs and/or modifications may only be performed by the manufacturer.

►Never open the case or make any changes to the EV charger and control box yourself.

WASTE DISPOSAL AND RECYCLING

Please sort your waste!

Recycling

Do not dispose of this device with standard household waste. European Directive 2012/19/EU applies to

this device. Have the device disposed of by an authorized waste disposal and recycling company and the

local waste management authority. The relevant regulations must be observed. If in doubt, contact a waste

disposal facility.

Recyclable goods: Separate packaging and electrical equipment by material type for disposal. Take all

cardboard and corrugated cardboard to paper recycling, foil and film to a waste collection point, and

electronic components to a specialized electrical store or local recycling point for disposal

EXPLANATION OF SYMBOLS (IN THIS MANUAL AND/OR ON THE CHARGING DEVICE)

CONTACT

MOBILE: +48 696 673 646

E-MAIL: OFFICE@EVBGROUP.PL

WWW.EVBGROUP.PL
