CONNECTING THE LAUNDRY SINK TO THE DRAIN
1. Locate the current waste installed in your home, this could be coming through the floor or through the wall.

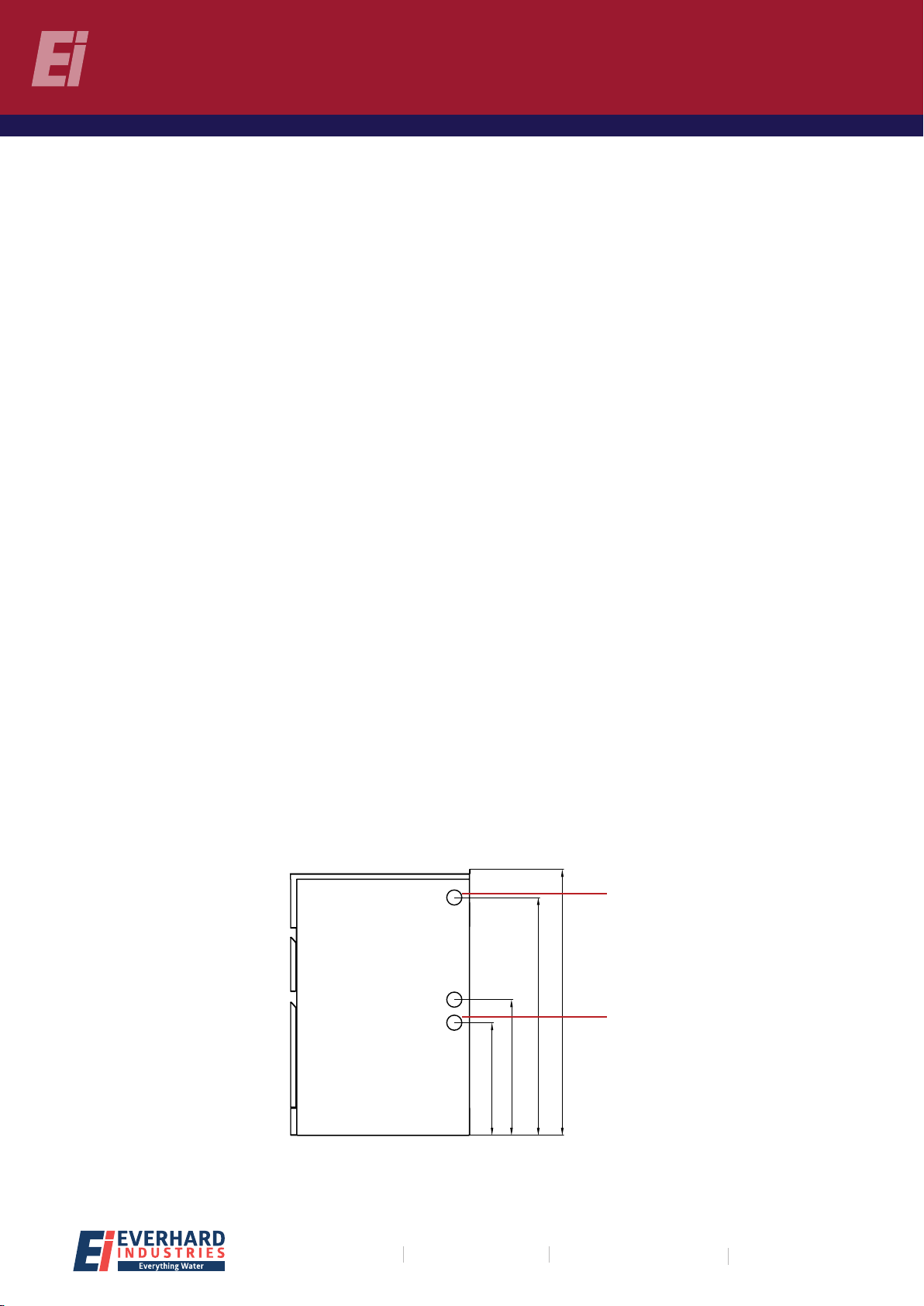

2. If through the floor, you may require to offset the 50mm waste pipe towards the back of the unit. Underneath the
bottom drawer there is a 100mm space. The drainage pipe can be installed underneath the bottom of the drawer
using 50mm Spigot to Socket 88 Degree PVC elbow.
3. Remove the drawers from the unit by pressing down the black lever on the front of the drawer runner to disengage
the drawer (refer to Removing Drawer instructions below).
4. Using 50mm DWV pipe, connect the existing drainage pipe using approved plumbing fittings to an approved
50mm PVC Trap. The 50mm PVC Trap (not included) is installed onto the bottom of the waste junction. Tighten by
hand.
5. Ensure the 50mm Trap has clearance around the bottom drawer so the drawer can slide outwards.
6. Reinstall the drawers onto the drawer runners (refer to Inserting Drawers instructions).
7. Test and ensure there are no leaks.
INSTALLING THE TAPWARE
1. Carefully remove the laundry sink (2) from the laundry unit (1) using protective gloves.
2. Install your chosen tapware onto the sink using the supplied tap bracket and seals. Follow the manufacturer’s
instructions on how to install the tapware.
3. Once the tapware is installed, place the laundry sink onto the laundry unit. Seal the top edge of the unit using a
suitable sealant prior to placing the laundry sink onto the unit.
ADJUSTABLE FEET INSTALLATION (OPTIONAL)
Adjustable Feet can be installed onto the Nugleam Drawer System Laundry Unit by using the Everhard Adjustable
Feet (97943). Remove the nut and washer from the thread of the adjustable feet and insert the threaded component
through the four holes located on the base of the laundry unit.
Place the washer and nut onto the threaded rod of the adjustable feet on the inside of the base of the unit and tighten.
Adjust the feet to the desired height of the installation.

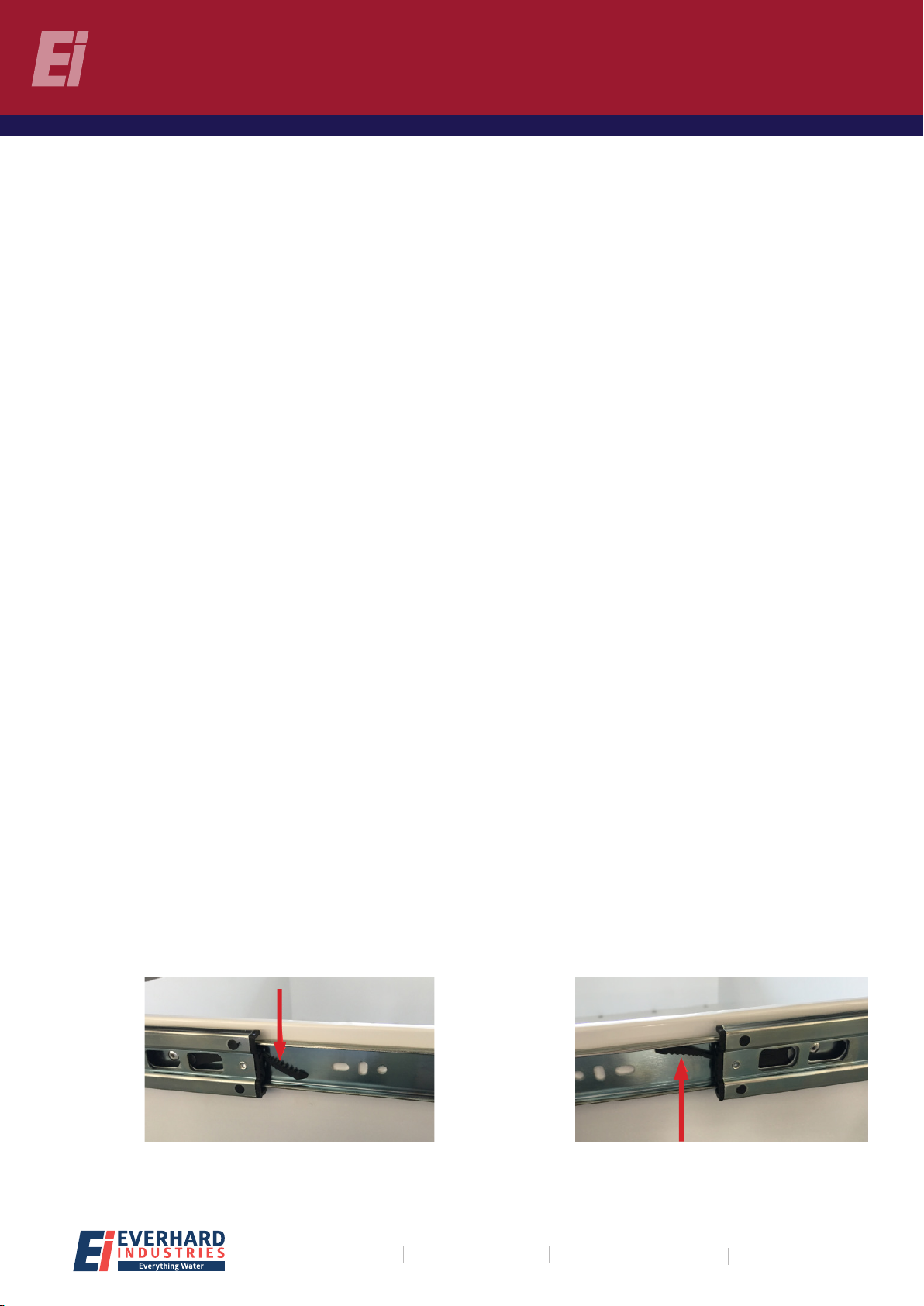

REMOVING DRAWERS
1. On the left runner, push the black lever down.
2. On the right runner, pull the black lever up.
3. Pull the drawer out of the runner.

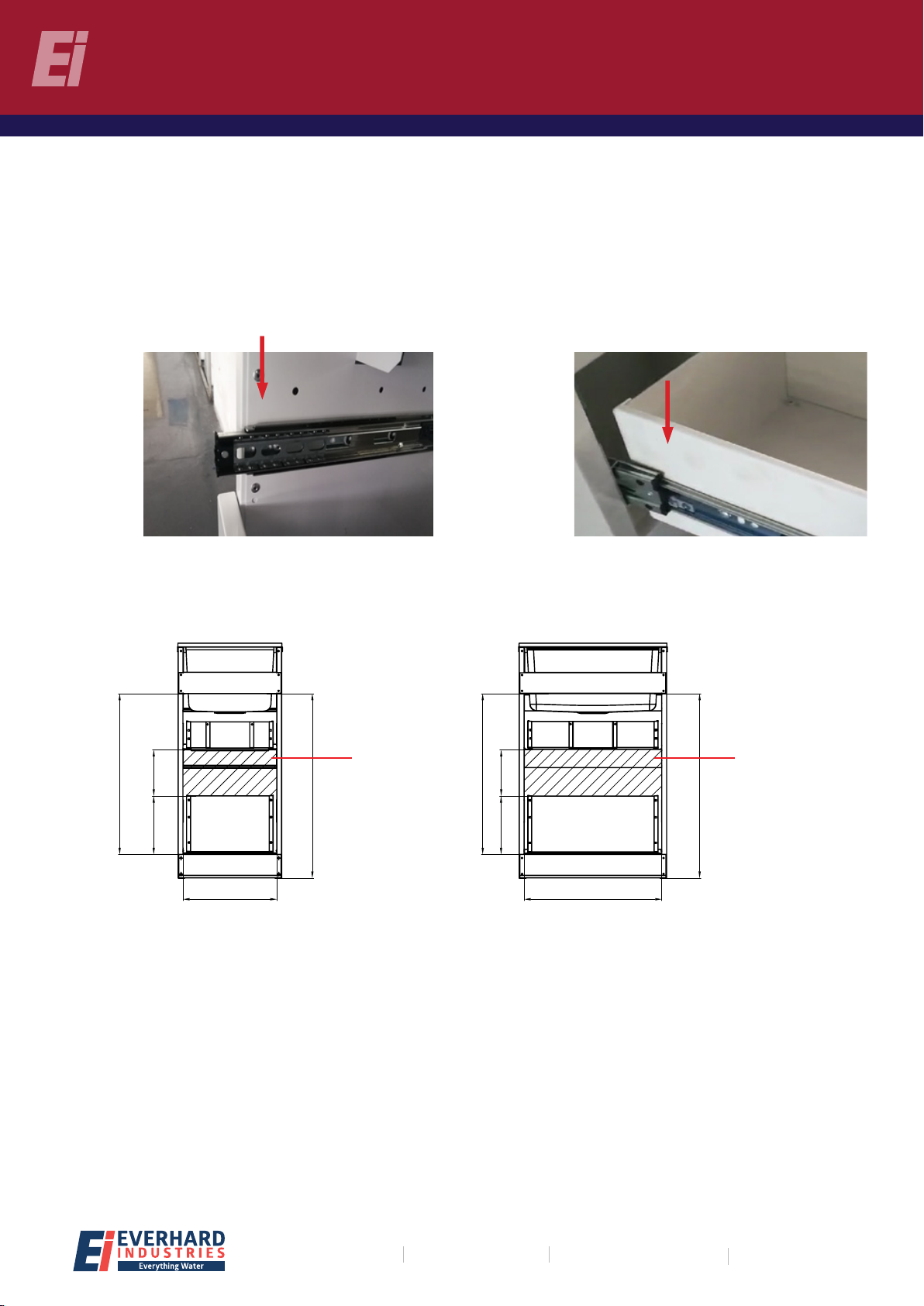

Left runner Right runner
