Evo XCITE Manuale utente
USER’S MANUAL
EVO XCITE ELLIPTICAL TRAINER
MODEL NUMBER: XCITE
USER WEIGHT LIMITATION: 350lbs.
TOLL FREE CUSTOMER SERVICE NUMBER: 1.888.800.1167
SERIAL NUMBER (found on frame):
EVO XCITE ELLIPTICAL TRAINER
Visit us at: www.evofitness.com
2
PREASSEMBLY
For future service or related questions:
Please staple your receipt and/or write in the name and phone number of the retail store where you purchased your EVO
Fitness Elliptical Trainer.
Name: ______________________________ Phone Number: ___________________ Receipt: ______________________
Open the boxes:
You are now ready to open the boxes of your new equipment. Make sure to inventory all of the parts that are included in the
boxes. Check the Parts List for a full count of the number of parts included for this product to be assembled properly. If you
are missing any parts or have any assembly questions call your local EVO dealer or contact us directly at 888-800-1167.
Gather your tools:
Before starting the assembly of your unit, make sure that you have gathered all the necessary tools you may require to
assemble the unit properly. Having all of the necessary equipment at hand will save time and make the assembly quick and
hassle-free.
Clear your work area:
Make sure that you have cleared away a large enough space to properly assemble the unit. Make sure the space is free
from anything that may cause injury during assembly. After the unit is fully assembled, make sure there is a comfortable
amount of free area around the unit for unobstructed operation.
Invite a friend:
Some of the assembly steps may require heavy lifting. It is recommended that you obtain the assistance of another person
when assembling this product.
User Weight Limitation:
Please note that there is a weight limitation for this product. If you weigh more than 350lbs. it is not recommended that
you use this product. Serious injury may occur if the user’s weight exceeds the limit shown here. This product is not
intended to support users whose weight exceeds this limit.
EVO XCITE ELLIPTICAL TRAINER
Visit us at: www.evofitness.com
3
HARDWARE COMPARISON CHART
Hardware chart:
For your convenience, we have identified the hardware used in the assembly of this product. This chart is provided to help
you identify those items that may be unfamiliar to you.
NO. DESCRIPTION QTY.
2#4 x 19mm Screw 5
8M6 x 20mm Allen Head
Bolt 4
20 M8 x 19mm Bolt 4
30 M10 x 75mm Bolt 2
31 M10 Nylon Nut 2
83 M8 x 50mm Bolt 2
85 #4 x 19mm Screw 12
A17mm Wrench 2
B5mm Wrench 1
CWrench 1
MILLIMETERS
EVO XCITE ELLIPTICAL TRAINER
Visit us at: www.evofitness.com
4
PARTS LIST
No. Description Qty.
Order No. No. Description Qty. Order No.
1Computer 1XCITE-01 30 M10 x 75mm Bolt 2XCITE-30
2#4 x 19mm Screws 11 XCITE-02 31 M10 Nylon Nut 4XCITE-31
3Accessory Tray –Right Cover 1XCITE-03 32 Pedal Arm Front Pivot
C
over
-
Left
2XCITE-32
4Accessory Tray –Left Cover 1XCITE-04 33 M8 Knob 2XCITE-33
5Accessory Tray 1XCITE-05 34 Handlebar Cap 2XCITE-34
6Water Bottle Holder 1XCITE-06 35 Hand Pulse Contact Sensor 2XCITE-35
7Console Holder 1XCITE-07 36 Handlebar (Right) 1XCITE-36
8M6 x 20mm Allen Head Bolt 4XCITE-08 37 Handlebar (Left) 1XCITE-37
9Front Upright Frame 1XCITE-09 38 1.5” Handlebar Pivot
Bushing
4XCITE-38
10 Handlebar Pivot Axle 1XCITE-10 39 Hand Rail Cap 2XCITE-39
11 2” x 38 (ID25.4) Handlebar Pivot
Bushing
2XCITE-11 40 1.2 Pivot Bushing 4XCITE-40
12 Front Cover (Right) 1XCITE-12 41 Bearing (6000zz) 5XCITE-41
13 Front Cover (Left) 1XCITE-13 42 Hand Rail Frame –Right 1XCITE-42
14 Top Cover 1XCITE-14 43 60mm/38mm Plastic
Housing
2XCITE-43
15 Rear Cover (Right) 1XCITE-15 44 Hand Rail Support Upright 2XCITE-44
16 Rear Cover (Left) 1XCITE-16 45 M8 x 60mm Bolt 2XCITE-45
17 Pedal (Right) 1XCITE-17 46 Hand Rail Frame –Left 1XCITE-46
18 M8 x 50mm Bolt 2XCITE-18 47 2” x 38 (ID 9) Handlebar
Pivot Bushing
2XCITE-47
19 Pedal Arm Rear Pivot Cover 2XCITE-19 48 M10 x 40mm Bolt 2XCITE-48
20 M8 x 19mm Bolt 6XCITE-20 49 Caster 2XCITE-49
21 M8 x 31.8mm Washer 2XCITE-21 50 Level Adjusters 2XCITE-50
22 Pedal Arm (Right) 1XCITE-22 51 M5 x 8mm Bolt 5XCITE-51
23 M6 x 10mm Bolt 8XCITE-23 52 M6 x 12mm Bolt 2XCITE-52
24 Pedal Support Bracket 2XCITE-24 53 Flywheel Axle Bracket 1XCITE-53
25 M6 x Nylon Nut 8XCITE-25 54 Flywheel Assembly 1XCITE-54
26 M10 Nut 4XCITE-26 55 Spring Washer M8 4XCITE-55
27 Pedal Adjustment Wheel 4XCITE-27 56 M8 x 16mm Bolt 4XCITE-56
28 M8 Nylon Nut 6XCITE-28 57 M10 x 101mm Axle 1XCITE-57
29 Pedal Arm Front Pivot Cover –
Right
2XCITE-29 58 12 x 22mm Washer 4XCITE-58
EVO XCITE ELLIPTICAL TRAINER
Visit us at: www.evofitness.com
5
PARTS LIST
No. Description Qty. Order No. No. Description Qty.
Order No.
59 Spring Washer 2XCITE-59 89 Control Board 1XCITE-89
60 25 x 149mm Pedal Axle 2XCITE-60 90 Sensor Bracket 1XCITE-90
61 Crank Disk Cap 2XCITE-61 91 Sensor 1XCITE-91
62 M12 Nut 2XCITE-62 92 M2 x 6mm Bolt 2XCITE-92
63 Crank Disk 2XCITE-63 93 Main Frame 1XCITE-93
64 27 x 151.8mm Crank Disk Axle 1XCITE-64 94 Handlebar Foam Grips 4XCITE-94
65 Shroud Support Tube 1XCITE-65 95 Plastic Caps 2XCITE-95
66 M8 x 25mm Bolt 2XCITE-66
67 Power Switch 1XCITE-67
68 Rear Stabilizer Cap 2XCITE-68
69 M8 x 50mm Bolt 4XCITE-69
70 Crank Bearing Holder 1XCITE-70
71 Bearing Housing 1XCITE-71
72 Tension Pulley Bracket 1XCITE-72
73 18 x 10 x 5.1mm Washer 4XCITE-73
74 Bearing (6300zz) 4XCITE-74
75 M12 x 100mm Bolt 1XCITE-75
76 M10 x 18mm Bearing Axle 2XCITE-76
77 M12 x 70mm Bolt 1XCITE-77
78 Magnet Adjustment Pivot Axle 1XCITE-78
79 Magnet 1XCITE-79
80 Belt 1XCITE-80
81 Pedal Arm (Left) 1XCITE-81
82 Pedal (Left) 1XCITE-82
83 M8 x 50mm Bolt 2XCITE-83
84 Crank Disk Shaft Cap –Left 2XCITE-84
85 #4 x 19mm Screws 26 XCITE-85
86 Computer Wire –Upper Section 1XCITE-86
87 Computer Wire –Lower Section 1XCITE-87
88 Hand Pulse Wire 1XCITE-88
EVO XCITE ELLIPTICAL TRAINER
Visit us at: www.evofitness.com
6

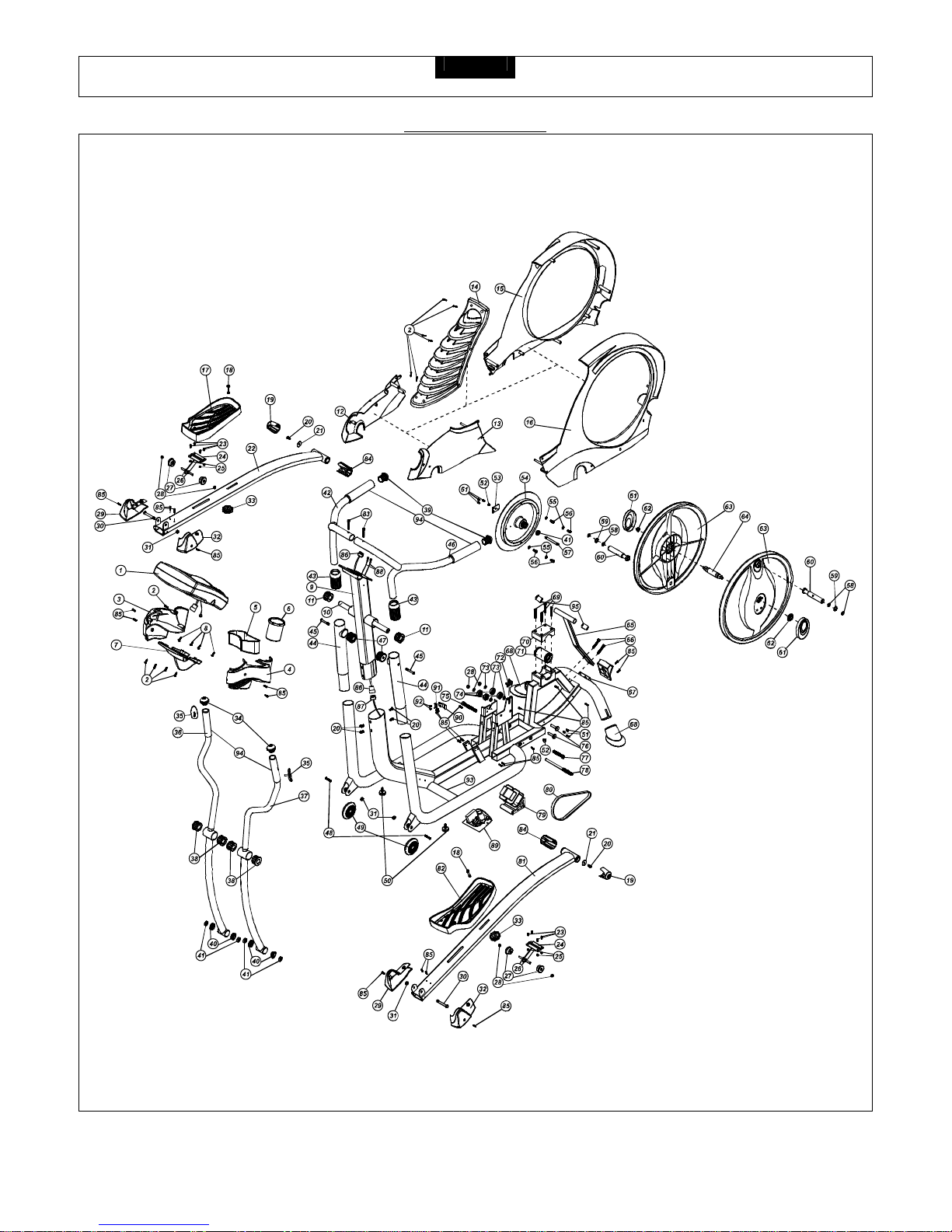

PARTS DIAGRAM
A MAJORITY OF THE PARTS SHOWN HERE HAVE BEEN PREASSEMBLED AT THE FACTORY.
EVO XCITE ELLIPTICAL TRAINER
Visit us at: www.evofitness.com
7
ASSEMBLY
STEP 1:
Slide a Rear Stabilizer Cap (68) onto each side of the Main Frame (93).
EVO XCITE ELLIPTICAL TRAINER
Visit us at: www.evofitness.com
8
ASSEMBLY

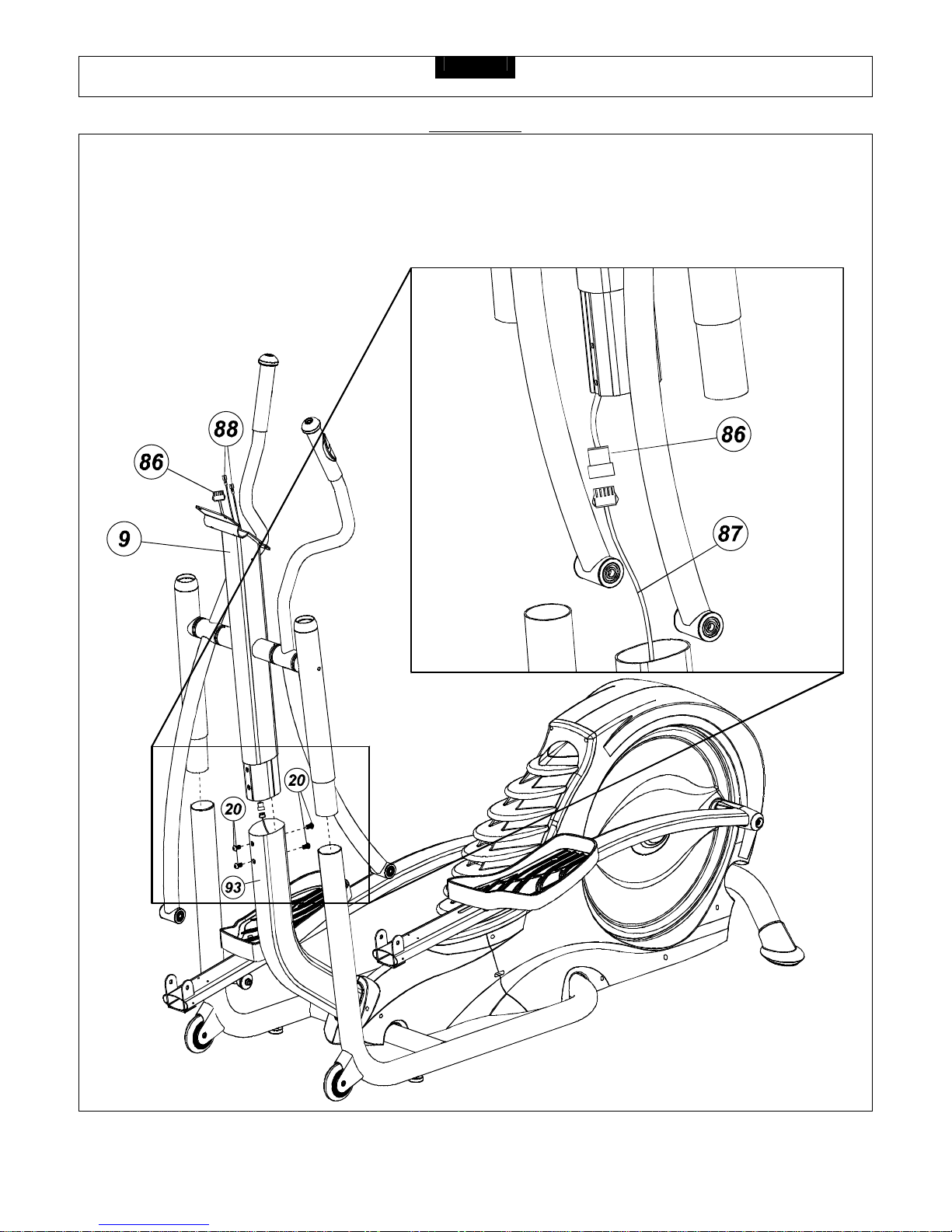

STEP 2:
First make sure to connect the Computer Wire -Upper Section (86) and the Computer Wire -Lower Section (87).
Slide the Front Upright Frame (9) into the Main Frame (93) and secure with M8 x 19mm Bolts (20).
EVO XCITE ELLIPTICAL TRAINER
Visit us at: www.evofitness.com
9
ASSEMBLY

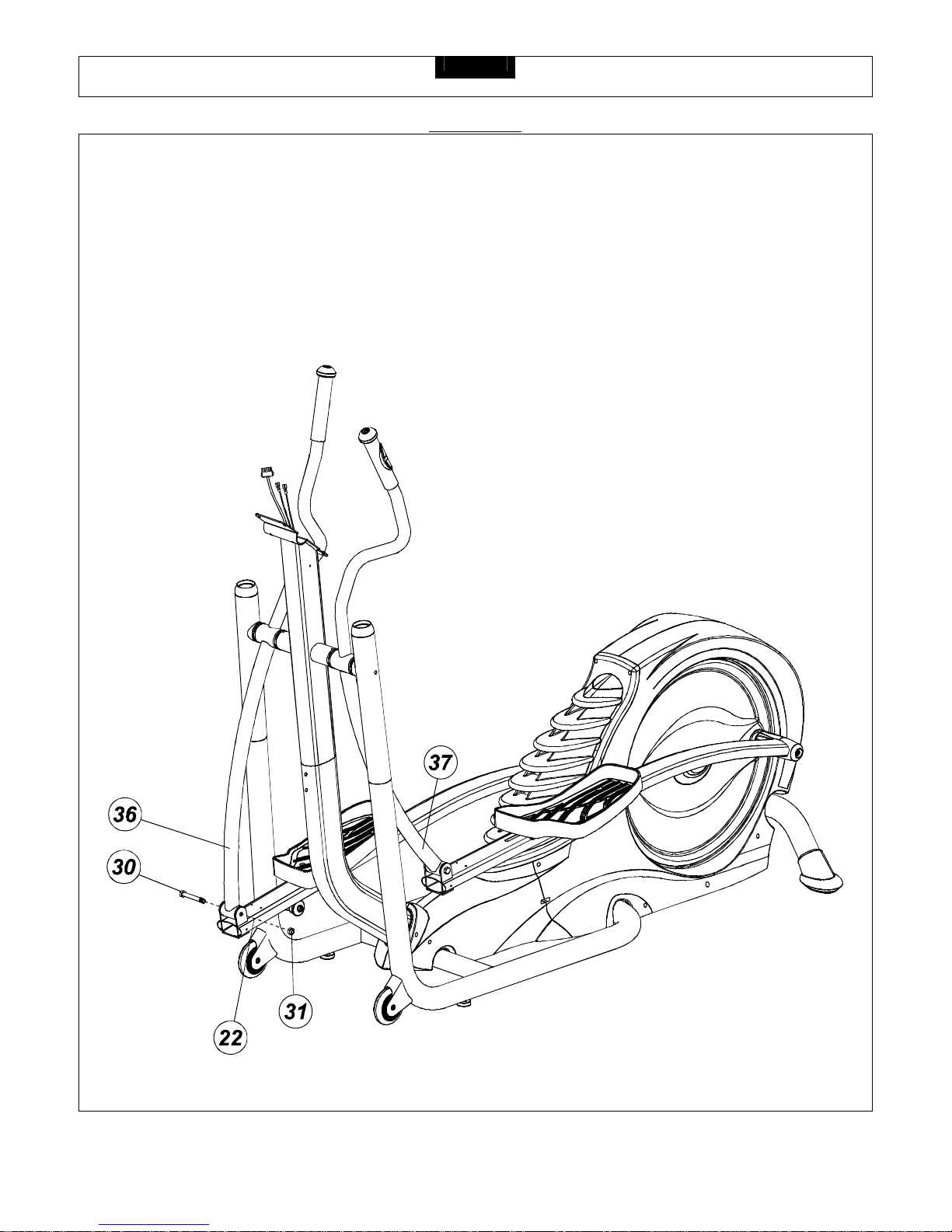

STEP 3:
Secure the Handlebar (Right) (36) to the Pedal Arm (Right) (22) using M10 x 75mm Bolt (30) and M10 Nylon Nut (31).
Repeat this procedure on the Handlebar (Left) (37).
EVO XCITE ELLIPTICAL TRAINER
Visit us at: www.evofitness.com
10
ASSEMBLY
STEP 4:
Attach the Pedal Arm Front Pivot Cover –Right (29) and the Pedal Arm Front Pivot Cover–Left (32) to the Pedal Arm (Right)
(22) and secure with #4 x 19mm Screws (85).
Repeat this procedure on the Pedal Arm (Left) (81).
