Command-i Series Manual

Page 1

Contents

1. Introduction...............................................................................................................................................2

2. Dimensions...............................................................................................................................................3

3. Safety Instructions ....................................................................................................................................4

4. Installation ................................................................................................................................................5

4.1 System Installation ..............................................................................................................................5

4.2 Location of Installation ........................................................................................................................5

4.3 Airflow Clearances ..............................................................................................................................5

4.4 Plumbing.............................................................................................................................................6

4.5 Hot Water Circuit Diagram ..................................................................................................................6

4.6 Heating (Cooling) Water Circuit Diagram ............................................................................................6

4.7 Electrical Connection ..........................................................................................................................6

4.8 Cable & Switch....................................................................................................................................7

4.9 Initial Start-Up .....................................................................................................................................7

5. Operation..................................................................................................................................................8

5.1 The Controller .....................................................................................................................................8

5.2 Operating Functions............................................................................................................................8

5.2.1 On/Off...........................................................................................................................................8

5.2.2 Mode Selection.............................................................................................................................8

5.2.3 Setting the Target Temperature ....................................................................................................8

5.2.4 Locking the Screen.......................................................................................................................8

5.2.5 Setting a Timer .............................................................................................................................9

5.2.6 Settings ........................................................................................................................................9

6. Troubleshooting......................................................................................................................................12

7. Appendix ................................................................................................................................................15

7.1 Wiring Diagram .................................................................................................................................15

7.2 Cable Specifications..........................................................................................................................17

8. Maintenance...........................................................................................................................................18

8.1 F.A.Q ................................................................................................................................................18

9. Warranty.................................................................................................................................................19

info@evoheat.com.au

1300 859 933

www.evoheat.com.au

Command-i Series Manual

Page 2

1. Introduction

This manual contains information relating to the installation, troubleshooting, operation, and maintenance of this

EvoHeat unit. Instructions in this manual must always be followed. Failure to comply with these recommendations will

invalidate the warranty. Should you have any questions or require technical support, call the EvoHeat office on 1300

859 933 to speak to our team.

The data and information contained in this manual is correct at the time of publishing and is subject to change without

notice. For the most up to date manual, contact EvoHeat directly.

Designed with the latest inverter technology, the Evo Command-i is the

smarter choice for commercial space and water heating and cooling.

The Evo Command-i Series is ideal for commercial and industrial water and

space heating applications, including: hotels, resort, commercial buildings,

sporting and leisure facilities, industrial liquid heating and chilling

applications.

TECHNICAL DATA Command-i 40 Command-i 90 Command-i 210

Hot Water Capacity kW 40 90 210

Water Outlet L/h 860 1930 4503

Heating Input Power kW 8.5 19.70 45.7

C.O.P / 4.7 4.57 4.6

Building Heating A kW 13~45 16~95 74.8~215

Heating Input Power kW 4.7~15.3 9.5~28.9 18.8~75.4

C.O.P / 2.3 2.43 2.42

Building Cooling kW 9.4~33 20~74.3 46.6~132

Cooling Input Power kW 3.9~15.8 8.70~25.65 16.5~56.2

EER / 2.02~2.73 2.52~2.95 2.35~2.82

Heating IPLV / 3.25 3.2

Power Supply / 380-415/3/50 380-415/3/50 380-415/3/50

Max Input Current A 36.8 51 135

Water Connection / DN40 DN65 DN80

Water Flow L/min 115 172 602

Water Pressure Drop kPa 75 70 100

Noise dB(A) 56~65 56~69 63~72

Net Weight kg 468 733 1250

Dimensions (L/W/H) mm 1195/980/1900 2170/1150/2130 2481/1331/2367

Hot water conditions: ambient temp. (DB/WB): 20°C/15°C, water circulation is from 15°C to 55°C Building heating A: ambient temp. (DB/WB):

7°C/6°C, water temp (in/out) 40/45°C Building cooling: ambient temp. (DB/WB): 35°C/24°C, water temp (in/out) 12/7°C

info@evoheat.com.au

1300 859 933

www.evoheat.com.au

Command-i Series Manual

Page 3

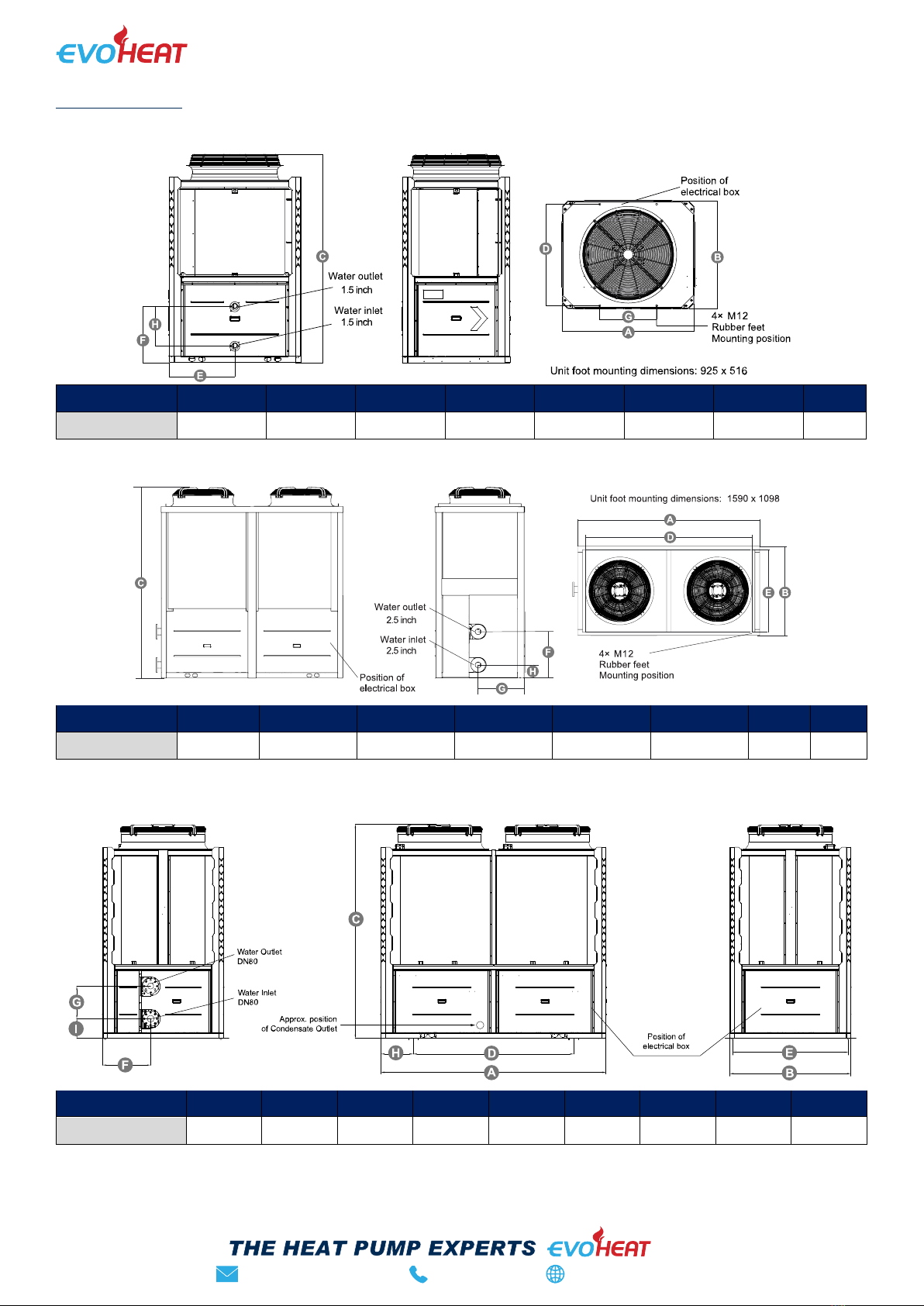

2. Dimensions

Command-i A (L) B (W) C (H) D E F G H

40 1195 980 1900 925 598 517 516 360

Command-i A (L) B (W) C (H) D E F G H

90 2170 1150 2130 1590 1098 614 575 164

Command-i A (L) B (W) C (H) D E F G H I

210 2481 1331 2367 1770 1278 530 360 356 215

Unit: mm

info@evoheat.com.au

1300 859 933

www.evoheat.com.au

Command-i Series Manual

Page 4

3. Safety Instructions

Installation, repair, or relocations must only be done by a fully qualified technician. If done incorrectly there is

a number of hazards that can occur including fire, electric shock, water leakage and injury.

•When an abnormality (smell of burning, etc.) occurs, stop the unit and disconnect the power or turn off the

breaker. If the unit continues to be operated in an abnormal condition, it may cause a fire or hazards.

•Do not insert fingers or objects into the fans or evaporator of the unit.

•Installation, repair or relocations must be done by a fully qualified person and not by the customer. If done

incorrectly it may cause fire, electric shock, water leakage and other hazards.

•For unit cleaning or maintenance, switch off and disconnect the power of the unit.

•Do not spray insecticides or flammable sprays around the unit, it may cause a fire or damage the unit’s

cabinet.

•Do not install the unit near flammable gas or spray flammable substances near it.

•Ensure the heat pump is installed on a strong and stable platform.

•A circuit breaker must be installed for the unit.

•Use supply wires suitable for 75C.

•The heat pump located inside the unit is equipped with an over-load protection system. It does not allow for

the unit to start for at least 3 minutes from a previous stoppage.

•Copper or iron must not be used as a fuse. An electrician must use the correct fuse for the heat pump.

•Make sure that the unit and power connection have good earthing.

•If the supply cord is damaged, it must be replaced by the manufacturer, our service agent or a similarly

qualified person in order to avoid a hazard.

•Caution: Single wall heat exchanger, not suitable for potable water connection.

info@evoheat.com.au

1300 859 933

www.evoheat.com.au

Command-i Series Manual

Page 5

4. Installation

4.1 System Installation

When transporting the unit ensure that it is kept upright, lying the unit down may damage inner parts of the unit.

Upon receiving the unit, check the packaging for any obvious signs of damage. Inform EvoHeat immediately if there is

any evidence of rough handling.

4.2 Location of Installation

The heat pump can be installed onto the concrete basement by using expansion screws, or onto a steel frame with

rubber feet which can be placed on the ground or the roof. Ensure that the unit is placed horizontally.

•The unit can be installed in any place outdoors which will be able to support the weight of a heavy unit such as

a terrace, roof, the ground and any other places deemed suitable.

•The location must have good ventilation.

•The location must be free from heat radiation and other fire hazards.

•A pall is needed in winter to protect the unit from snow.

•There must be no obstacles near the inlet and outlet of the unit.

•The installation location must be protected from strong winds or air.

•There must be a water channel around the heat pump to drain condensing water.

•Leave enough space around the unit for maintenance.

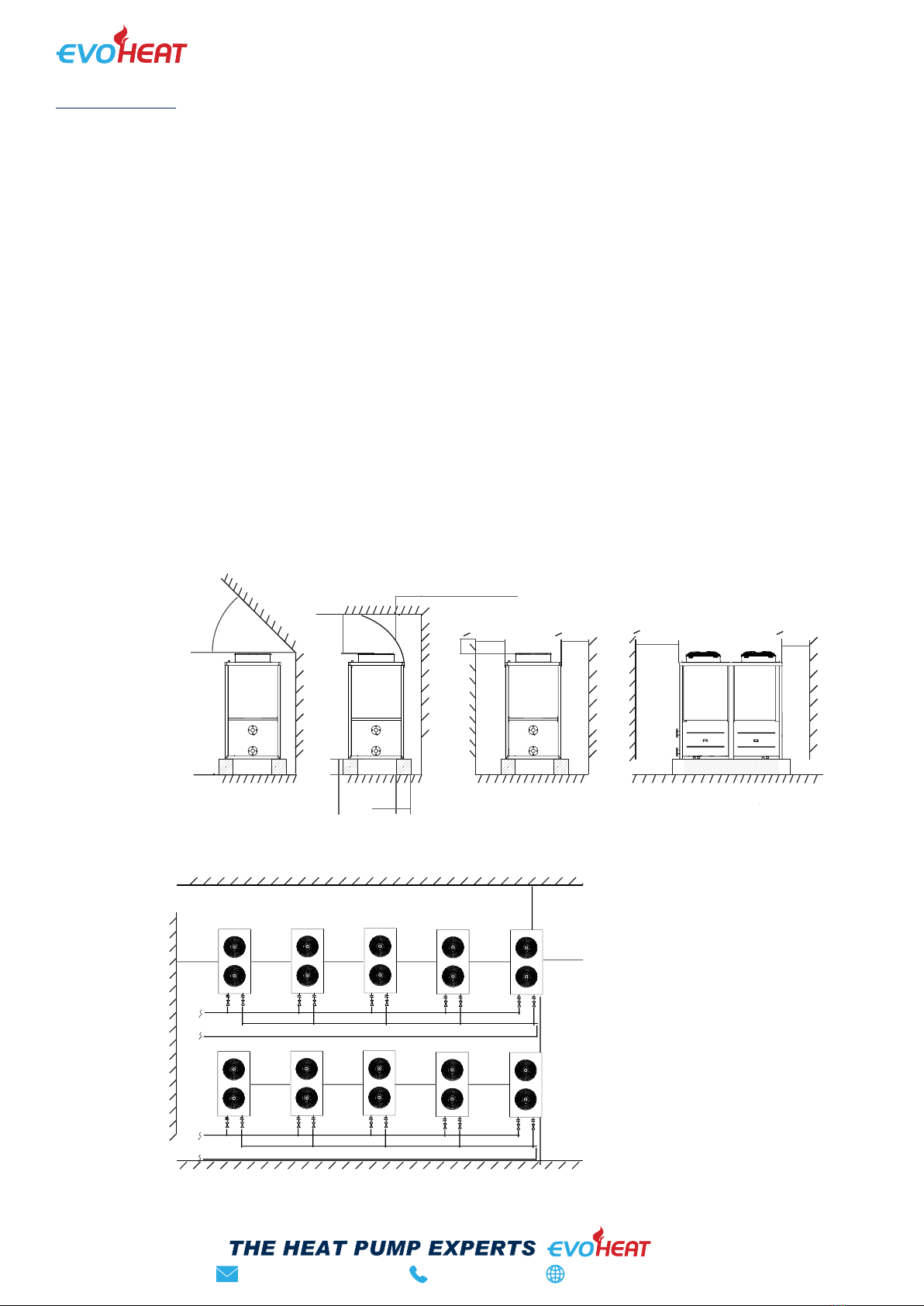

4.3 Airflow Clearances

Single

Unit

1500mm

overhead

clearance

Multiple

Units

1000mm

clearance

on all sides

Note:

•Do not cover the air outlet of the

unit.

•If there is a barrier above the unit,

keep it at least 3000mm above the

unit.

•If there are objects stacked around

the unit, their height should be at

least 400mm lower than the top of

the unit.

•When installed in a small room,

measures should be taken to

prevent leakage of the refrigerant.

Once leakage volume exceeds the

limit concentration, it may cause

suffocation. Contact EvoHeat for

specific measures.

Flow guide dev ice

(Note: when h>3m, take h=3m)

Water inlet or

outlet space

Maintenance

space

>45°

>1500 +h

>500

400

>1000 >1000 >1000

>1500

100 0100 0100 0100 0

100 0

1000

≥1500

info@evoheat.com.au

1300 859 933

www.evoheat.com.au

Command-i Series Manual

Page 6

4.4 Plumbing

When the water pipe is connected:

•Try to reduce the resistance to the water from the piping.

•The piping must be clear and free from dirt and blockage. A water leakage test must be carried out to ensure that

there is no water leaking before the installation can be made.

•The pipe must be tested by pressure separately. DO NOT test it together with the unit.

•There must be an expansion tank on the top point of the water loop, and the water level inside the tank must be at

least 0.5meters higher than the top point of the water loop.

•The flow switch is installed inside of the heat pump, check to ensure that the wiring and action of the switch is

normal and controlled by the controller.

•Try to avoid any air from being trapped inside the water pipe, there must be an air vent on the top point of the

water loop.

•There must be a thermometer and pressure meter at the water inlet and outlet for easy inspection during running.

4.5 Hot Water Circuit Diagram

4.6 Heating (Cooling) Water Circuit Diagram

Flexible Pipe Gate Valve

Check Valve

Level Controller

Differential

pressure

bypass

valve

Pressure Gauge

Shut-off Valve

Thermometer (0-100)

Electric two-way valve

Water Valve

Solenoid Valve Y Type Water filter

Water flow Switch

4.7 Electrical Connection

Always use a qualified Electrician to perform any electrical work. A licensed electrician must read the

information before connecting.

•Open the front panel and open the power supply access.

•The power supply must go through the wire access and be connected to the power supply terminals in the

controlling box. Then connect the 3-signal wire plugs of the wire controller and main controller.

•If an external water pump is required, please insert the power supply wire into the wire access and connect it

to the water pump terminals.

•If an additional auxiliary heater is needed to be controlled by the heat pump controller, the relay (or power) of

the aux-heater must be connected to the relevant output of the controller.

info@evoheat.com.au

1300 859 933

www.evoheat.com.au

Command-i Series Manual

Page 7

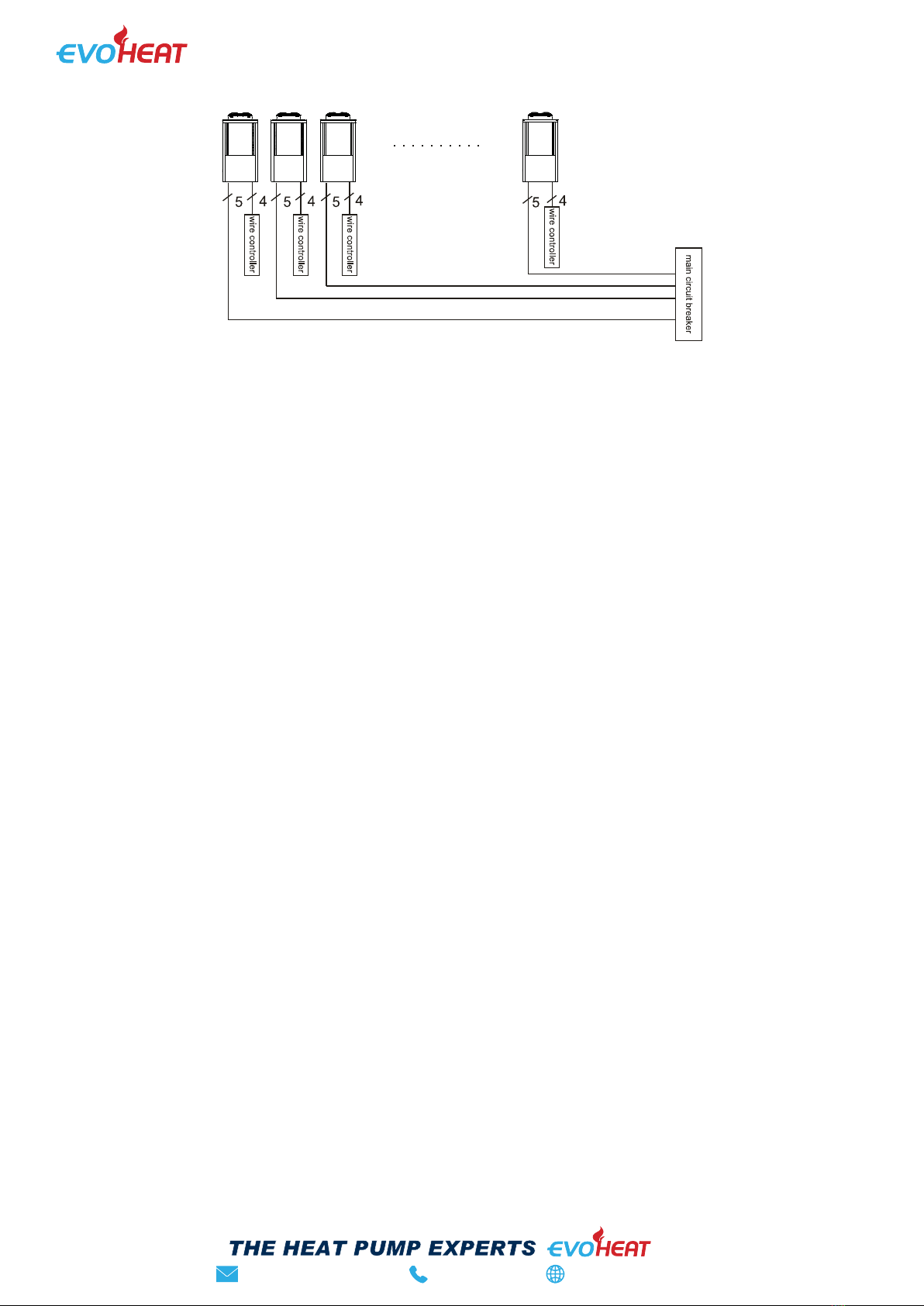

4.8 Cable & Switch

•The unit should use an independent power supply, wiring as required for Table 6.1. Power supply voltage

must be in line with the rated voltage.

•Power supply circuit must be equipped with an All-pole disconnect device and have at least 3mm contact

opening distance.

•Wiring is only to be performed with a professional technician in accordance with the circuit diagram.

•The Power supply circuit must have an earth wire. The earth wire of the power should be connected with the

external earth wire safely. The external earth wire must be in order correctly.

4.9 Initial Start-Up

Pre-Inspection

•Check the indoor unit, make sure that the pipe connection is done correctly, and the relevant valves are open.

•Check the water loop to ensure that the water inside of the expansion tank is filled to an appropriate level, and

the water supply is working, and the water loop is full of water and free of trapped air. Make sure there is good

insulation for the water pipe.

•Check the electrical wiring. Make sure that the power voltage is normal, the screws are fastened, the wiring is

made in line with the diagram and that the earthing is connected.

•Check that the heat pump includes all the screws and components, and that they are in good order. When

powering the unit on, review the indicator on the controller to see if there is any indication of failure. The gas

gauge can be connected to the check valve to see the high pressure (or low pressure) of the system during

trial running.

Trial Running

•Start the heat pump by pressing the ‘POWER’ button on the controller. Check whether the water pump is

running, if it runs normally there will be 0.2MPa on the water pressure meter.

•When the water pump has ran for a minute, the compressor will start. Listen for any strange sounds from the

compressor, if an abnormal sound occurs please stop the unit and check the compressor. If the compressor

runs well, look for the pressure meter of the refrigerant.

•Check whether the power input and running current is in line with the manual. If not, stop and check.

•Adjust the valves on the water loop to make sure that the hot (cool) water supply to each door is good and

meets the requirements of heating (or cooling).

•Review whether the outlet water temperature is stable.

•The parameters of the controller are set by the factory, the user must change these themselves.

info@evoheat.com.au

1300 859 933

www.evoheat.com.au

Command-i Series Manual

Page 8

5. Operation

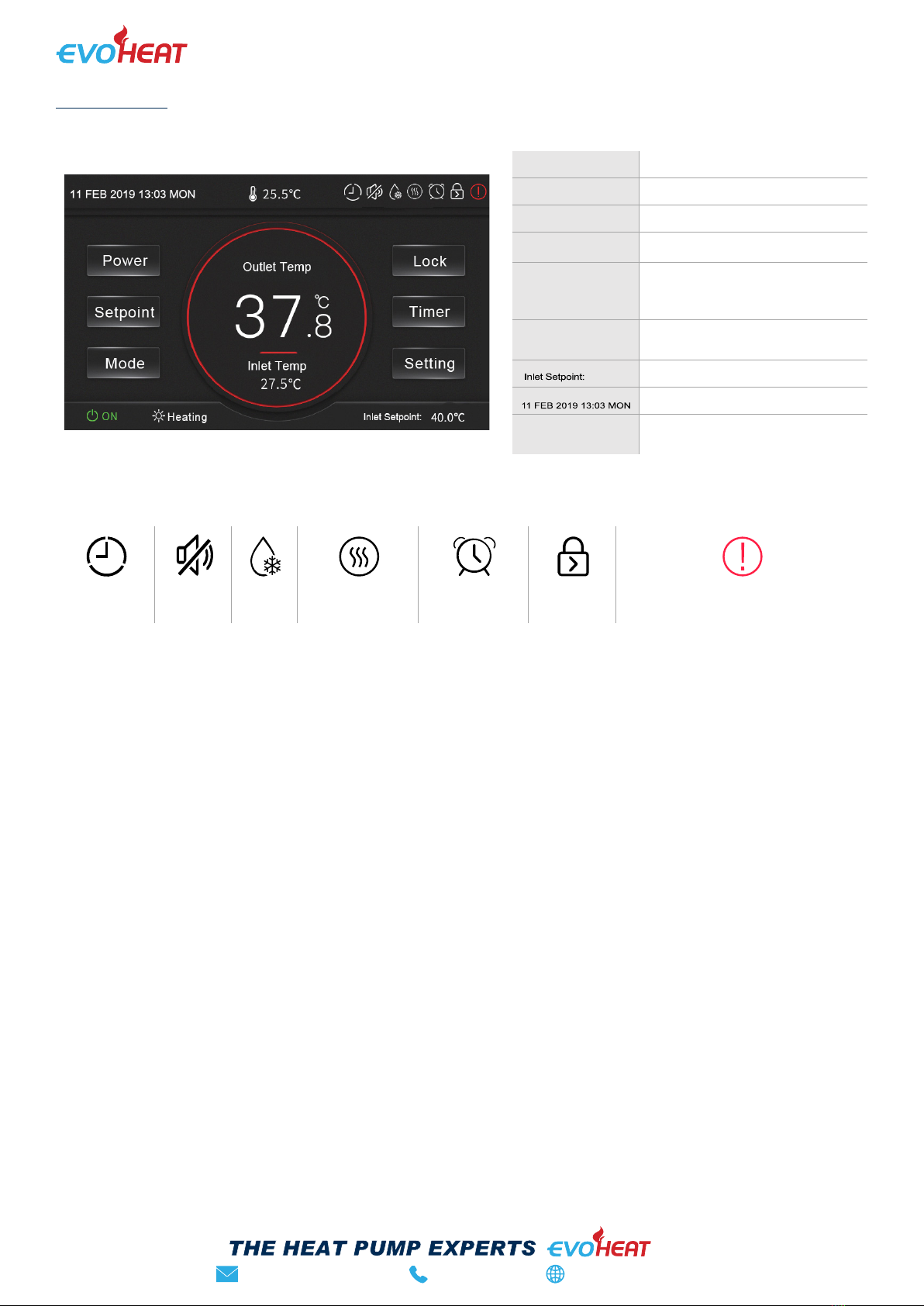

5.1 The Controller

Power Turn the unit on or off

Setpoint Set the target temperature

Mode Select heating or cooling mode

Lock Lock or unlock the screen

Timer

Enter timer setting menu (Temp

Timer, Power Timer & Mute

Timer)

Setting Enter function menu (Status,

Parameter, Failures & Time)

Target temperature of inlet water

Unit’s set date & time

Display Circle Blue: Cooling mode, Red: Heating

Mode, Grey: Off

Icons will appear at the top right of the screen indicating certain functions that are enabled, or if there has been an

error with the system.

Temp Timer

Function

Mute

Function

Defrost

Mode

Electric Auxiliary

Heating

Power Timer

Mode

Screen

Lock

Failure Alarm (The icon will blink until

the failure is resolved)

5.2 Operating Functions

5.2.1 On/Off

From the main menu, simply press the ‘Power’ button to turn the unit on or off.

5.2.2 Mode Selection

From the main menu, pressing the ‘Mode’ button will allow you to select either heating or cooling mode. The status

bar (bottom of the screen) will display the unit’s current operating state.

The display circle will appear as red for heating, or blue for cooling. If the unit is off, it will simply be grey.

5.2.3 Setting the Target Temperature

To adjust the target temperature value, first choose a running mode (heating or cooling), then press the ‘Setpoint’

button to enter the parameter setting screen.

Enter the required parameter according to the effective range which is displayed at the bottom of the screen.

5.2.4 Locking the Screen

From the main menu, press the ‘Lock’ button to lock the controller screen and prevent unauthorised people accessing

the controls.

When the screen is locked a small lock symbol will appear on the top right of the main menu.

To unlock the screen, press the ‘Lock’ button again and enter the password 22 which will unlock the screen and

remove the lock symbol.

info@evoheat.com.au

1300 859 933

www.evoheat.com.au

Command-i Series Manual

Page 9

5.2.5 Setting a Timer

After pressing the ‘Timer button from the main interface, select from Temp Timer or Power Timer.

5.2.5.1 Temperature Timers

This function enabled time-sharing temperature control, which is two segments of staggered peak temperature control,

and allows the target temperature of two segments of different time periods to be set according to different modes.

Press (23) to select from cooling or heating mode, then enter the start time, ending time and the target temperature

setpoint value (24). Press (25) to enable or disable the settings.

5.2.5.2 Power Timer

This function allows you to set the opening time of the unit for each day of the week.

Press (26) to select the day of the week, then (27) to select AM or PM, after this press (28) to select the time, and

finally select (29) to enable or turn off the setting.

5.2.5.3 Mute Timer

From the Timer menu, then press the Mute Timer button. Enter the start and end for the timer, then press the on/off

button to enable or disable the function. When this function is enabled, a mute icon will appear on the main screen.

Note*: If the unit does not have the mute timer option, the function is not available.

5.2.6 Settings

After pressing the ‘Setting’ button on the main menu, you can select from a range of functions.

5.2.6.1 Status

Press Status (30) to choose from Running Status or Unit Status.

Running Status

See below image.

Unit Status

Enter the password 22 to inquire the unit status parameter. Press one of the 4 buttons to inquire relevant parameters.

Indice

Altri manuali evoheat Pompa di calore

evoheat

evoheat CS Series Manuale utente

evoheat

evoheat Evo315-C Manuale utente

evoheat

evoheat Evo270-1 Manuale utente

evoheat

evoheat Force-i 9 Manuale utente

evoheat

evoheat EVO MAX Series Manuale utente

evoheat

evoheat Evo Flex Manuale utente

evoheat

evoheat EVO ULTRA 32 Manuale utente

evoheat

evoheat H8A Guida rapida

evoheat

evoheat Evo270-1 Manuale utente

evoheat

evoheat DHP20-R Manuale utente

evoheat

evoheat CS-i Series Manuale utente

evoheat

evoheat EVO COMMAND Series Manuale utente

evoheat

evoheat Fusion Series Manuale utente

evoheat

evoheat Force 26-3 Guida

evoheat

evoheat Evo Control 17 Manuale utente

evoheat

evoheat Fusion-i 7 Manuale utente

evoheat

evoheat 270 Manuale utente

evoheat

evoheat CS Manuale utente

evoheat

evoheat EVO 270 Manuale utente

evoheat

evoheat EVO FLEX 10 Manuale utente

evoheat

evoheat EVO ULTRA 64 Manuale utente

evoheat

evoheat Advanced DHP-R Series Manuale utente

evoheat

evoheat EVO FLEX 10 Manuale utente

evoheat

evoheat Evo Fusion-i Manuale utente

Manuali Pompa di calore popolari di altre marche

MICROWELL

MICROWELL HP 1000 GREEN Manuale utente

Sanyo

Sanyo SAP120FCH Manuale utente

Daikin

Daikin EHYHBH05AA Manuale utente

Panasonic

Panasonic WH-SDF03E3E5 Guida

Bryant

Bryant 544B Manuale utente

Airxcel

Airxcel 45000 Series Manuale

Mitsubishi Electric

Mitsubishi Electric PUZ-SWM60VAA Manuale utente

Dimplex

Dimplex LI 16I-TUR Guida utente

Carrier

Carrier WSHP Open v3 Guida rapida alla configurazione

TGM

TGM CTV14CN018A Manuale utente

Carrier

Carrier 38MGQ Series Manuale utente

Kokido

Kokido K2O K880BX/EU Guida alla risoluzione dei problemi

Viessmann

Viessmann VITOCAL 300-G PRO Type BW 2150 Guida rapida

Carrier

Carrier 48EZN Manuale utente

Viessmann

Viessmann KWT Vitocal 350-G Pro Series Istruzioni operative

Ariston

Ariston NIMBUS Manuale utente

Weishaupt

Weishaupt WWP L 7 Guida utente

GE Zoneline AZ85H09EAC Manuale utente

evoheat COMMAND-i Manuale utente

Manuali Pompa di calore popolari di altre marche
