Evolution Aqua Nexus Eazy 200 Guida rapida

200 / 300

Installation and Instruction Manual

Evolution House

4-6 Kellet Close

Wigan, WN5 0LP

United Kingdom

Ph: +44 (0) 1942 216 554

Fax: +44 (0) 1942 216 562

Web: www.evolutionaqua.com

Email: [email protected]

TABLE OF CONTENTS

Page

Introduction 1

Explanation 2

Installation 3

Gravity Fed Installation 4

Pump Fed Installation 6

Waste Pipe Installation 7

Getting Started 8

Cleaning 9

Kaldnes Biomedia 11

Appendix A 12

Dimensions 13

INTRODUCTION

-1-

Thank you for purchasing your Nexus Eazy™ lter. We are sure you will be

delighted with its performance. The Nexus System is supplied gravity fed, though

is easily adapted to become a pump fed unit. For pump fed installations refer to

the relevant pages of this brochure and read thoroughly before installation.

The Nexus Eazy ltration unit has been designed on the principles of minimum

maintenance, high performance and a compact foot print. This design delivers

optimum water quality by using the Kaldnes Moving Bed™ process.

Your Nexus Pack should contain:

Figure Part No Description

1.1 NPC.125 4”-4” (110-125mm) rubber boot

1.2 NAC.1004 4”-2” (122-68mm) rubber boot

1.3 825-50-50 1.5”(50mm) single union ball valve

1.4 1200-400/100-400 inlet slide plate (200/300)

1.5 5000-707 safety outlet grill

1.6 MEDIA30L / 45L bag Kaldnes K1 for Eazy (30L - 200/ 45L - 300)

1.7 MEDIA50L 50L bag Kaldnes K1 (1x Nexus 200, 2x for Nexus 300)

1.8 5000-329 Eazy isolation pipe

Fig 1.4

Fig 1.3Fig 1.2.Fig 1.1

Fig 1.6

Fig 1.8

Fig 1.5

Fig 1.7

EXPLANATION

-2-

Basic Operation Nexus:

The Nexus lter is simple yet innovative. Water enters the Nexus via inlet (A) Fig 2

into the inner chamber (B) which works as a basic vortex allowing larger solids to

settle out. The water then passes through the Eazy (C) where the ner particles

are removed and the rst step

in biological treatment takes

place. From the Eazy the water

passes into the outer chamber

(D) where the remainder

of the biological treatment

takes place using the Kaldnes

Moving Bed Process.

The water then passes

through the grill into the

Outlet Chamber (E), where

it is returned to the pond

through the outlet (F). All

waste is discharged through

the waste valves (G). The Eazy

is cleaned by diverting the air

from the Outside chamber to

the Eazy using the valve (H).

Basic Operation Eazy :

The Eazy™ is a stainless steel vessel containing a set volume of static K1 media

(30L for Nexus 200, 45L for Nexus 300) which is located within the centre chamber

of the Nexus. After water enters the Nexus it rotates around the Eazy in the

centre chamber with a downward motion allowing the larger solids to settle

to the bottom of the chamber before passing through the slots of the Eazy into

the static K1 media. After passing through these slots the water ows upwards

through the K1 media where mechanical ltration takes place as small particles

are caught within the K1 media. The water then ows over the slots in the centre

column and into the outer chamber.

Basic Operation Outer Chamber:

The outer chamber of the Nexus contains the Kaldnes Moving Bed Process this

is where the nal stage of biological treatment occurs. Biological breakdown

occurs through different strains of bacteria living on the K1 media. These bacteria

consume Ammonia and Nitrite transforming them into harmless Nitrate. The

amount of Ammonia and Nitrite produced in the pond is dependant on feed

rates and the type of food. For higher feed rates additional K1 media should be

added into the outer chamber (250g/day of average protein content food will

be broken down by 50L of K1).

Fig 2

INSTALLATION

-3-

Nexus Setup

This section should be thoroughly read before proceeding with any installation.

Checks to do BEFORE Installation

Check the jubilee clips on the rubber boots are tightened to prevent leaks

Check that the collars on the waste valves are tight

(This is required as some loosening may have occured in transit)

Preparation

Important:

A solid and level base/ground is required. It should be a minimum of 1.2m x

1.0m, to allow easy access to valves and for maintenance purposes. The Nexus

lter needs to be equally supported, this is to prevent possible distortion when it

is full of water. The best option for this would be a level 100 mm thick concrete

plinth. Although decking, paving slabs or well packed gravel would be sufcient

as long as the Nexus sits level and is not allowed to deect under the weight of

the water.

The Airpump should always be situated well above water level to prevent water

siphoning back into the pump should a power failure occur.

Installation Equipment required

Pond Pump, with a maximum actual (taking into account the head loss)1.

owrate no more than your Nexus model allows see Appendix A on page

12 for specs.

Air Pump to power the Kaldnes K1 Moving Bed, see Appendix A on page 12 2.

for specication of pump size.

Length of hose or braided pipe (10 mm inner diameter) to connect the air3.

pump to the Nexus

A valve should be tted before and after the Nexus so that the Nexus can be 4.

isolated if required. On Gravity Fed systems this should be a 4 inch (110mm)

ball valve located on the inlet side of the Nexus close to your lter house

wall.

A reducer to connect the 2 inch Nexus rubber boot to your pump.5.

It is highly recommended that a suitably sized UV unit is installed with the 6.

Nexus for removal of single celled algae. UV systems are always installed

after the pump, so on Gravity fed Nexus the UV is after the Nexus and prior

to the Nexus on Pump fed installations.

It is also highly recommended that you t an overow pipe/drain to your 7.

pond.

The Nexus can be installed in either of two ways Gravity Fed or Pump Fed, the

Nexus is shipped complete to be set up in either format with all the necessary

components. The following sections explain how this is done.

GRAVITY FED INSTALLATION

-4-

A gravity fed system is where the water level in the Nexus is at the same height as

the water level in the pond, therefore the top of the Nexus should approximately

be at the same height as the top of the pond as shown in Figure 3.

The water on a Gravity fed systems should be fed from a appropriately placed

bottom drain through at least a 4 inch (110mm) pipe with as short a length and

fewer bends as possible (For optimum ow swept bends should be used). At the

end of the bottom drain line before entering the Nexus a valve is required so

that the line can be shut and the Nexus isolated.

For long bottom drains it is recommended that a purge valve line is installed to

remove solids that may settle in your bottom drain line. This should discharge

straight to waste (if possible) or into a suitably sized sump.

It is very important that when laying the bottom drain line that there is no section

where the pipework rises then falls as airlocks can form in this area which will

block ow. Figure 4 below describes what should and shouldn’t be done.

Pipework should be level until reaching the lterhouse where it should ideally go

through a swept bend 90 into the Nexus inlet.

Fig 3

From Pond To Nexus

From Pond

To Nexus

Fig 4

GRAVITY FED INSTALLATION

-5-

* Useful Tip on Getting your water Level right

Getting the water level right in your Nexus is important as if this level is too low

it will affect the ow rate from

your bottom drain as well as the

efciency of your Eazy both in

cleaning and blocking rate. If

the level is too high, you may get

Kaldnes overowing between

chambers. The ideal level is located

just under the top lip of the Nexus

as shown in Figure 5.

The way to measure how high your

Nexus base should be is to measure

the height between your pond

water level and lter bay using a

spirit level or a laser level. And with

a tape measure calculate the appropriate base level.

Gravity Fed Installation Steps

Attach the 4”-4” Boot (Fig 1.1) to the Nexus Inlet (A) then to the 4” bottom 1.

drain pipe by tightening both jubilee clips

Attach the 4”-2” Rubber Boot (Fig 1.2) to the Nexus Outlet (F)2.

Connect the 1.5” Single Union Ball Valve (Fig 1.3) to the 4”-2” Rubber Boot 3.

(Fig 1.2) with the union side facing down towards the pump (depending

on your arrangement you may require an elbow between the boot and

valve)

Connect your water pump to the Single Union Ball Valve (Fig 1.3) on the 4.

union side

Place the 50L K1 media bag into the outside chamber (D) of the Nexus (3005.

x 2)

Place the K1 bag marked either 30 or 45 into the Eazy basket (C)6.

Connect your air pump to the Nexus air inlet (H) located next to the water7.

inlet using suitable hosing such as standard 12mm diameter garden hose

Connect your pump outlet to the remainder of your pipework including a8.

UV steriliser.

Insert the safety exit gill (Fig 1.5) into the exit chamber (E)9.

Connect the waste valves (G) to your waste outlet (Described on Page7)10.

YOUR NEXUS IS NOW READY FOR USE

Pump fed installation is where the pump supplies water to the Nexus and water

returns by gravity through a 4” (110mm) pipe. Figure 6 shows an example of a

pump fed system.

Water

Level

PUMP FED INSTALLATION

-6-

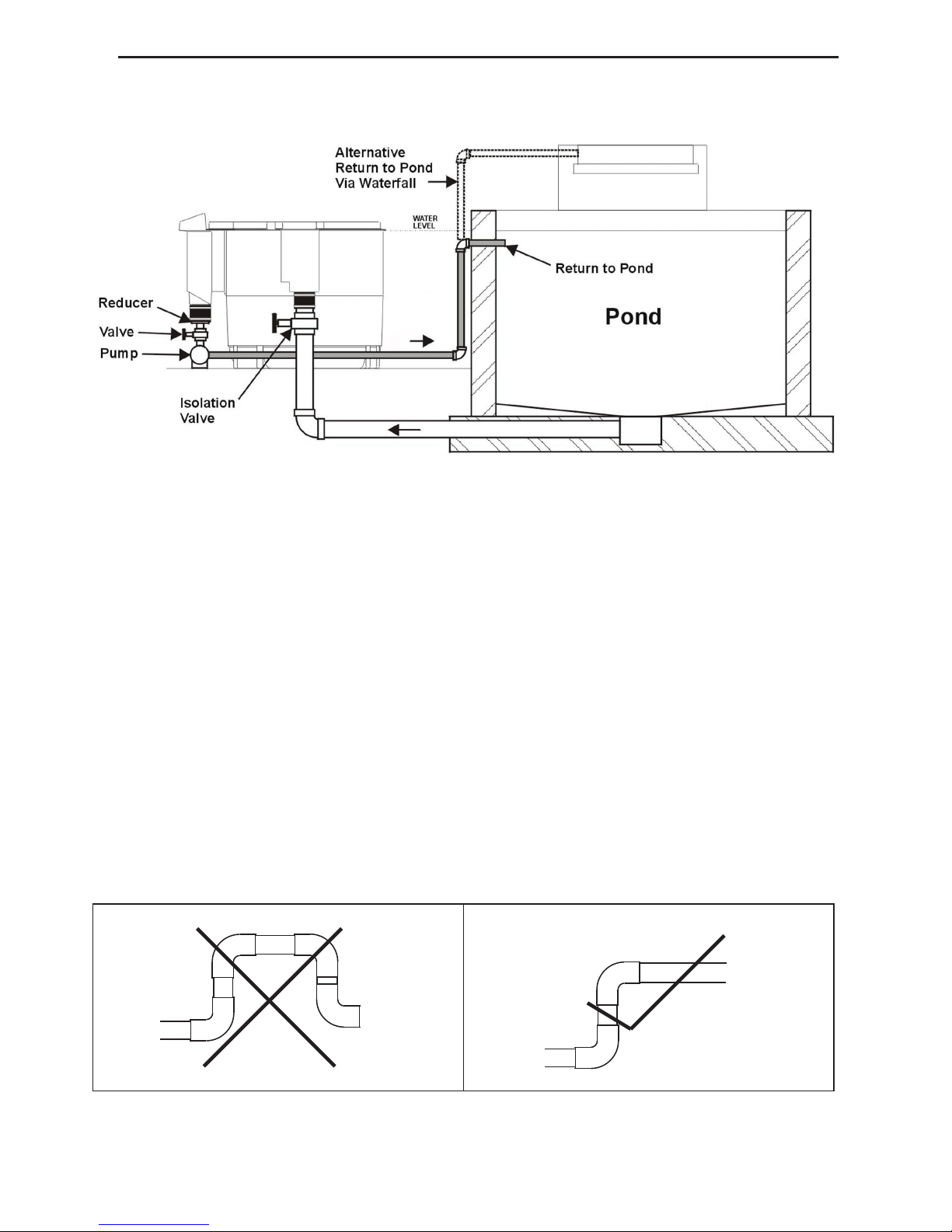

It important that on the return line back to the pond there is no section of pipe

where the pipe rises then falls as airlocks will form in this section stopping ow an

example of this is shown in Figure 4.

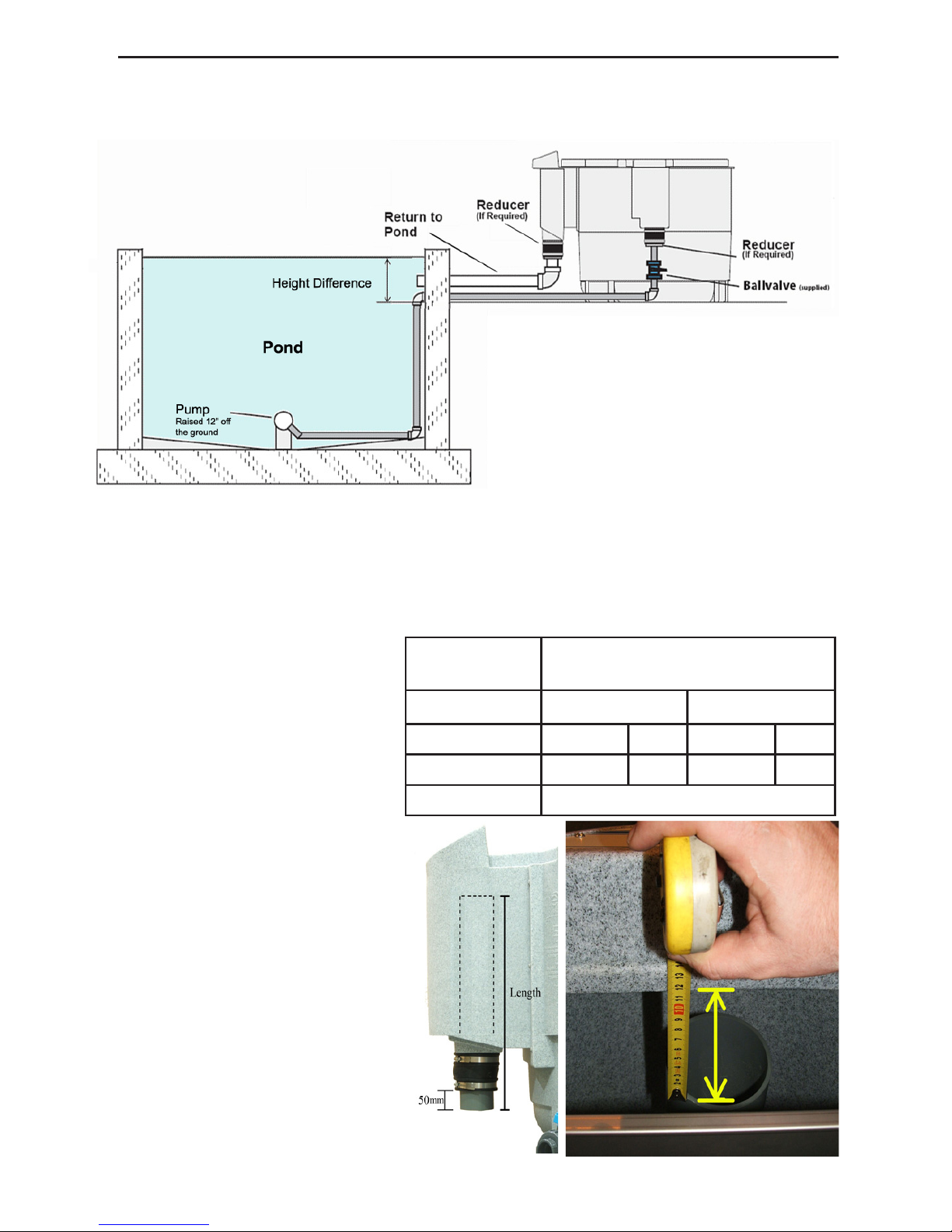

When installing a pump fed Nexus

there is a maximum height difference

that the Nexus base can be below

the pond water level also shown in

the Fig 6. This height is dependant

on the distance between the Nexus

and the return point to the pond,

the table below shows the maximum

heights and distances when using 4” (110mm) pipe.

Important: Essential Action

For Pump fed units it is important that you get the height of the outlet standpipe

correct. The height of this standpipe is very important as it controls the height that

the outer biological chamber of

the Nexus runs at. For a standard

Nexus installation you need to

cut a length of your 4” (110mm)

return pipe: 21” (535mm) for a 200

and 23.2” (590mm) for a 300. This

needs to be inserted into the exit

chamber (E) through the outlet

(F) and then secured using the

4”-4” (110mm) (Fig 1.1) rubber

boot leaving 2” (50mm) below as

shown in Fig 7. 2” (50mm) of pipe

below the boot will allow you to

connect any tting onto your

Nexus such as a valve, elbow or

straight connector. To check that

you have the height of the outlet

pipe correct you can measure

from the top of the standpipe to

Fig 6

Max distance (H) below water

level of Nexus base

Nexus 200 Nexus 300

Next to Pond 350mm 14” 500mm 20”

Within 5m 100mm 4” 250mm 10”

Over 5m At or above water level

Fig 7

Fig 8

PUMP FED INSTALLATION

-7-

the top of the Nexus plastic lip as shown in Fig 8. For the 200 the distance needs

to be 110mm and 120mm for the 300.

Pump Fed Installation Steps:

Insert the Exit pipe into the Nexus Outlet (F) and secure using the 4”-4” Boot 1.

(Fig 1.1) as described in previous section page 6.

Connect the 4”- 2” Boot (Fig 1.2) to the Nexus Inlet (A).2.

Connect the Single Union Ball (Fig. 1.3) to the 4”-2” Boot (Fig 1.2) with the 3.

union side towards the pump.

Connect the hose/pipework from your pump to the Single union ball valve4.

(Fig 1.3) ( If using exi-hose you will require a hose tail).

Connect your 4” pipework from the Exit pipe back to the Pond.5.

Place the 50L K1 media bag into the outside chamber of the Nexus (x2 for6.

300).

Place the K1 bag marked either 30 or 45 into the Eazy basket (C).7.

Connect your air pump to the Nexus air inlet (H) located next to the water8.

inlet using suitable hosing such as standard 12 mm diameter garden hose.

Connect the waste valves (G) to your waste outlet (Described Below).9.

Waste Pipe Connection

The waste valves are where the waste from your Nexus is discharged when

cleaning and prior to draining. The 1.5” (50 mm) valve is for the Inner Chamber

(B) and is used for when cleaning the Eazy, while the ¾” (20 mm) valve is for

draining the outer chamber (D)(only when and if required).

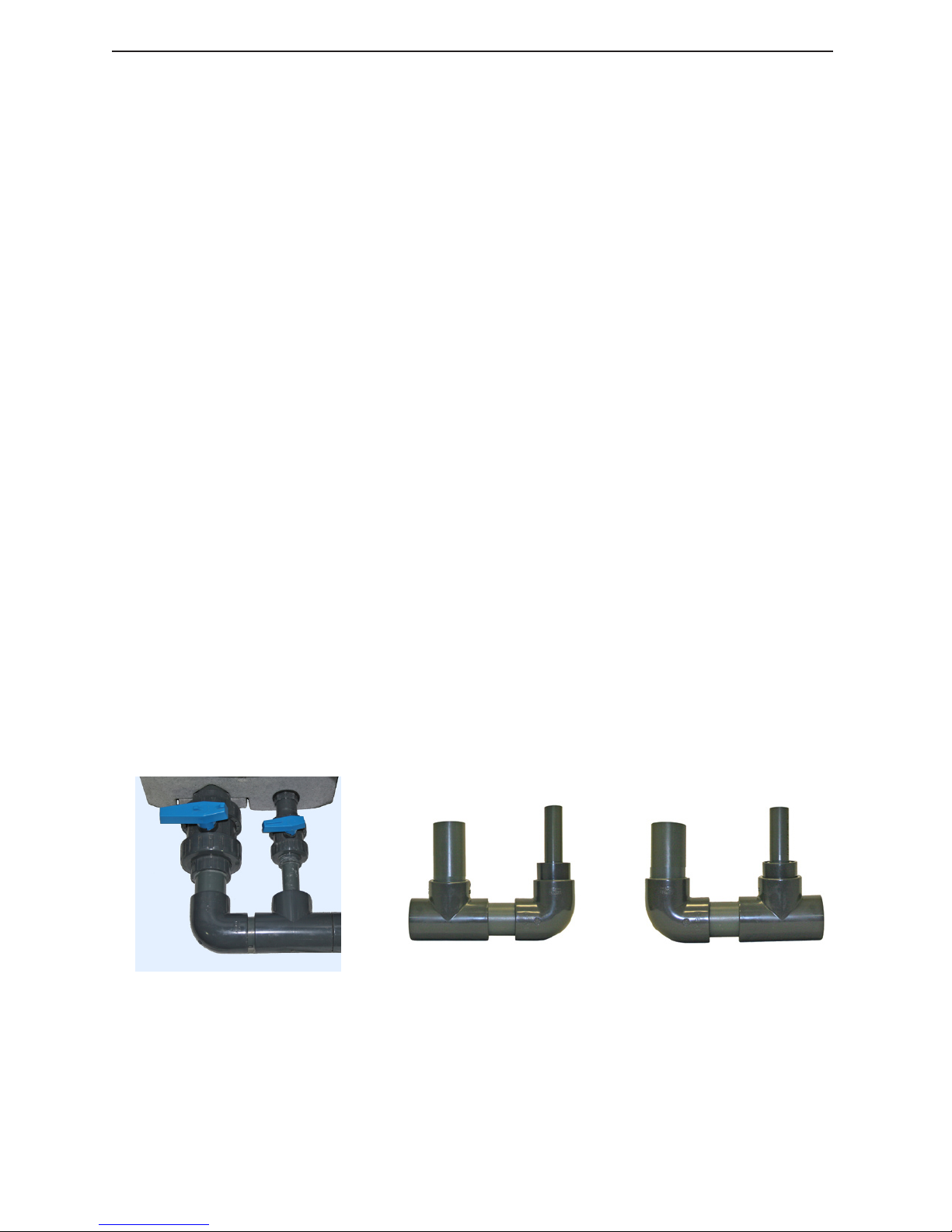

Both of these valves can be connected using a waste pipe kit (optional extra) as

shown in Figs 9.1-3 or can just be discharged individually. If the Nexus is located

below your drain height the waste can be either discharged into a sump where

a submersible pump can be used to pump the waste away or an inline pump

can be connected to the wasteline where it can pump directly to waste.

Fig 9.1

As Installed

Fig 9.2

Exit to Left

Fig 9.3

Exit to Right

Once your Nexus is installed and plumbed in as described above, you are ready

to ll the Nexus and begin treating your pond water.

To ll your Nexus rst you need to open all your valves before and after the

Nexus. With a pump fed unit you then need to switch on your pump making sure

that the owrate is not too fast (refer to the section below). A gravity fed system

will just ll until it reaches water level.

Once the Nexus is full, you will notice that

the Kaldnes K1 media is positively buoyant

and oating on the water surface. In a

pond containing sh the media can attain

neutral buoyancy in 2-3 hours while in a

newly lled and stocked pond it can take

up to a week for this to occur. For people

installing a Nexus on an existing pond, the

Kaldnes K1 media can be primed before

use, by soaking it in pond water prior to

installation.

When your Nexus is full it is time to turn on your airpump to circulate the media

making sure the valve to the outer chamber (bottom valve) is open and the

valve to the Eazy (top valve) is closed, as per gure 10. Once your media

has achieved neutral buoyancy it will move and circulate around the outer

chamber as shown in Fig 11.

Importance of Flowrate

The owrate through your Nexus affects

how your Nexus runs in two different

ways. You will visually notice straight

away that the levels in both the inner

and outer chamber will run at different

heights depending on the owrate.

Because of this the owrate also helps

determine the interval between when

the Eazy needs to be cleaned though

this is mainly dependant on the type of

food you are feeding and the amount

of algae in your pond.

The owrate of your pump can be adjusted by slightly opening or closing the

valve after your pump. For Gravity Fed systems if the level in the outside chamber

is dropping (when your eazy is clean) your owrate is too fast and needs to

be slowed down. While with Pump fed systems, if your inner chamber level is

rising quickly (when easy is clean) and overowing into the outer chamber your

owrate is too fast.

GETTING STARTED

-8-

Fig 10

Fig 11

Altri manuali per Nexus Eazy 200

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Evolution Aqua Sistema di filtraggio dell'acqua

Evolution Aqua

Evolution Aqua eazypod Manuale

Evolution Aqua

Evolution Aqua eazypod complete Manuale utente

Evolution Aqua

Evolution Aqua Nexus Eazy 200 Manuale

Evolution Aqua

Evolution Aqua eazypod Manuale

Evolution Aqua

Evolution Aqua Cetus sieve Manuale utente

Evolution Aqua

Evolution Aqua Cetus sieve Guida rapida

Evolution Aqua

Evolution Aqua EAZYPOD AUTOMATIC Guida rapida

Evolution Aqua

Evolution Aqua evoUV Series Manuale utente

Evolution Aqua

Evolution Aqua nexus 310 Guida rapida

Evolution Aqua

Evolution Aqua Nexus Eazy 200 Manuale

Evolution Aqua

Evolution Aqua eazypod Guida rapida

Evolution Aqua

Evolution Aqua NExus 300 Manuale utente

Evolution Aqua

Evolution Aqua PURE POND 5,000 Manuale di istruzioni

Evolution Aqua

Evolution Aqua Tempest Manuale utente

Evolution Aqua

Evolution Aqua eazypod Manuale

Evolution Aqua

Evolution Aqua NExus 300 Manuale

Evolution Aqua

Evolution Aqua K1 MICRO BEAD 20 Guida rapida

Evolution Aqua

Evolution Aqua evo15 Manuale utente

Evolution Aqua

Evolution Aqua Nexus Series Guida rapida

Manuali Sistema di filtraggio dell'acqua popolari di altre marche

Wisy

Wisy LineAir 100 Manuale utente

Schaffner

Schaffner Ecosine FN3446 Series Manuale operativo

Pentair

Pentair FLECK 4600 SXT Guida utente

H2O International

H2O International H20-500 Manuale utente

Renkforce

Renkforce 2306241 Manuale utente

Neo-Pure

Neo-Pure TL3-A502 Manuale utente

FLTR

FLTR OBF Manuale utente

STA-RITE

STA-RITE VERTICAL GRID DE FILTERS S7D75 Manuale utente

Applied Membranes

Applied Membranes W-G844EM Manuale utente

BEGA

BEGA 116 Manuale utente

WATA

WATA Standard Manuale utente

Price

Price FFU series Manuale

Gaggenau

Gaggenau BRITA INTENZA 467873 Manuale utente

Brita

Brita SAFF-100 Manuale utente

HEISSNER

HEISSNER FPU24000-00 Manuale utente

BGS technic

BGS technic 1518 Manuale utente

Reverse Osmosis

Reverse Osmosis RF Series Manuale utente

ubbink

ubbink Filtramax Series Manuale utente
