Evolve WR153ND Manuale utente

Contents

Introduction······································································································ - 3 -

Section one Product Overview·········································································· - 4 -

1.1 Product Features ······························································································ - 4 -

1.2 Specification ···································································································· - 4 -

Section Two Hardware Installation ···································································· - 6 -

2.1 Panel layout ····································································································· - 6 -

2.1.1 Front panel············································································································· - 6 -

2.1.2 Rear panel············································································································· - 7 -

2.2 System Requirements························································································ - 7 -

2.3 Installation Environment ···················································································· - 7 -

2.4 Hardware Installation Steps················································································ - 7 -

Section

Three

Quick

Installation

Guide

······························································· - 8 -

3.1 TCP/IP configuration ·························································································· - 8 -

3.2 Quick Setup wizard ··························································································- 10 -

3.3 Operation mode·······························································································- 16 -

Section four Configuration Guide·····································································- 17 -

4.1 Login··············································································································- 17 -

4.2 Wireless Setting·······························································································- 17 -

4.2.1 Wireless Status······································································································- 18 -

4.2.2 Wireless Basic settings····························································································- 18 -

4.2.3 Repeater settings ···································································································- 19 -

4.2.4 Virtual AP settings···································································································- 20 -

4.2.5 WDS Settings········································································································- 20 -

4.2.6 Advanced Settings··································································································- 21 -

4.2.7 Access Control·······································································································- 21 -

4.2.8 WPS Settings ········································································································- 22 -

4.3 TCP/IP Setting ·································································································- 23 -

4.3.1 LAN Status············································································································- 23 -

4.3.4 WAN Interface Setup·······························································································- 25 -

4.4 Firewall···········································································································- 25 -

4.4.1 IP/Port Filtering······································································································- 25 -

4.4.2 MAC Filtering·········································································································- 26 -

4.4.3 Port Forwarding ·····································································································- 27 -

4.4.4 URL Filtering ·········································································································- 28 -

4.4.5 DMZ ····················································································································- 28 -

4.5 Management ···································································································- 29 -

4.5.1 QOS····················································································································- 29 -

4.5.2 DDNS Setting·········································································································- 30 -

4.5.3 Time Zone Setting ··································································································- 31 -

4.5.5 Log······················································································································- 32 -

4.5.6 Upgrade Firmware··································································································- 32 -

4.5.7 Save/Reload settings ······························································································- 33 -

4.5.8 Password setup ·····································································································- 33 -

WR153ND Router

hybrid

design product which combines Ethernet technology and wireless

access into a single stand-alone unit. The device allows you to take advantages of both mobility and

fast connection. All PCs whenever on wireless LAN or Ethernet LAN can share files, printers and o

ther

network

resources. Moreover,

all

users

can

single

account

Internet

access

having

this

device connect

DSL/Cable

modem.

It complies with IEEE 802.11n (Draft 2.0) standards, supports up to 150Mbps (1Tx-1Rx) wireless

connection speed, adopting MIMO technology to ensure a good performance, stability and coverage

to bring you an enjoyable new experience. It's wireless data transmission rate can be 3 times better

and coverage 4 times better than a normal 802.11g/b router. It is a high performance and cost-

effective solution for Home and Small office.

The router provides multiple security protection, which can protect the wireless access security

effectively. It is easy to install and configure with user friendly interface. For better application of the

router functions, please read this user manual carefully.

Package List

Open the box carefully, check the contents listed below:

Wireless Broadband Router

Power adapter

User Manual

UTP Lan Cable

1x 5dBi antenna

CD

1.1 Product Features

Complies with IEEE 802.11n, 802.11g, 802.11b standard for 2.4GHz Wireless LAN

1 10/100M WAN RJ45 port, 4 10/100M LAN RJ45 ports

Supports Auto MDI/MDIX

Supports Wireless Roaming, can move among different AP and no break

Provides 64/128 bit WEP, WPA and WPA2 authentication and TKIP/AES encryption security

Supports wireless Relay/Bridging/WDS/WDS+AP mode, WPS Settings .

Provides wireless LAN ACL (Access Control List) filtering

Built-in NAT and DHCP server supporting dynamic IP address distributing

Supports Virtual Server, Special Application, and DMZ host

Built-in firewall supporting IP address filtering, Domain Name filtering, and MAC address filtering

Supports TCP/IP, PPPoE, DHCP, ICMP, NAT

Supports UPnP, Dynamic DNS, Static Routing,

Supports Flow Statistics

Firmware upgrade, and configuration file backup and restore

Supports Remote and Web management

1.2 Specification

Standard

IEEE802.11n current draft

、

IEEE 802.11g

、

IEEE 802.11b

IEEE 802.3、IEEE 802.3u、IEEE 802.3x

Protocol

CSMA/CA

、

CSMA/CD

、

TCP/IP

、

ICMP

、

NAT

、

PPPoE

、

DHCP

、

PPTP

、

UDP

、

NAT、DNS、DDNS、VPN

Port LAN

4*100BaseTX (Auto MDI/MDIX)

Port WAN

1*100BaseTX (Auto MDI/MDIX)

RF Frequency

2.4~2.4835GHz

Data Rate

11n: 150/135/121.5/108/81/54/40.5/27/13.5Mbps

130/117/104/78/52/39/26/13Mbps

72/65/58.5/52/39/26/19.5/13/6.5Mbps

11g: 54/48/36/24/18/12/9/6Mbps

11b: 11/5.5/2/1Mbps

Receive

Sensitivity

135M: -68dBm@10% PER

54M: -68dBm@10% PER

11M: -85dBm@8% PER

6M: -88dBm@10% PER

1M: -90dBm@8% PER

Channels

1-11 (North America)

1-13 (General Europe)

1-14 (Japan)

Transmission

Technology

BPSK, QPSK, CCK and OFDM (BPSK/QPSK/16-QAM/ 64-QAM)

Antenna Type

1*2.4GHz Dipole Antenna

（

1TX*1RX

）

Operation Mode

Standard Access Point; Wireless WAN mode (Client Mode Wireless),

WDS，WPS

Wireless Security

SSID Enable/Disable; MAC Address, IP and URL Filter

；

64/128/152-bit

WEP Encryption

WPA/WPA2/WPA-PSK/WPA2-PSK (AES/TKIP) Encryption

RF power

11g:14-16dbm

11b:17-19dbm

11n:13-15dbm

Chipset

RTL8196BU+8191RE

LED

1*Power, 1*CPU Status,1*Wireless, 1*WAN, 4*LAN

Management

Local/Remote Web-based configuration

Operating

Temperature 0 ~ 55℃

Storage

-20 ~ 65

℃

Humidity

5 ~ 95% non-condensing

External Power

Adapter

Input 100V~240V

Output DC5V 1A;

2.1 Panel layout

2.1.1 Front panel

The front panel of the 11N Wireless Router consists of several LED indicators, which is designed to

indicate connections.

LED indicators:

Led Name

Action

Description

Power

off

no power

power on

CPU

off

the router has a hardware error

flashing

the router is working properly

WLAN

off

wireless function is disabled

flashing

wireless function is enabled

WAN /LAN1 、

2、3、4

off

there is no device connected to the corresponding port

there is a device connected to the corresponding port

flashing

there is an active device connected to the corresponding port

2.1.2 Rear panel

2.2 System Requirements

Broadband Internet Access Service (DSL/Cable/Ethernet)

One DSL/Cable modem that has an RJ45 connector (you do not need it if you connect the router

to Ethernet)

Each PC on the LAN needs a working Ethernet Adapter and an Ethernet cable with RJ45

connectors

TCP/IP protocol must be installed on each PC

Web browser, such as Microsoft IE 5.0 or later, Netscape Navigator 6.0 or later

2.3 Installation Environment

Not in direct sunlight or near a heater or heating vent

Not cluttered or crowded. There should be at least 2 inches (5cm) of clear space on all sides of

the router

Well ventilated (especially if it is in a closet)

Operating temperature: 0℃~40℃

Operating Humidity: 5%~90%RH, Non-condensing

2.4 Hardware Installation Steps

Before you install the router, you should connect your PC to the Internet through your broadband

service successfully. If there is any problem, please contact your ISP. After that, please install the

router according to the following steps. Don't forget to pull out the power plug and keep your hands dry.

Power off your PC(s), Cable/DSL modem, and the router.

Locate an optimum location for the router. The best place is usually near the center of the area in

which your PC(s) will wirelessly connect. The place must accord with the Installation

Environment Requirements.

Adjust the direction of the antenna. Normally, upright is a good direction.

Connect the PC(s) and each Switch/Hub on your LAN to the LAN Ports on the router.

Connect the DSL/Cable Modem to the WAN port on the router.

Connect the AC power adapter to the AC power socket on the router, and the other end into an

electrical outlet. The router will start to work automatically.

Power on your PC(s) and Cable/DSL modem.

After connecting the 11N Wireless Router into your network, you should configure it. This chapter

describes how to configure the basic functions of your 11N Wireless Router. These procedures

only take you a few minutes. You can access the Internet via the router immediately after successfully

configured.

3.1 TCP/IP configuration

The default IP address of the Wireless Router is 192.168.0.1, and the default Subnet Mask is

255.255.255.0. These values can be seen from the LAN. They can be changed as you desire, as an

example we use the default values for description in this guide.

Connect the local PC to the LAN ports on the router. There are then two means to configure the IP

address for your PC.

Configure the IP address manually

1. Set up the TCP/IP Protocol for your PC(s).

2. Configure the network parameters. The IP address is 192.168.0.xxx ("xxx" is from 2 to 254),

Subnet Maskis 255.255.255.0, and Gateway is 192.168.0.1(The router's default IP address)

Obtain an IP address automatically

1. Set up the TCP/IP Protocol in "Obtain an IP address automatically"mode on your PC(s)

2. Power off the router and PC(s). Then turn on the router, and restart the PC(s). The built-in

DHCP server will assign IP addresses for the PC(s).

Now, you can run the Ping command in the command prompt to verify the network connection

between your PC(s) and the router.

Open a command prompt, and type ping 192.168.0.1, then press Enter.

If the result displayed is similar to that shown in the top of figure, the connection between your PC

and the router has been established.

If the result displayed is similar to that shown in the top of figure, it means that your PC has not

connected to the router. Please check it following these steps:

1. Is the connection between your PC and the router correct?

2. Is the TCP/IP configuration for your PC correct?

:If the router's IP address is 192.168.0.1, your PC's IP address must be within

the range of 192.168.0.2 ~ 192.168.0.254, the gateway must be 192.168.0.1

3.2 Quick Setup wizard

With a Web-based (Internet Explorer or Netscape® Navigator) utility, the 11N 150bps Wireless

Router is easy to configure and manage. The Web-based utility can be used on any Windows,

Macintosh or UNIX OS with a web browser.

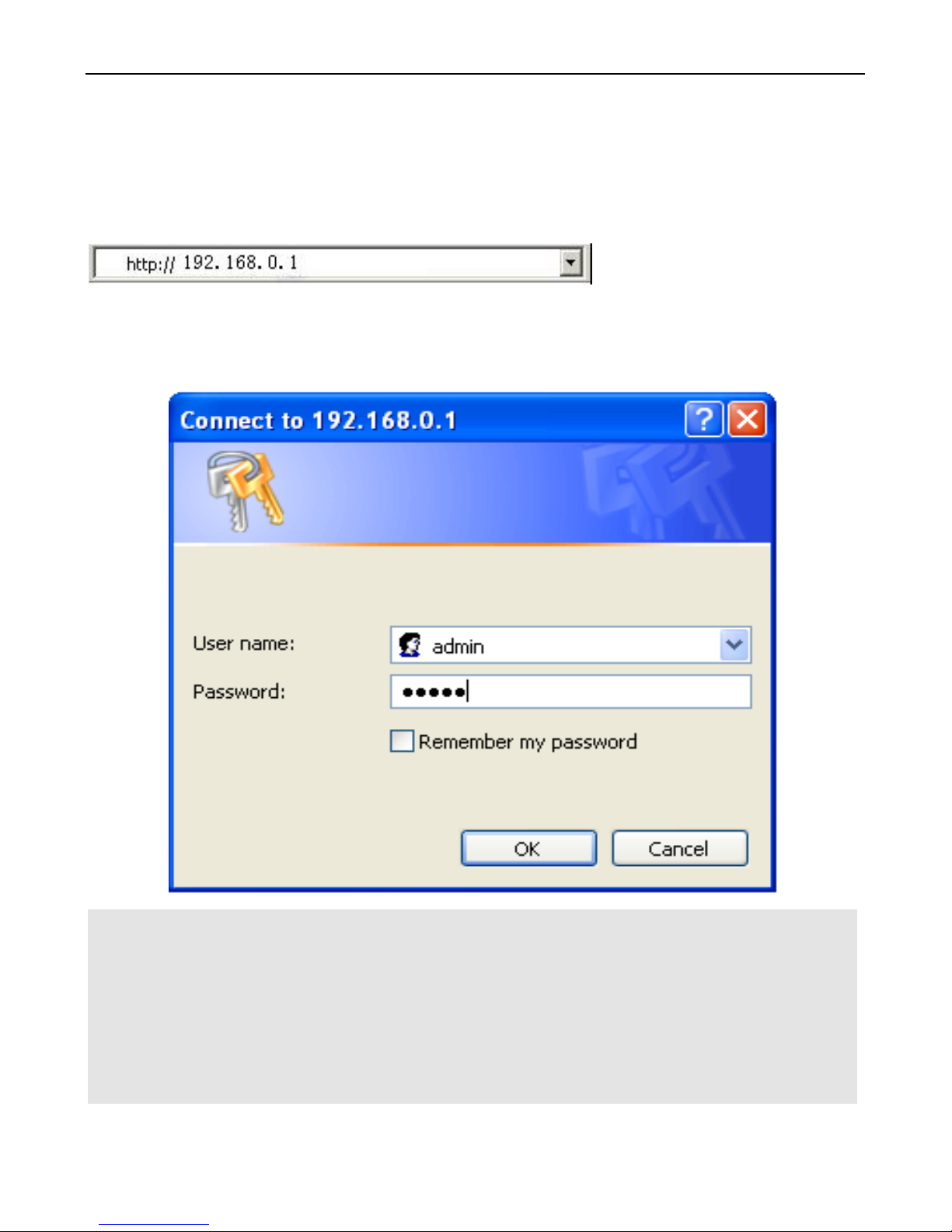

Connect to the router by typing http://192.168.0.1 in the address field of web browser.

After a moment, a login window will appear similar to that shown in Figure. Enter admin for the

User Name and Password, both in lower case letters. Then click the OK button or press the Enter

key.

Click Setup Wizard, the Setup Wizard will appear.

NOTE:

If the above screen does not prompt, it means that your web-browser has been set to a proxy. Go

to Tools menu>Internet Options>Connections>LAN Settings, in the screen that appears, cancel

the Using Proxy checkbox, and click OK to finish it.

If the User Name and Password are correct, you can configure the router using the web

browser. Please click the Setup Wizard link on the left of the main menu and the Setup

Wizard screen will appear.

Indice

Altri manuali Evolve Router wireless

Evolve

Evolve WR15ON Manuale utente

Manuali Router wireless popolari di altre marche

Milesight

Milesight UG67 Manuale utente

Airlogic

Airlogic AirSync Class 1 Manuale del proprietario

Samsung

Samsung WCH730B Manuale utente

TELEFONICA

TELEFONICA USB Adapter Manuale utente

NETGEAR

NETGEAR PowerLINE WiFi 1000 Series Manuale utente

Askey

Askey RAC2V1K Manuale utente

Alloy

Alloy WLF2454AP-S Manuale utente

TP-Link

TP-Link TL-WR542G Manuale utente

NETGEAR

NETGEAR WNR2000v4 Manuale utente

Hama

Hama 53120 Manuale utente

Intellinet

Intellinet 524582 Manuale utente

Asus

Asus RT-N10P Manuale utente

D-Link

D-Link DIR-506L Manuale utente

Sapido

Sapido GR297n Manuale utente

Asus

Asus DSL-N55U Manuale utente

AMTC

AMTC WR7502 Manuale utente

Compaq

Compaq CP-2W - iPAQ Connection Point Manuale utente

SMC Networks

SMC Networks WBR14-N2 FICHE Manuale utente
