Ewheels EW-36 Manuale utente

e wheelsewheelsTM

E-Wheels™| 5000 Birch St. West Tower, Suite 3000 | Newport Beach, CA, 92660

888-305-0881 Toll Free | [email protected] Customer Service | Fax: 949-209-4309 | ewheelsdealers.com

Owners Manual

EW-36

e wheelsewheelsTM

E-Wheels™| 5000 Birch St. West Tower, Suite 3000 | Newport Beach, CA, 92660

888-305-0881 Toll Free | [email protected] Customer Service | Fax: 949-209-4309 | ewheelsdealers.com

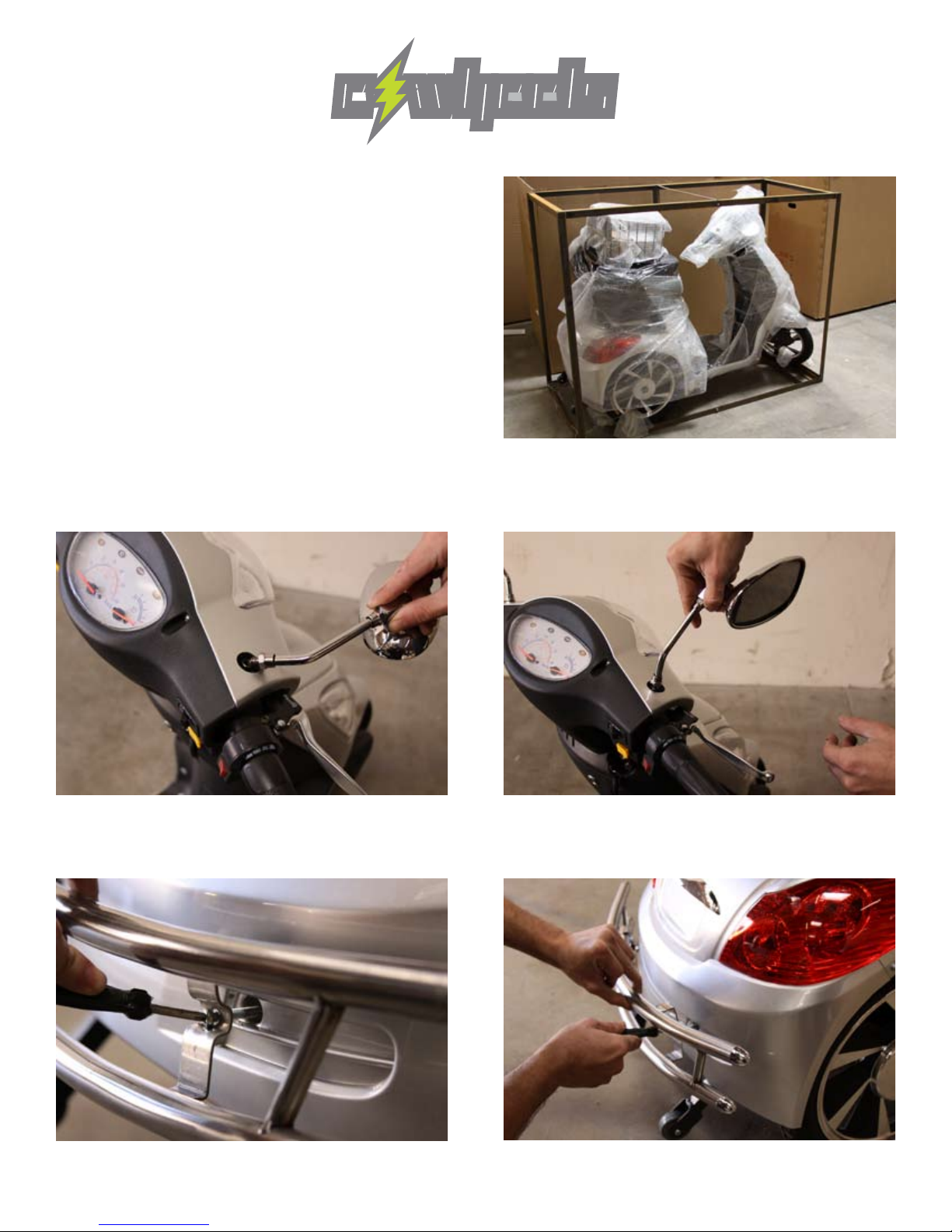

You will recieve your scooter like this

Mirror Assembly

Simply threat mirror into mirror hole and tighten until snug

Rear Bumper Assembly

Screw on bumber with the two provided screws

e wheelsewheelsTM

E-Wheels™| 5000 Birch St. West Tower, Suite 3000 | Newport Beach, CA, 92660

888-305-0881 Toll Free | [email protected] Customer Service | Fax: 949-209-4309 | ewheelsdealers.com

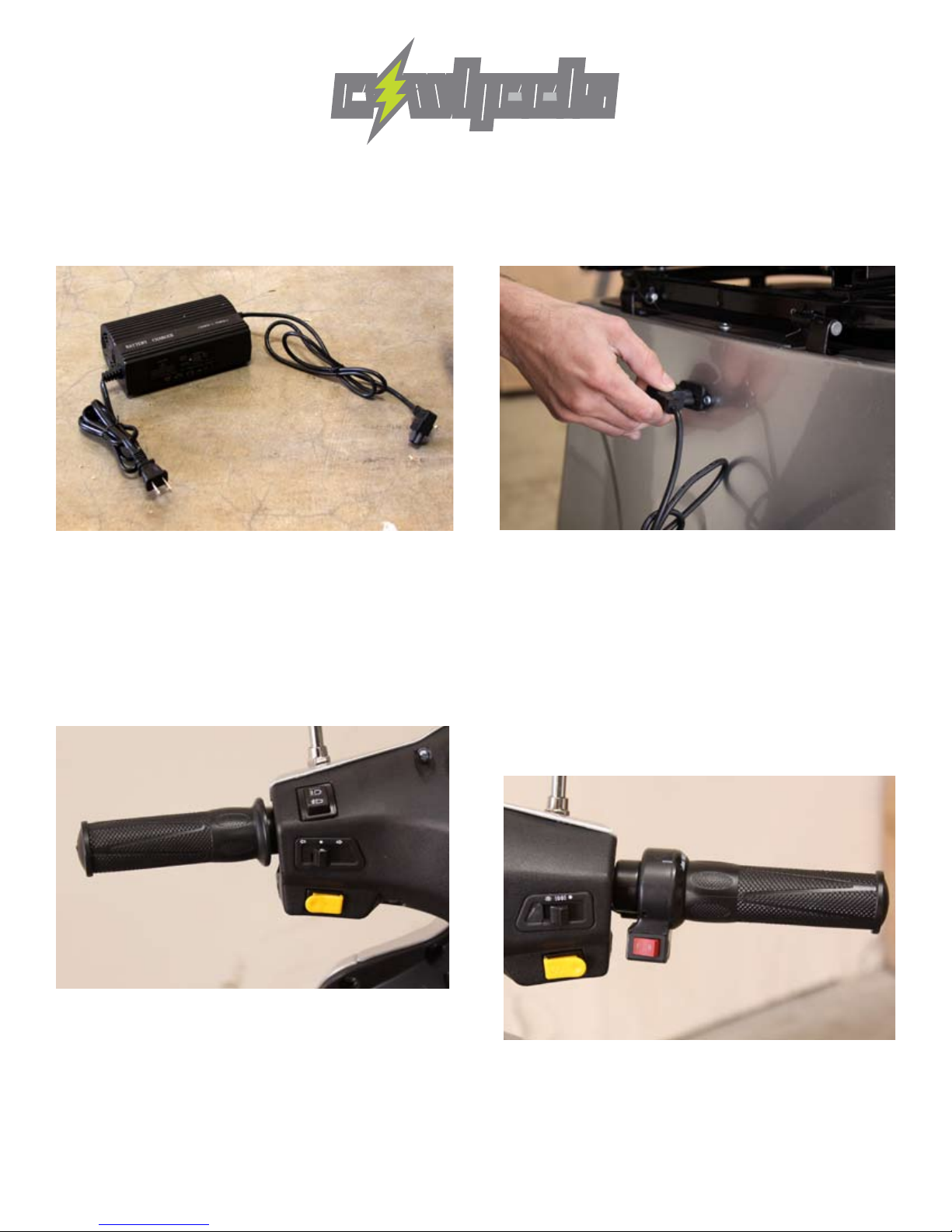

Charging

Plug charger into any 110 wall outlet. To charge simply connect the charger via the plug under the seat.

Complete charge takes 4-6 hours.

Left Side Hand Controls

A. Headlight regular / high beam

B. Turn signal - Note: Simply push right or left to

indicate direction. Depress button to switch back to

neutral.

C. Horn

Right Side Hand Controls

A. Running light / headlight

B. Horn

C. Forward/reverse

D. Twist throttle w/ cruise control

Cruise control is activated after 90 sec. at the same

speed. Deactivated by rear wheel brake lever.

C. A.

B. C.

e wheelsewheelsTM

E-Wheels™| 5000 Birch St. West Tower, Suite 3000 | Newport Beach, CA, 92660

888-305-0881 Toll Free | [email protected] Customer Service | Fax: 949-209-4309 | ewheelsdealers.com

Ignition Positions

A. Front end lock position

B. Power off position

C. Power on position

Seat Adjustment

A. Seat back release lever B. Armrest Angle adjustment C. Forward and backward seat adjustment

e wheelsewheelsTM

E-Wheels™| 5000 Birch St. West Tower, Suite 3000 | Newport Beach, CA, 92660

888-305-0881 Toll Free | [email protected] Customer Service | Fax: 949-209-4309 | ewheelsdealers.com

Front And Rear Brake Adjustment

Tighten or loosen the saddle nut at the end of the brake cable to create tension or release tension on the brakes.

Test the brake as you tighten or loosen the saddle nut. Tighten or loosen until brake lever has about .75”

between the lever and grip or desired distance. The rear brake adjustment is underneath the scooter and adjusts

both rear brakes.

Glove Compartment and Under Seat Storage

Glove Compartment: Use key to unlock glove compartment.

Under Seat Storage: Push seat all the way forward and use key to unlock the seat and lift.
