Exalux CONTROLSKY Manuale utente
USER MANUAL
CONTROLSKY
CONTROLSKY
DC 5V
INPUT
DMX
INPUT DC 10-24V
INPUT
DMX
OUTPUT
LOCKBLACK OUT
Push to enter/exit black out Hold to lock/unlock the controls
OFF/ON/SCREEN OFF
Select «screen off» position to turn off the display and save battery
DMX data is still sent to the equipment
CRMXCRMX LINK/UNLINK
Push 1s to enable/disable the CRMX transmitter
Hold 3s to unlink all CRMX devices
Push 1s to link a CRMX device
MEMORIES
MASTER KNOB
SET KNOB
Turn to set, push to valid
Push = previous fader
Always deploy the antenna for optimal range transmission
ANTENNA
Use your finger or stylus to launch and control applications
TOUCH SCREEN
Getting started...
EXALUX™ CONTROL SKY is a 5-in-1 wireless DMX controller
especially designed to control up to 20 SkyPanels®with sense
and simplicity.
CONTROL SKY works perfectly with all CRMX by LumenRadio™
receivers.
Turn to set, push to valid
Push = next fader
8 memories for each app
Push <1s to restore
Push >2s to save
Push >4s to erase
PLAYER
PLAYER APP allows you to
play the DMX memories that
have been recorded with
the FADER, RECORDER and
SKY apps.
FADER
FADER APP works the exact
same way than your hardware
DMX controller you used for
years. Every fader is linked to a
DMX address.
RECORDER RECORDER APP allows to
record 512 DMX channels in
real time.
8 memories | 80s recording
@44Hz max
SKY
SKY APP allows to control up to
20 SkyPanels® in DMX P30 mode.
Operation modes are : CCT+GM, HSI,
RGBW, [X,Y], Effects, Source Matching
and Filters.
TX TX APP turns the CONTROL SKY
into a CRMX transmitter.
The DMX received on the DMX
input is wirelessly transmitted by
the integrated CRMX transmitter.
SYSTEM SYSTEM APP allows you to
reset the memories, adjust
the display brightness and
set a pin code.
Open the SUPPORT page for general
information and firmware version.
HOME
Choose app using the touch screen
or the knobs

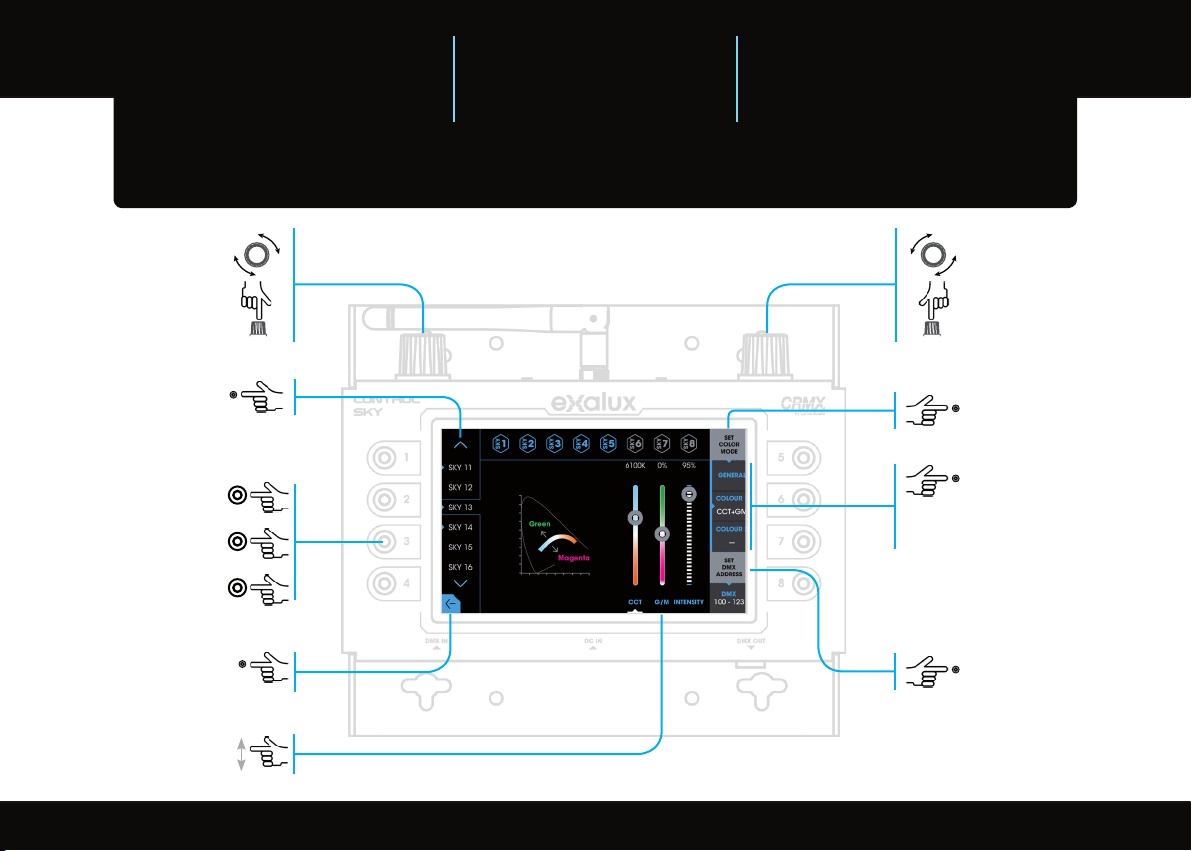

SKY APP allows to control up to 20 SkyPanels® in DMX P30 mode. Operation
modes are : CCT+GM, HSI, RGBW, [X,Y], Effects, Source Matching and Filters.
SKY
SKYPANEL SELECTION
Up to 20
SAVE MEMORY >2’’
RESTORE MEMORY <1’’
ERASE MEMORY >4’’
BACK TO HOME
SKYPANEL SETTINGS
ADJUST INTENSITY LEVEL
CHANNEL SELECTION
CHOOSE THE CONTROL
MODE
NAVIGATE BETWEEN
SETTINGS PAGES:
GENERAL, COLOUR 1 &
COLOUR 2
ADJUST CHANNEL LEVEL
CHANNEL SELECTION
SET THE DMX ADDRESS
OF THE FIXTURE
FIXTURE SETUP
Selection of the fixture to control
SKY
VALIDATION
> BACK TO SKY APP
ENABLE / DISABLE
THE FIXTURE COLOUR 1 / COLOUR 2
SELECTION TABS
The P30 consists of two individual
colour modes, crossfaded with a
dedicated slider.
The crossfade slider is located
on the GENERAL page of the SKY
app.
The SkyPanel must be set in
DMX mode Ultimate 8 bits
P30 when using the SKY app.
Please, read the SkyPanel
manual before using the SKY
app.
COLOUR 2 UNUSED
If the second colour is not
needed, keep colour 2
as unused. The crossfade
channel will automatically
be disabled.
CHOOSE THE DESIRED
CONTROL MODE
SET MASTER LEVEL
MASTERIZE
ALL CHANNELS
FADER APP works the exact same way than your hardware DMX
console you used for years. Every fader is linked to a DMX address.
FADER
SET CHANNEL LEVEL
PREVIOUS FADER
FADER SCROLLING
<1’’
>1’’
BACK TO HOME
SAVE MEMORY >2’’
RESTORE MEMORY <1’’
ERASE MEMORY >4’’
SET MASTER LEVEL
PREVIOUS FADER
FADER SCROLLING
<1’’
>1’’
FULL ON
SHORTCUTS TO
DMX PAGES
PREVIOUS FADERS
SET CHANNEL LEVEL
MASTERIZE CHANNEL
ERASE THE CONTENT OF
THE SELECTED MEMORY

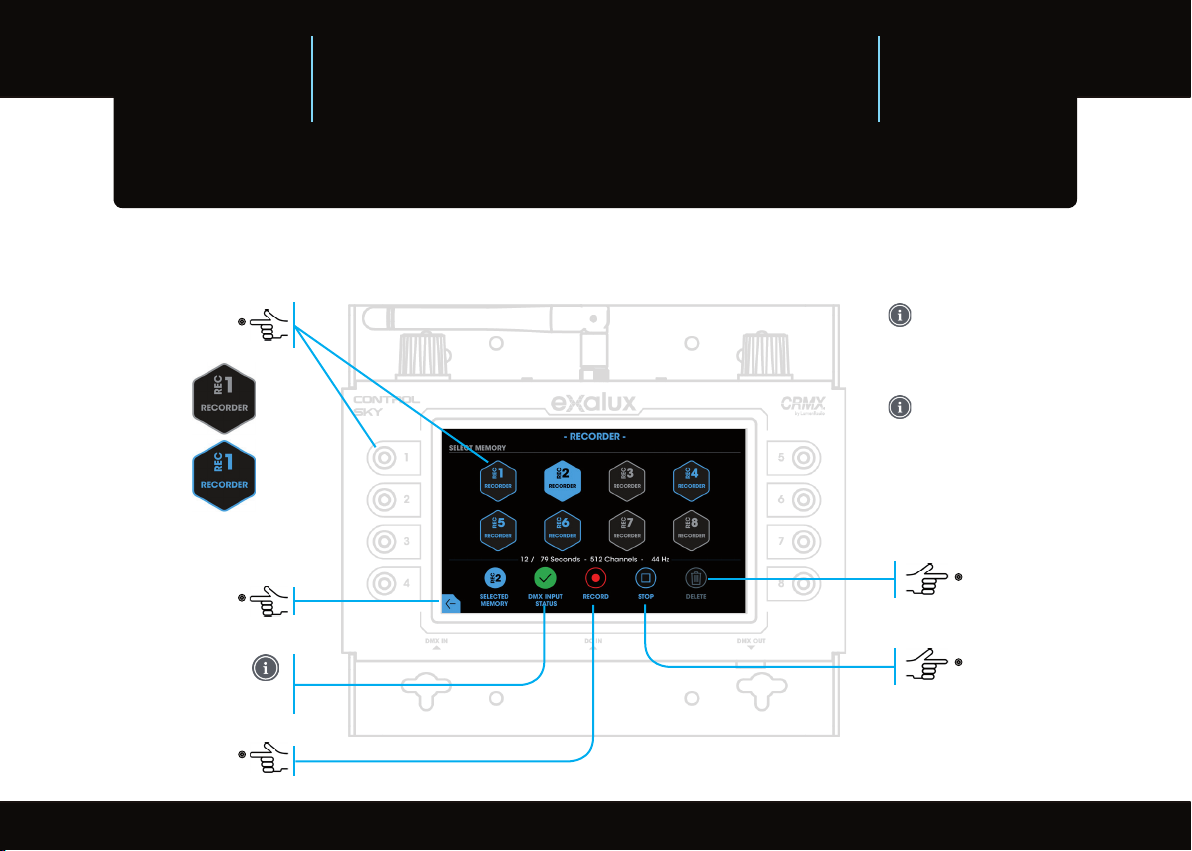

Recording stops automatically
when memory is full (80
seconds @ 44Hz)
The recorded sequences can
only be played back in the
PLAYER app.
BACK TO HOME
START RECORDING
DMX INPUT STATUS
GREEN: DMX OK
RED: NO DMX
STOP RECORDING
SELECT A MEMORY
TO RECORD DMX IN
EMPTY MEMORY
> Ready to use
FILLED MEMORY
RECORDER APP allows to record all DMX frames received on the DMX input.
Record sequences up to 80 seconds at 44 Hz on each of the 8 memories.
RECORDER
SET CROSSFADE
DURATION
PLAYER APP allows you to play the DMX memories that have been
recorded with the FADER, RECORDER and SKY apps.
PLAYER
BACK TO HOME
SET MASTER
LEVEL
SELECT SOURCE
CHOOSE THE
MEMORY TO USE
EMPTY MEMORY
FILLED MEMORY
CHANGE THE
MEMORY NAME
TX APP turns the CONTROL SKY into a CRMX transmitter.The DMX received on
the DMX input is wirelessly transmitted by the integrated CRMX transmitter.
TX
CONNECT EXTERNAL
DMX CONSOLE
DMX OUTPUT
(THROUGH)
DMX INPUT STATUS
GREEN: DMX OK
RED: NO DMX WIRELESS OUTPUT STATUS
BACK TO HOME
The CRMX transmitter is
automatically switched
on when the TX app is
running.
SCREEN BRIGHTNESS
ADJUSTMENT
RESET MEMORIES
OF FADER APP
3 ’’
SYSTEM APP allows you to reset the memories, adjust the display
brightness and set a pin code.
SYSTEM
RESET MEMORIES
OF SKY APP
3 ’’
RESET CONTROL SKY
3 ’’
RESET MEMORIES
OF RECORDER APP
3 ’’
PIN CODE SETUP
When activated, the PIN code
is requested to allow the user to
exit the PLAYER app.
Default PIN : 0000
BACK TO HOME
