EXFO XTA-50 Manuale utente

User Guide

XTA-50

Optical Tunable Filter

www.EXFO.com

ii XTA-50

reproduced, stored in a retrieval system or transmitted in any form, be it electronically,

mechanically, or by any other means such as photocopying, recording or otherwise,

without the prior written permission of EXFO Inc.(EXFO).

Information provided by EXFO is believed to be accurate and reliable. However, no

responsibility is assumed by EXFO for its use nor for any infringements of patents or other

rights of third parties that may result from its use. No license is granted by implication or

otherwise under any patent rights of EXFO.

EXFO’s Commerce And Government Entities (CAGE) code under the North Atlantic Treaty

Organization (NATO) is 0L8C3.

The information contained in this publication is subject to change without notice.

Trademarks

EXFO’s trademarks have been identified as such. However, the presence or absence of

such identification does not affect the legal status of any trademark.

Units of Measurement

Units of measurement in this publication conform to SI standards and practices.

Patents

The exhaustive list of patents is available at www.EXFO.com/patent.

Version number: 3.0.0.2

Information in this document applies to the XTA-50 embedded software package

version 3.0.x

Contents

Optical Tunable Filter iii

Contents

Copyright Information .........................................................................................................................................ii

Regulatory Information .......................................................................................................................................v

1 Introducing the XTA-50 .........................................................................................................1

Technical Specifications .......................................................................................................................................1

XTA-50 Overview .................................................................................................................................................3

Conventions .........................................................................................................................................................8

2 Safety Information ................................................................................................................9

Other Safety Symbols on Your Unit ...................................................................................................................10

Electrical Safety Information ..............................................................................................................................11

3 Getting Started with Your XTA-50 ......................................................................................15

Unpacking and Installing the XTA-50 .................................................................................................................15

Connecting the XTA-50 to a Power Source ........................................................................................................16

Connecting a Mouse and Keyboard to the XTA-50 ............................................................................................17

Connecting Optical Devices to the XTA-50 .........................................................................................................17

Turning on the XTA-50 and Accessing the Operating Modes .............................................................................18

Setting the Screen Brightness ............................................................................................................................20

Connecting an External Screen to the XTA-50 .......................................................................................................21

Turning off the XTA-50 ......................................................................................................................................22

4 Setting the Wavelength/Frequency and FWHM Values .....................................................23

Manually Entering the Wavelength/Frequency and FWHM Values .....................................................................24

Selecting a Channel by Using an ITU Grid ..........................................................................................................26

Defining and Running a Sequence of Wavelength/Frequency and FWHM Values ..............................................30

Enabling/Disabling the Backlash Suppression Mechanism .................................................................................35

5 Remotely Controlling the XTA-50 .......................................................................................37

Installing/Updating and Starting the XTA-50 Remote Program ..........................................................................37

Switching Between Remote and Local Mode .....................................................................................................38

Remotely Controlling the XTA-50 via USB-B .......................................................................................................39

Remotely Controlling the XTA-50 via Ethernet ...................................................................................................42

Command/Answer Syntax ..................................................................................................................................46

6 Maintenance ........................................................................................................................49

Updating the XTA-50 Firmware Version .............................................................................................................50

Updating the Operating System Version (Security Updates) ..............................................................................51

Accessing the Operating System ........................................................................................................................52

Cleaning Optical Connectors ..............................................................................................................................53

Cleaning the XTA-50 ..........................................................................................................................................55

Replacing Fuses .................................................................................................................................................57

Recycling and Disposal ......................................................................................................................................58

7 Troubleshooting ..................................................................................................................59

Errors .................................................................................................................................................................59

Checking the Firmware Version .........................................................................................................................60

Displaying the User Documentation ..................................................................................................................60

Contacting the Technical Support Group ...........................................................................................................61

Transportation ...................................................................................................................................................61

Contents

iv XTA-50

8 Warranty .............................................................................................................................. 63

General Information ..........................................................................................................................................63

Gray Market and Gray Market Products .............................................................................................................63

Liability ..............................................................................................................................................................64

Exclusions ..........................................................................................................................................................64

Certification .......................................................................................................................................................64

Service and Repairs ............................................................................................................................................65

EXFO Service Centers Worldwide .......................................................................................................................66

A Command Reference .......................................................................................................... 67

General System Information ..............................................................................................................................68

Wavelength/Frequency and FWHM Control .......................................................................................................69

Remote Mode Control .......................................................................................................................................76

Regulatory Information

Optical Tunable Filter v

Regulatory Information

USA Electromagnetic Interference Regulatory Statement

Electronic test and measurement equipment is exempt from FCC part 15, subpart B

compliance in the United States of America. However, EXFO Inc. makes reasonable efforts

to ensure compliance to the applicable standards.

The limits set by these standards are designed to provide reasonable protection against

harmful interference when the equipment is operated in a commercial environment. This

equipment generates, uses, and can radiate radio frequency energy and, if not installed and

used in accordance with the user documentation, may cause harmful interference to radio

communications. Operation of this equipment in a residential area is likely to cause

harmful interference in which case the user will be required to correct the interference at

his own expense.

Modifications not expressly approved by the manufacturer could void the user’s authority to

operate the equipment.

Canada Electromagnetic Interference Regulatory Statement

This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in a residential area is

likely to cause harmful interference.

Cet équipement génère, utilise et peut émettre de l'énergie radio-fréquence et, s'il n'est pas

installé et utilisé conformément à la documentation de l'utilisateur, il peut occasionner une

interférence néfaste aux communications radio. L'utilisation de cet équipement dans une

zone résidentielle est susceptible d'occasionner une interférence néfaste.

Caution: This equipment is not intended for use in residential environments and may not

provide adequate protection to radio reception in such environments.

Attention: Cet appareil n'est pas destiné à être utilisé dans des environnements résidentiels

et peut ne pas assurer la protection adéquate à la réception radioélectrique dans ce type

d'environnements.

This is a class A, group 1 product.

³Class A equipment: Equipment that is, by virtue of its characteristics, highly unlikely to

be used in a residential environment, including a home business shall be classified as

class A and shall comply with the class A limits specified in the applicable ICES

standard. Characteristics considered in this assessment include price, marketing and

advertising methodology, the degree to which the functional design inhibits

applications suitable to residential environments, or any combination of features that

would effectively preclude the use of such equipment in a residential environment.

Classe A: Matériel qui, en raison de ses caractéristiques, ne sera fort probablement pas

utilisé dans un milieu domiciliaire ni par des entreprises établies à domicile. Parmi les

caractéristiques considérées dans cette évaluation, il y a le prix, les méthodes de

commercialisation et de publicité, la mesure dans laquelle les fonctions de l'appareil

font qu'il ne se prête pas à des applications convenant au milieu domiciliaire ou toute

Regulatory Information

vi XTA-50

combinaison de ces caractéristiques qui aurait pour conséquence d'en prévenir

effectivement l'utilisation à domicile. Utilisé également pour indiquer les limites

d'émission correspondantes qui s'appliquent à un tel matériel.

³Group 1 equipment: group 1 contains all equipment which is not classified as group 2

equipment, and includes equipment such as laboratory and scientific equipment,

industrial process, measurement and control equipment.

Group 2 equipment: group 2 contains all ISM RF equipment in which radio-frequency

energy in the frequency range 9 kHz to 400 GHz is intentionally generated and used or

only used locally, in the form of electromagnetic radiation, inductive and/or capacitive

coupling, for the treatment of material for inspection/analysis purposes, or for transfer

of electromagnetic energy.

Appareils du groupe 1 : le groupe 1 réunit tous les appareils compris dans le domaine

d’application de la présente Norme, qui ne sont pas classés comme étant des appareils

du groupe 2. Le groupe 1 inclut les appareils scientifiques et de laboratoire, les

processus industriels, appareils de mesure ou de contrôle.

Appareils du groupe 2 : le groupe 2 réunit tous les appareils ISM à fréquences

radioélectriques dans lesquels de l’énergie à fréquences radioélectriques dans la plage

de fréquences comprises entre 9 kHz et 400 GHz est produite et utilisée volontairement

ou uniquement utilisée localement sous forme de rayonnement électromagnétique, de

couplage inductif et/ou capacitif, pour le traitement de la matière, à des fins d’examen

ou d’analyse ou pour le transfert d’énergie électromagnétique.

Supplier's Declaration of Conformity (SDoC)

The SDoC for your product is as follows:

CAN ICES-001 (A) / NMB-001 (A)

EU and UK Electromagnetic Compatibility Regulatory

Statement

Warning: This is a class A product. In a domestic environment, this product may cause radio

interference in which case the user may be required to take adequate measures. Your

product is suitable for use in industrial electromagnetic environments.

EU and UK Declaration of Conformity

The full text of the declaration of conformity is available at the following Internet address:

www.exfo.com/en/resources/legal-documentation.

EU Economic Operator

EXFO Solutions SAS

2, rue Jacqueline Auriol,

Saint-Jacques-de-la-Lande,

35091 Rennes Cedex 9

FRANCE

Optical Tunable Filter 1

1 Introducing the XTA-50

The XTA-50 is a flat-top tunable filter for fiber-optic component and system testing. It is

designed for closely-spaced channel selection and extraction in DWDM applications.

When an optical signal is detected at the XTA-50 input port, the input wave is directed

towards the output port after passing through the XTA-50 monochromator, which is tuned at

the center wavelength via the XTA-50 software.

Each XTA-50 provides on-board touchscreen controls and user interface to drive both

system common controls and parameters. All system operations are software-controlled

from the XTA-50 user interface.

The XTA-50 system may also be remote-operated via an external screen or standard USB-B

or Ethernet interfaces.

Technical Specifications

The following table lists the technical specifications of all XTA-50 models.

Optical Specifications

All specifications are given at 21°± 3°C after 30 minutes warm-up.

IMPORTANT

The following technical specifications can change without notice. The information

presented in this section is provided as a reference only. To obtain this product’s

most recent technical specifications, visit the EXFO Web site at www.exfo.com.

Standard Ultrafine O-bandaWide

Wavelength Range 1450–1650 nm 1480–1620 nm 1260–1360 nm 1525–1610 nm

Wavelength Resolution 1 pm 1 pm 1 pm 1 pm

Wavelength Accuracyb±30 pm ±30 pm ±30 pm ±30 pm

Wavelength Tuning

Speed

1 s 1 s 1 s 1 s

Minimum Bandwidth

(FWHM)

50 pm

(6.25 GHz)

32 pm

(4 GHz)

50 pm

(8 GHz)

50 pm

(6.25 GHz)

Maximum Bandwidth

(FWHM)

950 pm

(120 GHz)

650 pm

(80 GHz)

900 pm

(160 GHz)

5000 pm

(625 GHz)

Bandwidth Resolution 1 pm 1 pm 1 pm 1 pm

Bandwidth Tuning

Speed

1 s 1 s 1 s 1 s

Filter Edge Roll-off 500 dB/nm

typicalc800 dB/nm

typical

500 dB/nm

typicalc500 dB/nm

typicald

Insertion Loss 5 dB

(

4.5 dB typical

)e,f 5 dB

(4.0 dB typical)f,g 5 dB

(4.5 dB typical)f,h 5 dB

(4.5 dB typical)i,j

Flatness 0.2 dBk0.2 dBl0.3 dBk,m 0.2 dBn

Polarization Dependent

Loss

±0.2 dBe±0.2 dBg±0.2 dBh±0.2 dBi

Out-band Suppression

(crosstalk)

40 dB

(60 dB typical)o40 dB

(50 dB typical)o40 dB

(60 dB typical)o40 dB

(45 dB typical)o

Maximum Input Power 30 dBm 27 dBm

Introducing the XTA-50

2XTA-50

Technical Specifications

Interface and Electrical Specifications

a Specifications apply for wavelengths not equal to any water absorption line.

b With "Backlash Suppression" setting enabled.

c Between -3 and -40 dB for FWHM <800 pm.

d Between -3 and -40 dB. Typically 550 dB/nm @ FWHM=50 pm, 450 dB/nm @ FWHM=1 nm, 225 dB/nm @

FWHM=5 nm.

e From 1500 to 1600 nm & FWHM >100 pm.

f At lowest FWHM the insertion loss is 7 dB typical.

g From 1500 to 1600 nm & FWHM >60 pm.

h From 1280 to 1340 nm & FWHM >100 pm.

iForFWHM>100pm.

j At lowest FWHM the insertion loss is < 7.0 dB.

k Centered width of FWHM - 150 pm. For 150 pm < FWHM < 650 pm.

l Centered width of FWHM - 100 pm. For 100 pm < FWHM < 500 pm.

m From 1280 to 1340 nm.

n Centered width of FWHM - 150 pm. For 150 pm < FWHM < 2000 pm.

o Measured 1 nm away from the -3 dB points.

Standard Ultrafine O-band Wide

Optical interfaces

Optical Connector FC/PC or FC/APC

Optical Fiber Type SMF or PMF SMF

Remote interfaces

Ethernet RJ45 (x2) 1 Gb/s max. A shielded Ethernet cable is required.

USB-B 115 kb/s max.

Display and interfaces for external devices

Display 7 inch resistive touch-screen (res. 800x480) color TFT-LCD

External Display HDMI and DisplayPort

Mouse, keyboard USB-A 3.2 (x3), USB-A 2.0 (x1)

Electrical specifications

Input Power see Electrical Safety Information on page 11

Fuse Type (x2) 2 A Slow-acting,High-breaking, 250 V, Ø5x20 mm

(T2AH250V)

Internal clock battery 3V CR2032 (replacement by service personnel only)

Size

Dimensions (W x D x H) 254 x 385 x 154 mm (10 in x 15 1/8 in x 6 in)

Weight 6.5 kg (14.33 lb)

Introducing the XTA-50

Optical Tunable Filter 3

XTA-50 Overview

The XTA-50 is delivered with the following accessories:

³A power supply cord

³The calibration certificate and the test report

³A USB key containing the available drivers and user documentation

Cables for fiber-optic input/output are not provided.

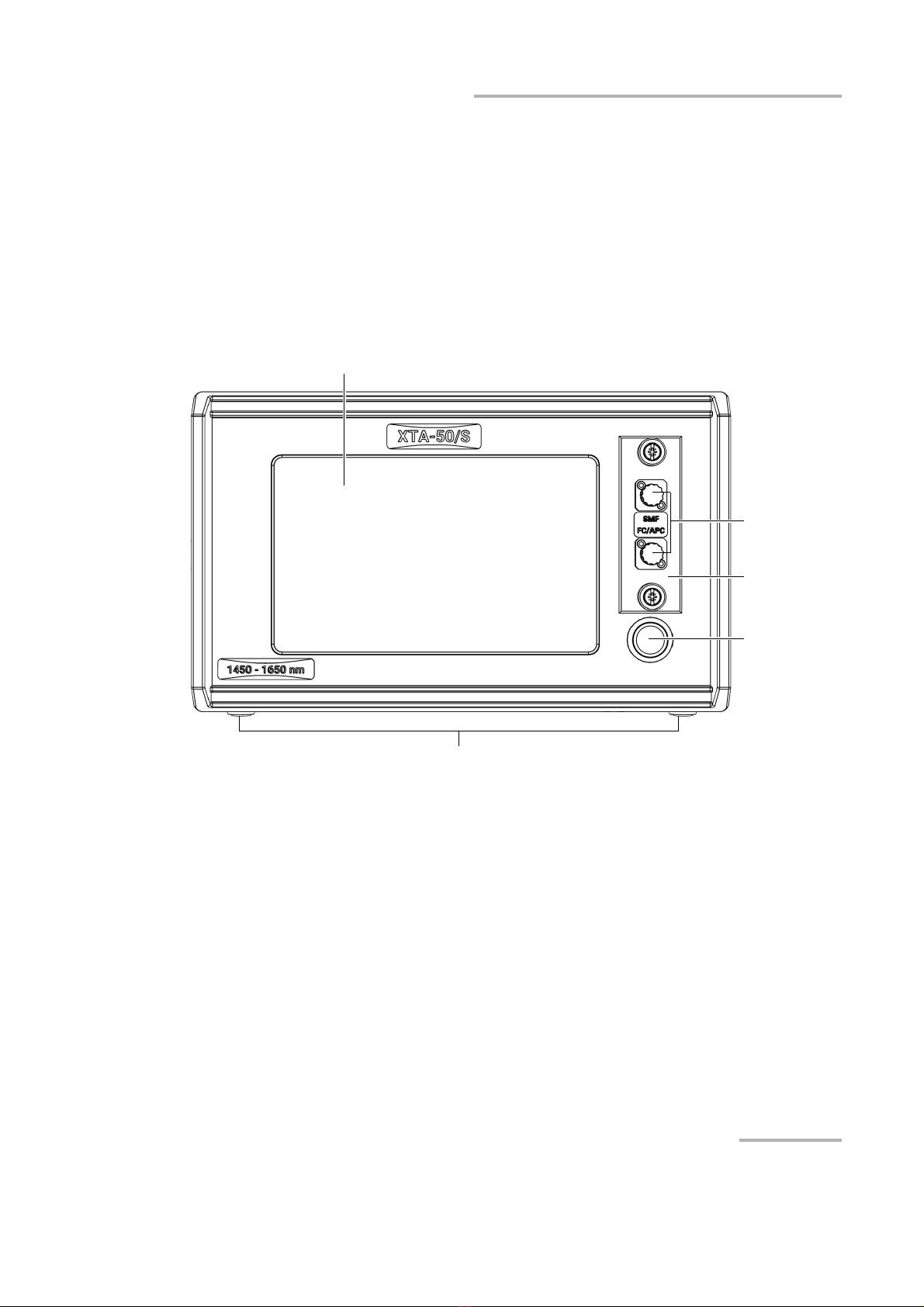

Front Panel

Touch Screen

The touch screen enables you to perform all possible operations on the XTA-50.

To select a parameter, command or function on the screen, touch the corresponding

command with the tip of your finger or a touch screen stylus device.

If you apply simultaneous pressure with two or more fingers, the touchscreen will not

function properly.

Optical Connectors

The two following optical connectors, protected by a dust cap, are located on the front

panel:

³IN: channel filter input port.

³OUT: channel filter output port.

The two optical connectors are mounted on a drawer, which enables you to access the

internal optical connectors for cleaning (see Cleaning Optical Connectors on page 53).

Connector’s

drawer

Touch screen

On switch

Retractable Leg

Optical

connectors

Introducing the XTA-50

4XTA-50

XTA-50 Overview

On Switch

The label identifies the on button that enables you to turn on the XTA-50 (see Turning

on the XTA-50 and Accessing the Operating Modes on page 18).

Retractable Legs

The retractable legs enable you to tilt the XTA-50 upward for convenient purpose, so that it

stands on both front legs and the rear feet (see Unpacking and Installing the XTA-50 on

page 15).

Indice

Altri manuali EXFO Sistema di filtraggio dell'acqua

EXFO

EXFO XTM-50 Series Manuale utente

Manuali Sistema di filtraggio dell'acqua popolari di altre marche

Wisy

Wisy LineAir 100 Manuale utente

Schaffner

Schaffner Ecosine FN3446 Series Manuale operativo

Pentair

Pentair FLECK 4600 SXT Guida utente

H2O International

H2O International H20-500 Manuale utente

Renkforce

Renkforce 2306241 Manuale utente

Neo-Pure

Neo-Pure TL3-A502 Manuale utente

FLTR

FLTR OBF Manuale utente

STA-RITE

STA-RITE VERTICAL GRID DE FILTERS S7D75 Manuale utente

Applied Membranes

Applied Membranes W-G844EM Manuale utente

BEGA

BEGA 116 Manuale utente

WATA

WATA Standard Manuale utente

Price

Price FFU series Manuale

Gaggenau

Gaggenau BRITA INTENZA 467873 Manuale utente

Brita

Brita SAFF-100 Manuale utente

HEISSNER

HEISSNER FPU24000-00 Manuale utente

BGS technic

BGS technic 1518 Manuale utente

Reverse Osmosis

Reverse Osmosis RF Series Manuale utente

ubbink

ubbink Filtramax Series Manuale utente
