Exmark Exmark 30" Manuale

COMMERCIAL30

SetupInstructions

ForSerialNos.313,000,000&Higher

LooseParts

Usethechartbelowtoverifythatallpartshavebeenshipped.Partnumbersnotshownareavailableonthedealer

extranet.

DealerPack

Part#DescriptionQty.Use

—WarrantyRegistrationReminderFillouttheonlinewarrantyregistration

form.

LiteraturePack

Manual,Operator's

Manual,EngineOperator's

RemovingtheUnitfromtheBox

Removetheunitfromthebox.

InstallingtheHandle

1.RemovethehandlemountingscrewsfromLHand

RHsidesofthemower(referenceFigure1).

Figure1

1.Handlebracket3.Wiretie

2.Handlemountingscrew4.Handle

2.Unfoldthehandletotheoperatingposition.

3.Reinstallthehandlemountingscrewsonbothsides

tosecurethehandletothemowerhousing(see

Figure1).Tightenallhardwareonthehandle.

4.Usethewiretietosecurethecablestothelowerpart

ofthehandleasshowninFigure1.Tightenallwire

tiesonthehandle.

5.Trimthewireties.

Note:Theheightofthehandlecanbeadjustedfor

comfortableoperation.Standbehindthehandleto

determinetheheight.Toadjustthehandleheight,

positionthehardwareintooneofthethreeholeslocated

atthebottomofthehandlebracket.

ServicetheEngine

Important:Themowerdoesnotcomewithoilin

theengine.

Fillingthecrankcasewithoil

Initially,llthecrankcasewith30ounces(0.88liters)

ofoil.Exmark4-CyclePremiumEngineOilis

recommended.RefertotheEngineOwner’sManualfor

anacceptablealternative.DoNotoverll.

OilCapacity

WithOilFilter30ounces(0.88L)

P .O.Box808

Beatrice,NE68310

PartNo.4500-917Rev.A

PrintedintheUSA

AllRightsReserved*4500-917*A

Beforeeachuse,ensurethattheoillevelisbetweenthe

AddandFullmarksonthedipstick

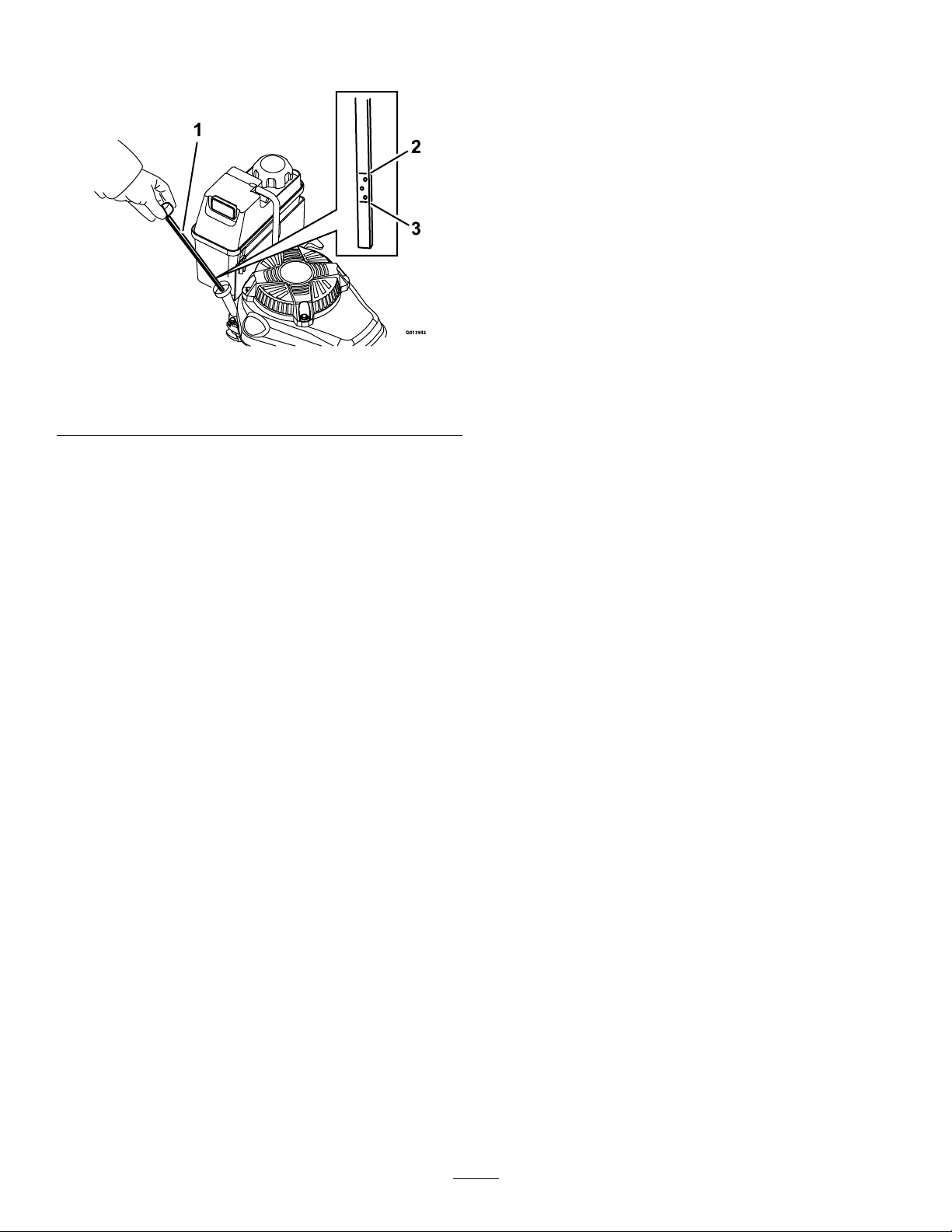

Figure2

1.Dipstick3.Add

2.Full

Important:DoNotoperatetheenginewiththeoil

levelbelowthe“LOW”(or“ADD”)markonthe

dipstick,oroverthe“FULL”mark.

ChecktheCableAdjustments

FollowtheproceduresintheOperator’smanualto

ensuretheself-propeldriveandBBCcableshavebeen

adjustedproperly.

ChecktheBladeControlLock

Lever

Checktheoperationofthebladecontrollocklever;see

theOperator'smanualforadjustment.

FillingOuttheProduct

Registration

Fillouttheonlinewarrantyregistrationform.
