EXP Computer Portable CD-ROM Manuale utente

Portable CD-ROM

User’ Manual

For

CD Traveler - PCMCIA

CD Traveler Plus - PCMCIA and Parallel

- -

TABLE OF CONTENT

PART NAME AND FUNCTION

TOP PANEL OF THE CD-ROM DRIVE 4

REAR PANEL OF THE CD-ROM DRIVE 5

BOTTOM OF THE CD-ROM DRIVE 6

PARALLEL PORT ADAPTER CABLE 7

CD-ROM POWER

SELECTING THE POWER SOURCE 7

CONNECTING THE AC ADAPTER 9

INSTALLING THE BATTERIES 9

POWER SWITCH 10

INSTALLATION

INSTALLATION FOR PCMCIA INTERFACE 12

HARDWARE INSTALLATION 12

SOFTWARE INSTALLATION

SOFTWARE INSTALLATION FOR WINDOWS 95/98 13

SOFTWARE INSTALLATION FOR WINDOWS NT 4.0 15

INSTALLATION FOR PARALLEL INTERFACE 16

HARDWARE INSTALLATION 17

SOFTWARE INSTALLATION

SOFTWARE INSTALLATION FOR WINDOWS 95/98 17

SOFTWARE INSTALLATION FOR WINDOWS NT 4.0 20

BASIC OPERATING PROCEDURES

INSTALLING THE APPLICATION SOFTWARE 23

WINDOWS 95/98 AND WINDOWS NT 4.0 23

USING THE CD-ROM AS A STAND-ALONE CD PLAYER 24

- -

PLAY AN AUDIO CD BY USING SOFTWARE 26

TROUBLE SHOOTING

PCMCIA INTERFACE 28

PARALLEL PORT INTERFACE 32

REMOVING OR RE-INSTALLING THE DRIVER

PCMCIA INTERFACE 34

PARALLEL PORT INTERFACE 35

INSTALL A CD TITLE

DOS/Windows 3.x 36

Window 95/98 and Window NT 4.0 36

Hot Insert/Remove the PCMCIA interface card

APPENDIX A

DEVICE DRIVER INSTALLATION FOR DOS 38

PCMCIA INTERFACE 38

PARALLEL PORT INTERFACE 40

- -

PRECAUTIONS

Read this section carefully before starting to use the

Portable CD-ROM Plus.

CD-ROM DRIVE

•Do not place heavy objects on the CD-ROM drive.

•Do not shake or subject to intense vibration.

•Keeps disc cover closed to protect from dust.

•Do not disassemble the player.

•Do not spill liquid on the player.

•Do not touch the lens.

•The CD drive using invisible laser radiation when open, the cover avoid

direct exposure to the beam.

•Clean the outsides of the player with a soft dry cloth only.

•Clean the lens with a dry cotton swab or a lens blower.

•Do not expose the player to direct sunlight or heat. Especially do not

leave it in a hot automobile.

•Condensation may form on the lens if the CD-ROM is suddenly removed

from a cold temperature setting and placed in a much warmer

environment. This may result in the lens’ inability to properly read the

disc. If this occurs, remove the disc and leave the power on. After one

hour, reinsert the disc and play again.

•Handle the disc by the edges as mush as possible. Do not touch the

surface of the disc.

•Do not scratch or smudge the surface of the disc. Do not attach a label

to the disc.

•Do not bend the disc.

•Do not expose the disc to the direct sunlight. Do not store the disc in a

room with high temperature or high humidity.

•To avoid dust, scratches, bending, etc., always store the disc in its case.

•For best results, wipe the disc with a soft, dry cloth in a circular direction.

Do not use benzine, record cleaner, static electricity prevention fluid, or

any other liquid as it may damage the disc.

- -

CD-ROM PART NAMES AND FUNCTIONS

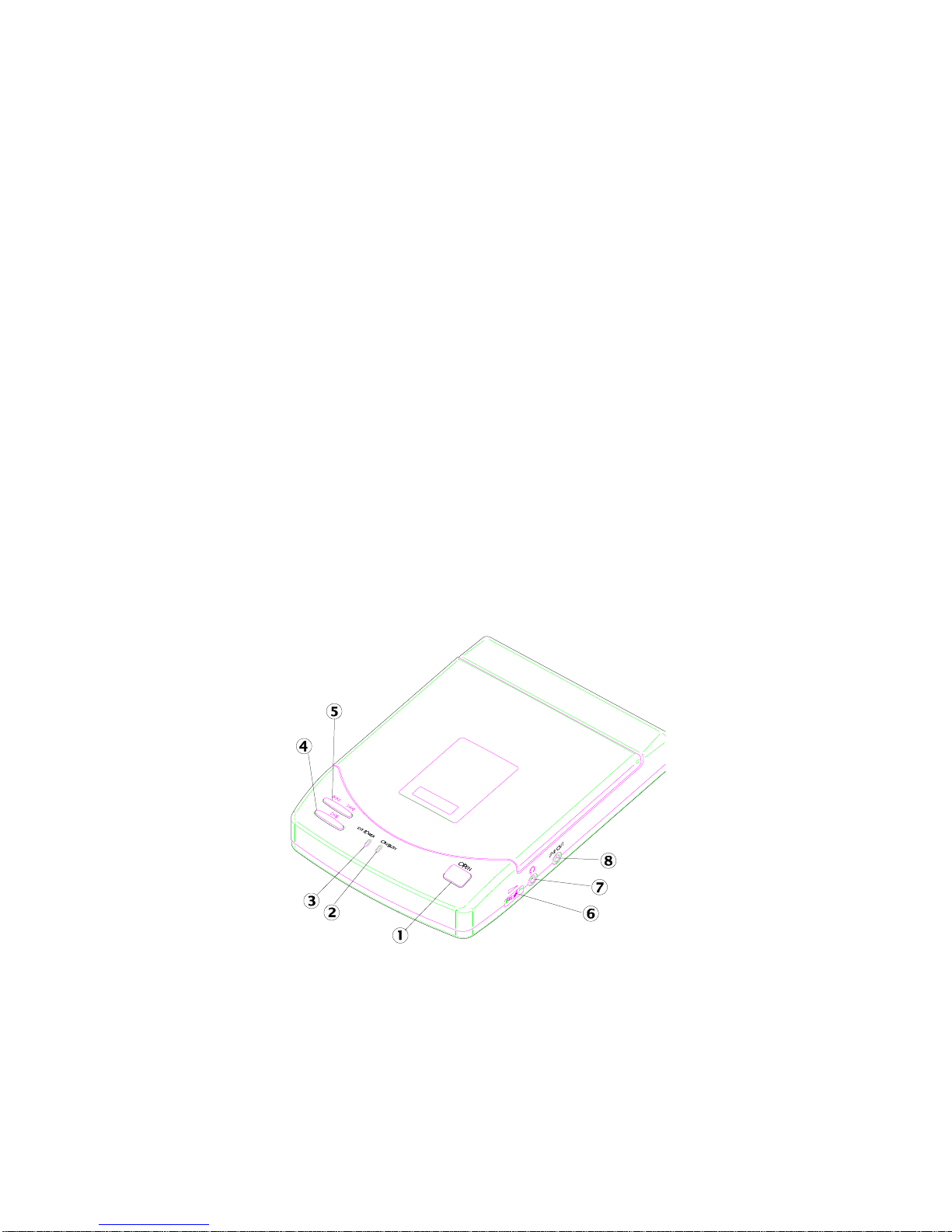

TOP PANEL OF THE CD-ROM DRIVE:

•• Open button:

Press this button to open the disc cover.

‚‚ On/Busy led:

•This indicator will light dimly with a green LED when the power is on.

•This LED will light brightly when the drive is ready.

•This LED will blink when the drive is accessing the disc.

•This LED will blink every 2 seconds when the disc cover is opened.

ƒƒ External Power led:

•This LED will light when AC adapter or batteries are used.

•This LED will blink when input power is low.

„„ Play/Pause button: (for CD audio operation only)

•When the drive is in ‘stop’ state, pressing this button will activate the

drive to start playing.

•When the drive is in ‘play’ state, pressing this button will make it pause.

…… Next/Previous button: (for CD audio operation only)

Figure 1

- -

•When the drive is in ‘play’ state, pressing the right edge of the button

will skip to the next track.

•When the drive is in ‘play’ state, pressing the left edge of the button will

skip to the previous track.

†† Headphone Volume Control knob:

Turn this rotary knob to adjust the headphone volume.

‡‡ Headphone jack:

This is a 3.5mm audio headphone jack.

ˆˆ Line-out jack:

Audio outputs signal to an amplifier.

REAR PANEL OF THE CD-ROM DRIVE:

•• PCMCIA/Parallel Port Interface connector:

This connector connects to the PCMCIA interface card or the Parallel

Port interface cable.

‚‚ Power Source switch:

•Set the switch to “PC” to select the power source from PCMCIA socket.

•Set the switch to “DC/BATT” to select the power source from AC

adapter or batteries.

Please refer to next section titled “CD-ROM POWER SOURCE” for

details.

ƒƒ DC-IN jack:

This jack connects to an AC adapter.

„„ Power button: (for stand-alone CD player operation only)

Press this button to power on/off the drive when it is used stand-alone as

an audio CD player.

Figure 2

- -

BOTTOM OF THE CD-ROM DRIVE:

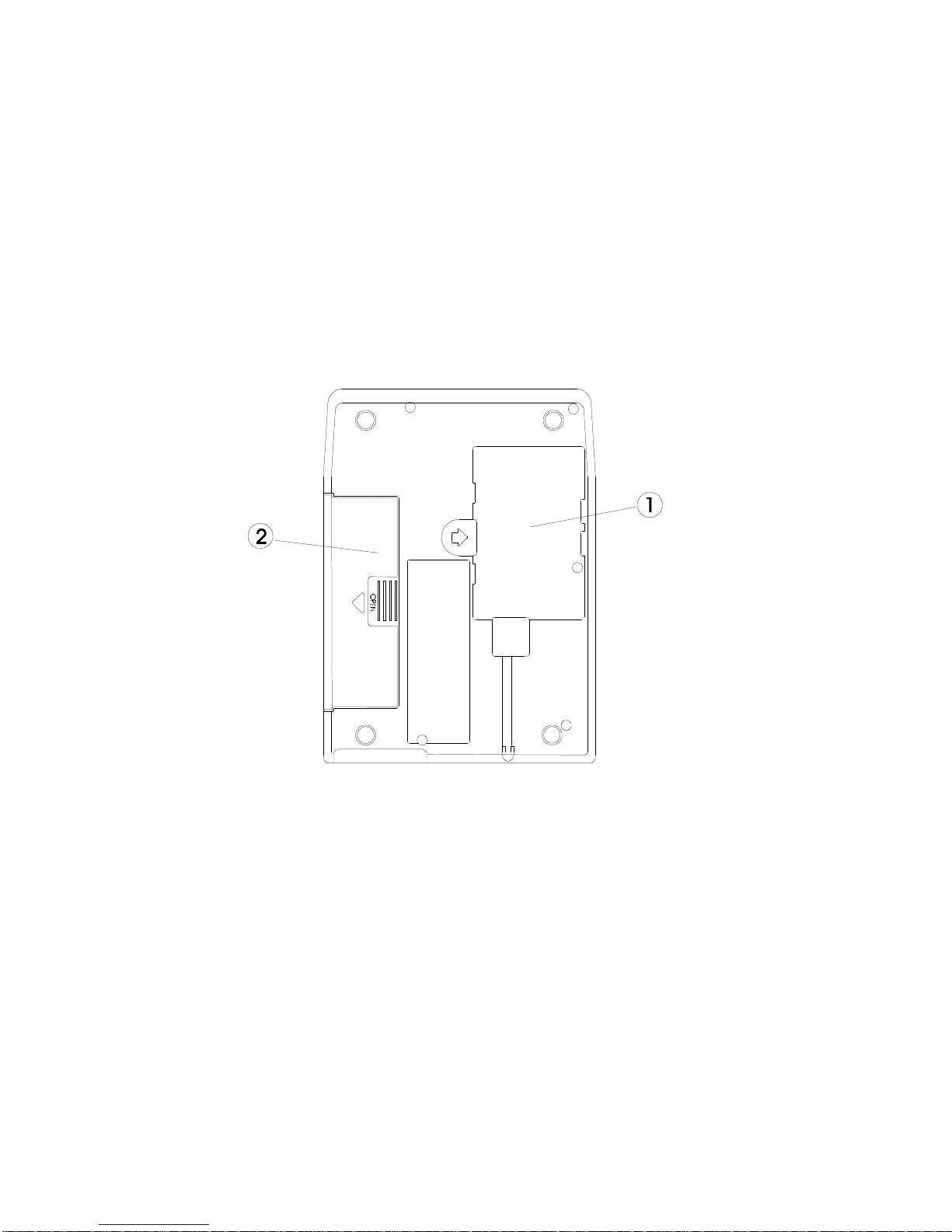

•• PCMCIA Interface Card Holder:

Store the PCMCIA interface card when not used.

‚‚ Battery Lid:

Slide and lift up the lid to install or remove the batteries.

Figure 3

- -

PARALLEL PORT ADAPTER CABLE:

•• Parallel port connector:

Connect this connector to a computer (25 pin) parallel port (Printer port).

‚‚ CD-ROM drive connector:

Connect this connector to the back of CD-ROM drive (26 pin)

Figure 4

CD-ROM POWER

There are three power source options to choose to power the CD Traveler:

1. PCMCIA socket power direct

2. AC adapter

3. Battery.

However, you can use only AC adapter or batteries when the CD-ROM is

used with the Parallel Port connection or as a stand-alone CD player.

SELECTING THE POWER SOURCE

The POWER SOURCE SWITCH (as shown in ‚of Figure 2) is for selecting

which power source to use.

PC Card (PCMCIA) interface

User can select power source form PC or DC/BATT.

Parallel Port interface

User selects power source from DC/BATT only.

- -

POWER SOURCE SWITCH is set to “PC” (Figure 4.a)

The PCMCIA power direct is selected. Thus, the CD-ROM

will obtain power from PCMCIA socket of your computer,

there for no external power (AC or batteries) will be required.

In the event that your computer can not supply enough power

Fig. 4.a to operate the PCMCIA CD-ROM drive, then you will have to use

external power as described below. Do not set the switch to this position if

you are using the Parallel Port connection.

POWER SOURCE SWITCH is set to “DC/BATT” (Figure 4.b)

The external power source is selected. In this condition, you

must apply AC adapter or batteries to CD-ROM drive. The

Parallel Port connection requires the switch setting in DC/Batt

position. Please note that the AC adapter has a priority over

the battery in powering the CD-ROM drive. In other words, if

you connect the AC adapter, the CD-ROM drive will draw power Fig.4.b

from the adapter regardless if the batteries are installed or not.

NOTE: If you choose to use external power, remember to apply external

power before enabling the PCMCIA interface card (booting the

computer or hot-inserting the card).

For the Parallel Port connection, user will also need to apply external

power before booting the computer.

If you failed to apply the external power first, the drive status will

remain NOT READY although the external power is applied later; it

may also result in CD-ROM drive abnormal condition. In this case,

reboot your computer again to enable the CD-ROM drive.

WARNING

Do not shift the POWER SOURCE SWITCH when the CD-ROM is

powered on.

- -

CONNECTING THE AC ADAPTER

1. Remove the PCMCIA interface card or Parallel Port connector from your

computer.

2. Connect the AC adapter plug to the DC-IN jack at the CD-ROM rear

panel.

3. Attach the AC adapter to the AC outlet.

INSTALLING THE BATTERIES

The CD-ROM requires six AA size batteries (not included) for operation. The

Alkaline batteries may last longer than other batteries. You may also use Ni-

Cad rechargeable batteries, which have a shorter service life. Neither the

rechargeable batteries nor the charger is provided with this package.

Follow the instruction below to install the

batteries,

1. Remove the disc from the CD-ROM.

2. Disconnect the PCMCIA interface card

from your computer, and disconnect the

AC adapter from the “DC-IN” jack.

3. Turn over the CD-ROM drive and place

it horizontally.

4. Press and slide the battery lid in the

direction of the arrow to remove it. Figure 5

5. Install six fresh AA batteries (as shown in Figure 5), and make sure the

polarities match the diagram.

6. Replace the battery lid.
