Explay B200 Istruzioni operative
B200
B200 repair manual
repair manual
All manuals and user guides at all-guides.com
all-guides.com
Top view
Bottom view
All manuals and user guides at all-guides.com

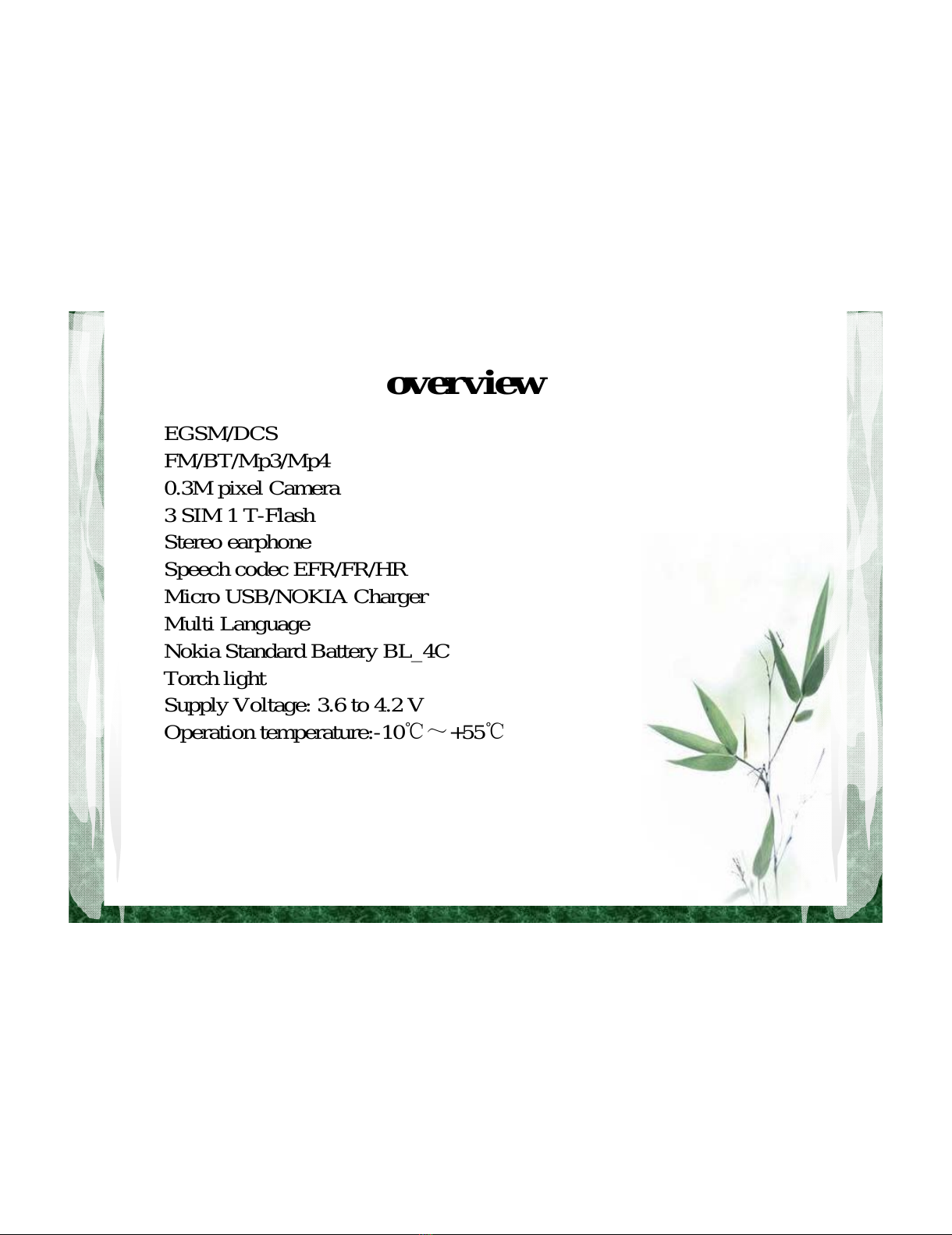

overview
EGSM/DCS
FM/BT/Mp3/Mp4
0.3M pixel Camera
3 SIM 1 T-Flash
Stereo earphone
Speech codec EFR/FR/HR
Micro USB/NOKIA Charger
Multi Language
Nokia Standard Battery BL_4C
Torch light
Supply Voltage: 3.6 to 4.2 V
Operation temperature:-10℃～+55℃
All manuals and user guides at all-guides.com
SOFTWARE
When the version of the software is outdated, re-download the software.
STEPS:
1. Load the driver software on your computer
2. Open the software, click the start button
start button
All manuals and user guides at all-guides.com
3. Connect your computer and mobile phone with a USB cable
4. Press the left soft button
5. Place the battery or connect to power
6. When download is completed, disconnect your computer and mobile
7. Remove the battery or disconnect the power
left soft button
All manuals and user guides at all-guides.com
engineering mode
Enter engineering model to test basic function :
1.Press the order :*998*0#
2. Follow the prompts to test all functions
If you encounter any problems, check the following repair
repair
manual
manual
All manuals and user guides at all-guides.com
all-guides.com
Step1 Remove the back cover
and 6 screws
HARDWARE
All manuals and user guides at all-guides.com
Step2 Remove the battery、SIM card、T card
All manuals and user guides at all-guides.com
Step3 Take off the back shell
All manuals and user guides at all-guides.com

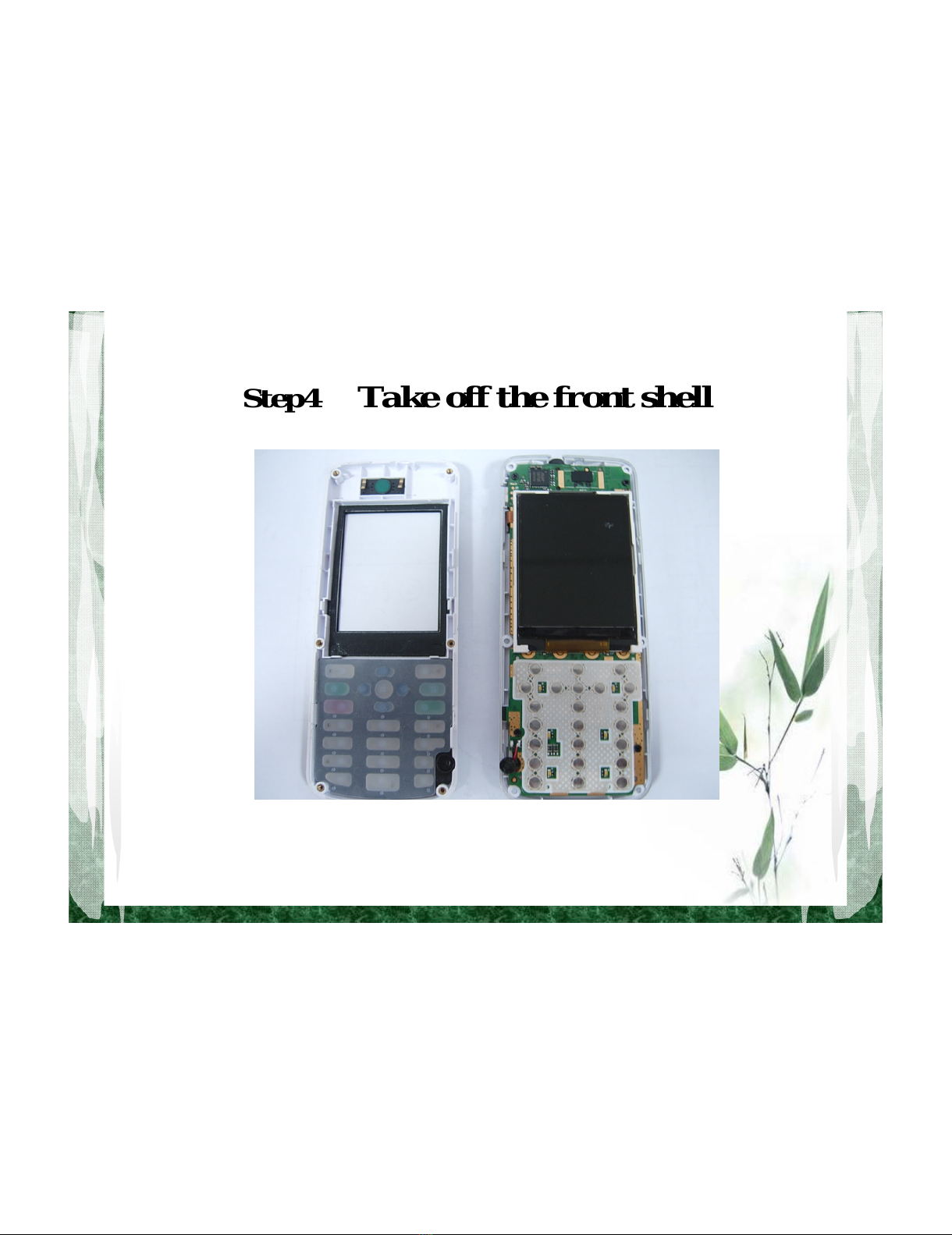

Step4 Take off the front shell
All manuals and user guides at all-guides.com
