DSC HD-HD 4K PLUS A Series • Setup Guide

The Extron DSC HD‑HD 4K PLUS A and DSC HD‑HD PLUS A xi are high performance, HDCP 1.4 and 2.2 compliant scalers

capable of processing HDMI resolutions up to 4K @ 60 Hz with full 4:4:4 signal processing. They feature HDMI 2.0 connections

that support data rates up to 18 Gbps. Both models support 4K @ 60 Hz signals at 4:4:4 on a single connection, with the

DSC HD‑HD 4K PLUS A xi also supporting 4K @ 60 Hz signals as columns using two connections. This setup guide provides

step‑by‑step instructions for an experienced user to set up and configure the DSC HD‑HD 4K PLUS A series. It covers how to

perform basic operations using front panel controls, the OSD menu system, and Simple Instruction Set™(SIS™) commands.

Installation

ATTENTION:

• Installation and service must be performed by authorized personnel only.

• L’installation et l’entretien doivent être effectués par le personnel autorisé uniquement.

NOTE: For full installation, configuration, menus, connector wiring, and operation details, see the DSC HD-HD 4K PLUS A

Series User Guide, available at www.extron.com.

Rear Panel Features

RS -232 RESET

LAN

AUDIO IN

REMOTE

AUDIO OUT

50-60 Hz

100-240VAC ~ 0.7 A MAX

DSC HD-HD 4K Plus A

Tx Rx G

AA FF

DD EE

HDMI

INPUT

HDMI

OUTPUT

BB CC GG HH

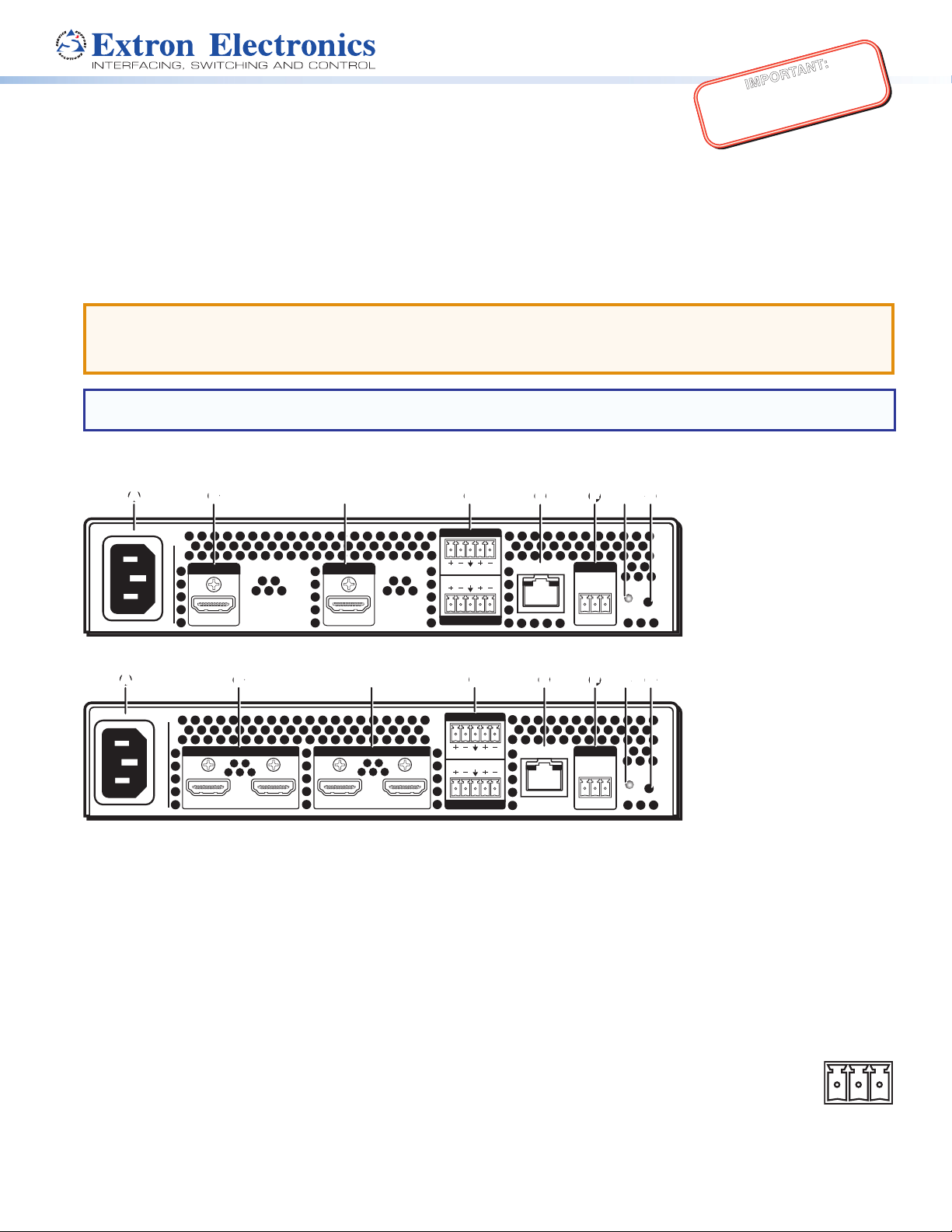

Figure 1. DSC HD-HD 4K PLUS A Rear Panel

RS -232 RESET

LAN

HDMI

REMOTE

50-60 Hz

100-240VAC ~ 0.7 A MAX

INPUT

HDMI

OUTPUT

DSC HD-HD 4K Plus A xi

Tx Rx G

AUDIO IN

AUDIO OUT

AA BB CC FF

DD EE GG HH

Figure 2. DSC HD-HD 4K PLUS A xi Rear Panel

Setup Overview

1. Disconnect power — Turn off or disconnect all equipment power sources.

2. Mount the unit (Optional) — Mount the DSC HD‑HD 4K HD PLUS A either in a rack using shelf mounting bracket kits or

under furniture using furniture mounting brackets (see the instructions provided with the kit).

3. Connect the HDMI video inputs and outputs — Connect HDMI video sources and displays to one or both (xi model)

HDMI input B and output C connectors. Secure each HDMI device to the connector with a provided LockIt®bracket.

4. Connect audio input and output devices (Optional) — Connect analog audio sources and outputs to the 3.5 mm captive

screw Audio In and Audio Out connectors (D).

5. Connect a control device — For remote control, connect a computer or control system to any of these ports:

• Remote RS-232 — This 3‑pole captive screw RS‑232 connector (F) enables serial control via SIS

commands. RS‑232 protocol for this port is 9600 baud, 1 stop bit, no parity, 8 data bits, and no ow control.

• USB — This front panel USB mini‑B port (Bin the front panel illustration on the next page) enables

conguration and control via SIS commands or the Extron PCS Conguration software.

• LAN — This RJ‑45 Ethernet jack (E) connects the unit to a network, enabling you to congure the DSC via SIS

commands, the PCS software, or the DSC HD‑HD 4K PLUS A series Web page.

RS-232

Tx Rx G

A AC power connector

B HDMI input connectors

C HDMI output connectors

D Analog audio input and

output connectors

E Ethernet LAN connector

F Remote RS‑232

connector

G Reset LED

H Reset button

DSC HD-HD 4K PLUS A Series • Setup Guide (Continued)

Front Panel Overview

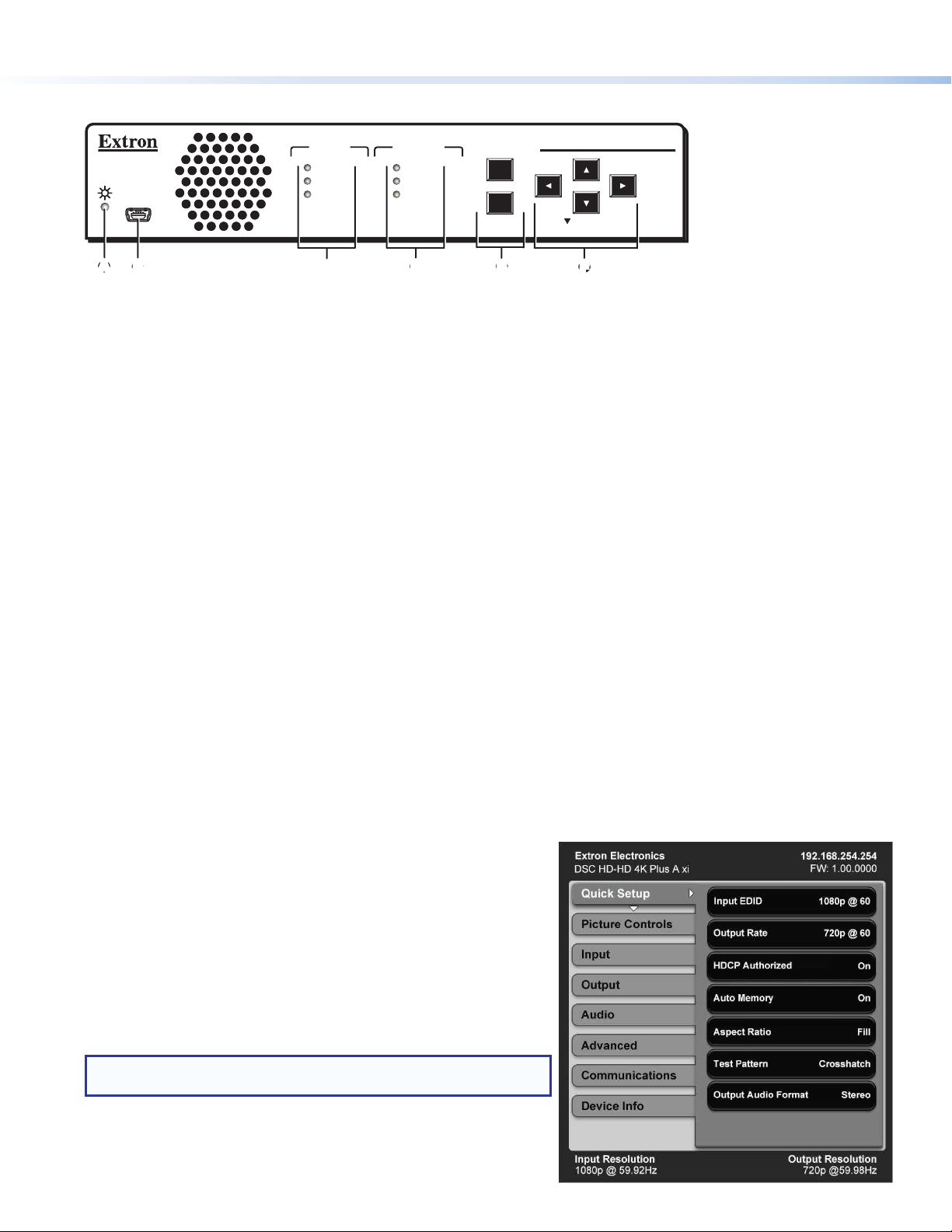

DSC HD-HD 4K Plus A xi

AUTO-


INPUTOUTPUT

SIGNAL

HDCP

AUDIO

SIGNAL

HDCP

AUDIO

ENTERHOLD FOR XGA/720p

CONFIG

AA BB EE

A Status LED (power and signal) D Output status LEDs

B USB Config port E Menu and Enter buttons

C Input status LEDs F Navigation buttons

AStatus LED — This bicolor LED lights amber when the unit is powered on but no signal is present, blinks amber every

3 seconds when the unit is in standby mode, and lights green when both power and an input video signal are present.

BUSB configuration port — Connect a host to this USB mini‑B port for device configuration, control, or firmware updates.

CInput LEDs — Light to indicate the following:

• Signal — An input signal is present.

• HDCP — The input signal is encrypted with HDCP.

• Audio — An audio signal (two‑channel LPCM or multi‑channel PCM) is present in the HDMI input.

DOutput LEDs — Light to indicate the following:

• Signal — HDMI video is being output. If the video is muted, this LED does not light.

• HDCP — The output signal is encrypted with HDCP.

• Audio — An audio signal (two‑channel LPCM or multi‑channel PCM) is present in the HDMI output.

EMenu and Enter buttons — Let you access the on‑screen display (OSD) and make selections from the submenus.

FNavigation buttons (right , left , up , and down arrow buttons) — Let you navigate through the OSD submenus,

lock the front panel (see the next section), perform Auto‑Image™ (press ), and reset the output rate (hold for 5 seconds).

Conﬁguring the DSC HD-HD 4K PLUS A Series

The DSC HD‑HD 4K PLUS A series can be configured through a host connected to the RS‑232, USB, or LAN port using Extron

PCS configuration software (available at no charge at www.extron.com), SIS commands (see page 4 for a selection of basic

commands), or the Web page (see the DSC HD-HD 4K PLUS A Series User Guide, available at www.extron.com). You can also

configure the scaler using the OSD menu system.

OSD Menu System

The on‑screen display (OSD) menu system consists of seven submenus

and one information screen. To access the menus, press the front panel

Menu button. With the main menu displayed, use the arrow buttons to step

through the submenus and submenu items. Press the Enter button to

select highlighted items. The Device Info screen is read‑only and does

not provide selections.

•Quick Setup •Audio

•Picture Controls •Advanced

•Input •Communication

•Output •Device Info

NOTE: The OSD times out and closes after 1 minute if no buttons are

pressed.

Setting Up the DSC HD-HD 4K PLUS A Series Using the OSD Menu

The Quick Setup submenu is displayed when the OSD opens. This submenu contains items that you are most likely to need

when configuring the DSC for the first time. To perform a basic system setup to get started, select the following items as needed:

Input EDID — Select an input EDID (resolution and refresh rate) to match the output rate or set a discrete EDID. The default

EDID is Auto (match the current output resolution).

Output Rate — Select the scaler output resolution and refresh rate from 80 available factory‑installed rates (see output rates

table, below). You can also select one of 3 custom slots to add a user‑dened resolution. The default rate is 1080p @ 60 Hz.

HDCP Authorized — Select whether the input will report to a source as an HDCP‑authorized device, thereby allowing HDCP‑

encrypted content (On), or will block input encryption (Off). The default is On.

Auto Memory — Set the DSC to automatically save and recall the current input conguration and picture control values for

each detected input resolution. After selecting Auto Memory, press any arrow button to toggle Auto Memories on and off.

The default is On.

Aspect Ratio — Congure aspect ratio compensation. Selections include Fill (inputs ll the entire output raster) and

Follow (maintains the native aspect ratio of the input signal). After selecting Aspect Ratio, press any arrow button to

toggle between Fill and Follow. The default is Fill.

Test Pattern — Select from six test

patterns to aid in setting up the DSC

and the output display. Available test

patterns include Crop, Alternating

Pixels, Crosshatch, Color Bars,

Grayscale, and Audio Test. The

default is Off.

Output Audio Format — Select

between stereo and dual mono. The

default is Stereo.

Locking the Front Panel

To prevent unauthorized access or

accidental changes to DSC settings, you

can lock the front panel controls, making

control available only by SIS commands.

(The default state is unlocked.) You can

lock and unlock the front panel using:

Front panel buttons — To lock,

press the Menu and buttons

simultaneously and hold them until

the OSD displays Executive Mode

Enabled (approximately 5 seconds).

To unlock, repeat this process.

SIS commands — To lock (enable

executive mode), enter 1X. To unlock

(disable executive mode), enter 0X.

Output Scaler Rates

Output rates can be set using the OSD

menu or SIS commands. The table at

right gives the rates and their SIS variables

(see the SIS table on the next page).

Output Rate Reset

If an image cannot be displayed due to an

incompatible output rate, you can reset the

output rate as follows:

With the OSD off, press and hold the 

button for approximately 5 seconds to

toggle between 1024x768 @ 60 Hz and

720p @ 60 Hz.

SIS Variables for DSC HD-HD 4K PLUS A Series Resolutions and Rates (X2! = 10-

203)

Resolution 23.98 Hz 24 Hz 25 Hz 29.97 Hz 30 Hz 50 Hz 59.94 Hz 60 Hz

640x480 10

800x600 11

1024x768 12

1280x768 13

1280x800 14

1280x1024 15

1360x768 16

1366x768 17

1440x900 18

1400x1050 19

1600x900 20

1680x1050 21

1600x1200 22

1920x1200 23

480p 24 25

576p 26

720p 29 30 31 32 33 34

1080i 35 36 37

1080p* 38 39 40 41 42 43 44 45*

2048x1080 46 47 48 49 50 51 52 53

2048x1200 54

2048x1536 55

2560x1080 56

2560x1440 57

2560x1600 58

3840x2160 59 60 61 62 63 64 65 66

4096x2160 69 70 71 72 73 74 75 76

3840x2160

Column 101 102 103 104 105 106 107 108

4096x2160

Column 111 112 113 114 115 116 117 118

Custom Rate 1 201

Custom Rate 2 202

Custom Rate 3 203

*Default output resolution 3

DSC HD-HD 4K PLUS A Series • Setup Guide (Continued)

Basic SIS Commands

The DSC HD‑HD 4K PLUS A series can be configured with specific SIS commands via RS‑232, USB, and LAN connection. This

table lists a selection of basic commands. For a full list of SIS commands and variables see the DSC HD-HD 4K PLUS A Series

User Guide, available at www.extron.com.

Command ASCII Command

(Host to Scaler)

Response

(Scaler to Host) Additional Description

Audio Input Format

Set audio input format EI1* X5* AFMT}Afmt I1*X5* ]Set the audio format for the current input to X5*.

View audio input format EI1AFMT} X5* ]View the current audio input format.

Audio Input Gain (Affects analog audio input on 5‑pole captive screw connector only.)

Set audio gain X5$ G Aud X5$ ]Set the gain on the analog audio input to X5$.

Increment gain +G Aud X5$ ]Increase the audio level by 1 dB to X5$.

Decrement gain -G Aud X5$ ]Decrease the audio level by 1 dB to X5$.

View gain GX5$ ]View the audio gain level of the current input.

Volume (Analog and embedded digital audio)

Set volume X5) V Vol X5) ]Set the output volume level to X5).

Increment volume +V Vol X5) ]Increase the output volume by 1 dB to X5).

Decrement volume -V Vol X5) ]Decrease the output volume by 1 dB to X5).

View VX5) ]View current volume setting X5).

Output Resolution and Rate

Set output scaler rate E1* X2! RATE}Rate 1* X2! ]Select output resolution and refresh rate X2! (for X2!

values, see the resolution and refresh rate table on the

previous page).

View output rate E1RATE} X2! ]Show the current output rate for the DSC.

HDMI Output Format

Set format EX@ *X4* VTPO}Vtpo X@ *X4* ]Set output format X4* for HDMI output X@.

View output rate EX@ VTPO} X4* ]Show the current output format (X4*) for the DSC.

Screen Saver Mode (Takes place when no signal is detected on the input.)

Set screen saver mode EM1*X4) SSAV}Ssav M 1*X4) ]Set the screen saver mode to X4).

View screen saver mode EM1SSAV} X4) ]View current screen saver mode X4).

Set screen saver duration before

output sync timeout

ET1*X2* SSAV}Ssav T1*X2* ]Set the period before sync timeout to X2* seconds.

View sync timeout duration ET1SSAV} X2* ]View the amount of time X2* before sync timeout.

View screen saver status ES1SSAV} X6# ]View the screen saver status X6#.

Reset

System reset EZXXX}Zpx ]Reset all device settings to the factory defaults, retaining IP

settings.

68-2803-50 Rev. A

06 16

NOTE: X@ = Output: 1= HDMI A, 2= HDMI B (xi model only)

X2! = Output scaler rate: See the resolution and refresh rate table on the previous page for the rate variables.

X2* = Output sync timeout duration in seconds: 1-500 in 1‑second increments. 501 = never (default), 0= immediate timeout.

X4) = Screen saver mode: 1= black (default), 2= blue, 3= user screen saver logo.

X5) = Volume: 0dB to 100 dB in 1.0 dB steps. (Default is -10 dB.)

X5$ = Audio input gain: ‑18 dB to +24 dB. (Default is +12 dB.)

X5* = Audio input format: 0= none, 1= analog, 2= LPCM‑2Ch, 3= Multi‑Ch, 4= LPCM 2Ch Auto (default), 5= Multi‑Ch Auto.

X6# = Screen saver status: 0= active, timer not running, 1= no active input, timer running, output sync active,

2= No active input, timer expired, output sync disabled.

Extron Headquarters

+800.633.9876 Inside USA/Canada Only

Extron USA - West Extron USA - East

+1.714.491.1500 +1.919.850.1000

+1.714.491.1517 FAX +1.919.850.1001 FAX

Extron Europe

+800.3987.6673

Inside Europe Only

+31.33.453.4040

+31.33.453.4050 FAX

Extron Asia

+65.6383.4400

+65.6383.4664 FAX

Extron Japan

+81.3.3511.7655

+81.3.3511.7656 FAX

Extron China

+86.21.3760.1568

+86.21.3760.1566 FAX

Extron Middle East

+971.4.299.1800

+971.4.299.1880 FAX

EExtron Australia

+61.8.8351.2188

+61.8.8351.2511 FAX

Extron India

1800.3070.3777

(Inside India Only)

+91.80.3055.3777

+91.80.3055.3737 FAX

Altri manuali per DSC HD-HD 4K Plus A Series

Altri manuali Extron electronics Apparecchiature di registrazione

Extron electronics

Extron electronics MLA-VC10 Manuale utente

Extron electronics

Extron electronics RGB 190FM Manuale utente

Extron electronics

Extron electronics RGB 202 Rxi VTG Manuale utente

Extron electronics

Extron electronics RGB 109xi Manuale utente

Extron electronics

Extron electronics CVEQ1 WM Manuale utente

Extron electronics

Extron electronics RGB 500 AKM Manuale utente

Extron electronics

Extron electronics RGB 124 Manuale utente

Extron electronics

Extron electronics DMP 64 Manuale utente

Extron electronics

Extron electronics Architectural Series Universal Interfaces with Audio and ADSP RGB... Manuale utente

Extron electronics

Extron electronics CVEQ1 AAP Manuale utente

Extron electronics

Extron electronics SSP 7.1 Manuale utente

Extron electronics

Extron electronics RGB 580xi AAP Manuale utente

Extron electronics

Extron electronics RGB 190F Manuale utente

Extron electronics

Extron electronics AXI 02 AT Manuale utente

Extron electronics

Extron electronics DVI-RGB 150 Manuale utente

Extron electronics

Extron electronics RGB 103 Manuale utente

Extron electronics

Extron electronics Architectural Interface RGB 440 Manuale utente

Extron electronics

Extron electronics IPL T S Series Manuale utente

Extron electronics

Extron electronics Quantum Ultra Series Manuale utente

Extron electronics

Extron electronics IPL T SF Series Manuale utente

Extron electronics

Extron electronics Inline CIA116-1 Manuale utente

Extron electronics

Extron electronics 12G HD-SDI 101 Manuale utente

Extron electronics

Extron electronics DMP 128 Plus Manuale utente

Extron electronics

Extron electronics IPL T S1 Manuale utente

Manuali Apparecchiature di registrazione popolari di altre marche

KV2 Audio

KV2 Audio 500 Series Manuale utente

Robotics Technologies

Robotics Technologies microBus-Cam II Manuale utente

Seca

Seca 460 Manuale utente

Cognex

Cognex MVS-8000 Series Manuale utente

Mect

Mect MPNC006 Series Manuale utente

Bad Caf

Bad Caf THE LEASH Manuale utente

Strymon

Strymon NIGHTSKY Manuale utente

Mitsubishi Electric

Mitsubishi Electric 16CH DIGITAL RECORDER DX-TL5000U Manuale utente

Tews Technologies

Tews Technologies TPMC465 Manuale utente

Honeywell

Honeywell Excel 50 Manuale utente

SeaLevel

SeaLevel COMM+8.LPCI Manuale utente

Arturia

Arturia AUDIOFUSE STUDIO Manuale utente

Rukra

Rukra RK-1240 Manuale utente

Samson

Samson SCOM Manuale utente

Dynacord

Dynacord DPS260 Manuale utente

Nice

Nice Core Manuale utente

Pyle Pro

Pyle Pro PSS8 Manuale utente

RF-System

RF-System TinyGate Manuale per l'uso e la cura
