Extron electronics SSP 200 Manuale utente

User Guide

SSP 200

Audio Products

Surround Sound Processor

68-3281-01 Rev. A

02 21

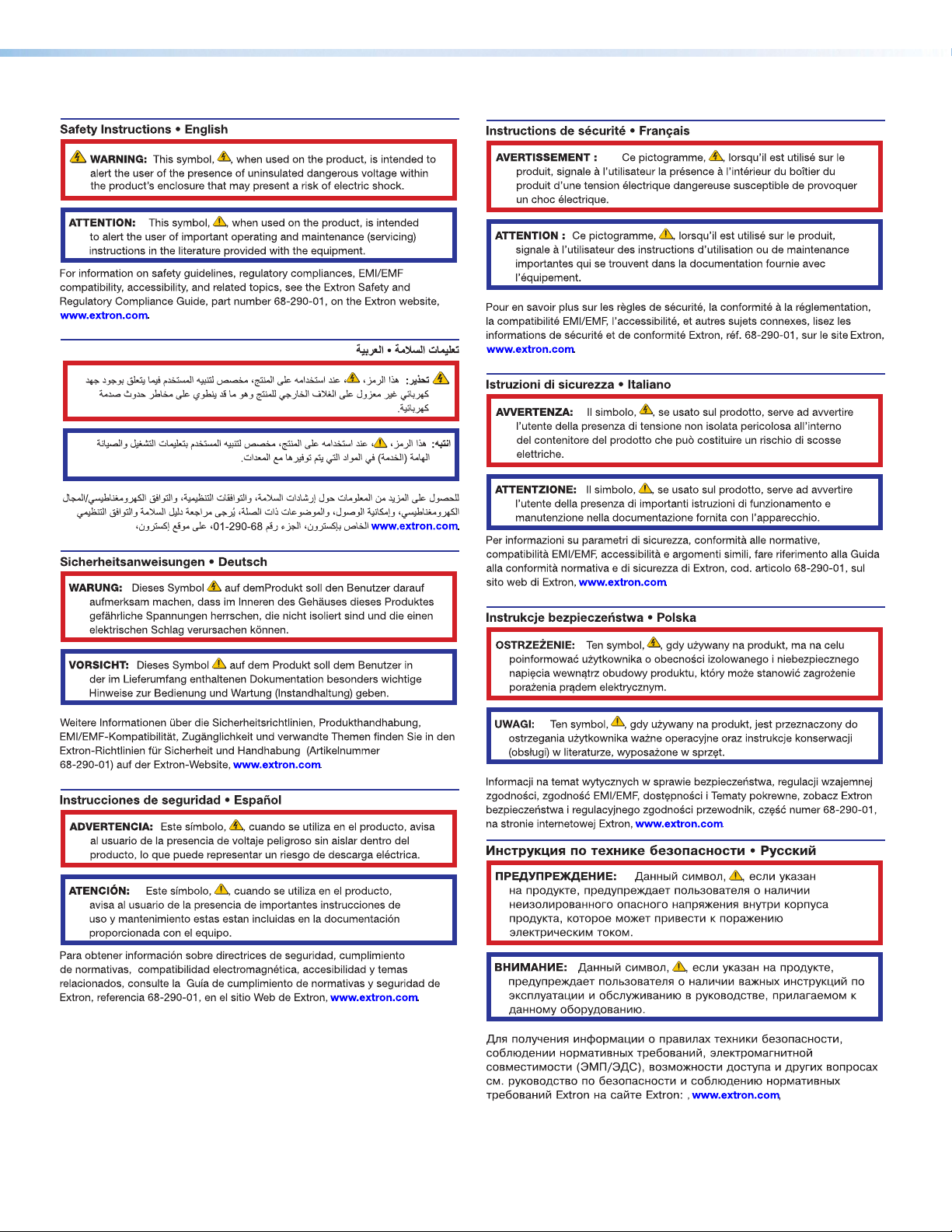

Safety Instructions

Trademarks

All trademarks mentioned in this guide are the properties of their respective owners.

The following registered trademarks(®), registered service marks(SM), and trademarks(TM) are the property of RGBSystems, Inc. or Extron (see the

current list of trademarks on the Terms of Use page at www.extron.com):

Registered Trademarks (®)

Extron, Cable Cubby, ControlScript, CrossPoint, DTP, eBUS, EDID Manager, EDID Minder, Flat Field, FlexOS, Glitch Free, Global Configurator,

GlobalScripter, GlobalViewer, Hideaway, HyperLane, IPIntercom, IPLink, KeyMinder, LinkLicense, LockIt, MediaLink, MediaPort, NAV,

NetPA, PlenumVault, PoleVault, PowerCage, PURE3, Quantum, Show Me, SoundField, SpeedMount, SpeedSwitch, StudioStation,

SystemINTEGRATOR, TeamWork, TouchLink, V‑Lock, VideoLounge, VN‑Matrix, VoiceLift, WallVault, WindoWall, XPA, XTP, XTPSystems, and

ZipClip

Registered Service Mark(SM) : S3 Service Support Solutions

Trademarks (™)

AAP, AFL (Accu‑RATEFrameLock), ADSP(Advanced Digital Sync Processing), CableCover, CDRS(ClassD Ripple Suppression),

Codec Connect, DDSP(Digital Display Sync Processing), DMI (DynamicMotionInterpolation), DriverConfigurator, DSPConfigurator,

DSVP(Digital Sync Validation Processing), eLink, EQIP, Everlast, FastBite, Flex55, FOX, FOXBOX, IP Intercom HelpDesk, MAAP, MicroDigital,

Opti‑Torque, PendantConnect, ProDSP, QS‑FPC(QuickSwitch Front Panel Controller), RoomAgent, Scope‑Trigger, ShareLink, SIS,

SimpleInstructionSet, Skew‑Free, SpeedNav, Triple‑Action Switching, True4K, Vector™ 4K , WebShare, XTRA, and ZipCaddy



FCC Class A Notice

This equipment has been tested and found to comply with the limits for a Class A digital

device, pursuant to part15 of the FCC rules. The ClassA limits provide reasonable

protection against harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses, and can radiate radio frequency energy and,

if not installed and used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in a residential area is

likely to cause interference. This interference must be corrected at the expense of the user.

ATTENTION:

• The Twisted Pair Extension technology works with unshielded twisted pair (UTP)

or shielded twisted pair (STP) cables; but to ensure FCC Class A and CE

compliance, STP cables and STP Connectors are required.

• La technologie extension paires torsadées fonctionne avec les câbles paires

torsadées blindées(UTP) ou non blindées(STP). Afin de s’assurer de la

compatibilité entre FCC ClasseA et CE, les câbles STP et les connecteurs STP

sont nécessaires.

NOTES:

• This unit was tested with shielded I/O cables on the peripheral devices. Shielded

cables must be used to ensure compliance with FCC emissions limits.

• For more information on safety guidelines, regulatory compliances, EMI/EMF

compatibility, accessibility, and related topics, see the Extron Safety and

Regulatory Compliance Guide on the Extron website.

Battery Notice

This product contains a battery. Do not open the unit to replace the battery. If the

battery needs replacing, return the entire unit to Extron (for the correct address, see the

Extron Warranty section on the last page of this guide).

CAUTION: Risk of explosion. Do not replace the battery with an incorrect type. Dispose

of used batteries according to the instructions.

ATTENTION : Risque d’explosion. Ne pas remplacer la pile par le mauvais type de pile.

Débarrassez-vous des piles usagées selon le mode d’emploi.

Conventions Used in this Guide

Notifications

The following notifications are used in this guide:

WARNING: Potential risk of severe injury or death.

AVERTISSEMENT : Risque potentiel de blessure grave ou de mort.

CAUTION: Risk of minor personal injury.

ATTENTION : Risque de blessuremineure.

ATTENTION:

• Risk of property damage.

• Risque de dommages matériels.

NOTE: A note draws attention to important information.

TIP: A tip provides a suggestion to make working with the application easier.

Software Commands

Commands are written in the fonts shown here:

^AR Merge Scene,,Op1 scene 1,1 ^B 51 ^W^C

[01] R 0004 00300 00400 00800 00600 [02] 35 [17] [03]

EX! *X1&*X2)*X2#*X2! CE}

NOTE: For commands and examples of computer or device responses mentioned

in this guide, the character “0” is used for the number zero and “O” is the capital

letter “o.”

Computer responses and directory paths that do not have variables are written in the font

shown here:

Reply from 208.132.180.48: bytes=32 times=2ms TTL=32

C:\Program Files\Extron

Variables are written in slanted form as shown here:

ping xxx.xxx.xxx.xxx —t

SOH R Data STX Command ETB ETX

Selectable items, such as menu names, menu options, buttons, tabs, and field names are

written in the font shown here:

From the File menu, select New.

Click the OK button.

Specifications Availability

Product specifications are available on the Extron website, www.extron.com.

Extron Glossary of Terms

A glossary of terms is available at http://www.extron.com/technology/glossary.aspx.

Contents

Introduction ............................................... 1

About the SSP 200.............................................. 1

SSP 200 Features ............................................... 2

Application Diagrams........................................... 3

Mounting............................................................. 5

Tabletop Placement ......................................... 5

Rack Mounting ................................................ 5

Under-desk Mounting ...................................... 5

Panel Features........................................... 6

Rear Panel Features ............................................ 6

Securing an HDMI Connector............................ 10

Front Panel Features.......................................... 11

Source Format............................................... 11

Input Selection............................................... 12

Volume Adjustment........................................ 13

Analog Input Gain Level................................. 13

System Reset ................................................ 14

Front Panel Security Lockout

(Executive Mode) .......................................... 15

Connecting to the USB Port .............................. 16

Speaker Setup ......................................... 18

Speaker Placement ........................................... 18

Back Speakers.................................................. 21

Bass Management ............................................ 21

Speaker Settings ........................................... 21

Speaker Delay Settings...................................... 22

Test Signals ....................................................... 22

Output Channel Trim Settings ............................ 23

Listening Mode Settings .................................... 23

Equalization....................................................... 23

Reference ................................................ 24

Source Formats................................................. 24

Dolby Digital Source Formats......................... 25

DTS Source Formats (DTS)............................ 25

PCM Digital Source Format (PCM)................. 26

2-Channel Source Format (2CH).................... 26

Sampling Frequency...................................... 27

Listening Mode Options and Usage................... 27

Listening Mode Options................................. 27

Product Conﬁguration Software .............. 29

Downloading PCS from the Extron Website....... 29

Using PCS Software.......................................... 30

Connecting to the SSP 200 ........................... 30

Main Menu .................................................... 31

I/O Panel ....................................................... 32

Input/Output Conﬁg....................................... 32

EDID Minder .................................................. 35

Audio Conﬁg.................................................. 41

General Settings ............................................ 50

Device Menu.................................................. 57

Reset Device ................................................. 57

PCS Help File ................................................ 58

Updating Firmware Using PCS .......................... 58

Downloading the SSP 200 Firmware.............. 58

Loading the Firmware to the SSP200 ........... 59

viiSSP 200 • Contents

SIS Conﬁguration and Control ................. 62

Connection Options........................................... 62

RS-232 Port .................................................. 62

Front Panel Conﬁguration Port....................... 62

Ethernet (LAN) Port........................................ 63

Verbose Mode ............................................... 64

Host-to-device Communications ....................... 64

Password Information.................................... 64

Error Responses............................................ 65

Using the Command and Response Tables ....... 65

Symbol Deﬁnitions............................................. 65

Command and Response Tables....................... 69

Internal Web Page ................................... 80

Overview of the Internal Web Page .................... 80

Accessing the Internal Web Page ...................... 80

Web Page Components .................................... 81

Device Info..................................................... 81

Device Status ................................................ 82

Network Settings........................................... 83

Inputs ............................................................ 84

Outputs ......................................................... 84

RS-232.......................................................... 85

Roles and Permissions .................................. 85

Firmware ....................................................... 86

SSP 200 • Contents viii

SSP 200 • Introduction 1

Introduction

This manual explains how to mount, install, and configure the Extron SSP200 Surround

Sound Processor.

Unless otherwise specified, references in this manual to the SSP200, “SSP”, “surround

sound processor”, or “processor” all refer to the SSP200 device.

About the SSP 200

The SSP 200 is a high-performance digital audio surround sound processor in a half-rack,

1U form-factor. The SSP 200 automatically decodes Dolby®and DTS®formats from digital

sources to discrete audio outputs.

The SSP 200 is compatible with all Extron (and non-Extron) products that accommodate

analog balanced or unbalanced line level inputs. EXP expansion input connectivity allows

the SSP 200 to integrate directly with EXP-enabled Extron products, such as the DMP Plus

series and AXI 016 interface.

The SSP200 can decode and process licensed, branded digital source formats from

DolbyDigital and DTS, in their originally encoded formats. These include:

• Dolby Digital 2/0 • DTS Digital Surround™

• Dolby Digital 2/0 Surround • DTS 96/24™

• Dolby Digital 5.1 • DTS-ES®Matrix 6.1™

• Dolby Digital Surround EX™• DTS 96/24 ES Matrix 6.1

• Dolby Digital Plus • DTS-ES Discrete 6.1™

• Dolby Digital TrueHD • DTS-HD High Resolution Audio™

• Dolby Atmos • DTS-HD Master Audio™

• DTS 2-channel

NOTES:

• Dolby, Dolby Atmos, and the double-D symbol are trademarks of Dolby

Laboratories. Manufacturied under license from Dolby Laboratories.

• For DTS patents, see http://patents.dts.com. Manufactured under license from

DTS, Inc. DTS, the Symbol, DTS and the Symbol together, DTS:X, and the DTS:X

logo are registered trademarks or trademarks of DTS, Inc. in the United States

SSP 200 • Introduction 2

SSP 200 Features

• Supports the latest immersive 3D audio formats as well as legacy surround

formats:

• Dolby Atmos • DTS:X

• Dolby TrueHD • DTS-HD Master Audio

• Dolby Digital Plus • DTS-HD High Resolution Audio

• Dolby Surround • DTS Neural:X

• Dolby Digital EX • DTS-ES

• Dolby Digital • DTS 96/24

• Dolby Pro Logic IIx • DTS NEO:6

• Dolby Pro Logic II

• Automatic surround sound format detection and decoding — Automatically

detects the format of the incoming audio signal, applies the necessary decoding, and

then sends signals to the appropriate outputs.

• Supports video resolutions up to 4K/60 @ 4:4:4 — Supports video signal passed

through unaltered.

• Upmix listening mode converts source program into immersive or standard

surround playback — Converts from any input format to any selected higher output

channel count format.

• Integrated test signals for calibration and connectivity validation during set up.

• Pink noise generator to calibrate a speaker interaction within the environment.

• Dolby Noise: bandpass noise generator to balance speaker levels.

• External option: Can use test disc, or other calibration sources for specific decoding

outputs.

• EXP expansion output port — Provides easy I/O connection to an Extron

DMPPlusSeries audio DSP processor. This allows for a higher output count and

seamless integration with all DMP capabilities including Dante transport.

• Lip Sync Offset — 0ms to 300 ms per input.

• Supports commonly used speaker output configurations:

• 5.1, 7.1, and 5.1.2 with stereo downmix on outputs 9 and 10.

• 5.1.4, 7.1.2, and 7.1.4 with stereo downmix on the EXP expansion bus.

• EXP expansion bus connection to a DMP Plus Series processor is required for

7.1.4.

• Supported HDMI 2.0b specification features include data rates up to 18 Gbps,

HDR, Deep Color up to 12-bit, 3D, and HD lossless audio formats.

• HDMI Loop Output supports Downmix:

• Local monitor output audio modes.

• Original Audio – Multichannel or two channel.

• Stereo Downmix – Independent of speaker output configuration.

• No Audio.

Altri manuali per SSP 200

Indice

Altri manuali Extron electronics Apparecchiature di registrazione

Extron electronics

Extron electronics IPL T SF Series Manuale utente

Extron electronics

Extron electronics RGB 560 AKM Manuale utente

Extron electronics

Extron electronics Universal Interfaces RGB 130xi Manuale utente

Extron electronics

Extron electronics ACP 106 EU Manuale utente

Extron electronics

Extron electronics RGB 170 Manuale utente

Extron electronics

Extron electronics DMP 64 Manuale utente

Extron electronics

Extron electronics SSP 7.1 Manuale utente

Extron electronics

Extron electronics RGB 440 Manuale utente

Extron electronics

Extron electronics AXI 02 AT Manuale utente

Extron electronics

Extron electronics AXI 22 AT D Manuale utente

Extron electronics

Extron electronics Inline CIA116-1 Manuale utente

Extron electronics

Extron electronics RGB 460xi FSR Series Manuale utente

Extron electronics

Extron electronics RGB 124 Manuale utente

Extron electronics

Extron electronics TLI Pro 201 Manuale utente

Extron electronics

Extron electronics RGB 109xi Manuale utente

Extron electronics

Extron electronics RGB 190F Manuale utente

Extron electronics

Extron electronics CVEQ1 AAP Manuale utente

Extron electronics

Extron electronics IPL T S1 Manuale utente

Extron electronics

Extron electronics IP Link Series Manuale utente

Extron electronics

Extron electronics RGB 500 AKM Manuale utente

Extron electronics

Extron electronics Architectural Series Universal Interfaces with Audio and ADSP RGB... Manuale utente

Extron electronics

Extron electronics Computer-Video Interface RGB 558 AKM Manuale utente

Extron electronics

Extron electronics RGB 202 VS SL2 Manuale utente

Extron electronics

Extron electronics RGB 190F Manuale utente

Manuali Apparecchiature di registrazione popolari di altre marche

KV2 Audio

KV2 Audio 500 Series Manuale utente

Robotics Technologies

Robotics Technologies microBus-Cam II Manuale utente

Seca

Seca 460 Manuale utente

Cognex

Cognex MVS-8000 Series Manuale utente

Mect

Mect MPNC006 Series Manuale utente

Bad Caf

Bad Caf THE LEASH Manuale utente

Strymon

Strymon NIGHTSKY Manuale utente

Mitsubishi Electric

Mitsubishi Electric 16CH DIGITAL RECORDER DX-TL5000U Manuale utente

Tews Technologies

Tews Technologies TPMC465 Manuale utente

Honeywell

Honeywell Excel 50 Manuale utente

SeaLevel

SeaLevel COMM+8.LPCI Manuale utente

Arturia

Arturia AUDIOFUSE STUDIO Manuale utente

Rukra

Rukra RK-1240 Manuale utente

Samson

Samson SCOM Manuale utente

Dynacord

Dynacord DPS260 Manuale utente

Nice

Nice Core Manuale utente

Pyle Pro

Pyle Pro PSS8 Manuale utente

RF-System

RF-System TinyGate Manuale per l'uso e la cura
