1
Digital Video Recorder
User’s Manual
MAGIC
HYBRID 04/08/08R/16R/16R+
LITE 04/08/16
HD-SDI 04/08/16R
2
Thank you for using our product.
1. This is user's manual for Analog / HD-SDI Hybrid DVR(Digital Video Recorder).
2. This manual contains product specification and introduction, installation guide,
operating guide and other necessary matters for easy understanding. Users should
read this user's manual carefully for proper use.
3. Contents in this manual may be changed according to the specification change and
feature improvement without any notification.
4. This user's manual shall never be copied without prior agreement and violating this
may be a reason for legal punishment on piracy.
5. If there is any incorrect or insufficient content in this user's manual, notify it to
Customer Support Center.
3
CONTENTS
Contents
CH 1. Product Introduction`
1-1. Product Contents 5
1-2. Specifications 7
1-3. Product Characteristics 13
1-4. Name of Each Part 15
CH 2. Installation Guide and Cautions
2-1. Cautions 22
2-2. Product Installation 25
2-2-1. Power Connection 25
2-2-2. Connecting External Device 25
CH 3. How to Use
3-1. General Usage Information 29
3-2. Live Mode 30
3-2-1. Live mode control 30
3-2-2. Live mode feature 32
3-3. Search Mode 40
3-3-1. Search selection type 40
3-3-2. Play Mode 44
3-4. Setup Mode 45
3-4-1. Display 45
3-4-2. Record 50
3-4-3. Device 55
3-4-4. Network 72
3-4-5. System 79
3-5. Firmware Upgrade 85
4
CONTENTS
Trouble Shooting 87
How to Connect xbox1 89
Contents
5

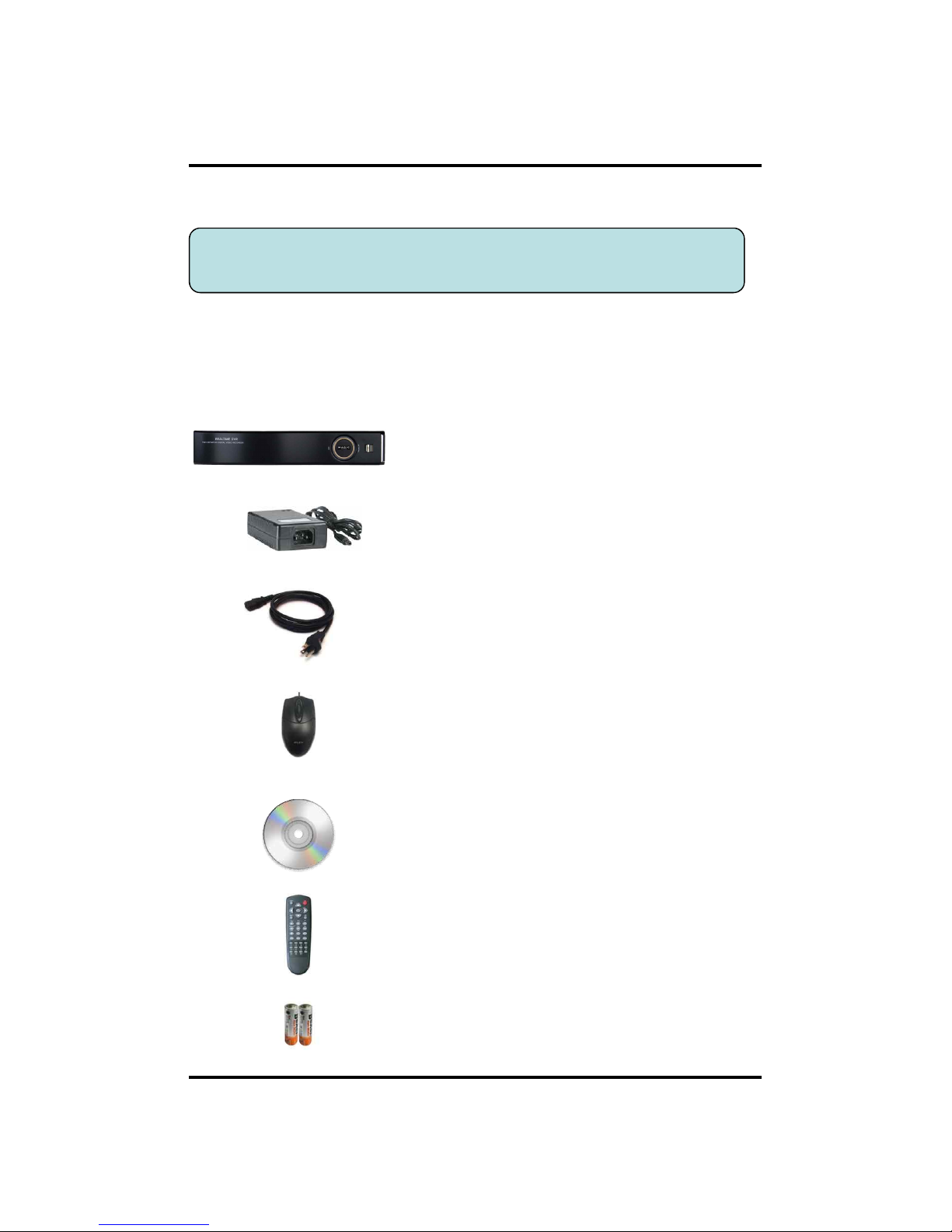

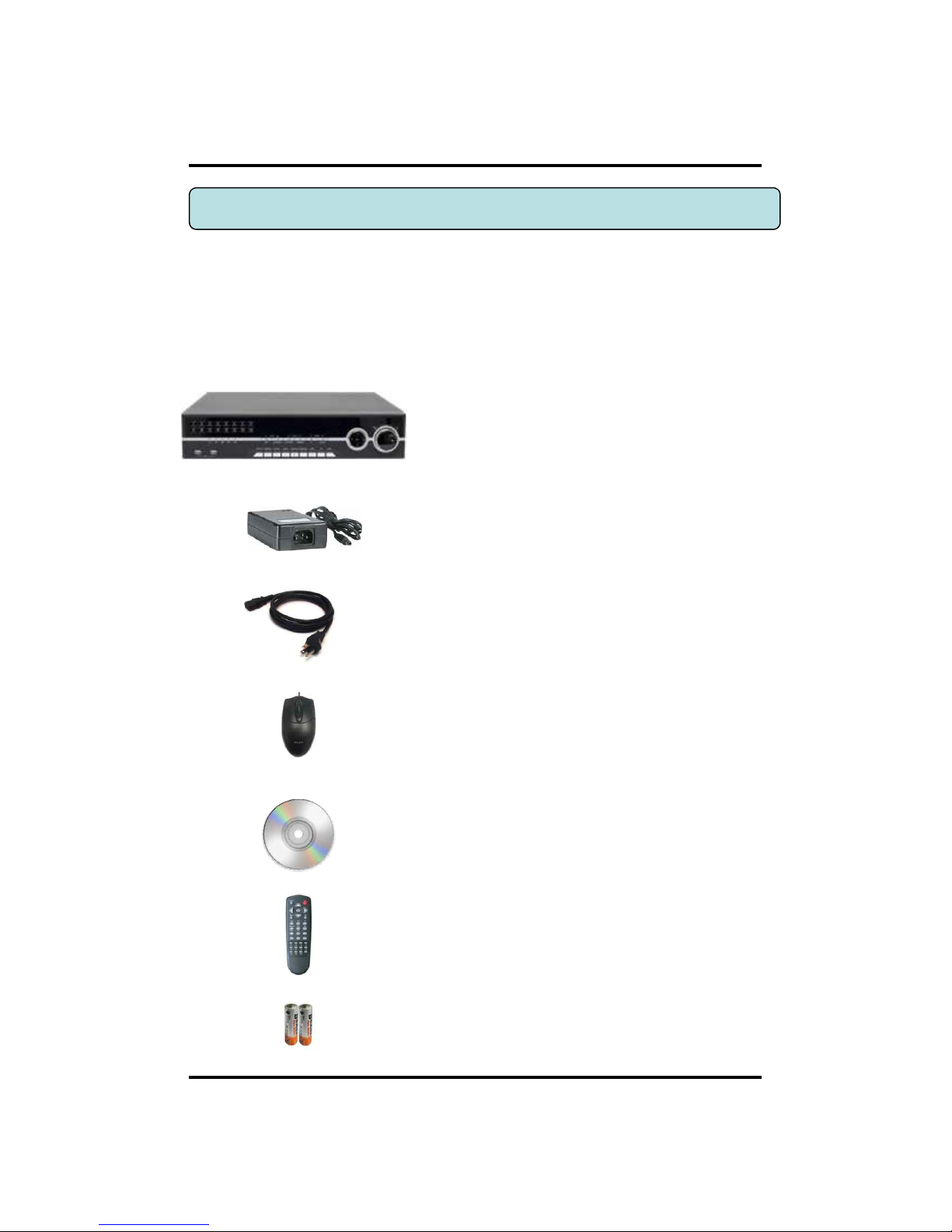

After removing packing materials of this product, check whether all following
contents are included.
Main Body (DVR):
This converts the analog video and audio signal to
the digital signal and saves on HDD.
Adapter:
This 12V adapter supplies power to the product.
Power Cable:
This connect the adapter and the power source.
MOUSE:
This is an controller for convenience.
Program CD:
This contains the User’s manual and Client
Program for DVR.
Remote Controller:
This is an IR remote controller for convenience.
Battery:
These are 2(two) battery for the remote controller.
CH1. Product Introduction
CH 1 Product Introduction
1-1. Product Contents
(HYBRID 04/08, LITE 04/08/16, HD-SDI 04/08)
6
After removing packing materials of this product, check whether all following
contents are included.
CH 1 Product Introduction
Main Body (DVR):
This converts the analog video and audio signal to
the digital signal and saves on HDD.
Adapter:
This 12V adapter supplies power to the product.
Power Cable:
This connect the adapter and the power source.
MOUSE:
This is an controller for convenience.
Program CD:
This contains the User’s manual and Client
Program for DVR.
Remote Controller:
This is an IR remote controller for convenience.
Battery:
These are 2(two) battery for the remote controller.
1-1. Product Contents(HYBRID 08R/16R/16R+, HD-SDI 16R)
7
CH 1 Product Introduction
Model
HYBRID Series
4 CH 8 CH 8R CH 16R CH 16R+ CH
Compact case 19” rack type
Video
Camera input 4 BNC 8 BNC 8 BNC 16 BNC 16 BNC
Individual HD/Analog sel
ectable All Hybrid(Patent)
Available source 720p25,30,50,60/1080p25,30,50,60/1080i50,60/Composite/960H/Mixed
Output
1 HDMI (Main Display or Programmable HD Spot)
1 VGA (Main Display or Programmable HD Spot)
1 Composite (Programmable SPOT)
Audio Audio input 4 RCA 8 RCA 16 RCA
Output 1 RCA
Sensor In 4 (NC/NO) 8 (NC/NO) 16(NC/NO)
Alarm out 1 relay 6 TTL, 2 relay 14 TTL, 2 relay
Operating System Embedded Linux OS
Display
Speed Real Time
Resolution (Pixel) 1280X1024, 1280X720, 1920X1080
Split screen 1,4 1,4,6,8,9 1,4,6,8,9 1,4,6,8,9,13,16
Recording
CODEC H.264 / JPEG for 3G, Dual CODEC
Resolution (Pixel) 720p, 1080p,1080i, 960H, 720H, Mixed
Picture quality 4 steps (Super, High, Medium, Low)
Speed
NTSC area
PAL area
120fps@1080p
100fps@1080p
240fps@1080p
200fps@1080p
240fps@1080p
200fps@1080p
480fps@1080p
400fps@1080p
480fps@1080p
400fps@1080p
Playback
Display 1,4 1,4,8 1,4,8 1,4,6,8,9,13,16
Search mode Calendar, Event ,POS , Panorama, Thumbnail
Speed NTSC
PAL
60fps@1080p
100fps@1080p
120fps@1080p
200fps@1080p
120fps@1080p
200fps@1080p
120fps@1080p
200fps@1080p
480fps@1080p
400fps@1080p
Fast/Slow speed Normal, REW & FF [recorded speed x2, x4, x8, x16,x32,x64,x1/2,x1/4], Frame to
frame, Pause
1-2. Specifications(HYBRID)
8
CH 1 Product Introduction
Model
HYBRID Series
4 CH 8 CH 8R CH 16R CH 16R+ CH
Compact case 19” rack type
Network
Network Interface Gigabit Ethernet
Speed
15fps@1080p
60fps@1080p 120fps@1080p
Protocol TCP/IP, HTTP, DHCP
Application 7 / 8 (PC Client system& IE)/MAC
Web Browser Internet Explorer, Safari, FireFox, Chrome
Smart phone App CatchEye : Android, iPhone for live and search
Backup
Interface USB 2.0 X 2 USB 2.0 X 3
Backup device External HDD, CD&DVD-RW, Network, Thumb Drive
The number of HDD
2 SATA(No capacity limit ;
4TB of more)
4 SATA + 1 eSATA(
upto
12 bays, No c
apacity limit ; 4TB or more)
Function
•Full GUI with alpha blending
•Individual setting of resolution, frame rates and picture quality
•Instant Replay
•Digital Zoom
•Mouse Control
•Weekly scheduler with holiday by 10 minutes setting
•Covert, Disable and Private function of cameras
•Motion Detection with 352 area setting
•Relay alarm output
•PTZ control by RS
-485
•Daylight Saving Time and Network Time Setting
•Multi User Authority up to 8 Users
•Deinterlacer
upon live and playback
•22
languages with full graphic
•Individual Network port setting
•Auto Deletion
•Import and Export the configuration
•Mirroring
•POS
Interface
•Dual CODEC engine for independent video transmission
•Interactive setup via network
Others
Power Consumption 60W 150W
Operating Temperature 5 ~40℃(41~104F)
Relative Humidity Maximum 80% non-condensing
Dimension
340(W)
×250(D)×
60(H) mm
430(W)×420(D)×88(H)
1-2. Specifications(HYBRID, continued)
9
CH 1 Product Introduction
1-2. Specifications(LITE)
Model
LITE Series
4 CH 8 CH 16 CH
Compact case
Video
Camera input 4 BNC 8 BNC 16 BNC
Individual HD/Analog sel
ectable 720p real time / 1080p non real time Hybrid
Available source 720p25,30,50,60/1080p25,30/1080i50,60/Composite/960H/Mixed
Output
1 HDMI (Main Display)
1 VGA (Main Display)
1 Composite
(Programmable SPOT)
1 HDMI (Main Display or Programmable HD Spot)
1 VGA (Main Display or Programmable HD Spot)
1 Composite (Programmable SPOT)
Audio Audio input 4 RCA
Output 1 RCA
Sensor In 4 (NC, NO selectable)
Alarm out 1 relay
Operating System Embedded Linux OS
Display
Speed Real Time
Resolution (Pixel) 1280X1024, 1280X720, 1920X1080
Split screen 1,4 1,4,6,8,9 1,4,6,8,9,13,16
Recording
CODEC H.264 / JPEG for 3G, Dual CODEC
Resolution (Pixel)
1080P (1080p25,30/1080i50,60)
720P (720p25,30,50,60)
WD1, D1 (Composite, 960H)
Picture quality 4 steps (Super, High, Medium, Low)
Speed
NTSC area
PAL area
120fps@720p/60fps@1080p
100fps@720p/50fps@1080p
240fps@720p/120fps@1080p
200fps@720p/100fps@1080p
480fps@720p/240fps@1080p
400fps@720p/200fps@1080p
Playback
Display 1,4 1,4,8 1,4,6,8,9,13,16
Search mode Calendar, Event ,POS , Panorama, Thumbnail
Speed NTSC
PAL
60fps@720p/30fps@1080p
50fps@720p/25fps@1080p
120fps@720p/60fps@1080p
100fps@720p/50fps@1080p
240fps@720p/120fps@1080p
200fps@720p/100fps@1080p
Fast/Slow speed Normal, REW & FF [recorded speed x2, x4, x8, x16,x32,x64,x1/2,x1/4], Frame to
frame, Pause
10
CH 1 Product Introduction
1-2. Specifications(LITE, continued)
Model
LITE Series
4 CH 8 CH 16 CH
Compact case
Network
Network Interface Gigabit Ethernet
Speed 20fps@720p
20fps@720p
40fps@720p
40fps@720p
180fps@720p
140fps@720p
Protocol TCP/IP, HTTP, DHCP
Application Windows XP / 7 / 8 (PC Client system& IE)/MAC
Web Browser Internet Explorer, Safari, FireFox, Chrome
Smart phone App CatchEye : Android, iPhone for live and search
Backup
Interface USB 2.0 X 2 USB 2.0 X 3
Backup device External HDD, CD&DVD-RW, Network, Thumb Drive
The number of HDD 2 SATA(No capacity limit ; 4TB of more)
Function
•Full GUI with alpha blending
•Individual setting of resolution, frame rates and picture quality
•Instant Replay
•Digital Zoom
•Mouse Control
•Weekly scheduler with holiday by 10 minutes setting
•Covert, Disable and Private function of cameras
•Motion Detection with 352 area setting
•Relay alarm output
•PTZ control by RS
-485
•Daylight Saving Time and Network Time Setting
•Multi User Authority up to 8 Users
•Deinterlacer
upon live and playback
•22
languages with full graphic
•Individual Network port setting
•Auto Deletion
•Import and Export the configuration
•Mirroring
•POS
Interface
•Dual CODEC engine for independent video transmission
•Interactive setup via network
Others
Power Consumption 60W
Operating Temperature 5 ~40℃(41~104F)
Relative Humidity Maximum 80% non-condensing
Dimension 340(W)×250(D)×60(H) mm
