EYEZONE B1080PAM Manuale utente

EYEZONE B1080PAM

User Manual

Feb 24, 11

CONTENTS

1. Package Contents………………..………..………………………….. 1

2. Introduction……………………………..…….………………………... 1

3. Features………………………………………………………………… 1

4. Hardware Overview………………………………….….……………... 2

5. Remote Control…………………….…………………….…………….. 3

6. Using the B1080PAM………….…………………..……………..... 4

6.1 Start the B1080PAM………………….….……………………... 4

6.2 Home Menu………………………………………...………………. 4

6.3 Movie Playback………………………….….……………………... 5

6.4 Photo View………………………………………….………………. 6

6.5 Music Playback…………….…………….….……………………... 7

6.6 File Interface……………………..………………...………………. 7

6.7 Copy File………………………………….….……………………... 8

6.8 Delete File……………….………………………….………………. 9

7. Setting Up…………………………………………..…………….…….. 10

7.1 Display…………….………………………………..………………. 11

7.2 Language………………………………………………..………….. 11

7.3 Photo Setup…….…………………………………..………………. 12

7.4 Movie Setup………….………………………..………..………….. 12

7.5 Music Setup…….…………………………………..………………. 13

7.6 Default……………….…………………………………..………….. 13

7.7 About……………..….…………………………………..………….. 13

8. Troubleshooting…………………………………………….……………. 14

1. PACKAGE CONTENTS

1. B1080PAM

2. Remote Control

3. User Manual

4. Power Adapter (DC5V, 2A)

5. Component Video Cable

6. Audio Cable

2.INTRODUCTION

The Eyezone B1080PAM is a high-performance and low-cost digital signage player that allows

you to play advertising contents in 1080P HD. No software is required, simply insert the SD(HC) card

or USB flash driver with media files and it will play the media files automatically. The B1080P-AM

offer HDMI, Component Video and Video output to match your display’s input.

The B1080P-AM is an ideal for advertising, retail displays, digital poster, museum exhibits and

other applications.

3.FEATURES

Supports multiple file formats: Video, Photu and Music.

Supports HDMI, Component Video and Video (with audio) outputs.

Resolution:

- HDMI: up to 1080p.

- YPbPr: up to 1080i

Supports SD(HC) card and USB flash driver.

Supports Auto-Play function.

Play photos as a slideshow with background music

Multi-Language OSD: English, Chinese, German, French, Spanish, Italian, Portuguese,

Netherlands and Russian.

Dimensions (L/ W/ H): 149x95x25.5 mm.

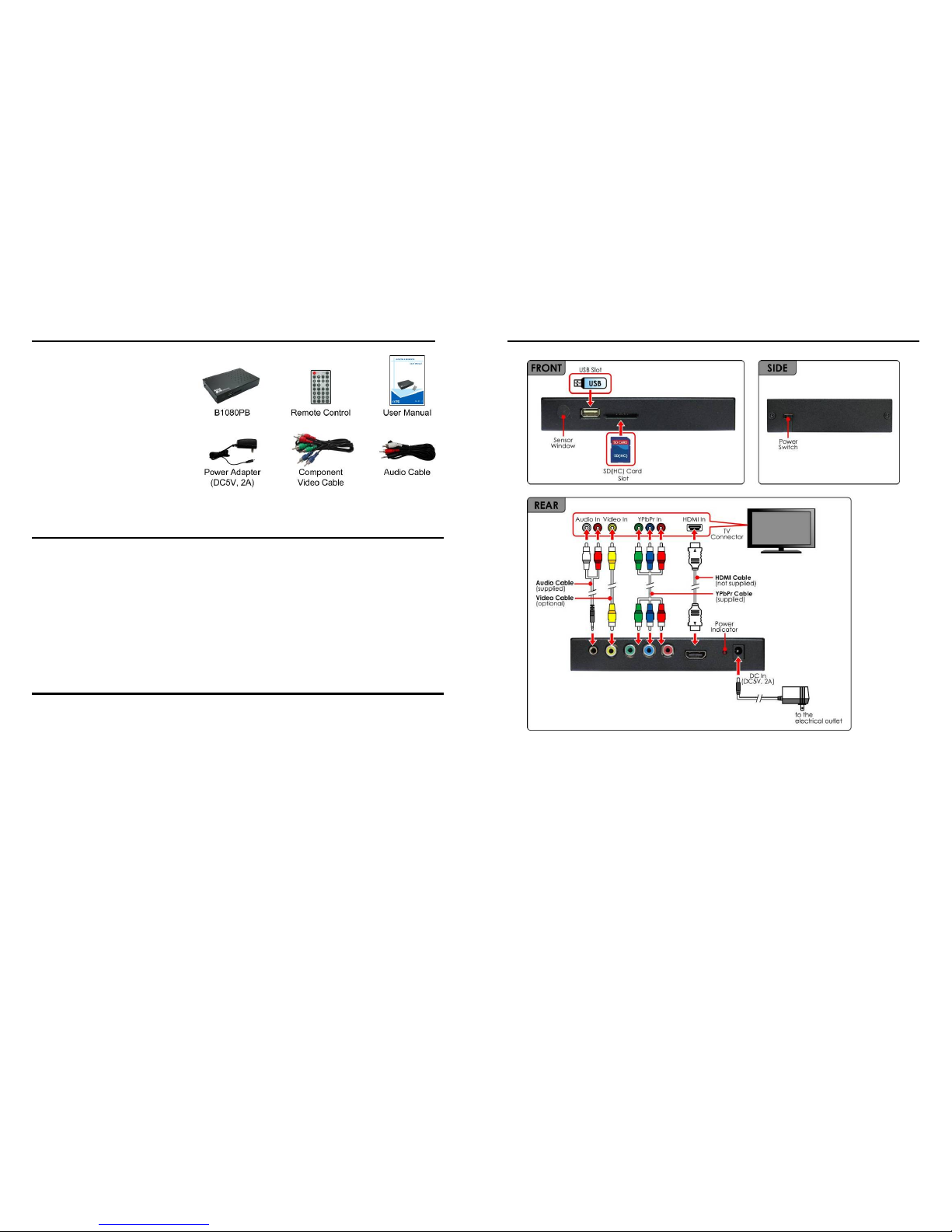

4.HARDWAREOVERVIEW

USB Slot: Insert the USB flash driver.

SD Card Slot: Insert the SD memory card.

Power Switch: Toggle between main power on & off.

Audio Output: Connect to audio input on TV or external speakers.

Video Output: Connect to video input on TV.

Component Video Output: Connect to component video input (YPbPr) on TV.

HDMI Output: Connect to HDMI input on TV.

Power Indicator

DC Input: Connect the supplied power adapter. (DC5V / 2A)

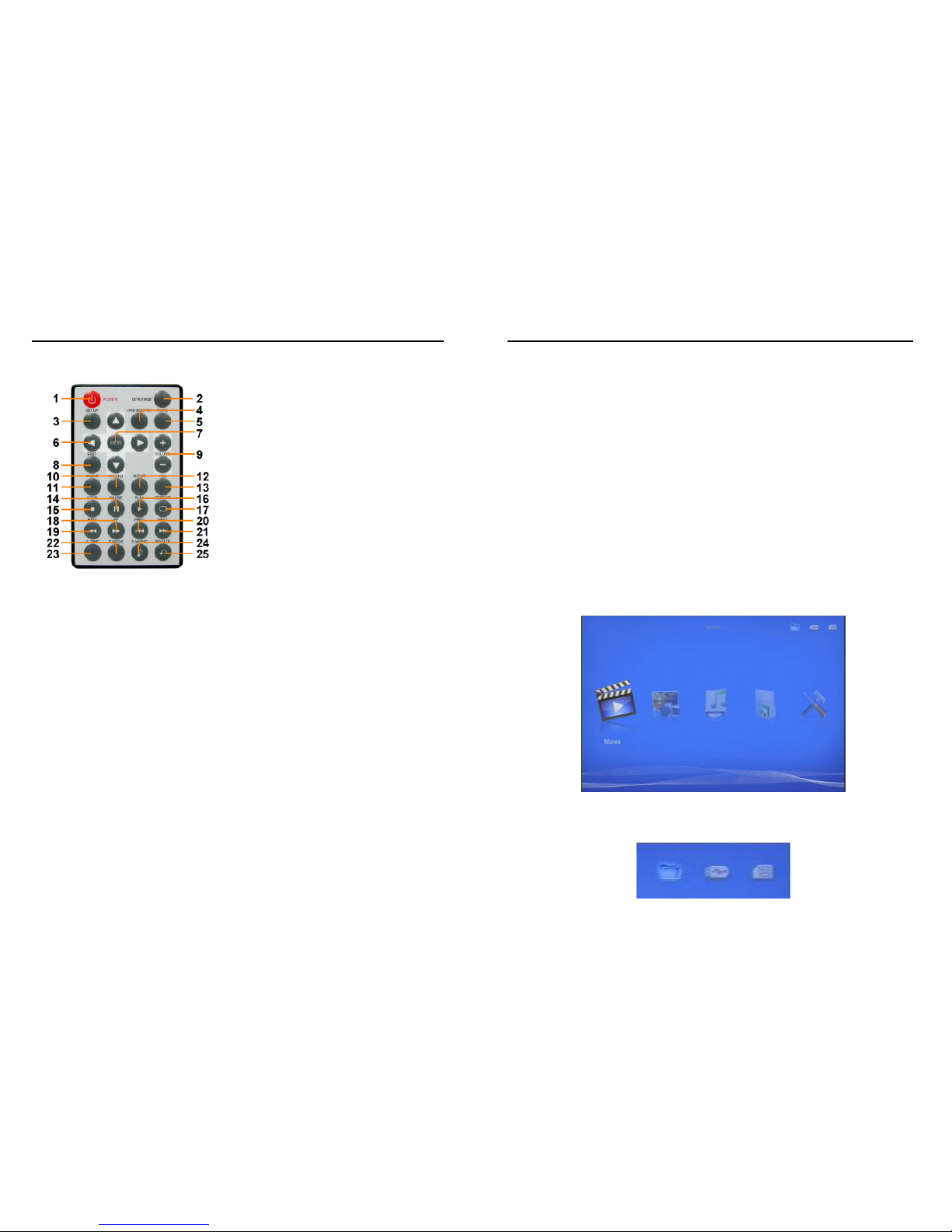

5. REMOTE CONTROL

Power on/ off

Change the output mode

Open the setting menu

Back to previous screen

Storage device selection (in home menu)

Mute sound

Move the cursor

Confirm/ enter/ playback

Open the Copy/ Delete menu (in file list)

Volume up/ down

Enter into the photo file list.

Enter into the music file list.

Enter into the video file list.

Enter into the file list. (list all the media files)

Pause/ resume playback

Stop playback

Play the selected file

Select the repeat mode

Forward videos or music

Rewind videos or music

Skip to the previous file

Skip to the next file

Change the display mode when playing video

Open the time search bar when playing video

Enable/ disable background music

Rotate the photo

6. USING THE B1080PAM

6.1 Start the B1080PAM

Step1: Using the HDMI or component video cable to connect between B1080PAM and TV.

Step2: Insert the SD memory card or USB flash driver with media files.

Step3: Connect the power adapter and turn on the power switch, then the B1080PAM will power on

automatically.

NOTE: After boot, the B1080PAM will play the media files automatically, you can press the STOP key,

and press the Card Selection key to back to home menu.

- If the first file in the file list is video format, the B1080PAM will play all the video files automatically.

- If the first file in the file list is picture format, the B1080PAM will play all the picture files with

background music automatically.

- If the first file in the file list is music format, the B1080PAM will play all the music files automatically.

6.2 Home Menu

There are five icons (Movie, Photo, Music, File and Setting) in home menu. You can use the left or right

key to select these options and press ENTER key to enter the option.

In the home menu, you can use the Card Selection key to select storage device (USB storage or SD

card).

6.3 Movie Playback

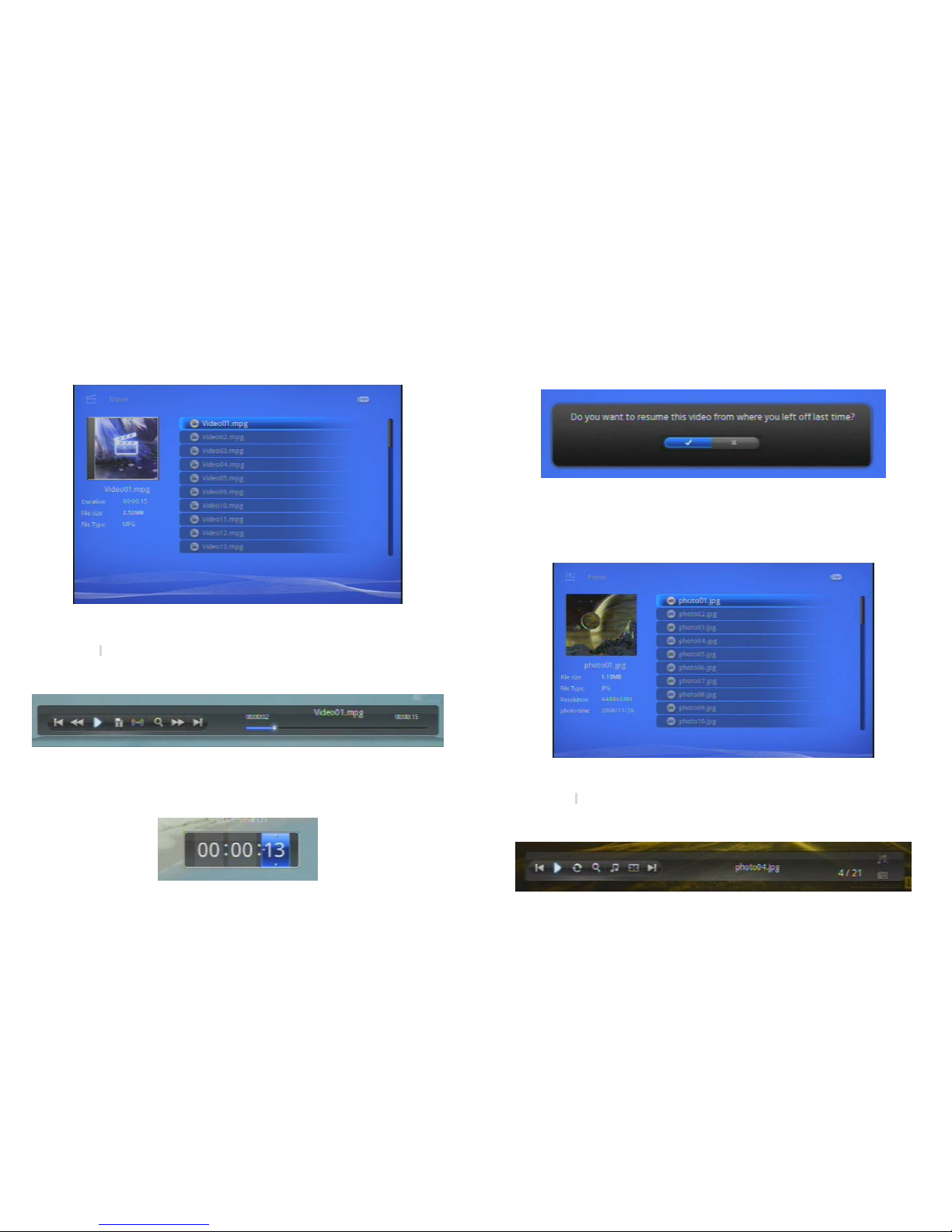

Step1: Select the Movie icon and press ENTER key to enter the movie list.

Step2: Use the up or down key to select movie file and press ENTER key to playback.

Step3: Press Stop or Card Selection key to back to movie list when playing movie.

6.3.1 Movie Info Bar

Press the Pause key to open the info bar when playing movie. The info bar includes previous, fast

rewind, play/ pause, subtitle, audio switch, zoom in (out), fast forward and next functions. You can use

the left or right key to select and press ENTER key to enable.

6.3.2 Time Search Bar

Press the S-Time key to open the time search bar when playing movie. You can use the up or down key

to set the time and press ENTER key to enable.

6.3.3 Resume Playback

NOTE: The resume play function must be enabled (refer to section 7.4 Movie Setup).

If you try to open a video file that has been partially played before, and the following screen will appear.

Select ˇto resume playback or select Χto start playback from the beginning.

6.4 Photo View

Step1: Select the Photo icon and press ENTER key to enter the photo list.

Step2: Use the up or down key to select photo file and press ENTER key to view the selected photo.

6.4.1 Photo Info Bar

Press the Pause key to open the info bar when slideshow photos. The info bar includes previous, play/

pause, rotate, zoom, background music, viewing mode and next functions. You can use the left or right

key to select and press ENTER key to enable.

6.5 Music Playback

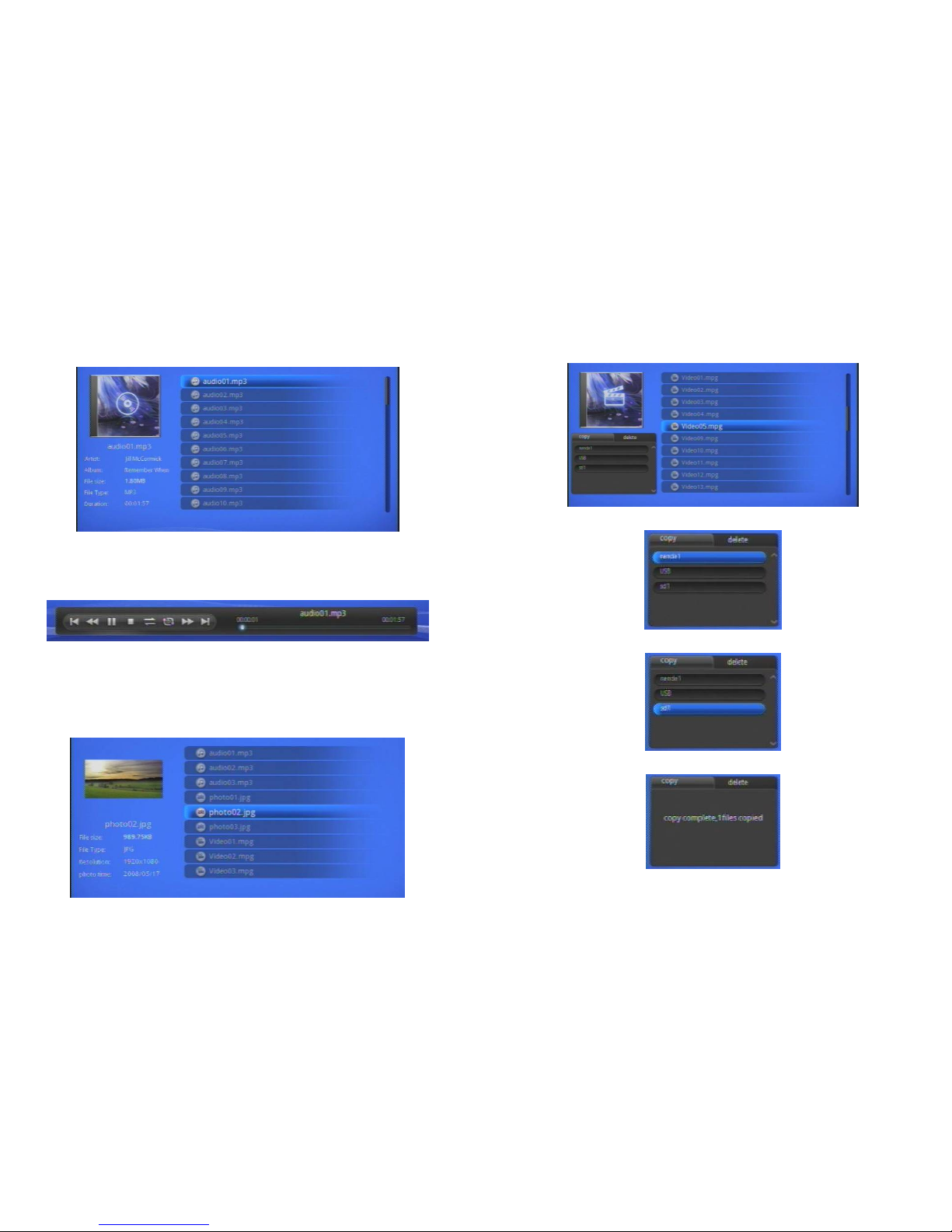

Step1: Select the Music icon and press ENTER key to enter the music list.

Step2: Use the up or down key to select music file and press ENTER key to playback.

6.5.1 Music Info Bar

The info bar includes previous, fast rewind, play/ pause, stop, play mode, repeat mode, fast forward and

next functions. You can use the left or right key to select and press ENTER key to enable.

6.6 File Interface

Step1: Select the File icon and press ENTER key to enter the file interface.

Step2: The file interface will list all media file. You can use the up or down key to select media file and

press the ENTER key to playback.

6.7 Copy File

Step1: Select one file or one folder in the file list, and press the EDIT key to open the Copy/ Delete

menu.

Step2: Select Copy option and press ENTER key to enter into copy menu.

Step3: Use the up or down key to select target device, and press ENTER key to start copy.

Step4: After copy complete, the copy menu will display the “copy complete” message.

Step5: After complete, press the Card Selection key to exit copy menu.

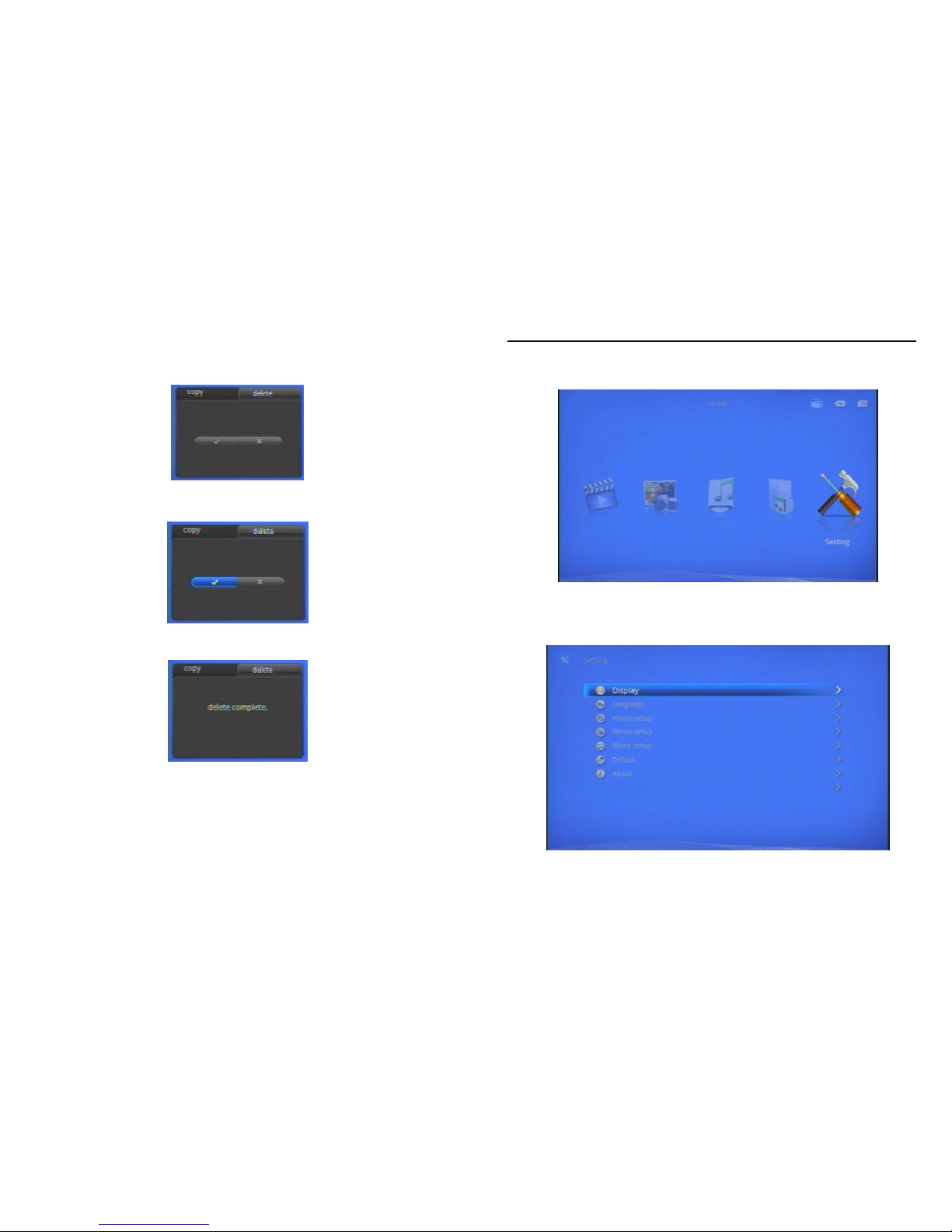

6.8 Delete File

Step1: Select one file or one folder in the file list, and press the EDIT key to open the Copy/ Delete

menu.

Step2: Select Delete option and press ENTER key to enter into delete menu.

Step3: Select the ˇ icon and press the ENTER key to start delete.

Step4: After delete complete, the delete menu will display the “delete complete” message.

Step5: After complete, press the Card Selection key to exit delete menu.

7.SETTINGUP

In the home menu, select Setting icon and press ENTER key to enter into setting menu (you

can also directly press the SETUP key to into setting menu).

In the settings menu, you can use the up or down key to select options and press the ENTER

key to enter sub-menu.

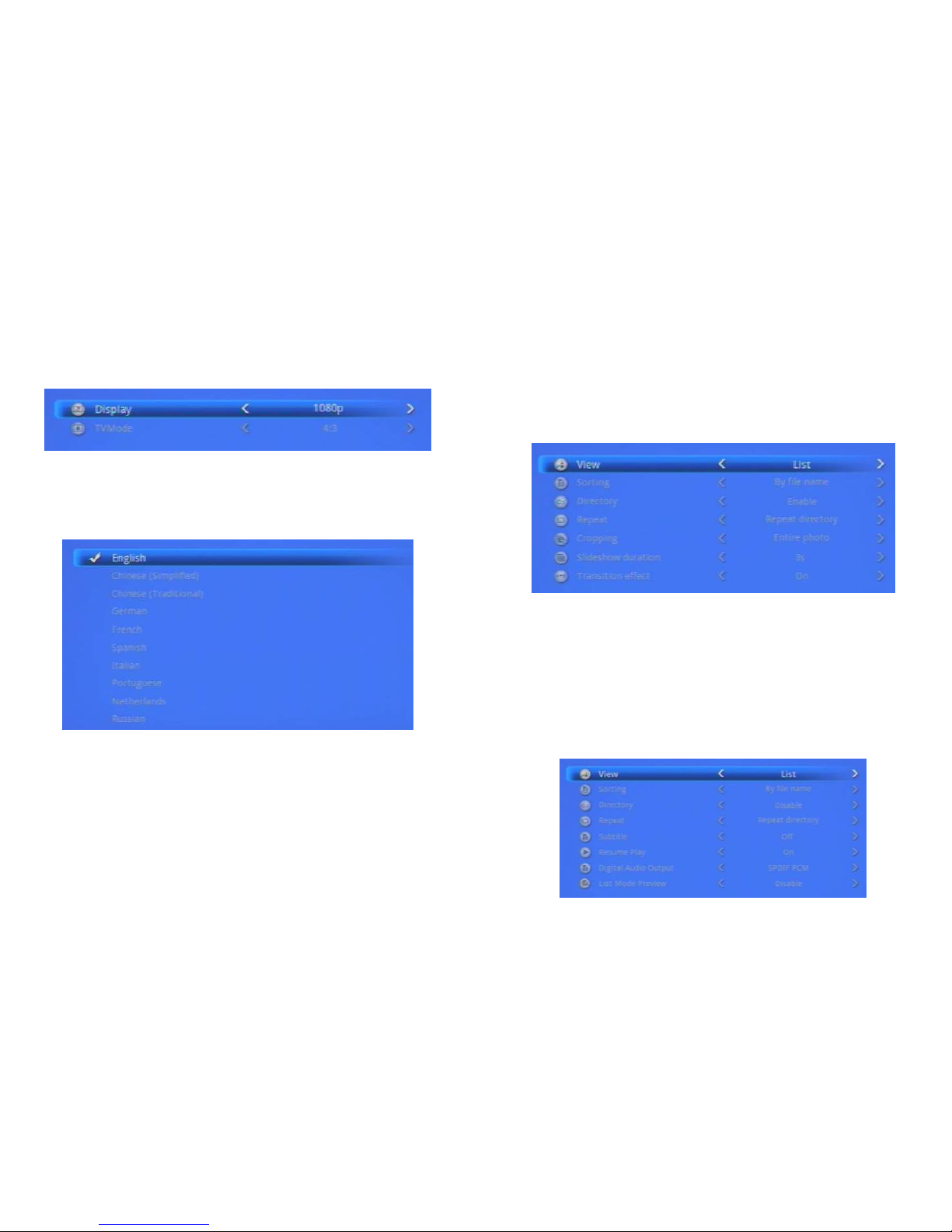

7.1 Display

- Display: The option is change the output mode and resolution (include NTSC, PAL, 480i, 480P, 576i,

576P, 720P, 1080i and 1080P), press ENTER key to enable.

- TV Mode: The option is TV screen proportional (include 4:3 and 16:9).

7.2 Language

Select the menu language (English/ Chinese/ German/ French/ Spanish/ Italian/ Portuguese,

Netherlands/ Russian)

7.3 Photo Setup

- View: Set photo interface file display mode (Thumbnail and List).

-Sorting: Set photo file sort mode (by file name and by file date).

- Directory: Set the photo interface whether to display the folder.

- Repeat: Set the repeat mode (Repeat all, Repeat directory and Repeat off).

- Cropping: Set photo specifications mode (Smart crop, Stretch photo and Entire photo).

- Slideshow duration: Set the interval time of slideshow (3, 5, 10, 30 and 60 second and 5 minutes).

- Transition effect: Enable/ disable the transition effect.

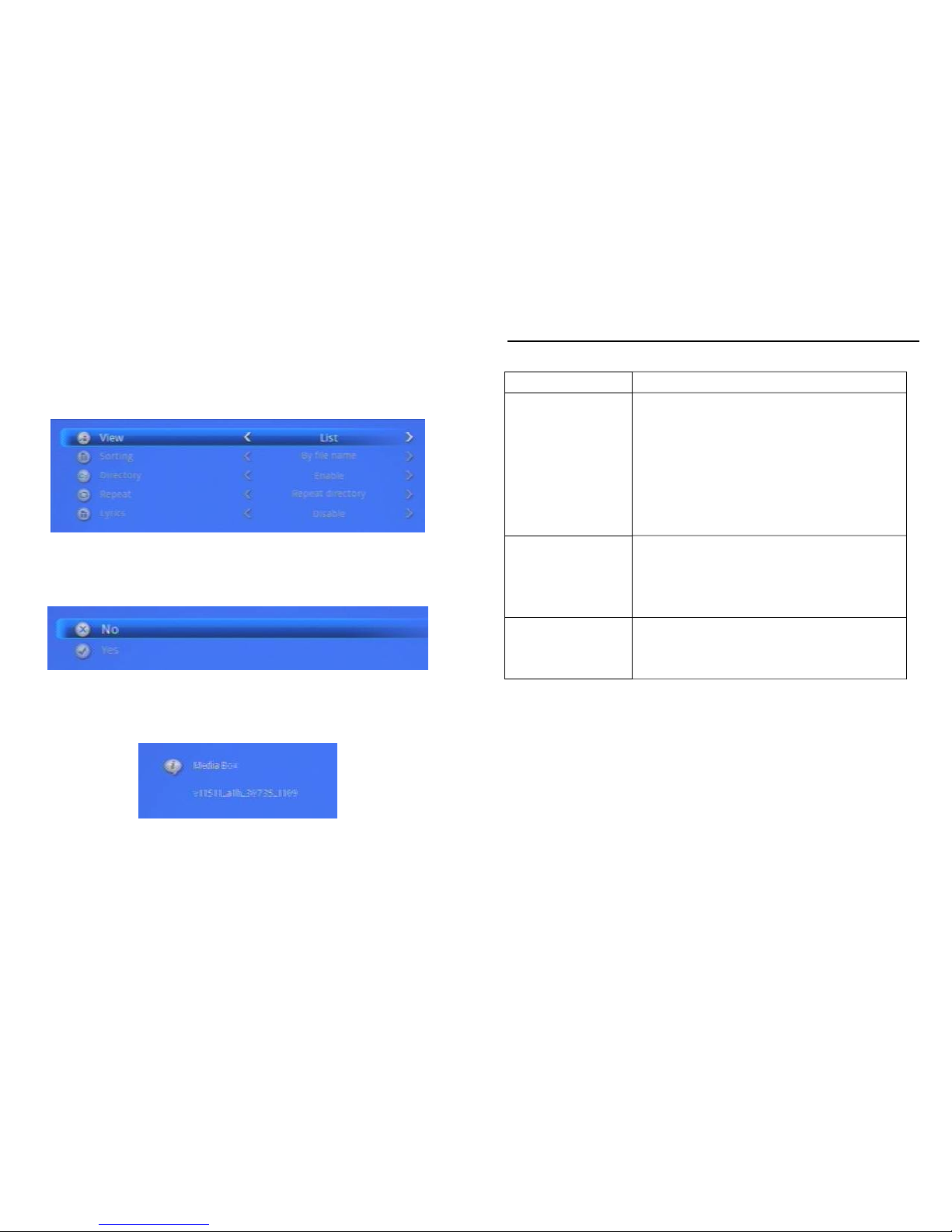

7.4 Movie Setup

- View: Set movie interface file display mode (Thumbnail and List).

-Sorting: Set movie file sort mode (by file name and by file date).

- Directory: Set the movie interface whether to display the folder.

- Repeat: Set the repeat mode (Repeat all, Repeat directory, Repeat movie and Repeat off).

- Subtitle: Set whether to automatically open the video subtitles.

- Resume Play: Enable/ disable the resume play function.

- Digital Audio Output: Set the digital audio output mode (SPDIF RAW/ SPDIF PCM).

- List Mode Preview: Enable/ disable the preview function.

7.5 Music Setup

- View: Set music interface file display mode (Thumbnail and List).

-Sorting: Set music file sort mode (by file name and by file date).

- Directory: Set the music interface whether to display the folder.

- Repeat: Set the repeat mode (Repeat all, Repeat directory, Repeat song and Repeat off).

- Lyrics: Display the lyrics of the song.

7.6 Default

Reset all settings to the default settings.

7.7 About

View the firmware version.

8.TROUBLESHOOTING

Situation Check Point

No Picture

1. Check power cable and power switches.

2. Ensure the video cable is connected between the

B1080PAM and TV.

3. Make sure the file format on the memory card or USB

flash driver is correct.

4. Check if your display device is switched to correct

video input source.

No Response From

the Remote Control

1. Ensure that the battery (CR2025 3v lithium battery) in

the remote control and it is inserted the correctly.

2. Check for any barrier between the remote control and

B1080PAM.

No sound

1. Check if the mute function is on.

2. Check if the volume is set properly.

3. Check if audio cable has been connected correctly.
