EZCast Pro QuattroPod Lite Manuale

QuattroPod Lite

Advanced Web Setting Manual

Contents

Introduction ............................................................................................................................. 3

Configure your QuattroPod Lite via Web Browser ............................................................ 3

Set up QuattroPod Lite .......................................................................................................... 4

Connect to QuattroPod Lite .................................................................................................. 6

Connect via Direct Connection ............................................................................................. 6

Connect via Router ................................................................................................................ 7

Web Setting Home Page ...................................................................................................... 8

Start Configuring your QuattroPod Lite ............................................................................... 8

1. Network Management .............................................................................................. 8

1.1. Connect to 5GHz Wi-Fi: ................................................................................... 8

1.2. Remember Wi-Fi ............................................................................................. 10

2. Device Management. ............................................................................................ 10

2.1. Language ............................................................................................................. 10

2.2. Resolution: ........................................................................................................... 10

2.3. Resolution Mode ................................................................................................. 11

2.4. Display Mode ....................................................................................................... 11

2.5. Reboot Timer ....................................................................................................... 12

2.6. One Touch Play .................................................................................................. 12

3. Admin Setting Admin .............................................................................................. 13

3.1. Wi-Fi Channel ...................................................................................................... 13

3.2. SSID ...................................................................................................................... 14

3.3. Password ............................................................................................................. 15

3.4. Sketch ................................................................................................................... 15

3.5. Central Management System ........................................................................... 15

3.6. My Screen ............................................................................................................ 16

3.7. Dynamic Wallpaper ............................................................................................ 16

3.8. AirView ................................................................................................................. 17

3.9. Admin Password. ................................................................................................ 18

3.10. Screen Saver ....................................................................................................... 18

3.11. Upgrade ................................................................................................................ 18

3.12. Reboot .................................................................................................................. 20

3.13. Reset to Factory Default .................................................................................... 20

4 About Device ............................................................................................................ 21

Introduction

Thank you for choosing QuattroPod Lite, the most practical and

effective casting equipment powered by EZCast Pro.

QuattroPod Lite can cast a devices’ content into an external

screen. Also, QuattroPod Lite supports Windows, macOS,

ChromeOS, Android, and iOS, which could truly realize the idea of

BYOD.

Configure your QuattroPod Lite via Web

Browser

With QuattroPod Lite, users may configure their device via a web

browser interface which greatly enhances user experience.

Based on different needs and usage scenarios, in QuattroPod Lite

Web Setting sections, customers may do custom setting including

output resolution, preferred language, max connections, etc.

Set up QuattroPod Lite

Please follow the steps below to set up the QuattroPod Lite

and finish the pairing process for QuattroPod Lite Receiver

and QuattroPod Lite Transmitters.

i. Connect QuattroPod Lite Receiver to an external power

supply.

ii. Connect QuattroPod Lite Receiver to an external display

via HDMI port.

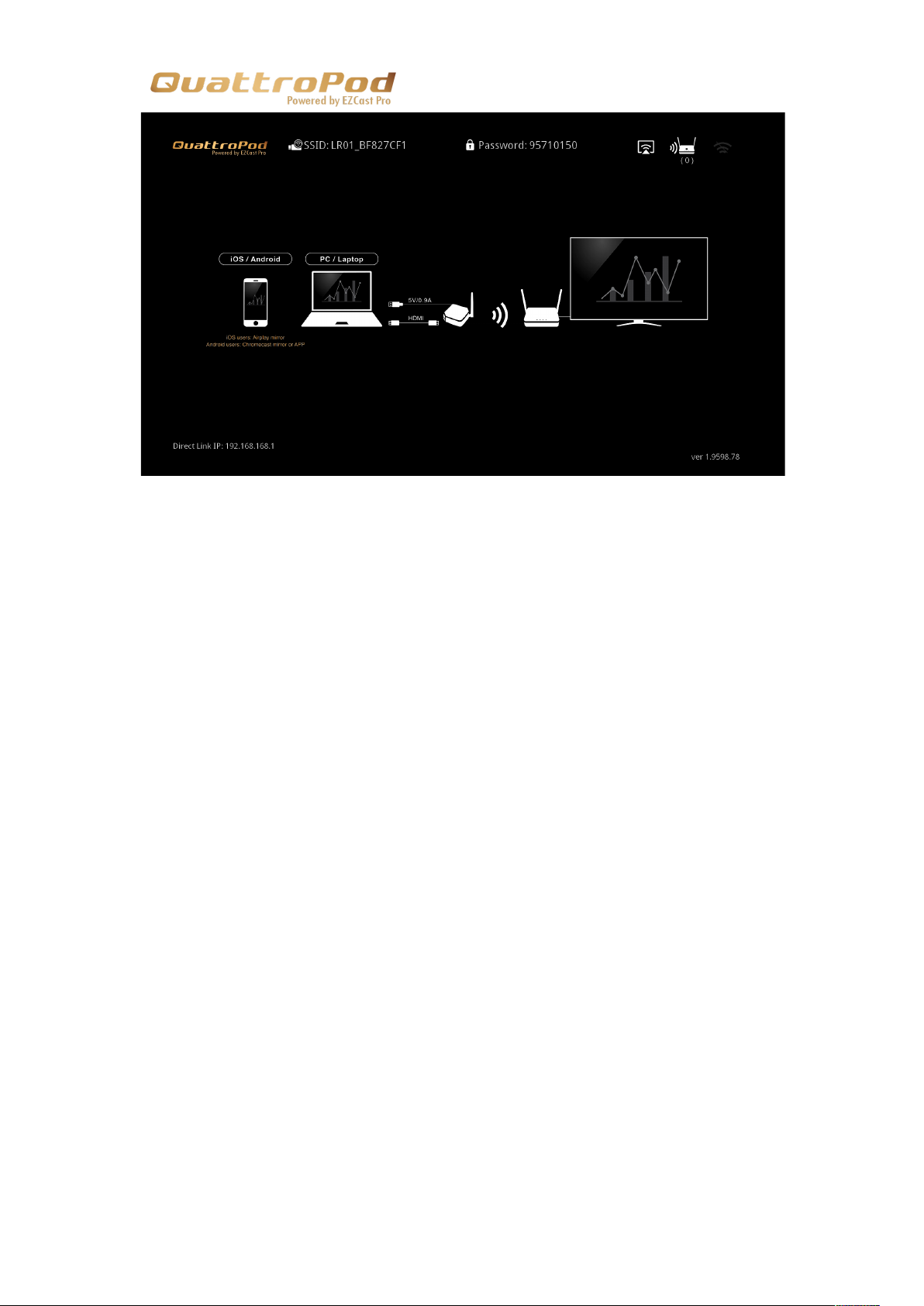

iii. Once the Receiver is successfully connected, the external

display will show the landing page below.

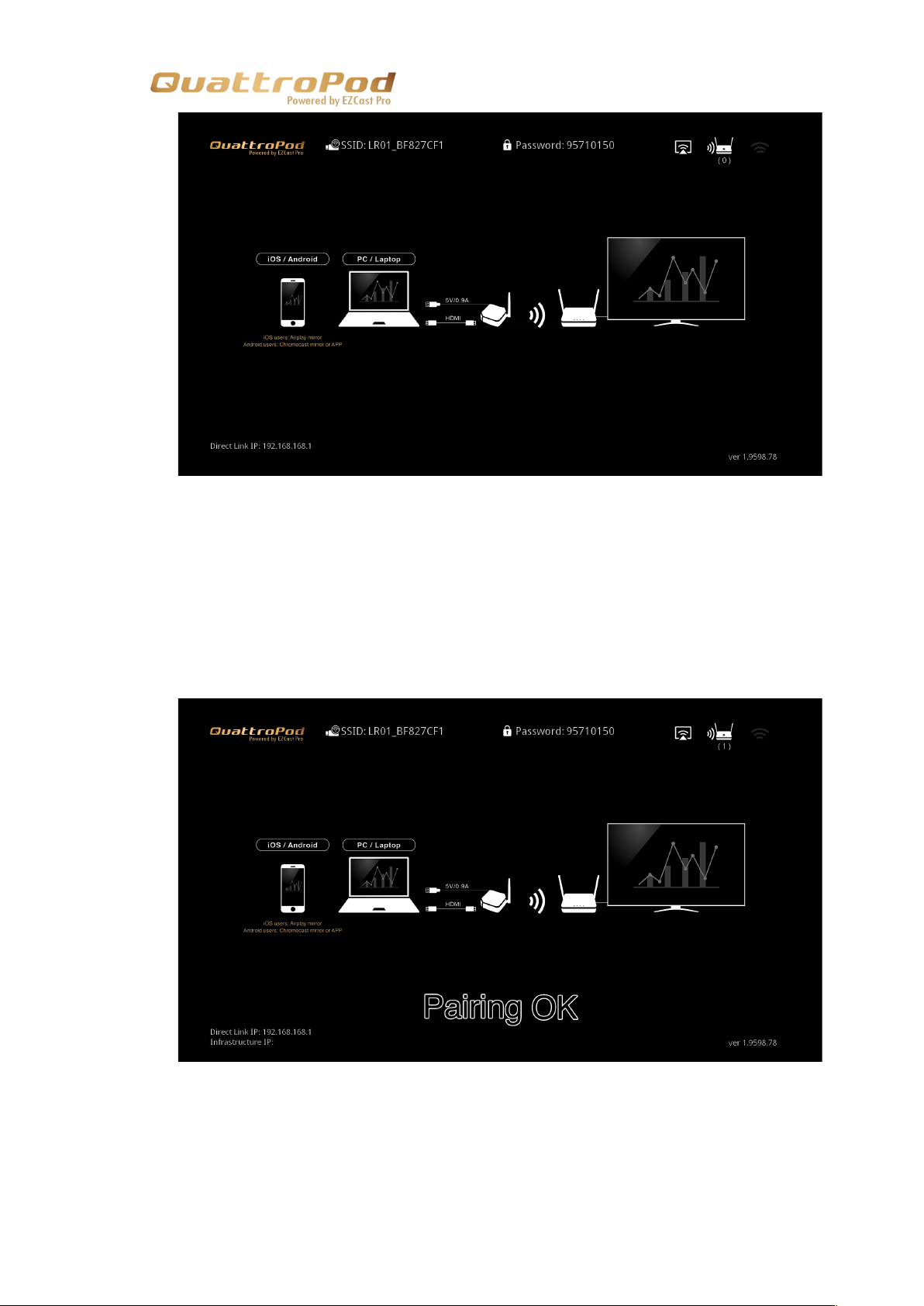

iv. Connect the transmitters to receiver’s USB port. Once the

transmitters and receiver are paired, the landing page will

show the pairing status as the image below.

v. Connect the laptop, either Windows or MacBook, to the

transmitter.

Connect to QuattroPod Lite

Please follow the instructions below to connect your phone, tablet,

or laptop to QuattroPod Lite. We provide user with the following

methods for connection: direct connection, through Wi-Fi.

Connect via Direct Connection

i. Please see the upper middle of the landing page for the

SSID and Password.

ii. Find the SSID on the connecting device’s Wi-Fi list.

iii. Enter the Password to connect to QuattroPod Lite receiver.

iv. Once the direct connection is established, enter the IP

address on the bottom left corner of the landing page to

your browser’s URL bar. The default IP address of

QuattroPod Lite receiver is 192.168.168.1.

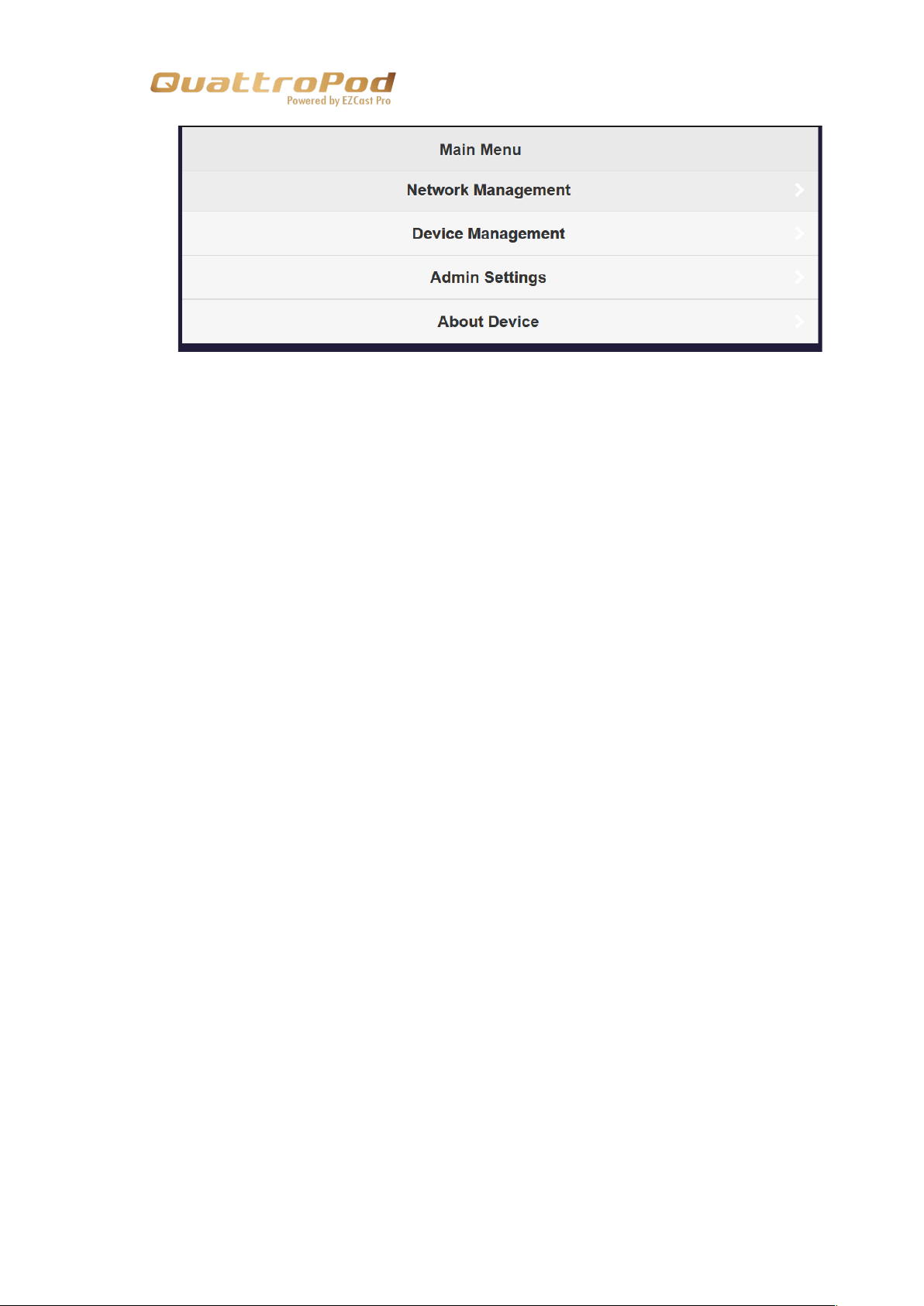

v. Once the page is loaded, the browser will enter the Web

Setting Home Page shown as below.

Connect via Router

i. Please make sure the QuattroPod Lite receiver has

connected to the 5GHz Wi-Fi router. For more detail,

please see Chapter xxxxx.

Once the receiver is connected to the 5GHz router, enter

the IP address on the bottom left corner of the landing

page to your browser’s URL bar.

ii. Once the page is loaded, the browser will enter the Web

Setting Home Page shown as below.

Web Setting Home Page

Due to compliance reasons, the first time connecting to

QuattroPod Lite receiver, user will need to configure the 1. Country

2. Admin password.

QuattroPod Lite provides two level of access: Admin and Non-

Admin. Please log in as administrator for higher level of access

authorization.

Start Configuring your QuattroPod Lite

1. Network Management

Connect QuattroPod Lite to the internet via external

Wi-Fi router. Please make sure the Wi-Fi router you

wish to connect is 5GHz and encrypted.

1.1. Connect to 5GHz Wi-Fi:

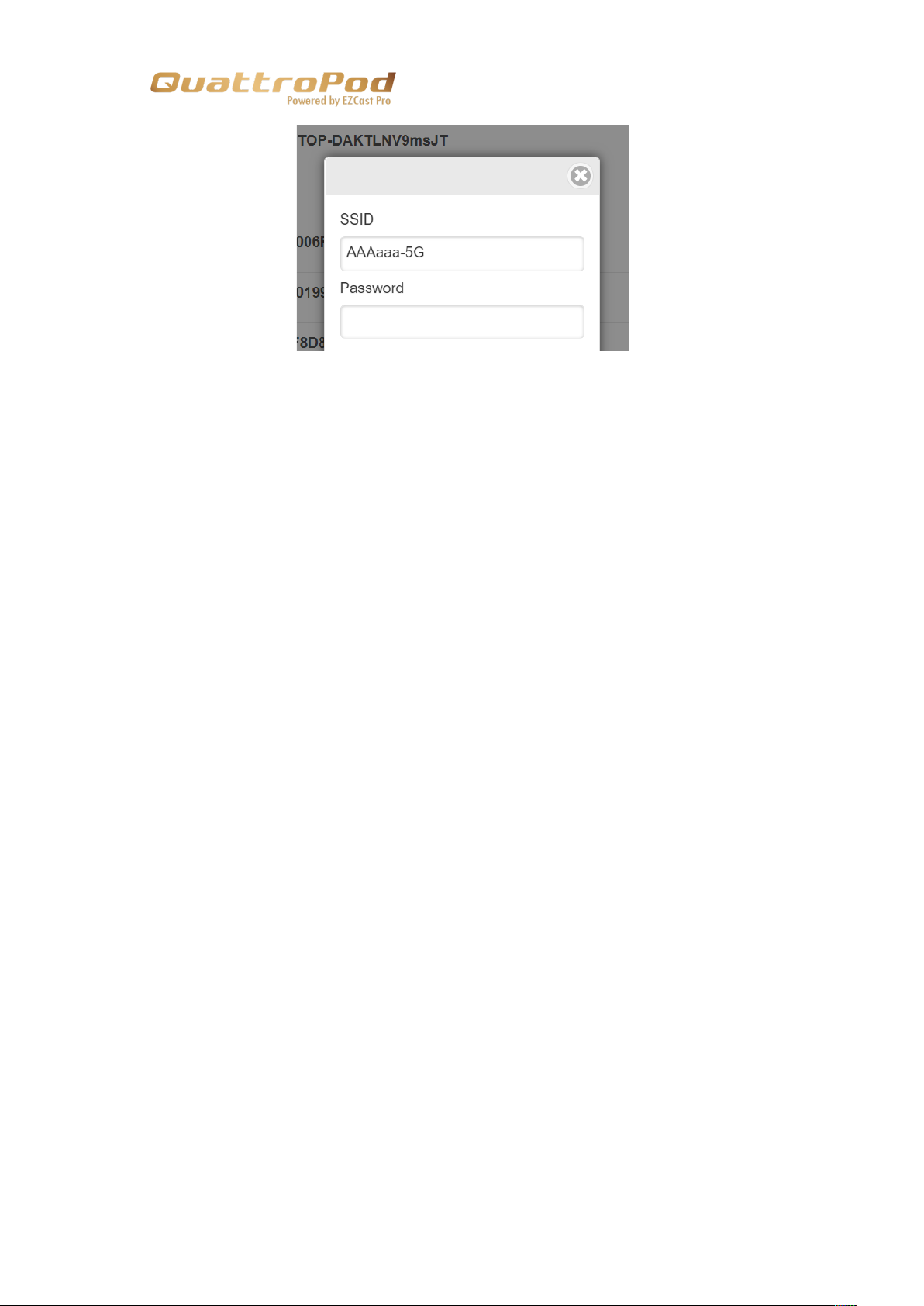

Once the device is connected to QuattroPod

Lite, enter the Wi-Fi password to connect to the

external Wi-Fi.

1.2. Remember

Wi-

Allow QuattroPod Lite to remember the

previous Wi-Fi setting.

1.2.1. Remember Wi-Fi “On”: QuattroPod Lite

will remember the previous Wi-Fi

configuration.

1.2.2. Remember Wi-Fi “OFF”: QuattroPod

Lite will erase the Wi-Fi configuration

once disconnected.

2. Device Management

Please see Device Manage for the options to configure

Language, Resolution, Max Connections, etc.

2.1. Language: Please select the applicable language.

2.2. Resolution: Please select the applicable resolution for

your usage. QuattroPod Lite supports up to 4K with

frame rate 24P while the defaults output resolution is
