VistaCam 1203
Video Doorbell
Quick Start Guide
Congratulations on
choosing the VistaCam 1203
You’ve taken the next step toward mak-
ing your home safer and your
life easier.
It’s easy to set up your camera.
Here’s what you need to do.
If you haven’t already set up your Vera or Ezlo controller, please
do that first. There are instructions on how to do so accompany-
ing the controller.
Install your app
VistaCam 1203 runs on Ezlo’s Vera app. Just look
for the in the iOS App Store or on Google
Play. If you already have the Vera app, just log in.
Open the Ezlo’s Vera app and please sign up for a
Vera account, or sign in if you have one already.
The app will take you step by step through the
process, giving you the option to choose between
Wired Set Up and Wireless Set Up.
Forgot password
Password
Username
Login
Newt oV era?

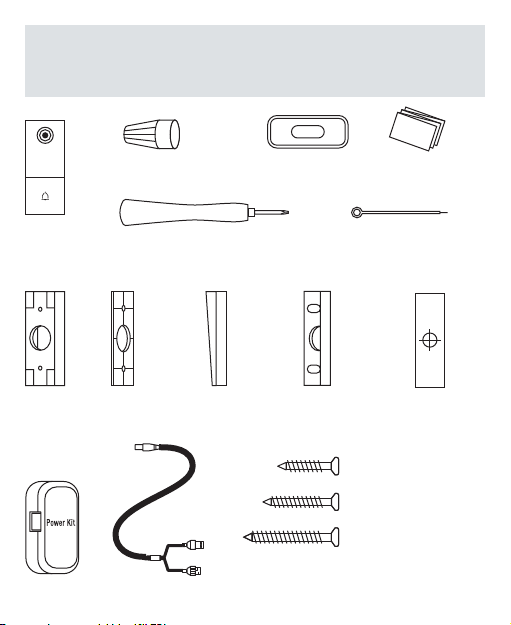

What’s in the Box
1 x Video
Doorbell
1 x 5° Vertical
angle bracket
1 x Thick
mounting
bracket
2 x Wire
Extenders
2 x Wire Nuts
1 x 15° Horizontal
angle bracket
3 Sets - Expansion
Screws
Option A, E 22mm (0.87’’)
Option B, C 35mm (1.38’’)
Option D 45mm(1.77’’)
1 x Type-c cable
1 x Drill Hole
Position
Template
1 x Silicone Plug Quick Start
Guide
1 x Mounting
bracket
1 x Dual-purpose screwdriver
1 x Power Kit

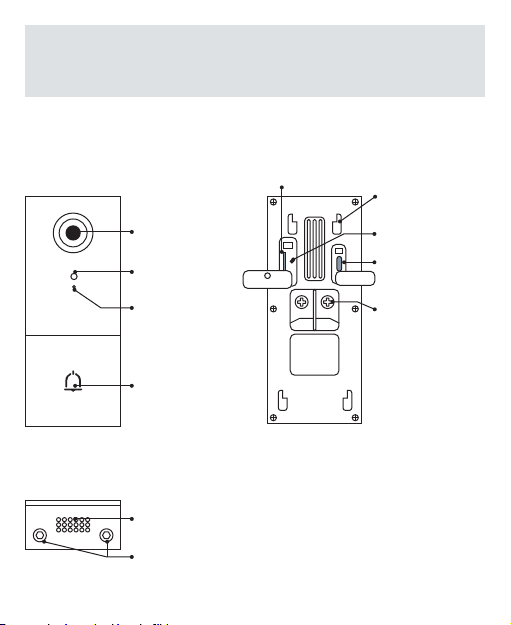

Physical Description
Camera
Type-C Port
Reset
Mounting slots
Micro SD Card Slot
Power Input Port
Front Panel
Boom Panel
Rear Panel
Light sensor
Microphone
Doorbell buon
Speaker
Security screw
hole
Type-C Port
Note: The output of any
newly installed wiring
should be between 8-24
VAC .

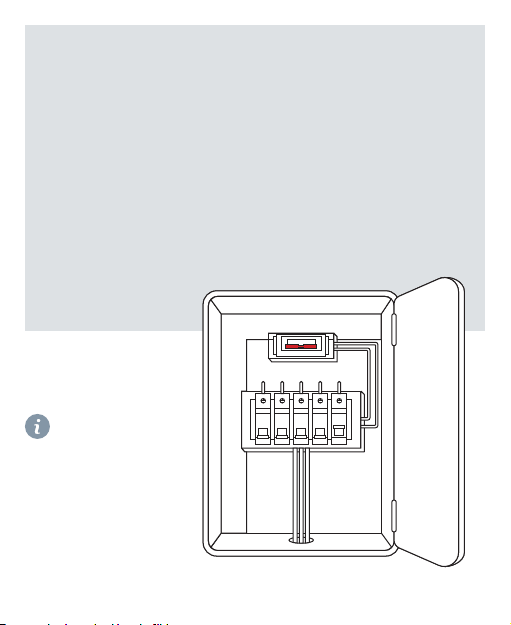

Before doing anything else, shut o the breaker that controls the
doorbell’s circuit.
If you have a mechanical chime installed in your home, install the
power kit and doorbell.
If you have an electronic chime installed in your home, refer to its
own manual to install the power kit, and install the doorbell.
If your home does not currently have chimes, please consult a
local installer or contractor for assistance.

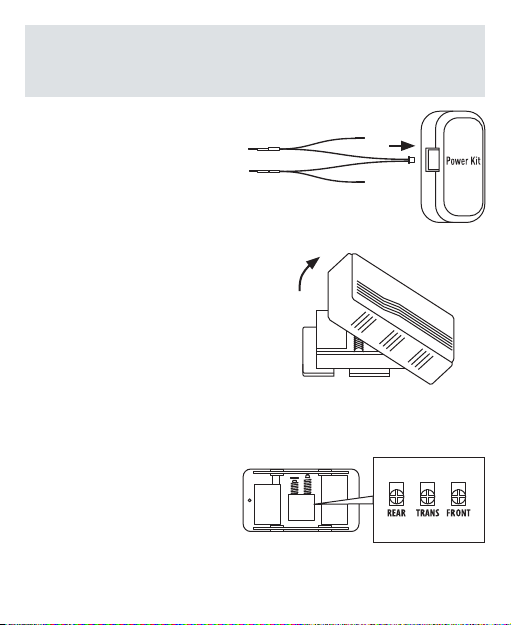

Install the power kit
1 Insert one end of the wire har-
ness into the power kit
2 Remove the cover from your
mechanical chime.
3 Remove the existing chime
wires in the terminals named
TRANS and FRONT.

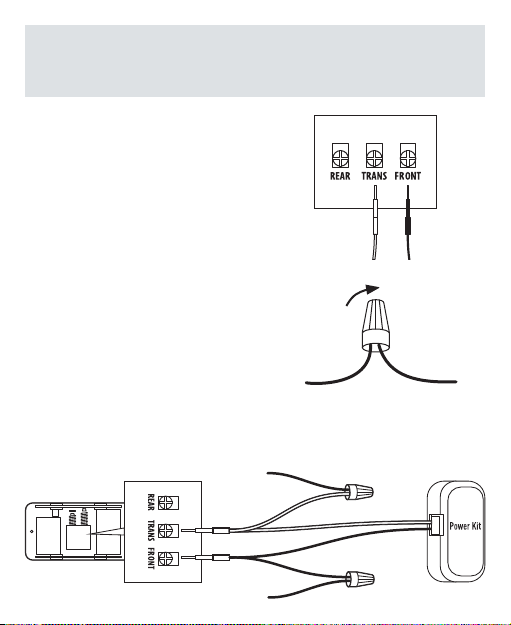

Install the power kit
4 Connect the wire harness to
the chime’s terminals named
TRANS and FRONT.
5 Insert the existing chime wire
and the other end of the wire
harness into the wire connector
and twist it tightly. Repeat this
step with the other chime wire.
Wiring overview
Wire
Connector
Chime Wire
Chime Wire
Chime Wire
Wire Harness
