SL900A Technical Manual
- COMPANY CONFIDENTIAL -
EzzeMobileTech.,Inc Tel.
+82 (0)2 519 7700
Fax.
+82 (0)2 519 7882
Section 1 – Product Specification
Contents Page
SL900A specifications…………………..…………………………………………… 1.1
Standard charger …………………………..…………………………………………. 1.4
Batteries ………………………………..…………….………………………………… 1.5
SL900A
SL900A Technical Manual
- COMPANY CONFIDENTIAL -
EzzeMobileTech.,Inc Tel.
+82 (0)2 519 7700
Fax.
+82 (0)2 519 7882
Section 2 – Mechanical Construction
Contents Page
Disassembly ……………………………………………………………………………... 2.1
Phone disassembly …………………………..……………………………….………... 2.2
Phone Assembly ………………………………………………………………………… 2.6
SL900A
SL900A Technical Manual
- COMPANY CONFIDENTIAL -
EzzeMobileTech.,Inc Tel.
+82 (0)2 519 7700
Fax.
+82 (0)2 519 7882
Section 3 – Circuit Description
Contents Page
Baseband section …………………………………………………………………………... 3.1
MT6226M ( GSM/GPRS Baseband processor ) ……………………………………… 3.1
MT6305BN ( GSM Power Management System ) …………….……………………. 3.20
TOME808 (Mobile Multimedia Processor) …………………………………………… 3.23
PF38F3040L0ZBQ1( MCP ) …………………………………………………………….… 3.24
RF section ......................................................................................................................... 3.25
MT6129 ( RF Transceiver IC ) …………………………………………………………… 3.25
RF3146 ( QUAD-BAND Power Amplifier Module ) …………………………………. 3.28
LMSP54HA-348TEMP ( Antenna Switch Module for Tri Band ) ………………… 3.29
SL900A
SL900A Technical Manual
- COMPANY CONFIDENTIAL -
EzzeMobileTech.,Inc Tel.
+82 (0)2 519 7700
Fax.
+82 (0)2 519 7882
Section 4 – IC Information
Contents Page
Pin out for U 204 …………………………………………………………...……….….. 4.1
Pin out for U 203 …………………………………………………………...……….….. 4.2
Pin out for BAT 100 …………………………………………………………...……….. 4.3
Pin out for U 109 ……………………………………………………………...……….. 4.4
Pin out for U 150 ……………………………………………………………...……….. 4.5
Pin out for CON 103 …………………………………………………………...……….. 4.6
Pin out for U 601 …………………………………………………………...……….….. 4.7
Pin out for U 600……………………………………………………...……….……….. 4.8
Pin out for U 50…………………………………………………………...……….….. .. 4.9
Pin out for U 201…………………………………………………………...……….….. 4.10
Pin out for F 100…………………………………………………………...……….…… 4.12
Pin out for U 101…………………………………………………………...……….…… 4.13
Pin out for U 103…………………………………………………………...……….…… 4.16
Pin out for U 800 ………………………………………………………………………… 4.17
Pin out for D103, D104, D110 ……………………………………………………………… 4.21
Pin out for D111 – D116 ………………………………………………………………. 4.22
Pin out for ZD101– ZD106 …………………………………………………………… 4.23
Pin out for D102 ………………………………………………………..……..... 4.24
Pin out for U200 …………………..…………………………………………………….. 4.25
Pin out for U100 ……………………………………………………………………......... 4.28
Pin out for U110 …………………… …………………………………………………… 4.39
SL900A
SL900A Technical Manual
- COMPANY CONFIDENTIAL -
EzzeMobileTech.,Inc Tel.
+82 (0)2 519 7700
Fax.
+82 (0)2 519 7882
Section 5 – Spare Part List
Contents Page
SL900A Part List ………………………………………………………………………... 5.1
Model SL900A Version V_1.0
Prepared by H/W Date 2006.06.30
Subject Technical Manual Page 1/5
SL900A Specifications
General specification Trial Band EGSM Class 4/DCS & PCS
class1 handheld cellular telephone
Type approval No. SL900A
Dimensions (mm): Including 500mAh Li-Ion battery
Standard: 87 (L) x 44 (W) x 16.2 (D)
Weight: Including 500mAh Li-Ion battery
Standard: about 73.8 grammes
Display type Main LCD
1.8 Inch Dithering 262K TFT color
graphics display including LED backlight
Display capacity 176x220 dots, Dithering 262K color, full
graphical
Display icons Soft icons: Signal, Battery, Message
Vibration, Alarm, Call divert & barring, ,
Broadcast
Normal operating temperature -20°C to +60°C
Keyboard 24 keys comprising:
1,2,3,4,5,6,7,8,9,*,0,#
YES(SEND), NO(END/ POWER),
2 Soft-Key
Navigation-Key
Shot-Key, Volume-Key(UP&DOWN)
Ring tones 30 user selectable tones and off
Battery types Standard:500mAh Li-Ion
Talk time: 500mAh Li-Ion battery 2¹ - 3² hours approximately
Standby time: 500mAh Li-Ion battery 140 hours approximately
Note²: Measured on EGSM 900 with power level 5
Note²: Measured on DCS & PCS 1900 with power level 0
Battery rapid charging time: 500mAh Li – Ion(standard)
The talk and standby times are subject to
network conditions.
1½-2 hours to >90% of full capacity
Charging Voltage 5.0V
Nominal battery voltage: 500mAh Li - Ion 3.8V
Battery charging CC and CV Mode
Antenna type Intenna Type
(subject to network implementation) 16X16,10X12,8X8 Numeral display
8x8,10x10,11x11,12x12,13x14 Roman
display
Support Phase 2 plus Feature
Model SL900A Version V_1.0
Prepared by H/W Date 2006.06.30
Subject Technical Manual Page 2/5
64 Poly stereo sounds
Graphics and animated icons
Phone memory location (200
numbers)
Dynamic text display
Easy text input (T9)
SIM application tool kit
External interface connections RS232, USB
Number of channels EGSM:174 Channel
DCS : 374 Channel
PCS: 299 Channels
Operating frequency range - transmitter EGSM TX : 880MHz to 915MHz
DCS TX : 1710MHz to 1785MHz
PCS TX: 1850 MHz to 1910 MHz
Operating frequency range - receiver EGSM RX : 925MHz to 960MHz
DCS RX : 1805MHz to 1880MHz
PCS RX: 1930 MHz to 1990 MHz
Model SL900A Version V_1.0
Prepared by H/W Date 2006.06.30
Subject Technical Manual Page 3/5

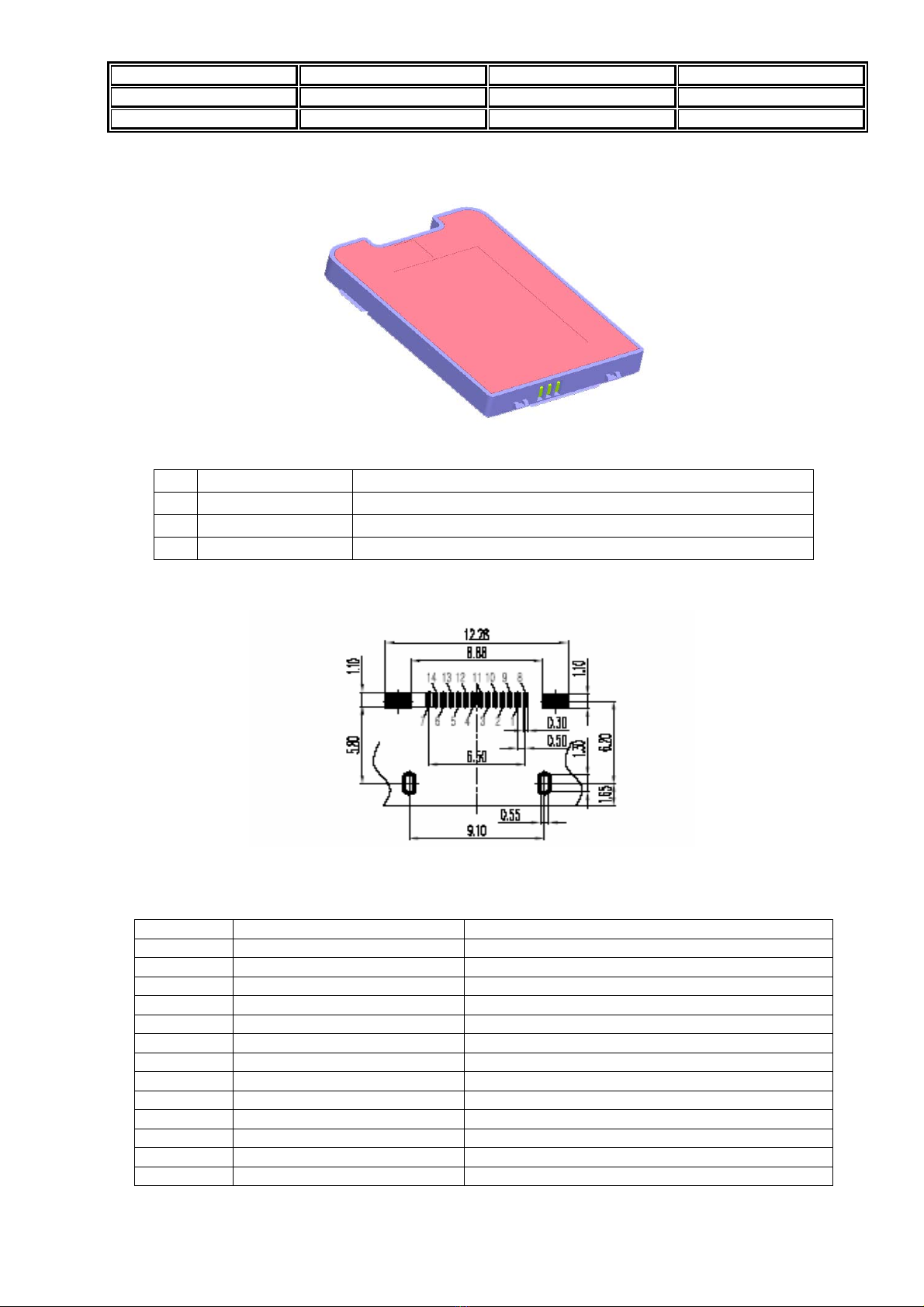

Battery Connector
Function Description
1 VBat Battery Supply Pin(Right)
2 Battery ID Battery ID Resistor Pin 10Kohm(Middle)
3 GND GND(Left)
Connector layout
Pin description
1 EJ_OUT_L Cradle Audio Output
2 RXD Serial Interface RX
3 EJ_IN Cradle Enable/ Mic Input
4 USBPWR/VCHA USB Power Input
5 USBPWR/VCHA USB Power Input
6 VBAT Battery Voltage +3.8V
7 VBAT Battery Voltage +3.8V
8 EJ_OUT_R Cradle Audio Output
9 TXD Serial Interface TX
10 GND GND
11 P_ON/OFF Power On/Off Pin
12 USBDP USB D+ Input/Output
13 USBDM USB D- Input/Output
14 USBPWR USB Power Input
Model SL900A Version V_1.0
Prepared by H/W Date 2006.06.30
Subject Technical Manual Page 4/5
Standard charger
SL900Ais supplied with a linear charger as standard. The charger is connected to the transceiver
through the bottom port.
Charging of the battery can only be carried out when the battery is fitted to the phone. There are no
serviceable parts within the main plug.
Input parameter Type Value Unit
Input voltage min 90 V
nom 230 V
max 264 V
Input frequency min 47 Hz
nom 50 Hz
max 63 Hz
Input current max 200 mA
Efficiency min >55 %
Output parameter Type Value Unit
Output current(CV) min 0.650 A
max 0.800 A
(CC) min 0.000 A
max 0.650 A
Output voltage(CV) min 3.0 V
max 4.9 V
(CC) min 4.9 V
max 5.3 V
Connector 14 Pin Bottom Connector
Cable length 1.9 m.
