F5 ARX-4000 Manuale per l'uso e la cura

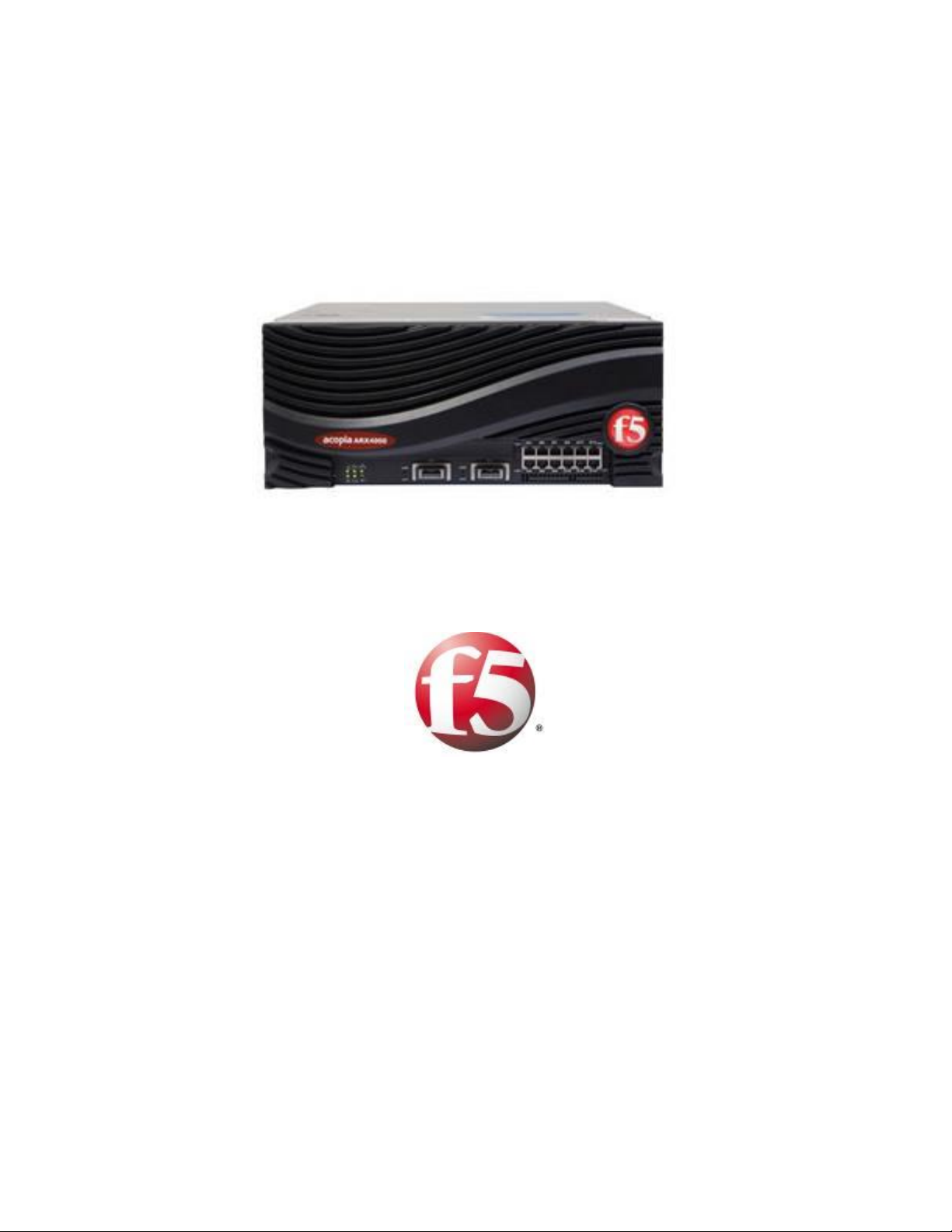

ARX 4000 / D103 Parts Replacement
Guide
June 20, 2014
Version 1.4
- 1 –
Copyright © 2008, F5 Networks, Inc. All rights reserved.

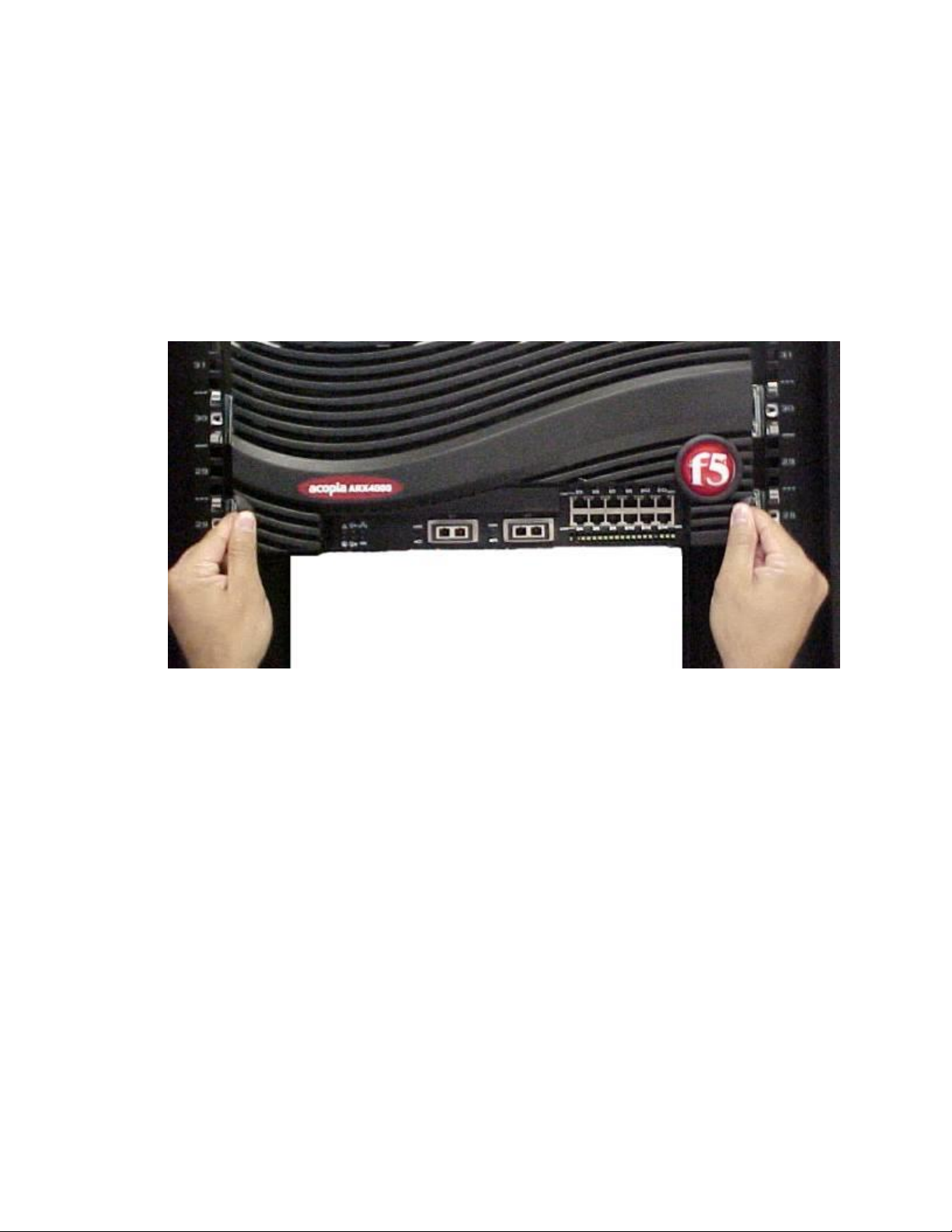

Removing the Front Bezel
The ARX 4000 employs a highly modular design that allows several key components to be replaced on
a FRU basis. Several of these FRU’s can only be reached by removing the Front Bezel.
Step 1 Remove front bezel
Using the two cutouts on the lower half on either side of the data plane pull gently on the bezel
Fig. 13
- 2 –
Copyright © 2008, F5 Networks, Inc. All rights reserved.

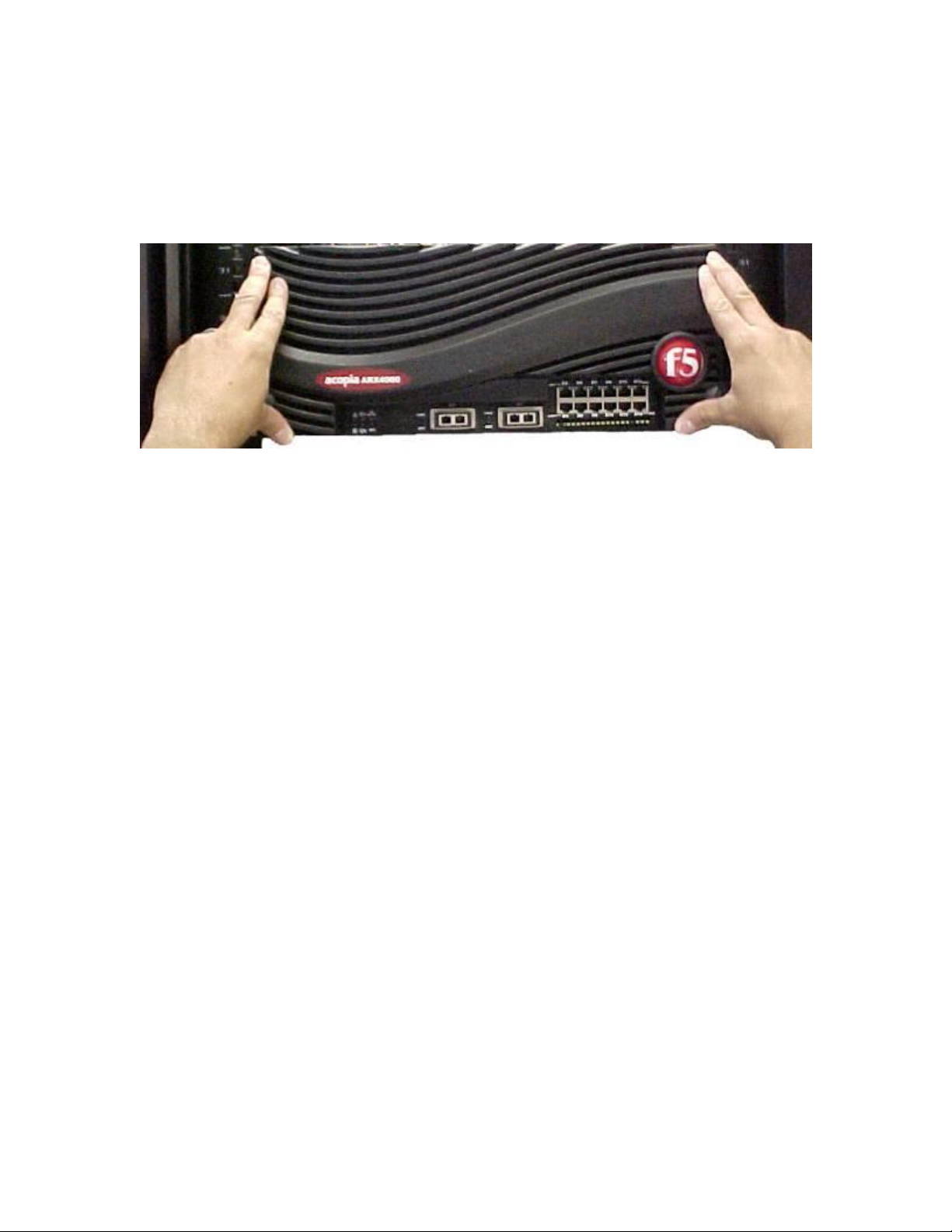

Installing the Bezel
Step 1 Installing Bezel
Push Bezel until fully seated
Fig. 14
- 3 –
Copyright © 2008, F5 Networks, Inc. All rights reserved.

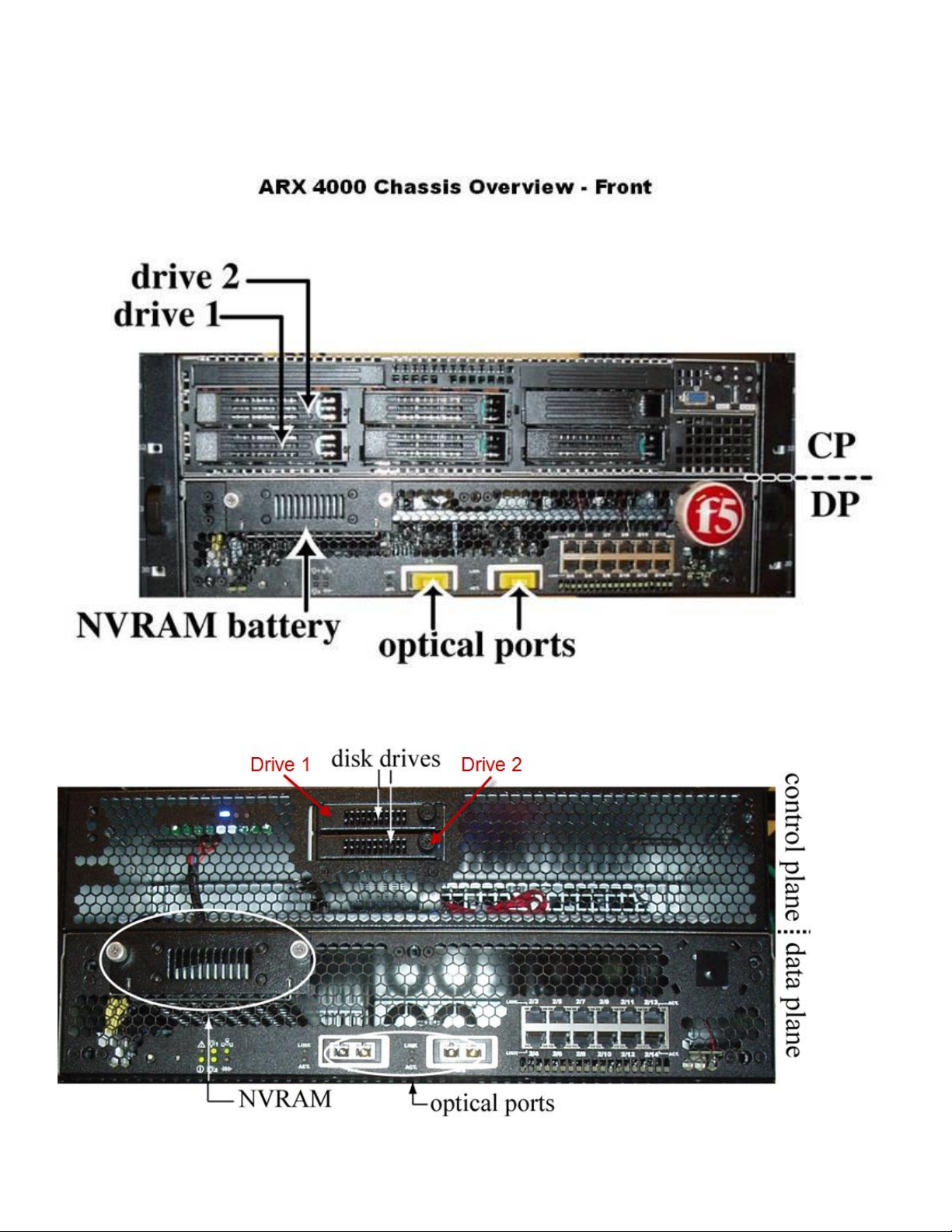

ARX 4000 Chassis Overview –Front without bezel
ARX-4000+
- 4 –
Copyright © 2008, F5 Networks, Inc. All rights reserved.

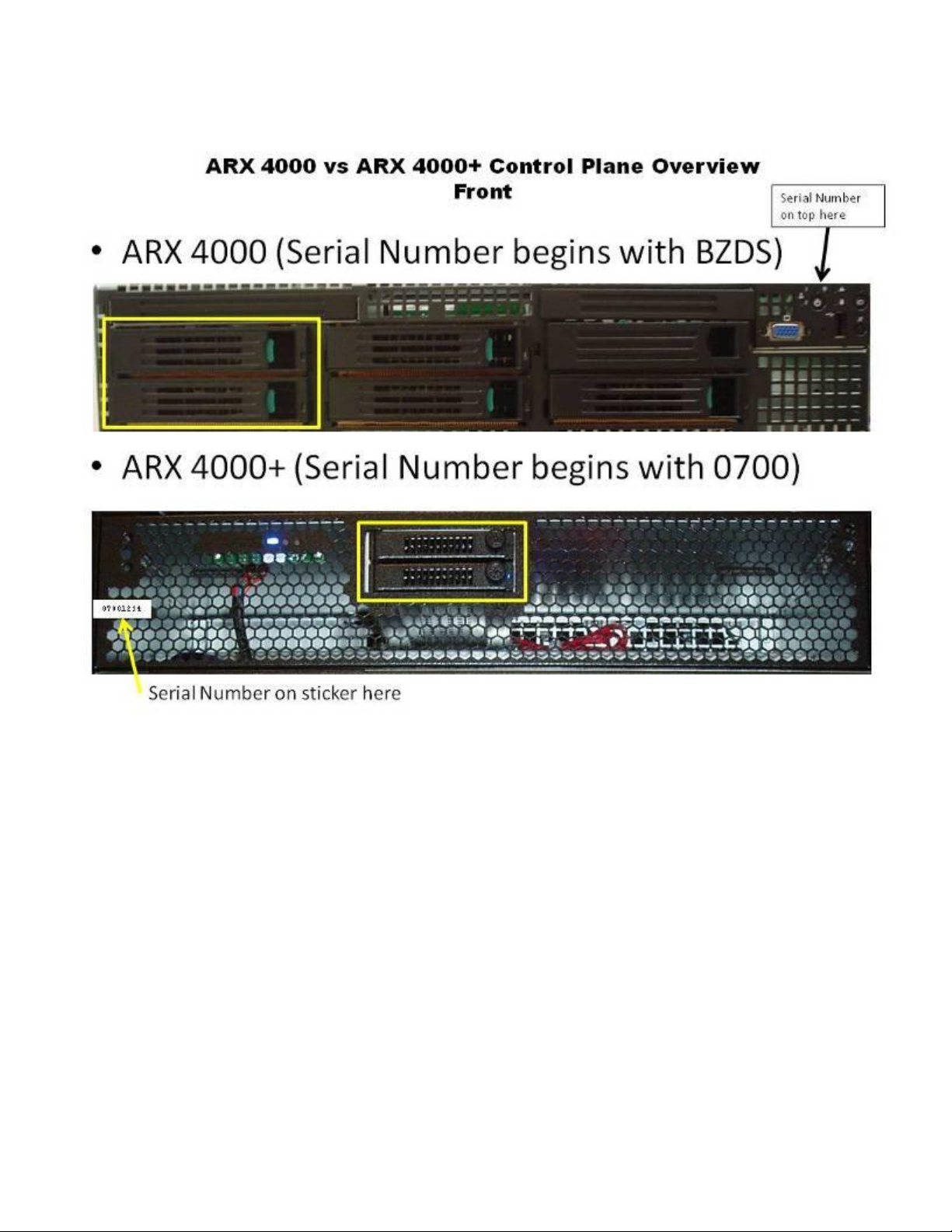

ARX 4000 /4000+ Control Plane Differences
- 5 –
Copyright © 2008, F5 Networks, Inc. All rights reserved.

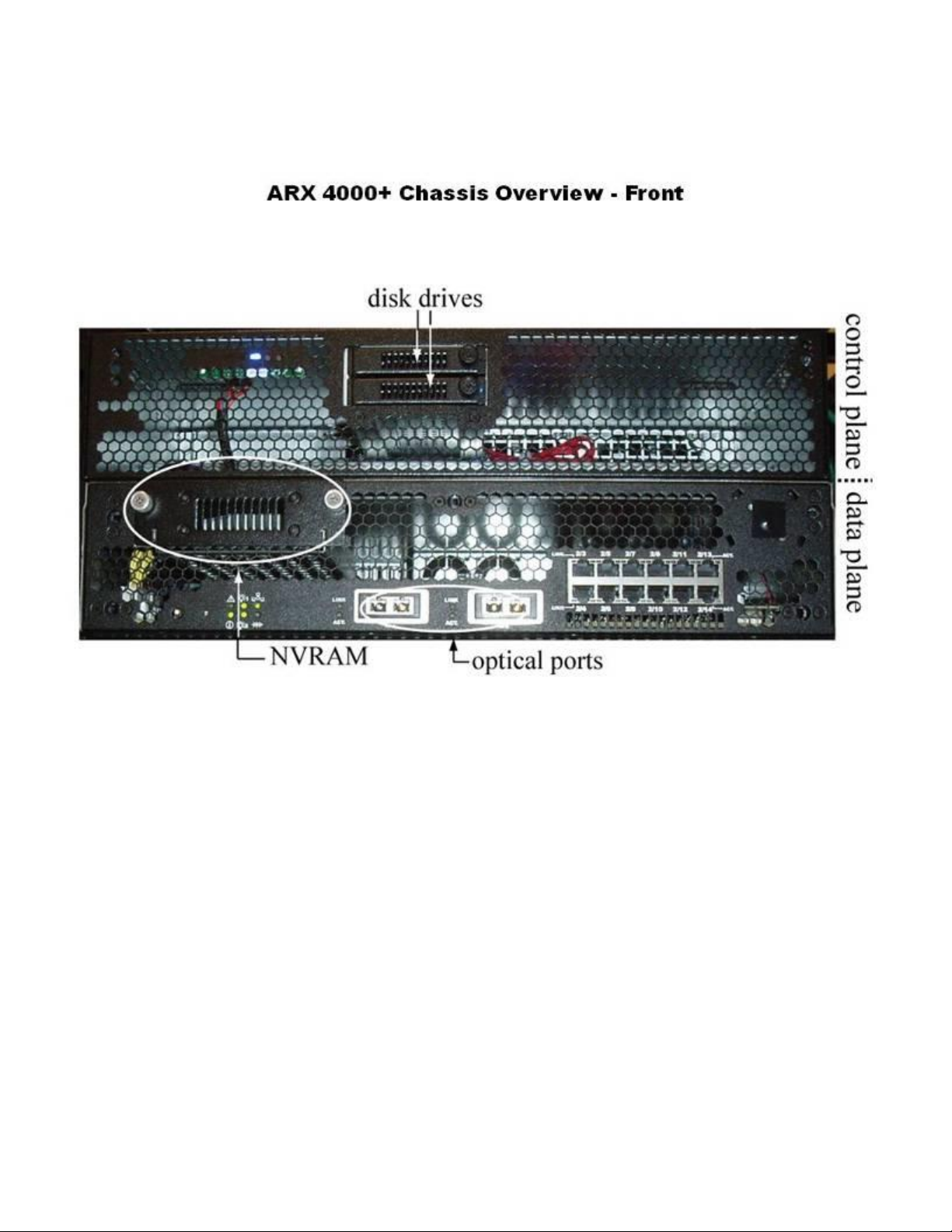

ARX 4000+ Chassis Overview –Front without bezel
- 6 –
Copyright © 2008, F5 Networks, Inc. All rights reserved.

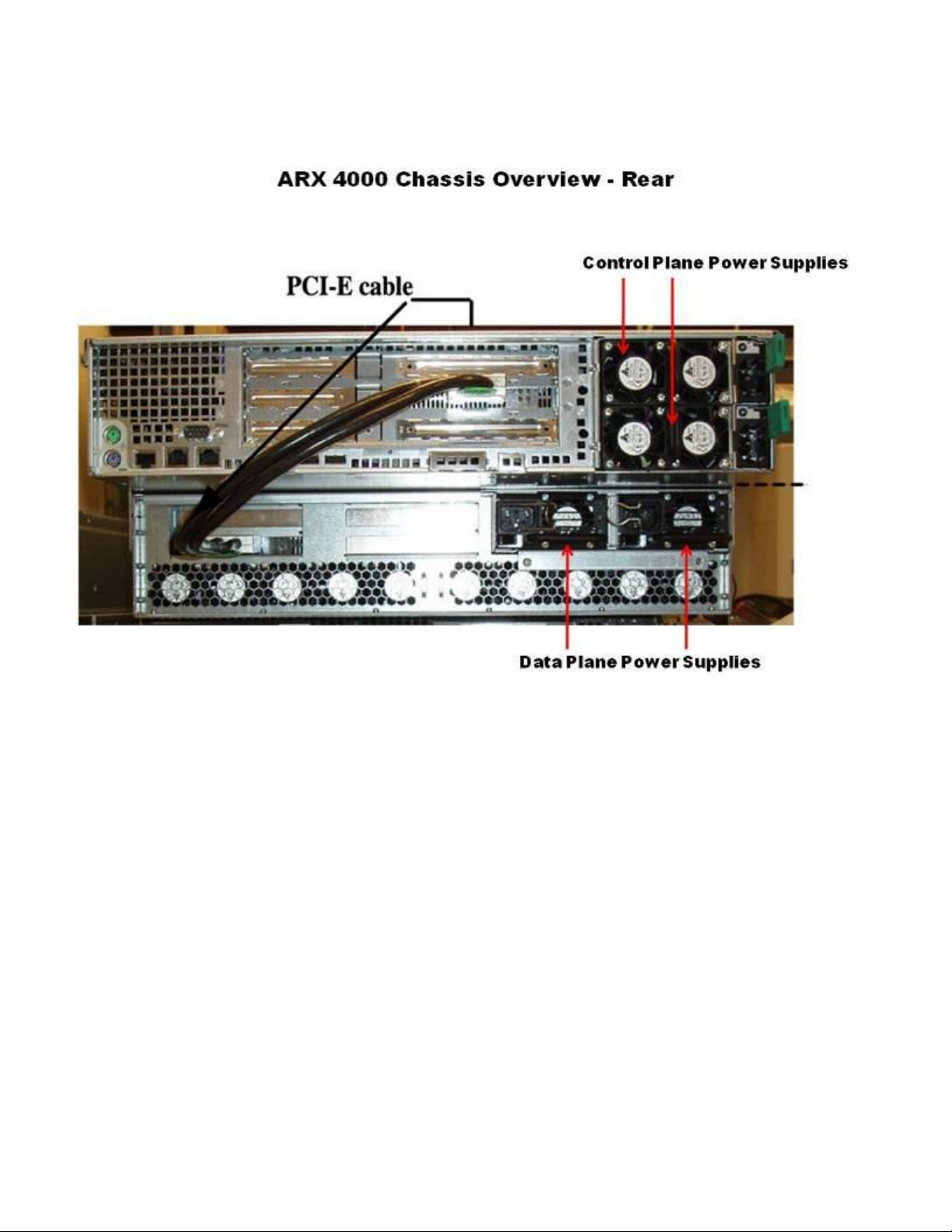

ARX 4000 Chassis Overview –Rear
- 7 –
Copyright © 2008, F5 Networks, Inc. All rights reserved.

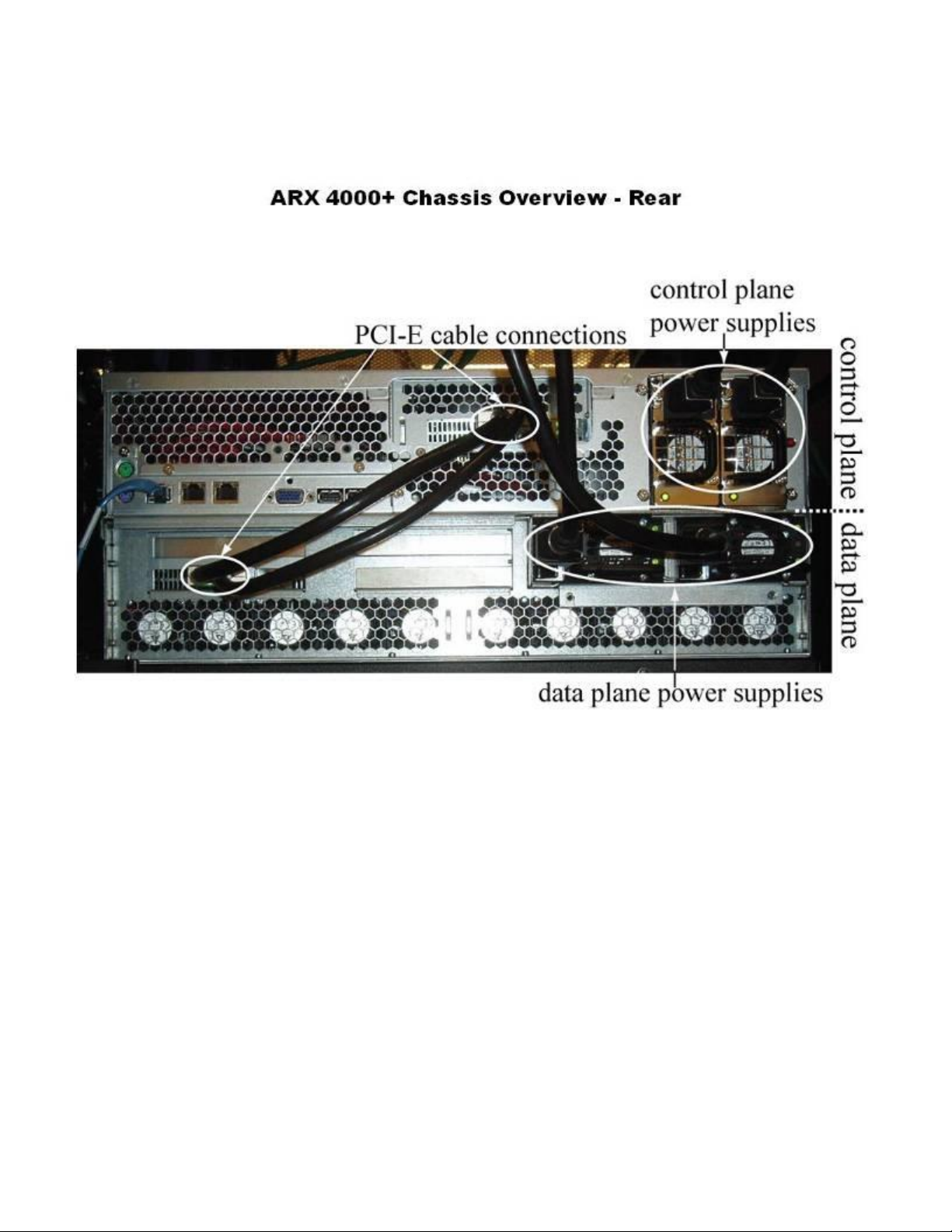

ARX 4000+ Chassis Overview –Rear
- 8 –
Copyright © 2008, F5 Networks, Inc. All rights reserved.
Replacing a X2 module
Preparation
Before beginning ensure that the Field Tech understands that work will be done only on the
Backup Switch.
Verify that the Tech can identify the Backup and the Active and the active switch is fully
functional.
Ensure the correct X2 module needs to be replaced. There are two X2 modules 2/1 and 2/2.
They are labeled as such on the bottom of the slot. 2/1 is the left-most and 2/2 is the right-
most, if facing the front of the switch.
Removing a X2 module
Take the Field Tech through the following steps:
Step 1 Tag the cable so that it will be easily identifiable later
Step 2 Remove the fiber optic cable from the X2 module

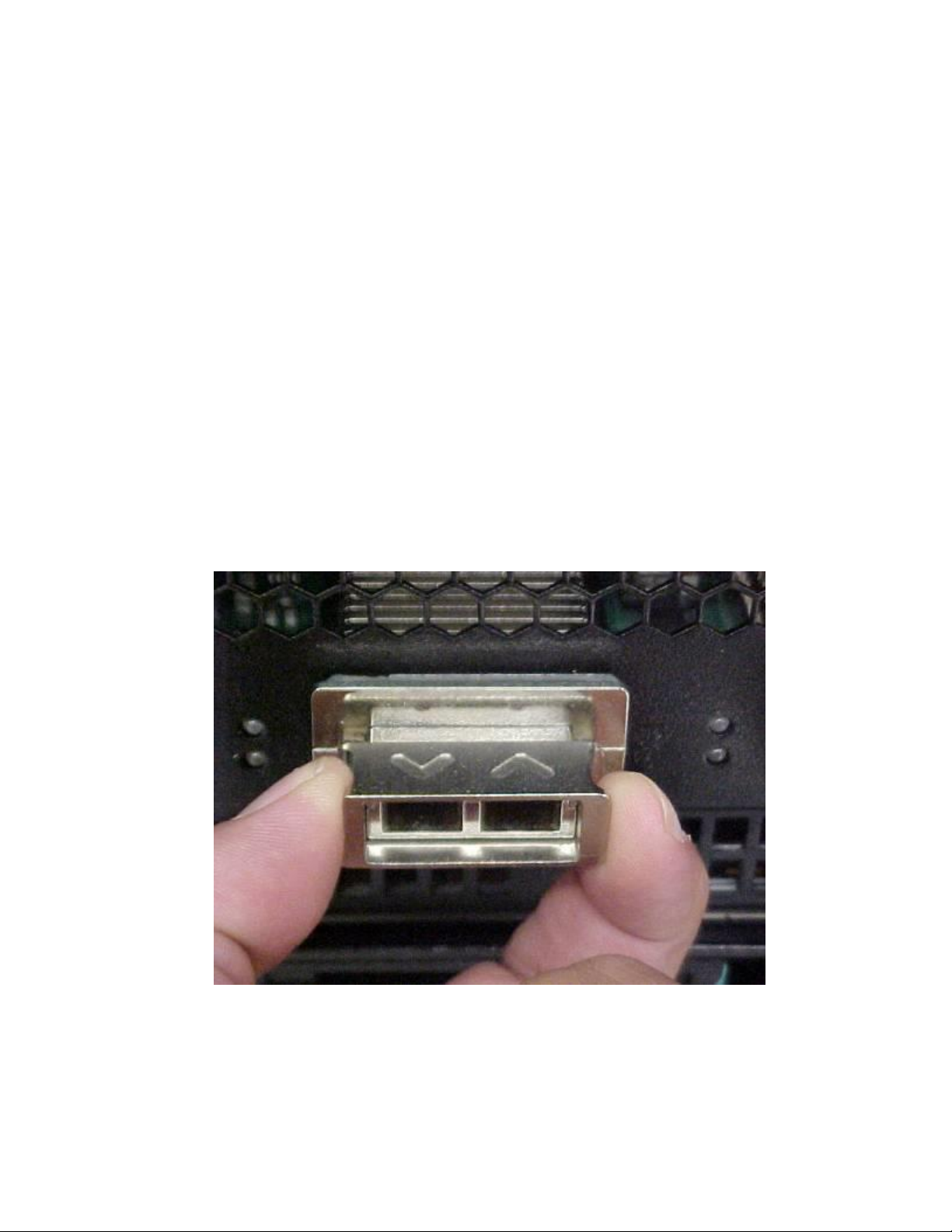

Step 3 Grasp both sides of the locking mechanism
Step 4 Pull forward on the locking mechanism
Fig. 1
- 9 –
Copyright © 2008, F5 Networks, Inc. All rights reserved.

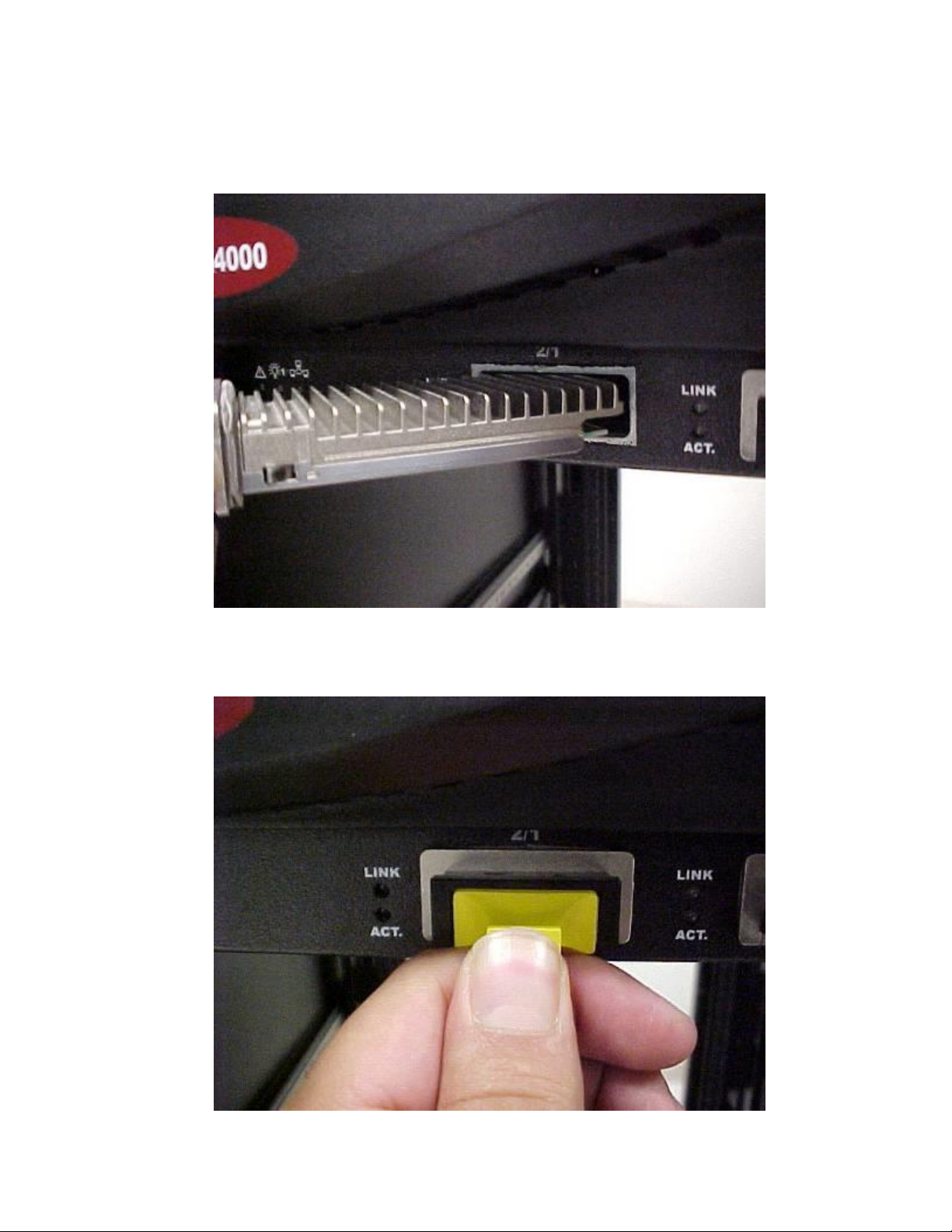

Installing a X2 module
Step 1 Place the X2 module into the slow heat sink side up
Fig. 2
Step 2 Push forward on the X2 module until fully seated in the slot
Fig. 3
