Faber 630003638 Manuale utente

The Magnum is an excellent

replacement hood for your updated

pro cooking. Installs easily to the

bottom of your cabinet. Now

recirculating ﬁltered air back into

your kitchen has never been easier

with a new ductless vent grate kit

under cabinet rangehood

professional styling

600 cfm PRO motor

2 halogen lights for 24”

3 halogen lights for 30” and 36”

3 speed control

integrated control panel

stainless steel bafﬂe ﬁlters

convertible to recirculating*

New Ductless Kit Available

easy mounting system

sone range: 3.5 - 6.5

6” round duct

24 Stainless

30 Stainless

36 Stainless

MAGN24SS

MAGN30SS

MAGN36SS

Size | Color Model #

FILTER1

Replacement Charcoal Filters

* it is highly recommended that

professional style cooking always

be vented to the outside.

For recirculating installations, high

quality, heavy duty ﬁlters ensure

the removal of smoke and odors

from the kitchen.

Magnum

a professional performer

Professional Collection

p.o. box 435 • Wayland, MA 01778 • tel: (508) 358-5353 • fax: (508) 358-5730 • e-mail: info@faberonline.com • www.faberonline.com

For use in make up air environments where

an under 300 cfm hood is required. This

kit reduces the ducting to 5” round and

reduces the cfm to under 300

CFMRED

CFM Reducer Kit

A 4” high stainless steel vent grate which

is installed below the cabinet to recirculate

the air back into the kitchen when

ducting outside is impossible or

impractical. Includes the stainless grate,

installation hardware and charcoal ﬁlters

Ductless Vent Grate Kit

24” / DUCTGRT24

30” / DUCTGRT30

36” / DUCTGRT36

Model #

Size / Model #

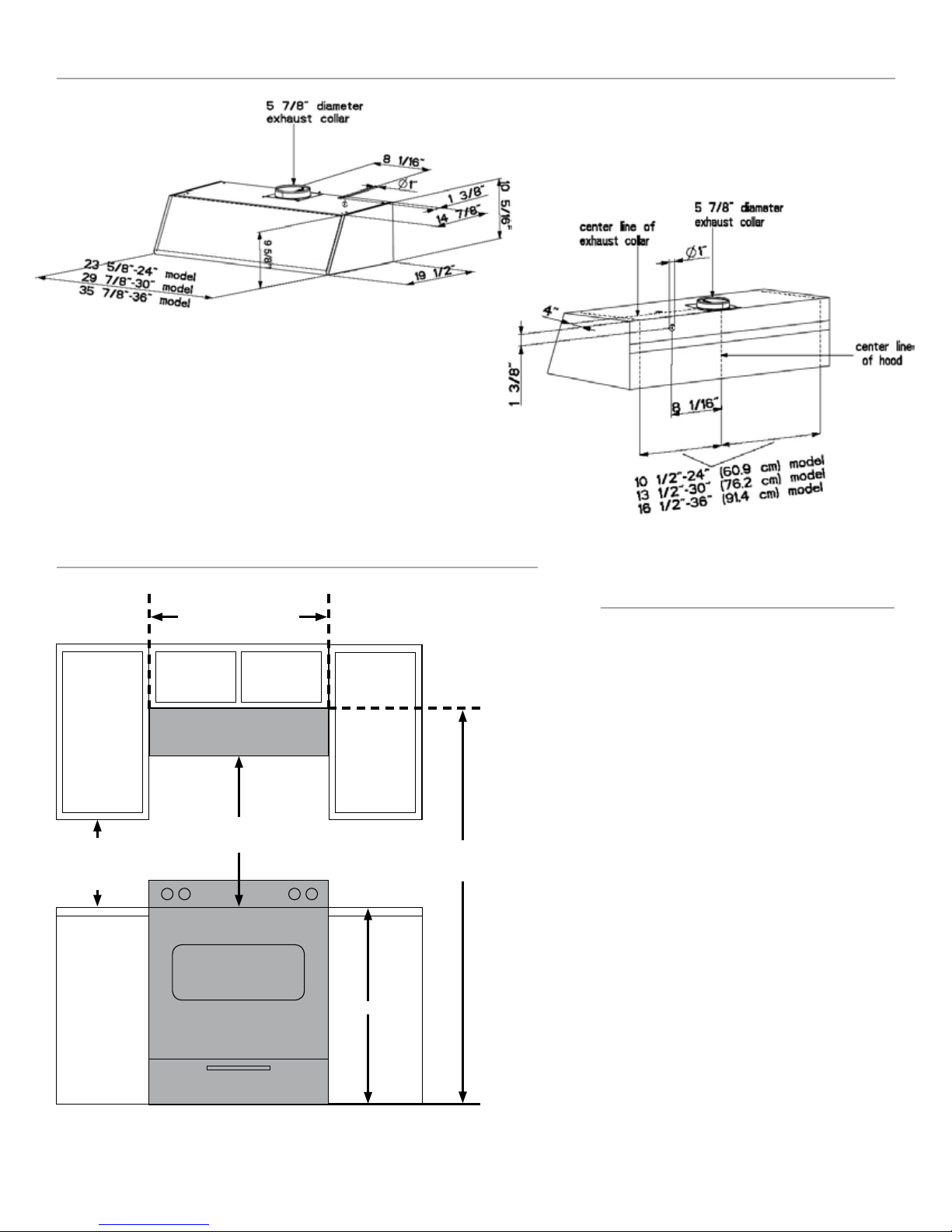

Dimensional Diagrams & Electrical Knockouts

Rev.07/11

WARNING! Product specications are subject to change without notication. Consult the installation instructions

before you begin installing this rangehood.

Pre-Planning Your Installation -

Important: Consult the

installation instructions before you begin installing this rangehood.

24” minimum

30” suggested maximum

bottom of hood to cooking surface

18” minimum

clearance upper

cabinet to

countertop

36”

70 5/16” minimum

76 5/16” maximum

to bottom of cabinet frame

24” or 30” or 36”

cabinet opening width

Make your ductrun as straight and short as

possible. The ductrun should not exceed 35

equivalent feet if ducted with the required

minimum of 6” round ductwork. Count 45º

angles as 3 feet, 90º elbows as 5 feet, and 90º

ﬂat elbows as 12 feet.

For best results, use no more than three 90°

elbows. Make sure that there is a minimum

of 24” of straight duct between elbows if

more than one is used. Do not install two

elbows together. If you must elbow right

away, do it as far away from the hood’s ex-

haust opening as possible.

Pre-Planning Your Ductwork -

Important: Consult the installation instructions

before you begin installing this rangehood.

Recirculating Installations

IT IS HIGHLY RECOMMENDED THAT

PROFESSIONAL STYLE COOKING BE

VENTED TO THE OUTSIDE. For installations

where ductwork to the outside of your home

is impossible or highly impractical Charcoal

Filters, which attach to the blower assembly,

absorb smoke and odors. THE DUCTLESS

VENT GRATE KIT INCLUDES CHARCOAL

FILTERS AND A 4” HIGH STAINLESS STEEL

VENT GRATE TO BRING AIR BACK INTO THE

KITCHEN.
