FAFREES FF20 Polar Manuale utente
Smart EV/Moped
User Manual
(Model: FF20 Polar)
EN DE FR IT ES
1-23
24-46
47-69
70-92
93-115
1

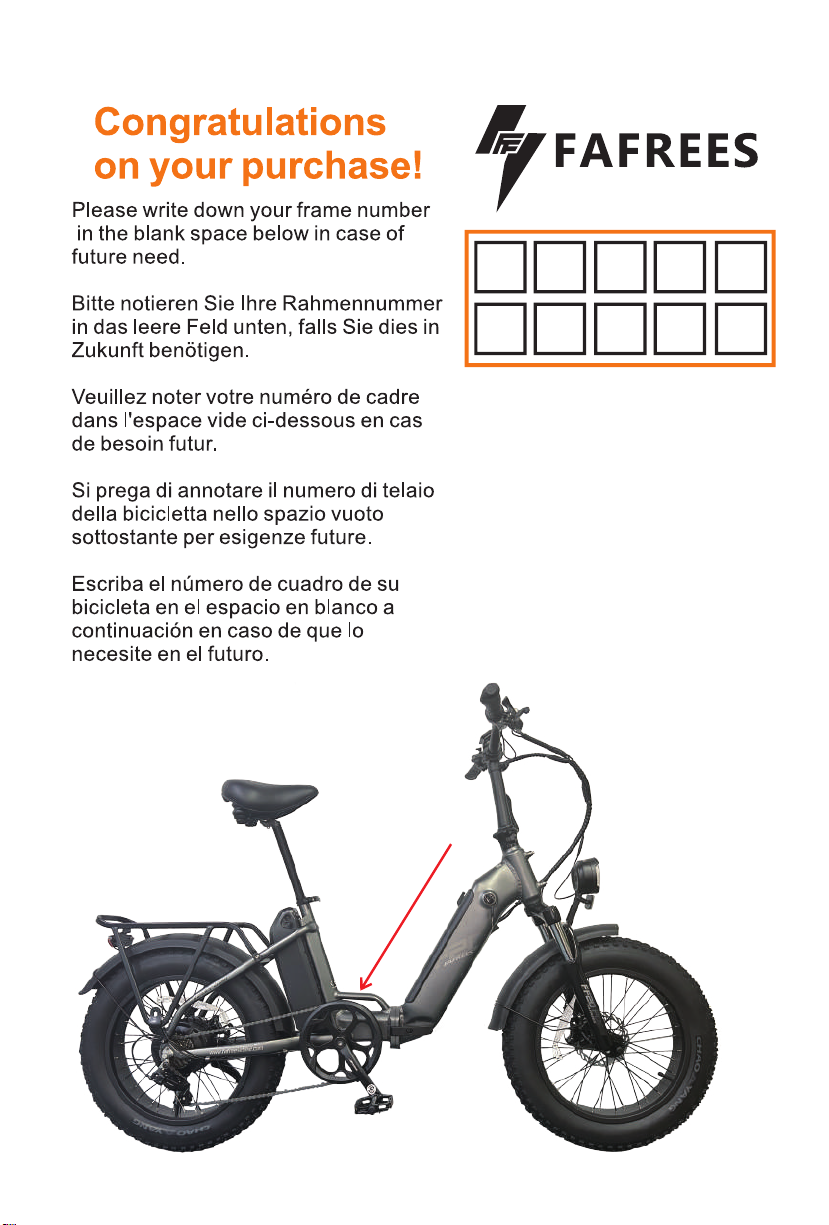

*Before your first operation,
please read the user manual carefully!
1. Note
Before your first ride, it is important for you to know your new e-bike well, so that you can
get the best performance, comfort, enjoyment and safety from it during your ride. To
understand the new bicycle and the correct operation, you should first read the manual
carefully.
Second, it is significant to take your first ride under a safe and controlled circumstance, like
staying away from cars, obstacles and other cyclists.
Third, bicycles are vehicles with certain risks. Please follow the traffic rules during cycling.
It's better to learn the local traffic rules about riding an e-bike on public roads before your
first ride in case you violate the regulations. For your own safety, never forget to put on a
qualified helmet before you get on the e-bike.
Fourth, the electric bike is supplied without basic mandatory equipment, which may vary
from place to place. Therefore, if you intend to use the e-bike on public roads, it's necessary
to equip the bike with the basic mandatory equipment, in accordance with the relevant laws
and regulations.
In addition, this product is designed for your personal use. Do not use it for commercial or
other purposes.
Last, keep this manual safe for reference.
2. Warning
Before each charge, check the charger, cable and plug. If there is any damage, do not use
the charger.
Before riding, check the tire pressure and check whether the wheels and handlebar are
installed correctly and tightly.
Before riding, check whether the headlights are securely fastened in the correct position,
clean and not covered by anything. Damaged reflectors must be replaced.
Besides, if the seat post in the seat tube is not inserted deep enough to reach the minimum
insertion mark, the seat post may break. Check whether it is inserted deeper than the
minimum insertion depth. When braking on a wet road, the braking distance is usually
longer than on a dry road. Therefore, brake earlier for a safer stop.
When you have to brake urgently, please hit the right hand brake first to stop the rear wheel,
and then hit the left hand brake, especially when you brake at a high speed. If the front
wheel stops suddenly while the rear wheel is still cycling at a high speed, you may fall over
and get hurt. So please ride it carefully.
Furthermore, avoid puddles, wet mud, swamps, water, snow or ice. Try not to use the e-bike
on a rainy, stormy or snowy day. If the bicycle's electric parts (control unit, engine and
battery) get damp, wet or soaked, it will cause irreversible damage, or even a battery
explosion.
This product can only be used by one adult at a time. Do not carry any extra passengers.
This vehicle is not a toy. Same as other vehicles, it is possible to fall, crash or encounter
other danger¬ous situations. Please don't offer your e-bike to anyone that doesn't know how
to use it correctly. If you let anyone else ride your bike, it will be your responsibility to ensure
that all riders understand all warnings, cautions, instructions and safety precautions, and to
ensure that they are able to use this product safely and responsibly and protect themselves
and others from injury.
2
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
56
4
32
1
1. Note
Before your first ride, it is important for you to know your new e-bike well, so that you can
get the best performance, comfort, enjoyment and safety from it during your ride. To
understand the new bicycle and the correct operation, you should first read the manual
carefully.
Second, it is significant to take your first ride under a safe and controlled circumstance, like
staying away from cars, obstacles and other cyclists.
Third, bicycles are vehicles with certain risks. Please follow the traffic rules during cycling.
It's better to learn the local traffic rules about riding an e-bike on public roads before your
first ride in case you violate the regulations. For your own safety, never forget to put on a
qualified helmet before you get on the e-bike.
Fourth, the electric bike is supplied without basic mandatory equipment, which may vary
from place to place. Therefore, if you intend to use the e-bike on public roads, it's necessary
to equip the bike with the basic mandatory equipment, in accordance with the relevant laws
and regulations.
In addition, this product is designed for your personal use. Do not use it for commercial or
other purposes.
Last, keep this manual safe for reference.
2. Warning
Before each charge, check the charger, cable and plug. If there is any damage, do not use
the charger.
Before riding, check the tire pressure and check whether the wheels and handlebar are
installed correctly and tightly.
Before riding, check whether the headlights are securely fastened in the correct position,
clean and not covered by anything. Damaged reflectors must be replaced.
Besides, if the seat post in the seat tube is not inserted deep enough to reach the minimum
insertion mark, the seat post may break. Check whether it is inserted deeper than the
minimum insertion depth. When braking on a wet road, the braking distance is usually
longer than on a dry road. Therefore, brake earlier for a safer stop.
When you have to brake urgently, please hit the right hand brake first to stop the rear wheel,
and then hit the left hand brake, especially when you brake at a high speed. If the front
wheel stops suddenly while the rear wheel is still cycling at a high speed, you may fall over
and get hurt. So please ride it carefully.
Furthermore, avoid puddles, wet mud, swamps, water, snow or ice. Try not to use the e-bike
on a rainy, stormy or snowy day. If the bicycle's electric parts (control unit, engine and
battery) get damp, wet or soaked, it will cause irreversible damage, or even a battery
explosion.
This product can only be used by one adult at a time. Do not carry any extra passengers.
This vehicle is not a toy. Same as other vehicles, it is possible to fall, crash or encounter
other danger¬ous situations. Please don't offer your e-bike to anyone that doesn't know how
to use it correctly. If you let anyone else ride your bike, it will be your responsibility to ensure
that all riders understand all warnings, cautions, instructions and safety precautions, and to
ensure that they are able to use this product safely and responsibly and protect themselves
and others from injury.
Product function illustration (Model: FF20 Polar)
1. Break lever
2. Shift lever
3. LCD Display
4. Bell
5. Button set
6. Throttle
7. Headlight
8. Fender
9. Brake pad
10. Brake caliper
11. Front fork
12. Pedal
13. Crankset
14. Chain
15. Rear derailleur
16. Tire
17. Motor
18. Rear light
19. Cargo rack
20. Saddle
21. Battery
3
1. Charging: The charging port of the battery at the saddle position is on the right side above
the battery, and the charging port of the battery on the front is on the left side above the
battery. When the battery is fully charged, the charger light changes from red to green.
2. Power On/Off: Long press the power button to turn on/off the display power.
3. Display: After the display is turned on, briefly press the power button (<0.5s) to see the
different trip modes. The information displayed will be switched between the daily
kilometers (TRIP) - total kilometers (ODO) - Maximum speed (MAX) - Average speed (AVG)
- Remaining distance (RANGE) - Energy consumption (CALORIES) - Output power
(POWER) - Travel time (TIME).
4. Headlight: By pressing and holding the light button, the controller will turn on/off the
headlight.
5. PAS Mode: You must turn on the battery to use the e-bike in pedal-assisted mode. Power
assist is triggered when you pedal forward, and stops when you stop pedaling, sometime
with a delay. If no power is needed, turn off the power of the battery.
6. Electric Mode: You do not need to pedal the e-bike if you use the hand throttle. The
throttle can be controlled by twisting it from the resting position, and the farther the throttle
switch is from resting position, the more power is sent to the motor to accelerate the e-bike.
7. Cruise Control : Cruise control will be triggered when you holding thumb throttle and
riding at the same speed for 8 seconds, and it will be released by braking/pedaling or
throttling.
8. Walk Assist Mode: Long press the "-" button, the electric bicycle will enter the walk assist
mode. The electrical bike runs at a constant speed of 6 km/h. Release the "-" button, the
electric bicycle will immediately stop power output and return to the state before push.
Function introduction:
4
Product installation:
1. After removing the foam, unfold and secure the frame as shown.
3. Install the saddle. Insert the saddle into the seat tube and lock.
2. Install the handlebar. Insert the handlebar into the tube and lock.
5
4. Install the pedals. Note the markings on the pedal screws and on the crank
arms. Stamp with "L" is the left pedal, stamp with "R" is the right pedal, the
right pedal is installed on the side of the sprocket. NOTE: The left pedal is
tightened to the left and the right pedal is tightened to the right.
5. Install the bell. Loosen the bell screw, put the bell in place and tighten the screw.
6. Adjust the headlight. Adjust the headlight position and tighten the screw.
6
Product parameter
Display user instructions
1. Product Name and Model Number
Smart LCD display for electric bicycle; Model: YL81F.
2. Specification
● 24V/36V/48V power supply
● Display rated current 15mA
● Display maximum current 30mA
● Shutdown leakage current <1uA
● Supplied current to the controller 50mA
● Operating temperature -20～60℃
● Storage temperature -30 to 70°C
Dimensions
Performance Parameter
Electrical Specifications
Features
Item
Main material
Product size
Pedal-ground distance
Tire size
Package size
Product weight
Package weight
Battery weight
Maximum load
Maximum speed
Max range for pure power
Maximum climbing angle
Operating temperature
Waterproof level
Battery type
Battery capacity
Battery rated voltage
Motor rated voltage
Motor rated power
Charging voltage
Input voltage
Undervoltage protection value
Overcurrent protection value
Charging time
Display
Headlight
Braking method
Speed Transmission
Parameter
Aluminum alloy
179*121*68CM
16CM
20*4.0
95*45*79CM
34KG
41.9KG
3.1KG & 3.65KG
150KG
25KM/H
95~115KM
25°
-20℃~55℃
IPV4
Lithium-ion battery
10.4Ah & 10.4Ah
48V
48V
500W
54.6V/3A
220V
40±1V
20A
3-4H each battery
LCD
Yes
Mechanical disc brakes
SHIMANO 7S

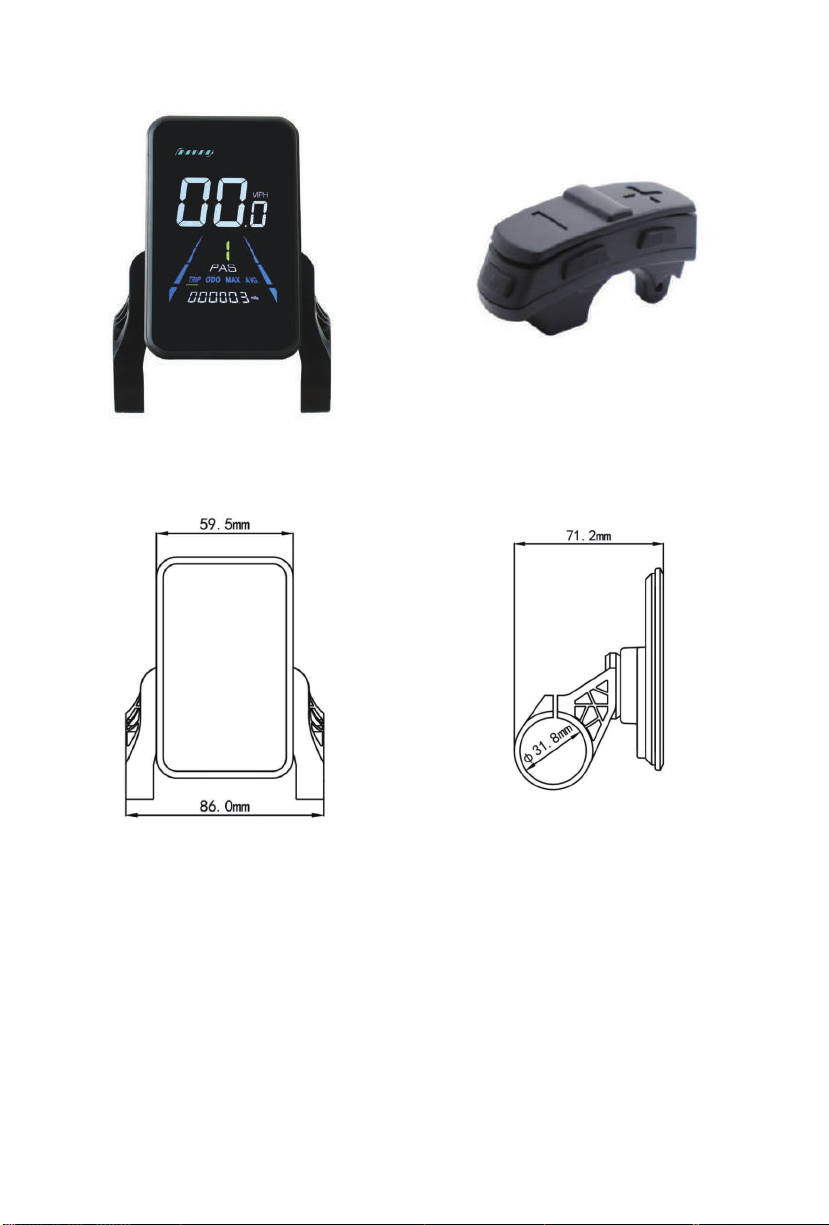

Figure 3-1 Physical picture of
the YL81F display
Figure 3-3 90T-V Front
View Dimension
Figure 3-2 Physical picture of
the K5 control button
Figure 3-4 90T-V Side
View Dimension
4. Function overview and Functional areas
4.1 Functional overview
The YL81F display offers a variety of features to suit your riding needs, including:
● Battery level indicator
● Pedal assist (PAS) level indicator
● Speed (current speed, maximum speed, average speed)
● Mileage display (single and total mileage)
● Walk assist mode
3. Appearance and Size
7
● Light ON/OFF
● Error code indicator
● Motor power indicator (optional)
● USB connection indicator (optional)
● Cruise control indicator (optional)
● Bluetooth connection indicator (optional)
● Personalized parameter settings (e.g. tire diameter, speed limit, battery power setting and
PAS parameter setting, password setting, controller current limit setting, etc.).
●Restore factory default parameter function
4.2 Functional areas
