DISHWASHER

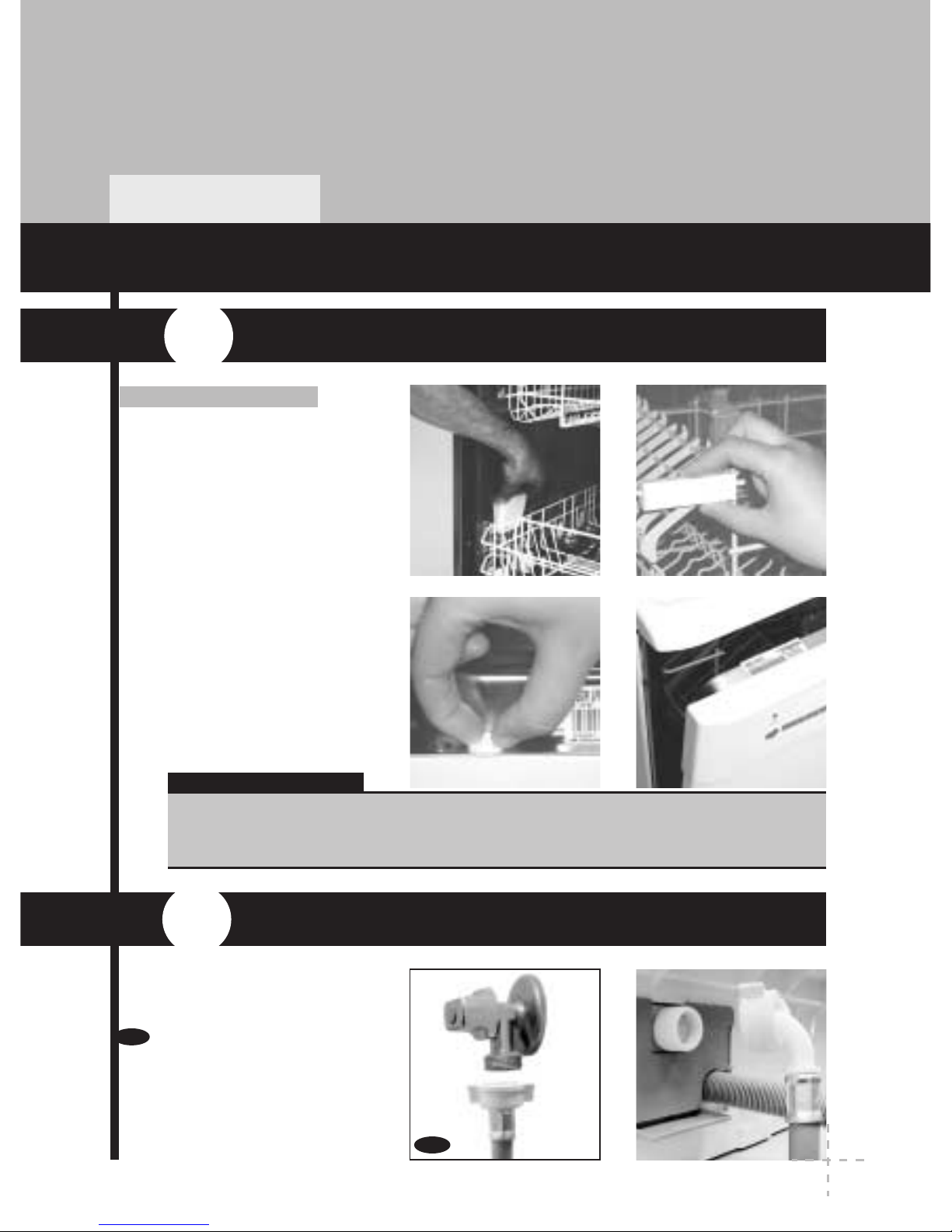

UNPACKAGING

INSTALLATION AND FITTING

CONNECTION TO THE PLUMBING

The water connection pi-

pe is located on the back

of the dishwasher:

Connect the pipe to

the water inlet, tighten

the connection nut

and make sure it is se-

curely connected to

the appliance.

UNPACKAGING THE DISHWASHER

Remove inner protection

elements i.e. polystyrene

wedges holding the

baskets in place.

The specifications label is on the top edge of the interior of the door. This label must never

be removed, since it provides information about the exact model of the dishwasher, required

power supply, serial number and warranty.

IMPORTANT

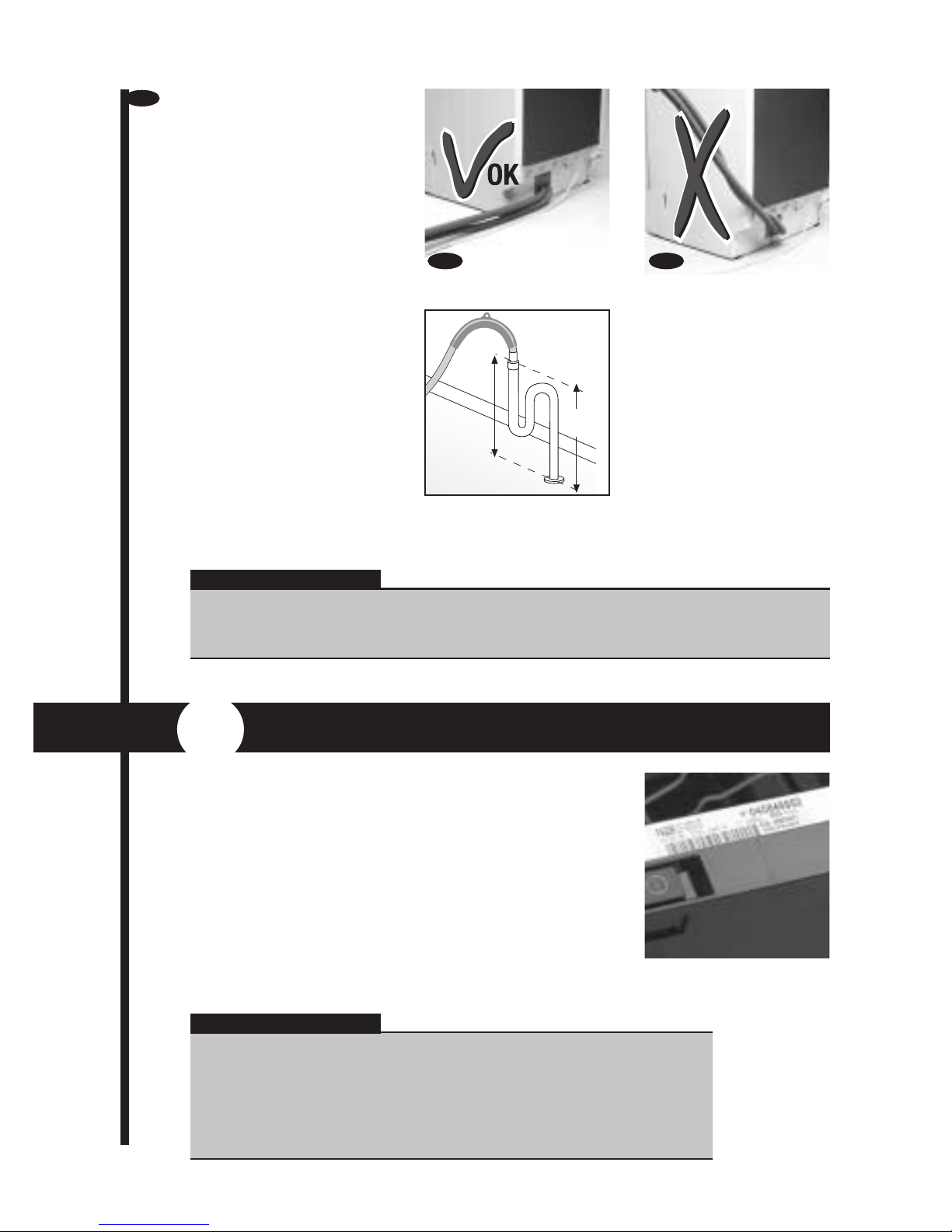

The hose must run

between the wall and

the bottom space at

the back of the dis-

hwasher (b1) so that

it is not squashed or

overstretched.

A fixed drain outlet at a

distance of 25 - 100 cm

from the floor is recom-

mended.

Make sure the drain tube

is not too tight and that

there are no bends or

kinks in it.

Please refer to the speci-

fication label on the top

edge of the door before

making the electrical con-

nections. Make sure that

the power voltage con-

nected to the plug socket

is as shown on the label.

If your dishwasher has a

hot water inlet, connect

the pipe to the hot water

tap. In this case, the

maximum temperature

must not exceed 60ºC.

Bear in mind that this type

of water supply may affect

the washing and drying

capacity of the appliance.

b1 b2

max.

100 cm

min.

25 cm

It is very important for the bend pipe of the outlet hose is located securely in water outlet

so that it cannot disconnet. The operating water pressure (minimum and maximum) must

be between 0.5-10 bar (0.05-1 megapascals MPa).

IMPORTANT

ELECTRICAL CONNECTION

It is very important for the dishwasher to be connected to an earthed

plug socket. The electrical installation, plug, socket, fuses or circuit

breaker and meter must be capable of the maximum power shown

on the specifications label. If the power cable is damaged, it must be

replaced exclusively by the manufacturers, after-sales service (TAS)

or authorised personnel. If the appliance is to be recess-mounted

and integrated, the plug must be accessible after installation.

IMPORTANT

LEVELLING AND POSITIONING

LEGS - LEVELLING

WORKTOP

If the worktop is

wooden, fit the plastic

protection onto it to

prevent the area from

being damaged by

steam.

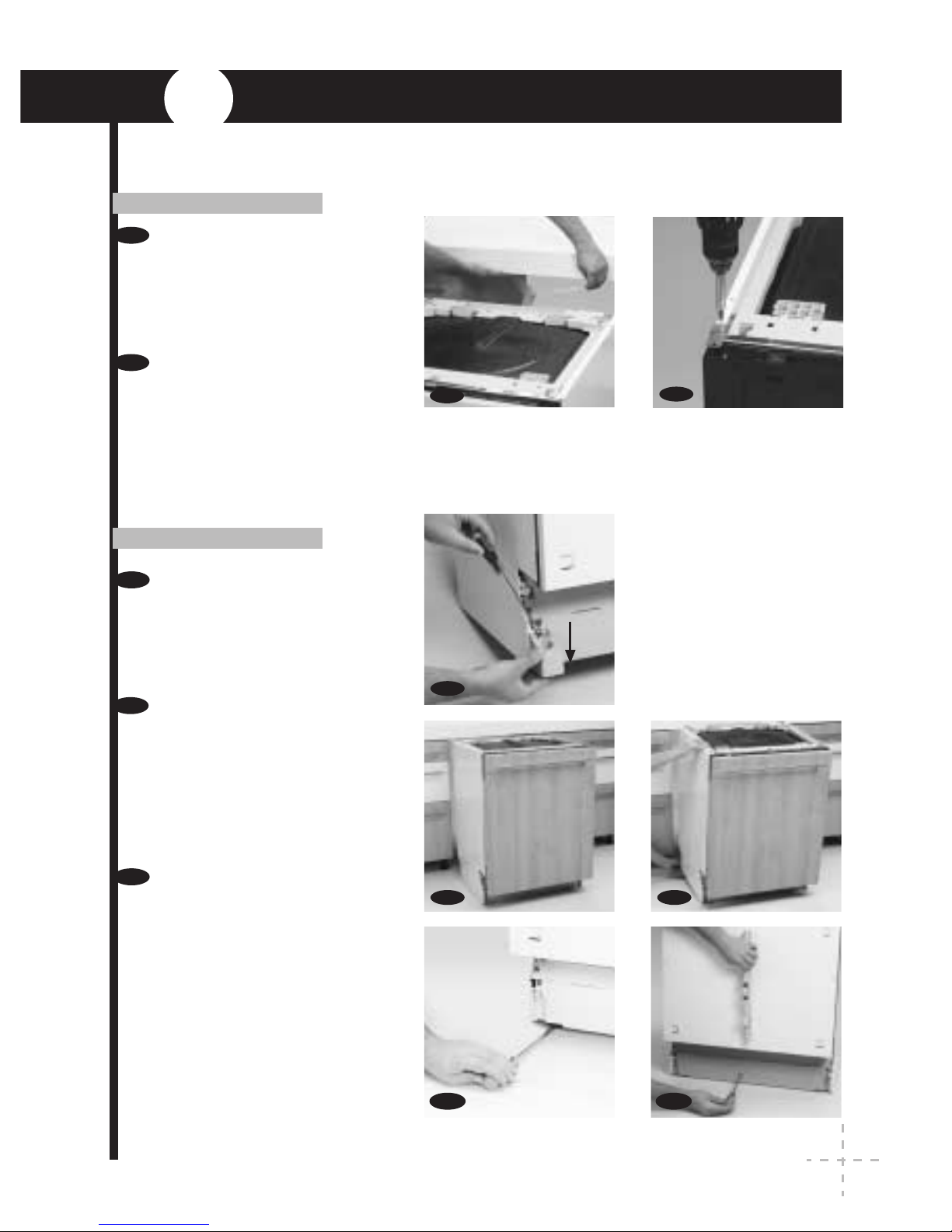

Fit the front brackets to

the dishwasher so that

it can be fixed to

neighbouring units or

the work surface (see

point k, page 54).

To flush-mount the

dishwasher in a row of

kitchen fittings sharing

the same plinth, loosen

and remove the base

accessories.

Before fitting the

dishwasher into the

space, raise it up to

the height of the

worktop by turning the

rear legs until a space

of some 3 mm is left

from the top.

Then adjust the front

legs to the desired

height. Some

integrated models

include a rod for

levelling the rear legs

from the front.

To install an integrated

dishwasher:

English

DOOR

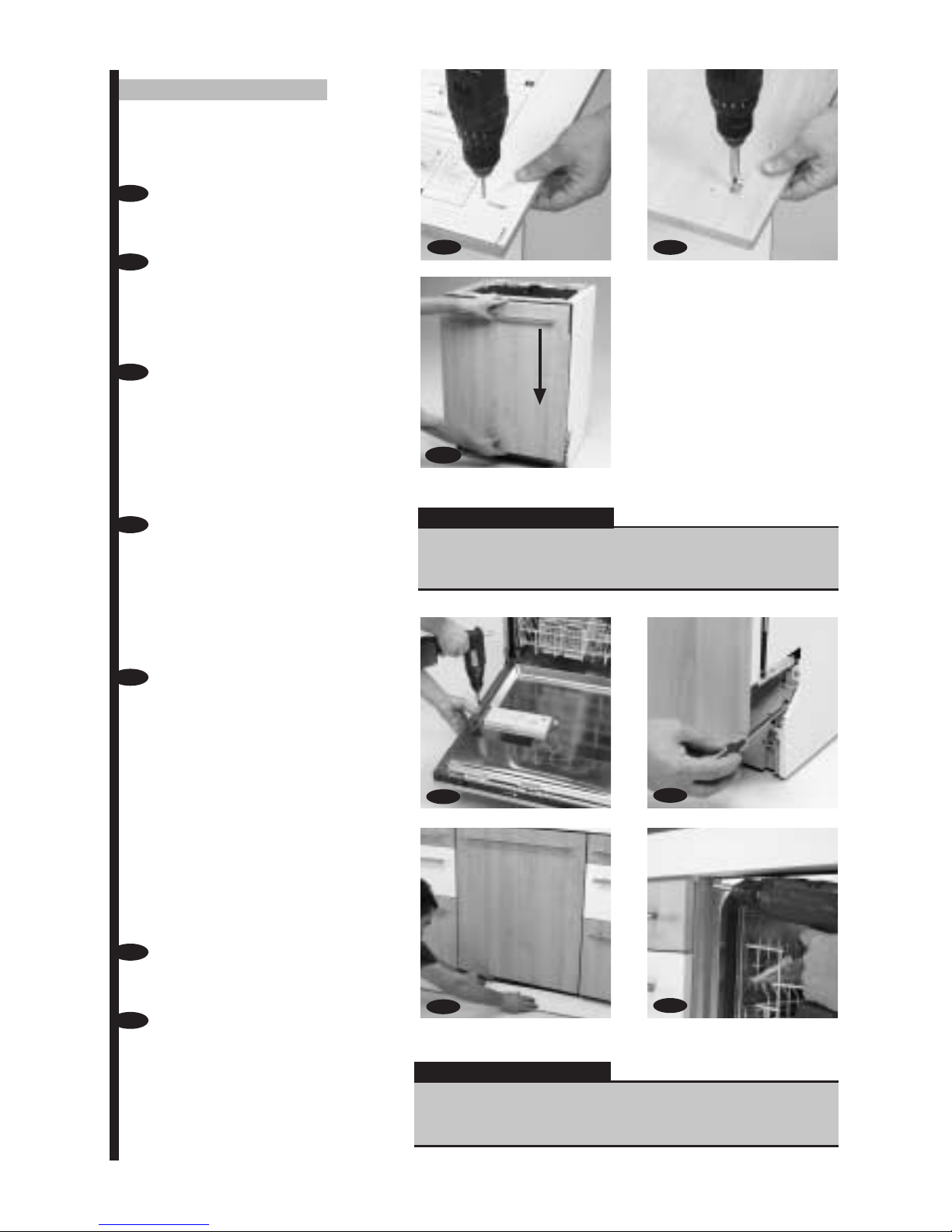

An information template

is provided with the

assembly instructions.

Position the template, fix

it in place and mark the

position of the holes.

Drill the holes with a Ø

2.5 mm bit and screw the

supports to the panel with

the curved part facing

downwards.

Pick up the door panel and

fit the supports into the door

housing. Pull it downwards,

ensuring it is firmly fixed

and levelled with the top

part of the door.

Open the dishwasher door

slowly, holding the panel in

place, and then fix it with

the screws, ensuring the

panel is correctly aligned

with the door.

If the door springs are not

strong enough,

compensate the door

with the two additional

screws provided in the

accessories bag.

Fit the dishwasher into

the space. Adjust it to the

worktop until the top of

the dishwasher makes

contact with the bottom

of the kitchen fitting.

Fit the plinth in place,

sawing it to obtain the

desired measurement.

Fix the dishwasher to the

worktop, in the case of a

wooden worktop. If it is a

granite worktop, fix the

dishwasher to the

adjoining fittings.

The maximum and minimum recommended weights for

the door panel to be placed on the dishwasher

are:Maximum: 6.5 kg. Minimum: 3 kg.

IMPORTANT

A space of at least two millimetres must be left at the

sides between the kitchen fittings or electrical appliances

and the dishwasher.

IMPORTANT

An information template is

provided with the assembly

instructions.

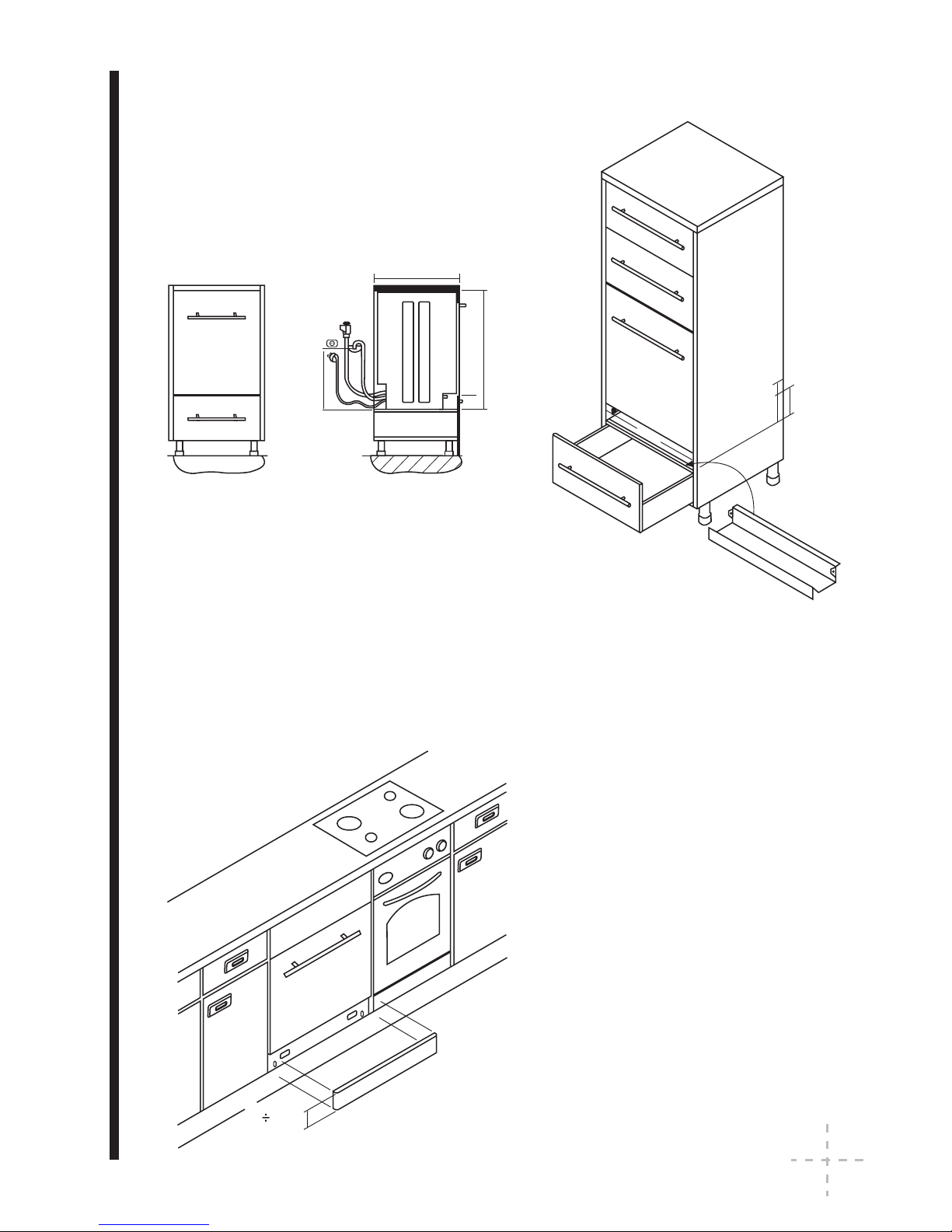

Integrated beneath a worktop

For integrated stainless steel models, the following installation instructions should be taken into

account:

Column-integrated

50 114 mm

600

min. 25

English

Once the dishwasher has

been installed correctly, it

should be first used on

prewash programme:

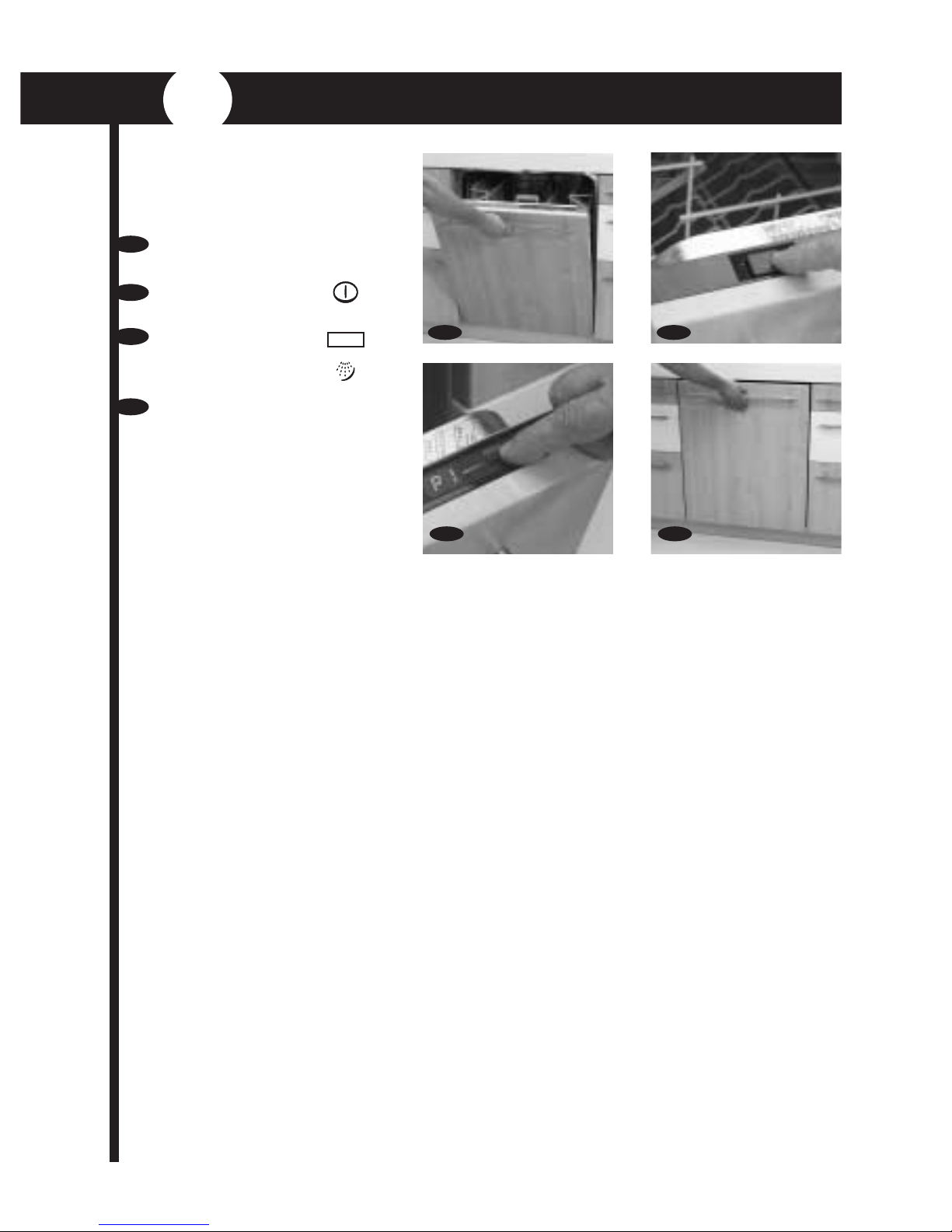

Open the dishwasher

door.

Press the dishwasher

ON button.

Select programme 1

(prewash), with no

dishes or detergent.

Close the door. The

dishwasher will start

up automatically.

This is to check the

installation, the

connections and the drain

outlet, as well as to

completely wash the

interior before running a

wash pro-gramme

PROG

PRE-WASH

MANUAL

REGULATION

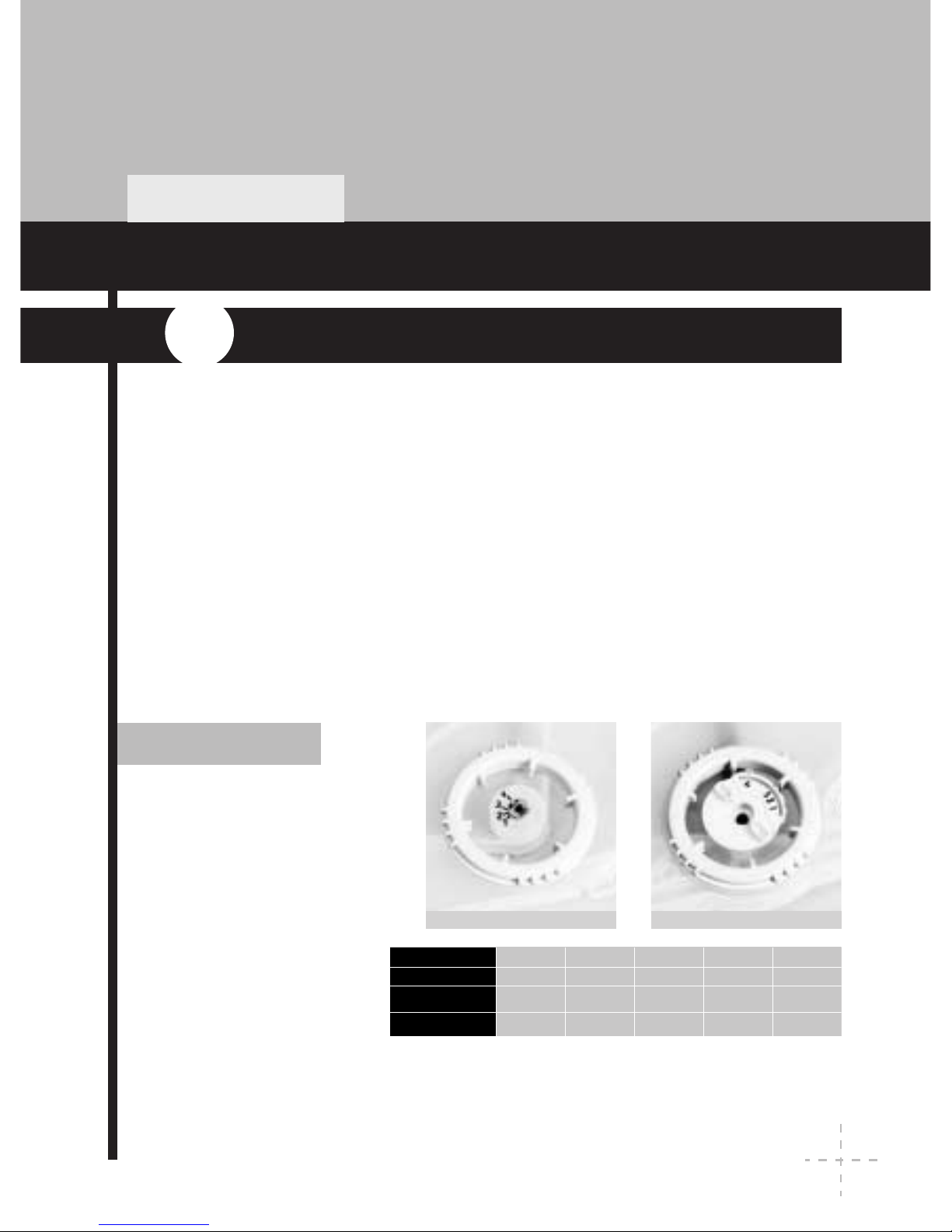

If there is a salt regulator

like the one shown in the

photographs (Mod. A-B)

inside your dishwasher on

the right-hand side, turn it

to the number that

corresponds to the

hardness of the water in

your area (see table).

To turn it to the correct

position, use a coin (Mod.

A) or a screwdriver (Mod.

B).

USING THE APPLIANCE - A FEW PRACTICAL TIPS

DISHWASHER

Adjusting water hardness. Before switching the dishwasher on, check the hardness of

the water in your area. This information is available from your local water board, the town hall,

the technical assistance service or you can use the Aquadur strip supplied in the bag of

accessories.

You may not need to use salt. If this is the case, you can go straight to the section on Rinse-aid.

Water contains lime. The higher the lime content, the harder the water. To prevent lime from

damaging your dishwasher, it has a water softener to eliminate lime from water and clean it ready

for the wash. This softener works with salt.

Controlling the salt level.

Depending on the model, dishwashers will have a manual or electronic salt level control.

REGULATOR Model BREGULATOR Model A

normal

soft

no salt

very

hard

medium

Position of the

salt regulator

German degrees

HARDNESS

French degrees 0-13 HF 14-38 HF 39-50 HF 51-63 HF 64-100 HF

0-7 DH 8-21 DH 22-28 DH 29-35 DH 36-56 DH

WATER HARDNESS, SALT, RINSE-AID AND DETERGENT

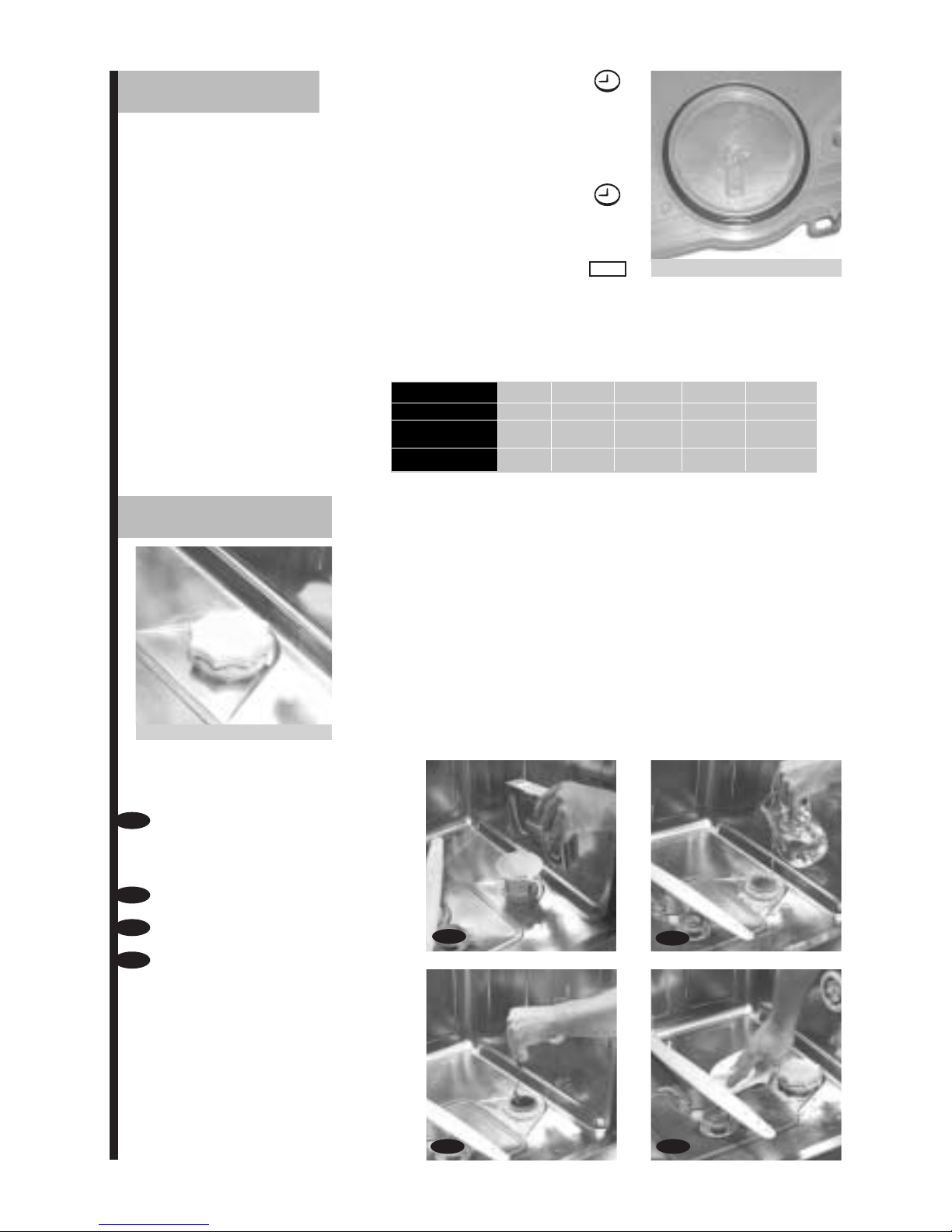

WHERE TO

PUT THE SALT

RESERVOIR A SEL

The dishwasher has a salt

container in the bottom of

the tub.

Important: use dishwasher

salt only.

On some models, the salt

regulator is electric (has

no numbers: (see Mod. C

in the photo) and is regu-

lated from the control pa-

nel.

These models have 5 re-

gulation positions.

ELECTRONIC

REGULATION

1. Press the Time Delay

button and hold it down

for three seconds. The

letter “L” followed by a

number will appear on the

display (L1).

2. Press the Time Delay

button to select the

required salt level.

3. Validate the selection

(see table) using the

Programme button.

The first time you fill the

salt container, you must:

Pour in the salt but do

not fill the container

to the top.

Top it up with water.

Stir with a spoon.

Close the lid tight and

clean the salt around

the container.

When the salt container

needs filling, you should

always do it before a

wash and not afterwards.

Position of the

salt regulator

German degrees

HARDNESS

French degrees

soft

no salt

0-13 HF

0-7 DH

very

hard

normal

14-38 HF

8-21 DH

medium

39-50 HF

22-28 DH

hard

51-63 HF

29-35 DH

64-100 HF

36-56 DH

PROG REGULATOR Model C
