Fagor CONDENSER TUMBLE DRYER Manuale utente
EN INSTALLATION & OPERATING INSTRUCTIONS
FR GUIDE D’INSTALLATION & D’UTILISATION
ES MANUAL DE INSTALACIÓN Y UTILIZACIÓN
Condenser tumble dryer
Sèche-linge à condenseur
Secadora de condensación
2
CONTENTS
EN
1 / FOR THE USER’S ATTENTION
• Important safety instructions ______________________________ 3
• Energy savings ________________________________________ 5
2 / DESCRIPTION OF YOUR APPLIANCE
• General presentation of the tumble dryer____________________ 6
3 / INSTALLING YOUR TUMBLE DRYER
• The appliance’s surroundings ____________________________ 8
• Levelling ______________________________________________ 8
• Built-in installation ______________________________________ 9
• Combined washer/dryer installation ________________________ 9

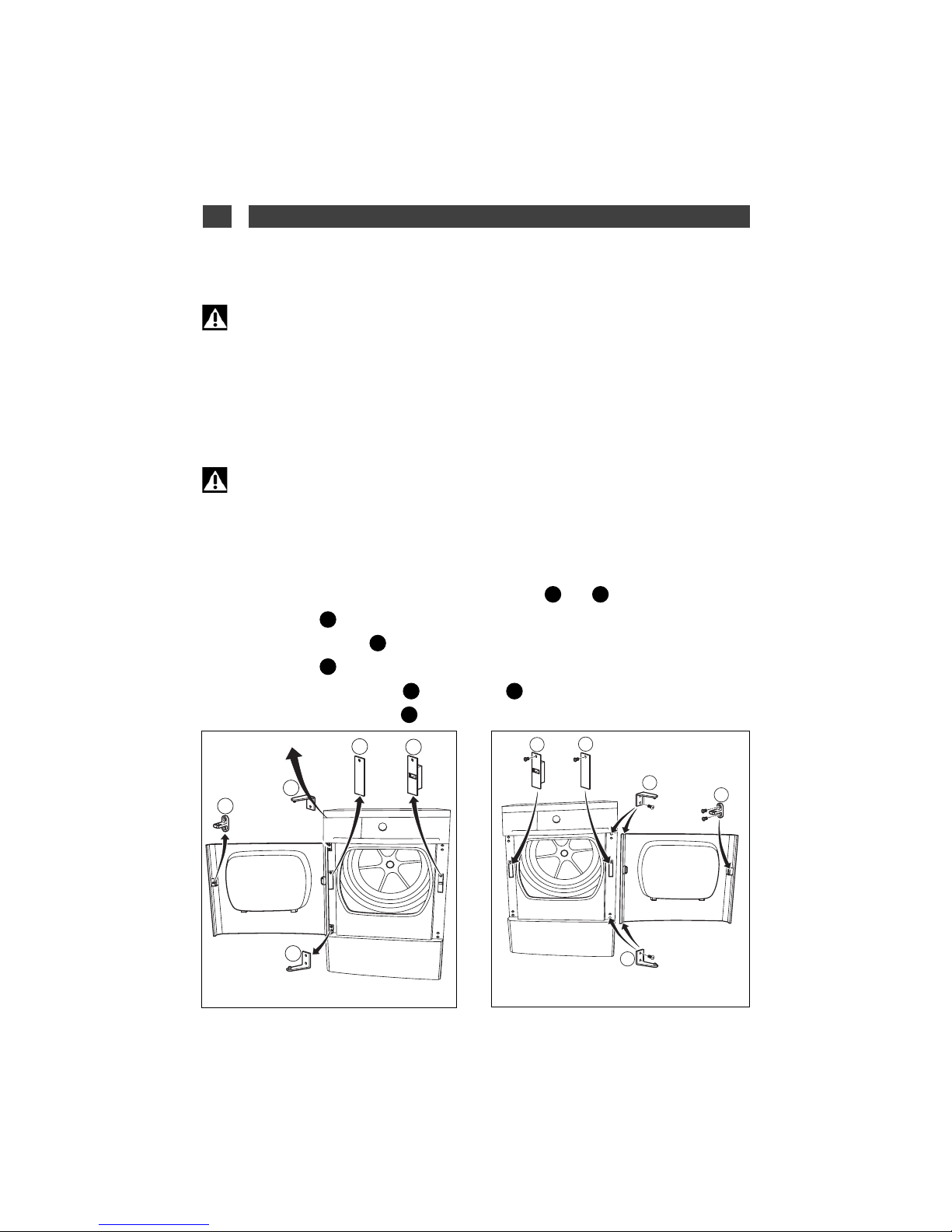

• Modifying the door opening direction ______________________ 9
• Electrical connection ____________________________________ 10
• Replacing the electric power cable ________________________ 10
4 / PREPARING YOUR ITEMS
• Checking the condition of your textiles______________________ 11
• Inserting the items in the drum ____________________________ 11
5 / OPERATING INSTRUCTIONS AND PROGRAMMING
• Presentation of the control panel __________________________ 12
• Programming a drying cycle ______________________________ 12
• Your drier’s programs ____________________________________ 16
6 / USER-MAINTENANCE INSTRUCTIONS
• Cleaning the filter ______________________________________ 17
• Emptying the condensation container ______________________ 17
• Direct evacuation of water condenser ______________________ 18
• Cleaning the condenser __________________________________ 19
• Cleaning the appliance __________________________________ 19
7 / TROUBLESHOOTING ______________________________________ 20
8 / AFTER-SALES SERVICE ____________________________________ 21
• Changing the bulb ______________________________________ 21
Warning :
Please read the user guide carefully before turning on your appliance so that you can
learn how to use it as quickly as possible.
3
1 / FOR THE USER’S ATTENTION
EN
WARNING :
To reduce the risk of fire, electric shock, or injury to persons when using your appliance,
follow basic precautions, including the following:
— Read all instructions before using the appliance.
— Do not dry articles that have been previously cleaned in, washed in, soaked in, or spotted with
gasoline, dry-cleaning solvents, or other flammable or explosive substances, as they give off
vapours that could ignite or explode.
— Do not allow children to play on or in the appliance. Close supervision of children is necessary
when the appliance is used near children.
— Before the appliance is removed from service or discarded, remove the door to the drying com-
partment.
— Do not reach into the appliance if the drum is moving.
— Do not install or store this appliance where it will be exposed to the weather.
— Do not tamper with controls.
— Do not repair or replace any part of the appliance or attempt any servicing unless specifically
recommended in the user-maintenance instructions or in published user-repair instructions that
you understand and have the skills to carry out.
— Do not use fabric softeners or products to eliminate static unless recommended by the manufac-
turer of the fabric softener or product.
— Do not use heat to dry articles containing foam rubber or similarly textured rubber-like materials.
— Clean lint screen before or after each load.
— Keep area around the exhaust opening and adjacent surrounding areas free from the accumula-
tion of lint, dust, and dirt.
— The interior of the appliance should be cleaned periodically by qualified service personnel.
— Do not place items exposed to cooking oils in your dryer. Items contaminated with cooking oils
may contribute to a chemical reaction that could cause a load to catch fire.
•
Grounding instructions
— This appliance must be grounded. In the event of malfunction or breakdown, grounding will
reduce the risk of electric shock by providing a path of least resistance for electric current.
— This appliance is equipped with a cord having an equipment-grounding conductor and a groun-
ding plug. The plug must be plugged into an appropriate outlet that is properly installed and groun-
ded in accordance with all local codes and ordinances.
WARNING :
Improper connection of the equipment-grounding conductor can result in a risk of electric
shock. Check with a qualified electrician or service representative or personnel if you are in
doubt as to whether the appliance is properly grounded.
Do not modify the plug provided with the appliance: if it will not fit the outlet, have a proper out-
let installed by a qualified electrician.
SAVE THESE INSTRUCTIONS
• IMPORTANT SAFETY INSTRUCTIONS
4
EN
1 / FOR THE USER’S ATTENTION
Important :
Keep these operating instructions with
your appliance. If you should sell your
machine or give it to someone else, ensure
that the operating instructions are provided.
Please take note of these safety instructions
before installing and using your appliance.
They have been written for your safety and
that of others.
•
SAFETY INSTRUCTIONS
•
Installation
— When you receive the appliance, unpack it or
have it unpacked immediately. Check that it
has not suffered any damage during trans-
port. Express any reservations in writing on
the delivery slip and keep a copy.
Never connect a damaged appliance.
If your appliance is damaged, please contact
your dealer.
— Before connecting your appliance, please
refer to the installation instructions.
— Your tumble dryer must be kept disconnec-
ted from the mains supply throughout the
whole installation process.
— The electrical connection details shown on
your appliance’s information plate must match
those of the local mains supply.
— Once your appliance has been installed, the
electrical plug must remain accessible.
— Do not alter or try to alter the appliance’s
characteristics. This could be dangerous.
— If your installation requires alteration, only
entrust the electrical and plumbing work to
qualified electricians and plumbers.
— The appliance must not be installed behind a
locking door, a sliding door or a door with hin-
ges on the opposite side to those on the dryer.
— Your appliance is designed for normal
domestic use. Do not use it for commercial or
industrial purposes or for any purpose other
than the one for which it has been designed
•
Children’s safety
— This appliance must only be used by adults.
Do not let children play with the appliance and
keep pets away from it.
— Keep young children away from the
appliance when it is operating.
— Keep the packaging materials out of chil-
dren’s reach (e.g.: plastic bags, polystyrene,
etc.) because they can be dangerous for chil-
dren : risk of suffocation.
— This appliance is not intended for use by per-
sons (including children) with reduced physi-
cal, sensory or mental capabilities, or lack of
experience and knowledge, unless they are
supervised or instructed concerning use of
the appliance by the person responsible for
their safety.
•
UseImportant :
Your tumble dryer is designed for
domestic use only, for drying textiles suitable
for tumble drying.
Important :
You must observe the following instruc-
tions. We decline any responsibility and res-
cind the guarantee if these recommendations
are ignored : failure to observe them can
result in material damage and physical injury.
— Use your appliance in accordance with its
method of use, thereby avoiding injury to your-
self and damage to your items. Do not use sol-
vents in the appliance (risk of fire and explo-
sion).
— Strictly comply with the care instructions on
your laundry.
— If you have to open the door of the drum
during the drying cycle, ensure that you do not
touch the drum immediately, as it is very hot.
5
EN
1 / FOR THE USER’S ATTENTION
— Substances contained in soiling such as oil, acetone, alcohol, petrol, kerosene, stain removers,
turpentine or wax must be removed before drying in your machine (by using an adapted warm water
washing programme with additional detergent for example).
— Precautions for using stain-removing products : any preliminary treatment by solvent, stain-remo-
ver, aerosol, such as acetone, alcohol, gasoline, kerosene, turpentine is prohibited because these
products are very inflammable. If your laundry requires this type of treatment, this must be done
before washing. Similarly, we recommend that you do not use these products near to the dryer or,
in general, near any electrical appliance in a poorly ventilated room in order to avoid any risk of an
explosion.
— If any incidents occur, which you cannot resolve using the troubleshooting advice we provide (see
“TROUBLESHOOTING”), contact our Technical Service Center.
— Before disposing of your worn-out appliance, make it unusable. Unplug and cut off the power
cable flush with the appliance and make the door lock inoperable.
— For your safety’s sake, if you wish to change your appliance’s power cable, contact a qualified
electrician.
— If any operating anomalies occur, disconnect your appliance and call our Technical Service
Center.
•ENERGY SAVINGS
— Spin your textiles at high speeds ; the residual dampness will be low, as will your energy
consumption. Even synthetic textiles must be spun before drying.
— Place the maximum load in your machine ; this will optimize the energy used. When doing so,
comply with the indications on volume provided in this instruction manual.
— The drying time and the energy consumption are both increased by a high ambient temperature
and too small a room.
— Clean the filter after each drying cycle.
— Clean the condenser twice a month.
6
EN
2 / DESCRIPTION OF YOUR APPLIANCE

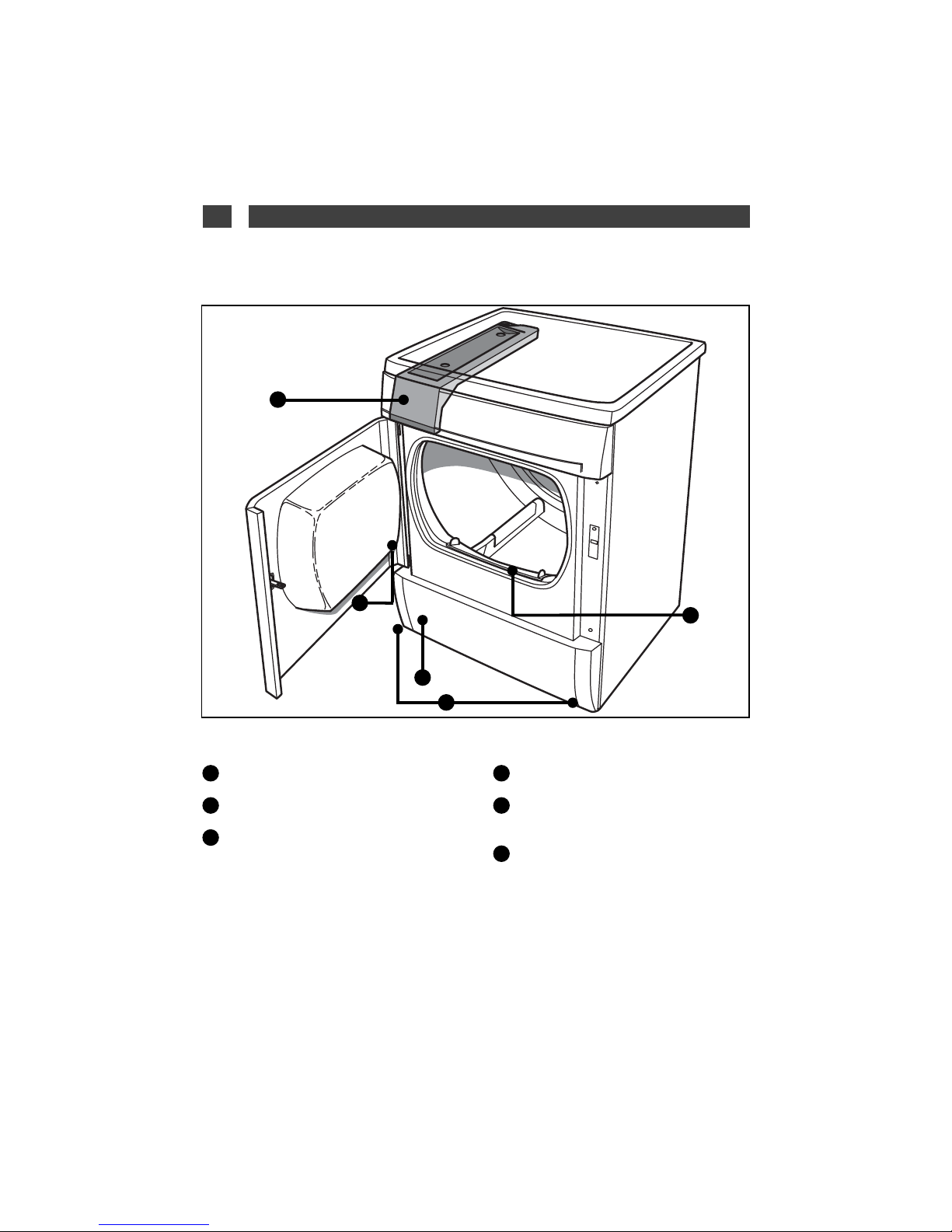

• GENERAL PRESENTATION OF THE TUMBLE DRYER
Fig. 01
BB
DD
FF
CC
EE
Control panel
Condensate container
Condenser grill
Filter
Information plate
(Reference for After-Sales)
Adjustable feet
FF
EE
DD
CC
BB
AA
7
EN
3 / INSTALLING YOUR TUMBLE DRYER
WARNING :
WARNING - Risk of fire
— Clothes dryer installation must be performed by a qualified installer.
— Install the clothes dryer according to the manufacturer’s instructions and local codes.
— Do not install a clothes dryer with flexible plastic venting materials. If flexible metal (foil type) duct
is installed, it must be of a specific type identified by the appliance manufacturer as suitable for use
with clothes dryers. Flexible venting materials are known to collapse, be easily crushed, and trap
lint. These conditions will obstruct clothes dryer airflow and increase the risk of fire.
— To reduce the risk of severe injury or death, follow all installation instructions.
SAVE THESE INSTRUCTIONS
• IMPORTANT SAFETY INSTRUCTIONS
•
Grounding instructions
— This appliance must be grounded. In the event of malfunction or breakdown, grounding will
reduce the risk of electric shock by providing a path of least resistance for electric current.
— This appliance is equipped with a cord having an equipment-grounding conductor and a groun-
ding plug. The plug must be plugged into an appropriate outlet that is properly installed and groun-
ded in accordance with all local codes and ordinances.
WARNING :
Improper connection of the equipment-grounding conductor can result in a risk of electric
shock. Check with a qualified electrician or service representative or personnel if you are in
doubt as to whether the appliance is properly grounded.
Do not modify the plug provided with the appliance: if it will not fit the outlet, have a proper out-
let installed by a qualified electrician.
SAVE THESE INSTRUCTIONS
8
3 / INSTALLING YOUR TUMBLE DRYER
EN

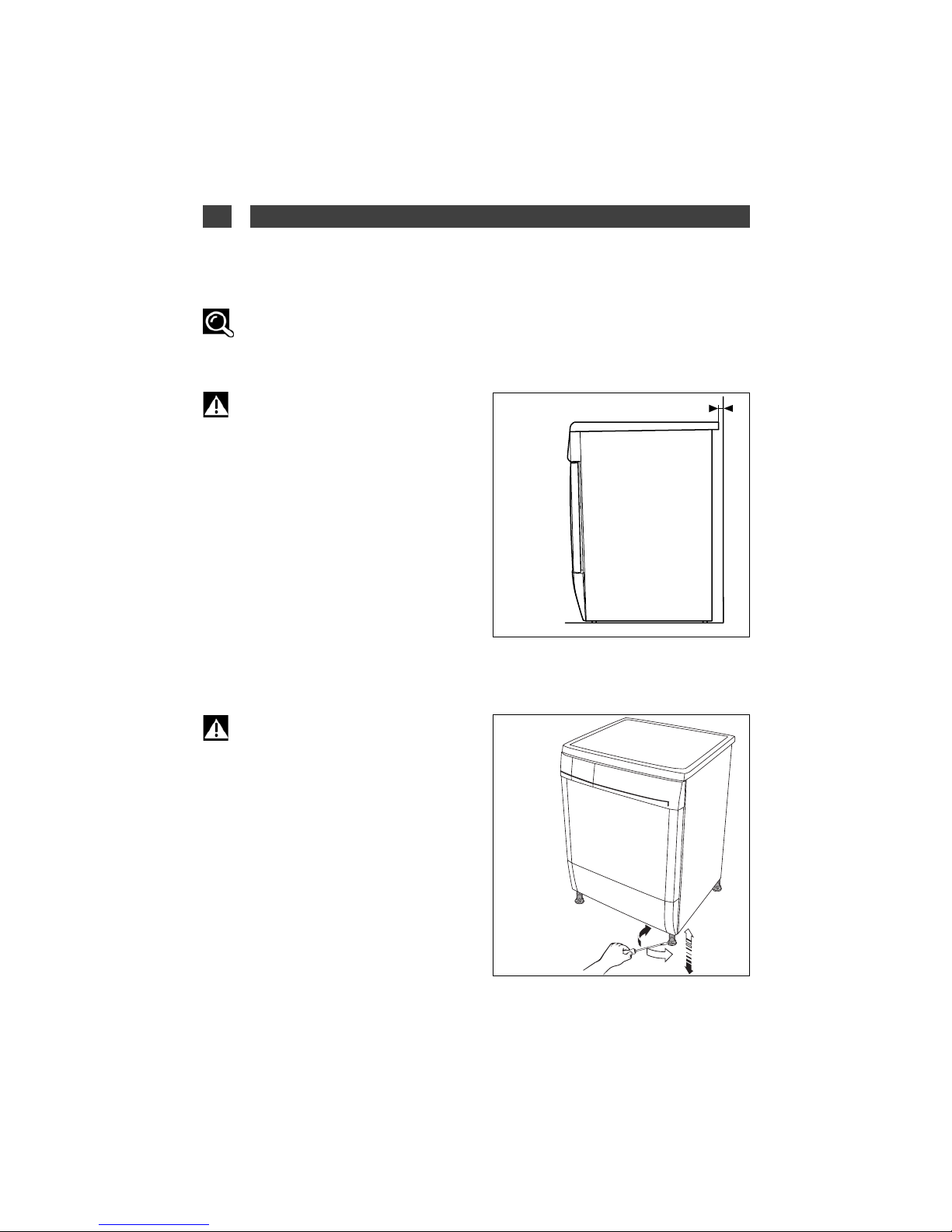

Fig. 03
Fig. 02
• THE APPLIANCE’S SURROUNDINGS
Important :
We strongly advise against :
— Installing your appliance on a carpeted floor.
If you cannot avoid this, take all possible mea-
sures not to obstruct the circulation of air at
its base.
— Installing your dryer in a location where it
can be subject to being splashed with water.
— Installing your dryer in a small closed room
(if this is the case, open the door or the win-
dow during drying)
— Installing your dryer in a poorly ventilated
room. The temperature in the room must
remain below 30°C during drying.
1 cm mini
Advice :
Your tumble dryer releases heat. If you place it next to another appliance or a unit, we
advise you always to leave a space in-between to assist in air circulation (Fig. 02).
Important :
Use a level to check that the appliance
is horizontal :
Your dryer is fitted with 4 adjustable feet
(Fig.03).
To adjust the stability and levelness :
— Tip it slightly backwards
— Screw one or more of the feet in or out using
a spanner or a screwdriver to adjust their
height to suit the shape of the floor
(Fig.03)
— Set your dryer back on its feet and check
that it is stable.
• LEVELLING
0.4 inches minimum
9
EN
3 / INSTALLING YOUR TUMBLE DRYER
E
F
B
C
A
A
B
EF
C
Fig. 04 Fig. 05
Left-hand Door Right-hand door
• BUILT-IN INSTALLATION
An adaptation kit is available from your dealer. This is used to mount your tumble dryer above your
washing machine.
• MODIFYING THE DOOR OPENING DIRECTION
Important :
Check with your dealer that the kit is compatible with your washing machine. For safety rea-
sons, fitting must be performed by a qualified professional.
Important :
If you are fitting the appliance underneath a worktop, you must either keep the original
laminated top, or replace it with a slimmer version using a kit available for this purpose from your
dealer. For safety reasons, the appliance must never be operated without a top.
• COMBINED WASHER/DRYER INSTALLATION
If you wish, you can alter the direction the door opens as follows
(Fig. 04 or 05).
— Remove the 4 screws in the front panel holding the hinges and
.
— Reverse the hinge and fasten it back on.
— Refit the door on the hinge .
— Reverse the hinge and fasten it back on.
— Reverse the positions of the lock and the cover on the machine’s front face.
— Reverse the positions of the bolt .
CC
EEFF
BB
AA
AA
BBAA
10
EN
3 / INSTALLING YOUR TUMBLE DRYER
• ELECTRICAL CONNECTION
Danger :
To make the electrical connection to your appliance :
— Do not use an extension, an adapter, a multiple socket or a programmable timer.
— The plug must be easily accessible but be out of children’s reach.
— If there's any doubt about the condition of your installation, contact your installer or a qualified
Brandt-approved professional.
— Never eliminate the electrical Earthing system.
The Dryer comes with a 16AWG Cord and NEMA 6-15P plug
It should be connected to a 240V, 15A, 60Hz AC 2 Phases + wire grounding power outlet (NEMA
6-15R) is necessary.
We cannot be held responsible for any incident caused by poor electrical installation.
Advice :
In order to easily find your appliance’s reference numbers in the future, we recommend
that you note them down on the “After-Sales Service and Consumer Relations” page (this page
also explains where to find these on your appliance).
Your appliance complies with UL 2158 (Electric clothes Dryer).
• REPLACING THE ELECTRIC POWER CABLE
Important :
To ensure your safety, this must be carried out by the manufacturer's after-sales service
team or a qualified professional.
The dryer must be installed in accordance with all local codes or, in the absence of a local code :
— in the U.S.A., in accordance with the National Electric Code, ANSI/NFPA 70 - latest edition/State
and Municipal codes and/or local codes.
— in Canada, in accordance with the Canadianl Electric Code, C22.1 - latest edition/Provincial and
Municipal codes and/or local codes.
Questo manuale è adatto per i seguenti modelli
2
Indice
Lingue:
Altri manuali Fagor Asciugatrice
Fagor
Fagor SFE-820CEA Manuale utente
Fagor
Fagor SR-10 MP-PSM Manuale utente
Fagor
Fagor SFE-820 Manuale
Fagor
Fagor SFE-82AEA Manuale utente
Fagor
Fagor SFA-8CELX Manuale utente
Fagor
Fagor SR-11 Manuale utente
Fagor
Fagor IO-WMS-1567 Manuale utente
Fagor
Fagor IO-WMS-1565 Manuale utente
Fagor
Fagor SFE - 70C White Manuale utente
Fagor
Fagor 3 SF-6 E Manuale utente
