Falcon 4410 26-Key model Manuale utente

Quick Reference Guide

Falcon

4400 Series

with Windows

Falcon 4410

26-Key model

Falcon 4420

48-Key model Falcon 4420

52-Key model

PSC Inc

959 Terry Street

Eugene, Oregon 97402

Telephone: (541) 683-5700

Fax: (541) 345-7140

described therein may be reproduced or transmitted in any form or by any means without prior written permission of

PSC Inc. or its wholly owned subsidiaries ("PSC"). Owners of PSC products are hereby granted a non-exclusive,

revocable license to reproduce and transmit this documentation for the purchaser's own internal business pur-

poses. Purchaser shall not remove or alter any proprietary notices, including copyright notices, contained in this

documentation and shall ensure that all notices appear on any reproductions of the documentation.

Should future revisions of this manual be published, you can acquire printed versions by contacting your PSC rep-

resentative. Electronic versions may either be downloadable from the PSC website (www.psc.com) or provided on

appropriate media. If you visit our website and would like to make comments or suggestions about this or other

PSC publications, please let us know via the “Contact PSC” page.

Disclaimer

PSC has taken reasonable measures to provide information in this manual that is complete and accurate, however,

PSC reserves the right to change any specification at any time without prior notice.

PSC is a registered trademark of PSC Inc. The PSC logo is a trademark of PSC. All other trademarks and trade

names referred to herein are property of their respective owners.

Falcon®is a registered trademark of PSC Inc. and of its wholly owned subsidiaries.

Microsoft Windows®, Windows®2000, Windows®CE, Windows®NT, and Windows®XP are registered trademarks of

Microsoft Corporation.

Patents

This product may be covered by one or more of the following patents: 4603262 • 4639606 • 4652750 • 4672215 • 4699447 • 4709369 •

4749879 4786798 • 4792666 • 4794240 • 4798943 • 4799164 • 4820911 • 4845349 • 4861972 • 4861973 • 4866257 • 4868836 •

4879456 • 4939355 • 4939356 • 4943127 • 4963719 • 4971176 • 4971177 • 4991692 • 5001406 • 5015831 • 5019697 • 5019698 •

5086879 • 5115120 • 5144118 • 5146463 • 5179270 • 5198649 • 5200597 • 5202784 • 5208449 • 5210397 • 5212371 • 5212372 •

5214270 • 5229590 • 5231293 • 5232185 • 5233169 • 5235168 • 5237161 • 5237162 • 5239165 • 5247161 • 5256864 • 5258604 •

5258699 • 5260554 • 5274219 • 5296689 • 5298728 • 5311000 • 5327451 • 5329103 • 5330370 • 5347113 • 5347121 • 5371361 •

5382783 • 5386105 • 5389917 • 5410108 • 5420410 • 5422472 • 5426507 • 5438187 • 5440110 • 5440111 • 5446271 • 5446749 •

5448050 • 5463211 • 5475206 • 5475207 • 5479011 • 5481098 • 5491328 • 5493108 • 5504350 • 5508505 • 5512740 • 5541397 •

5552593 • 5557095 • 5563402 • 5565668 • 5576531 • 5581707 • 5594231 • 5594441 • 5598070 • 5602376 • 5608201 • 5608399 •

5612529 • 5629510 • 5635699 • 5641958 • 5646391 • 5661435 • 5664231 • 5666045 • 5671374 • 5675138 • 5682028 • 5686716 •

5696370 • 5703347 • 5705802 • 5714750 • 5717194 • 5723852 • 5750976 • 5767502 • 5770847 • 5786581 • 5786585 • 5787103 •

5789732 • 5796222 • 5804809 • 5814803 • 5814804 • 5821721 • 5822343 • 5825009 • 5834708 • 5834750 • 5837983 • 5837988 •

5852286 • 5864129 • 5869827 • 5874722 • 5883370 • 5905249 • 5907147 • 5923023 • 5925868 • 5929421 • 5945670 • 5959284 •

5962838 • 5979769 • 6000619 • 6006991 • 6012639 • 6016135 • 6024284 • 6041374 • 6042012 • 6045044 • 6047889 • 6047894 •

6056198 • 6065676 • 6069696 • 6073849 • 6073851 • 6094288 • 6112993 • 6129279 • 6129282 • 6134039 • 6142376 • 6152368 •

6152372 • 6155488 • 6166375 • 6169614 • 6173894 • 6176429 • 6188500 • 6189784 • 6213397 • 6223986 • 6230975 • 6230976 •

6237852 • 6244510 • 6259545 • 6260763 • 6266175 • 6273336 • 6276605 • 6279829 • 6290134 • 6290135 • 6293467 • 6303927 •

6311895 • 6318634 • 6328216 • 6332576 • 6332577 • 6343741 • 6454168 • 6478224 • 6568598 • 6578765 • 6705527 • 6974084 •

6991169 •7051940 • AU703547 • D312631 • D313590 • D320011 • D320012 • D323492 • D330707 • D330708 • D349109 • D350127 •

D350735 • D351149 • D351150 • D352936 • D352937 • D352938 • D352939 • D358588 • D361565 • D372234 • D374630 • D374869 •

D375493 • D376357 • D377345 • D377346 • D377347 • D377348 • D388075 • D446524 • EP0256296 • EP0260155 • EP0260156 •

EP0295936 • EP0325469 • EP0349770 • EP0368254 • EP0442215 • EP0498366 • EP0531645 • EP0663643 • EP0698251 •

GB2252333 • GB2284086 • GB2301691 • GB2304954 • GB2307093 • GB2308267 • GB2308678 • GB2319103 • GB2333163 •

GB2343079 • GB2344486 • GB2345568 • GB2354340 • ISR107546 • ISR118507 • ISR118508 • JP1962823 • JP1971216 • JP2513442

• JP2732459 • JP2829331 • JP2953593 • JP2964278 • MEX185552 • MEX187245 • RE37166 • Other Patents Pending

Quick Reference Guide 1

Table of Contents

Falcon®4400 Series with Windows® CE ............................................................. 3

Overview ......................................................................................................................3

Getting Started ..............................................................................................................4

Features of the Falcon ...................................................................................................4

Powering the Falcon .......................................................................................................8

Battery Pack ...........................................................................................................8

Installing the Battery Pack .......................................................................................9

Checking Battery Power .......................................................................................... 11

System Tray Battery Status Indicators ...................................................................... 11

Charging the Batteries ............................................................................................ 12

Charging with a Battery Charger .............................................................................. 13

Charging with the Dock ........................................................................................... 13

Backup Battery ...................................................................................................... 14

Battery Discharge Characteristics ............................................................................ 14

Setting Up the Mobile Computer ..................................................................................... 15

Touchscreen Calibration .......................................................................................... 15

Radio Card Setup ................................................................................................... 16

Installing the USB Driver ......................................................................................... 16

Serial Cable Setup ................................................................................................. 16

Network Setup ...................................................................................................... 16

Setting the Date and Time ...................................................................................... 17

Entering Data .............................................................................................................. 18

Using the Stylus .................................................................................................... 18

Navigating the Display ............................................................................................ 20

Keypads ............................................................................................................... 23

Scanning Bar Codes ..................................................................................................... 30

Laser Scanning ...................................................................................................... 30

Bar Code Scanning with 2D Imager .......................................................................... 32

OCR Scanning ....................................................................................................... 33

Image Capture ............................................................................................................ 34

Table of Contents

Falcon® 4400 Series with Windows®CE

Flash Memory .............................................................................................................. 34

Saving to Flash ...................................................................................................... 34

Flash FX Location ...................................................................................................34

FlashFX Disk Size ...................................................................................................35

Context Sensitive Help .................................................................................................. 36

Resetting the Falcon .....................................................................................................37

Warm Reset ..........................................................................................................38

Cold Reset ............................................................................................................ 39

Troubleshooting ...........................................................................................................41

RF Connectivity Troubleshooting .............................................................................. 44

Technical Support ........................................................................................................45

PSC Website Support .............................................................................................. 45

PSC Website TekForum ...........................................................................................45

Reseller Technical Support ...................................................................................... 45

Telephone Technical Support ...................................................................................45

Appendix A: PSC Falcon

Windows

CE Series

End User License Agreement.................................................................. 47

Appendix B: Microsoft

Windows

End User License Agreement ............................................................................. 50

Appendix C: PSC Falcon

Windows

CE Product Series Warranty ..................... 51

Appendix D: Safety Information ........................................................................ 52

Laser Safety Label ........................................................................................................52

Advisory Statement ................................................................................................52

Regulatory Statements ................................................................................................. 52

Radio Frequency Interference .................................................................................. 52

Canadian Compliance Statement ..............................................................................52

Appendix E: Laser Safety ................................................................................... 53

International Caution Statements for CLASS 1, 2, 3R, II, and IIA Laser Devices .................... 53

English ................................................................................................................. 53

French .................................................................................................................. 53

German ................................................................................................................ 54

Italian .................................................................................................................. 54

Danish .................................................................................................................. 55

Dutch ................................................................................................................... 55

Swedish ................................................................................................................ 55

Finnish ................................................................................................................. 56

Norwegian ............................................................................................................56

Portuguese ............................................................................................................57

Spanish ................................................................................................................ 57

Chinese ................................................................................................................ 58

Japanese .............................................................................................................. 58

Quick Reference Guide 3

Falcon

4400 Series

with Windows

Overview

The Falcon® 4400 series combines the flexibility of Windows® CE with the

power of the Intel XScale processor, WiFi wireless technology, a large color dis-

play, and laser (1D) and imaging (1D and 2D) scanning in an ergonomic

PDT. The Falcon®4400 series is designed for warehouses, distribution cen-

ters, retail in-store environments, and other inventory management applica-

tions requiring maximum performance and durability.

Overmolded models will handle 5’ / 1.5M drops to concrete, and have an

IP54 environmental rating; and an 86dBA (at 24") / 100dBA (at 10 cm)

beeper. The Falcon® 4400 Series will handle demanding data collection tasks

in industrial environments.

The Falcon Management Utility (FMU) and Falcon Desktop Utility (FDU)

are included with every unit, providing remote management and configurabil-

ity.

This Quick Reference Guide contains the following sections:

• Features of the Falcon on page 4— describes the functions and keys of

the Falcon.

• Powering the Falcon on page 8— gives information about the batteries,

shows how to install the battery pack, and provides options for charging.

• Setting Up the Mobile Computer on page 15 — tells how to calibrate

the Touchscreen, set up the radio card, and set up other options.

• Entering Data on page 18 — using the stylus, navigating the display,

about keypads, and bar code scanning.

•FlashMemoryonpage34 — about the Flash FX disk.

• Context Sensitive Help on page 36 — accessing Help from the Falcon.

• Resetting the Falcon on page 37 — describes warm and cold resets.

• Troubleshooting and PSC Technical Support starting on page 41.

Getting Started

4Falcon

® 4400 Series with Windows®CE

Getting Started

Before using the Falcon for the first time, you must install the battery pack

into the Falcon, then charge both the battery pack and the backup battery. See

Installing the Battery Pack on page 9for instructions.

Features of the Falcon

Four perspectives of the Falcon®4400 Series Windows® CE mobile computer

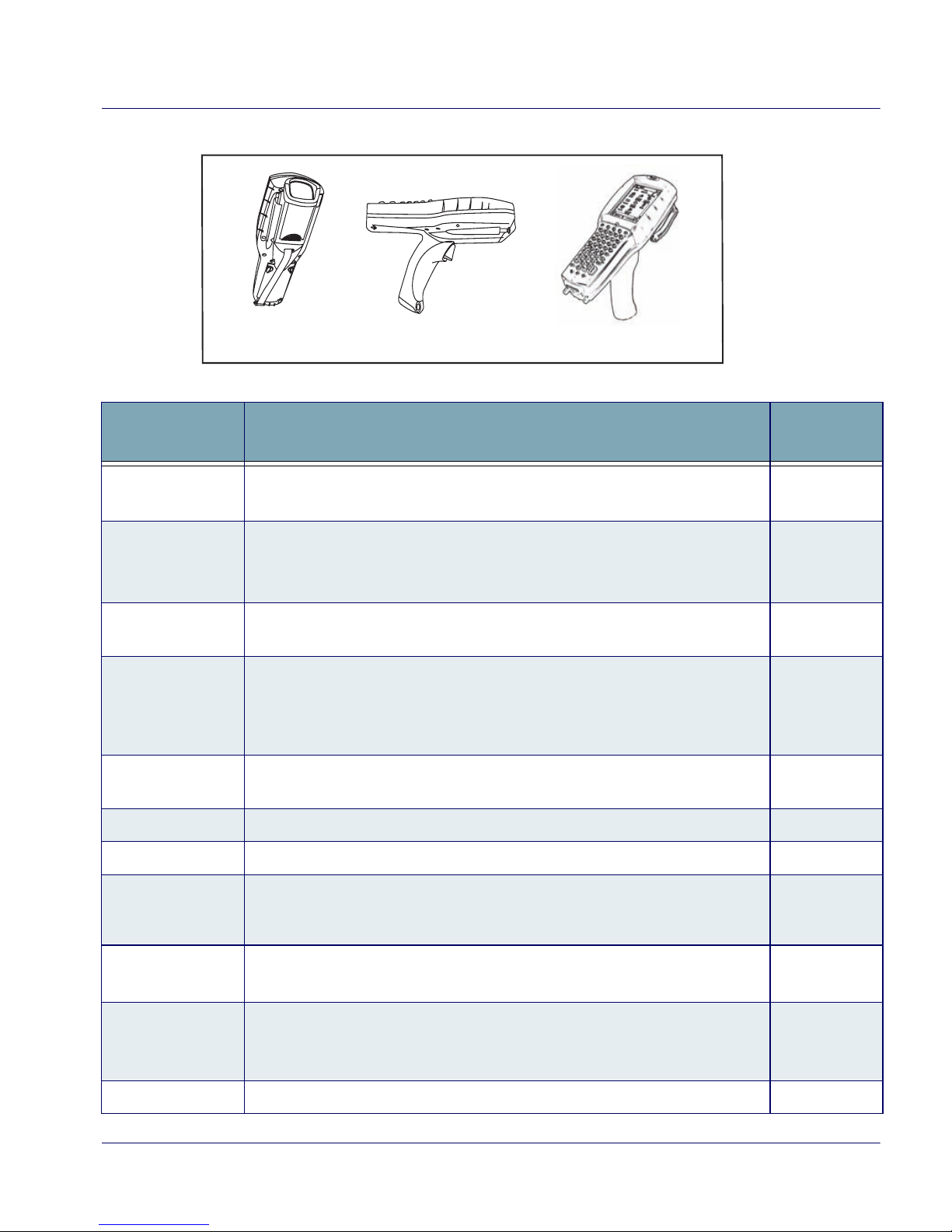

are shown. Refer to Table 1 on page 7for a list of the illustrated parts with ref-

erences to more detailed information.

CAUTION

You must charge the battery pack and backup battery in a dock or with a

power cable prior to your first use of the Falcon. The initial charge time is

approximately 24 hours. See Charging the Batteries on page 12 for more

information.

Features of the Falcon

Quick Reference Guide 5

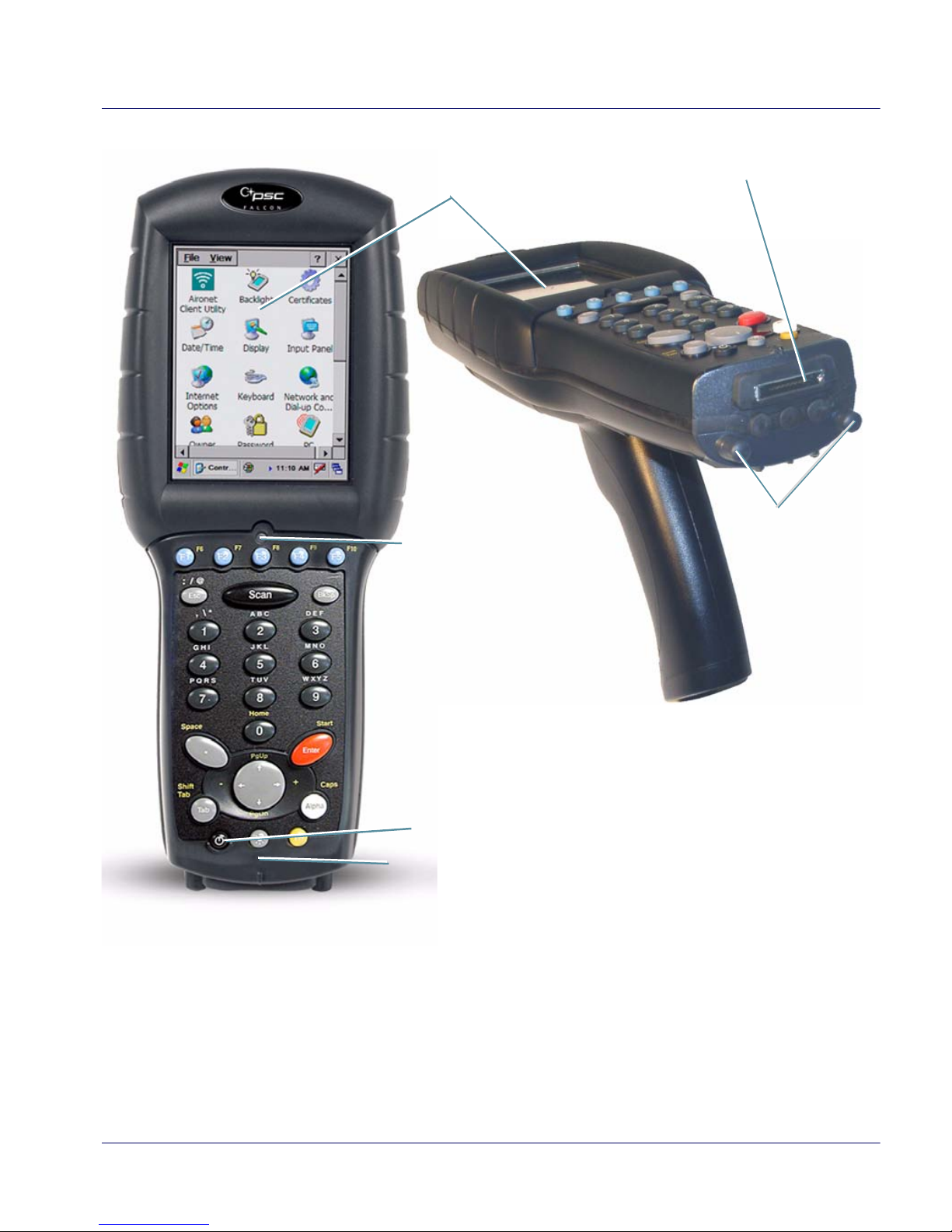

Figure 1. Falcon 26-Key Keypad and Connector Views

For a complete description of each key on the Falcon, refer to page 23.

Touchscreen

Display

Handle

Falcon

44xx

26-Key

Keypad

USB/Serial Connector

Strap Studs

w/Rubber

Bumper

Falcon 4420

Handled model

Reset

Power Key

LED Scanning/

Charging Indicator

Features of the Falcon

6Falcon

® 4400 Series with Windows®CE

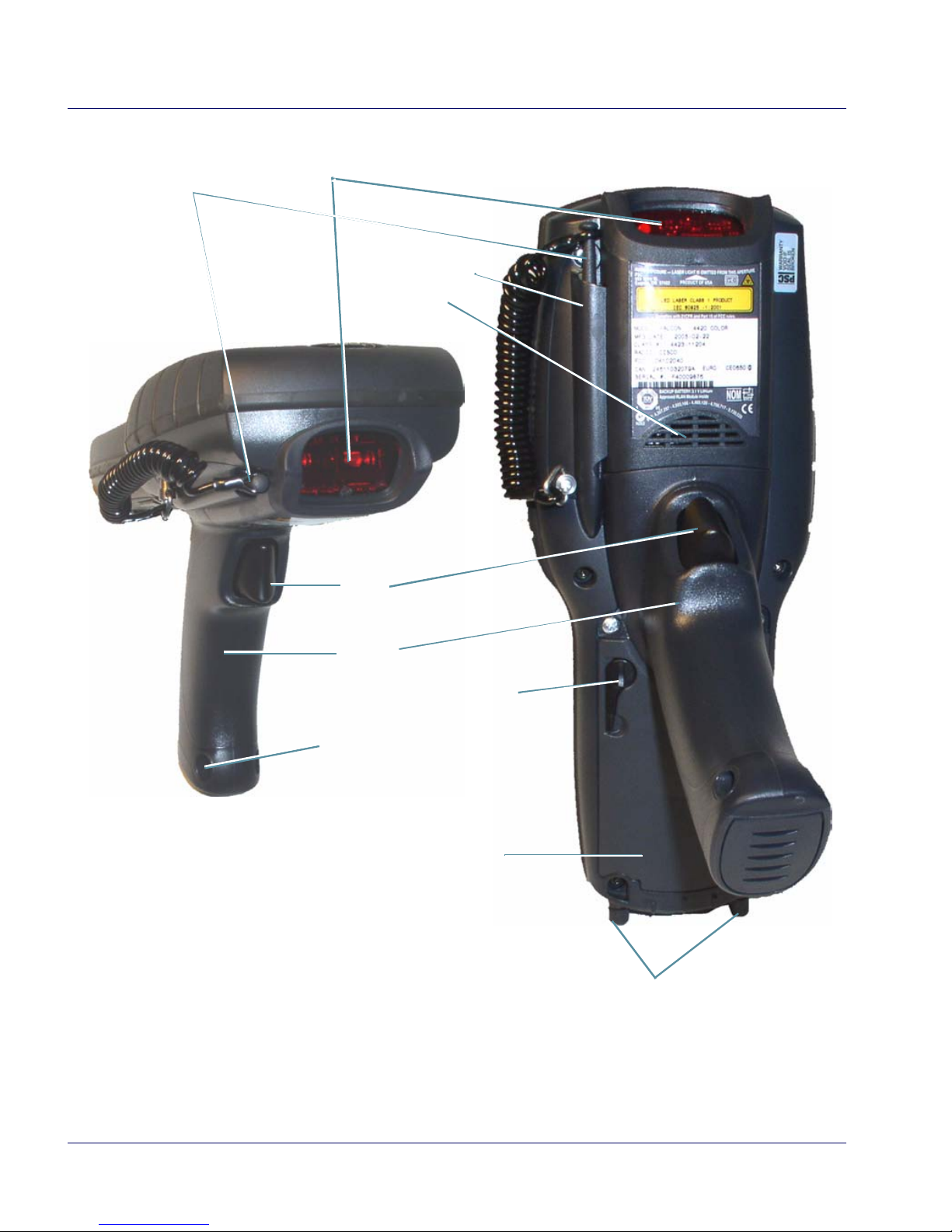

Figure 2. Falcon Scanner and Battery Door Views

For more information, please refer to the Falcon®4400 Windows®CE Mobile

Computer Product Reference Guide (PRG), located on the Falcon 4400 Product

CD that came with your device.

Strap Studs

Trigger

Handle

Stylus

Tether/Lanyard Port

Stylus Holder

Battery Door

Speaker

Battery Door

Latch

(2 each)

Scanner Aperture

Features of the Falcon

Quick Reference Guide 7

Figure 3. Model comparison

Table 1. Features of the Falcon

Feature Function/Description More

Information

Battery Door Rotate the latches to unlock the battery door so the battery pack can be

removed.

Figure 4,

page 9

Display/Touch

Screen

The equivalent of a PC monitor for viewing and interacting with the current

application. This display is touch-sensitive; use it like you would a mouse on

a PC.

Figure 1,

page 15,

page 20

Handle The Falcon 442X comes with a handle that is ergonomically designed for

ease of use with a scanner trigger. Figure 1

Reset key

Insert an object, such as a paper clip, into this hole to perform a cold reset of

the unit. PSC recommends that you attempt a warm reset first.

Do not use a sharp object, or you could disable the reset function, puncture

the keypad’s industrial seal, and void your warranty.

page 37

Keypad Use the alpha-numeric, function, and navigation keys on the keypad to enter

numbers, letters, symbols and navigate with the keypad. page 23

Lanyard Port Insert a lanyard to secure a Falcon to a person or work station. page 6

Scanner Aperture The laser or imaging scanning beam is emitted from this aperture. page 30

LED

When scanning, a red LED indicates the laser is on and a green LED indicates a

good read. When the Falcon is charging in the dock, a red LED on the Falcon indi-

cates charging and a green LED on the Falcon indicates fully charged.

Figure 1

Power Key Press the Power key to turn the Falcon on and off, or to toggle the device

between suspend (sleep) mode and resume (on).

Figure 1,

page 23

Speaker

The speaker plays *.WAV and other media files, emits beeps or tones to

indicate errors or good reads when bar code scanning and inputting data

using the keypad or stylus.

Figure 2

Strap Studs The Falcon 441X comes with a handstrap that connects to the strap studs. Figure 2

Model 4420

Model 4410 Model 4420 with Tethered Stylus

Powering the Falcon

8Falcon

® 4400 Series with Windows®CE

Powering the Falcon

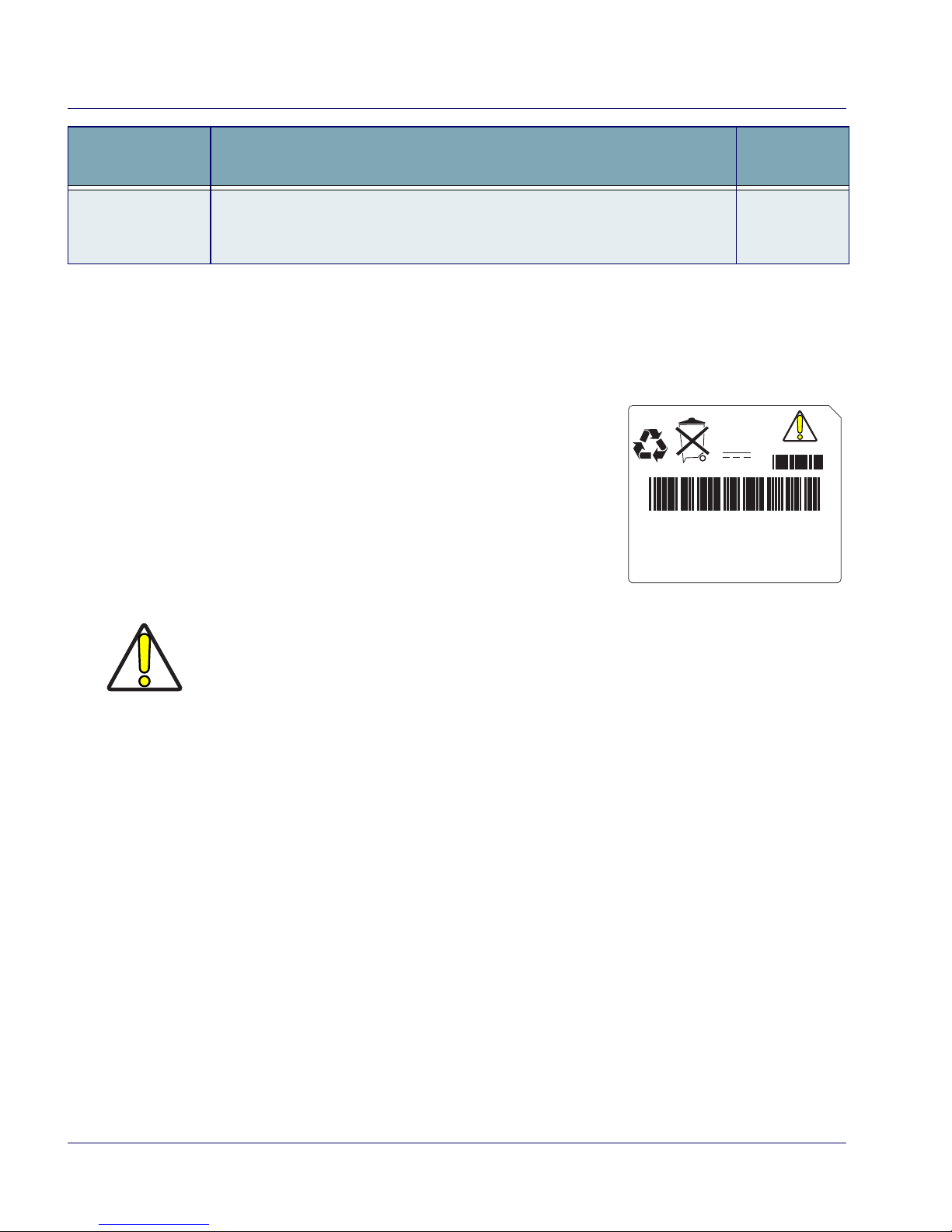

Battery Pack

The battery pack in the Falcon is a 3.7 V, 2000

mAh Lithium Ion battery pack. You will be

alerted with a message dialog box when the bat-

tery pack reaches a low state.

After charging the first time, a complete charge

takes about four (4) hours depending on the bat-

tery pack’s state and the recharging method. A

sample battery pack label is shown at the right.

Stylus

Use the stylus for navigation, the soft input panel (SIP), and to select items

on the touch screen. Place the stylus in the holder after use so you don’t lose

or misplace it. An optional Stylus Tether is available for all models.

Figure 10,

page 18

Feature Function/Description More

Information

3.7V

Li-ion

CAUTION: Battery can explode, leak or catch

fire if exposed to high temperature, water or fire.

Do not short circuit, open or disassemble battery.

Recycle or dispose of properly.

2000mAh

5-1764

Product of USA

U S

CAUTION

You must charge the battery pack and backup battery in a dock or with a

power cable prior to your first use of the Falcon. The initial charge time is

approximately 24 hours.

If you remove the battery pack or it fails, there is a 30 minute window in which

to insert a charged battery pack before the backup battery fails. If your backup

battery fails, the contents of the RAM memory will be lost. If your back-up bat-

tery is less than fully charged, there is proportionally smaller window of time

available. Usage time will be reduced, also.

Always charge the battery pack within the temperature range of 32°–113°F (0°–

45°C).

Use only the authorized power supplies, battery packs, chargers, and docks

supplied by your PSC reseller. The use of an other power supplies can dam-

age the Falcon and void your warranty. Refer to the PRG for the correct power

supplies and Accessories.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Falcon Palmare

Falcon

Falcon 26-Key Manuale utente

Manuali Palmare popolari di altre marche

Honeywell

Honeywell Dolphin 9900 Manuale utente

Honeywell

Honeywell CN75 Manuale utente

MiTAC

MiTAC Mio 168 Manuale utente

Wasp

Wasp WDT92 Manuale utente

Texas Instruments

Texas Instruments TI-Nspire Manuale utente

AXEM Technology

AXEM Technology MBS Manuale utente

Armstrong

Armstrong Brain Wave Istruzioni per il montaggio

Unitech

Unitech TB128 Manuale utente

Symbol

Symbol MC9000-G Manuale di installazione e funzionamento

Unitech

Unitech HT1 1D Batch Manuale utente

Ingenico

Ingenico IWL220 GPRS Manuale utente

Intermec

Intermec CK61 Manuale utente

Symbol

Symbol c2000 Manuale utente

Symbol

Symbol MC18 Manuale di installazione e funzionamento

Acer

Acer n20 Manuale utente

Intermec

Intermec CK61 Manuale utente

Docomo

Docomo F-04H Manuale utente

Toshiba

Toshiba e350 Series Manuale utente
