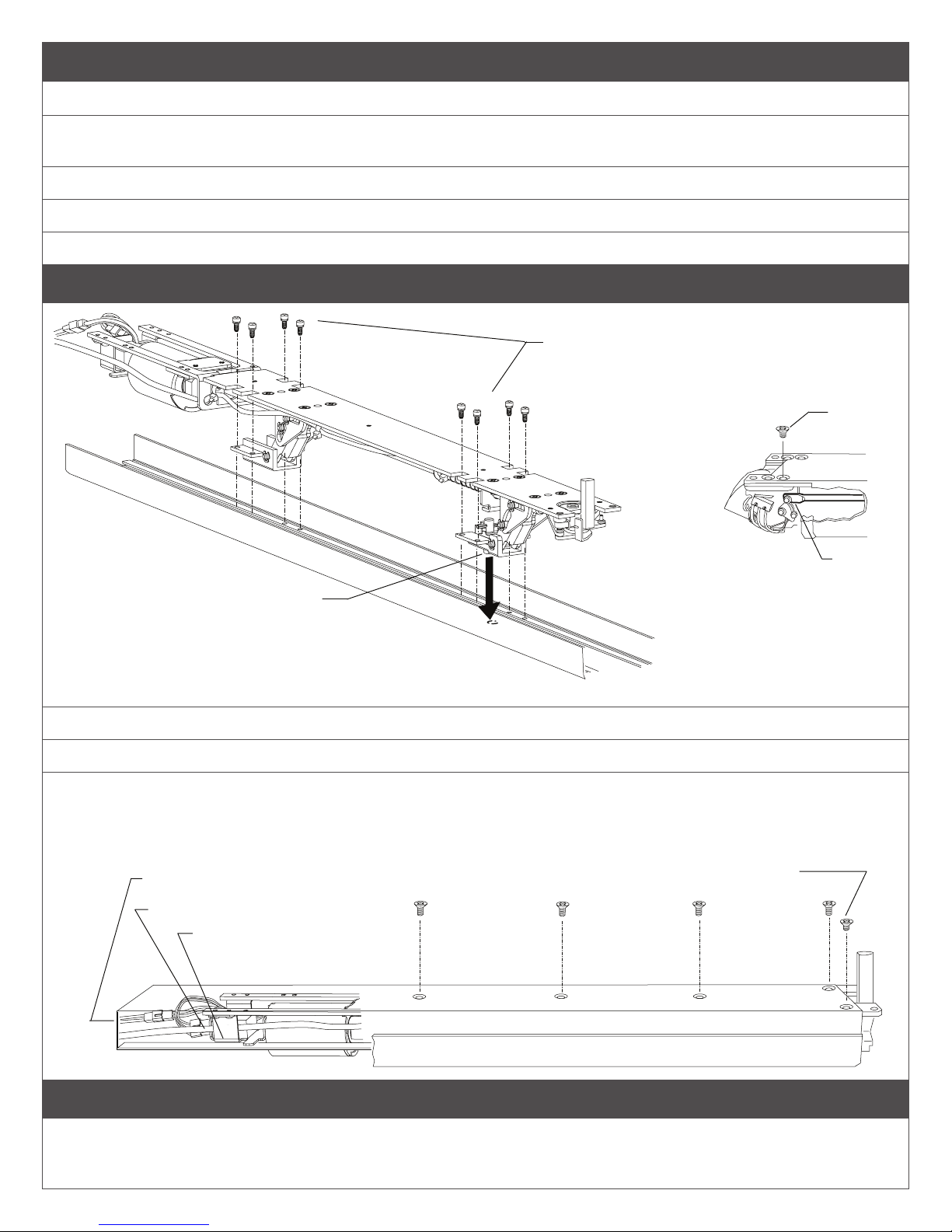

3 Remove pushbar and replace on new baseplate assembly
3a Remove eight clevis mounting screws using a magnetized #2 phillips screwdriver.
3b Remove old baseplate assembly from pushbar.
Verify length (clevis to clevis) of old baseplate assembly matches new one.
3c Place new baseplate assembly on pushbar.
3d Align dogging post on clevis with dogging hole in pushbar.
3e Install eight clevis mounting screws using a magnetized #2 phillips screwdriver.
4 Reinstall channel
Make sure all lock
washers are installed
on screws
Clevis mounting screws
Align dogging post on clevis
with dogging hole in pushbar
4a Slide channel onto new baseplate assembly.
4b Verify that wires and ears stay inside channel (see picture).
4c Install ve channel mounting screws (1 screw shorter than the others).
4d Verify pushbar moves up and down freely without binding. If binds, check that:
• Short channel screw is in correct position.
• All wires are routed inside channel.
• Ears of solenoid bracket are inside channel.
Make sure shorter screw is installed in correct hole
(on bottom side of device when device is mounted)
All wires contained inside channel
Gray cable routed inside PCB bracket
Ears of solenoid bracket
inside channel
5 Reinstall Device
See device instructions for wiring and installation. For old applications wire size to the power supply may need to be increased. Solenoid
wiring must be 12 AWG, 200 feet maximum, between power supply and EL device.
Rod end
Shorter
screw
Figure 4-1
