FAMOCO FX105F Manuale utente
User Manual
FX105F
Professional Android Device
Table of Contents
1. Copyright............................................................................................................................. 3
2. Trademarks.......................................................................................................................... 3
3. Warnings and safety notices ................................................................................................ 4
4. Limitation of liability............................................................................................................ 4
5. About this manual ............................................................................................................... 4
6. Device layout....................................................................................................................... 5
Overview ............................................................................................................................5
Back view...........................................................................................................................5
Buttons and the related.....................................................................................................6
7. Package contents................................................................................................................. 7
8. Getting started..................................................................................................................... 8
How to switch the device ONor OFF...............................................................................8
Home screenand synchronization ..................................................................................8
LED colors........................................................................................................................10
How to access the dashboard........................................................................................10
How to find your specificFamoco ID.............................................................................11
How to chargethe device................................................................................................11
How to changethe battery..............................................................................................12
How to use the battery ....................................................................................................13
How to read anNFC card................................................................................................13
About the SIM slots.......................................................................................................14
9. Technical specifications .................................................................................................. 14
10. Warranty information ......................................................................................................15
11. Safety and general information........................................................................................ 16
Electromagnetic waves safety information– SAR ...................................................................... 18
12. DOC .....................................................................................................................................................20
13 support band information and powet............................................................................................. 21
14 Restrictions in the 5 GHz band ........................................................................................................21
15 FCC and IC warnings ................................................................................................................... 22
1. Copyright
Copyright ©2020 Famoco. All rights reserved.
This manual is protected under international copyright laws.
No part of this manual may be reproduced, distributed, translated, or
transmitted in any form or by any means, electronic or mechanical,
including photocopying, recording, or storing in any information
storage and retrieval system, without the prior written permission of
Famoco.
We reserve the right to make modifications on print errors or update
specifications without prior notice.
2. Trademarks
•
Famoco and the Famoco logo are registered trademarks of
Famoco.
•
The Android logo is a trademark of Google,Inc.
•
Bluetooth® is a registered trademark of Bluetooth SIG, Inc.
worldwide.
•
Wi-Fi® and the Wi-Fi logo are registered trademarks of theWi-Fi
Alliance.
•
All other trademarks and copyrights are the property of their
respective owners.
FAMOCO SAS
59 avenue Victor Hugo, 75116 Paris – FRANCE
www.famoco.com
3. Warnings and safety notices
Please read all the safety notices before using this device. Do not use
the device near fuel or chemicals or in any prescribed area such as
service stations and refineries. Do not transport or store flammable gas,
liquid or explosives in the same compartment of your vehicle as your
device and accessories.
4. Limitation of liability
Famoco shall not be liable for any loss of profits or indirect, special,
incidental or consequential damages resulting from or arising out of or
in connection with using this product, whether or not Famoco had
been advised, knew or should have known the possibility of such
damages. The user should refer to the enclosed warranty card for full
warranty and service information.
5. About this manual
Congratulations on becoming the owner of a Famoco FX105 device.
This user manual is specially designed to detail the device’s functions
and features.
Please read this manual before using the device to ensure safe and
correct use.
•
Descriptions are based on the device’s defaultsettings.
•
Images and screenshots may differ in appearance from the actual
product.
•
Content may differ from the final product, or from software provided
by service providers or carriers, and is subject to change without
prior notice.
•
Available features and additional services may vary by device,
software, or serviceprovider.
•
Applications and their functions may vary by country, region, or
hardware specifications. Famoco is not liable for performance
issues caused by applications from any provider other thanFamoco.
•
Famoco is not liable for performance issues or incompatibilities
caused by edited registry settings or modified operating system
software. Attempting to customize the operating system may cause
the device or applications to workimproperly.
6. Device layout
Overview
Back view
1 Indicatorlight
2 Power button
3 Volumedown
4 Type USB-C port
1 Rear Camera
2 Flash
3 NFC antenna
4 Speaker
1
2
3
4
1
2
3
4
Buttons and the related
Name Function
Power button
Long press: turn the device ON/OFF
Short press: screen ON/OFF (standby mode)
Customizable
button
Action can be defined by the customer
Volume up &
down
Press to turn the volume up or down
USB Type C port Connect the device to a USB type C power source
or computer
Indicator light
Turn red to indicate when the device is charging
and green when full charge level is reached
7. Package contents
Check the product box for the following items:
Terminal
Battery
Charging Dock
Charging cable
User Manual
Note:
•
The items supplied with the device and any availableaccessories
may vary depending on the region or serviceprovider.
•
The supplied items are designed only for this device and may not
be compatible with other devices.
•
Appearances and specifications are subject to change without prior
notice.
•
Third-party accessories may not be compatible with yourdevice.
8. Getting started
How to switch the device ON or OFF
To power ON:
Press and hold the power button for three seconds then release. The
home screen will be displayed after a few moments.
To power OFF:
Press and hold the power button for two seconds, then select shut
down option on the screen.
Standby mode:
The device enters the standby mode after 30 seconds by default if left
alone.

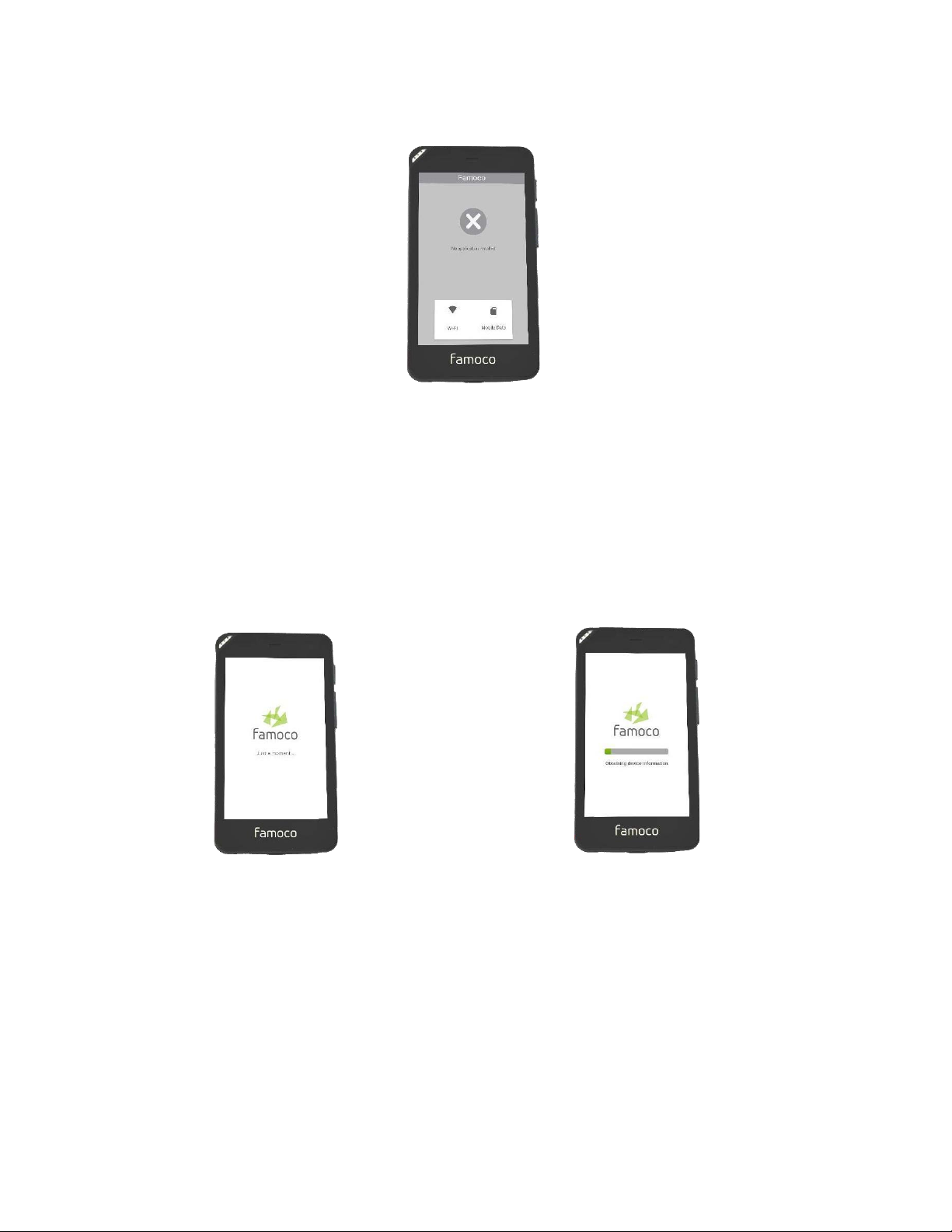

Home screen and synchronization
Once your device is switched on it will start synchronizing.
If there are no applications installed on it yet, the device will be locked
on a screen that shows the following indication to configure the
internet connection:
To set up your device you need connectivity so that it can synchronize.
Please install a SIM card or set up Wi-Fi or contact your customer
support.
If there is a connection, one of the following screens will appear
(depending on the synchronization status):
If the synchronization is in progress, please wait until it is complete.
If the synchronization is complete but no applications have been
installed, or if the synchronization has been aborted, please contact
your customer support.

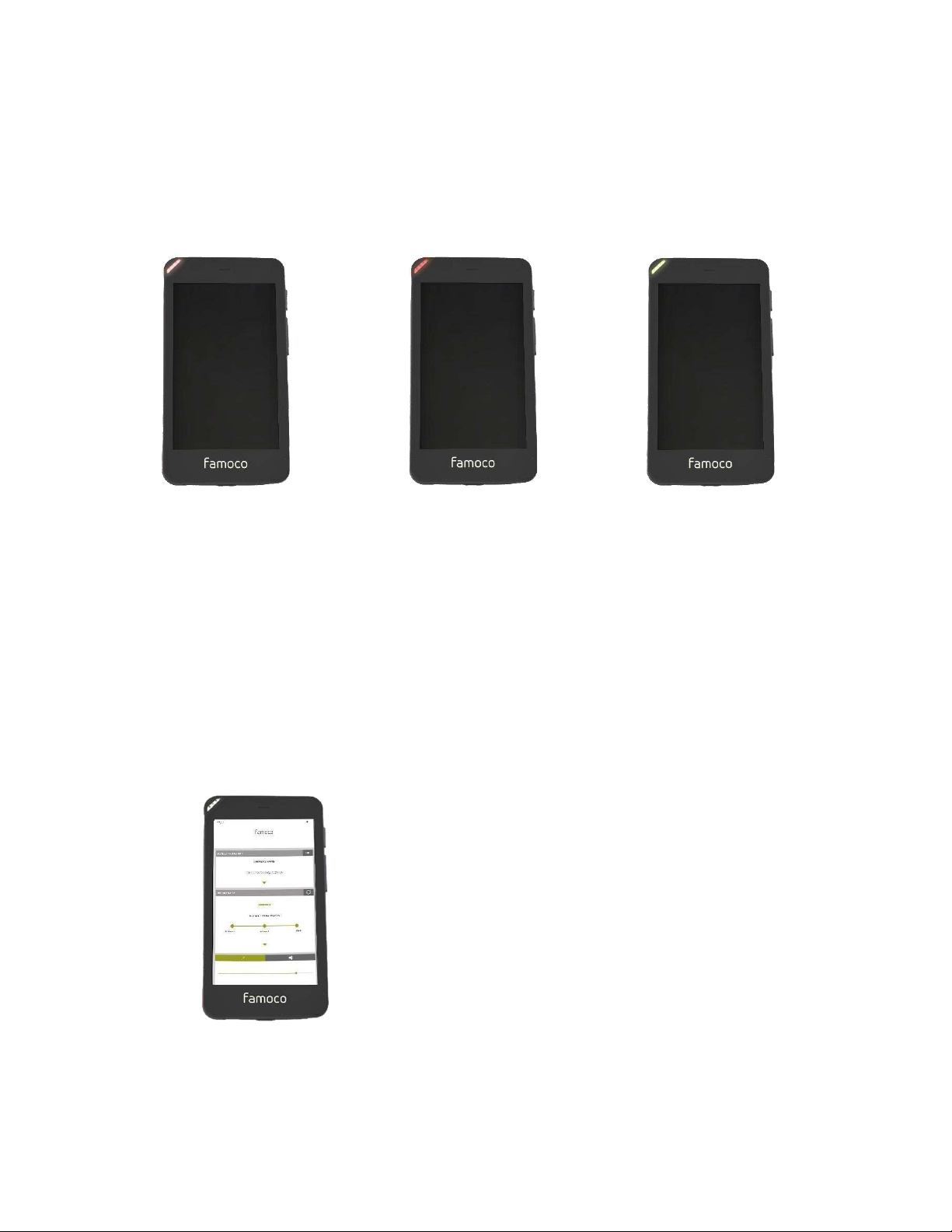

LED colors
The LED on the device can show different colors.
Those colors are defined by the application but there are default
features:
Blinking red Red Green
Low battery Battery charging Battery charged
How to access the dashboard
When your device is switched on you can access the dashboard by
pressing the volume up button for three seconds and then release it.
In the dashboard you will find:
•
Famoco serial number
•
Connectivity
•
Time
•
Battery level
•
Brightness (that you can
modify)
•
Volume (that you canmodify)
Indice
