FANATEC CSL DD Manuale utente
Rev. 03
Manual
EN
Thank you for choosing
To get the most out of your CSL DD, please read this manual before rst
use. It contains important health and safety information and should be
retained for future reference.
INDEX
1. General ................................................................................................................. 1-2
2. Compatibility........................................................................................................ 2
3. Package Contents .............................................................................................. 3
4. Assembly.............................................................................................................. 4-11
4.1 Plan Your Setup ........................................................................................... 4
4.2 Hard-Mounting ............................................................................................. 4-5
4.3 Table Clamp Assembly................................................................................ 6-7
4.4 Attaching a Steering Wheel ........................................................................ 8-9
4.5 Connections ................................................................................................. 10
4.6 Recommended Accessories ....................................................................... 11
5. Functions & Features.......................................................................................... 12-21
5.1 Firmware & Driver Update........................................................................... 12
5.2 Start-Up Procedure...................................................................................... 12
5.3 Modes ........................................................................................................... 13
5.4 Centre Calibration........................................................................................ 13
5.5 Shifter Calibration........................................................................................ 14-15
5.6 Tuning Menu................................................................................................. 15-22
6. Cleaning ............................................................................................................... 23
7. Troubleshooting .................................................................................................. 23-24
8. Video Manual ....................................................................................................... 25
9. Serial Number ...................................................................................................... 25
10. Trademarks ........................................................................................................ 25
11. Product Recycling ............................................................................................. 25
12. Compliance ........................................................................................................ 26
13. Warranty ............................................................................................................. 27
WARNING! Musculoskeletal disorders
Use of game controllers, keyboards, mice, or other electronic input devices may be linked
to serious injuries or disorders. When playing video games, as with many activities,
you may experience occasional discomfort in your hands, arms, shoulders, neck, or
other parts of your body. However, if you experience symptoms such as persistent or
recurring discomfort, pain, throbbing, aching, tingling, numbness, burning sensation,
or stiness, DO NOT IGNORE THESE WARNING SIGNS. PROMPTLY SEE A QUALIFIED
HEALTH PROFESSIONAL, even if symptoms occur when you are not playing a video game.
Symptoms such as these can be associated with painful and sometimes permanently
disabling injuries or disorders of the nerves, muscles, tendons, blood vessels, and
other parts of the body. These musculoskeletal disorders (MSDs) include carpal tunnel
syndrome, tendonitis, tenosynovitis, vibration syndromes, and other conditions.
While researchers are not yet able to answer many questions about MSDs, there is general
agreement that many factors may be linked to their occurrence, including medical and
physical conditions, stress and how one copes with it, overall health, and how a person
positions and uses their body during work and other activities (including playing a video
game). Some studies suggest that the amount of time a person performs an activity may
also be a factor. If you have questions about how your own lifestyle, activities, or medical
or physical condition may be related to MSDs, see a qualied health professional.
WARNING! Photosensitive Seizures
A small percentage of people may experience a seizure when exposed to certain visual
images, including ashing lights or patterns that may appear in video games. Even people
who have no history of seizures or epilepsy may have an undiagnosed condition that
can cause these “photosensitive epileptic seizures” while watching video games. These
seizures may have a variety of symptoms, including light-headedness, altered vision, eye or
face twitching, jerking or shaking of arms or legs, disorientation, confusion, or momentary
loss of awareness. Seizures may also cause loss of consciousness or convulsions that
can lead to injury from falling down or striking nearby objects. Immediately stop playing
and consult a doctor if you experience any of these symptoms. Parents should watch for
or ask their children about the above symptoms – children and teenagers are more likely
than adults to experience these seizures. The risk of photosensitive epileptic seizures may
be reduced by taking the following precautions:
• Sit farther from the TV screen.
• Use a smaller TV screen.
• Play in a well-lit room.
• Do not play when you are drowsy or fatigued.
If you or any of your relatives have a history of seizures or epilepsy, consult a doctor before
playing.
1 1
ATTENTION!
• The device must not be exposed to rain or humidity in order to avoid risk of re and /
or electric shock.
• Operating room temperature: 15°C - 35°C
• The recommended operation time with continuous force feedback activity is 1 hour.
• Excessive use may cause health risks. We recommend taking a 5 minute break after
every 20 minutes of use, and to not drive for more than 2 hours per day.
• Not intended for children under the age of 6 years old. Contains small pieces which
pose a choking hazard!
• Do not open the casing of the device.
• This device contains components that cannot be repaired by the user. Opening the
device casing will void the warranty.
WARNING! Electrical Safety:
• The CSL DD must be connected to an appropriate power source:
• Always connect the DC side of the power supply to the wheel base before
connecting the AC side of the power supply to your wall socket.
• Only original power supply units from FANATEC®may be used with the CSL DD.
Either the standard 90W PSU or the Boost Kit 180. The use of any third party power
supplies may cause damage to the CSL DD, connected peripherals, and present
a serious safety hazard to the user. The use of any third party power supplies will
void the CSL DD warranty and any connected Fanatec peripheral warranties!
• Use only the power cord that is included in the package contents with your CSL DD.
Replacements may only be issued from an authorised repair centre.
• Do not use non-standard power sources such as generators or inverters, even if
the voltage and frequency appear acceptable. Only use AC power provided by a
standard wall outlet.
• To avoid damage, do not expose your CSL DD to sources of heat.
• When connecting and / or disconnecting any steering wheel to / from the CSL DD, take
care of the pins inside the Quick Release.
• Only use Fanatec steering wheels with the CSL DD.
• Unplug the power cord of your CSL DD during storms or when unused for long periods
of time.
• If the CSL DD becomes damaged in any way, stop usage immediately and contact
Fanatec Customer Support: Fanatec.com/support/faq.
GENERAL
1
2 2
GENERAL NOTES
• All specications in this document are subject to change. The CSL DD rmware and /
or PC driver may be updated to implement new features or general improvements.
• Fanatec steering wheels which may be mentioned in this manual are not included
within the CSL DD package and sold separately. You can obtain them from the Fanatec
webshop: Fanatec.com
• Additional peripheral devices like shifters, pedals, LED displays and others which may
be mentioned in this manual are not included within the CSL DD package and are sold
separately. You can obtain them from the Fanatec Webshop: Fanatec.com
• This manual discusses assembly, connections, and functions related to Fanatec
steering wheels and other additional devices. This is not a replacement manual for the
other corresponding products! Read the quick guides or user manuals for the other
products as well!
• The warranty does not include defects that are due to commercial use of the product.
See chapter “Warranty” at the end of this user manual as well as the Terms &
Conditions on Fanatec.com for more details.
• To understand user behaviour with the CSL DD, and to help us improve this and future
products, the wheel base continuously logs the number of hours it has been used
on the standard power supply and Boost Kit 180. Logged data is product-related, not
user-related, and therefore anonymous.
The CSL DD can be used with a wide range of CSL, CSL Elite, ClubSport,
and Podium series steering wheels and hubs. Using dierent wheels
helps to create a more realistic feeling based on the type of vehicle being
simulated and your driving style. It’s up to you! Additional peripheral
devices from Fanatec such as pedals, shifters, and a handbrake are
fully compatible with the CSL DD. You can obtain them from the Fanatec
webshop: Fanatec.com
The CSL DD is compatible with Windows PC and with Xbox One and Xbox
Series X|S when used with an ocially licensed Xbox Fanatec steering
wheel. Check steering wheel compatibility for details.
IMPORTANT: CSL DD is fully usable out of the box. We always recommend
updating to the latest driver and rmware. See chapter 5.1 “Firmware &
Driver Update” for more details. A Windows PC and PC mode selected on
the wheel base is required to perform rmware updates.
COMPATIBILITY
2
3 3

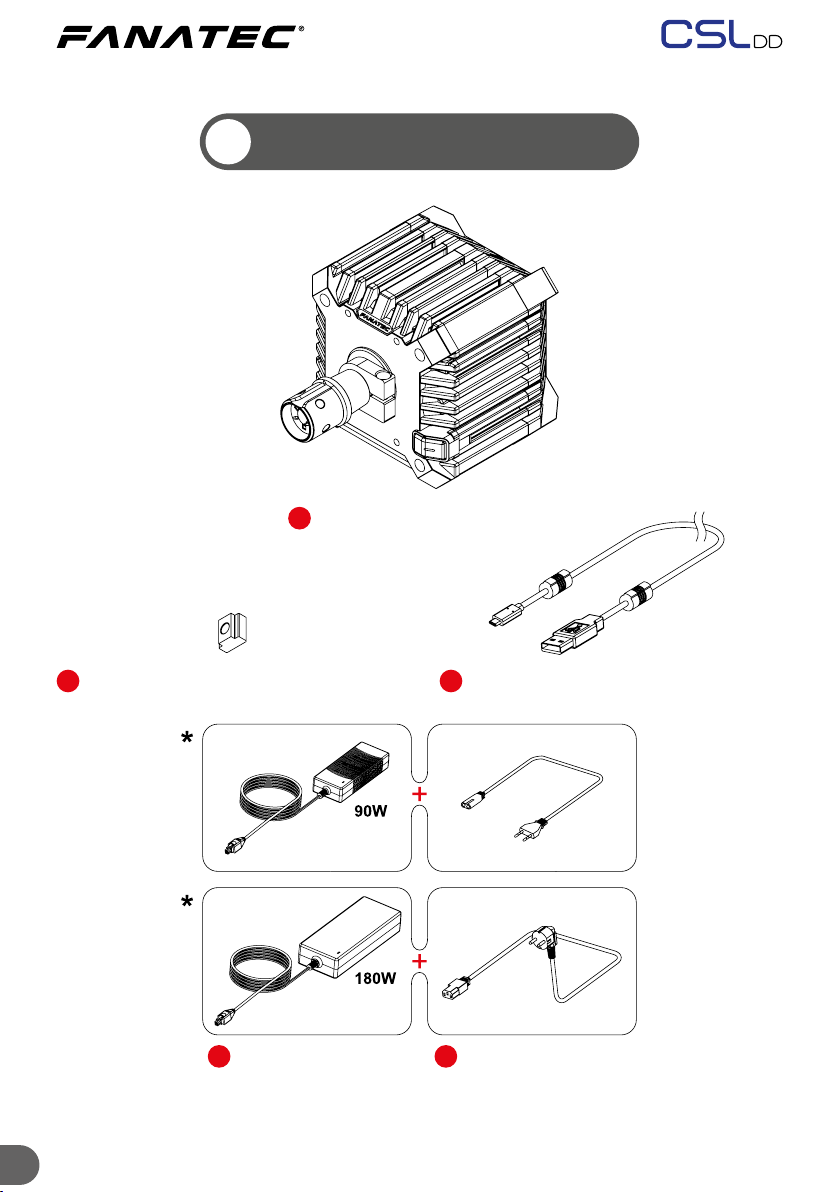

PACKAGE CONTENTS
3
4x M6x8 mm Hard-Mounting T-Nut 1x USB Type-A to Type-C Cable
1x Power Supply 1x Power Cord
(Regional)
1x CSL DD Wheel Base
A
BC
*Included PSU selected before purchase
DE
4 4

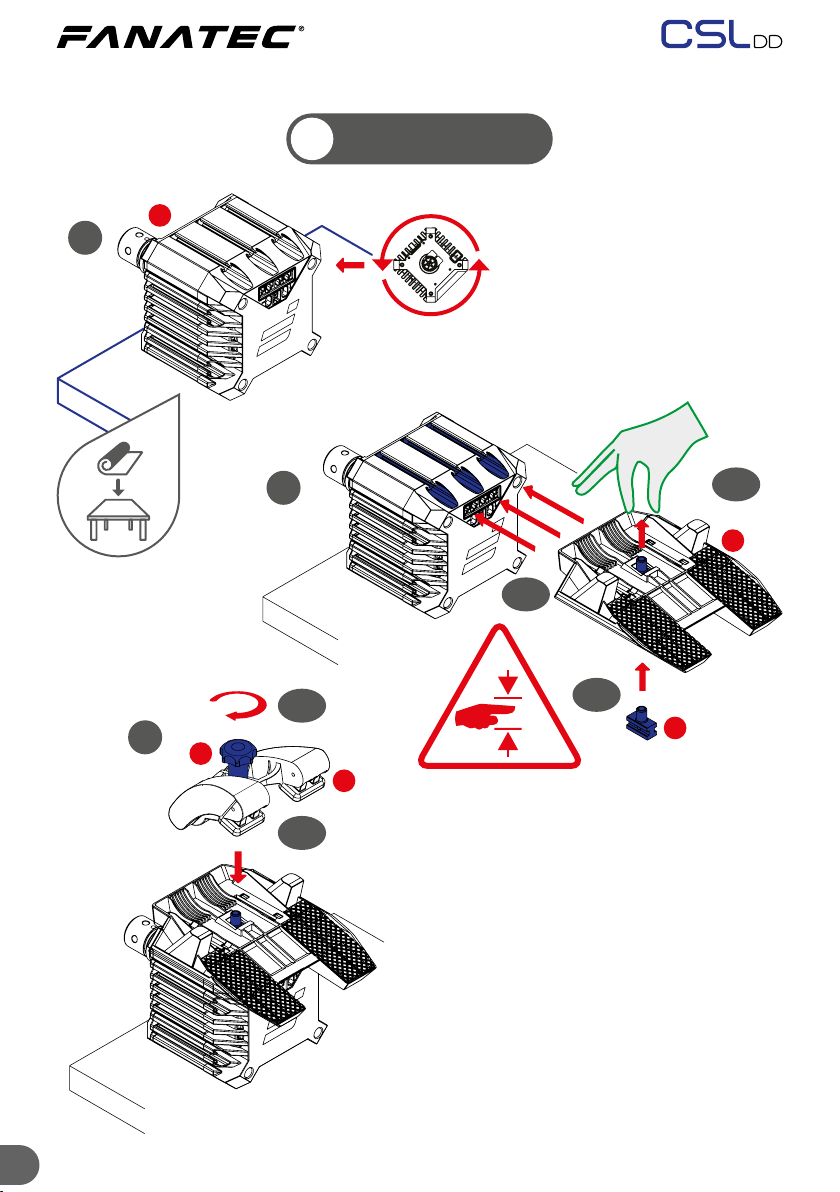

To get started with using the CSL DD, decide on
whether you will hard-mount the wheel base or use the
CSL Table Clamp (not included), connect your steering
wheel via the Quick Release system, then connect the
CSL DD to your PC or Xbox console (Xbox licensed
steering wheel required) using the included USB cable.
It is important to follow the chapter sequence of this
manual for an eective assembly and setup procedure.
ATTENTION: See chapter 4.5 “Connections” for which
type of peripheral devices must be connected to which
port at the rear of the CSL DD. All devices have to be
connected to the CSL DD before powering ON to allow
proper detection and operation. Only use the included
USB cable from your CSL DD package contents to
avoid damages! Ensure there is enough space around
the wheel base to allow for air to circulate. Passive air
circulation is sucient.

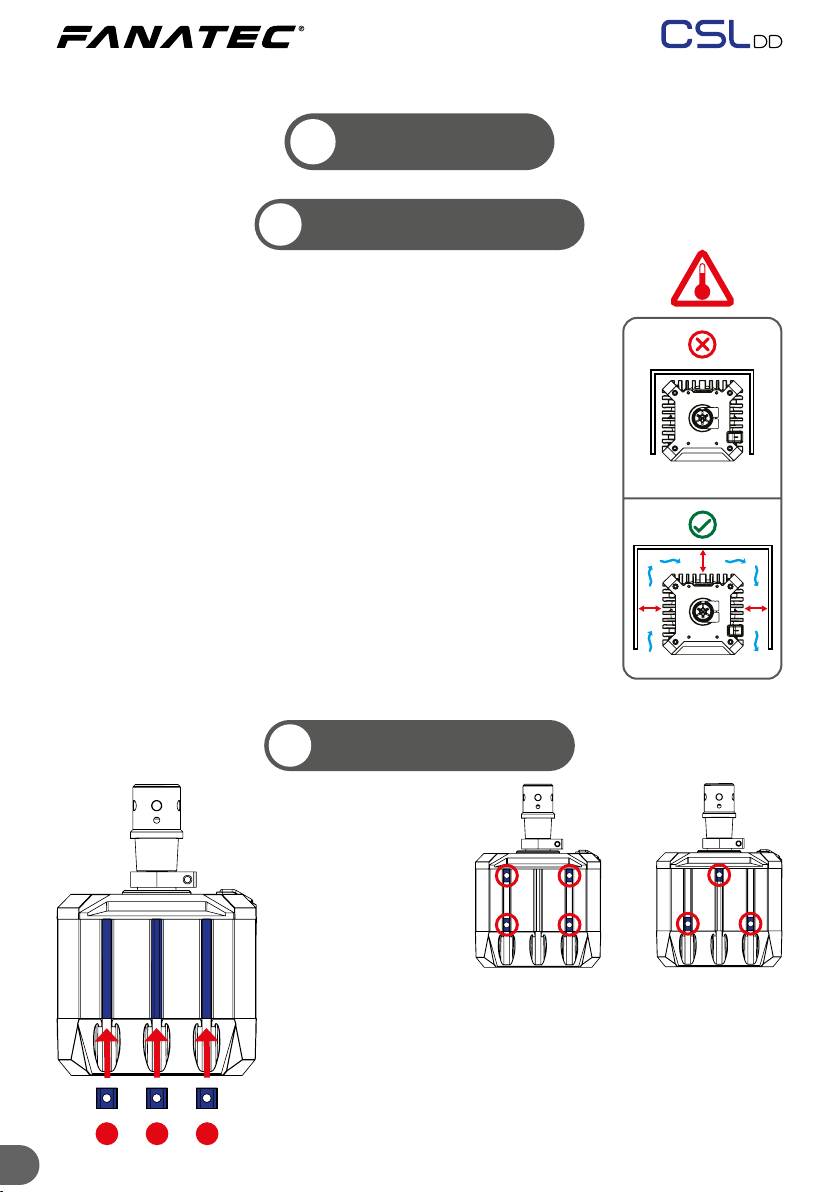

Insert the T-nuts
into the T-slots
found on the
underside of the
wheel base for
hard-mounting
from the bottom.
You can position the T-nuts in
any conguration to suit the
position of the holes on your
hard-mounting surface. The
examples above show optimal
T-nut positions.
ASSEMBLY
PLAN YOUR SETUP
HARD-MOUNTING
4
4.1
4.2
B B B
5 5

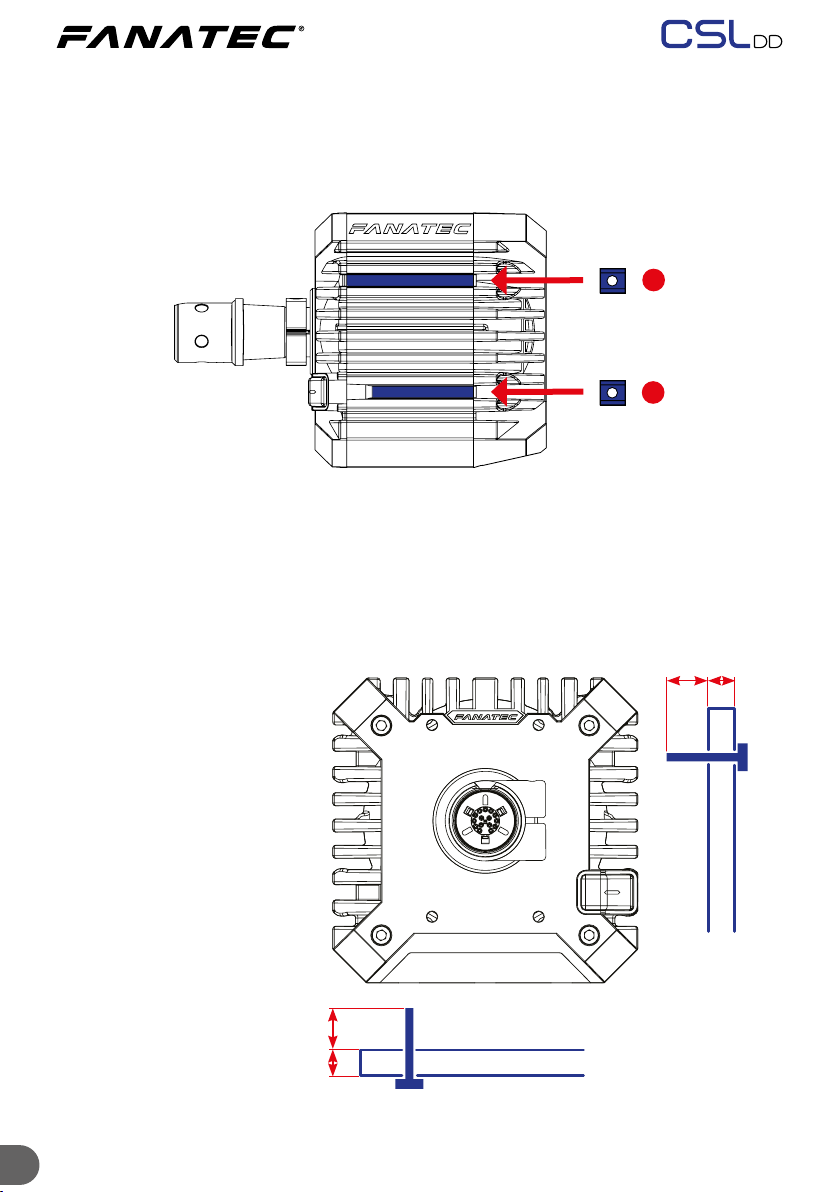

Insert the T-nuts into the T-slots found on the sides of the wheel base for
hard-mounting from the sides.
You can position the T-nuts in any conguration to suit the position of the
holes on your hard-mounting structure.
For optimum side-mounting, check out our optional PODIUM Mounting
Brackets at Fanatec.com. (M6 bolts and washers required.)
NOTE: Use only good
quality bolts when
hard-mounting.
Bolt specications:
M6x(10+X) mm
X
X
M6
M6
10 mm
10 mm
B
B
Altri manuali per CSL DD
1
Indice
Altri manuali FANATEC Accessori per videogiochi
FANATEC
FANATEC Clubsport Manuale utente
FANATEC
FANATEC CSR Elite Manuale utente
FANATEC
FANATEC CSL Manuale utente
FANATEC
FANATEC ClubSport Universal Hub For Xbox One Manuale utente
FANATEC
FANATEC CSL Manuale utente
FANATEC
FANATEC Porsche 911 Turbo S Wheel Manuale utente
FANATEC
FANATEC ClubSport Pedals V3 inverted Manuale utente
FANATEC
FANATEC CSL Elite Racing Wheel Manuale utente
FANATEC
FANATEC SPEEDSTER 3 FORCESHOCK Manuale utente
FANATEC
FANATEC CSL RP1X Manuale utente
FANATEC
FANATEC CSL Elite V2 Manuale utente
FANATEC
FANATEC CSL Elite Wheel Base + Manuale utente
FANATEC
FANATEC CSL Pedals Manuale utente
FANATEC
FANATEC CSL Elite Racing Wheel Manuale utente
FANATEC
FANATEC CSL Elite Wheel Base Manuale utente
FANATEC
FANATEC ClubSport Formula Manuale utente
FANATEC
FANATEC CSl Elite P1 Manuale utente
FANATEC
FANATEC Clubsport Manuale utente
FANATEC
FANATEC PODIUM WHEEL BASE DD2 Manuale utente
FANATEC
FANATEC CSL DD Manuale utente
Manuali Accessori per videogiochi popolari di altre marche
Sega
Sega Visual Memory Unit Manuale utente
Datel
Datel Go-tcha Expedition Manuale utente
TruGolf
TruGolf TruFlight 2 Manuale utente
CH Products
CH Products CH PRO THROTTLE Manuale utente
Thrustmaster
Thrustmaster T2PA Manuale utente
Cube Controls
Cube Controls Mercedes-AMG - GT Edition SIM Wheel Manuale utente
