SF120 Semi-Flush Light Fixture Instructions Sheet
1. Before discarding packing materials, be certain all parts
have been removed.
CAUTION
Do not install or use fixture if any part is damaged or
missing. This product is designed to use only those
parts supplied with this product and/or any accessories
designated specifically for use with this product by
Fanimation. Substitution of parts or accessories not
designated for use with this product by Fanimation
could result in personal injury or property damage.
Contact your retail store for missing or damaged parts.
Electrical Requirements
Your new light fixture will require a grounded
electrical supply line of 120 volts AC, 60 Hz, 15
amp circuit.
Maintainance Requirements
Periodic light dusting of the light fixture and glass is
recommended. A feather duster will work best. Avoid
using water, cleansers, or harsh rags, which can ruin
the finish and fixture.
How To Order Parts
When ordering repair parts, always
give the following information:
• Part Number
• Part Description
• Fan Model Number
Contact your retail store for repair parts.
Item # Description Qty. Part #
1 Semi-Flush Fixture 1 SF120
2 Hardware Parts, contains 1 HDWSF120
Crossbar w/ Gnd Screw 1
Screw, junction box 2
Rod, Threaded 2
Rubber Washer 1
Hex Nut 1
Knurled Nut 2
Lockwasher 2
Bowl Cap 1
Finial Nut 1
Wire Connector 2
2
1
Parts List
NOTE: The illustration shown is not to scale or its actual
configuration may vary
SF120PW with
G454 (sold seperately)
10983 Bennett Parkway
Zionsville, IN 46077
(888) 567-2055
FAX (866) 482-5215
Outside U.S. call (317) 733-4113
Visit Our Website www.fanimation.com

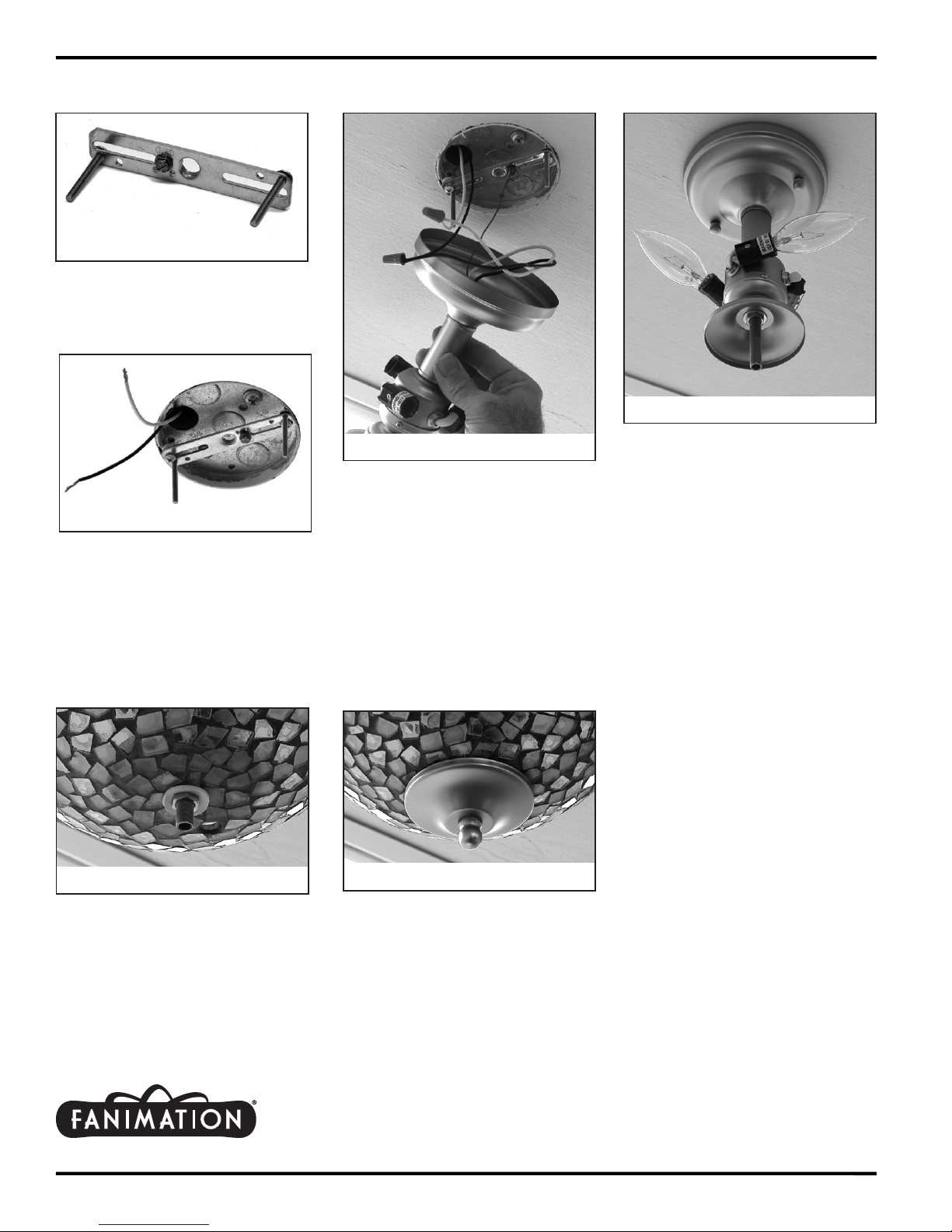

1. Assemble two (provided) Threaded
Rods on the Crossbar. (Figure 1)
2. Mount assembled Crossbar to
junction box with screws (provided
with your junction box) (Figure 2).
3. Securely connect the bare copper
(Ground) wire to the (hex-head)
screw located on the Crossbar.
Securely connect the white lamp
wire to the white supply (neutral)
wire using wire nut supplied.
Securely connect the black lamp
wire wire to the black supply (hot)
wire using wire nut supplied.
(Figure 3)
5. Carefully fasten hex nut onto
the threaded rod while supporting
Rubber Washer and Glass Bowl
(sold seperately), do not over
tighten. (Figure 5)
Copyright 2004 Fanimation
Figure 1
Figure 2
Figure 3
Figure 6
Figure 5
Figure 4
4. After connections have been
made, carefully push leads into the
outlet box. Carefully fasten the
Fixture over the Threaded Rods
with the Lockwashers and Knurled
Nuts provided. Install light bulbs (not
included, 60 watt max each).
(Figure 4)
NOTE: Be sure that the electrical
wires are completely inside the
junction box and not pinched
7. You have now completed the
assembly of your Semi Flush ighting
fixture. Restore power and operate
your light fixture with your standard
on/off light switch.
6. Fasten Bowl Cap onto the
threaded rod with Finial Nut.
2004/12
