EyeDaptor G9-G10 Instruction Manual
Fantasea EyeDaptor G9-G10 (Cat. No. 4703)
Instruction Manual
The EyeDaptor G9-G10 enables mounting Fantasea lens accessories that were designed for
the Canon G10 Housing (WP-DC28) on the Canon G7 and G9 Housing lens ports (WP-DC11
and WP-DC21).
Compatibility

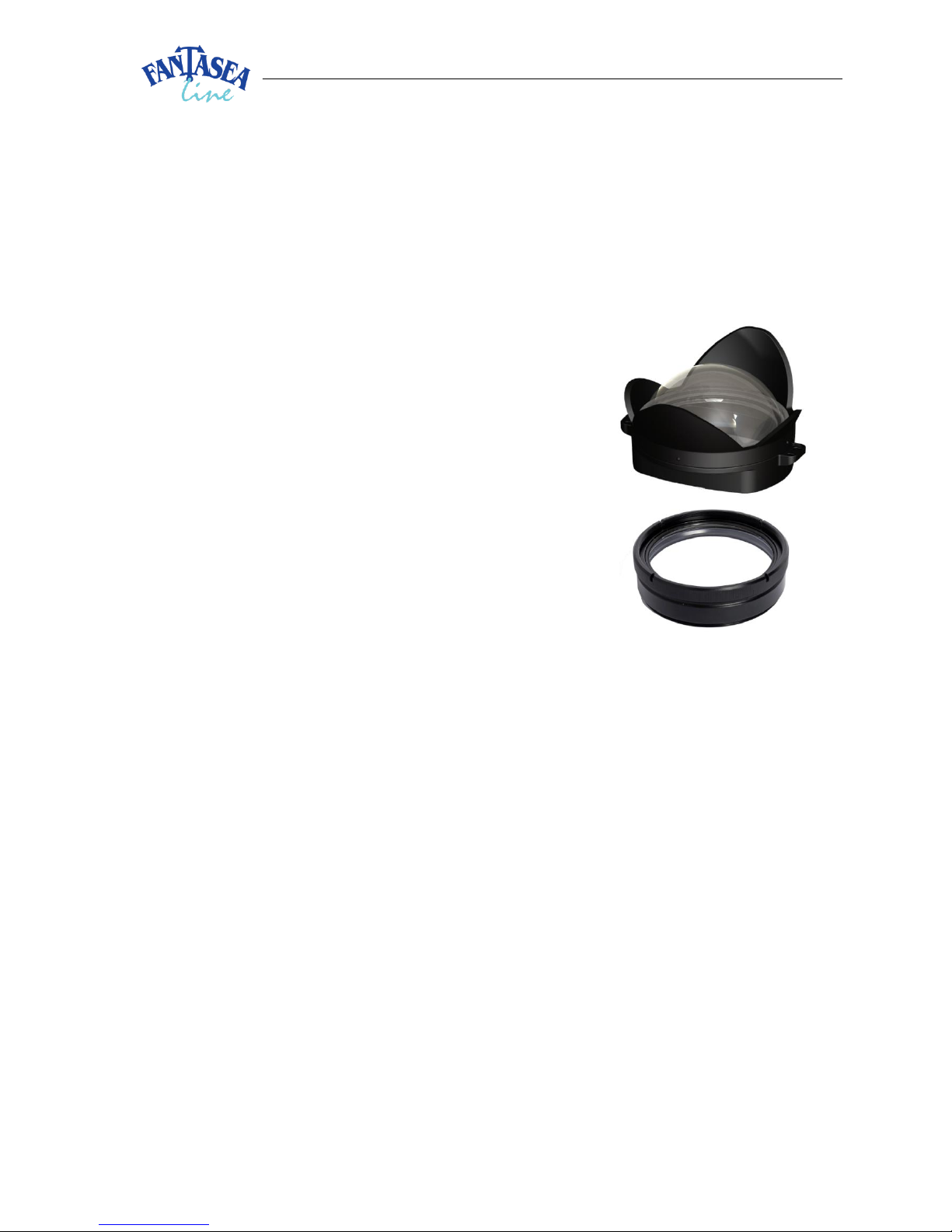

Mounting the BigEye Wide Angle Lens G10 (Cat. No.
5135) on either the Canon G7 or G9 Housing requires
EyeDaptor G9-G10 only, as described on the
Instructions section below.
Mounting the SharpEye Macro Lens M67 (Cat. No. 5128)
on either the Canon G7 or G9 Housing requires an
additional adaptor- the EyeDaptor G10-F67 (Cat. No.
4701), as described on the Instructions section below.
Included in the Kit
1. EyeDaptor G9-G10
2. 2 screws
3. Screwdriver
Mounting the BigEye Lens G10 on the Canon G7/G9 Housing
1. Please use the utmost care and do not use excessive force when assembling and
disassembling the different lens accessories, in order not cause any damage to the
products.
2. Place the BigEye Lens G10 on a flat and protected surface, so the side that attaches
to the housing lens port is facing up.
3. Hold the EyeDaptor G9-G10 so the two adaptor wings are on the top side of the
adaptor and the concaved part of the adaptor is facing up (see image #1).
2
EyeDaptor G9-G10 Instruction Manual
4. Insert the EyeDaptor G9-G10 into the dedicated groove of the BigEye Lens G10.
Note that the two screw holes on the EyeDaptor G9-G10 wings should be perfectly
aligned with the two small screw holes on the BigEye Lens G10.
5. Insert the screws included into the dedicated screw holes on the two adaptor wings
and use the screwdriver included to tighten the screws into the adaptor and the
BigEye Lens G10 (see image #2 on the following page). Tighten the screws enough in
order to keep the EyeDaptor G9-G10 fixed inside the BigEye Lens G10, but don’t
tighten it too strongly, as this might cause damage to the products.
6. During the dive, install the BigEye Lens G10 with the adaptor inside by attaching the
accessory lens to the housing lens port, as described on the BigEye Lens G10
instruction manual.
7. When removing the BigEye Lens G10 from the housing with the adaptor installed
inside, it can be conveniently stored by attaching it to the EyeGrabber G7/G9 (Cat.
No. 4055), which mounts on Fantasea Flex Arms, thereby making it easily available
for future use. For further information, please visit our website at
www.fantasea.com/FantaseaEyes
8. After the dive, detach the accessory lens from the housing lens port, including all
adaptors, and rinse all lens components in fresh water.
9. Dry and store in a safe protected place.

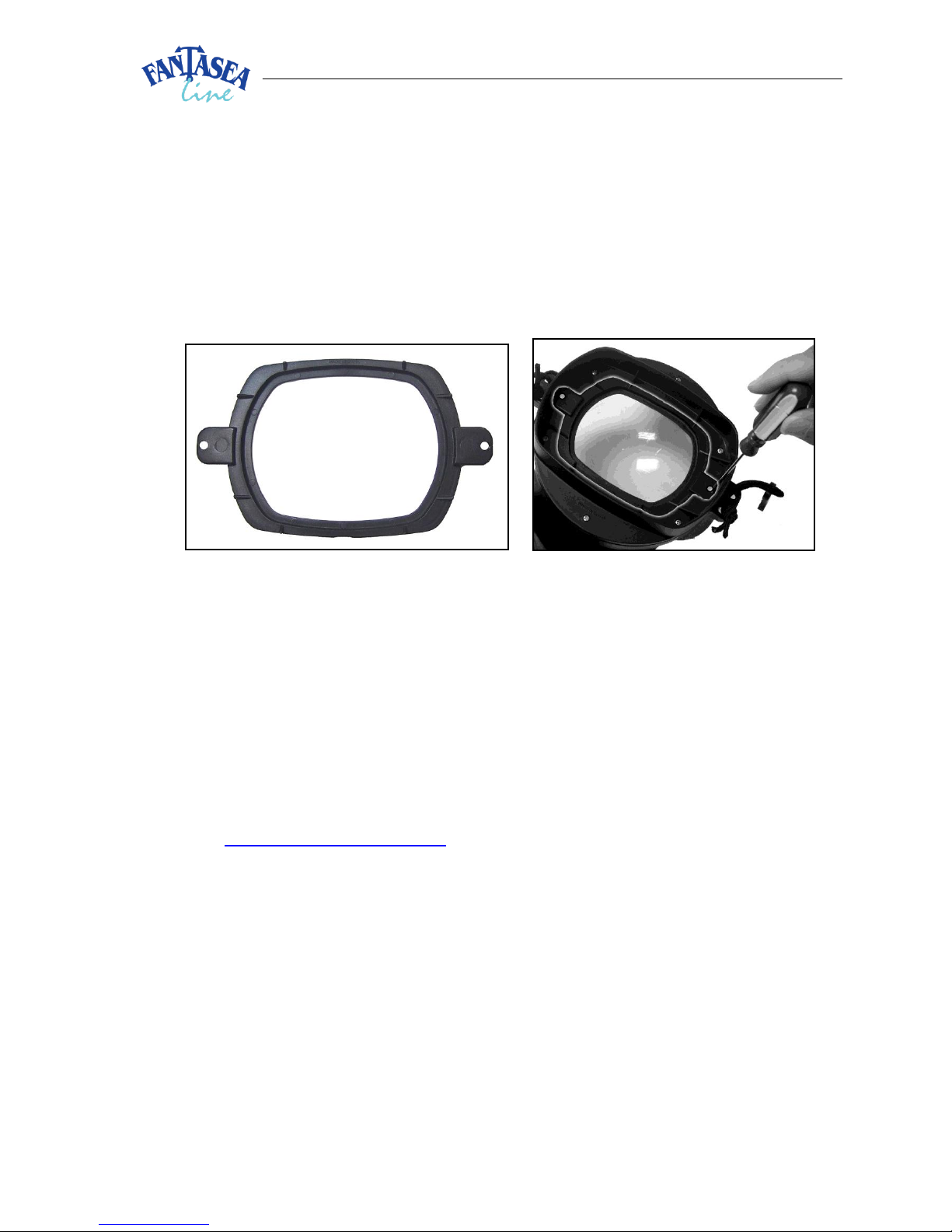

Image #1:
Hold the EyeDaptor G9-G10 so the
wings are on the top side of it
Image #2:
Tightening the screws on the two
EyeDaptor G9-G10 wings (adaptor is highlighted)
3
EyeDaptor G9-G10 Instruction Manual
Mounting the SharpEye Lens M67 on the Canon G7/G9 Housing
1. Please use the utmost care and do not use excessive force when assembling and
disassembling the different lens accessories, in order not cause any damage to the
products.
2. It is recommended to first assemble the two adaptors together (the EyeDaptor G10-
F67 and the EyeDaptor G9-G10) prior to attaching them to the SharpEye Lens.
3. Place the EyeDaptor G10-F67 on a flat and protected surface, so the side that
attaches to the housing lens port is facing up and the thread is facing down.
4. Hold the EyeDaptor G9-G10 so the two adaptor wings are on the top side of the
adaptor and the concaved part of the adaptor is facing up (see image #3).
5. Insert the EyeDaptor G9-G10 into the dedicated groove of the EyeDaptor G10-F67.
Note that the two screw holes on the EyeDaptor G9-G10 wings should be perfectly
aligned with the two small screw holes on the EyeDaptor G10-F67.
6. Insert the screws included into the dedicated screw holes on the two adaptor wings
and use the screwdriver included to tighten the screws into the EyeDaptor G9-G10
and the EyeDaptor G10-F67 (see image #4). Tighten the screws enough in order to
keep the EyeDaptor G9-G10 fixed inside the EyeDaptor G10-F67, but don’t tighten it
too strongly, as this might cause damage to the products.
7. Once the EyeDaptor G9-10 has been installed inside the EyeDaptor G10-F67, the
SharpEye Lens M67 can be installed on the thread mount of the EyeDaptor G10-F67
by screwing it in.

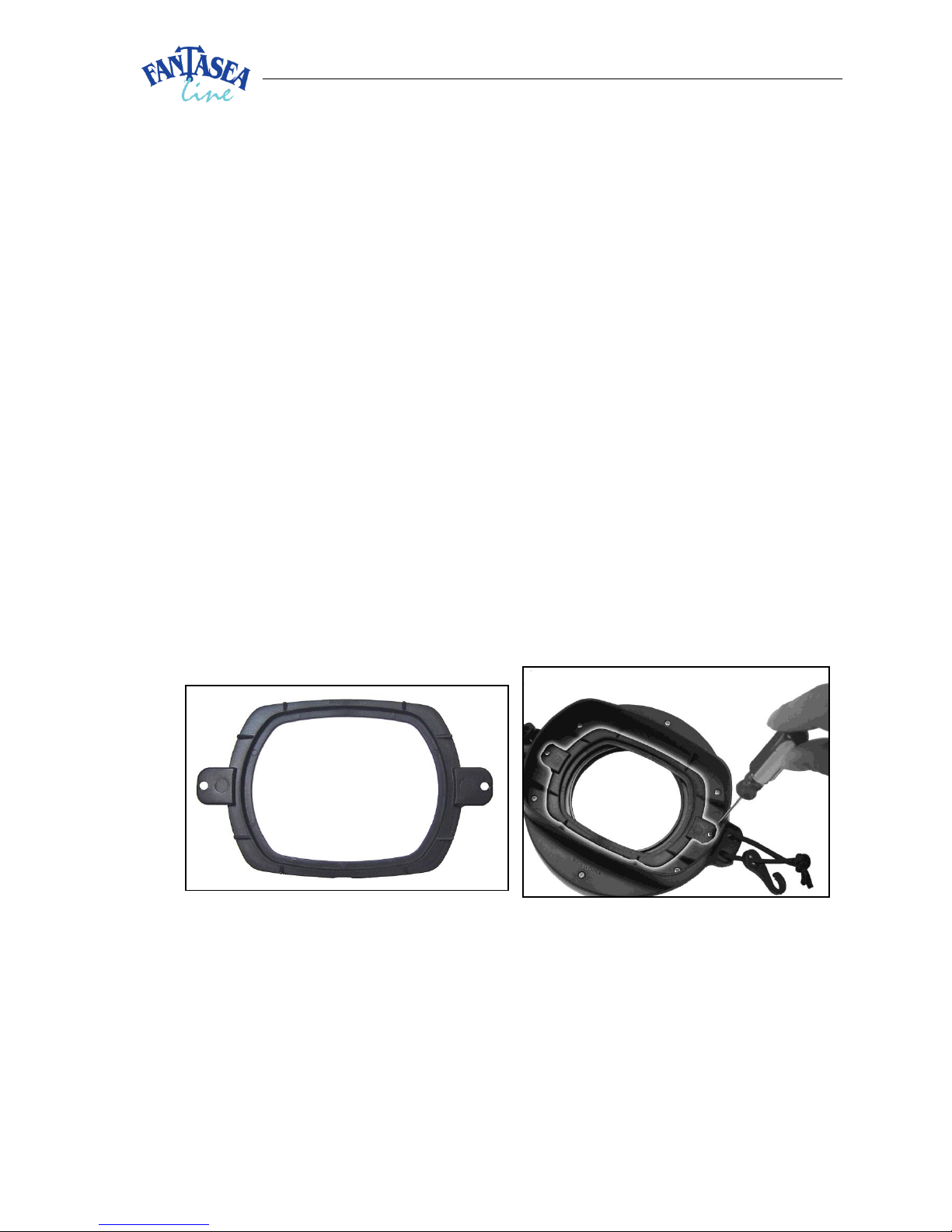

Image #3:
Hold the EyeDaptor G9-G10 so the
wings are on the top side of it
Image #4:
Tightening the screws on the two
EyeDaptor G9-G10 wings (adaptor is highlighted)
4
EyeDaptor G9-G10 Instruction Manual
8. During the dive, install the SharpEye Lens M67 (with the two adaptors attached) by
mounting it on the housing lens port.
9. When removing the SharpEye Lens M67 from the housing along with the two
adaptors, it can be conveniently stored by attaching it to the EyeGrabber G7/G9
(Cat. No. 4055), which mounts on Fantasea Flex Arms, thereby making it easily
available for future use. For further information, please visit our website at
www.fantasea.com/FantaseaEyes
10.After the dive, detach the accessory lens from the housing lens port, including all
adaptors, and rinse all lens components in fresh water.
11.Dry and store in a safe protected place.
For further information please contact us at http://www.fantasea.com/contact or visit our
website at www.fantasea.com.
