Fantec 3DFHDN Manuale utente

ENGLISH

2 / 55

Table of Contents

1. Introduction.......................................................................................................................... 3

1.1 Preface......................................................................................................................... 3

1.2 Packing List.................................................................................................................. 4

1.3 Cautions ....................................................................................................................... 4

1.4 Connection ................................................................................................................... 6

1.5 View.............................................................................................................................11

1.6 First steps................................................................................................................... 12

1.7 HDD Format ............................................................................................................... 12

2. About the Player ................................................................................................................ 13

2.1 Remote Control .......................................................................................................... 13

3. Main Functions .................................................................................................................. 15

3.1 Setup Menu................................................................................................................ 15

3.2 Movie Library.............................................................................................................. 24

3.3 Photo Library.............................................................................................................. 26

3.4 Music Library.............................................................................................................. 27

3.5 3D Movie Playback..................................................................................................... 30

3.6 File Manager............................................................................................................... 31

3.7 Playlist Management.................................................................................................. 35

3.8 Copy und Delete Function.......................................................................................... 37

3.9 Internet Media ............................................................................................................ 38

4. Network Server and Client................................................................................................ 42

4.1 Samba (SMB) Server ................................................................................................. 42

4.2 FTP Server................................................................................................................. 43

5. Upgrading the Firmware ................................................................................................... 45

6. Appendixes......................................................................................................................... 45

7. Frequently Asked Questions............................................................................................ 47

8. Copyrights and Trademarks............................................................................................. 49

9. Warranty ............................................................................................................................. 49

10. GPL Statement ................................................................................................................. 50

ENGLISH

3 / 55

1. Introduction

1.1 Preface

Thank you very much for purchasing the FANTEC 3DFHDN media player. We hope you will

enjoy using it as a great home entertainment partner. This player has the following

functionality.

A/V Output

HDMI V1.4 for high-definition video and digital audio

Composite & component video and stereo audio for analog audio-visual connection

S/PDIF optical and coaxial interface for high-fidelity digital audio

Adjustable video output resolution (NTSC, PAL, 480p, 576p, 720p, 1080i, 1080p,

1080p/24p)

Movie Playback

Movie format:AVI, VOB, MKV, MOV, MP4, MPG, TS, WMV, DAT, IFO, RM, RMVB, ISO

(DVD & BluRay), AVCHD, MTS, M2TS, M4V, ASF, FLV, XviD, DVD menu playback, H.264,

resolution up to 720p/1080i/1080p

3D format: 3D Frame Packing (3D BD), 3D MVC (Multiview Video Coding), 3D SbS (Side

by Side) 3D TaB (Top and Bottom)

Supports major audio formats (1080p HD video decoding)

Fast forward/rewind

View subtitle

Subtitle control: color/offset/size

SRT, SMI, SSA,SUB, IDX+SUB

Music Playback

Music format: MP3, OGG, WMA, WAV, FLAC

Audio Codecs: MP2/3, OGG Vorbis, WMAStandard (DRM, and Advanced Profile not

supported), PCM, LPCM, RA, DTS, Dolby Digital

Fast forward/rewind

Shuffle

Repeat

Photo Playback

Photo format: HD JPEG, JPG, BMP, GIF, TIF, PNG

You can view photos in slide show mode with background music.

Zoom in/out, Rotate

ENGLISH

4 / 55

Network Feature

A/V streaming/transmission via Ethernet (10M/100M/1000M) & Wi-Fi (802.11b/g/n,

optional)

File sharing via Samba server

A/V streaming via UPnP Media Server

BitTorrent download

Internet Radio (Please visit www.shoutcast.com for available stations)

File Copy

Supports copying & moving files among USB devices, Local HDD, and Network

USB 3.0 & USB 2.0 Support

USB 3.0 DEVICE port (for computer connection, compatible to USB 3.0/2.0/1.1)

USB HOST port x 2 (for USB storage devices),for connection of an USB DVD drive, an

USB Y-cable is recommended

Note: All the information contained in this manual was correct at the time of publication.

However, as our engineers are always updating and improving the product, your device’s

software may have a slightly different appearance or modified functionality than presented in

this manual.

1.2 Packing List

Part

Quantity

Player

USB 3.0 cable

Remote Control

Remote Control Battery

AC/DC adaptor

Quick start guide

Warranty card

Note: The actual contents in the package might be different from the packing list in the manual.

1.3 Cautions

The FANTEC 3DFHDN design and manufacture has your safety in mind. In order to safely and

effectively use this player, please read the following before usage.

1.3.1 Usage Cautions

User should not modify this player. If commercial hard disk is being used, the environmental

temperature should be within +5℃~ +35℃.

ENGLISH

5 / 55

1.3.2 Power

The player’s power voltage: DC 12V.

When using this player, please connect the supplied AC adapter or AC adapter cable to the

player’s power jack. When placing the adapter cable, make sure it can not get damaged or be

subject to pressure. To reduce the risk of electric shock, unplug the adapter first before

cleaning it. Never connect the adapter to the player in a humid or dusty area. Do not replace

the adapter or cable’s wire or connector.

1.3.3 Radio Interference

- If not properly shielded, almost all electronic devices will get radio interference. Under some

conditions, your player might get interference.

- The design of this player has followed the FCC/CE standard, and has followed the following

rules:

(1) This player may not cause harmful interference;

(2) This player could accept some interference received including interference that may cause

undesired operation.

1.3.4 Repair

If the player has a problem, you should take it to an appointed repair center and let the

specialists do the repair, never repair the player yourself, you might damage the player or

endanger yourself or your data.

1.3.5 Disposing of the Player

When you dispose of the player, be sure to dispose it appropriately. Some countries may

regulate disposal of electrical device, please consult with your local authority.

1.3.6 Hard Disk Cautions

The player uses an internal hard disk for data storage, in normal case, format or repair is not

required.

You should carefully read the < Frequently Asked Questions > chapter, and check our website

for latest information before formatting the hard disk.

- Physical impact may create bad sector in the hard disk, you can use CHKDSK to fix the

problem.

- All data stored in the player may be lost due to physical impact, electrical shock, power lost,

HDD format etc. Please backup your data.

- It is suggested to do defragment after a long period of usage.

- Regularly backup the data in the hard disk so that it can be recovered in the event of data

corruption or loss. Our company takes no responsibility for loss of data stored on the hard disk.

ENGLISH

6 / 55

1.3.7 Others

When using this player, please do not let the player come into contact with water or other liquid,

if water is accidentally spilled on the player, please use a dry cloth to absorb the spillage.

Electronic products are vulnerable, when using please avoid shaking or hitting the player, and

do not press the buttons too hard.

Do not let the player come into contact with water or other liquid.

Do not disassemble the player, repair the player or change the design of the player, any

damage done will not be included in the repair policy.

Do not press the buttons of the player too hard.

Avoid hitting the player with hard object, avoid shaking the player, and stay away from

magnetic fields.

During electrostatic discharge and the strong electromagnetic field, the product will

malfunction, then unplug the power cable and the product will return to normal performance

next time it is powered on.

1.4 Connection

1.4.1 Connecting the Power Supply

(1) Follow the picture and connect the AC adaptor to the player’s DC IN jack;

(2) Follow the picture and plug in the AC adaptor to the power outlet.

ENGLISH

7 / 55

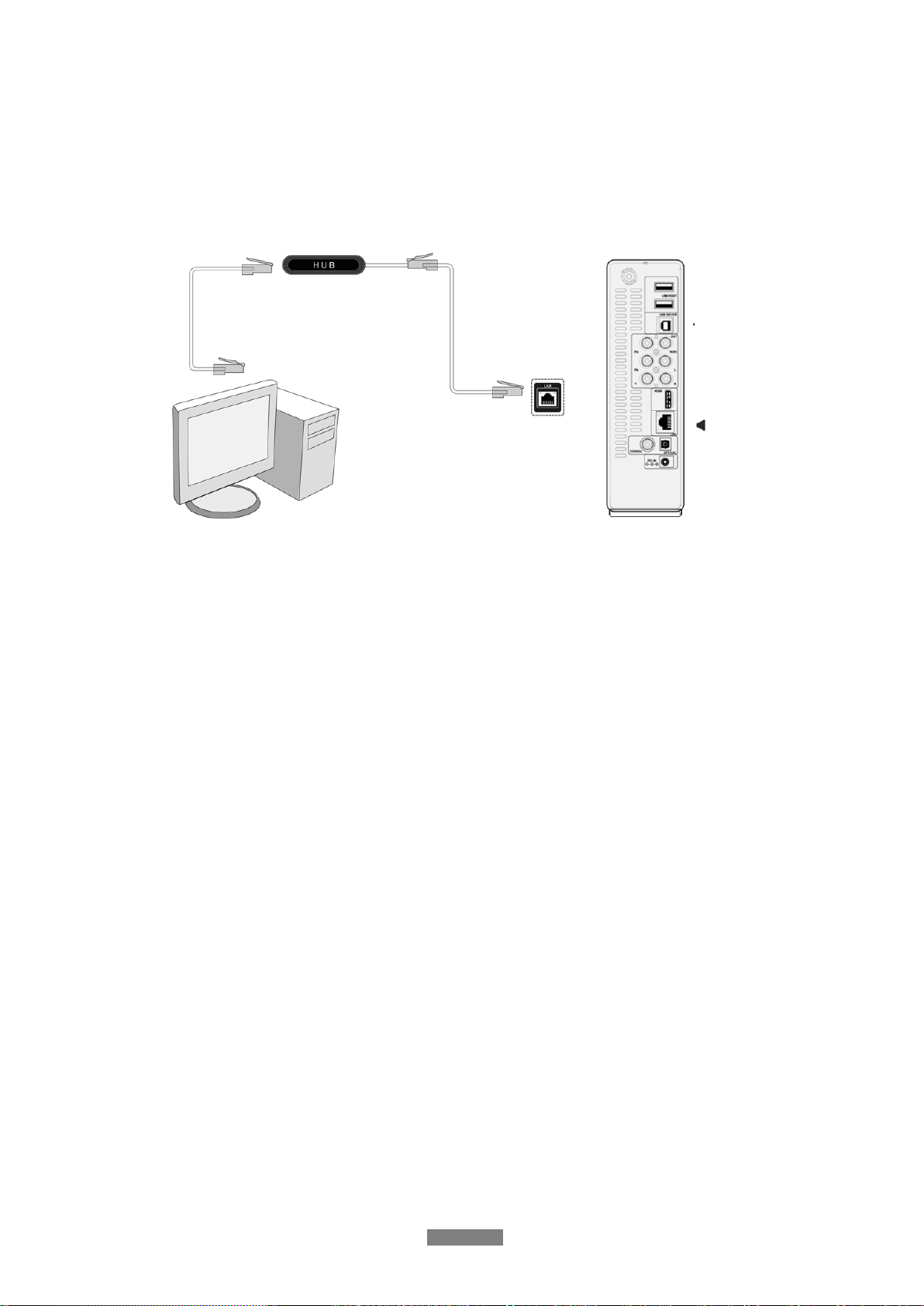

1.4.2 Connecting to a PC

(1) Make sure the player is powered on;

(2) Plug in the squares connector of the USB cable to this player’s USB DEVICE port;

(3) Plug in the rectangular connector of the USB cable to computer.

In this way, you can manage content on the built-in HDD of the player on your local PC.

1.4.3 Connecting a USB Device

(1) Make sure the player is powered on;

(2) Plug in the USB stick, USB DVD or USB HDD etc. to the USB HOST port of this player.

In this way, you can browse contents on the USB device.

ENGLISH

8 / 55

1.4.4 Connecting to a TV

1.4.4.1 A/V OUT

(1) Follow the picture and plug in the 3 color connector to the player’s A/V OUT jack;

(2) Follow the picture and plug in the 3 color connector to the TV’s A/V IN jack.

In this way, you can enjoy the content in the player on TV or other display devices.

1.4.4.2 Y/Pb/Pr Component OUT

(1) Follow the picture and plug in the 3 color connector to the player’s Y/Pb/Pr jack;

(2) Follow the picture and plug in the 3 color connector to the TV’s Y/Pb/Pr jack.

Audio Connection while using Y/Pb/Pr Video out:

First method: use the audio output from the A/V OUT jack;

Second method: use the audio output from the S/PDIF Coaxial or Optical jack.

ENGLISH

9 / 55

1.4.4.3 HDMI OUT

(1) Follow the picture and plug one connector on your HDMI cable to the player’s HDMI jack;

(2) Follow the picture and plug the other connector on your HDMI cable to the TV’s HDMI jack.

Note: The HDMI cable is an optional accessory sold separately.

In this way, you can have the highest quality video and audio via a single cable.

1.4.5 Connecting to an Digital Amplifier

(1) Follow the picture and plug in the Toslink connector of your optical fiber to the player’s

S/PDIF optical jack;

(2) Follow the picture and plug in the other connector on your optical fiber to the digital audio

device (digital amplifier or decoder).

Note: Optical fiber cable is not supplied.

In this way, you can enjoy powerful Dolby Digital/ Dolby Digital Plus/ Dolby TrueHD/ DTS or

MPEG sound. DTS-HD sound is transferred via HDMI cable and an amplifier with HDMI

interface is needed. (Please refer to ‘3.1.2 Changing Audio Settings’ for configuration)

ENGLISH

10 / 55

1.4.6 Connecting to a network

To connect to a LAN (Local Area Network) you require a cat5, cat5e or cat6 network cable (not

supplied).

(1) Connect one of the crystal plugs on the cable to the player’s RJ45 LAN socket;

(2) Connect the other crystal plug on the cable to a RJ45 LAN port on your router, switch, or

hub devices.

1.4.7 Connecting to a wireless network

(1) Make sure the player is powered on;

(2) Plug the Wireless LAN USB Adapter (i.e. Wi-Fi USB Dongle) to the USB HOST port of the

player.

Note: The Wi-Fi Dongle is an optional accessory sold separately. (Please refer to ‘3.1.4

Changing Network Settings’ for more details about wireless setup)
