1. Introduction
1.1 Preface
Thank you very much for purchasing FANTEC Disk Box Full HD Mediaplayer. We hope you
will enjoy using it as a great home entertainment partner. This player has the following
functionality.
A/V Output
HDMI V1.3 for high-definition video and digital audio
Composite video and stereo audio for analogue audio-visual connection
S/PDIF optical and coaxial interface for high-fidelity digital audio
Adjustable video output resolution (NTSC, PAL, 480p, 576p, 720p, 1080i, 1080p)
Smart TV
Portal including hundreds of APPs and services
Media libraries, music gates, movies, television series, news and games
Always up-to-date and available without any installation
Optimized for presentation on every TV
Movie Playback
Movie format:AVI, VOB, MKV, MOV, MP4, MPG, TS, WMV, DAT, IFO, RM, RMVB, ISO
(DVD & BluRay), AVCHD, MTS, M2TS, M4V, ASF, FLV, XviD, DivX 3/4/5, DVD menu
playback, H.264, resolution up to 720p/1080i/1080p
Supports major audio formats (1080p HD video decoding)
Fast forward/rewind
View subtitle
Subtitle control: color/offset/size
Unicode (UTF8), BIG5 (Traditional Chinese), Western, Turkish, Central European, Greek,
Cyrillic, SE European, Russian, Hebrew, Arabic, Japanese, Thai
Audio Playback
Music format: MP3, OGG, WMA, WAV, FLAC, PCM, LPCM, MS-ADPCM, COOK,
RA-Lossless
Stereo/Dolby Digital AC3 5.1 (pass-through & downmix)
Dolby Digital 5.1 (pass-through & downmix)
Dolby Digital Plus 7.1 (pass-through)
DTS Digital Surround 5.1 & 7.1 (pass-through & downmix)
Fast forward/rewind
Shuffle
Repeat
Photo Playback
Photo format: HD JPEG, JPG, BMP, GIF, TIF, PNG
You can view photos in slide show mode with background music.
FANTEC Smart TV
ENGLISH
4 / 54
Zoom in/out, Rotate
Network Feature
A/V streaming/transmission via Ethernet (10M/100M/1000M) & Wi-Fi (802.11b/g/n,
optional)
File sharing via Samba server
A/V streaming via UPnP Media Server
Internet Radio
Media Library
Quick-Search, search files by keywords.
A powerful search engine, allows you to browse multimedia files in most easy ways
File Copy
Supports copying & moving files among USB devices, Local HDD, and Network
USB 3.0 & USB 2.0 Support
USB 3.0 DEVICE port (for computer connection, compatible to USB 2.0/1.1 )
USB HOST port x 2 (for USB storage devices),for connection of an USB DVD drive, an
USB Y-cable is recommended
1 x SD / SDHC / MMC Card Reader
Note: All the information contained in this manual was correct at the time of publication.
However, as our engineers are always updating and improving the product, your device’s
software may have a slightly different appearance or modified functionality than presented in
this manual.
FANTEC Smart TV
ENGLISH
5 / 54
1.2 Packing List
Part
Quantity
Player
1
USB cable
1
Remote Control
1
Remote Control Battery
2
AC/DC adaptor
1
Quick start guide
1
Warranty card
1
Note: The actual contents in the package might be different from the packing list in the manual.
1.3 Cautions
The FANTEC Disk Box Full HD Mediaplayer design and manufacture has your safety in mind.
In order to safely and effectively use this player, please read the following before usage.
1.3.1 Usage Cautions
User should not modify this player. If commercial hard disk is being used, the environmental
temperature should be within +5℃~ +35℃.
1.3.2 Power
The player’s power voltage: DC 12V.
When using this player, please connect the supplied AC adapter or AC adapter cable to the
player’s power jack. When placing the adapter cable, make sure it cannot get damaged or be
subject to pressure. To reduce the risk of electric shock, unplug the adapter first before
cleaning it. Never connect the adapter to the player in a humid or dusty area. Do not replace
the adapter or cable’s wire or connector.
1.3.3 Radio Interference
- If not properly shielded, almost all electronic devices will get radio interference. Under some
conditions, your player might get interference.
- The design of this player has followed the FCC/CE standard, and has followed the following
rules:
(1) This player may not cause harmful interference;
(2) This player could accept some interference received including interference that may cause
undesired operation.
1.3.4 Repair
If the player has a problem, you should take it to an appointed repair centre and let the
specialists do the repair, never repair the player yourself, you might damage the player or
endanger yourself or your data.
FANTEC Smart TV
ENGLISH
6 / 54
1.3.5 Disposing of the Player
When you dispose of the player, be sure to dispose it appropriately. Some countries may
regulate disposal of electrical device, please consult with your local authority.
1.3.6 Hard Disk Cautions
The player uses an internal hard disk for data storage, in normal case, format or repair is not
required.
You should carefully read the < Frequently Asked Questions > chapter, and check our website
for latest information before formatting the hard disk.
- Physical impact may create bad sector in the hard disk, you can use CHKDSK to fix the
problem.
- All data stored in the player may be lost due to physical impact, electrical shock, power lost,
HDD format etc. Please backup your data.
- It is suggested to do defragment after a long period of usage.
- Regularly backup the data in the hard disk so that it can be recovered in the event of data
corruption or loss. Our company takes no responsibility for loss of data stored on the hard disk.
1.3.7 Others
When using this player, please do not let the player come into contact with water or other liquid,
if water is accidentally spilled on the player, please use a dry cloth to absorb the spillage.
Electronic products are vulnerable, when using please avoid shaking or hitting the player, and
do not press the buttons too hard.
Do not let the player come into contact with water or other liquid.
Do not disassemble the player, repair the player or change the design of the player, any
damage done will not be included in the repair policy.
Do not press the buttons of the player too hard.
Avoid hitting the player with hard object, avoid shaking the player, and stay away from
magnetic fields.
During electrostatic discharge and the strong electromagnetic field, the product will
malfunction, then unplug the power cable and the product will return to normal performance
next time it is powered on.
FANTEC Smart TV
ENGLISH
7 / 54
1.4 Connection
1.4.1 Connecting the Power Supply
(1) Follow the picture and connect the AC adaptor to the player’s DC IN jack;
(2) Follow the picture and plug in the AC adaptor to the power outlet.
1.4.2 Connecting to a PC
(1) Make sure the player is powered on;
(2) Plug in the squarish connector of the USB cable to this player’s USB DEVICE port;
(3) Plug in the rectangular connector of the USB cable to computer.
In this way, you can manage content on the built-in HDD of the player on your local PC.
FANTEC Smart TV
ENGLISH
8 / 54
1.4.3 Connecting a USB Device
(1) Make sure the player is powered on;
(2) Plug in the USB stick, USB DVD or USB HDD etc. to the USB HOST port of this player.
In this way, you can browse contents on the USB device.
1.4.4 Connecting a Memory Card
Memory card can be used by inserting to the card slot
(1) Follow the picture to insert the memory card to the card slot properly;
(2) Insert the card by following the arrow pointer in the picture.
In this way, you can browse contents on the memory card.
1.4.5 Connecting to a TV
1.4.5.1 A/V OUT
(1) Follow the picture and plug in the 3 color connector to the player’s A/V OUT jack;
(2) Follow the picture and plug in the 3 color connector to the TV’s A/V IN jack.
In this way, you can enjoy the content in the player on TV or other display devices.
FANTEC Smart TV
ENGLISH
9 / 54

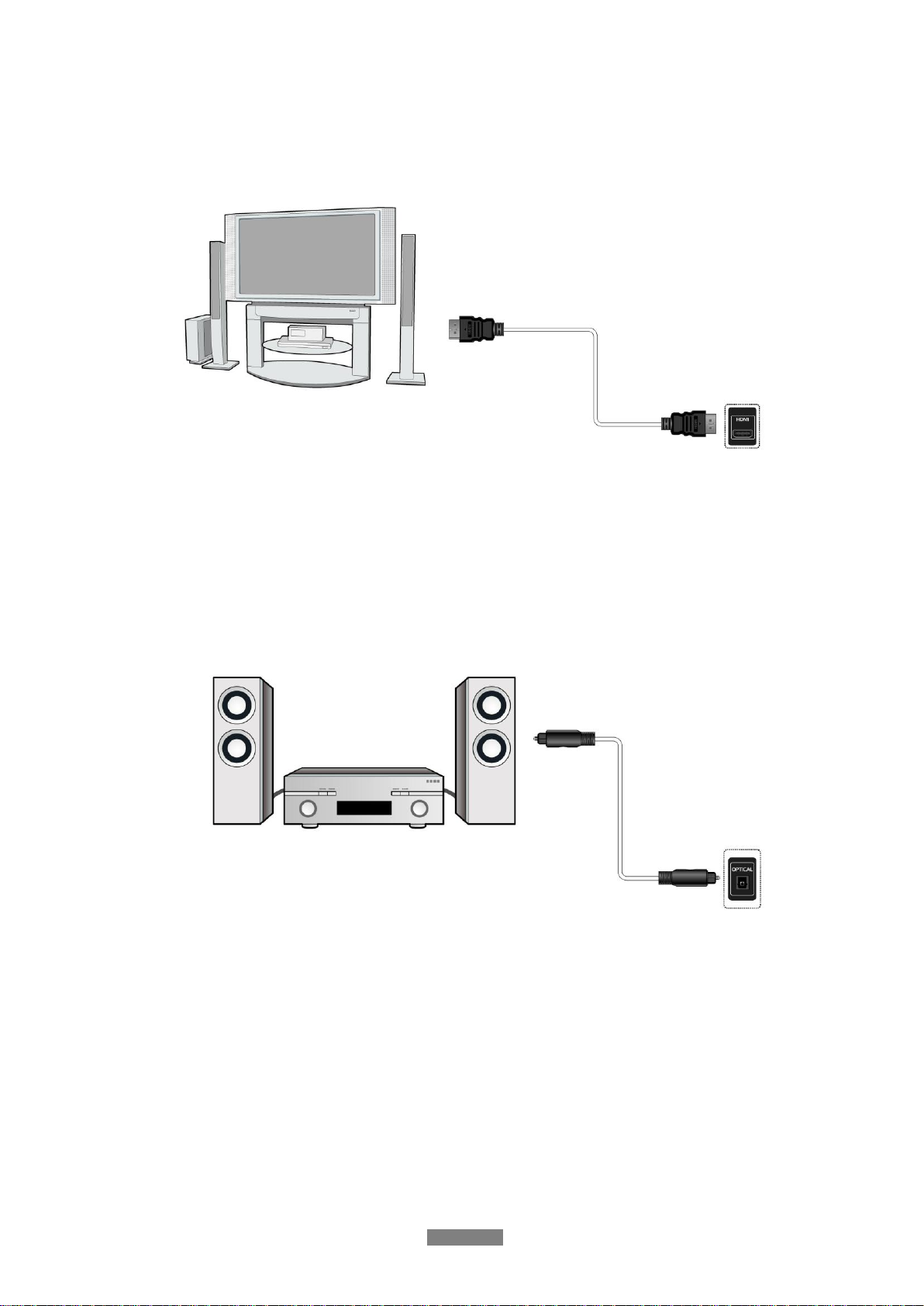

1.4.5.2 HDMI OUT
(1) Follow the picture and plug one connector on your HDMI cable to the player’s HDMI jack;
(2) Follow the picture and plug the other connector on your HDMI cable to the TV’s HDMI jack.
Note: The HDMI cable is an optional accessory sold separately.
In this way, you can have the highest quality video and audio via a single cable.
1.4.6 Connecting to an Digital Amplifier
(1) Follow the picture and plug in the Toslink connector of your optical fiber to the player’s
S/PDIF optical jack;
(2) Follow the picture and plug in the other connector on your optical fiber to the digital audio
device (digital amplifier or decoder).
Note: Optical fiber cable is not supplied.
In this way, you can enjoy powerful Dolby Digital/ Dolby Digital Plus/ Dolby TrueHD/ DTS or
MPEG sound. DTS-HD sound is transferred via HDMI cable and an amplifier with HDMI
interface is needed. (Please refer to ‘3.1.2 Changing Audio Settings’ for configuration)
FANTEC Smart TV
ENGLISH
10 / 54
1.4.7 Connecting to a network
To connect to a LAN (Local Area Network) you require a cat5, cat5e or cat6 network cable (not
supplied).
(1) Connect one of the crystal plugs on the cable to the player’s RJ45 LAN socket;
(2) Connect the other crystal plug on the cable to a RJ45 LAN port on your router, switch, or
hub devices.

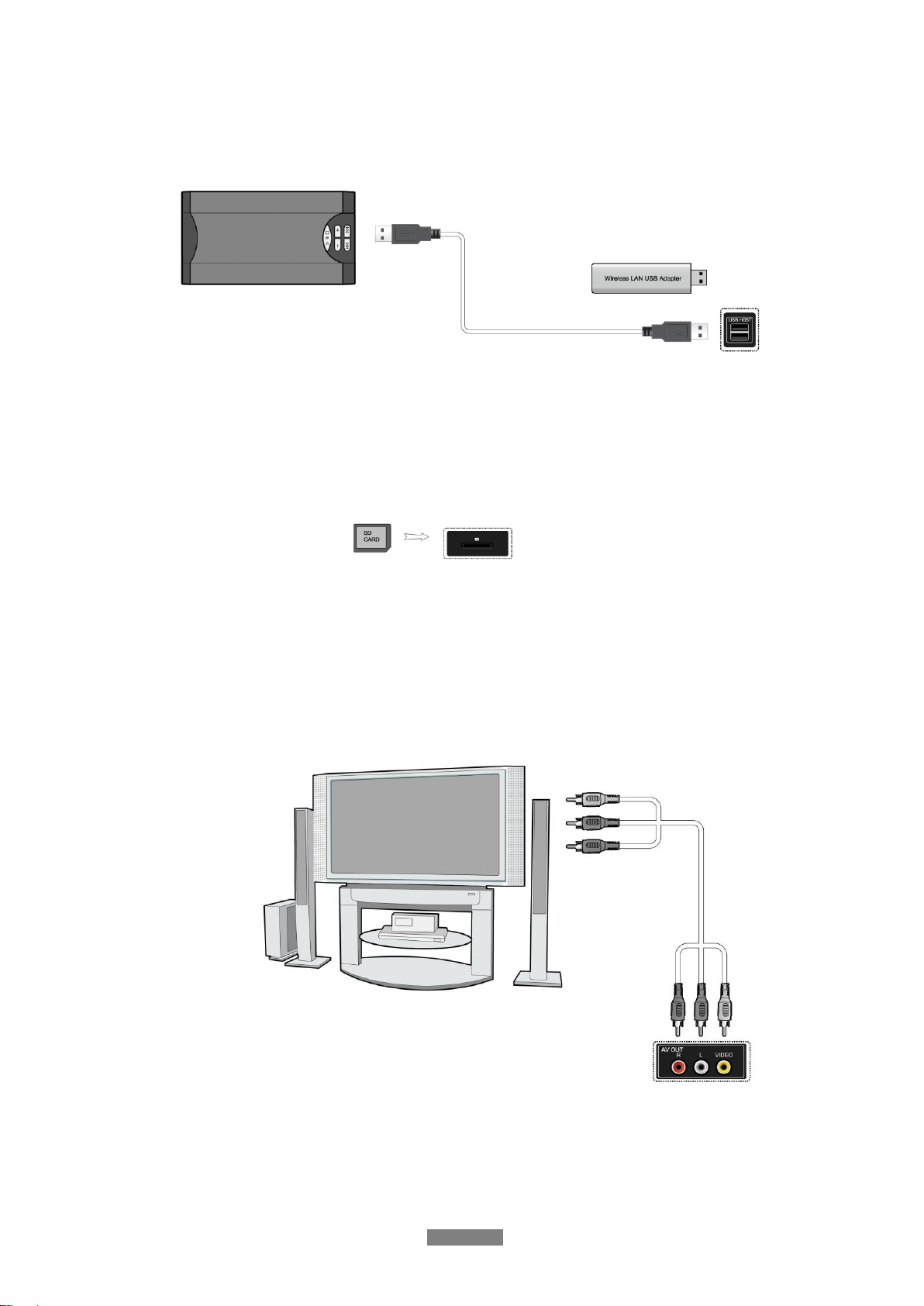

1.4.8 Connecting to a wireless network
(1) Make sure the player is powered on;
(2) Plug the Wireless LAN USB Adapter (i.e. Wi-Fi USB Dongle) to the USB HOST port of the
player.
Note: The Wi-Fi Dongle is an optional accessory sold separately. (Please refer to ‘3.1.4
Changing Network Settings’ for more details about wireless setup)
