Feathercraft Kurrent Manuale utente

The Legendary Performance

YOUR ADVENTURE UNFOLDS

Feathercraft Products Ltd. 4-1244 Cartwright Street on Granville Island, Vancouver, British Columbia, Canada V6H 3R8

Toll Free: 1-888-681-8437 Tel: (604) 681-8437 Fax: (604) 681-7282 www.feathercraft.com info@feathercraft.com

Kurrent

FOLDING KAYAKS

Contents

Kurrent Folding Kayak...........................................................Page 2

Specifications ........................................................................Page 3

Kurrent Frame .......................................................................Page 4

Care and Maintenance ..........................................................Page 5

Kurrent Assembly Instructions ..............................................Page 8

The Feathercraft Sea Sock .....................................................Page 15

Disassembly..........................................................................Page 16

Feathercraft Kurrent 1

Built in coaming

Feathercraft Kurrent 2

Comfortable sling seat

with inflatable back

& bottom

Removeable air sponsons inside

skin along gunwales

Hull reinforced on outside over

keel and chine bars

Kurrent Folding Kayak

Feathercraft Kurrent 3

Seat: 420 denier rip-stop nylon with inflatable

air back and air bottom

Accessories: Included with every kayak:

Nylon Spray Skirt

Sea Sock

Adjustable Foot Brace Bar

Repair Kit

Pack Bag

Assembly Video

Illustrated Instructions

Speciﬁcations

Length:

Beam:

Weight:

3.98 m (13’1”)

63.5 cm (25”)

10.65 kg (23lbs)

Storage Volume: Low

Frame: 5/8” Round

6061 - T6 Aluminum

Magnesium Tubing with clear

Anodized Coating

Crossribs: Injection Molded Polycarbonate

Skin Material: Welded Urethane

Pack size: 79 x 40 x 28 cm (31 x 16 x 11”)

chines, gunwales and deckbars

through-bolted permanently

to keel plate (same for bow

and stern)

Feathercraft Kurrent 4

Kurrent Frame

crossribs are injection

molded polycarbonate

seat sling suspended

from chines & gunwales

foot brace

shockcorded tubing

Care and Maintenance

The Frame

The tubular frame is very strong and corrosion resistant. Basic

maintenance is required, generally every 2 to 3 months, after

extensive use, or if water has flooded the kayak. Disassemble

the kayak frame. Completely rinse the inside and outside of the

tubes with fresh water. Keep frame inserts and extension bars

free of sand and grit.

Using rubber gloves, coat the frame inserts and sliding sections

with Bo-Shield T-9 (a small bottle is included in the repair kit).

Made by Boeing, this is an excellent lubricant and protectant.

Apply this to the frame prior to assembly to allow tubes to

slide together more easily. This product can usually be found in

marine hardware stores and some bike shops.

Apply the lubricant liberally to all sliding pieces and spring

buttons to prevent parts from seizing, if you plan to leave the

kayak assembled for a couple of months.

After paddling, sponge out water that may have pooled along

the keel.

The Skin

The urethane skin fabric is very UV and abrasion resistant, given

normal use. Do not store outside, unprotected. The fabric can

be affected if continually stored in moist and damp conditions.

Do not store the skin rolled up wet. Care must be taken when

approaching rocks, barnacles or shells. To avoid puncturing the

hull, exit the kayak and lift over any sharp surfaces. Do not pull a

loaded boat over rocks or carry a loaded kayak.

A patch kit is included for repairs. Urethane adhesive is used to

apply any patches or fill nicks. Instructions for patching are on the

adhesive. Duct tape will also work well, and is a good addition to

your repair kit.

Feathercraft Kurrent 5

Welded Sealskin

The Polytech deck and Duratek hull are urethane. Seams are

permanently sealed.

A patch kit is provided for deck, hull or sponson punctures.

The urethane glue will work for repairs to all of these fabrics.

For preparation and application, follow the instructions on the

adhesive container.

Sponsons

Due to the tight fit of the skin, the sponsons are under

considerable pressure and some seepage of air may occur.

Reinflate as necessary. After paddling on hot days, release air

from sponsons, especially if leaving the kayak beached in full

sun on a hot day.

To Repair/Replace Sponson

The sponsons can be removed from the sleeve sewn to the

inside of the skin. Turn the skin inside out. The sponson

chamber is open at bow and stern ends. Tie a long string

through the hole in the tab at each end of the sponson. Pull

sponson through the center opening of the chamber (where

sponson hose is attached). To reinstall, pull the cord attached

to the sponson back through the chamber. Ensure sponson

is not twisted in the chamber.Inflate slightly to check fit.

Urethane glue and patches are included in the repair kit.

Duct tape will also work for the sponsons.

Feathercraft Kurrent 6

Feathercraft Kurrent 7

Kurrent Frame Parts

Large

Stern

Crossrib

Small

Crossribs–

Same for

Bow + Stern

Large Bow

Crossrib

Skin

Seat

Rim inserts

Deck Bars–

Same for

Bow + Stern

Chine + Gunwale

Extension Bars

(shown without

seat sling)

Foot Brace

Keel Extension

Bar with

Black Tape

1 SET OUT FRAME PARTS AS ILLUSTRATED

2 SHAKE OUT BOW & STERN FRAME

SECTIONS

• Theshockcordedtubingtakes

shape.

• ThebowhasBstampedon

plastic plate.

3 ATTACH SMALL CROSSRIBS TO BOW & STERN SECTIONS

• Pinonsmallcrossribinsertstoholeonblackblockonkeel

tube.

• Chineandgunwaletubessnap-fitontocrossrib.White

spacers are on “cockpit” side of crossrib.

Feathercraft Kurrent 8

Deck bar

Over-serts

•Rivetheadstofaceinto

kayak, not against skin.

Gunwales

Chines

Keel

Pin into block

4 UNFOLD SKIN

• Insertbowandsternframe.

• Velcrotabsareattachedtotheinsideofthehullalongthe

keel.

• Havethetabsopen.Checkthatalltherivetheadsonthe

frame section joins are facing towards the inside of the

kayak. This will avoid unncessary wear at these points.

• Slidebowandsternframesectionsintotheskin.

• Centertheframealongtheinsidekeelstrip,pushingthe

section to the very ends. Check that the keel tube aligns to

the strip along the inside keel.

5 SLIDE FOOT BRACE BAR ONTO BOW FRAME SECTION

• Webstraploopsaroundgunwalebar.

Feathercraft Kurrent 9

Insert bow frame section

Foot Brace Bar

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Feathercraft Barca

Feathercraft

Feathercraft Khatsalano Manuale utente

Feathercraft

Feathercraft Wisper Manuale utente

Feathercraft

Feathercraft K-Light Classic 2008 Manuale utente

Feathercraft

Feathercraft BayLee River Manuale utente

Feathercraft

Feathercraft K-Light Plus Manuale utente

Feathercraft

Feathercraft K2 Expedition Double Manuale utente

Feathercraft

Feathercraft Wisper Manuale utente

Feathercraft

Feathercraft K1 Expedition Manuale utente

Feathercraft

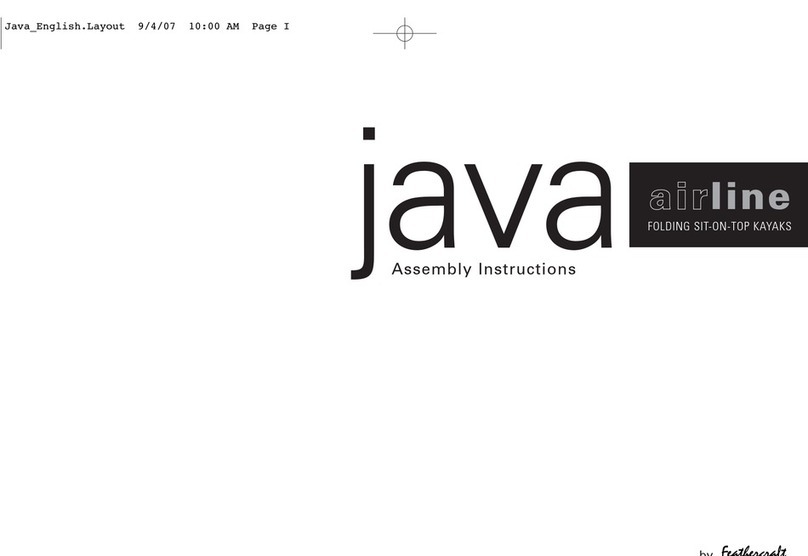

Feathercraft java Manuale utente
