Fedders R407C Manuale utente

ISSUED ON 1 APRIL,2003

FEDDERS

LARGE SPLIT UNIT (R407C)

SERVICE MANUAL

SECTION A: SPECIFICATIONS

SECTION B: PARTS LIST AND EXPLODED VIEWS

SECTION C: INSTALLATION

SECTION D: TROUBLE SHOOTING

SECTION E: WIRING DIAGRAM

SECTION F: TECHNICAL DATA

SECTION A: SPECIFICATIONS

FEDDERS LARGE SPLIT (R407C)

MODEL NUMBER

Indoor unit E1FE418N6D EHFE418N6D E1FE424N6D EHFE424N6D

Outdoor unit E1FC418N6G EHFC418N6G E1FC424N6G EHFC424N6G

PERFORMANCE DATA

Volts / Hz / Phase 220-240 / 50 / 1 220-240 / 50 / 1 220-240 / 50 / 1 220-240 / 50 / 1

Cooling - BTU/h (kW) 17500 (5.13) 17500 (5.13) 21500 (6.30) 21000 (6.16)

Heating - BTU/h (kW) -- 18300 (5.36) -- 22000 (6.45)

Amps (Cooling / Heating) 9.8 9.8/9.8 11.0 11.2/11.4

Watts (Cooling / Heating) 2060 0.95636026 2400 2400/2550

EER (Cooling) 8.5 8.5/8.4 8.8 8.4/8.6

Indoor Sound Level (dBA) 47 47 47 47

Moisture Removel (Litres/h) 3.0 3.0 3.5 3.5

Air Circulation - CMH (CFM) 850 850/920 830 830/920

Interconnecting Tubing 3/8" & 5/8" 3/8" & 5/8" 3/8" & 5/8" 3/8" & 5/8"

Maximum Tibing Length - m (ft) 15 (49.2) 15 (49.2) 15 (49.2) 15 (49.2)

UNIT DIMENSIONS - mm (inch)

Indoor Unit : Width 1020(40.16) 1020(40.16) 1020(40.16) 1020(40.16)

Depth 195(7.68) 195(7.68) 195(7.68) 195(7.68)

Height 320 (12.60) 320 (12.60) 320 (12.60) 320 (12.60)

Outdoor Unit : Width 895 (35.2) 895 (35.2) 895 (35.2) 895 (35.2)

Depth 331 (13.0) 331 (13.0) 331 (13.0) 331 (13.0)

Height 623 (24.6) 623 (24.6) 623 (24.6) 623 (24.6)

CARTON DIMENSIONS mm (inch)

Indoor Unit : Width 1050(41.34) 1050(41.34) 1050(41.34) 1050(41.34)

Depth 290(11.42) 290(11.42) 290(11.42) 290(11.42)

Height 370(14.57) 370(14.57) 370(14.57) 370(14.57)

Outdoor Unit : Width 1070(42.13) 1070(42.13) 1070(42.13) 1070(42.13)

Depth 460(18.11) 460(18.11) 460(18.11) 460(18.11)

Height 735(28.94) 735(28.94) 735(28.94) 735(28.94)

WEIGHTS - kg (lb)

Indoor Unit : Net Weight 14(30.8) 14(30.8) 14(30.8) 14(30.8)

Shipping Weight 18(39.6) 18(39.6) 18(39.6) 18(39.6)

Outdoor Unit : Net Weight 47(103.4) 47(103.4) 62(136.4) 62(136.4)

Shipping Weight 53(116.6) 53(116.6) 68(149.6) 68(149.6)

CONTAINER LOADING

20 foot container 60 60 60 60

40 foot container 126 126 126 126

40 foot H.C. container 140 140 140 140

SECTION B: PARTS LIST AND EXPLODED VIEWS

SPECIFICATIONS :

INDOOR UNIT DIMENSIONS : 1020(40.15")W x 195(7.68")D x 320(12.60")H

OUTDOOR UNIT DIMENSIONS : 895(35.2")W x 331(13.0")D x 623(24.6")H

REFRIGERANT

RCHARGE

EEER GRAMS OF

MODEL VBTU/h (kW) MODE Volt / Hz Amps Watts COOL R-407C

E1FE418N6D - E1FC418N6G 17500 (5.13) COOL 220-240 / 50 9.8 2060 8.5 1.43 kg

EHFE418N6D - EHFC418N6G 17500 (5.13) COOL 220-240 / 50 9.8 2060 8.5 1.50 kg

18300 (5.36) HEAT 220-240 / 50 9.8 2154 8.4 --

E1FE424N6D - E1FC424N6G 21500 (6.30) COOL 220-240 / 50 11.0 2400 8.8 1.55 kg

EHFE424N6D - EHFC424N6G 21000 (6.16) COOL 220-240 / 50 11.2 2400 8.4 1.70 kg

22000 (6.45) HEAT 220-240 / 50 11.4 2550 8.6 --

RATING CONDITIONS

FEDDERS

LARGE SPLIT AIR CONDITIONER(R407C)

SERVICE PARTS LIST

AT STANDARD AHAM

Item

No.

Description

Service Part #

-----CHASSIS ASSEMBLY-----

1Lock Plate, Blower Wheel Left 36-08-00010-001 1111

2Lock Plate, Fan Motor, Right 36-08-00020-001 1111

3Lock Plate, Fan Motor, Left 36-08-00030-001 1111

4Motor, Discharge Cover 36-08-00050-001 1111

5Plate protect, Coil Water 36-08-00060-001 1111

6Tube Bracket 36-08-00070-001 1111

7Base Asm. 36-08-00080-001 1111

(include PS base, reinforce plate

and insulation)

8Fan Motor 35-16-90010-001 1111

9Grommet, Fan Motor 36-08-00100-001 2222

10 Blower Wheel, Dia102x763lg, Antimould 36-08-00110-002 1111

11 Blower Wheel Grommet Asm 36-08-00120-001 1111

(include grommet, bearing)

12 Drip Tray 36-08-00130-001 1111

(include PS and PE insulation

complete)

13 Air Deflector 36-08-00140-001 14 14 14 14

14 Handle Air Deflector 36-08-00150-001 2222

15 Tie-bar, Air Deflector 36-08-00160-001 2222

16 Discharge Cover 36-08-00170-001 1111

17 Bearing, Discharge Cover, Mid 36-08-00180-001 2222

18 Bearing, Discharge Cover, Left 36-08-00190-001 1111

20 Plug, Drip Tray 36-08-00210-001 1111

21 Drain Hose Asm. 36-08-00220-001 1111

(include drain hose,insulation)

22 Decorative Front Grille,Neuter 36-08-00230-N01 1111

23 Decorative Front Top Cover 36-08-00240-N01 1111

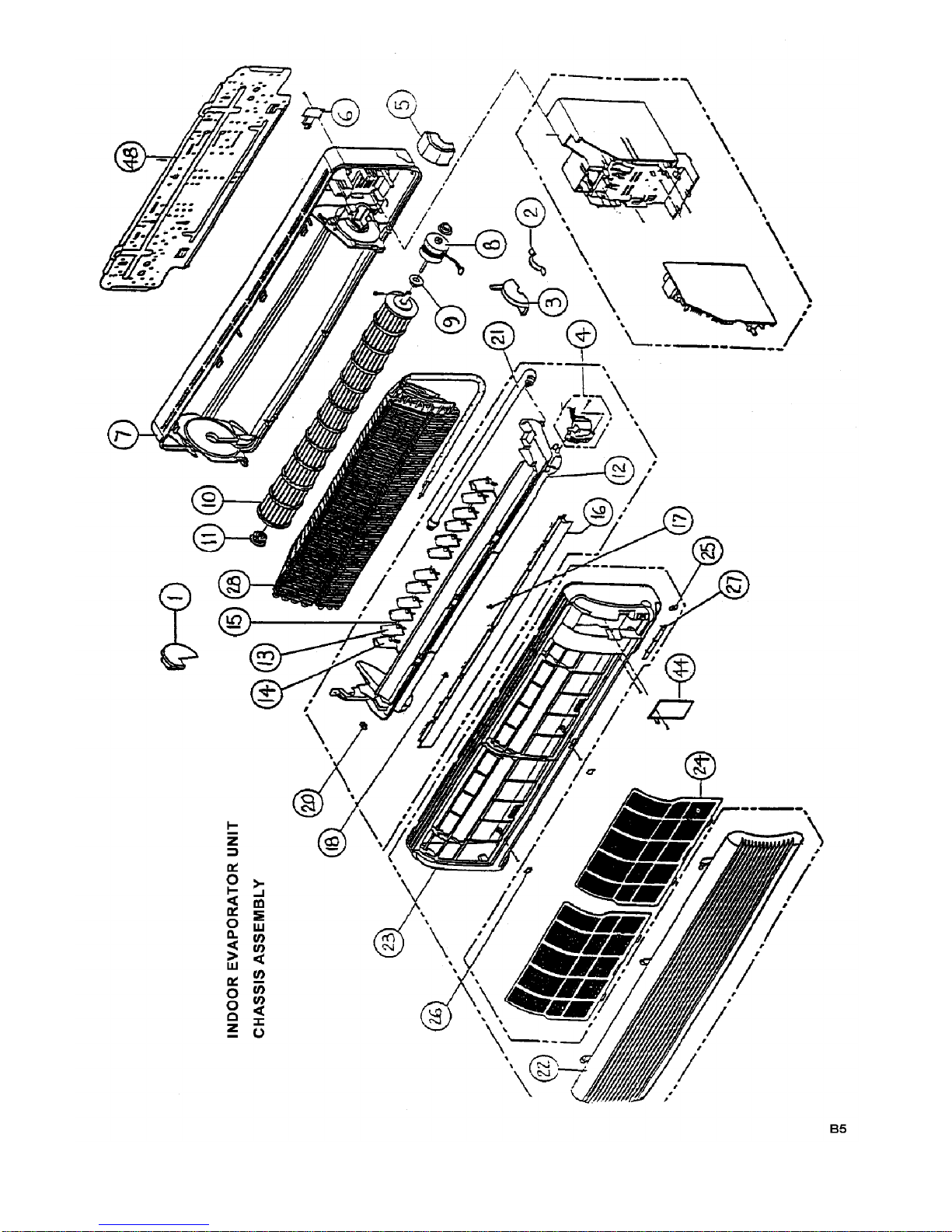

INDOOR EVAPORATOR UNIT

(R407C)

MODEL NUMBER

FEDDERS

LARGE SPLIT

Item

No.

Description

Service Part #

INDOOR EVAPORATOR UNIT

(R407C)

MODEL NUMBER

FEDDERS

LARGE SPLIT

-----CHASSIS ASSEMBLY(Cont')-----

24 Filter 35-16-00010-001 2222

NI 3M Purifying Filter 35-03-01460-001 1111

NI Charcoal Purifying Filter 35-03-00260-001 1111

25 Lens, Sensor 36-08-00250-001 1111

26 Cover, Screw 36-08-00260-001 3333

27 Label, LED Lens 36-08-00270-001 1111

-----REFRIGERANT ASSEMBLY-----

28 Evaporator Coil Asm. 37-16-08540-001 1111

(include flare fittings, top, bottom &

back coil Asm., connecting

tubes)

-----ELECTRICAL ASSEMBLY-----

29 Metal Cover, Electical Box 36-08-00280-001 1111

30 Metal Cover, Terminal Connection 36-08-00290-001 1111

31 Base, Main PCB 36-08-00300-001 1111

32 Electrical Box 36-08-00310-001 1111

33 Cover, Electical Box 36-08-00320-001 1111

34 Cover, Terminal Connection 36-08-00330-001 1111

35 Strain Relief, Interconnect 36-08-00340-001 1111

36 Metal Electrical Box Asm 36-08-00350-001 1111

37 Electrical Box, Front 36-08-00360-001 1111

38 Holder, Receiver 36-08-00370-001 1111

NI Mount Plate, Terminal Block 35-16-00030-001 1111

NI Terminal Block ,9P 35-03-00540-031 1111

39 Cover, LED 36-08-00380-001 1111

40 Base, LED 36-08-00390-001 1111

Item

No.

Description

Service Part #

INDOOR EVAPORATOR UNIT

(R407C)

MODEL NUMBER

FEDDERS

LARGE SPLIT

-----ELECTRICAL ASSEMBLY(Cont')-----

41 Main P.C. Board (C/O) 35-16-04160-012 1-- 1--

41 Main P.C. Board Kit (H/P) 50-18-0015N-001 -- 1-- 1

(Includes LED, Receiver PCB,

All Thermisters, Cables)

42 LED PC Board 35-16-04110-011 1111

43 Receiver PC Board 35-16-04120-011 1111

44 Wiring Diagram (C/O) 36-08-00420-001 1-- 1--

44 Wiring Diagram (H/P) 36-08-00430-001 -- 1-- 1

NI Power Cord 36-08-00440-001 1111

46 Strain Relief, Power Cord 36-08-00450-001 1111

NI Clip, Thermistor 35-03-01280-001 1111

NI Spring, Thermistor 35-05-00200-001 1111

NI Indoor Air Thermistor,10K 35-11-04140-03K 1111

NI Indoor Coil Thermistor,10K 35-11-04110-03K 1111

NI Outdoor Coil Thermistor, 10K 35-11-04120-03K -- 1-- 1

NI Jumper, Outdoor Thermistor 35-16-04170-011 -- 1-- 1

-----PACKAGING PARTS-----

48 Mounting Bracket, Unit 36-08-00460-001 1111

49 Remote Control (C/O),Neuter 11-23-03640-020 1-1-

49 Remote Control (H/P),Neuter 11-23-03640-021 -1-1

50 Remote Control Holder 35-02-00070-01V 1111

51 Packaging Clam Shell 36-08-00400-001 2222

52 Carton,Neuter 36-08-00410-001 1111

54 Accessory Kit Carton 35-03-00320-001 1111

NI Unit Plastic Bag 35-08-01140-001 1111

57 Signal/Thermistor Wire 15M,OD 35-02-01170-02K -1-1

NI User Manual 35-03-01350-001 1111

NI Installation Manual 35-24-00130-001 1111
