Feelworld FW7D-DRM Manuale del proprietario
7inch Dual Rack Mount LCD Monitor
Product Specification
Product model:FW7D-DRM
FW7D-DRM/O
1
CONTENTS
1.Product description-----------------------------------------1
2.Product feature instructions------------------------------2
3.Panel function and button operating instruction-----3
4.Rear panel and interface instruction------------------- 4
5.Power input way---------------------------------------------4
6.Appreance installation size-------------------------------5
7.OSD operating instruction---------------------------------5
8.Accessories---------------------------------------------------9

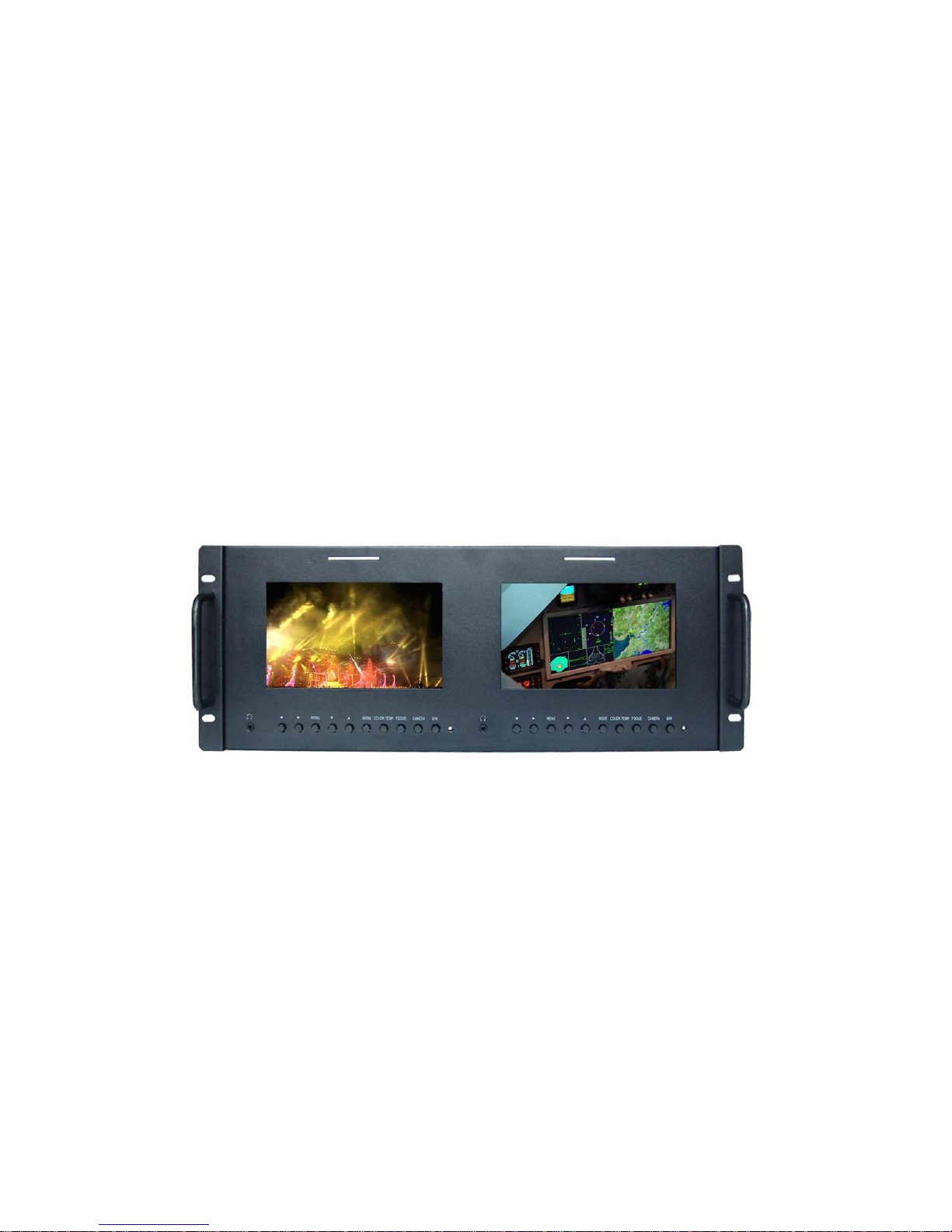

1. Product description
7" dual rack mount lcd monitor is a dual LCD screen display provide video
monitor & audio monitor. The monitor with high resolution 1024*600, to receive
the HDMI,Y/Pb/Pr and analog composite video signal, with the audio
input,earphone monitoring functions. FW7D-DRM/O can also provide
HDMI,composite video signal output. All video signals by digital processing,
high quality scaling on the screen. Can be used in the TV news production,
editing, broadcast and television, special vehicles in areas such as video
surveillance.
●HD SD video HDMI/component YPbPr/composite video and audio input
●Composite video/HDMI(optional)output
●5 D camera modeⅡ
●Peaking filter(Peaking focus assist)
●Picture color temperature selection
●Black and white picture (Red, Green, Blue display)
●Sceen marker(80%,85%,90%,93%,96% optional)
●Center marker
●4:3 or 16:9 Aspect ratio setting
●Brightness,Contrast,Hue,Saturation and Color Temperature Adjustment
●6 levels of brightness cycle adjustment shortcuts
●Earphone monitoring
2
2. Product feature instructions
Panel size TFT LCD 7.0inch×2 1843200 Pixels
Panel type TFT LCD
Resolution 1024 x 600
Max resolution 1920 x 1440
Horizontal frequency range 30～60kHz
Vertical frequency range 60Hz ～75Hz
Dot pitch 0.05(W) x 0.15 (H)
Display ratio 16：9
Brightness 250 cd/㎡
Contrast ratio 700:1
Response time 10ms
Viewing angle 75°/75° (L/R) 70°/75° (U/D)
Backlight LED
Input signal HDMI、YPbPr、VIDEO、AUDIO
Signal output Video, HDMI(optional)
HDMI& YPbPr support
mode
480i、480p、576i、576p、720/ 50p、720/ 60p、
1080/ 50i/ 60i/ 50p/ 60p
Video color system PAL－4.43; NTSC－3.58
Input power voltage range DC 6-24V
Unit power consumption ≤12W
Standby current ≤100mA/12V
Unit size 482.6mm×177.0mm×99.0mm
Working temperature －20～55℃
Storage temperature －30℃～65℃
3
3. Panel function and button operating instruction
1. Power indicator
2. B/W ：Switch on/off Check Field (Red、Green、Blue、Monochromatic and
Color)
3. CAMERA ：Canon 5D Mark II Camera Mode(camera mode is recording,
full display on monitor, No delay, No black screen,No
deform)
4. FOCUS : Crochet Focus Assist(Peaking Filter) key
5. COLOR TEMP: Color temperature selection
6. MODE: Signal input selection
7. ▲:Menu item value up adjustment button. No Menu State to cycle
adjust the 5 level brightness
8. ▼: Menu item value down adjustment button
9. MENU: To activate or close OSD menu
10. ►: Right adjusting key, function confirmation or increase the menu
analog value
11. ◄: Left adjusting key, function confirmation or decrease the menu
analog value
12. : Earphone port
13. The front handle
14. TALLY(Indicator light) No use for this monitor
4
4. Rear panel and interface instruction
1. A-IN：Audio signal input
2. YpbPr：Component video signal input, Top-down is Y、Pb、Pr input port
3. V-IN：Composite video signal input
4. V-OUT: Composite video signal output
5. HDMI-IN：HDMI HD signal input
6. HDMI-OUT：HDMI HD signal output
7. 4 pin XLR DC power input interface
8. Power ON/OFF switch
9. The rear handle
5. Power input way
Users can use this monitor with attached power adapter for power supply, can
also use DC power which output power is more than 20W for power supply
External power supply, please click on the picture XLR marking the
correct access power.
5

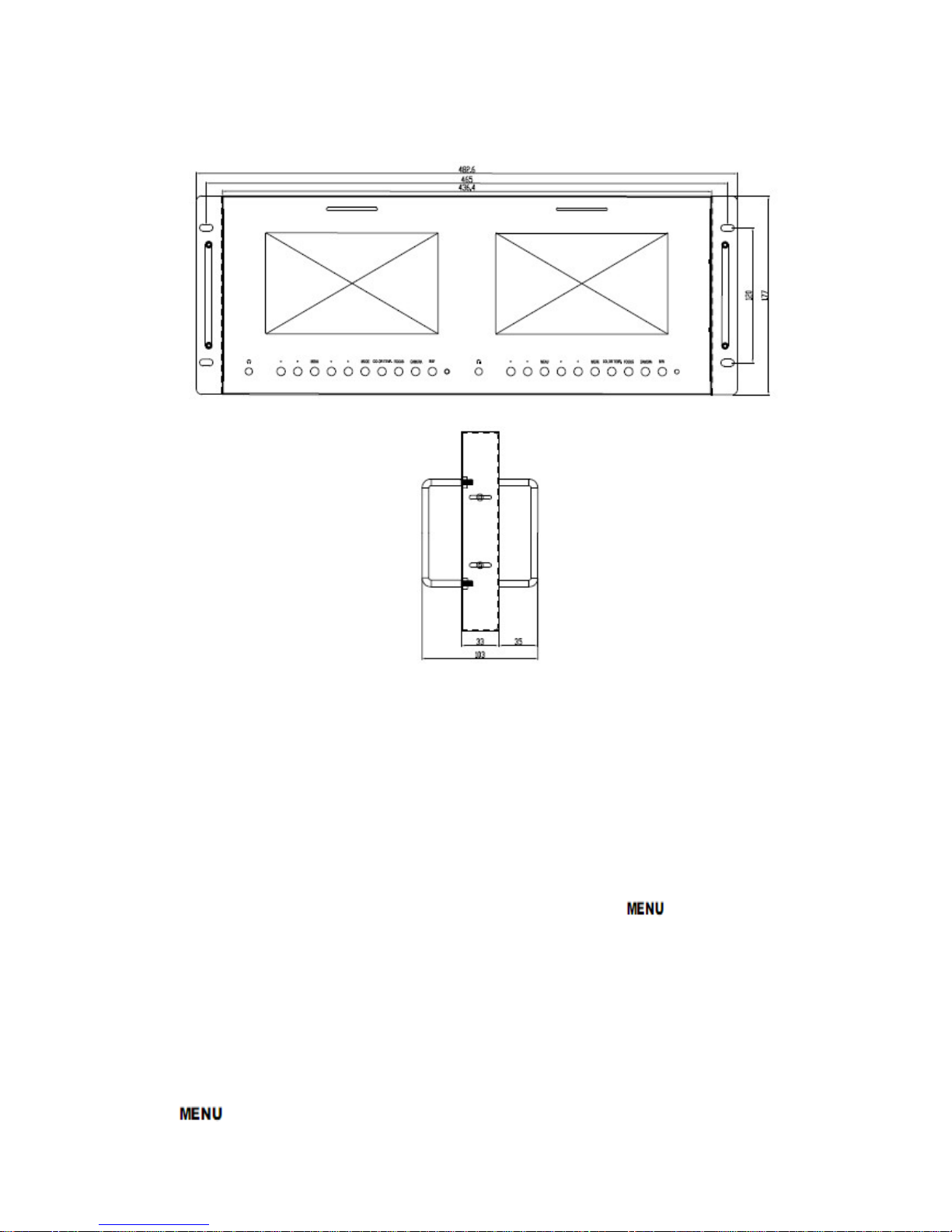

6. Appreance installation size（mm）
7. OSD operating instruction(same operating with L/R screen)
Before setting the menu functions, please make sure the device is
connected correctly. Power switch(at the back of the unit) dial to ON position.
The monitor enter into working state. Please dial to OFF position ,when need
to close the unit. After enter into working state, press the "mode"button on the
unit, according to the input video signal to switch signals(under NO menu state,
using the shortcut button on the panel to operate). Press " " button on the
unit, then enter into OSD menu operation. Operate “▲”or“▼”on the unit to
select or adjust the needed options. (color);(menu); (function); (sound); After
select options, press “◄”or“►”on the unit to confirm, then using “▲”or“▼”to
select or adjust the value of Analog value. After confirm the needed adjust
parameters, using “◄”or“►”to adjust. If need to exit OSD menu, repress
“” button.
6

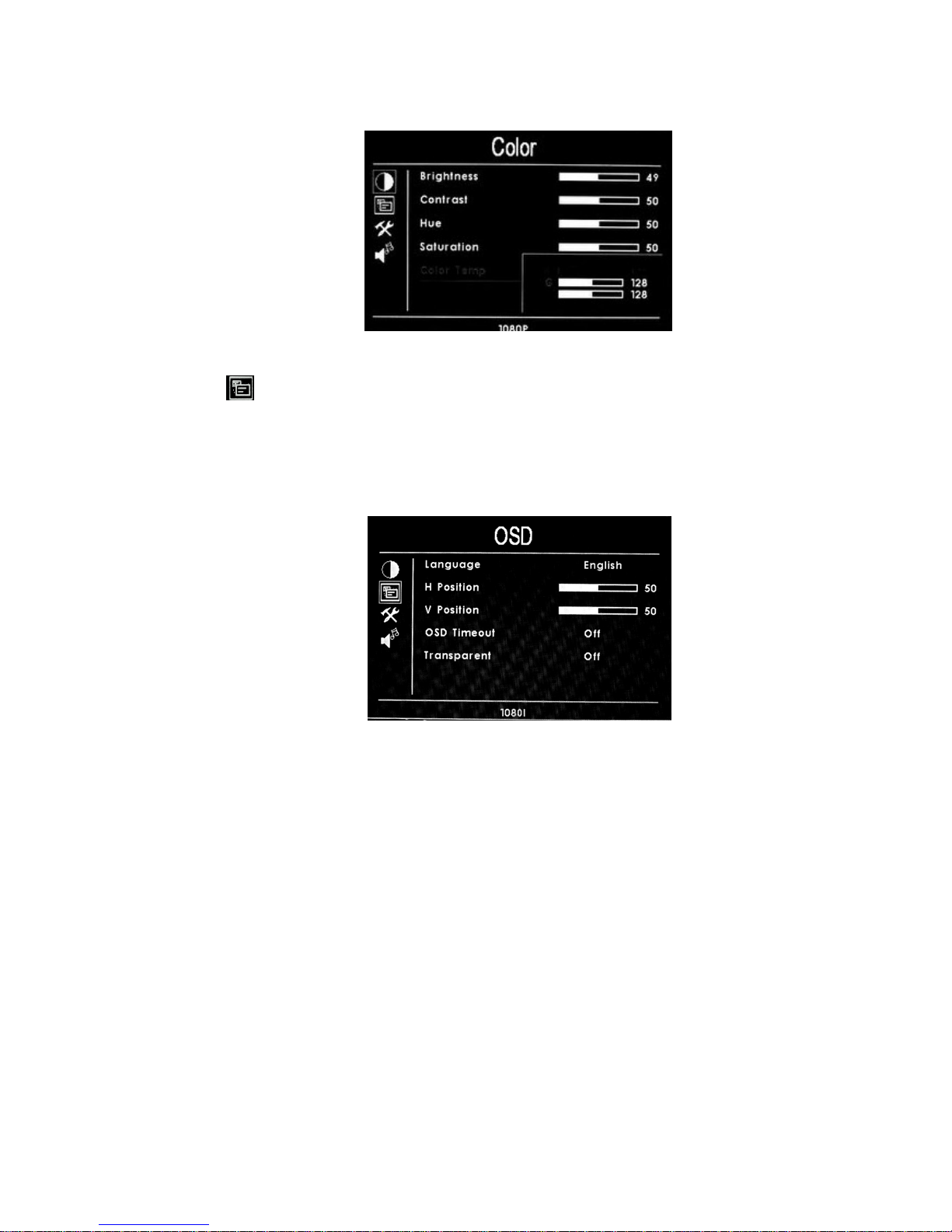

●（Color）
Enter into "Color" OSD, press “◄”or“►”button to confirm, then enter to
adjust the color parameters, use ““▲”or“▼”to select adjustment item, then
use“◄”or“►”adjust the parameters
※Brightness: To adjust the image's brightness
※Contrast: To adjust the brightest and darkest ratio of the image, please
note the sense of picture when adjust, proportion too large or small, will make
the picture lose the color of showy.
※Tint: On NTSC Video mode, the image color tint difference is
adjustable by tint.
※Saturation: To adjust color concentration
※Color temperature: Enter into (color)menu, press“◄”or“►” on the unit
to confirm, press “▲”or“▼” to select the form of color temperature, then press
“◄”or“►”on the unit to confirm, then use “▲”or“▼” to select color temperature
such as: 9300 K, 7500K, 6500K or USER.(the monitor leave the factory defalts
6500K)
When select "USER", use “▲”or“▼” to select color R、G、B, then
use “◄”or“►” to adjust the value of Analog value, to make sure the
color of picture meets need.
7
●（OSD）
After select "OSD" function, press “◄”or“►” button to confirm, then
enter into parameters adjust. Using “▲”or“▼” button to select optional items,
then using “◄”or“►” button to adjust the parameters.

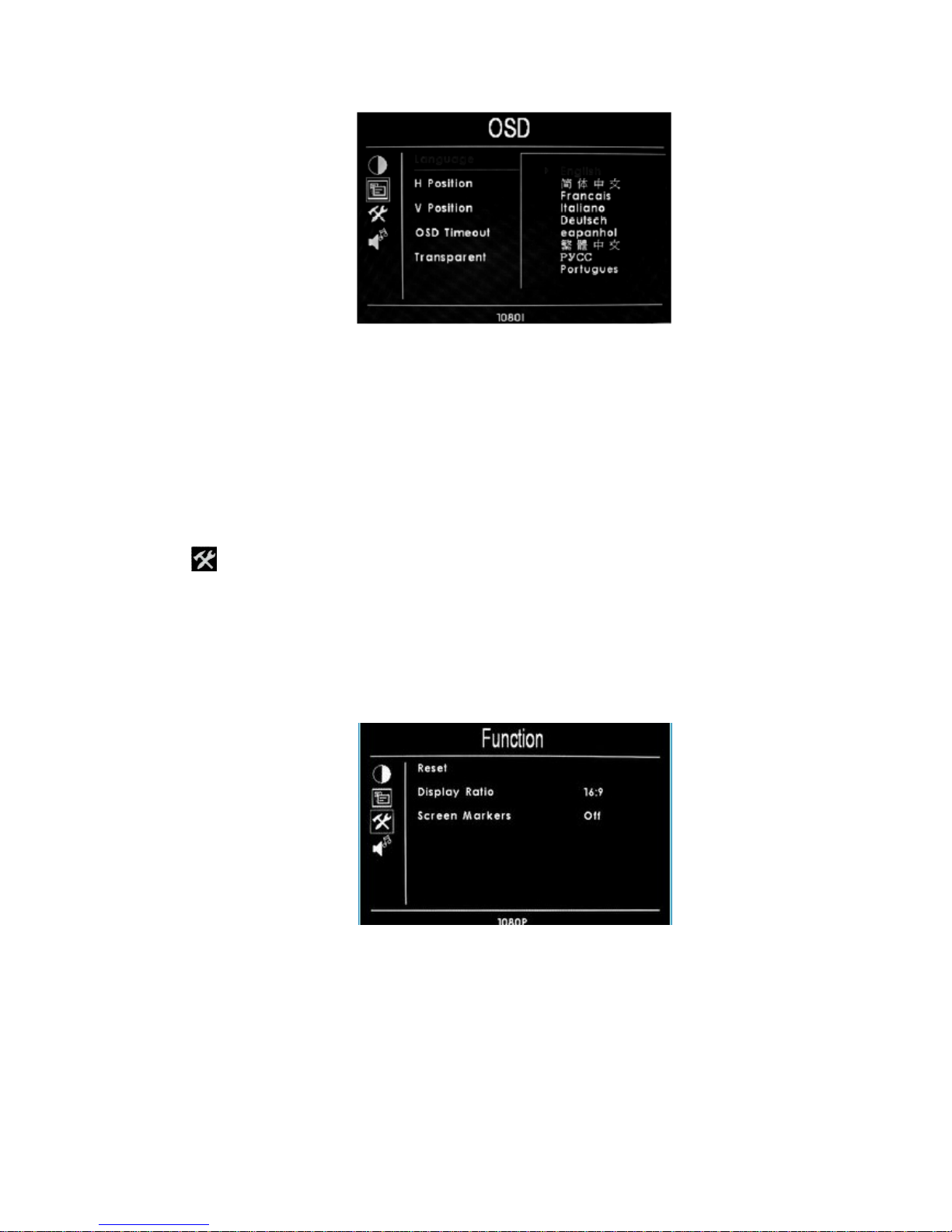

※Language：Languages for OSD as below:
English 简体中文 Italians Francois Deutsch
Español 繁体中文 Japanese Pycc
8
※ H Position：To adjust the OSD position in horizontal.
※ V Position：To adjust the OSD position in vertical.
※ OSD Timeout：To adjust the clock.
※ Transparent：To adjust the level of transparent.
●（Function）
After select "function", press “◄”or“►” button to confirm, then enter into
parameters adjust. Using “▲”or“▼” button to select adjustable items, then
using “◄”or“►” button to adjust the parameters.
※ Reset：Back to original setting.
※ Display Ratio：To change the display ratio 16:9/4:3.
※ Screen Marker:（80%、85%、90%、93%、95%）
9

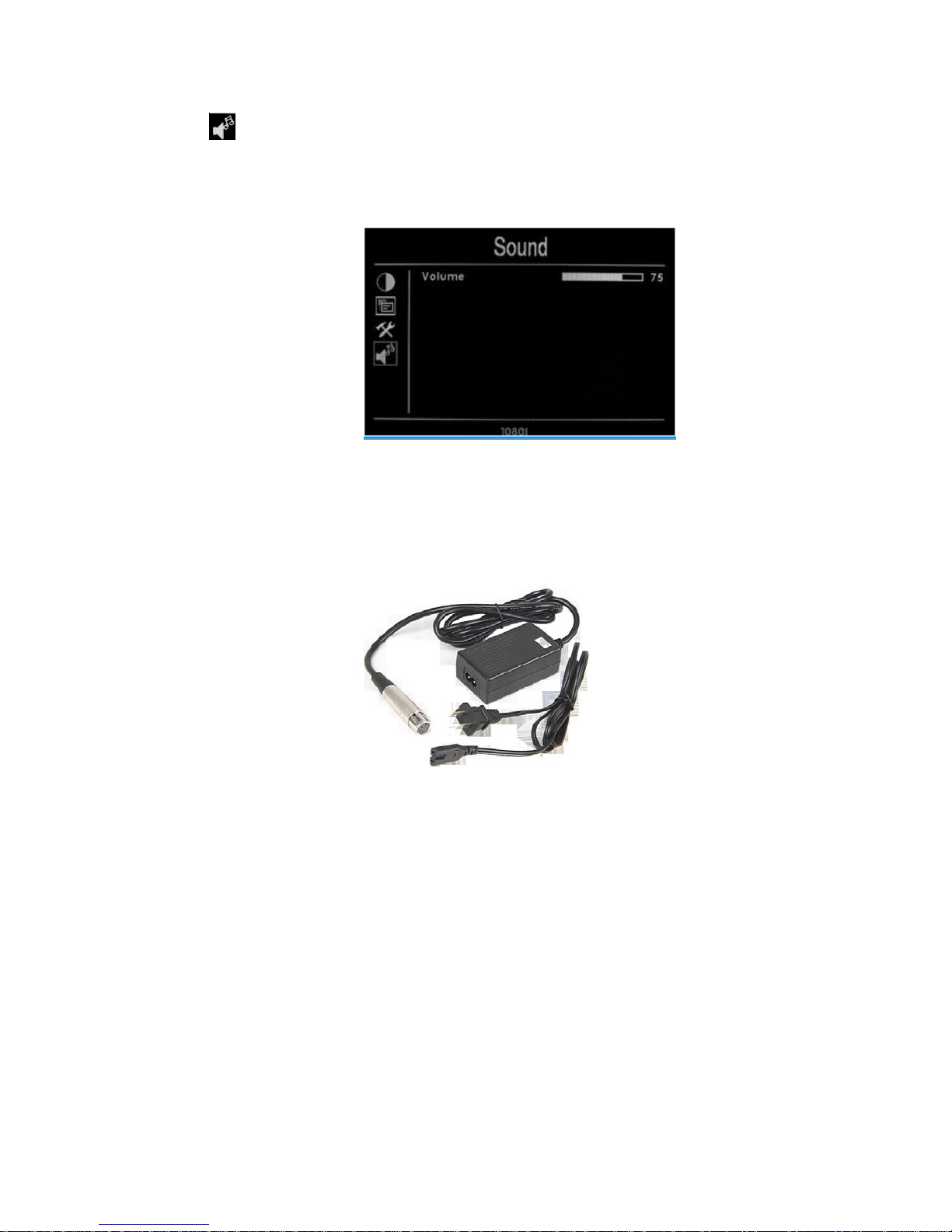

●(Sound)
After select "menu" function, press “ ”or“”button to confirm.Then enter
into parameters adjust. Use “▲”or“▼” to select adjustable options, then
use“ ”or“”adjust specific parameters
※Volume: To adjust the volume.
