FEIMEX FX500 Manuale utente
1
( 4 in 1)
USER MANUAL
LED BAR
2
1.BEFORE YOU BEGIN
What is included
Ø1 x Fixture
Ø1 x Powercable with plug
Ø1 x UserManua
Unpacking Instructions
Immediately upon receiving a fixture, carefully unpack the carton; check the
contents to ensure that all parts are present, and have been received in good
condition. Notify the shipper immediately and retain packing material for
inspection if any parts appear damaged from shipping or the carton itself shows
signs of mishandling. Save the carton and all packing materials. In the event that
a fixture must be returned to the factory, it is important that the fixture be returned
in the originalfactory box andpacking.
AC POWER
This fixture hasan auto-switching switch-modepower supply thatcan
accommodate a widerange of inputvoltages. The only thing necessaryto do
before powering onthe unit isto make surethe line voltageyou are applyingis
within the rangeof accepted voltages.This fixture will accommodate between
100V and 240VAC 50-60Hz. Each lightis connected endto end bythe power
socket “POWER IN”and “POWER OUT”on the light,or use thewaterproof power
cord. Please ensurethe head andthe tail tighteningwhen connect thelights, to
prevent the powerleakage occurred bywater seepage tothe plug.
Help preserve theenvironment! Ensure thatthis product is
recycled at theend of itslife. Your supplier cangive details
of local arrangementsfor the disposalof products.
3
Safety Instructions
!
WARNING!
Please read theseinstructions carefully, which includes
important information aboutthe installation, usageand
maintenance of thisproduct..
The following symbols are used to identify important safety information on the
product and inthis manual:
!!
DANGER!
Safety hazard.
Risk of severe
injury or death
DANGER!
Hazardous
Voltage. Riskof
lethal or severe
electric shock.
WARNING!
Fire hazard
WARNING!
LED light
emission. Risk
of eye injury.
WARNING!
Refer to user
=This light belongsto grade Iprotection device, thereforethe light mustconnect
to the earthexcellently. And thepower connection mustbe operated bythe
professional technician.
=Make sure thatthe working voltagewill not higheror lower thanthe rated value.
=Make sure thatthe cable didn'tbe damage orlacerated by sharp.
=The light mustbe power off when it's standing idle or before clearing.
=The cable mustwith plug, andyou must pullout the cableby handle theplug.
=Please be carefulwhen installing thelighting. Never touchthe bared cable,or
it will causethe deadly electricshock.
=Please use thesuitable and safecable to connectthe light.
=Please never remodelthe light randomly, we willnot take theguarantee for the
faulty and damagewhich caused bydismantle repair or remodelof the
nonprofessional person.
=Maximum ambient temperature40°C. Do notoperate fixture attemperatures
higher than this.
=Never connect thedevice to adimmer pack.
=Do not daisychain power tomore than 8units @ 120Vand 12 units@ 230V.
4
2.INTRODUCTION
Specifications
lVoltage Rating: AC100V 240V 50-60Hz
lPower Rating: 110W
lLED Quantity: 15X4-in-1(RGBW)
lLED: 380mA
lBeam Angle: 20°/30°/40°(option)
lIngress Protection: IP65/indoor(option)
lProduct Size: 990X120X145mm
lPackage Size:1070X160X170 mm
lN/W:5.7Kg
Features
lRGBW color mixingwith or withoutDMX controller
lspecial effect (minimum 16psc onegroup)
l5 distinct dimmingcurves
lLED display withpassword protection
lTransfer custom programs between fixtures
lOperating Modes: DMX512Connection /Master &Slave...
lDMX Channels: 11/04/06/15/17/21/60 channels
5
Product Overview
POWER IN
POWER IN
DMX IN
POOWER OUT
LED SIGNAL
LED SIGNAL
POWER OUT
DMX OUT
DMX OUT
DMX OUT
Dimensions
INDOOR
OUTDOOR
6
3.SETUP
Installation Requirement
lThis product can be used in a variety of situations, can hang and put on
the ground.
lIf hanging the fixture for over head use,then please followthe below steps.
lPlease choose thesuitable location toput or hangthe light wheninstalling it.
Youmust use the exclusive clamp hanger and screw when hanging it, and
make sure the weight of the light is within limits of the hanger.
lPlease make sure without any flammable objects within 0.5m when
installing the light.
lThe installation should be operated by professional person; any irregular
installation will cause the body injury or equipment damage.
lBlock access belowthe work areaand use suitable and stable platform
when installing or servicing fixture.
Hanging Clamp
Note: sold
separately
Safety Cable
Note: the cablemust be
secured through the heat
sink ventilation
passageway.
7

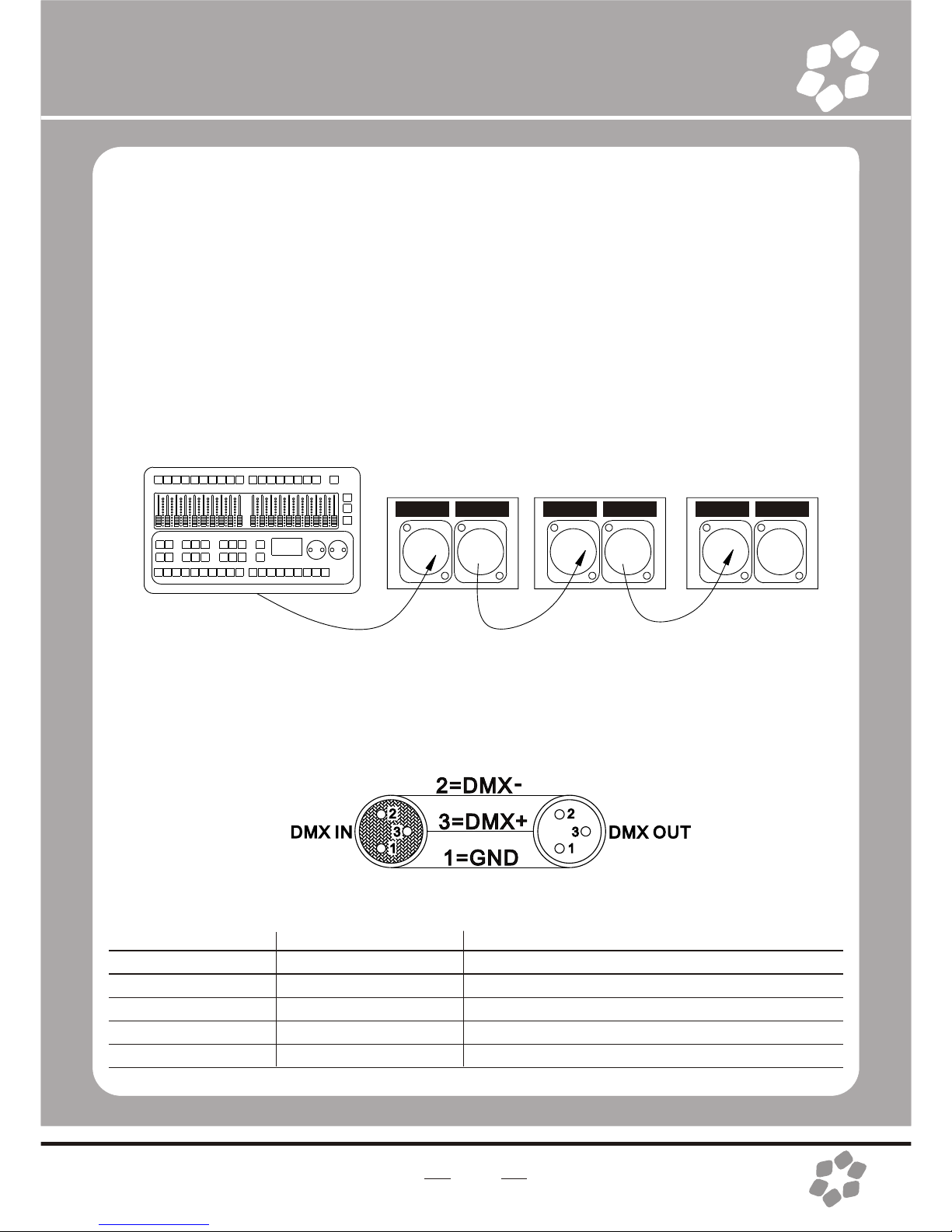

Connection of DMX Signal Wire
1Please use the fixture controller wire specially when use the DMX512
Controller. Connectthe (male) 3pin connector side of the DMX cable to
the output (female) 3 pinconnector of the first fixture.
2Connect the endof the cable coming fromthe first fixture which willhave
a (male) 3pin connector tothe input connectorof the next fixture
consisting of a (female) 3 pin connector. Then, proceed to connect from
the output asstated above tothe input ofthe following fixture and so on.
3This product can be connected numerous lamps in series without the
need for the signal amplifier; the signal will not be weakened.
DMX IN DMXOUT DMX IN DMXOUT DMX IN DMXOUT
3-PIN TO 5-PIN CONVERSION CHART
Note! If you use a controller with a 5 pin DMX output connector, you will
need to usea 5 pinto 3 pinadapter.
Conductor
Ground/Shield
Data ( -) signal
Data ( +) signal
Do not use
Do not use
3 Pin Female(output)
Pin 1
Pin2
Pin 3
5 Pin Male(Input)
Pin 1
Pin2
Pin 3
Do not use
Do not use
3 PIN TO 5 PIN CONVERSION CHART
BUTTON
MODE
ENTER
UP
DOWN
FUNCTION
Exits from thecurrent menu or function
Enables the currently displayed menu or sets the currently selected
value in tothe selected function
Navigates upwards through the menu list and increases the numeric
value when ina function
Navigates downwards through the menu list and decreases the numeric
value when ina function
4.OPERATING INSTRUCTIONS
Control Panel Functions
MAIN
FUNCTION
SUB-
FUNCTION SELECTION
001~512
000~255
(0 ~ 100%)
00~20
SP00-20
SP00-20
01~25
INSTRUCTION
Set DMX startaddress
User can combineRED, GREEN, BLUE
and WHITE togenerate a customcolor
Select strobe frequency
auto programs available
combine auto program
combine cartoon effects
Menu Map
8
(01~50)
(01~50)
9
MAIN
FUNCTION
SUB-
FUNCTION SELECTION
11CH
04CH
06CH
15CH
17CH
21CH
60CH
OFF
DIM1/2/3/4
1.00
ON~OFF
01~16
01~16
INSTRUCTION
Slaves
Select 11/04/06/15/17/21/60 channel
setting
"Off" meansselect linear dimming,or
choose dimmer 1-4to control thedimming
speed, dimming 1of the fastestdimming
curves, 4 forthe most slowlydimming curve
Version number
Enables or Disablespassword lockout
amount set ofcombined lights.
number set ofcombined lights
Operating instructions
1 Enable password lock
ÜON / OFF Ü{ENTER}
ON enable lock OFF disable lock
Enable the passwordlock, control panel in the boot or go into standby automatically
take effect, this time tooperate lamps needto enter yourpassword. { MODE UP
MODE DOWN MODE UP MODE DOWN }Ü{ENTER}
10
DMX512 Controller Mode
1 Setting DMX512 Address
Ü001--512
Access control panelfunction by pressingMODE until is displayed.
Press ENTER, addor reduce channelsby pressing UP/DOWNbetween 001 and512.
Press MODE toexit.
3 Setting Channels
Ü11CH/04CH /06CH /15 CH/17 CH /21 CH /60 CH
Access control panelfunction by prekssing MODE until is displayed.
Press ENTER button,select DMX channel by pressing UP/DOWN,
Press MODE toexit.
DMX512 Channel Values
4 channels
Channel
1
2
3
4
Channel
1
2
3
4
5
6
Value
000~255
000~255
000~255
000~255
Value
000~255
000~255
000~255
000~255
000~005
006~255
000~005
006~255
Description
Red
Green
Blue
White
Description
Red
Green
Blue
White
No Function
strobe/auto speed
No Function
AUTO (AT01~50)
6 channels
Channel 6 haspriority over channels 1-5.
When activating theAuto programs, then it is possible to controlthe auto speed by using
Channels 5
