Fellowes POWERSHRED C-480 Manuale utente

POWERSHRED®

OPERATING INSTRUCTIONS

NOTICE D'UTILISATION

MANUAL DEL PROPIETARIO

BETRIEBSANLEITUNG

1.722.999.101 – Edition 01/03

480

C-480

480C

C-480C

480-2HS

C-480HS

480

480C

480-2HS Paper shredder

2Edition 01/03

ENGLISH Paper shredder Fellowes 480 / 480C / 480-2HS.............................. 3 - 8

FRANÇAIS Déchiqueteuse Fellowes 480 / 480C / 480-2HS............................. 9 - 14

ESPANÕL Destructora de documentos Fellowes 480 / 480C / 480-2HS ...... 15 - 20

DEUTSCH Aktenvernichter Fellowes 480 / 480C / 480-2HS.......................... 21 - 26

Edition 01/03 3

480

480C

Paper shredder 480-2HS

Contents Page

1. Important Safety Instructions.................................................................................. 4

2. Parts Identification .................................................................................................. 4

3. Technical Specifications ......................................................................................... 5

4. Supplies.................................................................................................................. 6

5. Installation .............................................................................................................. 6

6. Caution ................................................................................................................... 6

7. Operation................................................................................................................ 6

8. Checklist for Inoperative Machine .......................................................................... 7

9. Malfunctions ........................................................................................................... 7

10. Maintenance ........................................................................................................... 7

11. Warranty ................................................................................................................. 8

12. Contact for Service ................................................................................................. 8

480

480C

480-2HS Paper shredder

4Edition 01/03

1. Important Safety Instructions

1. Read all instructions before use.

2. Save these instructions for later use.

3. Follow all warnings and instructions marked on

the product.

4. Unplug this product from the wall outlet before

cleaning. Clean with a damp cloth using a mild

soap and water solution. (Do not use abrasives

or petroleum based cleaners.)

5. Place this product as close as possible to

power source for quick and easy unplugging.

6. Do not use this product near water.

7. This product should never be placed near or

over a radiator or heat source.

8. Operate from the type power source indicated

on the marking label. If you are not sure of the

type of power available, consult your dealer or

local electricity board.

9. Do not allow anything to rest on the power cord.

Do not place this product where people may

walk on the cord.

10. If an extension cord is used with this product,

make sure that the total of the ampere ratings

on the products plugged into the extension cord

do not exceed the extension cord ampere

rating.

11. Do not attempt to service this product yourself,

as opening or removing covers may expose

you to dangerous live parts or other risks.

12. Unplug this product and refer servicing to

qualified personnel under the following

conditions:

A) When the power cord or plug is damaged or

frayed.

B) If liquid has been spilled on the product.

C) If the product has been exposed to rain.

D) If the product does not operate normally when

the operating instructions are followed.

E) If the product has been dropped or the casing

has been damaged.

13. Keep out of the reach of children.

14. This shredder should be operated only with an

operator in attendance.

15. Do not use flammable synthetic oil, petroleum-

based products, or aerosols of any kind on or

near shredder at any time.

2. Parts Identification

Fellowes Manufacturing Co.

1789 Norwood Avenue

Itasca, IL 60143 USA

Model:

Serial #:

Voltage: Motor:

Current: Manufactured:

480

480C

480-2HS

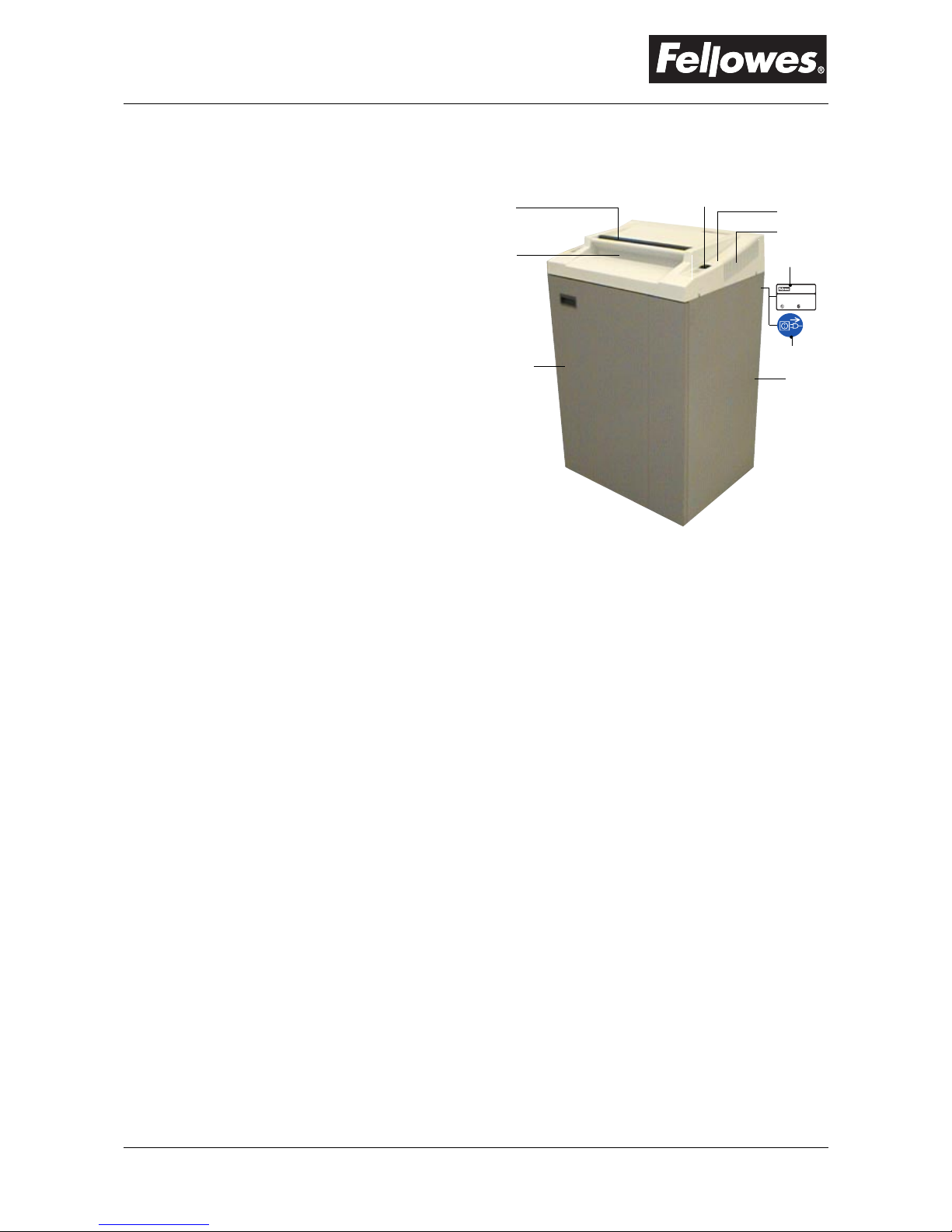

1. Rocker switch 6. Cabinet

2. LED display 7. Cabinet access door

3. Cover 8. Paper feed opening

4. Serial label 9. Paper guide roller

5. Caution label

Edition 01/03 5

480

480C

Paper shredder 480-2HS

* Paper DIN 19307 SM 4a – 70

3. Technical Specifications

Model Model Model

480 480C 480-2HS

Cutting Style High Security

Strip Cut Cross Cut Cross Cut

Shred Size 5/32" 7/32" 5/32" x 1 1/2" 1/16" x 5/8" 1/25" x 1/5"

(3.9 mm) (5.8 mm) (3.9 x 40 mm) (1.9 x 15 mm) (1 x 5 mm)

*Sheet capacity

U.S. (75 g/m2): N/A 36 - 38 22 - 24 N/A 7

Europe (70 g/m2): 28 - 30 38 - 40 24 - 26 15 - 17 7 - 8

Speed

32 FPM 30 FPM 43 FPM

(160 mm/sec) (150 mm/sec) (220 mm/sec)

Entry width 16"

(400 mm)

Motor power 120 Volt 60 Hz units: 1.93 H.P.

230 Volt 50 Hz units: 1.4 kW

Voltage (Depending on country)

120 V 60 Hz

230/240 V 50 Hz

Dimensions (H x W x D) 36 1/4" x 23 1/2" x 18 1/2"

(921 x 597 x 470 mm)

Weight 114 lbs (52 kg) 128 lbs (58 kg) 131 lbs (59 kg)

Waste container volume 39.1 gallons (148 liters)

Noise level In Idle 56 dB

Under load 62 dB strip cuts and 70 dB cross cuts

480

480C

480-2HS Paper shredder

6Edition 01/03

4. Supplies

– Bags for cut material

(Packed in dispenser carton, 50 or 100 bags

to a roll depending on size. Contact Fellowes

or your local Fellowes dealer for the stock

number of the bag that fits your machine.)

– Cutting block oil for cross-cut units

Stock # 35250

5. Installation

– Refer to separate set–up instructions for proper

assembly

– Operate this product only from the type of

power source indicated on the marking label

– Install the paper shredder so that the plug is

easily accessible

– Shredder must be operated only in upright

position

– Set up paper shredder so that the ventilation

slots are unobstructed. To ensure sufficient

ventilation of the shredder a minimum distance

of 4" (10 cm) to the wall or to the furniture must

be maintained.

6. Caution

Never insert hand, fingers or any

foreign objects into the feed

opening.

Serious injury may result.

Keep all loose articles of

clothing, ties, jewelery, long hair

or other loose objects away from

feed opening.

Injury may result.

Always turn off and unplug the

machine before moving,

servicing, cleaning or any other

conduct other than normal

operation.

Serious injury may result.

Before start-up

– Undo the wing screws securing the unit

during transportation

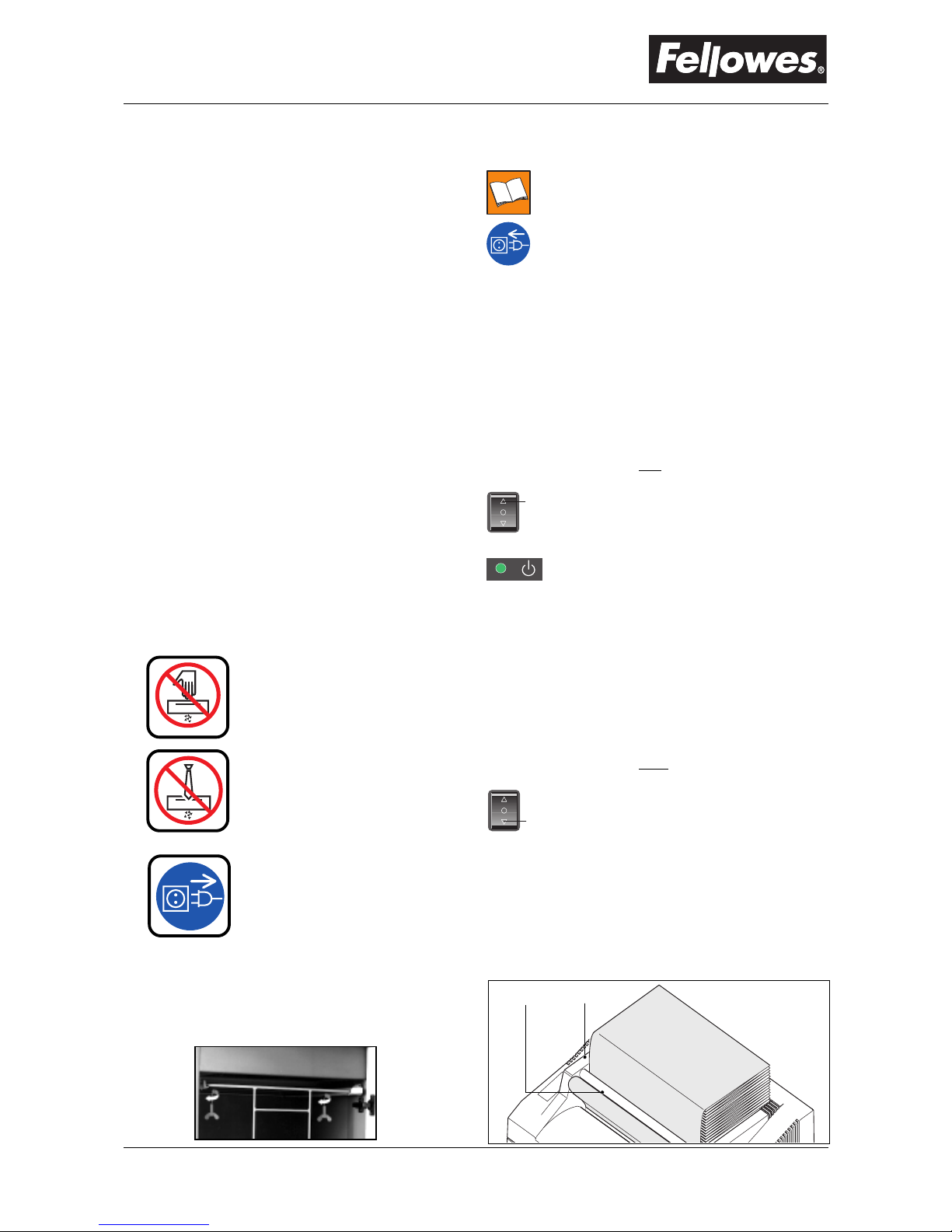

7. Operation

Read operating instructions before

putting shredder into operation

Insert plug in power outlet

Install waste bag for shredded material

– Open front door and completely remove

bag frame from cabinet

– Fold new bag around frame.

Allow bag to overhang frame by

approximately 7" (20 cm).

– Slide frame with bag back into cabinet

– Close cabinet door.

Switching equipment ON

– Press rocker switch to pos. 1

•Switch locks in "on" position

•Equipment is ready for operation

(stand by)

•Green LED lights

– Feed paper

•The shredding process is started by

photo–cells in the paper feed opening.

Insert paper and shredding begins

automatically.

•When the shredding is complete, the

cutting system automatically stops

after approx. 3 sec.

Switching equipment OFF

– Press rocker switch to pos. 2

•Switch resets to center position and the

machine is turned off.

Feeding continuous forms

– Pass the leading edge of the form under

the paper guide roller (1) and into the

paper feed opening (2).

Edition 01/03 7

480

480C

Paper shredder 480-2HS

8. Checklist for Inoperative Machine

If the equipment does not work properly,

please check the following points first:

– Is the plug inserted?

– Is the switch turned on?

– Is the cabinet door closed?

– Is waste receptacle full?

Empty waste bag.

– Is there a paper jam in the shredder?

– Is the motor overheated?

Switch machine off and allow motor to

cool down for approximately 15–20 min.

If none of the above applies and the equipment stil

does not run, please contact our customer service

department.

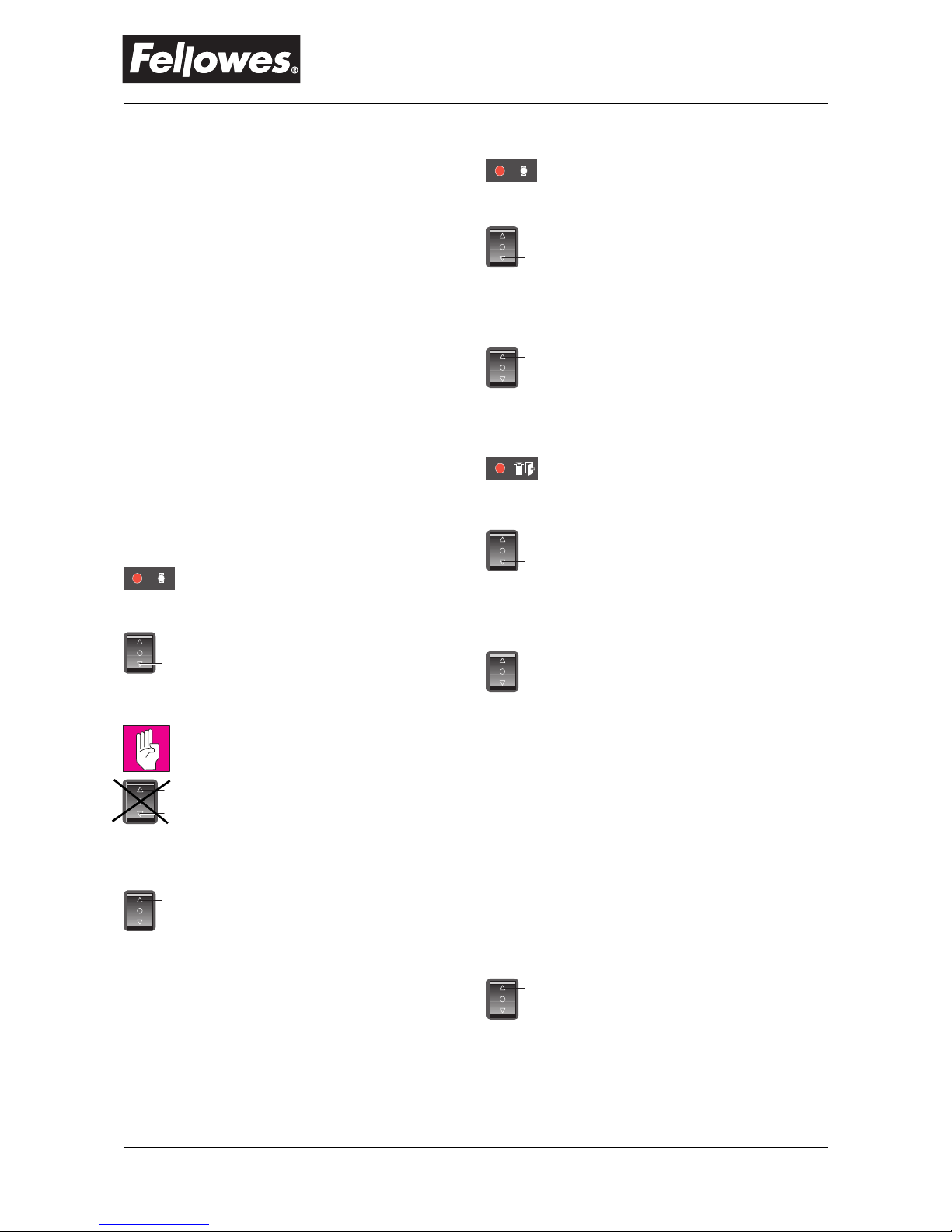

9. Malfunctions

Paper jam

Red LED lights

• Press and hold down rocker switch in

pos. 2 to reverse the cutting system

and back out jammed material

(paper is pushed out)

Caution!

Do not

attempt to force the jammed

material through the machine by

alternating the cutting system between

forward and reverse

• Remove excess paper

• Return switch to pos. 1 and continue

shredding in smaller quantities so as

not to jam the machine further

Note:

The 480-2HS

will not run

forward again

unless the jammed material has been

completely removed from the throat

Motor Overheating

Red LED lights

Paper shredder switches off automati-

cally.

• Tap rocker switch pos. 2

➪Rocker switch resets to zero

position

• Allow shredder to cool down for

approximately 15-20 minutes.

• Return switch to "on" position (1)

and continue shredding.

Cabinet door ajar / bag full

Red LED lights

Paper shredder switches off automati-

cally.

• Tap rocker switch pos. 2

➪Rocker switch resets to zero

position

• Make sure cabinet door is properly

closed and/or empty waste bag.

• Return switch to "on" position (1) and

continue shredding.

10. Maintenance

(Cross cut unit only)

– When shredding capacity drops or the

noise increases

• Apply oil over full width of cutting

cylinders through the paper entry

(Fellowes Powershred Lubricant

# 35250).

CAUTION: Do not use flammable

synthetic oil, petroleum-based products,

or aerosol lubricants of any kind.

• Run cutting system forward and

backward several times without feeding

paper

• Continue shredding

480

480C

480-2HS Paper shredder

8Edition 01/03

11. Warranty

Limited Warranty

Fellowes, Inc. warrants the cutting cylinders of the

machine to be free from defects in material and

workmanship for 20 years from the date of purchase

by the original consumer in the case of models 320,

320C, 380, 380C, 420, 420C, 520 and 520C or 5

years from the date of purchase by the original

purchaser in the case of models 320-2HS, 420-2HS

and 480-2HS. Fellowes warrants all other parts of

the machine to be free of defects in material and

workmanship for 2 years from the date of purchase

by the original consumer (applies to all models

covered in this manual). If any part is found to be

defective during the warranty period, your sole and

exclusive remedy will be repair or replacement, at

Fellowes’ option and expense, of the defective part.

This warranty does not apply in cases of abuse,

mishandling or unauthorized repair. ANY IMPLIED

WARRANTY, INCLUDING THAT OF

MERCHANTABILITY OR FITNESS FORA

PARTICULAR PURPOSE, IS HEREBY LIMITED IN

DURATION TO THE APPROPRIATE WARRANTY

PERIOD SET FORTH ABOVE. IN NO EVENT

SHALL FELLOWES BE LIABLE FORANY

CONSEQUENTIAL OR INCIDENTAL DAMAGES

ATTRIBUTABLE TO THIS PRODUCT. This warranty

gives you specific legal rights. You may have other

legal rights that vary from this warranty. The

duration, terms and conditions of this warranty are

valid worldwide, except where different limitations,

restrictions or conditions may be required by local

law. For more details or to obtain service under this

warranty, please see below.

Fellowes offers toll free consumer service in the

following regions: United States, Canada, Mexico,

Australia, and Europe. Residents in these regions

should contact the appropriate Consumer Helpline

located on the back of this manual.

If you are unable to access the Consumer Helpline

from your calling area, call the nearest Fellowes

location, also listed on the back of this manual. You

may also contact your local dealer, contact us online

at www.fellowes.com or write to us at:

Fellowes, Inc.

ATTN: Customer Service

1789 Norwood Avenue

Itasca, IL 60143

USA

12. Contact for Service

Consumer Helpline

Australia 1-800-33-11-77

Canada 1-800-665-4339

Mexico 001-800-234-1185

United States 1-800-955-0959

Europe 00 800 1810 1810

Fellowes Locations

Australia 011-613 93303211

Benelux 011-31-3473-77988

Canada 905-475-6320

France + 33 (0) 2-99-22-71-22

Germany + 39 (0) 5131-4977-0

Italy + 39 (0) 071-730041

Japan 011-81-3-5496-2401

Korea 82-2-3464-2884

Poland + 48-22-837-7356

Singapore 65-6221-3811

United Kingdom + 44 (0) 1302-836836

Altri manuali per POWERSHRED C-480

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Fellowes Distruggidocumenti

Fellowes

Fellowes POWERSHRED 70S Manuale utente

Fellowes

Fellowes Powershred 46Ms Manuale utente

Fellowes

Fellowes Powershred P-38 Manuale utente

Fellowes

Fellowes POWERSHRED P-33 Manuale utente

Fellowes

Fellowes Microshred 450M Manuale utente

Fellowes

Fellowes DM8C Manuale utente

Fellowes

Fellowes CC4 Manuale utente

Fellowes

Fellowes POWERSHRED 75Cs Manuale utente

Fellowes

Fellowes P500-2 Manuale utente

Fellowes

Fellowes POWERSHRED 62MC Manuale utente

Fellowes

Fellowes S40C Manuale utente

Fellowes

Fellowes Powershred 53C Manuale utente

Fellowes

Fellowes POWERSHRED HS-440 Manuale utente

Fellowes

Fellowes AutoMax 100M Manuale utente

Fellowes

Fellowes POWERSHRED 69Cb Manuale utente

Fellowes

Fellowes AutoMax AutoMax 200C Manuale utente

Fellowes

Fellowes Powershred M-8C Manuale utente

Fellowes

Fellowes POWERSHRED 79Ci Manuale utente

Fellowes

Fellowes Powershred C-320 Manuale utente

Fellowes

Fellowes Microshred 450M Manuale utente

Fellowes

Fellowes POWERSHRED 99Ms Manuale utente

Fellowes

Fellowes DS-1400C Manuale utente

Fellowes

Fellowes POWERSHRED P-35C Manuale utente

Fellowes

Fellowes Microshred MS-460Cs Manuale utente

Manuali Distruggidocumenti popolari di altre marche

Swingline

Swingline STACK-AND-SHRED200X&200XL 60X Manuale di istruzioni

GBC

GBC ShredMaster CC055 Manuale utente

UNITED OFFICE

UNITED OFFICE UAV 190 A1 Manuale utente

UNITED OFFICE

UNITED OFFICE UAV 190 A1 Manuale utente

Rexel

Rexel Optimum AutoFeed+ 45X Manuale utente

Martin Yale

Martin Yale 227284S1 Manuale utente

Bonsaii

Bonsaii DocShred C223-A Manuale utente

HSM

HSM Pure 740 max Manuale utente

TRU RED

TRU RED TR-BMC20A Manuale utente

GBC

GBC SHREDMASTER 1236SE Manuale utente

Gude

Gude GH 2600 P Manuale utente

Ativa

Ativa DQ80M Manuale utente

Q-Connect

Q-Connect Q8CC Manuale utente

Olivetti

Olivetti Privacy 5000C Guida rapida

UNITED OFFICE

UNITED OFFICE UAV 190 A1 Manuale utente

Dahle

Dahle paperSAFE 22022 Manuale utente

Formax

Formax OnSite FD 87 Manuale utente

GEHA

GEHA Home & Office S7 CD Manuale utente
