Fender Bassman '59 Manuale utente

’59 BASSMAN

p/n 021-7100-000 (120V)

SERVICE MANUAL

CONTENTS:

Notices

Parts lists:

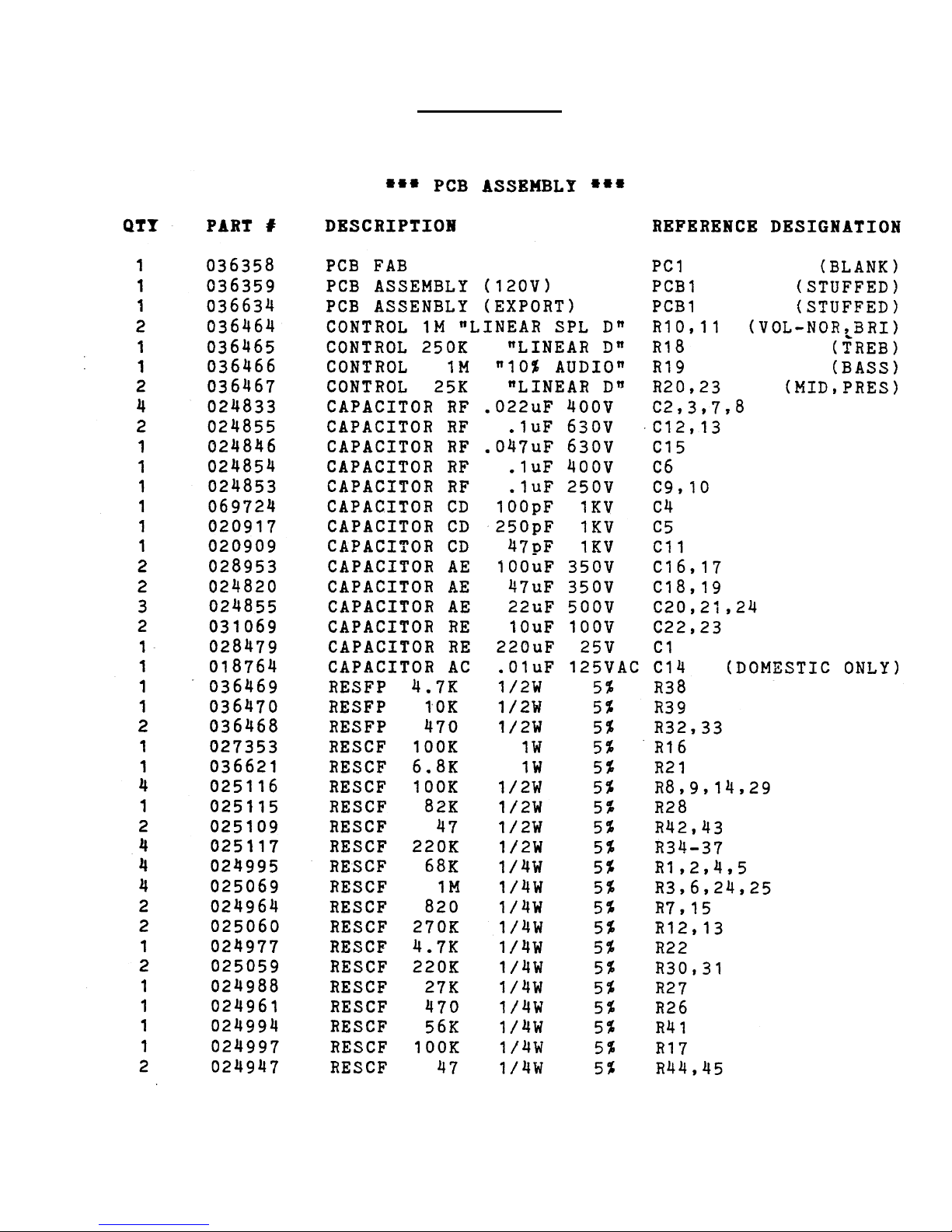

PCB assembly

Chassis assembly

Cabinet assembly

Miscellaneous

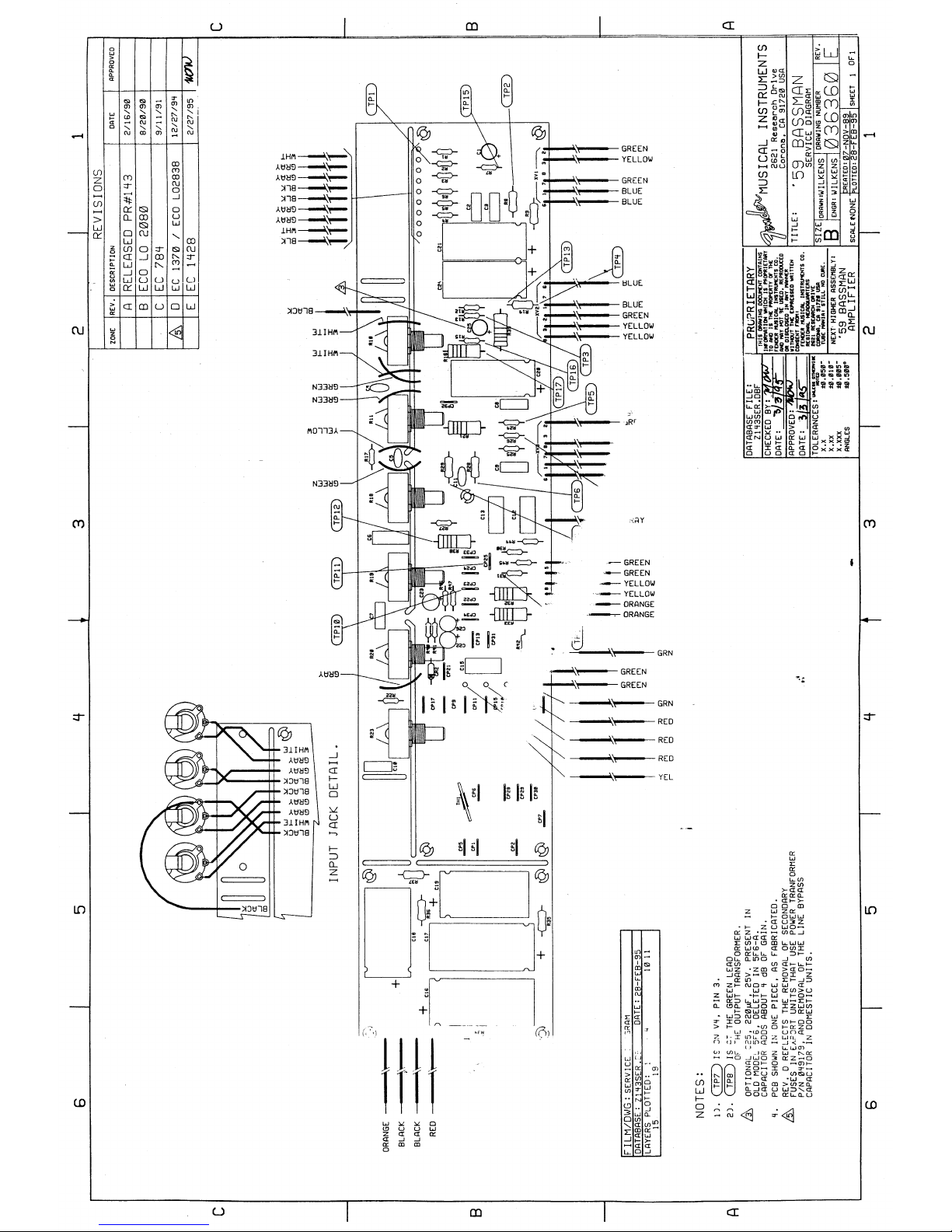

Schematics/diagrams

Fender Musical Instruments Corp. 8860 East Chaparral Road Suite 100 Scottsdale, AZ 85250

’59 BASSMAN

(This is the model name for warranty claims)

SERVICE MANUAL

February 1990

IMPORTANT NOTICE:

The information contained herein is CONFIDENTIAL and PROPRIETARY to Fender Musical Instruments Corp. It is

disclosed solely for use by qualified technicians for purposes of equipment maintenance and service. It may not be

disclosed to others without the expressed permission of Fender Musical Instruments Co. All specifications subject to

change without notice.

Only Fender specified part numbers are to be used for warranty repair service. It is recommended they also be used

for post-warranty maintenance and repair.

Parts marked with an asterisk (*) indicate the required use of that specific part. This is necessary for RELIABILITY

and SAFETY requirements. DO NOT USE A SUBSTITUTE!

A coded naming convention is used in the description of certain parts. The codes and what they mean are as follows:

CAPACITOR CODES HARDWARE CODES ____

CAP AE = Aluminum Electrolytic BLX = Black Oxide

CAP CA = Ceramic Axial CR = Chrome Plated

CAP CD = Ceramic Disk HWH = Hex Washer Head

CAP MPF = Metalized Polyester Film M = Machine Screw

CAP MY = Mylar NI = Nickel Plated

CAP PFF = Polyester Film/Foil OHP = Oval Head Phillips

PB = Particle Board

RESISTOR CODES PHP = Pan Head Phillips

PHPS = Pan Head Phillips Sems

RES CC = Carbon Comp SMA = Sheet Metal "A" Point

RES CF = Carbon Film SMB = Sheet Metal "B" Point

RES FP = Flame Proof SS = Stainless Steel

RES MF = Metal Film TF = Thread Forming

RES WW = Wire Wound ZI = Zinc Plated

’59 BASSMAN

PARTS LIST

’59 BASSMAN

PARTS LIST

’59 BASSMAN

PARTS LIST

’59 BASSMAN

PARTS LIST
