OWNER’S MANUAL
G2082 MOBILE GAS BARBECUES
USE ONLY THE HOSE AND HOSE CONNECTOR PROVIDED!
If a replacement is necessary, please contact either our Customer Service Department or your
local dealer.
The use of unauthorised parts can create unsafe conditions and environment.
Picture of appliance
Dansk manual finds påmoreland.dk
Technical Information:
APPLIANCE
MANUFACTURED BY:
Jiang Men City Hong Hua Metal Prodcuts Co., Limited
APPLIANCE CODE:
G2082
TOTAL HEAT INPUT:
(ALL GAS
CATEGORIES)
5.50 kW (400 g/h)
GAS CATEGORY:
I3+(28-30/37)
I3B/P(30)
TYPES OF GAS:
Butane
Propane
LPG GAS MIXTURES
GAS PRESSURE:
28-30 mbar
37 mbar
30 mbar
INJECTOR SIZE:
Main: 0.84 mm
Main: 0.84 mm
IDENTIFICATION
CODE:
359BU1034
SERIAL NUMBER
DATE CODE
Appliance code-09-0000000
FOR USE OUTDOORS AND IN WELL VENTILATED AREAS
WARNING: ACCESSIBLE PARTS MAY BE VERY HOT. KEEP YOUNG CHILDREN AWAY
READ THE INSTRUCTION LITERATURE BEFORE USING THE APPLIANCE
Ignition: Main burner: Single shot piezo ignition unit
IMPORTANT:
Read the following instructions carefully and be sure your barbecue is properly installed,
assembled and cared for. Failure to follow these instructions may result in serious bodily injury
and/or property damage.
If you have any questions concerning assembly or operation, consult your dealer or LPG Gas
Company.
When used on the ground always place the appliance and cylinder on flat level ground.
Never light the appliance with the HOOD in the closed position.
Your barbecue can be used on gas cylinders between 11 kg and 15 kg. Your barbecue will
perform better if propane or LPG mixtures are used. Butane can be used but because of the rate
of the appliance the cylinder will tend to freeze and supply gas at reduced pressures affecting the
performance of your barbecue.
When siting the barbecue the following clearances must be obeyed:
Sides and rear of appliance: 1 metre from any obstruction.
Above the appliance: NO OVERHEAD OBSTRUCTION ARE PERMITTED.
NOTE FOR CONSUMER: Retain for future Reference
3
4
5
6
7
89
12
17 161514 13
22
23
24
25
27
21
26
20
19
18
11
10
2
1
28
Kep
Transverse Leg
Lid Support Axle
Lid Handle
Gamel I
Gamel II
Oil Cup Hook
Front Cloth
Main Burner Ignition
Electrode
Right Shelf Assembly
Left Shelf
Assembly
Spark Electrode，
Rear Burner
Main Burner Valve
Oil Cup
Hook
Control Panel
Knob
Side Shelf,Right
Cooking grid
Warming Rack
Body
Burner
Flame Tamer
Huff Caster
1
1
2
2
2
1
1
1
2
1
1
Wheel Axle
18
M5Nut
F4
Screw
(M4X10)
E
Screw
(M5X10) 13
D
10
Screw
(M5X30)
C
Screw
(M6X10) 8
B
AScrew
(M6X40) 4
27
26
25
24
23
22
1
14
13
19
1
2
1
1
1
2
1
NO. Description Figure Q'TY
1
2
3
4
5
6
7
8
9
10
12
15
16
17
18
11
2
1
Lid
1
1
6
1
20
1
21
1
Side Shelf,Left
Q'TY
Figure
Description
NO.
28 Clip 4
Part 28 Clip 2PCS
Wheel Axle 2Pcs
Front Left
STEP 2
STEP 1
M6X40 4Pcs
A
Front Right
Back Left
Back Right
Front Left Back Left
Front Right
Back Right
A
A
A
A
Part 23
F
D
STEP 3
M4X10 4Pcs
F
DM5X10 3Pcs
F
F

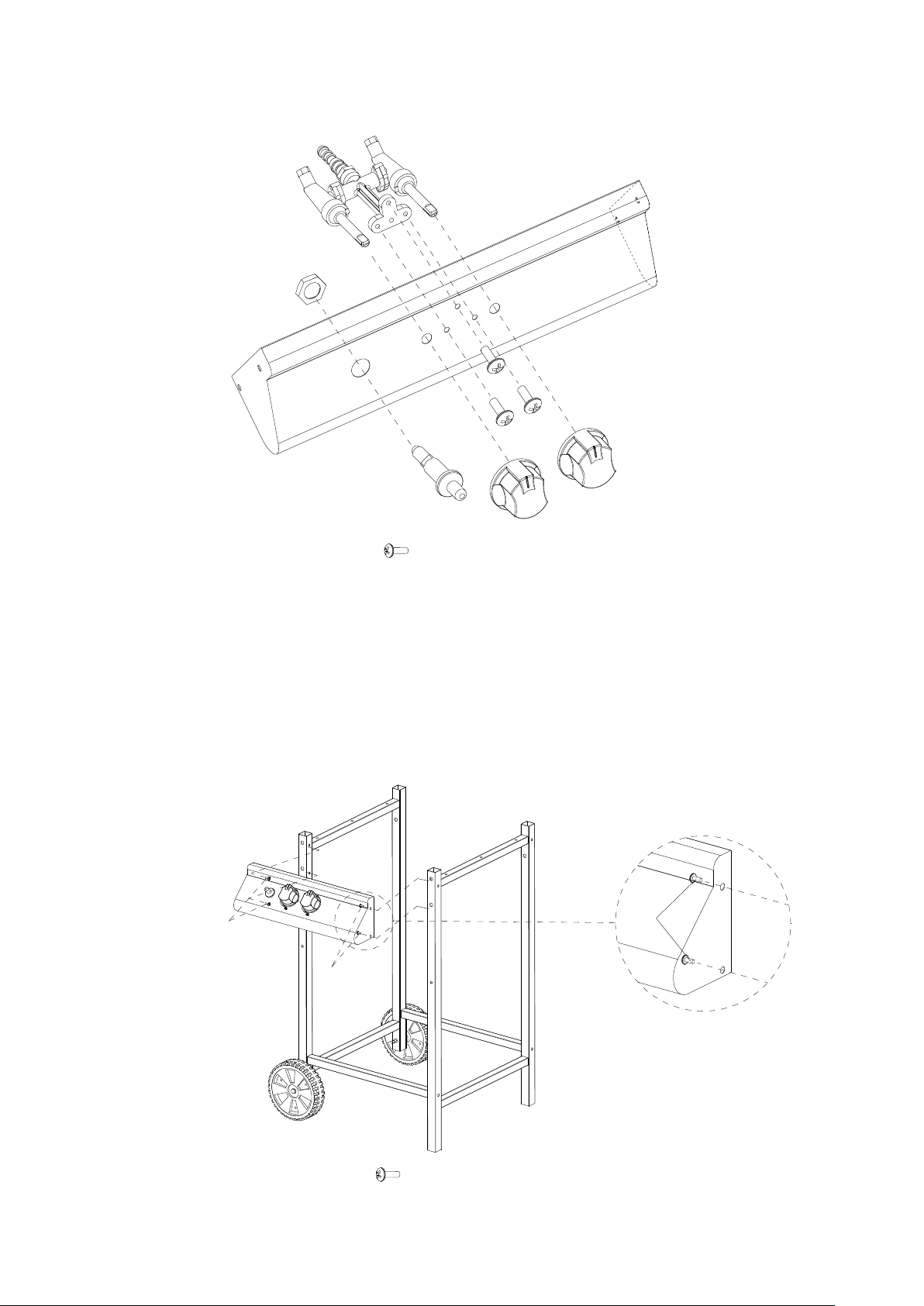

STEP 4
