The 1.0 Gallon CBS-2141 / 2142 XTS Touchscreen
Series Coffee Brewers provide flexibility in small-to-
medium sized venues such as Convenience Stores,
Bakery Cafés and Lobbies. Simplify your daily
operations and experience total control of this fully
featured Extractor®Brewing System via an inviting
touchscreen interface display that is intuitive, easy
to read and simple to navigate.
* Shown with L3D-10 Luxus®Dispenser (sold separately)
Access all controls via an inviting touchscreen
interface display that blends intuitive icons with
dynamic time and volume data to provide instant
visual feedback at any point during programming,
diagnostics or the brew cycle.
Customize the start screen to tie your equipment
and product offerings into a consistent brand
message. You can also create and display
individual recipe names for quick and easy
access to your most used coffee blends.
Perfect taste begins with a simple touch...
User Friendly Touchscreen
Customizable Screens
The Extractor®Touchscreen Operating System
(ETOS) was engineered for quick and efficient
navigation through set-up, programming,
diagnostics and daily operational brewing modes.
Streamlined Programming,
Diagnostics and Metrics
LUXUS®
Thermal Dispenser
D
R
I
P
D
E
L
A
Y
P
R
E
-
W
E
T
B
R
E
W
T
I
M
E
B
Y
P
A
S
S
%
B
R
E
W
V
O
L
U
M
E
B
Y
P
A
S
S
Sleek European cabinet design is attractive and fits well in
most front-of-house decor typically found in coffee shops,
lounges and cafes.
Driven by a user friendly touchscreen interface and intuitive
software, the XTS series represents the next step in the
evolution of FETCO’s renown EXTRACTOR®brewing technology.
Legendary Extractor®Control Contemporary Design
XTS™Series Cascading Spray Dome™
Duplicate profiles and parameters to and from any of the
batch buttons on a single machine or copy the information
to an unlimited number of brewers via a removable SD card
(Sold separately).
Modern Convenience
Take your coffee to its peak level by unlocking the full freshness,
aroma and flavor of your taste profile with the legendary
EXTRACTOR®brewing technology.
Luxus®Dispensing
The portable LUXUS®L3D Series
Thermal Servers and Dispensers
feature high-quality stainless-steel
vacuum liners for optimum retention
of heat, freshness and flavor.
Hot tank water flows over clog-free channels built
into the dome and virtually eliminates spray head scale
buildup – a leading reason for service calls.
Water Connection Inlet
1/4” Male Flare Fitting
Minimum Flow Rate
11/2gpm [5.7 lpm]
Water Pressure
20-75 psig [138-517 kPa]
Height
343/8”
[87 cm]
Width
113/4”
[29 cm]
Depth
203/8”
[51 cm]
Empty Weight
29 lbs
[13 kg]
Filled Weight
55 lbs
[25 kg]
Combined Filled Weight
66 lbs [34 kg]
BREWER + 1 FILLED L3D-10 DISPENSER
Hot Water Tank Cap.
3.3 gal
[12 l]
Shipping Weight:
41 lbs
[18 kg]
Shipping Dimensions:
16” x 23” x 29”
[40 x 58 x 73 cm]
* Approximate based on
maximum power setting.
8oz.
12oz.
16oz.
20oz.
184
123
92
74
#B012218B1
13” x 5”
Stainless Steel
#B014218BN2
13” x 5”
Plastic w/ Brown Insert
#F002
13” x 5”
Paper Coffee Filter
L3S-10
1.0 Gallon LUXUS®
Thermal Server*
S3S-1 Single
Serving Station
S3S-3 Triple
Serving Station
S3S-2 Twin
Serving Station
L3D-10
1.0 Gallon LUXUS®
Thermal Dispenser
Product DIMS:
Height: 135/16”
Width: 8”
Depth: 101/4”
Weight:
Empty: 5.6 lbs
Filled: 12.4 lbs
Product DIMS:
Height: 211/2”
Width: 8”
Depth: 9”
Weight:
Empty: 8 lbs
Filled: 15.9 lbs
* Must be used
with S3S Serving
Stations.
Plastic Brew Basket
Configuration Code
E214154
E214151
E214171
Optional(2)
E214172
Optional(2)
E214173
Optional(2)
Heater
Configuration
1 x 1.7 kW
1 x 2.3 kW
1 x 1.5 kW
2 x 1.5 kW
1 x 1.7 kW
2 x 1.7 kW
1 x 2.3 kW
2 x 2.3 kW
Voltage
100-120
100-120
120
120/208-240
120
120/208-240
120
120/208-240
Wires
2+G
2+G
2+G
3+G
2+G
3+G
2+G
3+G
Phase
1
1
1
1
1
1
1
1
Electrical
Connection
NEMA 5-15P
NEMA 5-20P
NEMA 5-15P
L1 / L2 / N+G
NEMA 5-15P
L1 / L2 / N+G
NEMA 5-20P
L1 / L2 / N+G
KW
1.3-1.8
1.7-2.4
1.6
3.1
1.8
3.5
2.4
4.7
Max Amp Draw
12.3-14.7
16.5-19.7
13.0
13.0
14.7
14.7
19.7
19.7
Gallon [Liter] /
Hour
4.4 [16.7](1)
5.8 [22.0](1)
3.9 [14.8](1)(3)
5.8 [22.0](1)(3)
4.4 [16.7](1)(3)
8.7 [33.0](1)(3)
5.8 [22.0](1)(3)
11.0 [41.6](1)(3)
Stainless Steel
Brew Basket
Configuration Code
E214154M
E214151M
E214171M
Optional(2)
E214172M
Optional(2)
E214173M
Optional(2)
(1) Based on standard factory settings: 5.5 minute brew time; 0% prewet; 200°F water. 1 gallon per batch.
(2) Sold with factory cord & plug for 120 Volt configuration. Optional user connection to a terminal block requiring L1, L2, N and ground to 120/208-240 VAC.
No airpot locator for this group . User selectable for optional, dual in-series heater configuration.
(3) 3 liters per batch.
UNIVERSAL VOLTAGE OPTIONS
Patents: 6,148,717 & 6,565,906 & 6,576,282. Other Patents pending.
Designs, materials, specifications, physical dimensions, firmware and software protocol for equipment or replacement parts are subject to review and change by FETCO without notice.
34-3/8”
[87.3 cm]
7-1/8”
[18.1 cm]
12”
[30.6 cm]
11-3/4”
[29.8 cm]
20-3/8”
[51.6 cm]
5”
[12.7 cm]
1-7/8”
[4.8 cm]
7”
[17.6 cm]
30-3/8”
[77.2 cm]
21-3/8”
[54.3 cm]
NEMA PLUGS
CONFIGURATIONS
G
W
NEMA
5-15P NEMA
5-20P
W
G

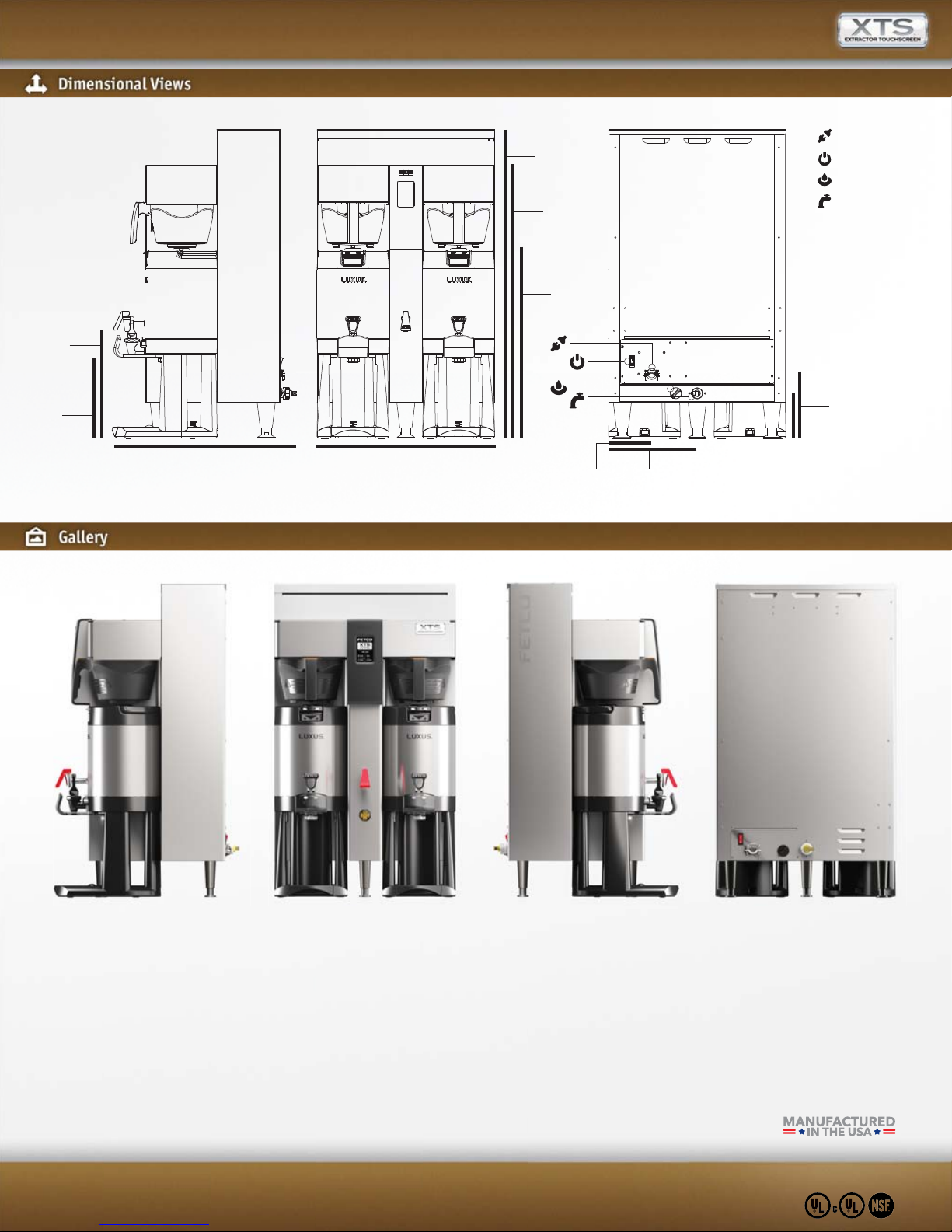

SYMBOLS
Electrical Connector
On / Off Switch
Tank Drain
Water Inlet
Water Connection Inlet
1/4” Male Flare Fitting
Minimum Flow Rate
11/2gpm [5.7 lpm]
Water Pressure
20-75 psig [138-517 kPa]
Height
343/8”
[87 cm]
Width
193/4”
[50 cm]
Depth
203/8”
[51 cm]
Empty Weight
47 lbs
[21 kg]
Filled Weight
92 lbs
[41 kg]
Combined Filled Weight
114 lbs [51 kg]
BREWER + 2 FILLED L3D-10 DISPENSERS
Hot Water Tank Cap.
5.8 gal
[22 l]
Shipping Weight:
58 lb
[26 kg]
Shipping Dimensions:
23” x 25” x 29”
[58 x 63 x 73 cm]
* Approximate based on
maximum power setting.
8oz.
12oz.
16oz.
20oz.
224
149
112
90
#B012218B1
13” x 5”
Stainless Steel
#B014218BN2
13” x 5”
Plastic w/ Brown Insert
#F002
13” x 5”
Paper Coffee Filter
L3S-10
1.0 Gallon LUXUS®
Thermal Server*
L3D-10
1.0 Gallon LUXUS®
Thermal Dispenser
Product DIMS:
Height: 135/16”
Width: 8”
Depth: 101/4”
Weight:
Empty: 5.6 lbs
Filled: 12.4 lbs
Product DIMS:
Height: 211/2”
Width: 8”
Depth: 9”
Weight:
Empty: 8 lbs
Filled: 15.9 lbs
* Must be used
with S3S Serving
Stations.
S3S-1 Single
Serving Station
S3S-3 Triple
Serving Station
S3S-2 Twin
Serving Station
(1) Based on standard factory settings: 5.5 minute brew time; 0% prewet; 200°F water. 1 gallon per batch.
Plastic Brew Basket
Configuration Code
E214251
Heater
Configuration
2 x 3.0 kW
Voltage
200-240
Wires
2+G
Phase
1
Electrical
Connection
Hardwired
KW
4.2-6.1
Max Amp Draw
21.3-25.5
Gallon [Liter] /
Hour
14.0 [53](1)
Stainless Steel
Brew Basket
Configuration Code
E214251M
Patents: 6,148,717 & 6,565,906 & 6,576,282. Other Patents pending.
Designs, materials, specifications, physical dimensions, firmware and software protocol for equipment or replacement parts are subject to review and change by FETCO without notice.
34-3/8”
[87.3 cm]
7-1/8”
[18.1 cm]
12”
[30.6 cm]
9”
[22.9 cm]
19-3/4”
[50.2 cm]
20-3/8”
[51.6 cm]
5”
[12.7 cm]
4-7/8”
[12.2 cm]
9-7/8”
[25.1 cm]
30-3/8”
[77.2 cm]
21-3/8”
[54.3 cm]
SYMBOLS
Electrical Connector
On / Off Switch
Tank Drain
Water Inlet
