AUSTRALIA VERSION

530.07.XXX_Australia_500-500C_GB_1ed.indd 1530.07.XXX_Australia_500-500C_GB_1ed.indd 1 21/04/2021 10:19:0721/04/2021 10:19:07

This supplement describes the main characteristics of the Fiat and right hand drive version.

To obtain peak engine condition and to ensure maximum performance of all of its components, it is necessary to observe the instructions for vehicle

use and vehicle maintenance described in this booklet.

FCA Australia recommends that customers have all maintenance and, where necessary, repairs, carried out at an authorised Abarth repairer.

Please see website www.fiat.com.au/fiat-dealers for a list of authorised Abarth repairers in your region (*).

Authorised Abarth repairers use highly qualified technical staff and ensure that only appropriate equipment and tools are used on your vehicle.

Failure to carry out maintenance at the recommended intervals can result in deterioration of your vehicle.

Components have been fitted in accordance with the relevant Australian Design Rules for your vehicle.

This supplement contains information regarding the correct use and care of these vehicle components.

For any topic not specifically dealt with in this supplement, refer to the main Owner’s Handbook which should be read thoroughly to ensure that the

vehicle is used correctly and safely.

(*) Not all authorised Abarth dealers will also be authorised Abarth repairers. Please contact your dealer for more information.

530.07.XXX_Australia_500-500C_GB_1ed.indd 2530.07.XXX_Australia_500-500C_GB_1ed.indd 2 21/04/2021 10:21:5921/04/2021 10:21:59

AUSTRALIA VERSION

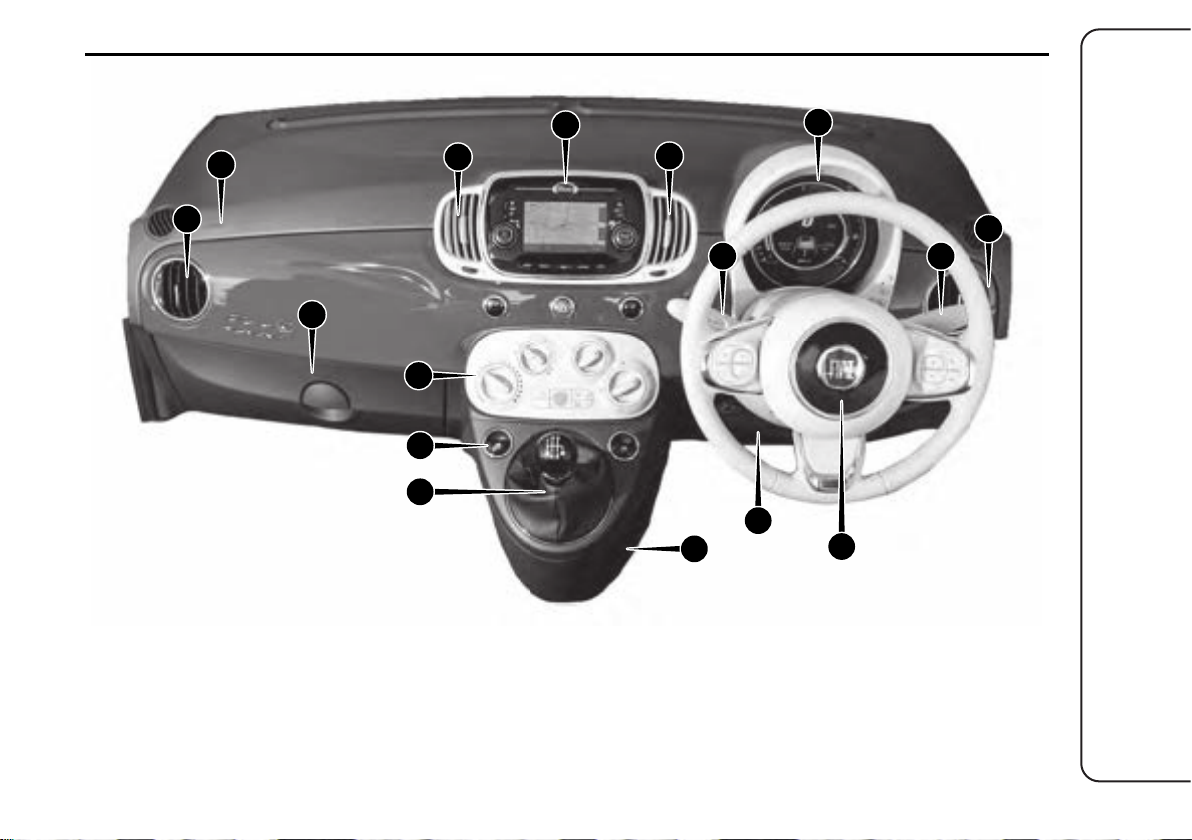

DASHBOARD

1 F0S0745

1. Side vent – 2. Right stalk: controls wiper, washer, trip computer – 3. Instrument panel and warning lights – 4 . Left stalk:

exter- nal lights control – 5. Central air vents – 6. Uconnect™ – 7. Passenger air bag – 8. Oddment compartment/hidden

document tray – 9. Heating/ventilation/climate control – 10. Power windows control – 11 Oddment compartment - 12. Gear

lever 13. Driver air bag – 14. Driver knee bag.

530.07.XXX_Australia_500-500C_GB_1ed.indd 3530.07.XXX_Australia_500-500C_GB_1ed.indd 3 21/04/2021 10:21:5921/04/2021 10:21:59

AUSTRALIA VERSION

CHILD RESTRAINTS

The recommendation of the ISO child

(restraints) seats to be used with the

vehicle in the main Owner Handbook

complies with AS/NZS 1754-2013.

CHILD RESTRAINT

INSTALLATION

Your vehicle has been designed to

accommodate child restraints on

the rearmost seats. When using a

child restraint, read the Installation

Instructions supplied with the child

restraint and follow the directions for

fitment carefully.

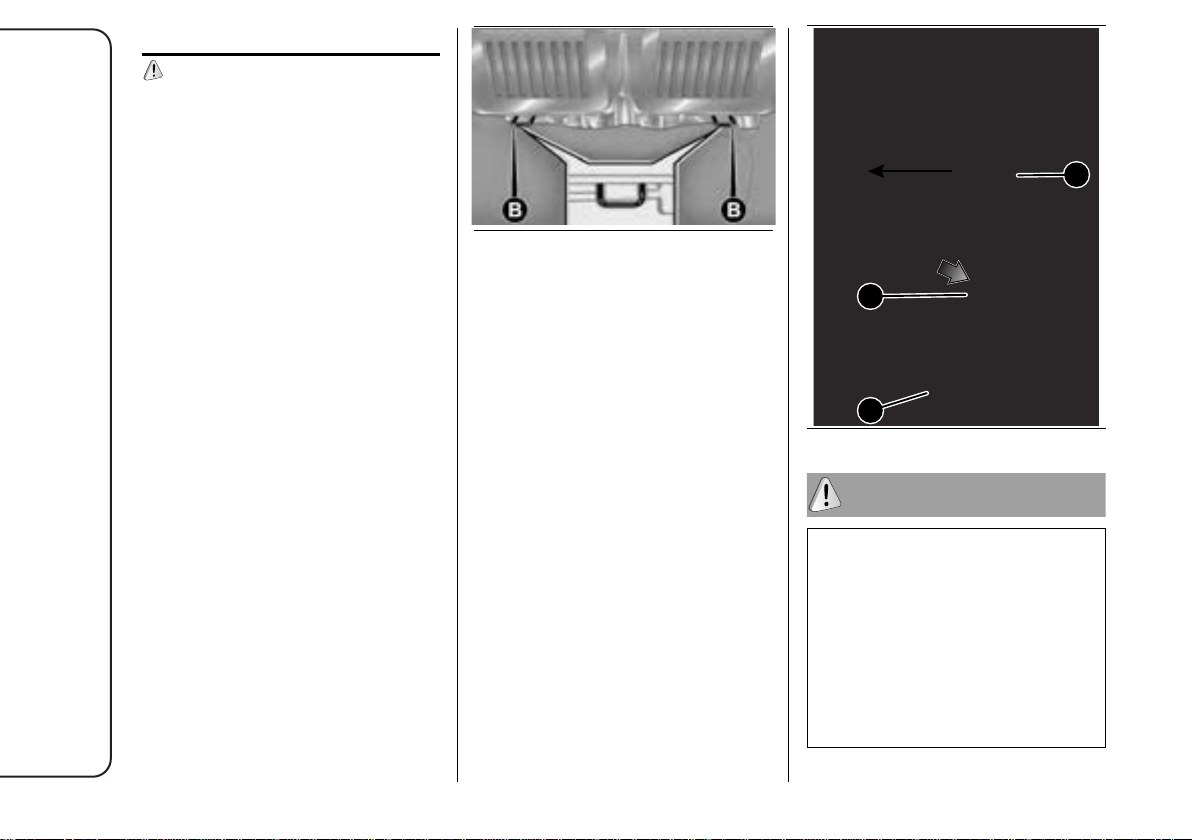

Fasten the upper belt (that is supplied

together with the child seat) to the

fastener B-fig.2 set between the rear

back-rest and the boot floor.

2 F0S0134

INSTALLATION OF THE

ATTACHING CLIP

Correct engagement of the child

restraint attaching clip 1 fig.3 is

achieved by depressing the retainer

spring 2 and then passing through

the opening of the anchor fitting 3 as

shown in the illustration.

FRONT

3 F0S0206m

WARNING

1) When installing a child restraint

ensure that head restraint is raised

and tether strap is placed underneath

directly on the top of the seat back. Child

restraint anchorages are designed to

withstand only those loads imposed by

correct-ly fitted child restraints. Under

no circumstances are they to be used

for adult seat belts, harnesses or for

attaching other items or equipment to the

vehicle.

530.07.XXX_Australia_500-500C_GB_1ed.indd 4530.07.XXX_Australia_500-500C_GB_1ed.indd 4 21/04/2021 10:22:1721/04/2021 10:22:17

AUSTRALIA VERSION

Child restraint system installation

The table provides guidelines on positioning child restraint systems on the car

seats. Each child restraint system position complies with the UNECE standards

Number of seats

Seat number 1 2

45*6

Airbag

ENABLED

Airbag

DISABLED

Seat suitable for rearward

facing child restraint systems

(U)

X X NO NO YES X YES

Seat suitable for forward

facing child restraint systems

(UF)

X X NO NO YES X YES

i-Size seat (i-U) X X NO NO NO X YES **

Seat suitable for ISOFIX side

fixtures (L1 / L2) X X NO NO NO X NO

Seat suitable for ISOFIX

rearward facing fixtures (R1/

R2 / R3) (IL)

X X NO NO NO X YES (R1 and

R2 only) **

530.07.XXX_Australia_500-500C_GB_1ed.indd 5530.07.XXX_Australia_500-500C_GB_1ed.indd 5 21/04/2021 10:22:2821/04/2021 10:22:28

AUSTRALIA VERSION

Number of seats

Seat number 1 2

45*6

Airbag

ENABLED

Airbag

DISABLED

Sear suitable for ISOFIX

forward facing fixtures (F2/

F2X / F3) (IUF)

X X NO NO YES X YES

Sear suitable for forward

facing Booster fixtures (B2/

B3 fixtures)

X X NO NO NO (1) X Only B2

U = Position suitable for a "universal" child restraint system approved for this weight category.

UF = Position suitable for a "universal" forward facing child restraint system approved for this weight category.

IUF = Position suitable for an "ISOFIX" universal forward facing child restraint system approved for this weight category.

i-U = Position suitable for an i-Size "universal" forward facing or rearward facing child restraint system.

i-UF = Position suitable for an i-Size "universal" forward facing child restraint system.

IL = Position suitable for specific listed ISOFIX child restraint systems (CRS). These ISOFIX CRS are classified as "car-specific", "restricted

use" and "semi-universal".

X = Not applicable. The seat is not approved for installation of child restraint systems.

** = Installation only possible by moving the corresponding front seat forward. In this configuration, the seat must not be occupied.

(1) = This seat is not approved for use with this category of child restraint systems. Nevertheless, it may still be possible to install this

category of child restraint system. Therefore, check the compatibility of this vehicle with the identified child restraint system on the

manufacturer's website.

530.07.XXX_Australia_500-500C_GB_1ed.indd 6530.07.XXX_Australia_500-500C_GB_1ed.indd 6 21/04/2021 10:22:4121/04/2021 10:22:41

AUSTRALIA VERSION

SUPPLEMENTARY

RESTRAINT

SYSTEM (SRS) -

AIRBAG

FRONT AIRBAGS

Passenger side front

airbag

On this vehicle model it is not possible

to disable the passenger front Airbag.

Passenger side front

airbag and child

restraint systems

The vehicle is equipped with a

Supplementary Restraint System

airbag for the front passenger. Under

no circumstances attempt to install a

child seat or child restraint device on

the front passengers seat.

WARNING

2) NEVER use a rearward facing child

restraint on a seat protected by an

ACTIVE AIRBAG in front of it, DEATH

or SERIOUS INJURY to the CHILD can

occur.

4 F0S0502

CHANGING A

WHEEL

JACKING

INSTRUCTIONS

The car jack should be used

on level firm ground wherever

possible.

It is recommended that the wheels

of the vehicle be chocked and

that no person should remain in a

vehicle that is being jacked.

No person should place any

portion of their body under a

vehicle that is supported only by

a jack.

The vehicle Owner’s Handbook

should be consulted prior to the

jacking of the vehicle.

5 F0S0746

530.07.XXX_Australia_500-500C_GB_1ed.indd 7530.07.XXX_Australia_500-500C_GB_1ed.indd 7 21/04/2021 10:22:4521/04/2021 10:22:45

AUSTRALIA VERSION

FUEL TYPE

The engine in this vehicle is designed

to use only unleaded fuel with an

octane rating (RON) not less than 95.

For the type of fuel to use and for

information regarding what to do if

your car is accidentally filled with other

types of fuel see the main owner’s

manual. Use unleaded fuel only.

6 F0S0203m

TYRES

In the label fig.6 shows the type of

tyre adopted and the required infl

ation pressure. Refer to the “Technical

data” chapter for futher information.

FCA Italy S.p.A. – MOPAR – Technical Service Operations - Service Library

Largo Senatore G. Agnelli 3 – 10040 Volvera – Torino (Italy)

Print N. 603.53.928 - 04/2021 - 1edition

530.07.XXX_Australia_500-500C_GB_1ed.indd 8530.07.XXX_Australia_500-500C_GB_1ed.indd 8 21/04/2021 10:22:5321/04/2021 10:22:53

OWNER HANDBOOK

ENGLISH

The data contained in this publication is intended merely as a guide. FCA Italy S.p.A. reserves the right to modify

the models and versions described in this booklet at any time for technical and commercial reasons.

If you have any further questions please consult your FIAT dealer.

Printed in recycled paper without chlorine.

500_Cover_EN.indd 1500_Cover_EN.indd 1 04/05/2021 16:38:5604/05/2021 16:38:56

Dear Customer,

We would like to congratulate and thank you for choosing a Fiat .

We have written this handbook to help you get familiar with all the features of your car.

Here you will find information, advice and important warnings regarding use of your vehicle and how to achieve the best

performance from the technical features of your Fiat .

You are advised to read it right through before taking to the road for the first time, to become familiar with the controls and

above all with those concerning brakes, steering and transmission; at the same time, you can understand the car behaviour on

different road surfaces.

This document also provides a description of special features and tips, as well as essential information for the safe driving, care

and servicing of your Fiat over time .

After reading it, you are advised to keep the handbook inside the car, for an easy reference and for making sure it remains on

board the car should it be sold.

In the attached Warranty Booklet you will also find a description of the Services that Fiat offers to its customers, the Warranty

Certificate, the detail of the terms and conditions for maintaining its validity and the range of additional services available to Fiat

Customers.

We are confident that these tools will bring you closer to your new car and make you appreciate the assistance provided by the

Fiat team.

Enjoy reading. Happy driving!

ATTENTION

This Owner Handbook describes all versions of the Fiat ; please consider only the information relevant to

your vehicle’s trim level, engine and version. All data contained in this publication are purely indicative. FCA Italy

S.p.A. can modify the specifications of the vehicle model described in this publication at any time, for technical or

marketing purposes. For further information, contact a Fiat Dealership.
