Fiat 600 Manuale utente

Dear New Car Owner

Thank you for selecting Fiat and congratulations on your choice of a Fiat 600.

We have written this handbook to help you get to know all your new Fiat 600 features and use it in the best pos-

sible way.

You should read it right through before taking the road for the first time. You will find information, tips and im-

portant warnings regarding the driving of your car to help you derive the maximum from your Fiat 600’s techno-

logical features.

You are recommended to read carefully the warnings and indications, marked with the respective symbols:

personal safety;

the car’s wellbeing;

environmental protection.

The enclosed Fiat Warranty Booklet list the services that Fiat offers its Customers:

• the Warranty Certificate with terms and conditions for maintaining its validity

• the range of additional services available to Fiat Customers.

Best regards and good motoring.

This Owner Handbook describes all the Fiat 600 versions. As a consequence, you should consider only

the information which is related to the engine and bodywork version of the car you purchased.

001-069 Seicento GB 22-11-2007 10:49 Pagina 1

MUST BE READ!

REFUELLING

Refuel petrol engine vehicles with unleaded petrol, octane rating (RON) no lower than 95.

The use of other products or mixtures may irreparably damage the engine with invalidation of the warranty due

to the damage caused.

ENGINE START-UP

Make sure the handbrake is pulled up; put the gear lever into neutral; press the clutch pedal down to the floor

without touching the accelerator; turn the ignition key to AVV and release it as soon as the engine starts.

PARKING OVER INFLAMMABLE MATERIAL

When functioning normally, the catalytic converter reaches high temperatures. For this reason do not park

the vehicle over inflammable material, grass, dry leaves, pine needles, etc.: fire hazard.



PROTECTING THE ENVIRONMENT

A system for continuously monitoring emission system components to ensure greater environmental protec-

tion is fitted in your vehicle.

001-069 Seicento GB 22-11-2007 10:49 Pagina 2

ELECTRICAL ACCESSORIES

If, after buying the vehicle, you decide to add electrical accessories (that will gradually drain the battery), visit

a Fiat Dealership. They can calculate the overall electrical requirement and check that the vehicle's electric

system can support the required load.

쇵

CODE card

Keep the code card in a safe place, not in the vehicle. You should always keep the electronic code written on

the CODE card with you in case you need to carry out an emergency start-up procedure.

SCHEDULED SERVICING

Correct maintenance of the vehicle is essential for ensuring it stays in tip-top condition and safeguards its safe-

ty features, its environmental friendliness and low running costs for a long time to come.

THE OWNER HANDBOOK CONTAINS …

… information, tips and important warnings regarding the safe, correct driving of your vehicle, and its mainte-

nance. Pay particular attention to the symbols "(personal safety) #(environmental protection) â(vehicle

well-being).

001-069 Seicento GB 22-11-2007 10:49 Pagina 3

GETTING TO KNOW YOUR CAR

SYMBOLS

Special coloured labels have been at-

tached near or actually on some of

the components of your Fiat 600.

These labels bear symbols that remind

you of the precautions to be taken as

regards that particular component.

THE FIAT CODE

SYSTEM

To further protect your car from at-

tempted theft, it has been fitted with

an electronic engine immobiliser sys-

tem called “Fiat CODE”, which is au-

tomatically activated when the ignition

key is removed. The ignition keys, in

fact, are fitted with an electronic de-

vice that transmits a coded signal to

the Fiat CODE control unit; only if

this signal is recognised can the engine

be started.

The modulated signal is a password.

Only if the control unit recognises the

key can the engine be started.

The keys fig. 1

With the car, the following keys A

are provided.

The key with a blue grip is used for:

– starting

– unlocking and locking the doors

– boot tailgate (VAN versions only)

– deactivating the passenger side

airbag.

fig. 1

P4Q01084

001-069 Seicento GB 22-11-2007 10:49 Pagina 4

GETTING TO KNOW YOUR CAR

The CODE card (optional for ver-

sions / markets where applicable) fig.

2 is also supplied with the keys and

bears the following:

– front side:

A - the electronic code (optional

for versions / markets where

applicable);

B - the mechanical key code;

– reverse side:

C - the spaces for any remote

control stickers.

Keep the CODE card in a safe place.

DUPLICATING KEYS

When you ask for extra keys, re-

member that all the keys, both the

new ones and those you already pos-

sess, must be stored in the memory

(up to a maximum of 7). Go to your

Fiat Dealership, taking all the keys

in your possession and the CODE

card with you.

The Fiat Dealership may ask you

to demonstrate that you own the car.

The codes of any keys that are not

available when the new storage proce-

dure is carried out will be deleted from

the memory to prevent any lost or

stolen keys being used to start the car.

fig. 2

P4Q01085

001-069 Seicento GB 22-11-2007 10:49 Pagina 5

GETTING TO KNOW YOUR CAR

OPERATION

Each time the ignition key is turned

to STOP, or PARK, the protection

system will automatically immobilise

the engine.

When the key is turned to MAR to

start the engine:

1) if the code is recognised the ¢

warning light on the instrument panel

will flash briefly; this means the pro-

tection system has recognised the key

code and deactivates the immobiliser,

turn the key to AVV, and the engine

will start;

2) if the ¢warning light stays on,

the code has not been recognised. In

this case, turn the key to STOP po-

sition and then turn it back to MAR;

if the engine remains immobilised, try

with the other keys provided.

If you are still unable to start the en-

gine, use the emergency starting pro-

cedure (see

IN AN EMERGENCY

) and

take your car to the nearest Fiat

Dealership as soon as possible.

When the car is travelling and the

key is at MAR:

1) if the ¢warning light comes on

while the car is moving, this means

that the system is running a self-test

(e.g. due to a voltage drop);

2) if the warning light ¢flashes

when the key is in MAR the car is not

protected by the Immobiliser. Contact

your Fiat Dealership and get them

to store the codes of all the keys in

the memory.

IMPORTANT The electronic

components inside the key may be

damaged if the key is subjected to

sharp knocks.

IMPORTANT Each key provided

with the car has its own code, differ-

ent from all the others, which must be

stored in the memory of the system

control unit.

All the keys (originals and

duplicates) and the

CODE card must be

handed over to the new owner

when selling the car.

001-069 Seicento GB 22-11-2007 10:49 Pagina 6

GETTING TO KNOW YOUR CAR

When the car is parked on a steep

slope the reel mechanism may block;

this is normal. The reel mechanism

prevents the webbing coming out

when it is jerked or if the car brakes

sharply, as in a collision or when cor-

nering at high speed.

The rear seat is fitted with inertial

seat belts with three anchor points

and reel.

To unfasten the seat belts, press but-

ton D. Guide the seat belt with your

hand while it is rewinding, to prevent

it from twisting.

SEAT BELTS

USING THE SEAT BELTS

The belt should be worn keeping the

chest straight and rested against the

seat back.

Take hold the tongue B-fig. 3 and

insert it into the buckle C, until hear-

ing the locking click.

If it jams, let it rewind for a short

stretch, then pull it out again without

jerking.

fig. 3

P4Q01060

Do not press button D

when running.

Through the reel, the belt automat-

ically adapts to the body of the pas-

senger wearing it, allowing freedom of

movement.

001-069 Seicento GB 22-11-2007 10:49 Pagina 7

The rear seat belts shall

be worn as shown in

fig. 4. Fig. 5 shows wrong

seat belt fastening, not to be fol-

lowed.

Remember that in the

case of violent collision,

back seat passengers not

wearing seat belts also represent

a serious danger to the front pas-

sengers.

In order to ensure that the correct

tabs are fitted into the corresponding

buckle, the tabs of the side belt and the

buckle of the centre seat (only ab-

dominal) are incompatible.

GETTING TO KNOW YOUR CAR

CENTRAL REAR SEAT

For versions /markets where ap-

plicable the centre seat, if any, is

fitted with lap belt with two an-

chor points.

fig. 4

P4Q01074

fig. 5

P4Q01075

001-069 Seicento GB 22-11-2007 10:49 Pagina 8

GETTING TO KNOW YOUR CAR

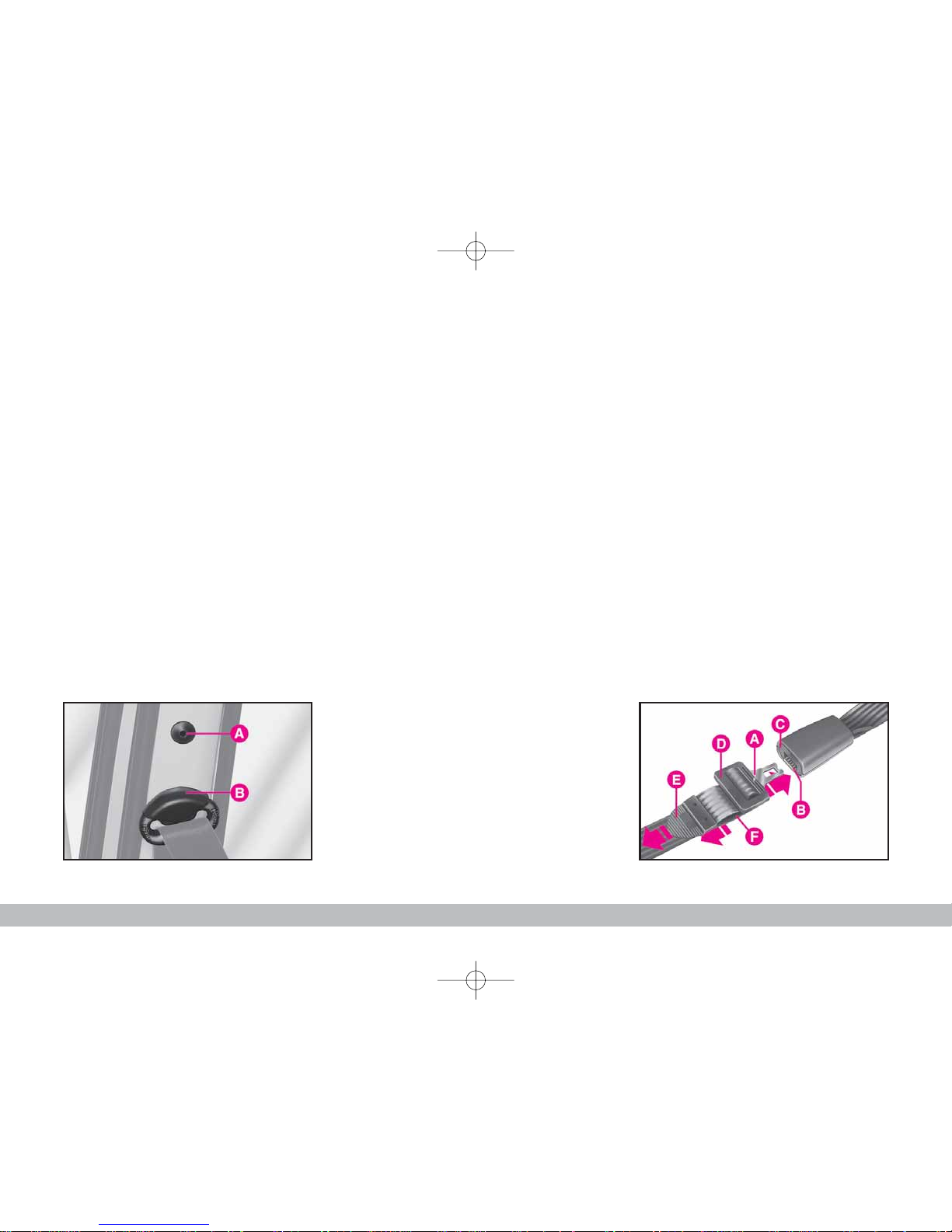

fig. 6

P4Q00018

ADJUSTING THE SEAT BELT

HEIGHT

There are two anchoring positions

A and B-fig. 6 for front seat belts on

the door post.

Before driving off for the first time,

adjust the position of the seat belt an-

choring point according to your height

and favourite driving position. If re-

quired, have the anchoring point of

the seat belt adjusted.

USING THE CENTRAL REAR

SEAT BELT

(For versions/markets)

To fasten the seat belt: push the

fastener tongue A-fig. 7 into slot Bof

the buckle, until you hear it click.

To unfasten the seat belt: press

button C.

To adjust the belt: slide the web-

bing through D, pulling length Eto

tighten and length Fto loosen.

IMPORTANT The belt is adjusted

properly when it fits closely across the

hips.

fig. 7

P4Q00037

IMPORTANT Have this operation

performed at a Fiat Dealership only

as it involves passenger safety.

001-069 Seicento GB 22-11-2007 10:49 Pagina 9
