FiberHome AN6000-7 Manuale utente
AN6000-7
Optical Line Terminal Equipment
Quick Installation Guide
FiberHome Telecommunication Technologies Co., Ltd.
Version: A Code：MN000004297
Preface
We appreciate your business. Your satisfaction is our goal. We will provide
you with comprehensive technical support and after-sales service. Please
contact your local sales representative, service representative or distributor
for any help needed at the contact information shown below.
Contact us
Fiberhome Telecommunication Technologies
Co., Ltd.
Address: No. 67, Guanggu Chuangye Jie,
Wuhan, Hubei, China
Zip code: 430073
Tel: +6 03 7960 0860/0884 (for Malaysia)
+91 98 9985 5448 (for South Asia)
+593 4 501 4529 (for South America)
Fax: +86 27 8717 8521
Website: http://www.fiberhomegroup.com
No part of this document (including the
electronic version) may be reproduced or
transmitted in any form or by any means
without prior written permission from
FiberHome.
Information in this document is subject to
change without notice.
All rights reserved
1
2
1Installation Procedure
End
Routing and connecting
cables
Post-installation
inspection
Preparation for cable
connection
Cabinet with routed
fibers and cables
Connecting cables
Connecting optical
fiber jumpers Checking the connection
and layout of wires and
cables
Checking before power-on
Power-on test
Installing cabinet doors
2
Safety precautions
Installation tools
Start
Installation preparations
Installing cabinets
Installing subracks
Installing cards and
components
Operation procedure
Reference information
Subrack overview
Installing and
securing subracks
Equipment layout
Installing cards
Installing a fan unit
Operation rules for
plugging / unplugging
optical modules
Requirements and
precautions for operating
cards
3
2Safety Precautions
Make sure the cabinet protection earth ground cable and subrack protection earth ground cable
are well grounded before powering on the equipment. Check and ensure that the insulation
resistance and ground resistance meet the specification.
Grounding Requirements
Caution
Different types of cables on the installation site should be laid out independently and bound
separately. Please note that optical fibers should be bound with dedicated fiber binding straps.
Exercise care if you must bend fibers. If bends are necessary, the fiber bending radius should
not be smaller than 10 D (“D” refers to the fiber diameter) and should not be smaller than 30
mm.
Cables are bound with appropriate tightness and even distance between cable ties. The cable
ties are arranged in good order, and the extra parts of ties are cut from the root without leaving
sharp points.
Binding Cables
Caution
Prior to equipment installation, inspect the equipment room, cabinets, power supplies, cables
(especially earth ground cables), and supporting facilities. After confirming that the conditions for
installation are satisfactory, start the work following project design documents.
Inspection Prior to Installation
Caution
3
Carpets or other materials that easily generate static electricity should not be used on the floor of
the equipment room.
Do not touch any components or wires on cards, or metal conductors in sockets. ESD protection
measures should be taken if it is necessary to touch the card during maintenance.
ESD Protection
ESD protection gloves ESD protection wrist strap
Caution
To prevent laser radiation from injuring eyes, do not look into the
end face of a fiber or fiber connector directly with naked eyes.
Laser Safety
Warning
Laser class
identifier
4
Cross screwdriver
(insulated)
Wire clipper Sharp nose pliers Diagonal pliers Wire stripper
ESD
protection
wrist strap
ESD protection
gloves
3Installation Tools
Ladder Vacuum cleaner
Electric drill
(including the drill bits) Marker pen
Insulating
tape
Long tape Knife Spirit level Claw hammer (insulated)
Cable tie
Fiber binding strap
Insulating
gloves
Hydraulic pliers
Flat screwdriver (insulated)
Open
corrugated
pipe
Crimping pliers
Multimeter Optical power meter
Combination wrench
(insulated)
M6 to M12 socket wrench
(insulated)
Torque wrench
(insulated)
Fiber puller Flexible conduit
5
4Installing Cabinets
5
The AN6000-7 can be installed into the following cabinets. Please refer to related manuals for
how to install the cabinets.
Instruction
No. Name Function
①Vertical card slot Houses the fan unit.
②Horizontal card
slots
Accommodate cards to
implement various functions of
the equipment.
③
ESD protection
earth ground
fastener
Connects with the ESD
protection unit.
④Mounting ears Secure the subrack in a
cabinet.
⑤Fiber puller
hanger Holds a fiber puller.
⑥Subrack earth
ground point
Connects with the subrack
earth ground cable.
⑦Fiber passage
unit
Facilitates routing and
arranging of fibers and cables.
Description Dimensions (H ×W ×D)
Subrack with mounting ears for a 19-inch
cabinetNote 1
266 mm ×480 mm ×253.8 mm (excluding the fiber
passage unit)
Subrack with mounting ears for a 21-inch
cabinet
266 mm ×530 mm ×253.8 mm (excluding the fiber
passage unit)
Note 1: The AN6000-7 subrack is equipped with the mounting ears for a 19-inch cabinet by default.
5Installing Subracks
5.1 Subrack Overview
Subrack Dimensions
Subrack Structure
Cabinet Model Manual
19-inch 600 mm-deep cabinets
(4102596 to 4102599)
Quick Installation Guide for the 19-inch Cabinet (600 mm-deep)
(4102596 to 4102599)
21-inch 300 mm-deep cabinets
(404000068 to 404000071)
Quick Installation Guide for the 21-inch Cabinet (300 mm-deep)
(404000068 to 404000071)
21-inch 340 mm-deep cabinets
(404000596 to 404000599)
Quick Installation Guide for the 21-inch Cabinet (340 mm-deep)
(404000596 to 404000599)
21-inch 600 mm-deep cabinets
(4102581 to 4102584)
Quick Installation Guide for the 21-inch Cabinet (600 mm-deep)
(4102581 to 4102584)
6
When multiple AN6000-7 subracks are to be installed in a cabinet, usually arrange the subracks from
the top down.
A cabinet can house three AN6000-7 subracks at most.
Subracks are mounted on the front vertical mounting flanges of a 19-inch or 21-inch cabinet.
The distance between every three mounting holes on the front vertical mounting flange in a 19-inch
cabinet is 1 U (44.45 mm).
The distance between every two mounting holes on the front vertical mounting flange in a 21-inch
cabinet is 1 SU (25 mm).
Rules for Arranging Subracks
Example of Arranging Subracks in a 19-inch Cabinet
5.2 Equipment Layout
6
Unit: U, 1U = 44.45 mm
Example of Arranging Subracks in a 21-inch Cabinet
Unit: mm
Install the slide rails.
2
1
7
5.3 Installing Subracks in a 19-inch Cabinet
7
Install panel screws to secure the subrack.
5
4
Procedure
Slide Rails for a 19-inch Cabinet
2
1
Mark the positions for mounting the
subrack and slide rails on the
vertical mounting flanges of the
cabinet. Then install floating nuts.
Push the subrack into the cabinet along the slide rails.
Installing Components
Correct Way to Install a Screw
Pre-tighten the screw: Tighten the screw
with moderate force, making sure that the
screwdriver is on the same line with the
screw.
Make sure that the screw is engaged with
the screw thread (the resistance
encountered is small), and tighten the
screw carefully.
45
Install the fiber passage unit.
3
Cross
screwdriver
Marker pen Flat
screwdriver
M6
Panel screw
M3
Screw
Fiber passage unit
M3
M6
M6
Install the slide rails.
2
1
8
5.4 Installing Subracks in a 21-inch Cabinet
8
Install the panel screws to secure the subrack.
6
5
Procedure
Slide Rails for a
21-inch Cabinet
Mark the positions for mounting the
subrack and the fiber passage unit on
the vertical mounting flanges of the
cabinet. Then install floating nuts.
Push the subrack into the cabinet along the
slide rails.
Installing Components
Adapter
Mounting Ears
Install the adapter mounting ears.
4
56
When installing the adapter mounting ears,
install the panel screws but do not tighten
them. After the subrack is pushed into the
cabinet, fasten the screws to secure the
subrack.
Tips
Refer to Installing Subracks in a 19-inch Cabinet.
Correct Way to Install a Screw
Cross
screwdriver
Marker pen Flat
screwdriver
M6
Panel screw
M3
Screw
Fiber passage unit
Install the fiber passage unit.
3
M3
M6
M6
M6
9

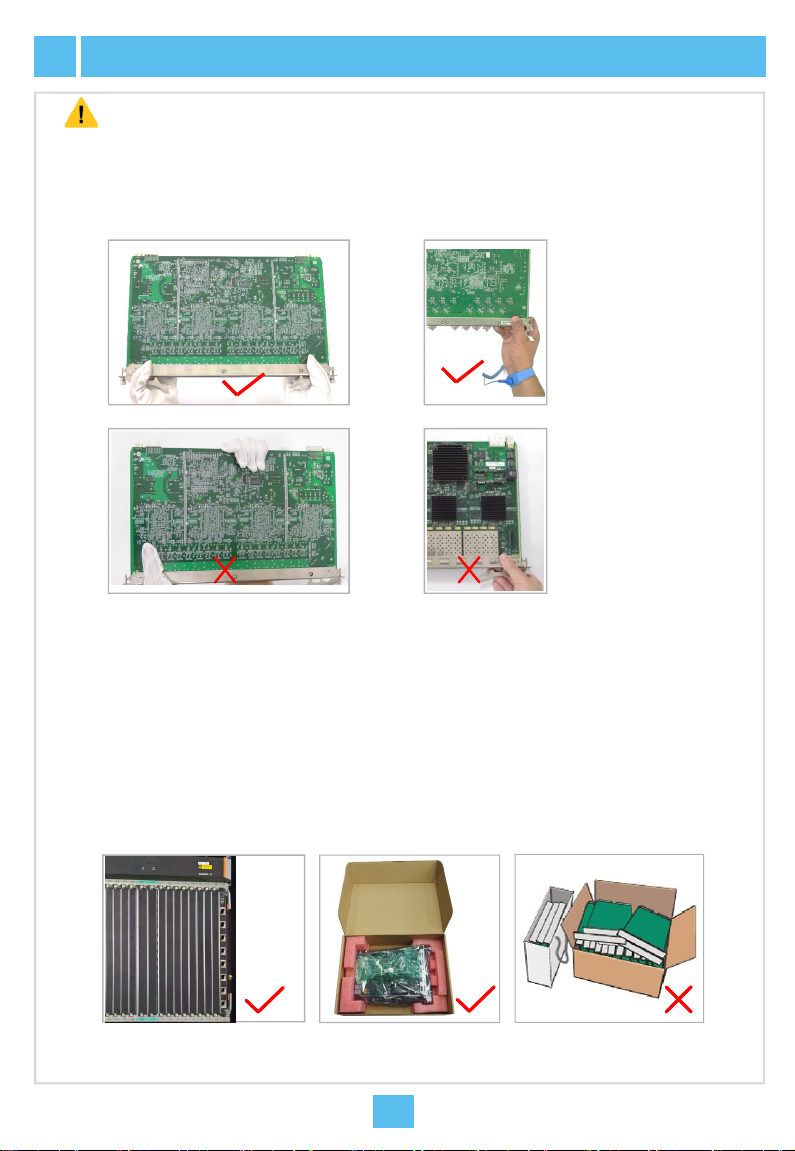

6Requirements and Precautions for Operating Cards
Do not contact cards with bare hands. Always wear ESD protection gloves or an ESD
protection wrist strap when operating cards.
When holding a card, put your hands on its panel, and do not touch any components or wires
on the card, or metal conductors in the socket.
All vacant slots in a subrack should be installed with dummy panels. When you unplug a
dummy panel, make sure that you plug it back in five minutes.
Use care when plugging a card. The card cannot be inserted if not properly oriented.
Cards are valuable and fragile. Please treat them with great care.
Prevent the circuit surfaces of cards from contacting each other to avoid shorting or
scratching.
If the unpacked card is a spare one, it will not be installed immediately. Pack the card
with its original ESD protection bag and put it in a dry and cool place, keeping it away
from sunlight and strong electromagnetic radiation sources.
Caution
9
