Fieldmann FZS 70101-0 Manuale utente

FZS 70101-0

USER’S MANUAL

CORDLESS GRASS TRIMMER

not included / není součástí příslušenství / nie je

súčasťou príslušenstva / nem a csomag része /

nie wchodzi w skład zestawu

not included / není součástí příslušenství / nie je súčasťou príslušenstva

/ nem a csomag része / nie wchodzi w skład zestawu

FZS 70101-0

USER’S MANUAL

CORDLESS GRASS TRIMMER

Contents

Cordless grass trimmer

USER'S MANUAL

Thank you for purchasing this garden cordless grass trimmer.

Before you start using it, please read this user manual carefully and save it for future

use.

CONTENTS

1. GENERAL SAFETY REGULATIONS......................................................................................................6

2. SYMBOLS........................................................................................................................................................7

3. DESCRIPTION OF THE MACHINE.......................................................................................................8

4. ASSEMBLY AND OPERATION ..............................................................................................................8

5. SAFETY INSTRUCTIONS..........................................................................................................................17

6. TECHNICAL DATA....................................................................................................................................19

7. MAINTENANCE AND STORAGE...................................................................................................... 20

8. TROUBLESHOOTING.............................................................................................................................. 20

9. DISPOSAL.....................................................................................................................................................21

10. DECLARATION OF CONFORMITY.................................................................................................. 22

EN 6

FZS 70101-0

General safety regulations

1. GENERAL SAFETY REGULATIONS

Important safety notice

Carefully unpack the product and take care not to throw away any part of the packaging until all the product

parts have been identiﬁed.

Store the trimmer in a dry place out of reach of children.

Read all warnings and instructions. Failure to comply with the warnings and instructions may lead to electric

shock, ﬁre and/or serious injuries.

Packaging

The product’s packaging prevents damage during transport. This packaging is a resource and can be recycled.

User manual

Before you start working with your grass trimmer, read the following safety and usage instructions. Get familiar

with the controls and correct use of the equipment. Keep the User manual in a safe place where it can be easily

found for future use. Save the original packaging, including the internal packing material, guarantee card and

proof of purchase receipt for at least the time of the guarantee.

If you need to ship this machine, pack it in the original cardboard box to ensure maximum protection during

shipping or transport (e.g. when moving or when you need to send this product for repair).

Note: If you hand over the appliance to somebody else, do so together with this user’s manual.

Following the instructions in the included user’s manual is a prerequisite for the proper use of the trimmer.

The user’s manual also contains operating, maintenance, and repair instructions.

The manufacturer assumes no responsibility for accidents or damages arising from

failure to comply with these instructions.

USER’S MANUAL

CORDLESS GRASS TRIMMER

Symbols

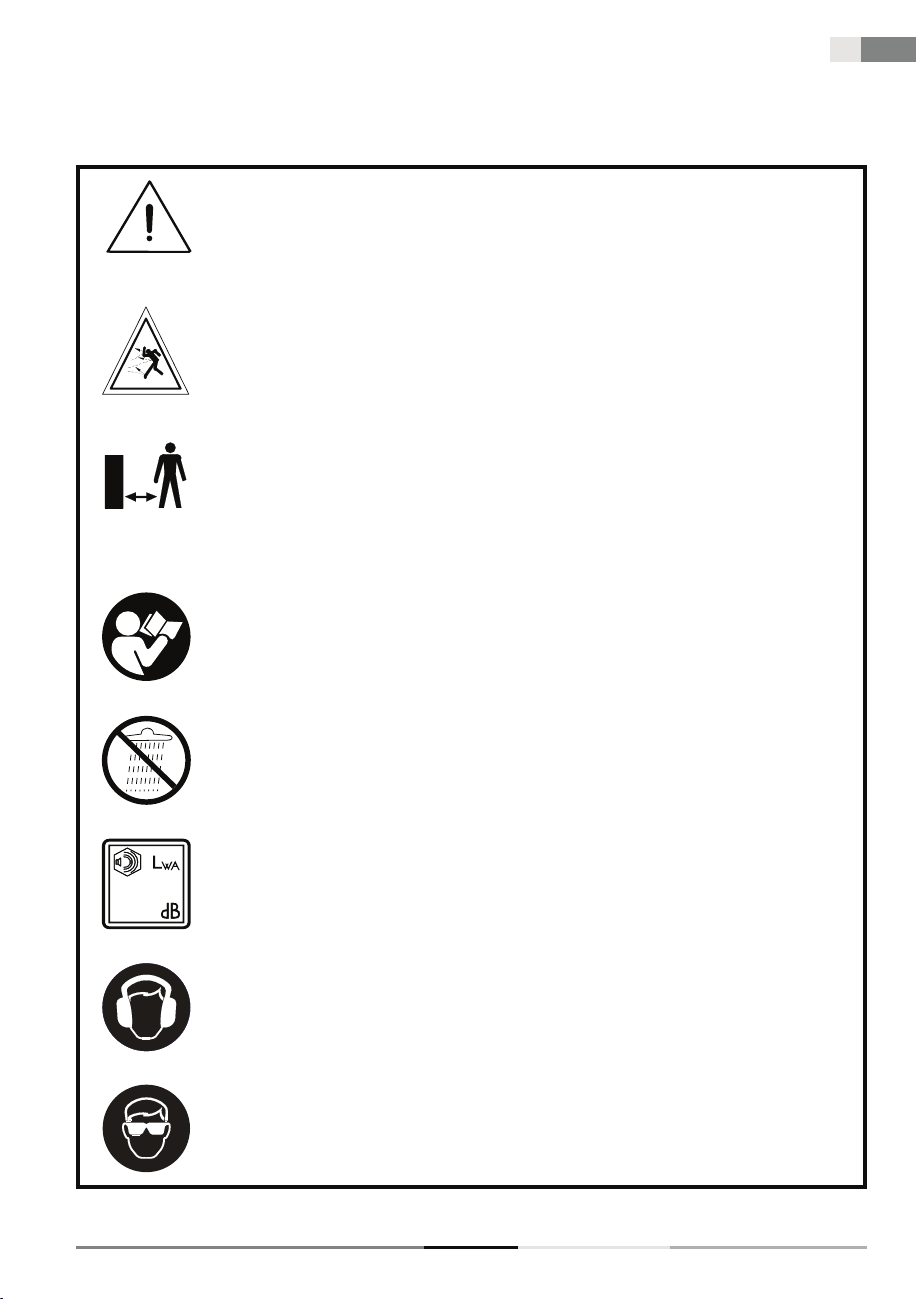

2. SYMBOLS

Risk of injury when instructions are not

followed.

Danger of injury!

Beware of hurled-away objects.

Keep bystanders away.

Keep other persons in distance!

WARNING! When operating the device, take care

that no other persons are nearby (safe distance: 5m).

This is particularly valid for children and animals.

Read the Instruction Manual attentively prior to use.

Protect the tool from the damp and never expose it to

rain!

Guaranteed sound power level Lwa 88 dB (A)

Use ears protectiove equipment

Use eyes protective equipment

EN 8

FZS 70101-0

Description of the machine

3. DESCRIPTION OF THE MACHINE

Machine description (see ﬁg. 1)

1. Main handle

2. On/off switch

3. Rear safeguard

4. Battery docking port

5. Upper pole

6. Unlock button for angle adjustment

7. Locking sleeve for length adjustment

8. Lower pole

9. Pole support

10. Unlock button for tilt adjustment

a. Indicator triangle*

11. Guard

a. Screw*

b. Knife

c. Screw hole*

d. Knife protector*

12. Trimmer head

a. Cover

b. Release latch (x2)

c. Trimming spool

d. Trimming line

e. Housing

f. Sliding slot (x2)*

g. Release push button

h. Eyelet

i. Screw hole*

13. Trimming wheel Screw (x2)*

14. Air vents

15. Auxiliary handle

a. Lock button

16. Battery pack (not included)

17. Charger (not included)

4. ASSEMBLY AND OPERATION

1. Turn the trimmer head (12) upside down.

2. Align two tips of the guard (11) with the sliding slots (12f) of the trimmer head (12) (Fig. 1, step 1). Fully

insert the guard (11) and make sure that the screw holes (11c, 12i) are well aligned.

3. Secure the guard (11) with the screw (11a) in clockwise (Fig. 1, step 2).

Fig. 1

WARNING!

Never use the trimmer head (12) without the guard (11) property ﬁtted.

USER’S MANUAL

CORDLESS GRASS TRIMMER

Assembly and operation

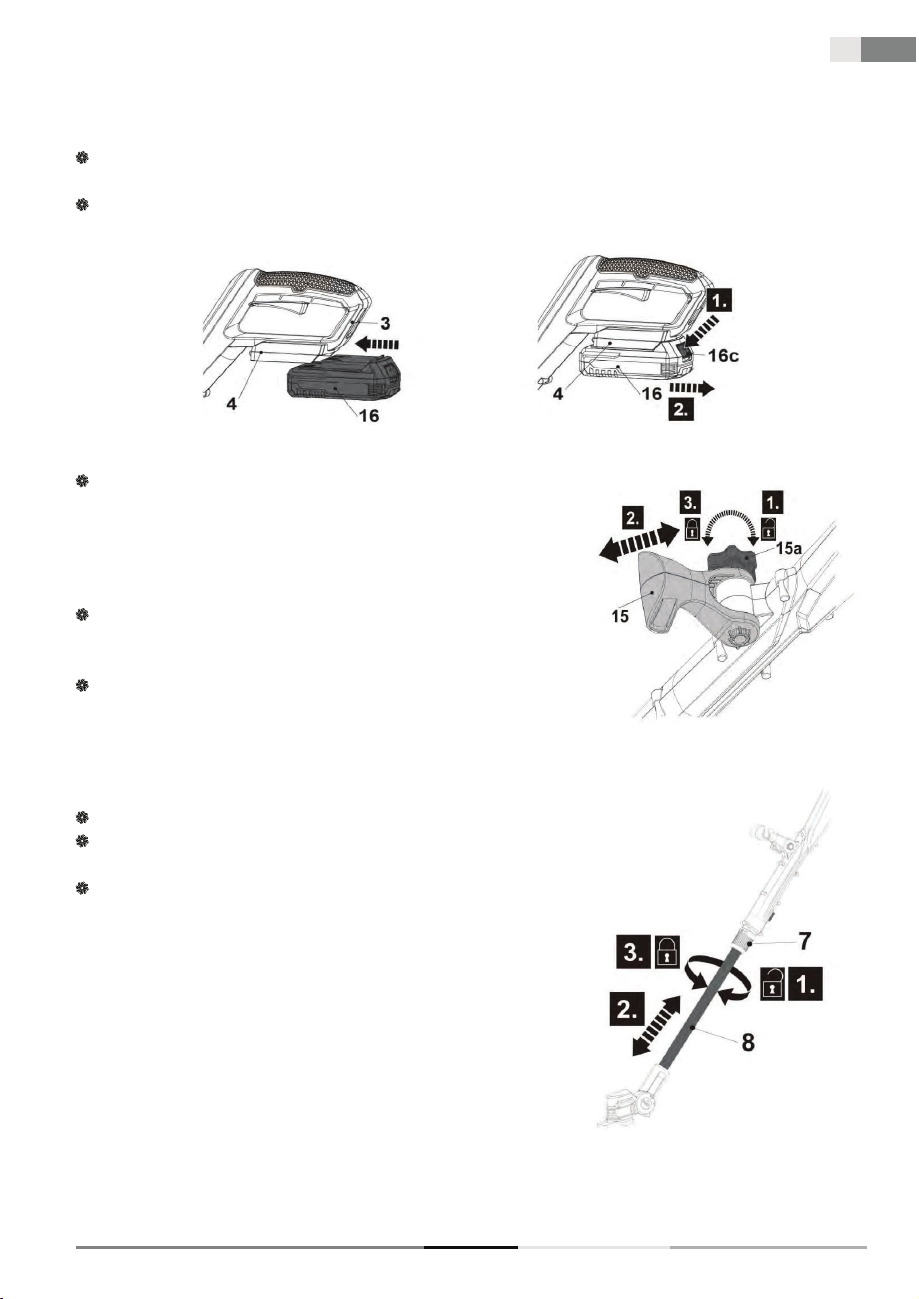

Attaching / releasing the battery pack

Align the battery pack (16) with the sliding slots of the battery docking port (4) under the rear safeguard (3)

and slide the battery pack in to attach it. Ensure it clicks in place (Fig. 2).

Press the release button (16c) and remove the battery pack (16) from the battery docking port (4) (Fig. 3).

Fig. 2 Fig. 3

Charging the battery pack

The battery pack (16) for this product has been shipped in a low

charge condition.

Auxiliary handle adjustment

Adjust the angle of the auxiliary handle handle (15) to ﬁt the intended

application.

Lossen the lock button (15a) in clockwise (Fig.5, step 1), then

rotate the auxiliary handle (15) forward or backward to adjust the

angle (Fig. 5, step 2).

Tight the lock button (15a) in anti- clockwise to secure the auxiliary

Length adjustment in position (Fig.5, step 3).

Length adjustment

Adjust the pole length to ﬁt the body length.

Loosen the locking sleeve (7) in clockwise (Fig. 6, step 1).

Pull the lower pole (8) out or push it together to adjust the desired

length (Fig. 6, step2).

Tighten the locking sleeve (7) in anticlockwise (Fig. 6, step 3).

Fig. 6

Fig. 5

EN 10

FZS 70101-0

Assembly and operation

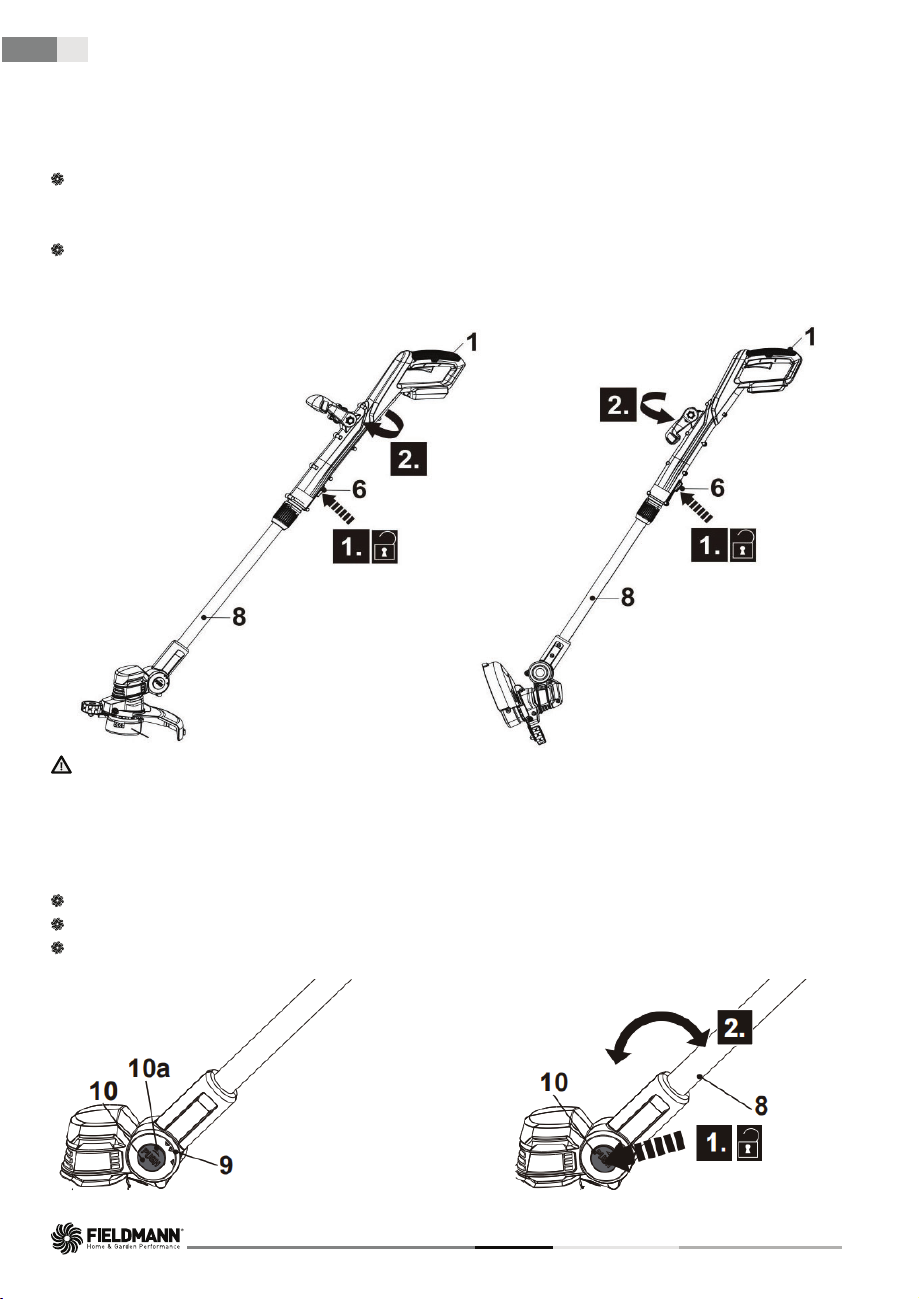

Main handle angle adjustment

Adjust the main handle (1) to either 0° for trimming or 180° for edging.

Press down the unlock button (6) and turn the main handle (1) clockwise while holding lower pole (8) to

adjust the trimmer head (12) to an angle of 180°(Fig. 7). Release the unlock button (6) and keep turning the

main handle (1) until it locks in place. Ensure the unlock button (6) snaps into place.

Press down the unlock button (6) and turn the main handle (1) anticlockwise while holding lower pole (8)

to adjust the trimmer head (12) to an angle of 0° (Fig. 8). Release the unlock button (6) and keep turning the

main handle (1) until it locks in place. Ensure the unlock button (6) snaps into place.

Fig. 7 (initial position 0) Fig. 8 (initial position 180°)

WARNING! Always ensure that the unlock button (6) snaps into place after adjusting the main handle in

one of the end positions! Never adjust to an intermediate position!

Trimmer head tilt adjustment

Tilt the angle of trimmer head to ﬁt the ground conditions for trimming or edging use by aligning the indicator

triangle (10a) on unlock button (10) with one of three indicators of the pole support (9) (Fig. 9).

Push the unlock button (10) and hold it in position (Fig.10, step 1).

Move the lower pole (8) slightly up or downward (Fig.10, step 2).

Release the unlock button (10) and keep moving the lower pole (8) until it locks in place.

Fig. 9 Fig. 10

USER’S MANUAL

CORDLESS GRASS TRIMMER

Assembly and operation

WARNING! Always ensure that the unlock button (10) snaps into place after adjusting the trimmer head

(12) in one of the required positions! Never adjust to an intermediate position!

Trimmer wheel

Use the trimmer wheel (13) to keep distance to obstacles that could be hit by the cutting device.

Use the trimmer wheel (13) to cutting the grass at the edges.

Guard

The guard (11) protects the operator against thrown objects during operation. It is equipped with a knife (11b)

that cuts the trimming line (12d) (Fig. 13).

Fig. 13

NOTE: lways remove knife protection (11d) before use.

Switching on/off

Hold the product with one hand at the auxiliary handle (15) and

with the other at the main handle (1).

Squeeze the on/off switch (2) to switch the product on (Fig. 14).

Release the on/off switch (2) to switch the product off.

General operation

Check the product, its battery pack and charger as well as

accessories for damage before each use. Do not use the product

if it is damaged or shows wear.

Double check accessories or attachments are properly ﬁxed.

Always hold the product by its handles. Keep the handles dry to ensure safe support.

Ensure that the air vents are always unobstructed and clear. Clean them if necessary with a soft brush.

Blocked air vents may lead to overheating and damage the product.

Switch the product off immediately if you are disturbed while working by other people entering the working

area. Always let the product come to complete stop before putting it down.

Do not overwork yourself. Take regular breaks to ensure you can concentrate on the work and have full

control over the product.

Fig. 14
