Fife SBPC-21-EN/IP Manuale utente

Fife Corporation

PO Box 26508, Oklahoma City, OK 73126, U.S.A.

Phone: 405.755.1600 / Fax: 405.755.8425

www.fife.com / E-mail: [email protected]

SBPC-21-EN/IP

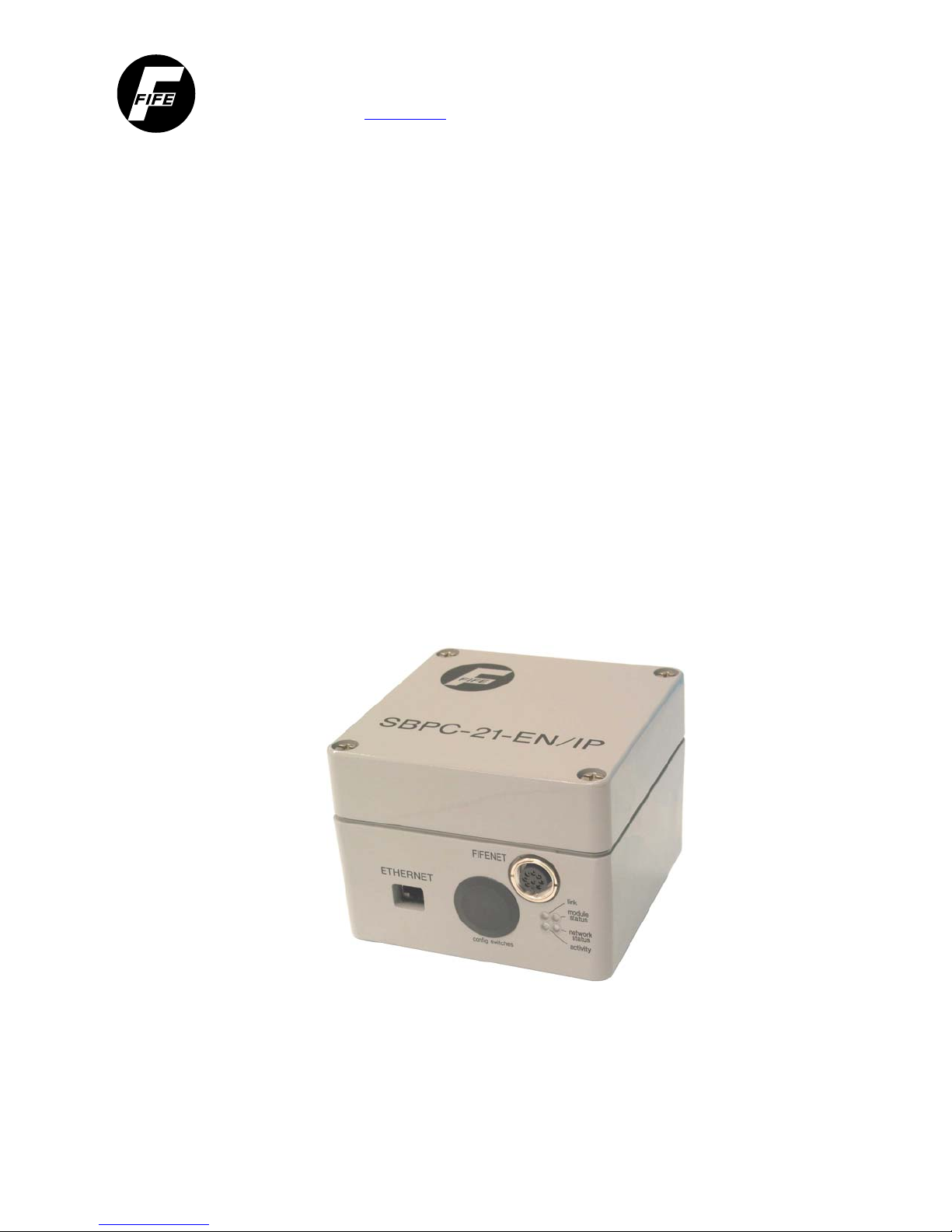

FifeNet To EtherNet/IP™ Gateway

Customer Instruction Manual

EtherNet/IP™

SBPC-21-EN/IP CUSTOMER INSTRUCTION MANUAL

• • • • • •

the prior written consent of Fife Corporation.

The information given in this Instruction Manual is subject to change without notice.

We have compiled this Instruction Manual with the greatest possible care and attention. However, the

possibility of error cannot be completely excluded. Fife Corporation accepts no legal liability for

incorrect information given and the consequences arising therefrom.

MS DOS is a trademark of Microsoft Corporation. All other trademarks are the property of their

respective owners.

SBPC-21-EN/IP CUSTOMER INSTRUCTION MANUAL

TABLE OF CONTENTS

• • • • • •

INTRODUCTION ......................................................................................................................................... 1

PRODUCER/CONSUMER MODEL .................................................................................................................1

FIFENET....................................................................................................................................................1

SBPC-21-EN/IP SWITCH/JUMPER CONFIGURATION...................................................................................2

SBPC-21-EN/IP NETWORK STATUS..........................................................................................................4

SBPC-21-EN/IP ERROR CODES ...............................................................................................................5

FEATURES.................................................................................................................................................6

SBPC-21-EN/IP NETWORK CONFIGURATION.............................................................................................6

CONFIGURING IP ADDRESS........................................................................................................................7

USING CONFIGURATION SWITCH ................................................................................................................7

USING DHCP/BOOTP................................................................................................................................7

USING A PREDEFINED CONFIGURATION ......................................................................................................7

USING ADDRESS RESOLUTION PROTOCOL (ARP).......................................................................................8

FILE SYSTEM.............................................................................................................................................9

CONFIGURATION FILE ETHCFG.CFG ............................................................................................................9

TELNET SUPPORT .................................................................................................................................10

ETHERNET/IP ..........................................................................................................................................11

IMPLEMENTED OBJECTS ..........................................................................................................................11

ASSEMBLY OBJECT, CLASS 04H...............................................................................................................11

I/O DATA INPUT MAPPING OBJECT, CLASS A0H........................................................................................12

I/O DATA OUTPUT MAPPING OBJECT, CLASS A1H....................................................................................12

FIFENET THEORY ................................................................................................................................... 15

FIFENET TIME SLICES..............................................................................................................................15

MULTIPLEXED TIME SLICES ......................................................................................................................15

FIFENET MASTER ....................................................................................................................................16

SBPC-21-EN/IP DATA FLOW ..................................................................................................................17

CONFIGURATIONS................................................................................................................................... 19

HARDWARE CONFIGURATION – SINGLE CDP-01.......................................................................................19

HARDWARE CONFIGURATION – MULTIPLE CDP-01’S................................................................................20

SOFTWARE CONFIGURATION....................................................................................................................20

COMMUNICATION MAPPING..................................................................................................................... 21

ETHERNET/IP TO FIFENET DATA .............................................................................................................21

FIFENET TO ETHERNET/IP DATA .............................................................................................................22

CONTROL INFORMATION ......................................................................................................................... 25

CDP-01 CONTROL MATRIX......................................................................................................................25

EXTERNAL LOCK......................................................................................................................................25

TRIPLE-DRIVE CDP-01............................................................................................................................28

STATUS DATA BLOCK ..............................................................................................................................29

SPECIAL CONTROL OF FIFENET DEVICES.................................................................................................36

CDP-01 KEY CODE DATA PATH...............................................................................................................36

CDP-01 KEY CODES ...............................................................................................................................37

SIMULATING DUAL-KEY PRESSES.............................................................................................................37

CDP-01 LED PANEL DATA......................................................................................................................38

INDEX......................................................................................................................................................40

SBPC-21-EN/IP CUSTOMER INSTRUCTION MANUAL

________________________________________________________________________________________________________________

12-20-2002 Figure Sheet 1-853-A Page 1

INTRODUCTION

• • • • • •

The Fife SBPC-21-EN/IP (Serial Bus Protocol Converter) provides a gateway between Fife’s

proprietary FifeNet network and an Ethernet network. The SBPC-21-EN/IP uses the standard RJ-45

connector and conforms to EtherNet/IP Level 2 I/O Server CIP Protocol. As shown in the diagram

below, the SBPC-21-EN/IP connects to both FifeNet and Ethernet/IP.

Figure 1-1: SBPC-21-EN/IP Network Connection

Producer/Consumer Model

The Producer/Consumer Model allows the exchange of information between a sending device

(“producer”) and many receiving devices (“consumer”) without requiring the same date to be sent

multiple times to different destinations. The producer sends the data once and each consumer on the

network receives the data at the same time. The data can be used (consumed) or ignored by each

receiving device independently. FifeNet uses the Producer/Consumer Model.

FifeNet

FifeNet’s deployment of the Producer/Consumer Model allows data sent by a single device to be

received simultaneously by multiple devices on the same network. Each receiving device can choose

to use (consume) the information or ignore it as needs dictate. FifeNet is based on a fixed time slicing

architecture where transmitting devices send data in fixed, predetermined time intervals.

FifeNet

The SBPC-21-EN/IP

connects to both

FifeNet and Ethernet

providing translation

between the two

networks.

Customer

Ethernet

Ethernet Hub

________________________________________________________________________________________________________________

12-20-2002 Figure Sheet 1-853-A Page 2

SBPC-21-EN/IP Switch/Jumper Configuration

Since the SBPC-21-EN/IP participates in two networks at the same time, it must have two network

addresses (a FifeNet address and an Ethernet IP address). The FifeNet address is set via the FifeNet

serial port that is common with many FifeNet peripherals. The Ethernet IP address is programmable

by dip switches or via the Ethernet connection. See the dip switch description and IP address

configuration setup shown below for more information. If the SBPC-21-EN/IP is installed as the end

point in a FifeNet network, all four jumpers described below should be installed.

Figure 1-2: SBPC-21-EN/IP Top View

These jumpers should be installed if the

SBPC-21-EN/IP is at the end of a

FifeNet network. They provide network

termination. The other two jumpers

should always be installed as they

select half-duplex FifeNet

communication.

Terminated Not Terminated

The 7-segment LED is

used to display errors or

exceptions. During normal

operation, the display will

continuously “cycle” the

outer segments.

Ethernet IP address configuration

switches. See the following page

for description of these switches.

________________________________________________________________________________________________________________

12-20-2002 Figure Sheet 1-853-A Page 3

SBPC-21-EN/IP External Connections/Indicators

SBPC-21-EN/IP mounting considerations are simplified as all connections to the SBPC-21-EN/IP are

on the same side of the box.

Figure 1-3: SBPC-21-EN/IP Side View

Connection to FifeNet is

accomplished using the

standard FifeNet connector.

Configuration is also

downloaded to the device

using this connection.

Device and network status

LED’s. These indicators

provide feedback for

network troubleshooting.

Connection to Ethernet is

accomplished using the standard

RJ-45 connector.

Switch ON (↓) = 1 IP Address SW1 SW2 SW3 SW4 SW5 SW6 SW7 SW8

Switch Value = 0

Use DHCP/BootP server if

present or use the internally

stored IP address. If a

DHCP/BootP server is not

present, the stored IP address

will be used. See the section

SBPC-21-EN/IP Network

Configuration for details about

how to store an IP address.

OFF OFF OFF OFF OFF OFF OFF OFF

192.168.0.1 OFF OFF OFF OFF OFF OFF OFF ON

192.168.0.2 OFF OFF OFF OFF OFF OFF ON OFF

192.168.0.3 OFF OFF OFF OFF OFF OFF ON ON

192.168.0.4 OFF OFF OFF OFF OFF ON OFF OFF

192.168.0.5 OFF OFF OFF OFF OFF ON OFF ON

192.168.0.6 OFF OFF OFF OFF OFF ON ON OFF

. . . . .

192.168.0.252 ON ON ON ON ON ON OFF OFF

192.168.0.253 ON ON ON ON ON ON OFF ON

Switch Value = 1 – 254

The first three values of the

IP address are fixed at

192.168.0 and the dip switch

value represents the binary

value of the last digit of the IP

address. The subnet mask is

255.255.255.0 and the

default gateway is 0.0.0.0.

192.168.0.254 ON ON ON ON ON ON ON OFF

________________________________________________________________________________________________________________

12-20-2002 Figure Sheet 1-853-A Page 4

SBPC-21-EN/IP Network Status

The SBPC-21-EN/IP network status is determined by interpretation of the external LED status as

described in the table below.

Figure 1-4: SBPC-21-EN/IP LED Indicators

Table 1-1

LINK LED

LED State Meaning

Off Ethernet network not detected.

Solid Green The SBPC-21-EN/IP is connected to an Ethernet network.

MODULE STATUS

LED State Meaning

Off No power.

Solid Green The Ethernet module is operating properly.

Flashing Green The Ethernet module has not been initialized.

Flashing Red A minor recoverable fault has been detected.

Solid Red An internal error has been detected.

Flashing Green / Red Self-test in progress.

NETWORK STATUS

LED State Meaning

Off No power or no IP address has been assigned.

Solid Green At least one Ethernet/IP connection is established.

Flashing Green No Ethernet/IP connections are established.

Flashing Red

One or more of the connections in which this module is the target has timed

out. This state is only left if all timed out connections are reestablished or if the

module is reset.

Solid Red Duplicate IP address detected.

Flashing Green / Red Self-test in progress.

ACTIVITY LED

LED State Meaning

N/A The ACTIVITY LED flashes green when a packet is received or transmitted.
