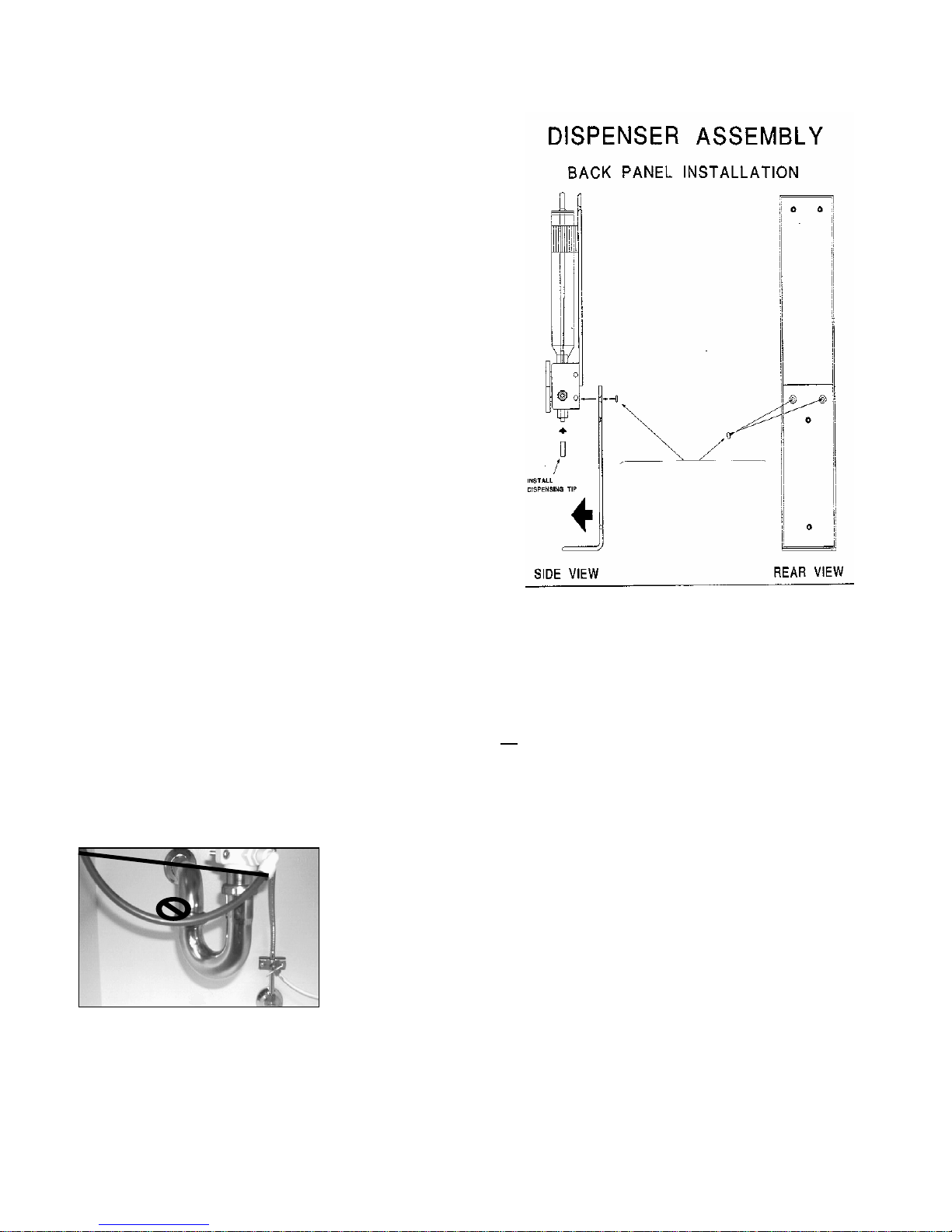

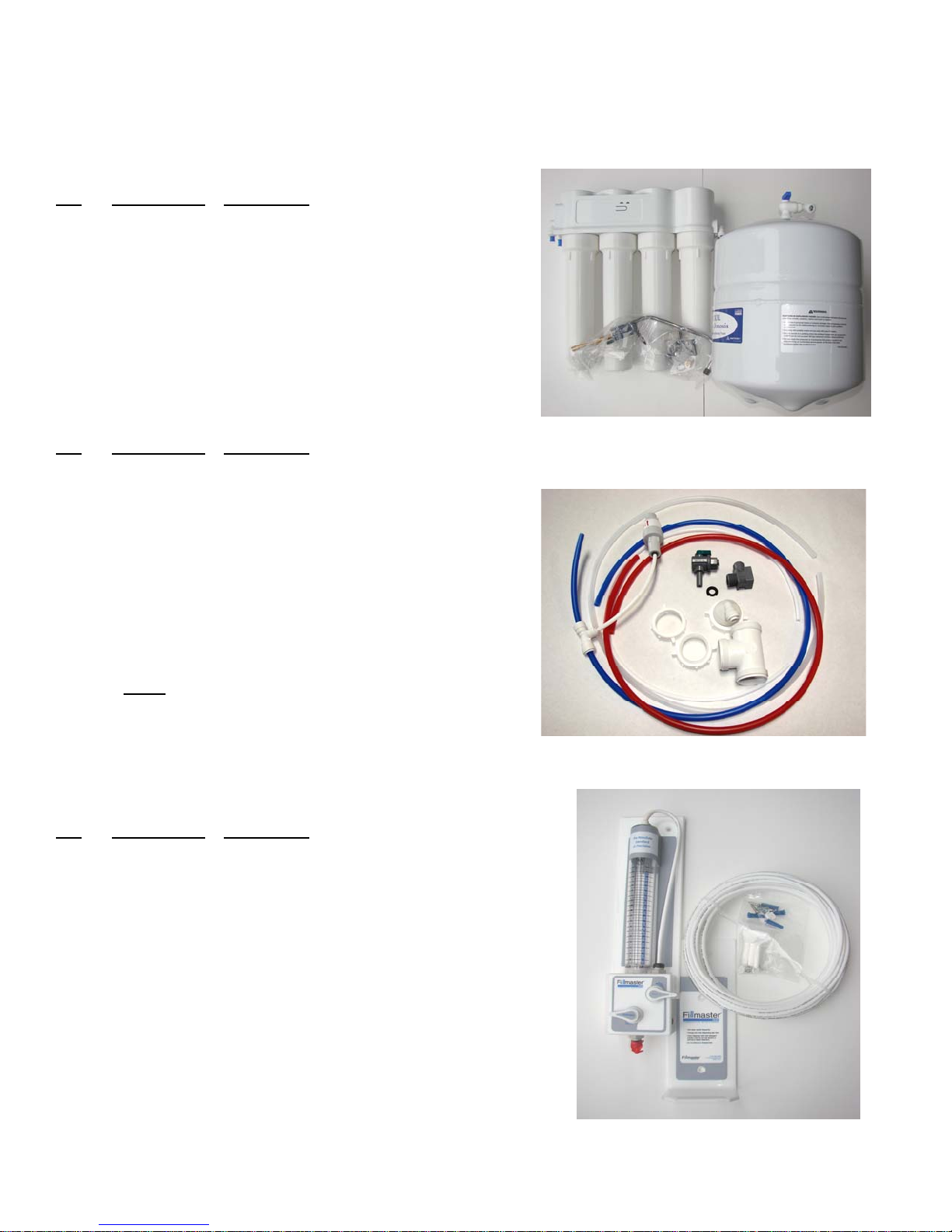

Installing the FillmasterFMD 2600 Dispenser

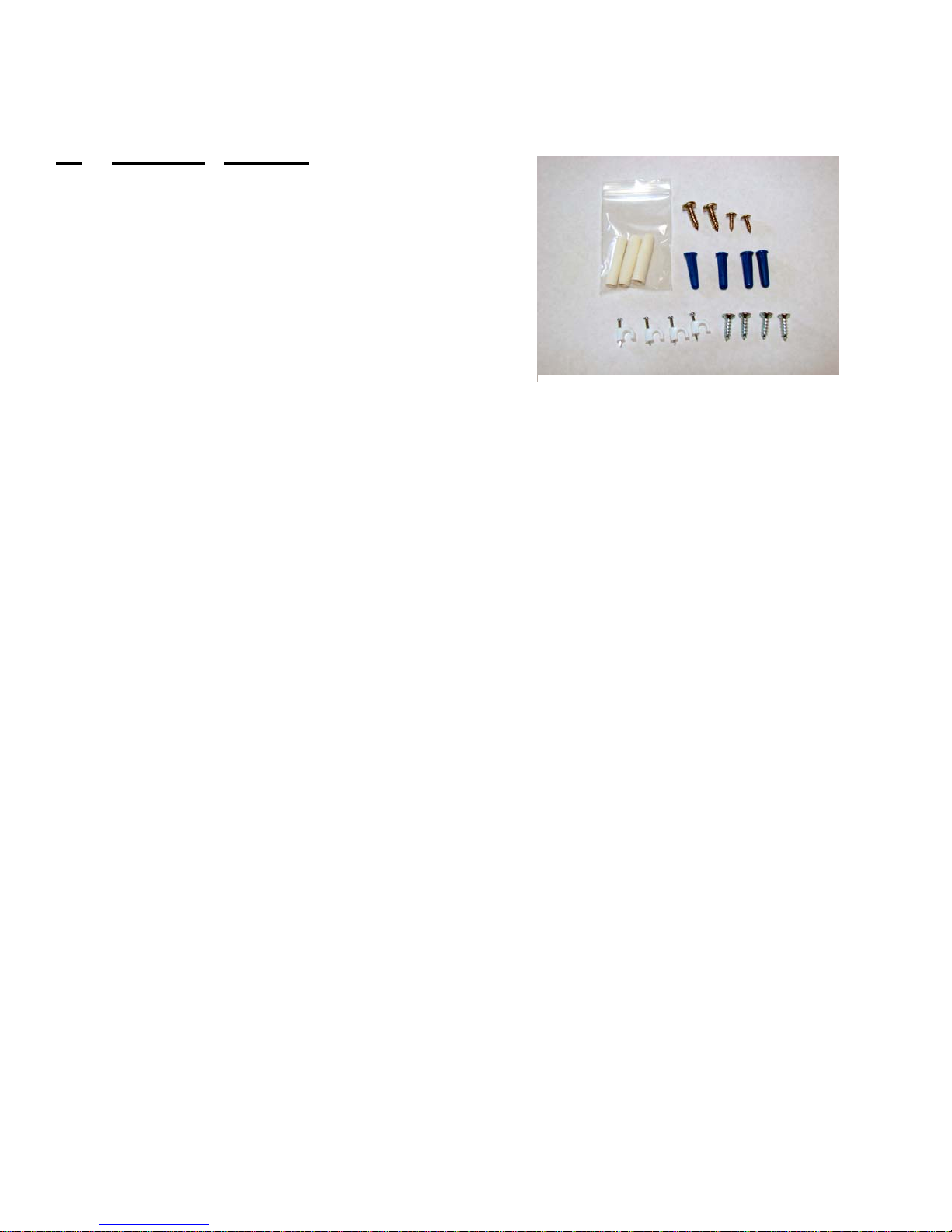

1. Assemble the FillmasterDispenser by joining the lower and
upper part of the dispenser together with the two
#10 x ½” FH metal screws.
2. Ask the pharmacist where he or she would like the
dispenser mounted.
3. Mount the dispenser on the most convenient flat vertical
surface using the four #10 x ¾” FH metal screws. Average
height is 66” from the floor to the top of the dispenser.
If you need to use wall anchors (drywall or stucco), drill a ¼”
hole to accommodate the wall anchors.
4. Install one of the three dispensing tips on the white ¼” tube
on the bottom side of the control box.
5. Attach the 50’, ¼” white tubing into the elbow on the side of
the dispenser.
6. Run the white tubing from the dispenser to the filtration unit.
Trim for proper length.
Note: Dispensing tips should be sanitized and/or changed
frequently, to eliminate cross contamination. To sanitize
tips, soak in a mild bleach solution and rinse.
IMPORTANT: Be careful not to force or overturn the dispenser valves. Doing so may strip the handles with the valve
stuck in an open or closed position.
Final Tubing Connections
Finish making system connections as indicated below. (Read all steps 1-5) For a look at the completed Fillmaster®
System refer to the Inter-Connect Diagram on page 9. For all connections, make sure to trim any excess tubing to
eliminate slack and improve flow rate. Be sure all tubes are cut square and straight. Sharp points or scratches on the
tube will cause leaking. Avoid sharp changes in direction when routing the tubing. Sharp turns cause the tubing to flex
and deform which reduces the flow rate. The tubes and appropriate fittings are color coded for convenience.

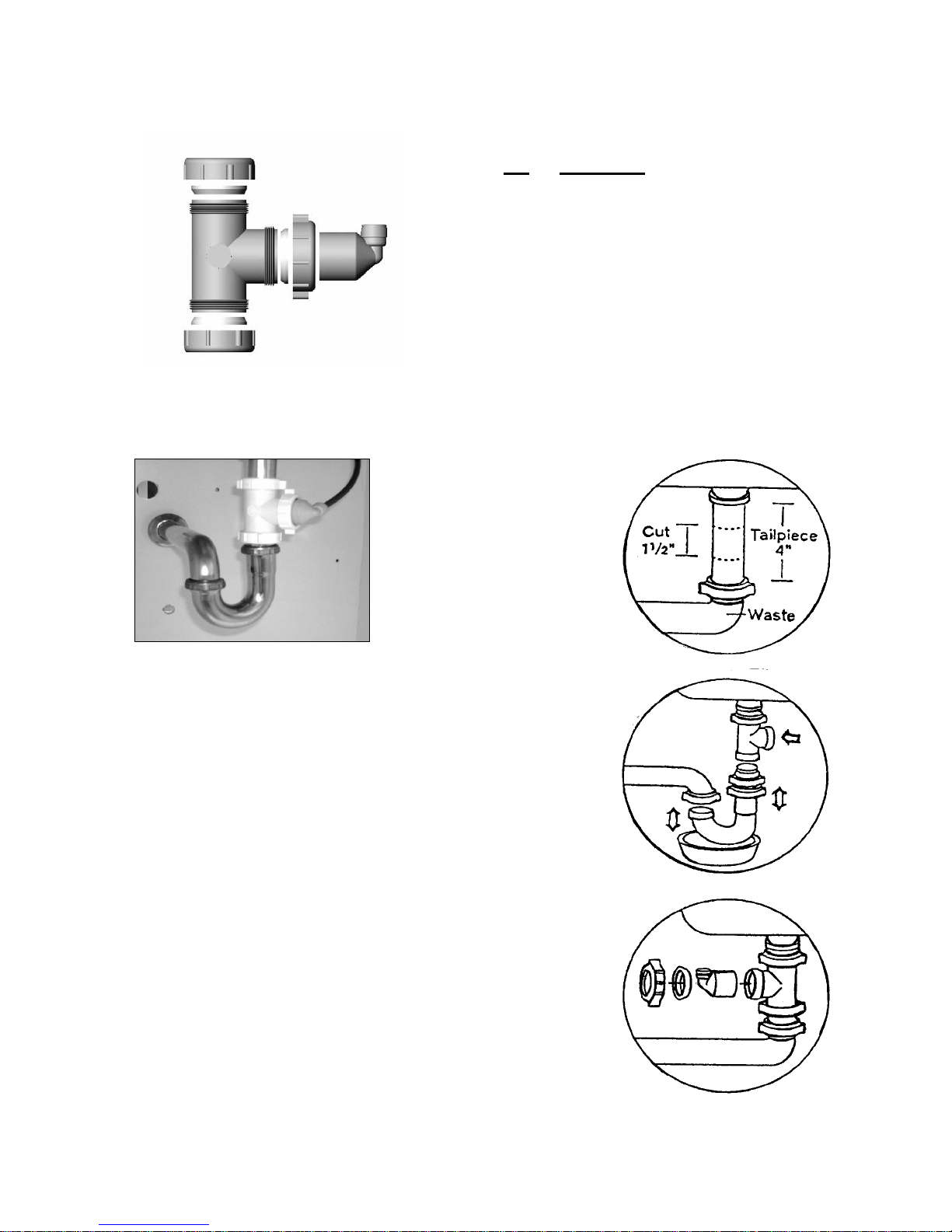

1. Connect the large 3/8” red tube from the faucet barb to the DLA-12 Drain
Line Adapter. The tube must be as straight as possible so the water will
travel “Downhill” to the drain. IMPORTANT: Any sag or slack in the
drain line will cause water to back up and leak from the air gap on the
back of the faucet.

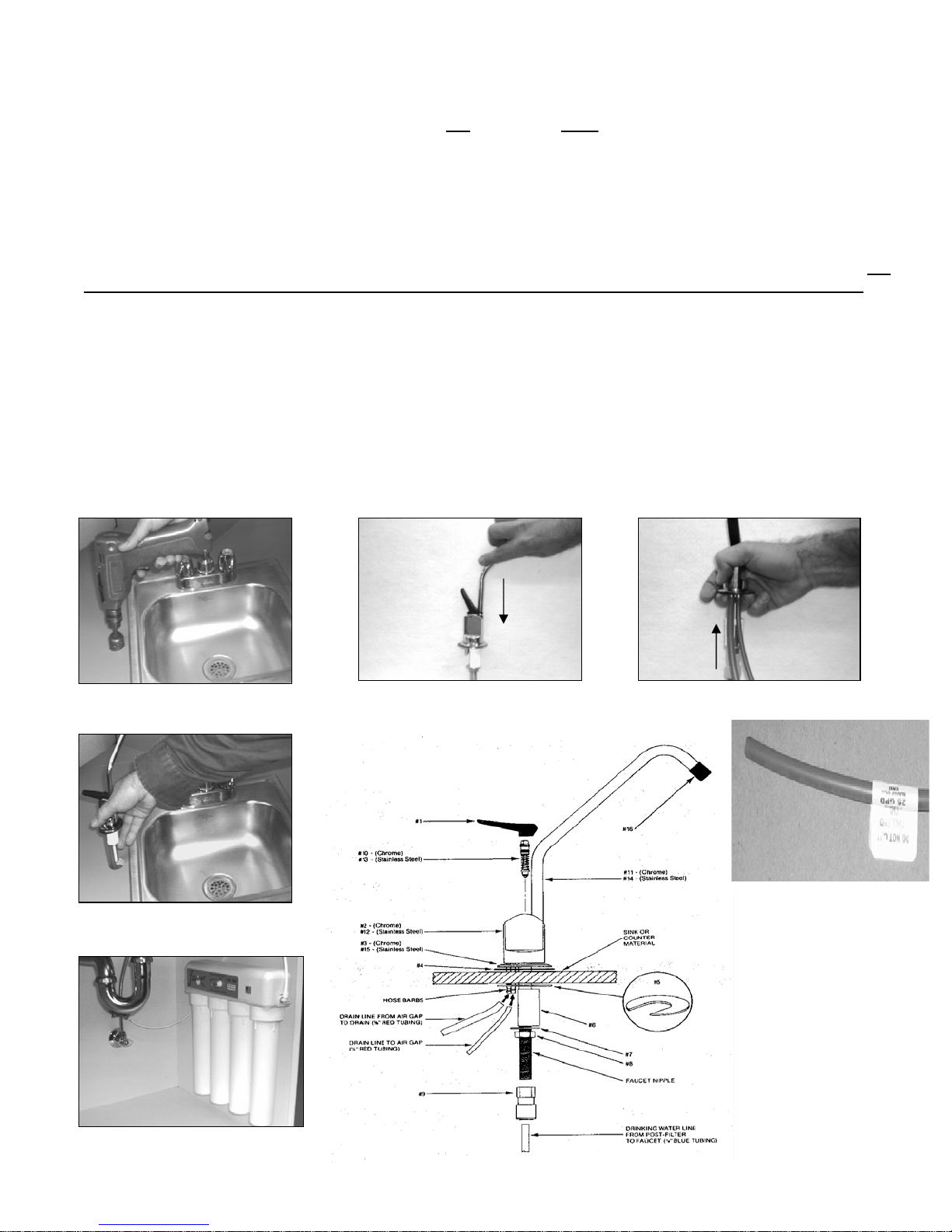

2. Connect the blue 3/8” tube from the faucet stem to the blue connector
on the back of the FillmasterFiltration Unit.
3. Connect the 1/4” white tube from cold water line to the right side of the filtration unit.
4. Connect the 3/8” clear tube from left side of filtration unit to the water storage tank.
* Make sure the drain line is straight*
