HP-2 Wall Wash Arm Mount Installation Instructions
CAUTION: All power connections to be installed to local/national codes by a Certified Electrician.

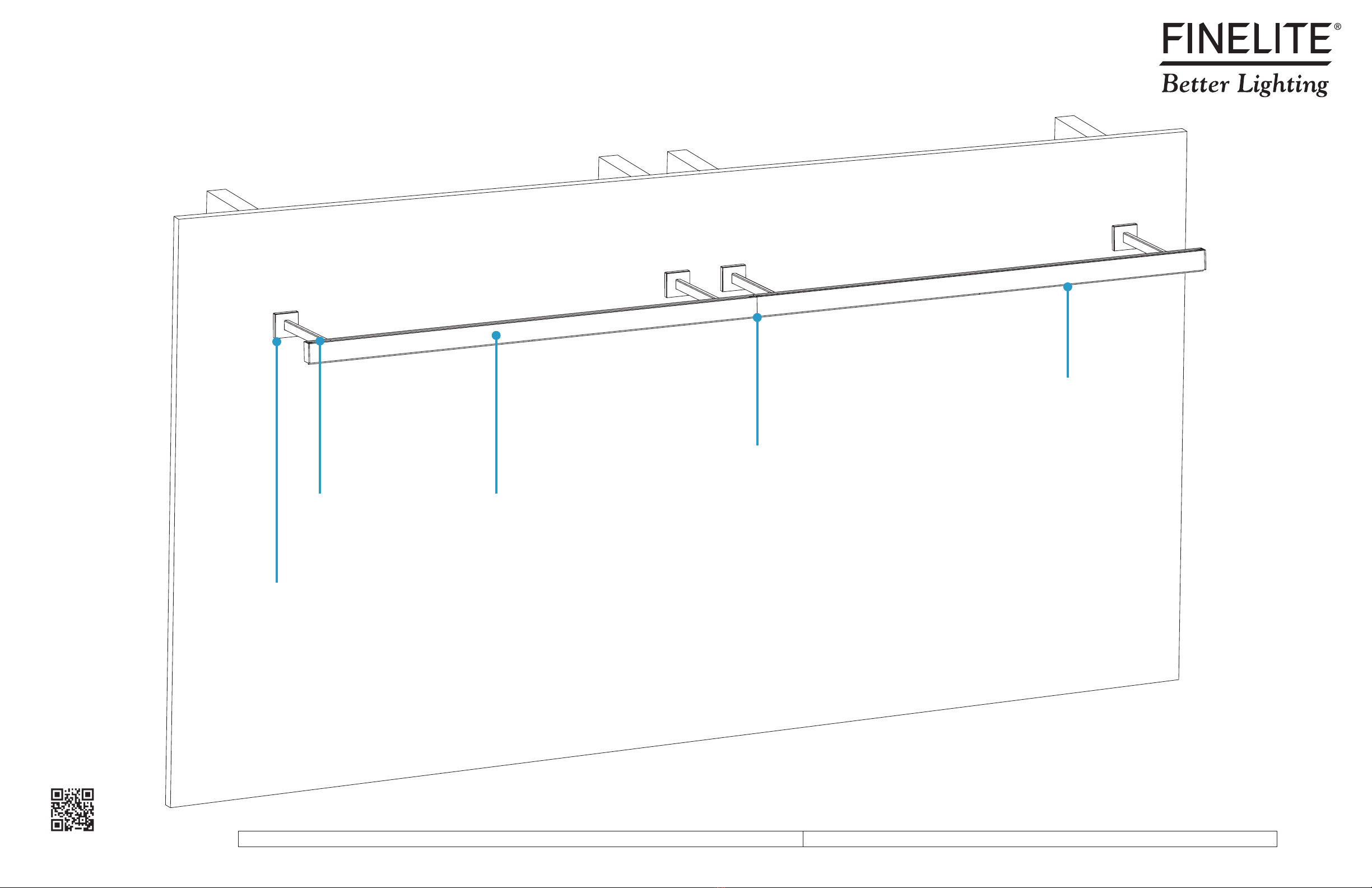

Overview
This is a hypothetical build to show the capabilities of this luminaire family and mount type. Your build may vary.
0-10V Dimming
Helpful Videos
Step 1
Mounting Locations
Page 2
Stud
Wall
Step 4
Joining Luminaires
Pages 5-6
Step 5
Luminaire Closure
Page 7
Note: Starter/Independents only require 2 arm brackets up to 12-feet.
Step 3
Hang Luminaire and
Wire Connections
Page 4
Step 2
Assemble Arm to
Housing Brackets
Page 3
Patent Pending
Finelite, Inc. • 30500 Whipple Road • Union City, CA 94587-1530 • (510) 441-1100 • Fax: (510) 441-1510 • www.finelite.com
2of 8
© 2017 FINELITE, INC. ALL RIGHTS RESERVED. Form 98386. V2 11/17
HP-2 Wall Wash Arm Mount Installation Instructions
CAUTION: All power connections to be installed to local/national codes by a Certified Electrician.
Step 1 – Mounting Locations
Starter/Independents only require 2 arm brackets up to 12-feet.
A. Starter/Independent Mounting Locations
B. Joiner/Ender Mounting Locations
Endcap Endcap
Point A
*Luminaire length not including endcap.
Luminaire*
Length
Junction Box
Feed Location
4-1/2"
1-1/8"
1/4"1/4"
6"6"
Wall Brackets
Starter
Endcap
Luminaire*
Length
Luminaire*
Length
Junction Box
Feed Location
4-1/2"
1-1/8"
1/4"
1/4"
3/8"
6"6"6"
Starter Joiner/Ender
Point A
6"
Wall Brackets
Position luminaire on wall in desired location. Mark the bottom corner of the luminaire as Point A; DO NOT include endcap. Use Point A to mark feed
location and install junction box. Center of wall brackets is 6" from Point A. Make sure wall brackets have proper structurally secured backing (by others).
Patent Pending
Finelite, Inc. • 30500 Whipple Road • Union City, CA 94587-1530 • (510) 441-1100 • Fax: (510) 441-1510 • www.finelite.com
3of 8
© 2017 FINELITE, INC. ALL RIGHTS RESERVED. Form 98386. V2 11/17
HP-2 Wall Wash Arm Mount Installation Instructions
CAUTION: All power connections to be installed to local/national codes by a Certified Electrician.

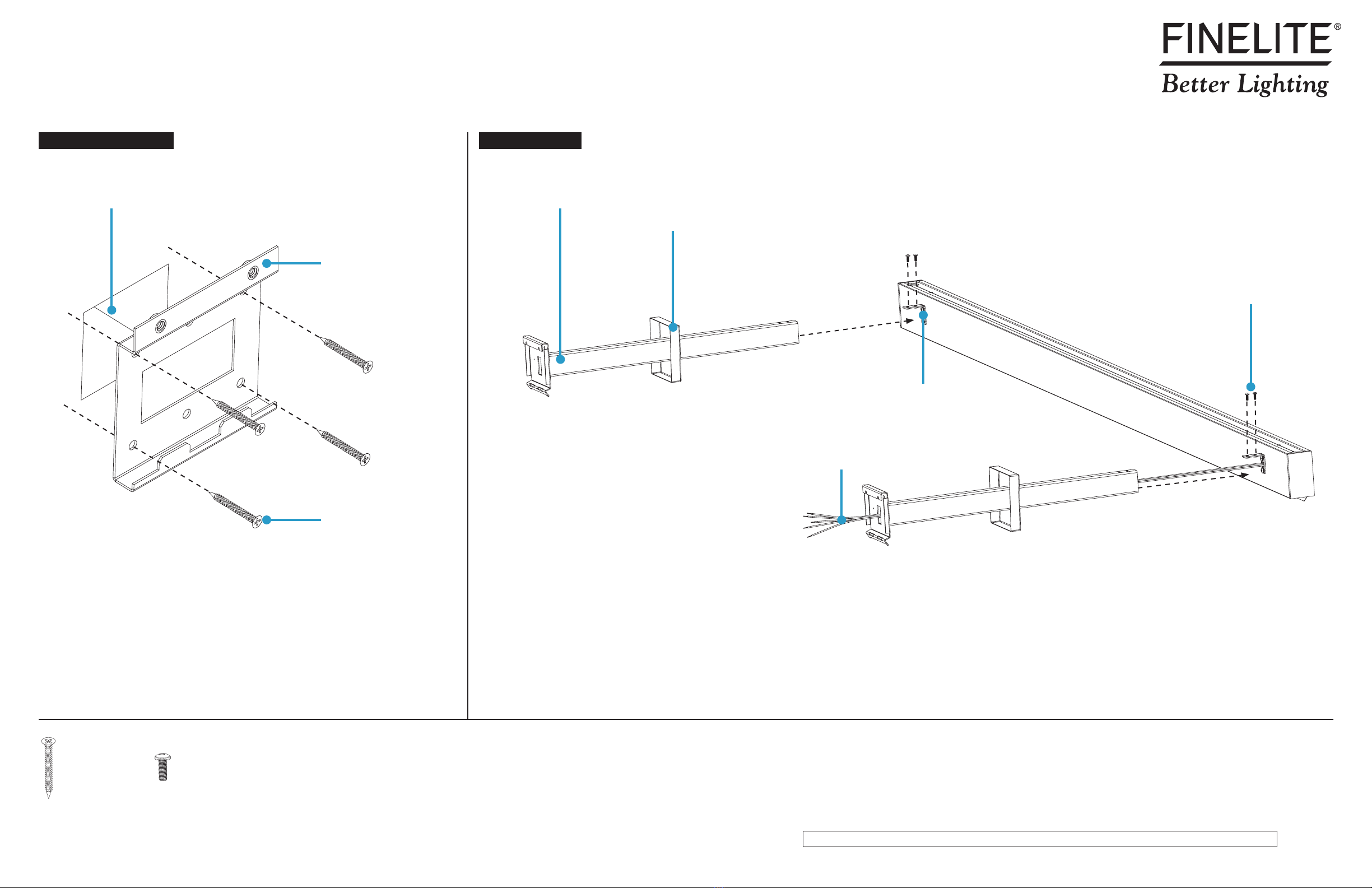

Step 2 - Assemble Arm to Housing Brackets
¹ Preferred power feed location shown.
²Part by others but also available from Finelite upon request.
Screws
(by others)
#10-32 x 5/8" Screws
(by others)
Perform this step for both arms on a flat surface. Slide arm attachment assembly into housing brackets. Ensure that wall bracket cover is away from the ends of the arm.
Pass electrical wire through the channel of the arm assembly. Install #10-32 x 5/8" screws (provided) to secure arm attachment assembly onto housing bracket.
Level wall bracket to ensure proper mounting. Install screws or fasteners (by others)
appropriate for structure type through bracket and into structurally secured blocking.
A. Install Wall Bracket Perspective View
Housing Bracket
Electrical Wire
#10-32 x 5/8"Screws
(4) (provided)
B. Assemble Arm Side View
Arm Assembly
Screws
(by others)
Wall Bracket
J-Box
Wall Bracket Cover
Patent Pending
Finelite, Inc. • 30500 Whipple Road • Union City, CA 94587-1530 • (510) 441-1100 • Fax: (510) 441-1510 • www.finelite.com
4of 8
© 2017 FINELITE, INC. ALL RIGHTS RESERVED. Form 98386. V2 11/17
HP-2 Wall Wash Arm Mount Installation Instructions
CAUTION: All power connections to be installed to local/national codes by a Certified Electrician.

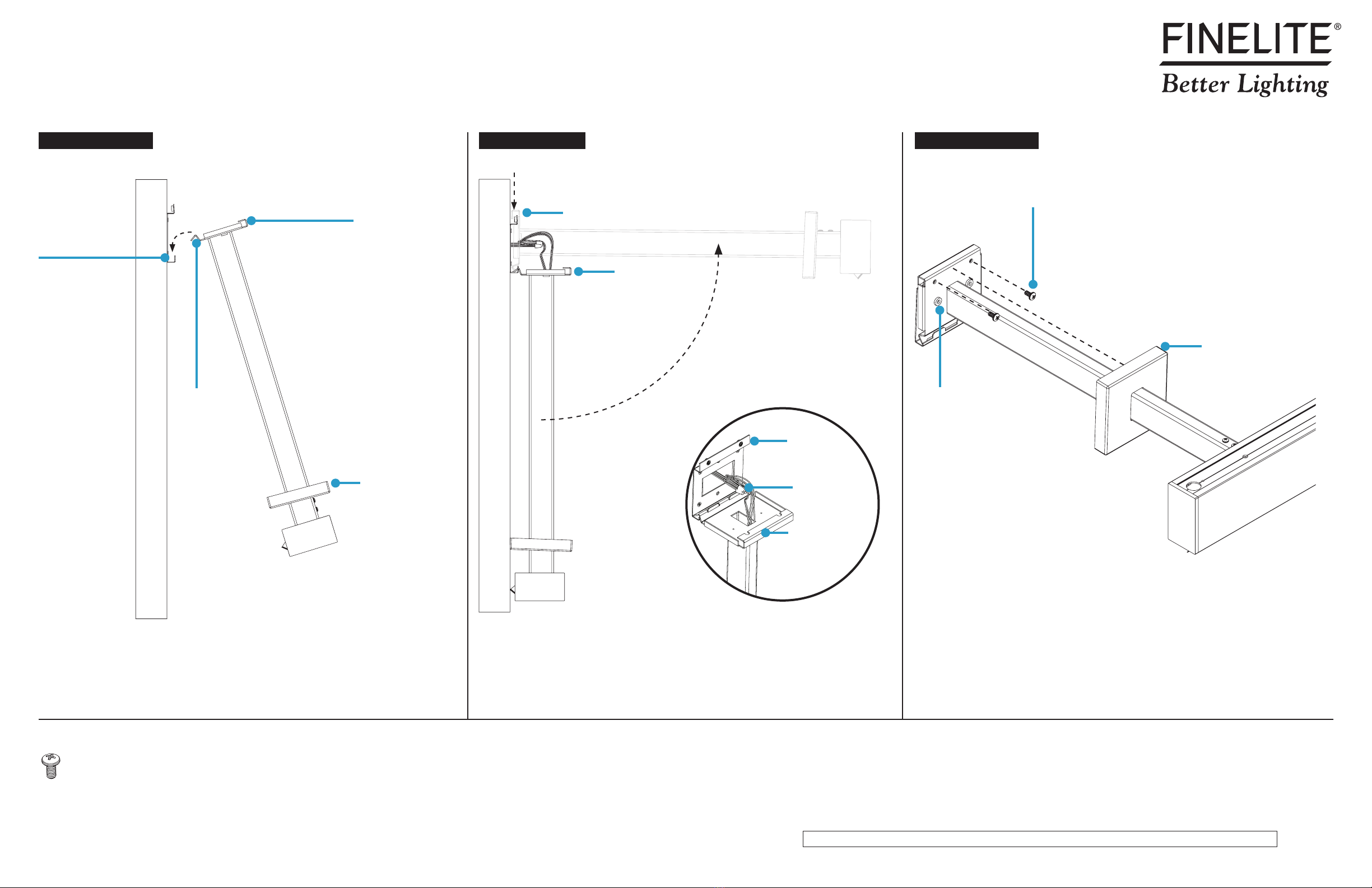

Step 3 - Hang Luminaire and Wire Connections
A. Make electrical connections and push completed wiring into junction box. Install luminaire
onto wall by disengaging the bottom hook from the wall bracket. B. Rotate the arm assembly
perpendicular to the wall. C. Hook the arm bracket onto the wall bracket and engage the top
hook of the arm bracket.
Install #1/4-20 x 5/8" adjustment screws (provided) onto the arm brackets, engaging
the wall brackets. Use screws to level luminaire. Tighten to raise and loosen to lower.
Slide wall bracket cover along arm towards the wall until mounting magnets engage the
wall bracket cover to hold it in place. Turn power on to luminaire.
Let luminaire hang on the wall for wiring by hooking the arm bracket to engage bottom
hook onto the wall bracket.
A. Hang Luminaire Side View C. Secure Luminaire Perspective View
Arm Bracket
Bottom
Hook
Wall Bracket
Wall
#1/4-20 x 5/8"
Adjustment Screws
(provided)
Mounting
Magnets
B.
Top Hook
C. Top Hook
Wall Bracket
Cover
Wall Bracket Cover
Wall
Bracket
Electrical
Connections
A.
Arm Bracket,
Top Hook
B. Connect Wires Side View
#1/4-20 x 5/8"
Adjustment Screws
(provided)
Patent Pending
Finelite, Inc. • 30500 Whipple Road • Union City, CA 94587-1530 • (510) 441-1100 • Fax: (510) 441-1510 • www.finelite.com
5of 8
© 2017 FINELITE, INC. ALL RIGHTS RESERVED. Form 98386. V2 11/17
HP-2 Wall Wash Arm Mount Installation Instructions
CAUTION: All power connections to be installed to local/national codes by a Certified Electrician.

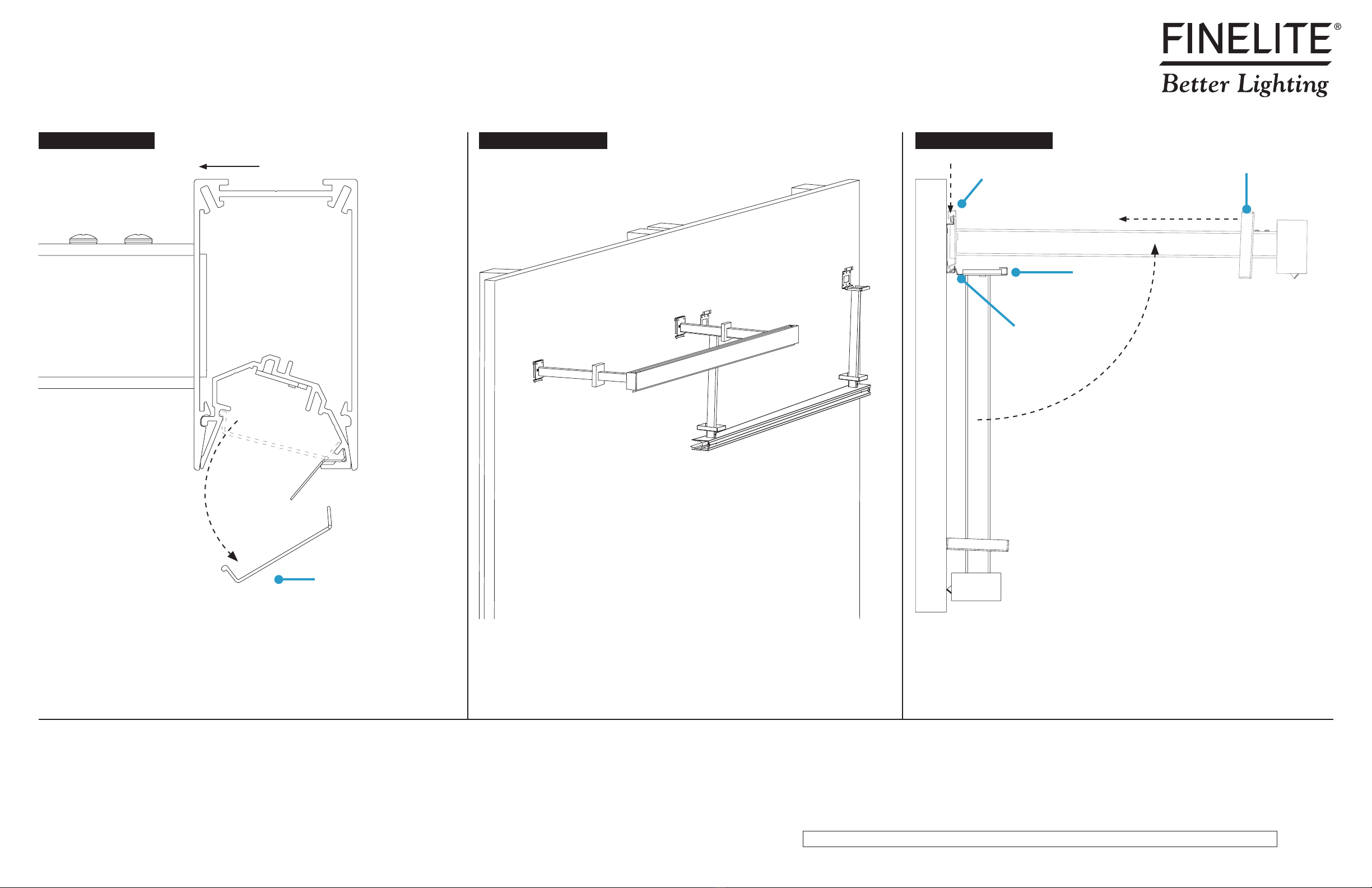

Step 4A - Joining Luminaires
Let joiner/ender luminaire hang on the wall by hooking the arm bracket to engage bottom
hooks onto the wall bracket.
A. Install luminaire onto wall by disengaging the bottom hook from the wall bracket.
B. Rotate the arm assembly perpendicular to the wall. C. Hook the arm bracket onto the wall
bracket, engaging the top hook of the arm bracket.
Remove diffuser from starter and joiner/ender and set aside to prevent it from getting dirty
or damaged. We recommend using a thin, flat tool such as a putty knife.
A. Remove Diffuser Side View B. Hang Joiner/Ender C. Secure Joiner/Ender
Perspective View Side View
Wall
Starter
Joiner/Ender
Diffuser
A. Bottom Hook
B.
Top Hook
Joiner/Ender
C. Top Hook
Wall
Wall Bracket Cover
Patent Pending
Finelite, Inc. • 30500 Whipple Road • Union City, CA 94587-1530 • (510) 441-1100 • Fax: (510) 441-1510 • www.finelite.com
6of 8
© 2017 FINELITE, INC. ALL RIGHTS RESERVED. Form 98386. V2 11/17
HP-2 Wall Wash Arm Mount Installation Instructions
CAUTION: All power connections to be installed to local/national codes by a Certified Electrician.

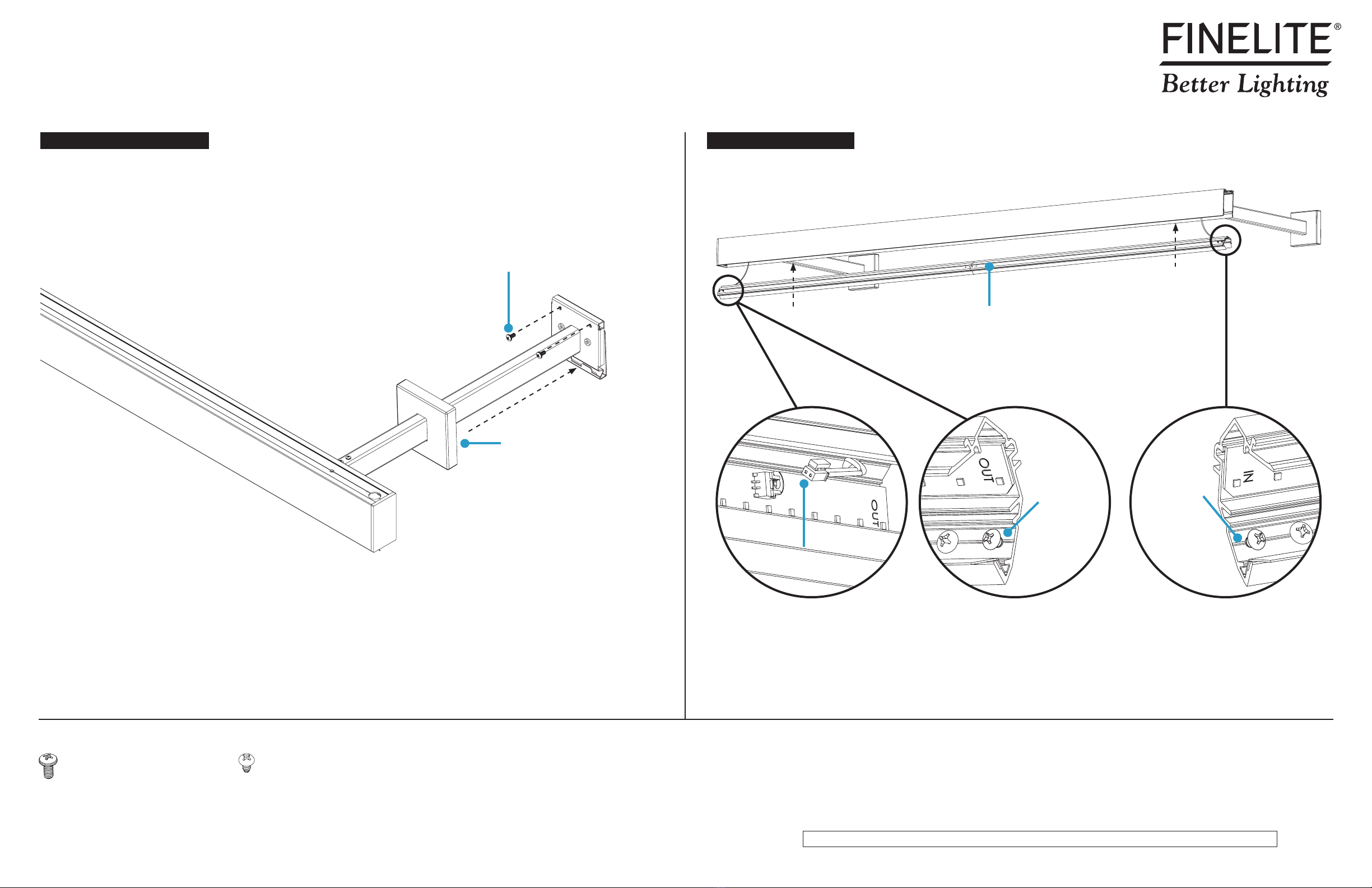

Step 4B - Joining Luminaires
As luminaires are suspended perpendicular to the wall, connect plug-together wiring. Align starter
and joiner/ender luminaires together. Be careful not to damage any wiring.
Secure joint with two yoke brackets using #10-32 x 5/8" screws (provided). CAUTION: when installed correctly, these brackets will pull
luminaires together to make a tight joint. Do not over-tighten.
Unplug LED harness. Remove backplate(s) from starter and joiner/end by loosening (but not removing) only the two shown #8-18 x 1/4"
screws (one per side of the extrusion). There are two ground wire/safety straps that the backplate assemblies will hang from. Only remove the
backplate(s) that is adjacent to the joint.
#10-32 x 5/8" Screws
(provided)
Yoke Bracket
(provided)
#8-18 x 1/4" Screws
(provided)
A. Remove Backplate Right Perspective View B. Wire Connection
C. Install Yoke Brackets
Perspective View
Bottom-Up View
LED Harness
Backplate Assembly
Yoke Brackets
(2) (provided)
Joint Sleeve Joint Sleeve
Starter
Starter
Joiner/Ender
Joiner/Ender
#8-18 x 1/4"
Screw
(provided)
#8-18 x 1/4"
Screw
(provided)
Plug-Together Wiring
#10-32 x 5/8"Screws (2)(provided)
Patent Pending
Finelite, Inc. • 30500 Whipple Road • Union City, CA 94587-1530 • (510) 441-1100 • Fax: (510) 441-1510 • www.finelite.com
7of 8
© 2017 FINELITE, INC. ALL RIGHTS RESERVED. Form 98386. V2 11/17
HP-2 Wall Wash Arm Mount Installation Instructions
CAUTION: All power connections to be installed to local/national codes by a Certified Electrician.

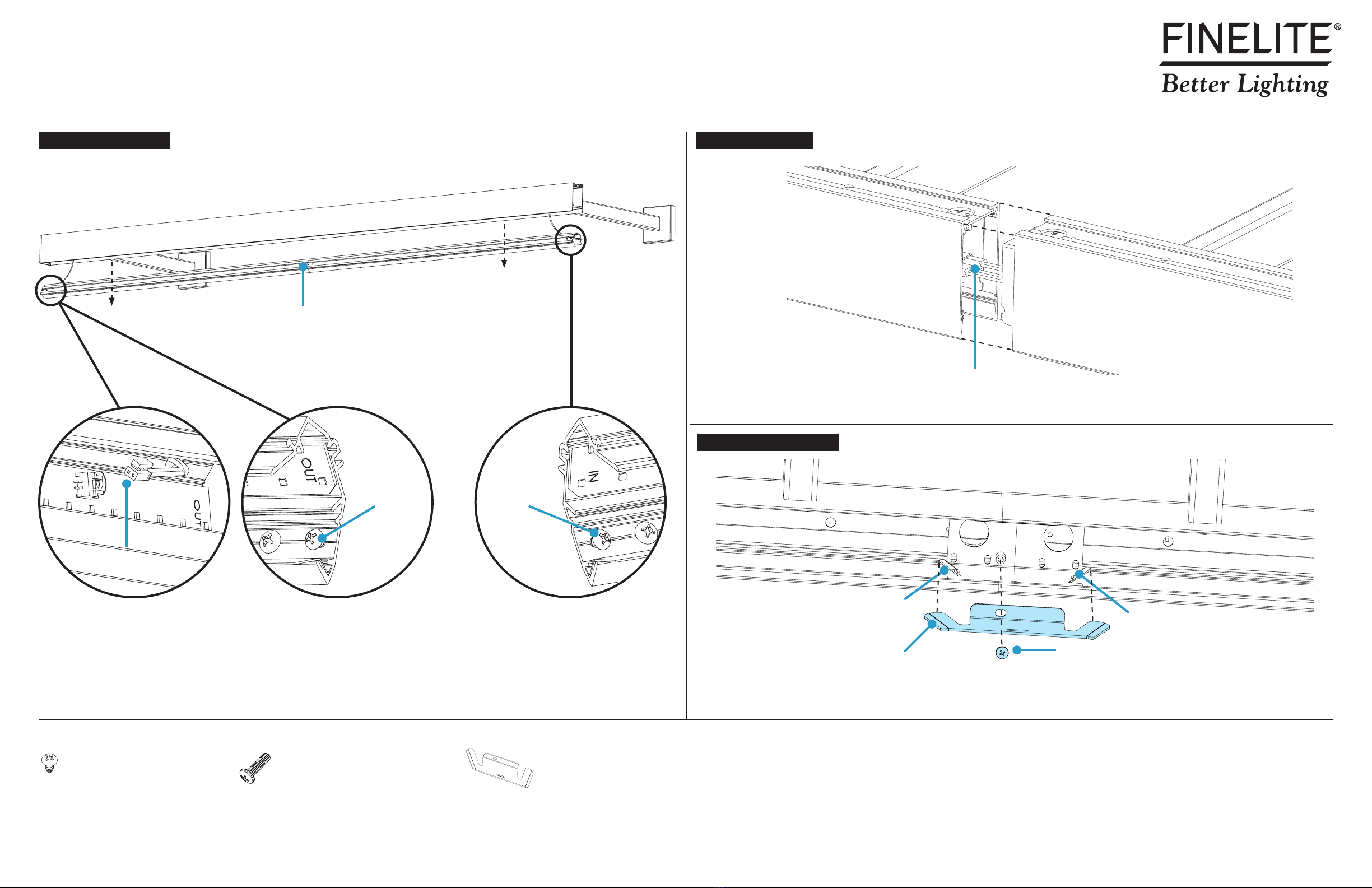

Step 5 - Luminaire Closure
#8-18 x 1/4" Screws
(provided)
Install #1/4-20 x 5/8" adjustment screws (provided) onto the arm brackets, engaging the wall brackets. Use screws to level luminaire.
Tighten to raise and loosen to lower. Slide wall bracket cover along arm towards the wall until mounting magnets engage the wall
bracket cover to hold it in place.
A. Install Adjustment Screws
Wall Bracket Cover
#1/4-20 x 5/8"
Adjustment Screws
(provided)
Right Perspective View
#1/4-20 x 5/8"
Adjustment Screws
(provided)
LED Harness
Backplate Assembly
#8-18 x 1/4"
Screw
(provided)
B. Reinstall Backplate(s) Right Perspective View
Reinstall backplate(s) and secure with #8-18 x 1/4"screws (one per side of the extrusion). Plug in LED harness.
#8-18 x 1/4"
Screw
(provided)
Patent Pending
Finelite, Inc. • 30500 Whipple Road • Union City, CA 94587-1530 • (510) 441-1100 • Fax: (510) 441-1510 • www.finelite.com
8of 8
© 2017 FINELITE, INC. ALL RIGHTS RESERVED. Form 98386. V2 11/17
HP-2 Wall Wash Arm Mount Installation Instructions
CAUTION: All power connections to be installed to local/national codes by a Certified Electrician.
Kick Plate Joiner
(provided)

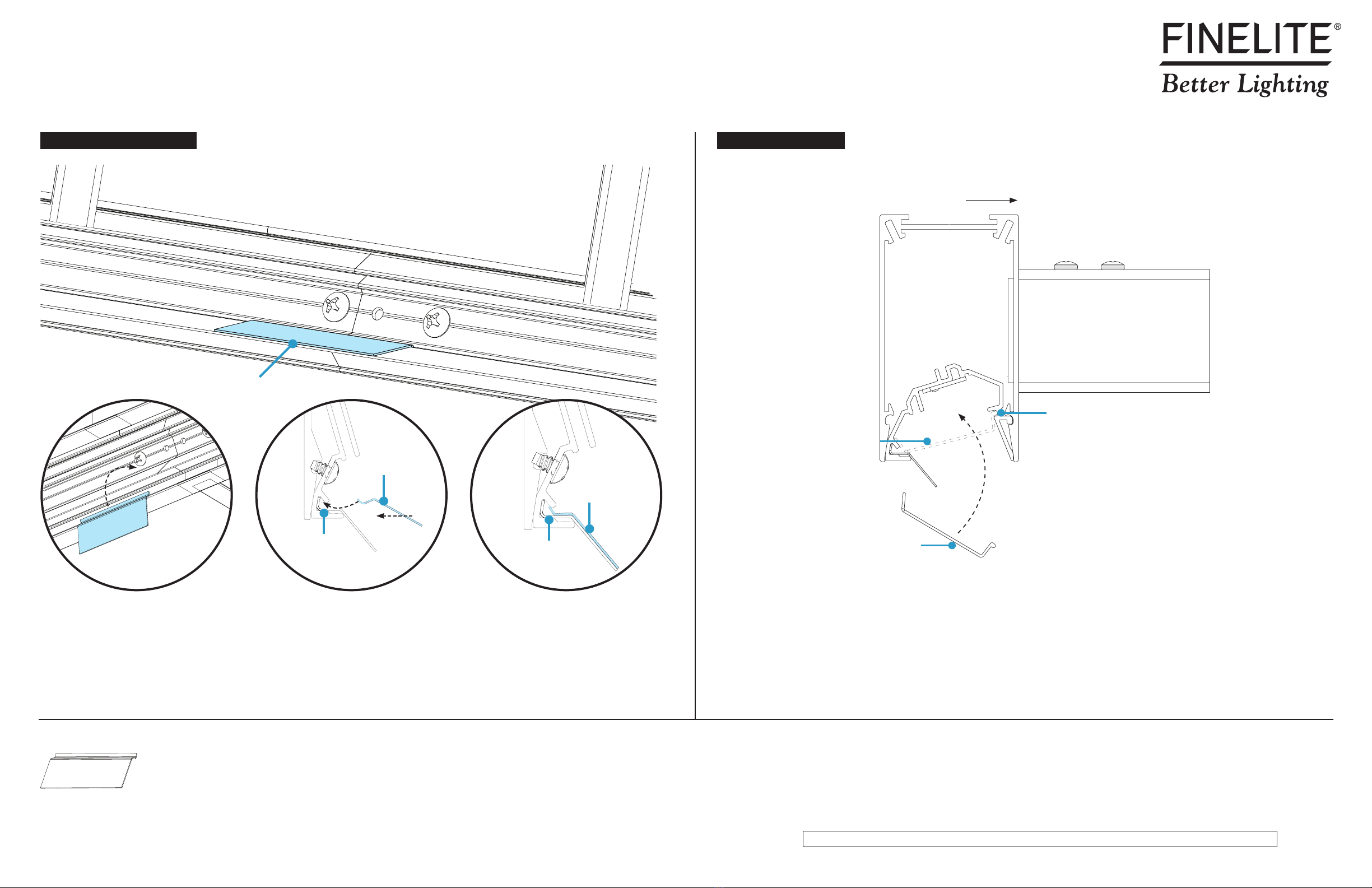

Step 5 - Luminaire Closure
D. Reinstall Diffusers Side View
Reinstall diffuser by aligning it to the backplate as shown. Press the side with a lobe into the luminaire until it snaps.
Turn power on to luminaire.
Lobe
Diffuser
Align Diffuser
Here
Wall
Install kick plate joiner at the joint of the luminaires.
A. Rotate the kick plate joiner
B. Tip it into the back plate over the kick plates.
C. Install Kick Plate Joiner
Starter
Kick Plate Joiner
Joiner/Ender
Bottom-Up View
A. B.
Kick Plate Kick Plate
Kick Plate Joiner
Kick Plate
Joiner Kick Plate
Joiner
