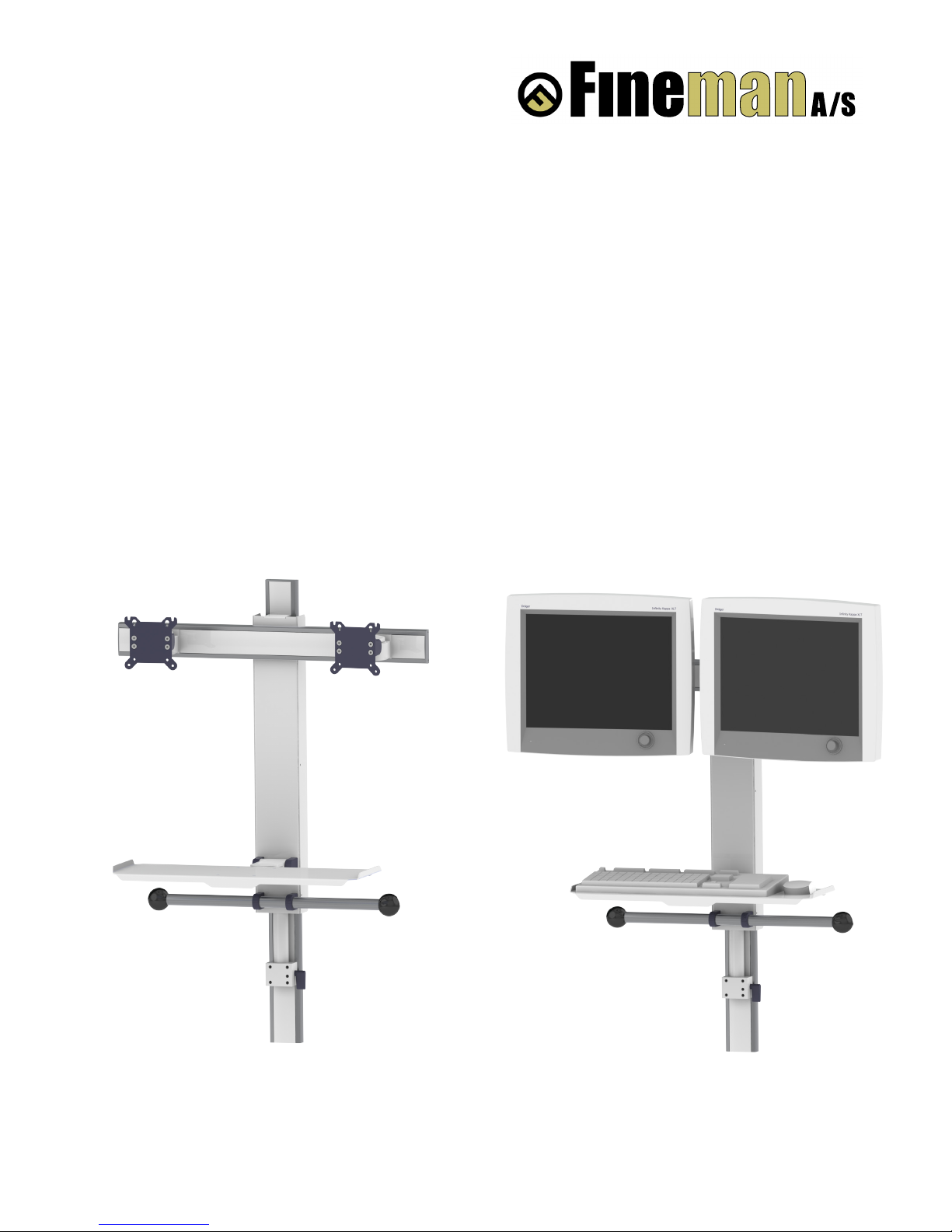

Part numbers can be easily created by following the steps below:
1. Specify the area of application (XX):
65 = ICU/ ER/ OR, PR
93 = anaesthesia machine

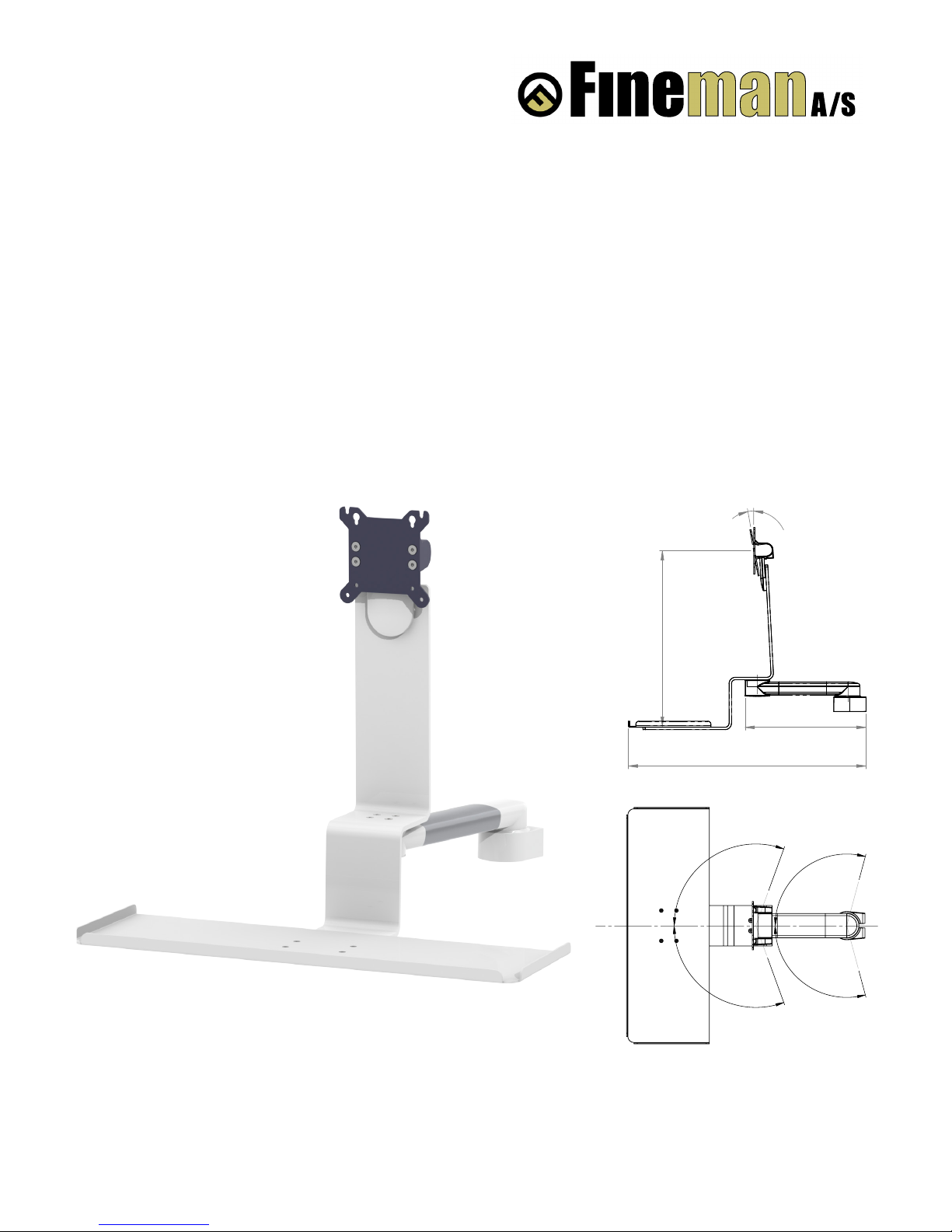

2. Choose the arm version required:
224F/ 230F = pivot arm L 240 mm/ 300 mm
32424F/ 33030F = articulating arm L 240 x 240 mm/ 300 x 300 mm
431F = height adjustable arm
73130F = height adjustable articulating arm
3. Specify where you want to mount the arm and select the fixing (Y):
2 = horizontal rail 10 x 25, 8 x 35, 10 x 30, 10 x 50
2W = horizontal rail Uniflex, Duoflex, Modura (no distance to wall)
2K = horizontal rail Uniflex, Duoflex, Modura (with distance to wall)
4V = vertical wall channel and side adapter anaesthesia machine
4H = horizontal wall channel
1V = universal pole clamp (20 - 40 mm)
1 = fixed pole clamp 25 mm
1F = fixed pole clamp 35 mm
1C = fixed pole clamp 38 mm
8 = lateral adapter to Trumpf ceiling pendant
9 = Heinen & Löwenstein anaestesia machine
10 = Maquet anaesthesia machine
11 = Philips/ Dameca anaesthesia machine
4. Choose the colour requested for decorative parts (C):
gr = RAL 7024 (dark grey)
bl = RAL 5013 (blue)
5. Specify the gas spring depending on the weight of your monitor/ device - only with height adjustable arms (X):
80 = 3 - 8 kg
130 = 9 - 14 kg
175 = 13- 18 kg
220 = 16 - 22 kg
HOW TO CREATE PART NUMBERS
