Oil-Free Vacuum Pump
Manual
Model NO.: VS08
2
Contents
1. Packaging Content．．．．．．．．．．．．．．．．．０２
2. Introduction．．．．．．．．．．．．．．．．．．．．０２
3. Characteristics．．．．．．．．．．．．．．．．．．．０２
4. International Safety Certificates．．．．．．．．．．．．０３
5. Product Specifications．．．．．．．．．．．．．．．．０３
6. Precautions．．．．．．．．．．．．．．．．．．．．０３
7. Unpacking．．．．．．．．．．．．．．．．．．．．０４
8. Operating Procedure．．．．．．．．．．．．．．．．０４
9. Product Diagram．．．．．．．．．．．．．．．．．．０５
10. Troubleshooting．．．．．．．．．．．．．．．．．．０５
11. Warranty．．．．．．．．．．．．．．．．．．．．．０５
1. Packaging
Vacuum Pump 1 set
Voltage □ 110V/60HZ □220V/50HZ
Manual 1 copy
2. Introduction
Thank you for your order. Please follow the manual to operate.
3. Characteristics
Chemical resistant design (except to strong organic solvents)
Shock absorbing motor –low operating noise
Durable and oil free
No air pollution and maintenance free
Built in overheat protection.
3
4. International Safety Certificates
ULSafety Recognition
CE certification
CSA Safety Recognition
5. Product Specifications
Model No.
VS08
Voltage/Frequency
110V/60Hz
220V/50Hz
Power (W)
560
Max Vacuum (mmHg)
670
Max Flow Rate (L/min)
110
90
Horsepower(HP)
3/4
Noise level (dB)
61
Net Weight (kg)
11
Dimension (Lx W x H)
35 x 21 x 26 cm
PS: 1 mmHg ≒0.1333kPa ≒1.333 mbar
6. Precautions
Please read this manual carefully before installing or operating this equipment.
The instrument should not be modified in any way. Any modification will void
the warranty and may pose a safety hazard. We are not responsible for any injury
or damage caused by any non-intended purposes and modifying the instrument
without authorization.
A. Check the voltage specified on the name-plate and ensure it matches the line
voltage in your location.
B. The pump is not completely corrosion-proof. Please do not operate it with
corrosive gases directly.
C. Install the instrument in a clean, dust-free, and well-ventilated area under
40℃.
D. Finetech air filters can prevent large amounts of liquid from flowing into the
pump. If needed, please contact the supplier.
If the liquid comes into the pump, please stop using and contact the distributor
immediately for service.
E. To avoid damaging the pump easily, please vent the pump before starting the
pump.
F. This pump has a thermal protection device that automatically shuts off the
pump when it becomes overheated. Keep pump upright during operation.
G. The temperature on the surface of the pump is very high after or during use.
Please don’t touch the surface to avoid being burned.
4
H. Do not use any lubricants because it may damage the pump.
I. Never spray flammable or toxic materials near the pump.
J. If the supply cord is damaged, please contact the manufacturer or your
service agent for replacement to avoid danger.
7. Unpacking
When unpacking, notice if the pump is in good condition. If not, please contact
your distributor.
8. Operating procedure
A. Press the on/off ○
1 switch to activate the pump after making sure all tubing
are well connected.
B. To set the vacuum strength, adjust the pressure regulator○
3 .
*Warning: When pump is used for water filtration, please ensure the liquid
level of the flask does not exceed the safety level. Failure to comply could
result in serious damage to the pump and will void the warranty. If it occurs,
please contact the distributor immediately for service.

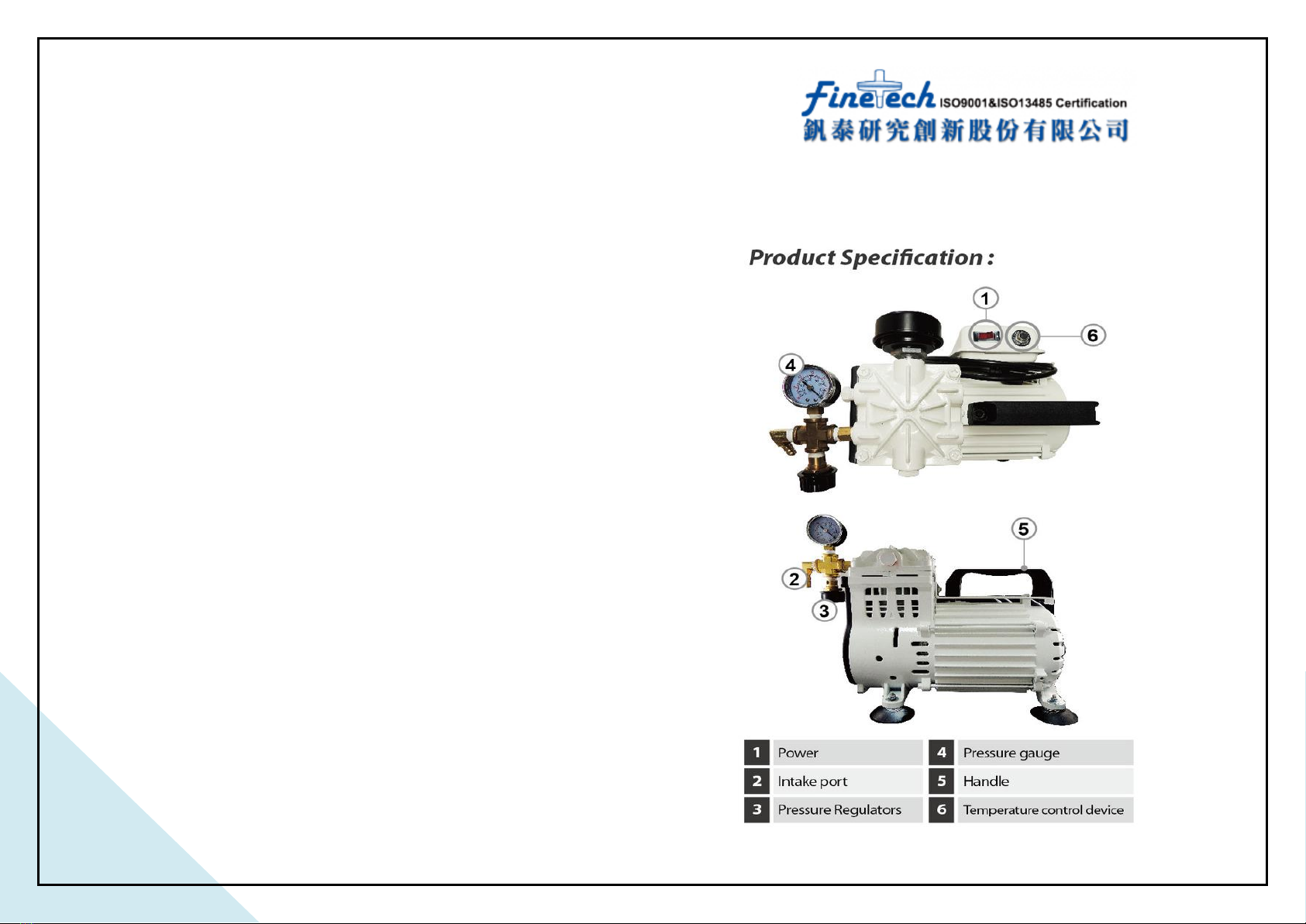

9. Product Diagram
5
10. Troubleshooting
Problem
Remedy
Vacuum Pump cannot
turn on
Check for correct voltage.
Check if the fuse is blown.
Replace with new fuse.
Check the system if it is in a vacuum
state.
Release the pressure and re-activate.
Malfunction of power switch button or
internal connectors are loose.
Contact your distributor for services.
Cannot adjust vacuum
strength
Malfunction of vacuum valve.
Change vacuum valve.
Malfunction of pressure regulator
Replace the pressure regulator knob.
Flow rate too slow
Adjust vacuum degree to suitable
strength.
Confirm all tubes and connectors are
sealed well and contains no break.
11. Warranty
1. Warranty period: 1 year from the purchase date
2. Conditions: We provide repair service free of charge, but such
service will be limited to normal use only. Any damage caused by
misuse by users shall not be covered by the warranty here from
Finetech.
Contact Information：
Finetech Research and Innovation Corp.
Head Office
No.72, Wenshan 9th St., Nantun Dist., Taichung City 408, Taiwan
TEL：886-4-23873526 FAX：886-4-23802098
